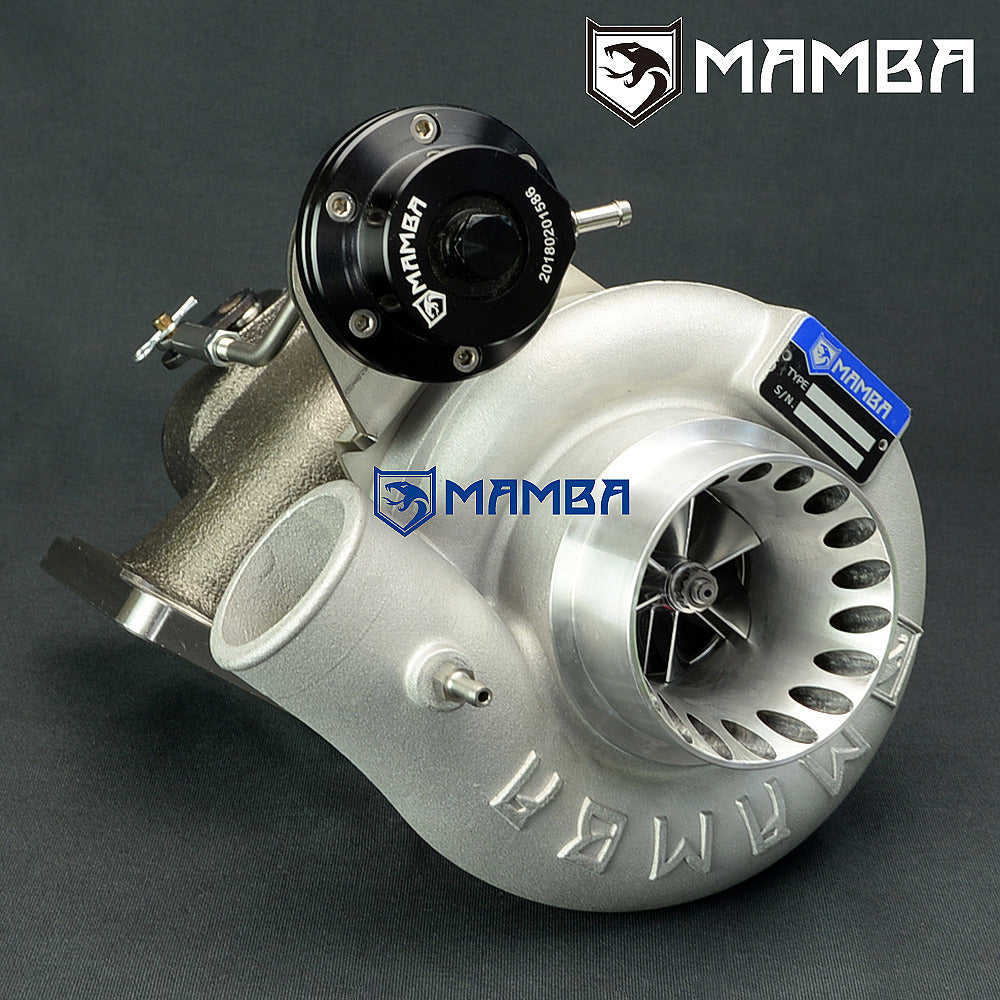

MAMBA 12-6 Billet Oil-Cooled Turbocharger Nissan TD42 Safari Patrol GQ 3” Anti Surge TD05H-16G w/ 6cm T3 V-Band Housing
Brand New In Box

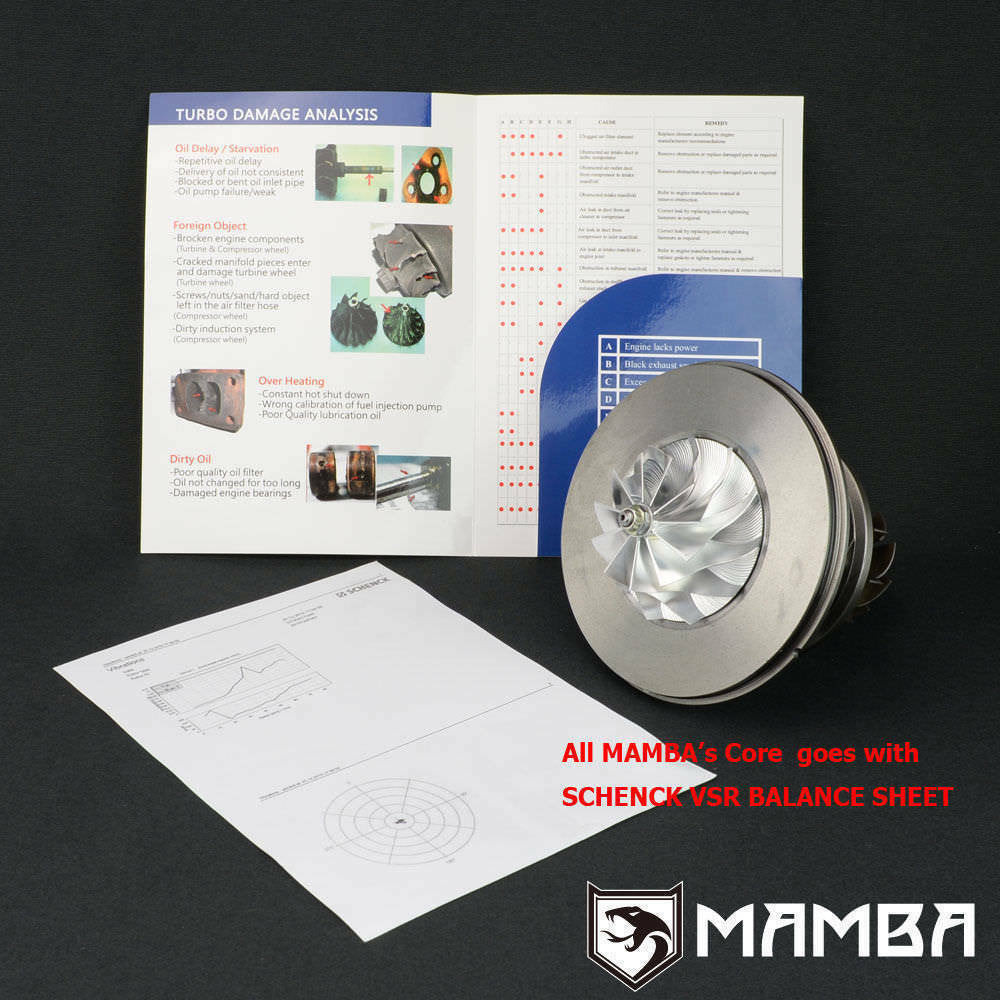

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GQ TD42 Diesel Low Mount
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover.
It needs different oil and water line kit if your engine is GU
Wheel Specs
Compressor Wheel : 48.3 / 68mm (6+6 Blade 16G Billet Wheel)

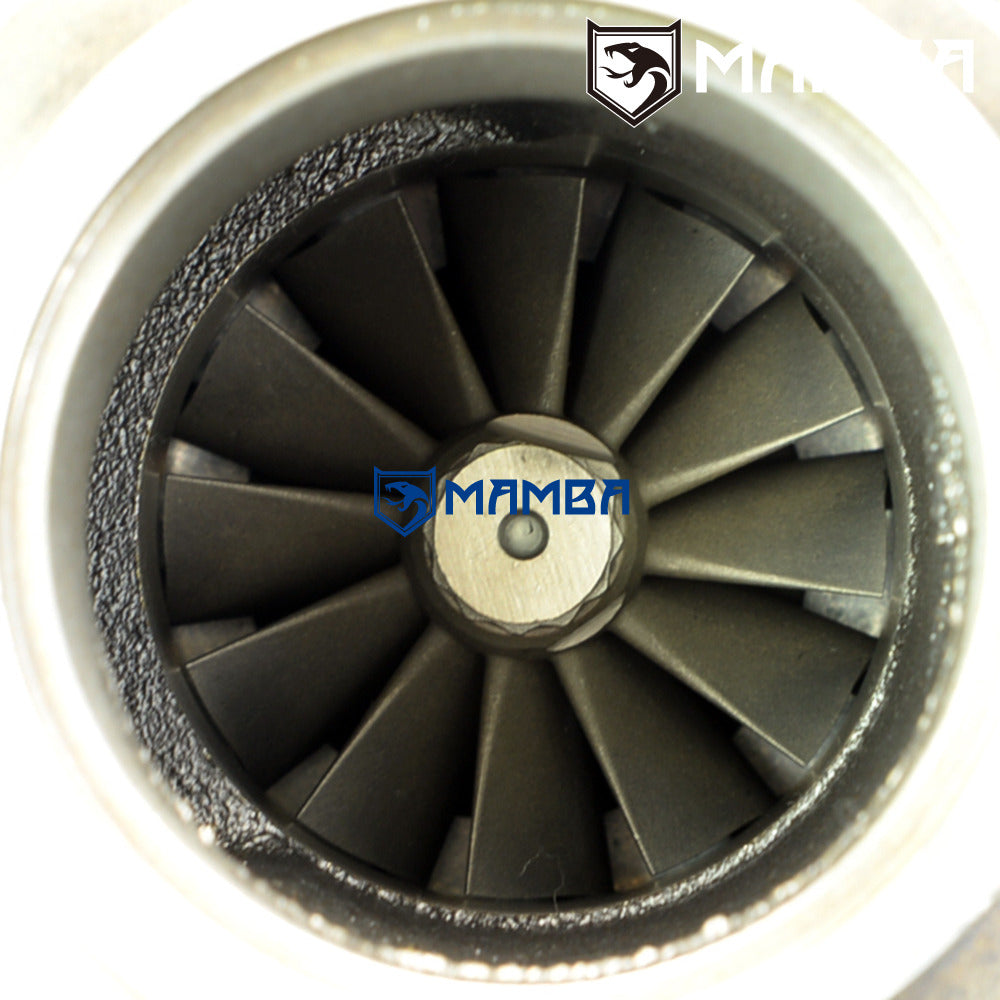

Turbine Wheel : 49.2 / 56.4 mm (12 Blade)

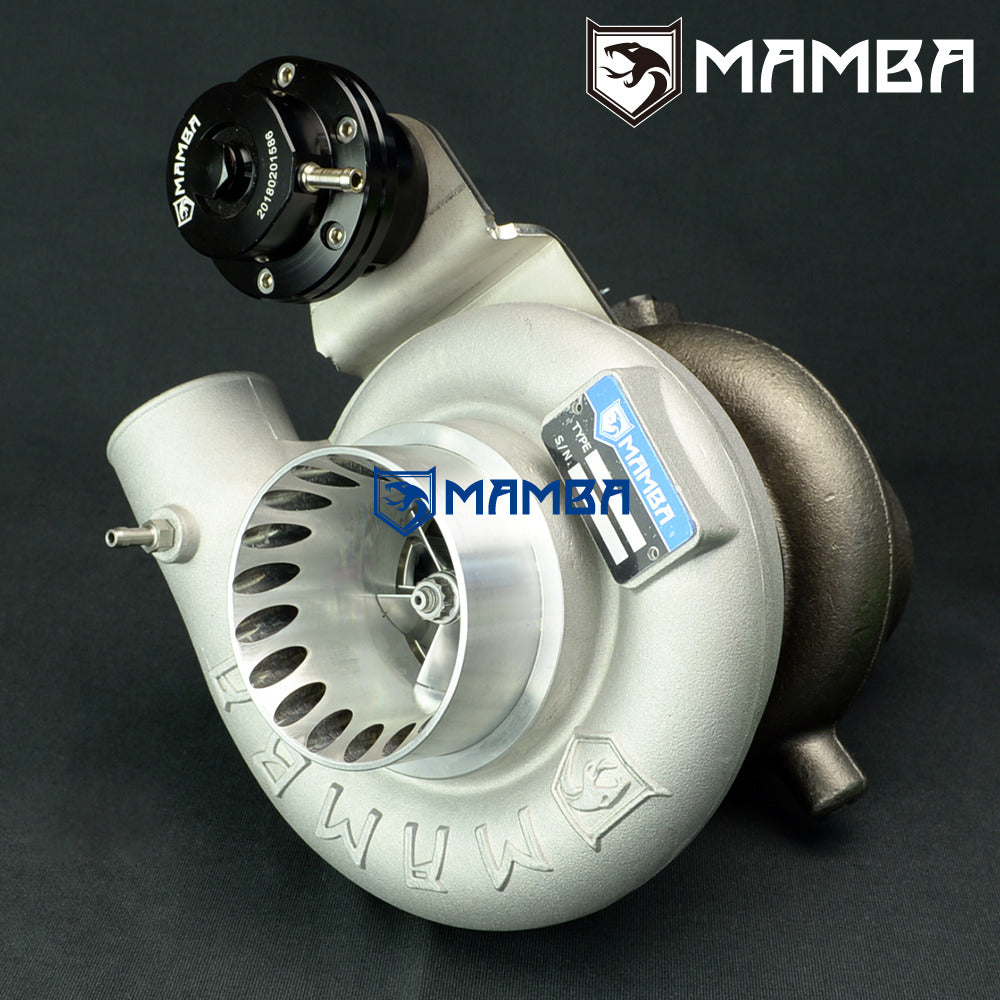

Comp. Housing
Compressor Housing Inlet OD: 3” / 76.2mm
Compressor Housing Outlet OD: 2” / 51.3 mm
Compressor Housing A/R: .60

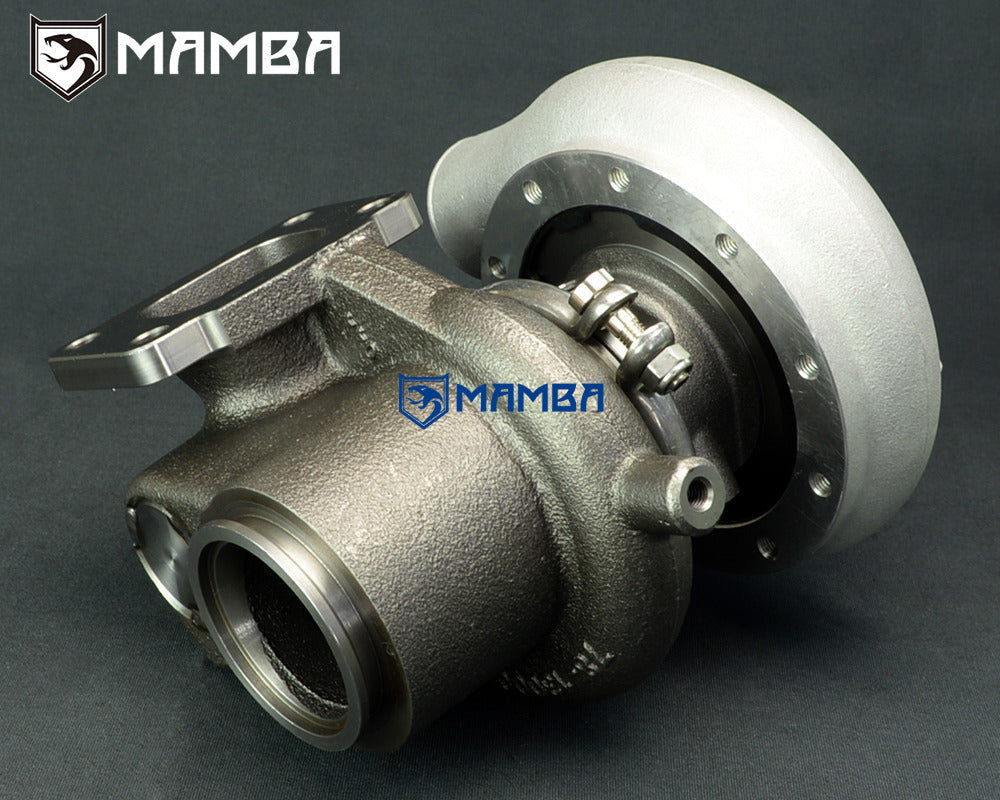

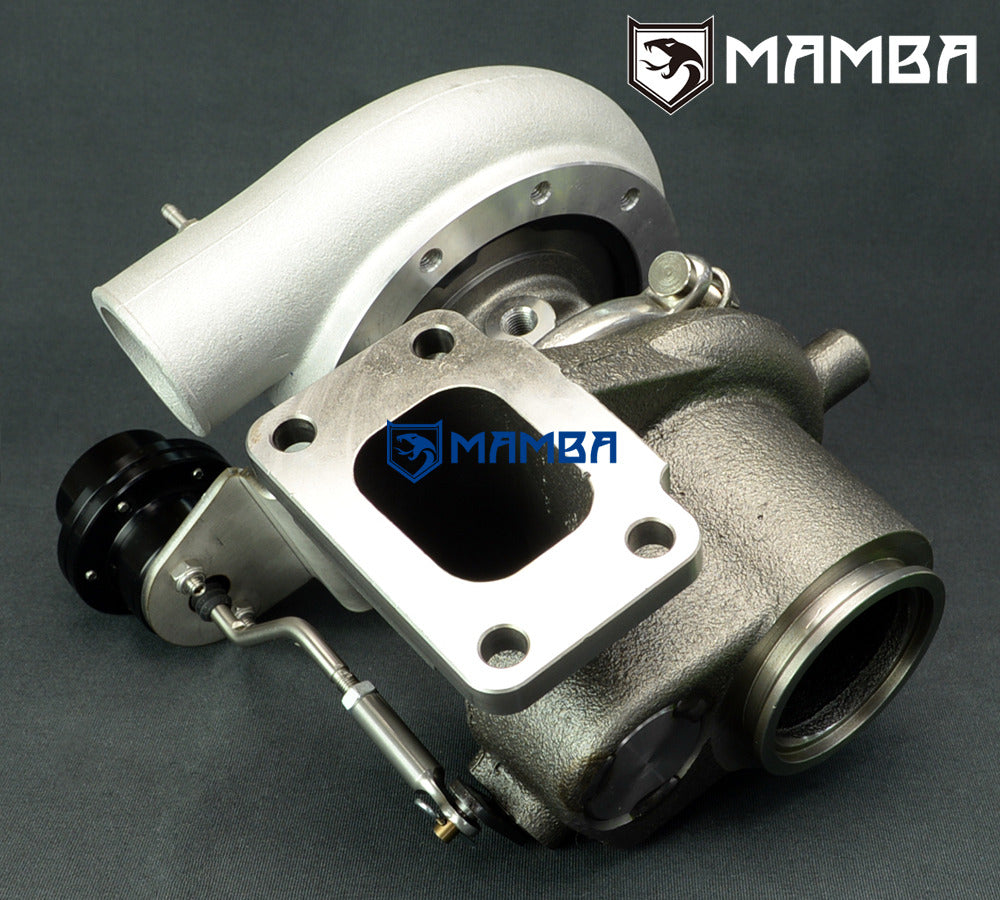

Turbine Housing
6cm

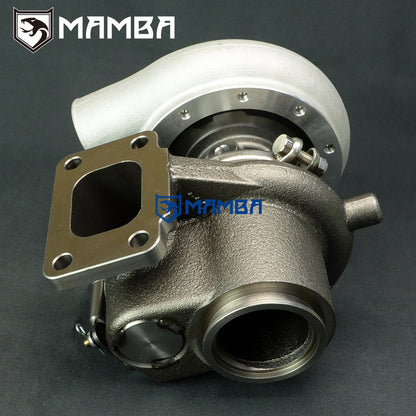

Standard T3 Flange / V-Band
Internal Gate Type

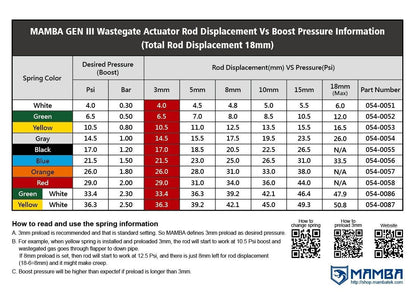

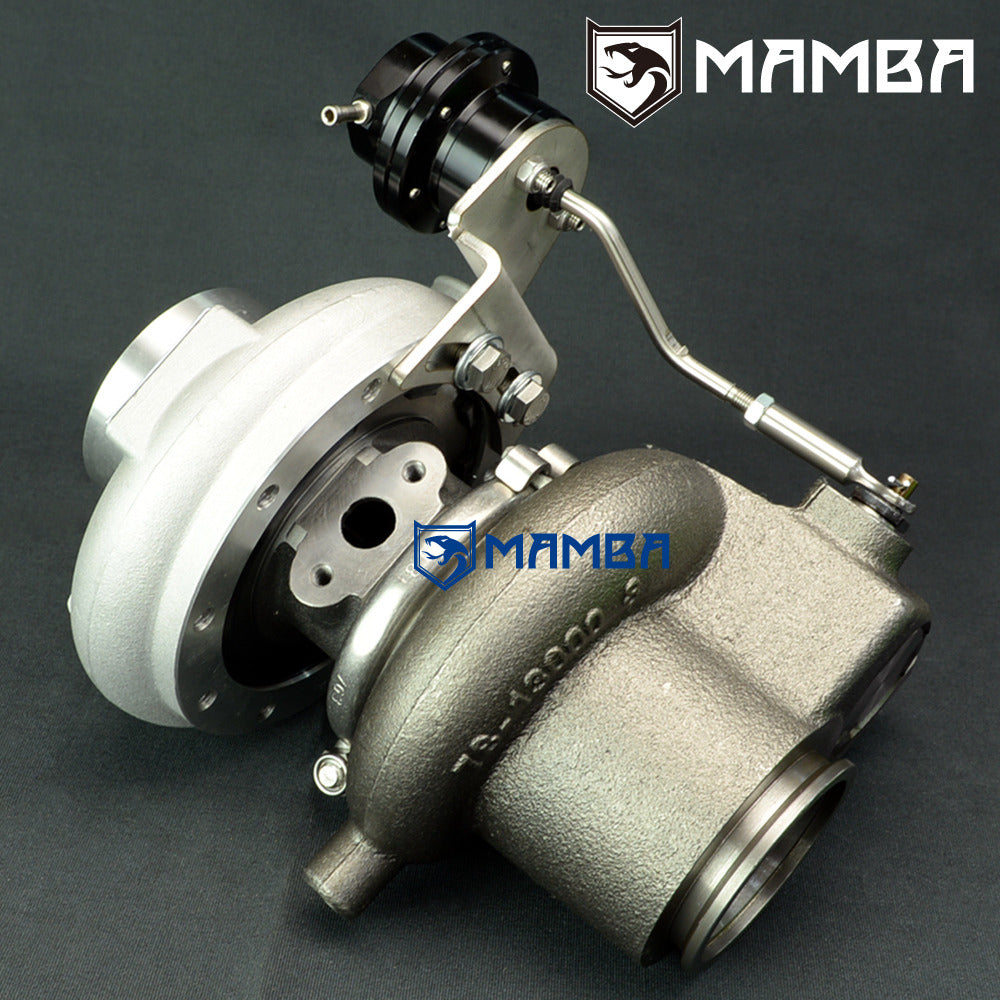

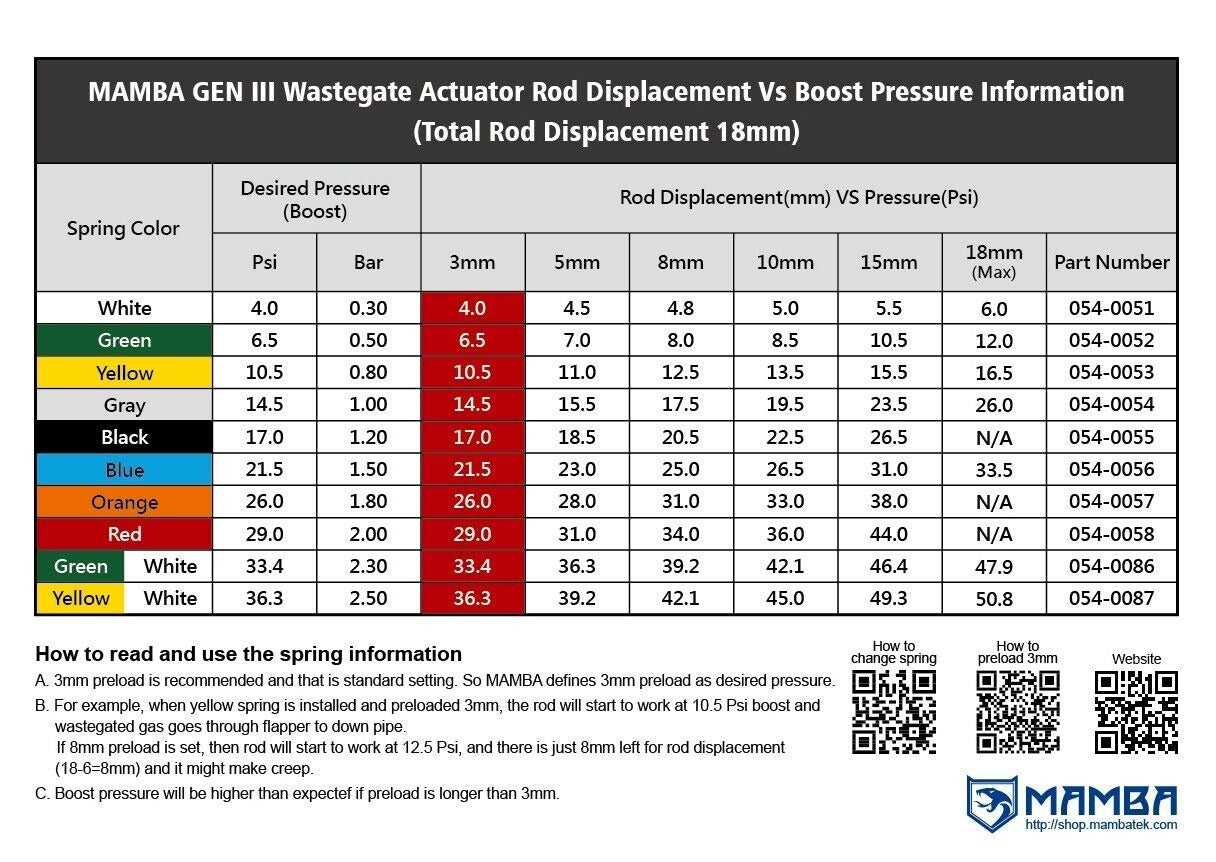

Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil-cooled system

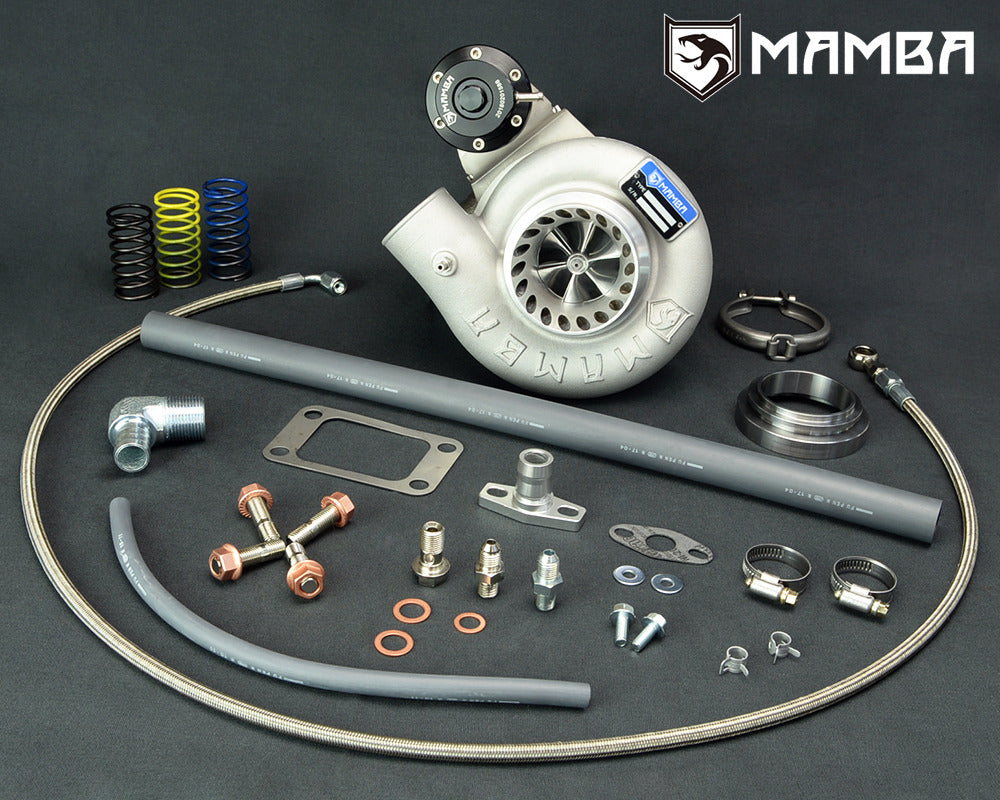

Kit Includes
1 x Oil Feed Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x 3” V-Band Adapter Ring Kit (We can offer 2.5” type if needed)
4 x M10 Stud Kit
Everything shown on picture included
