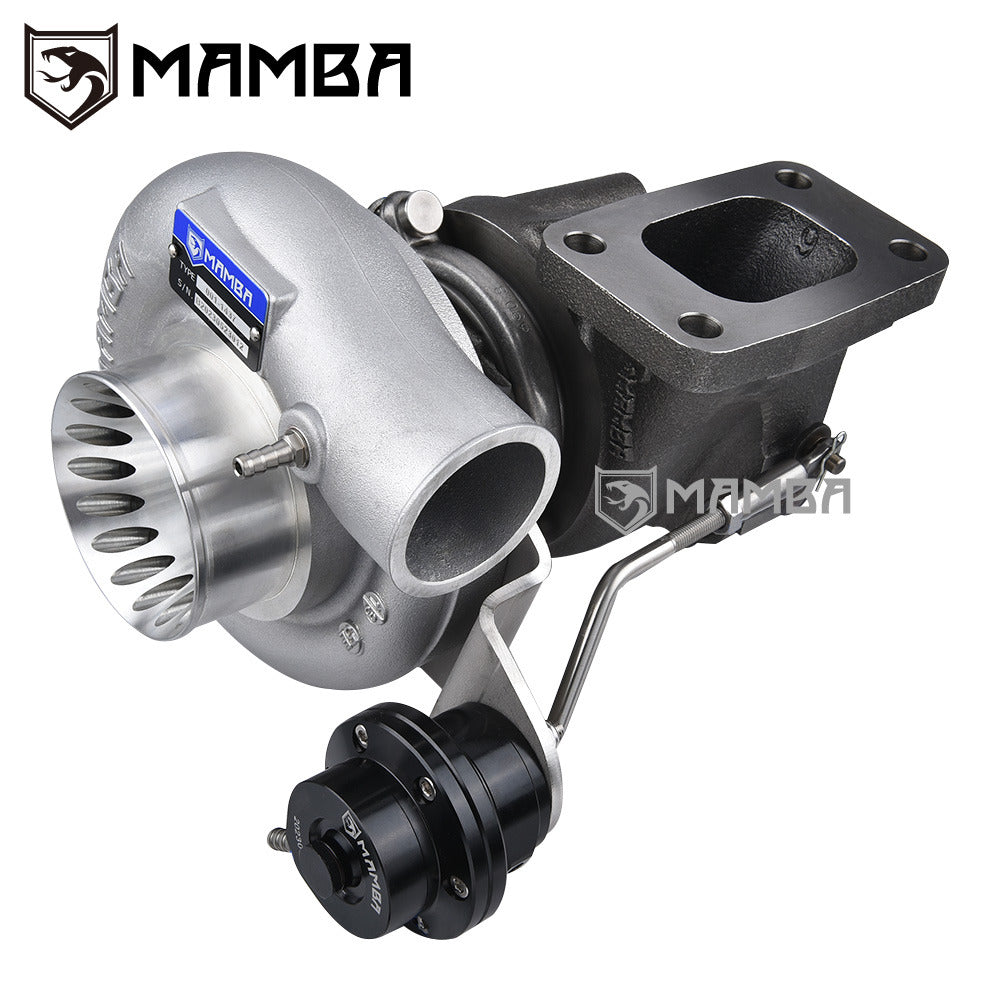

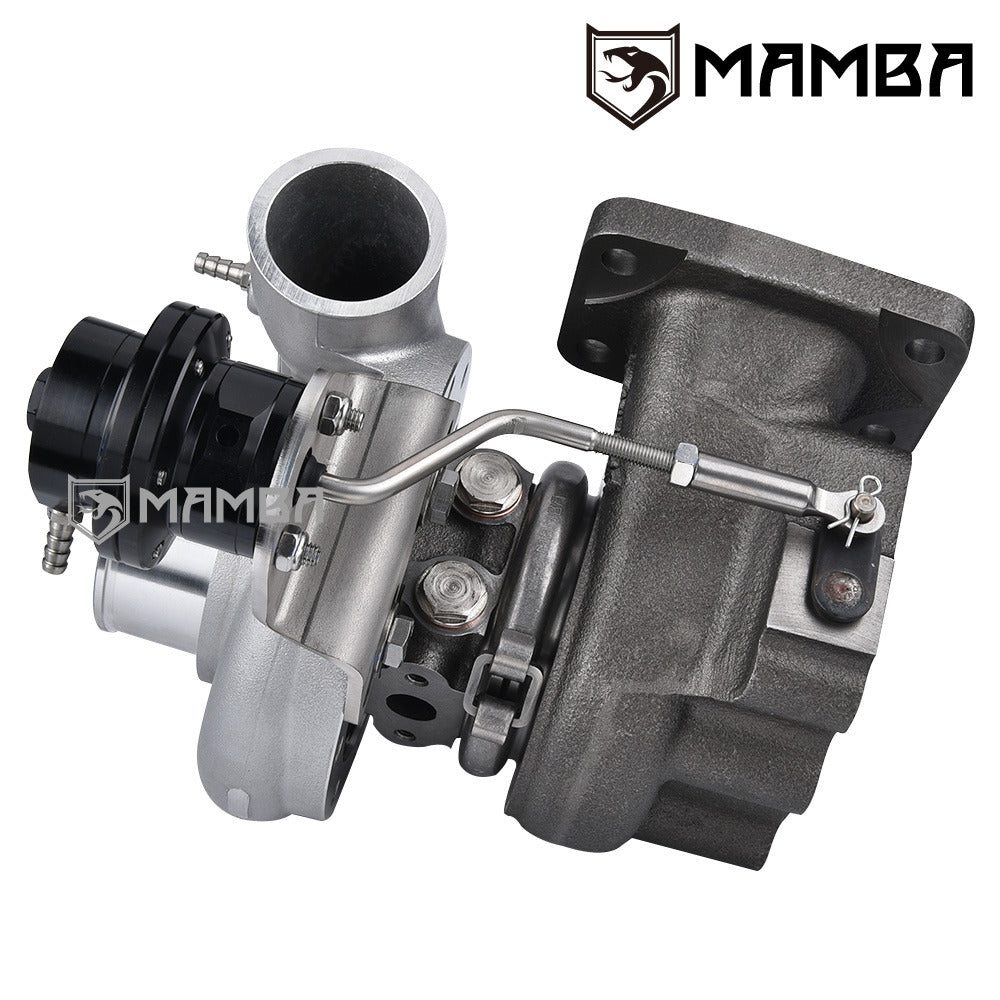

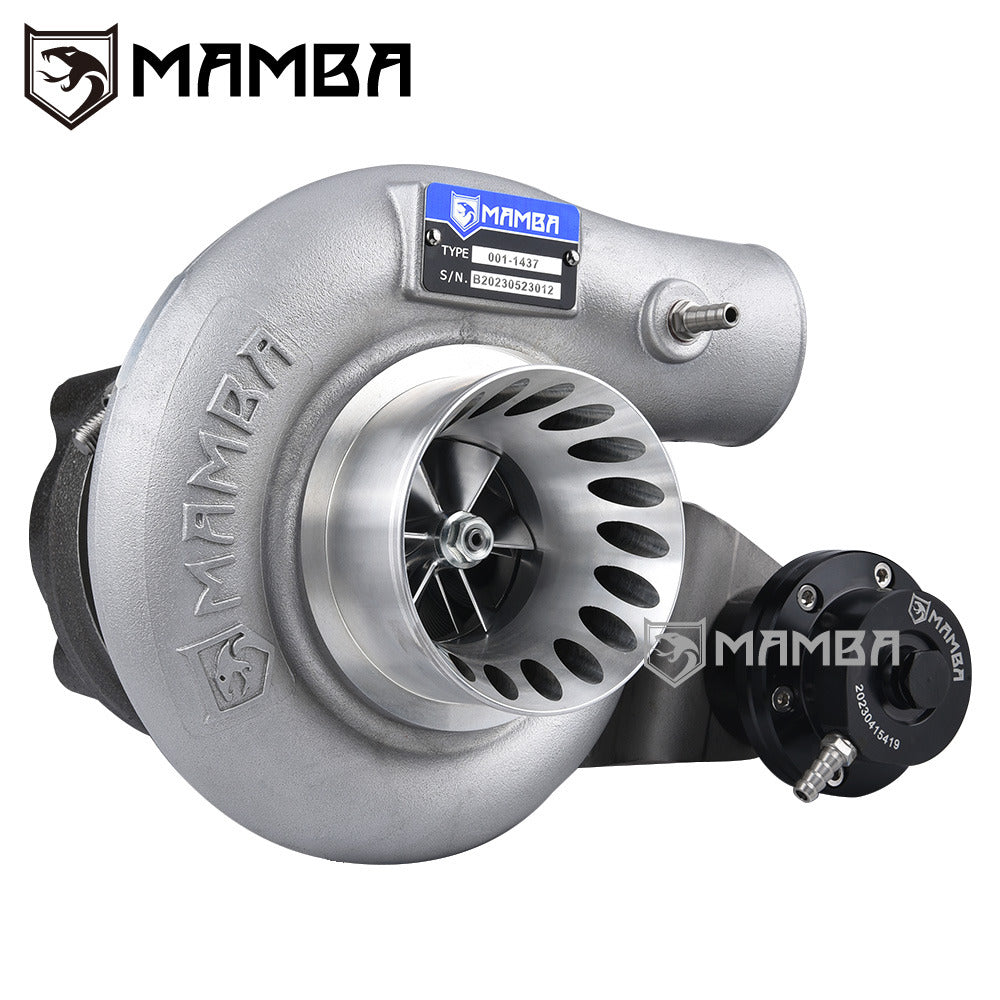

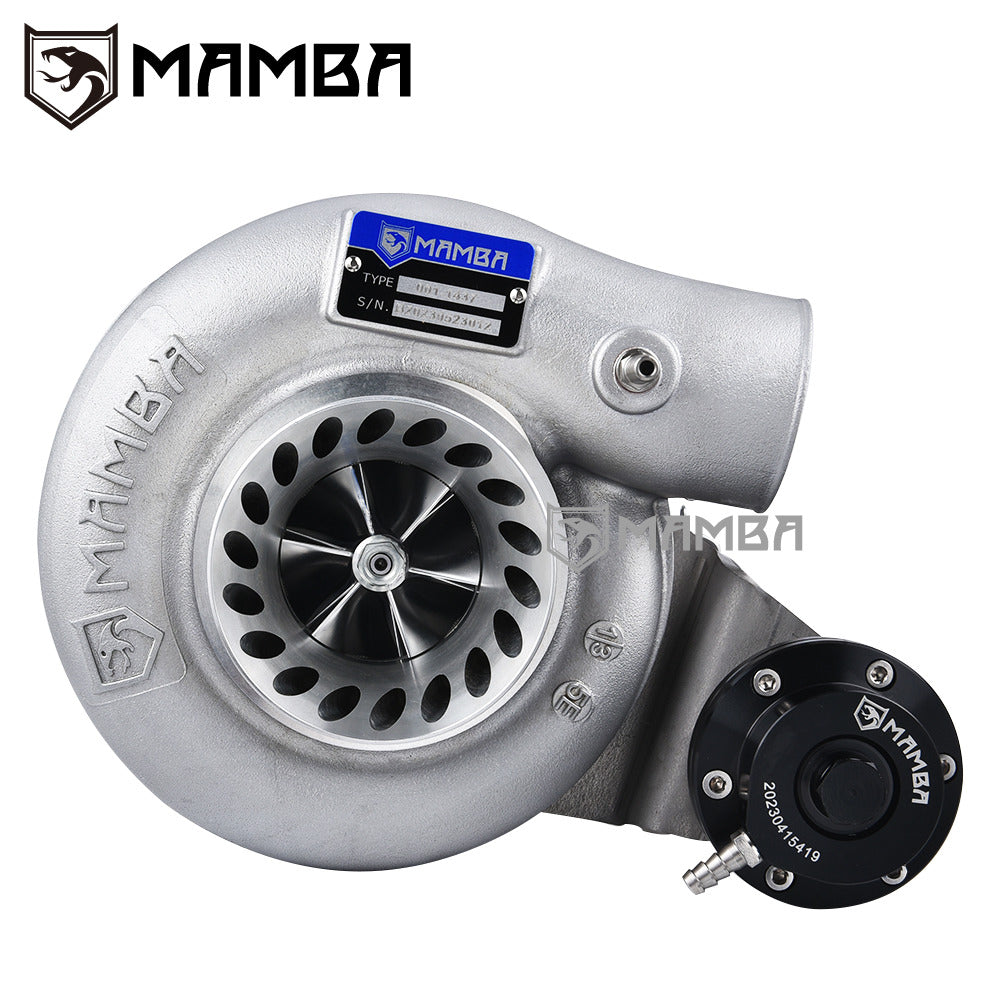

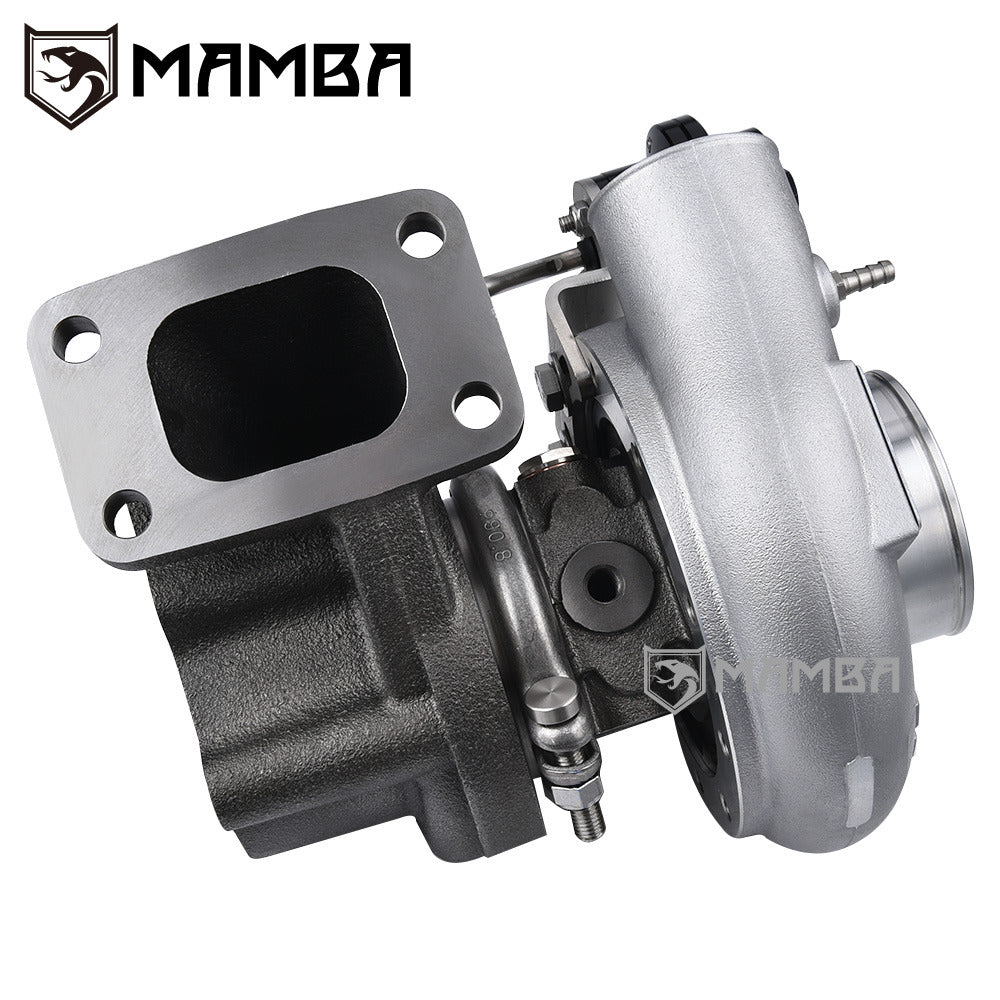

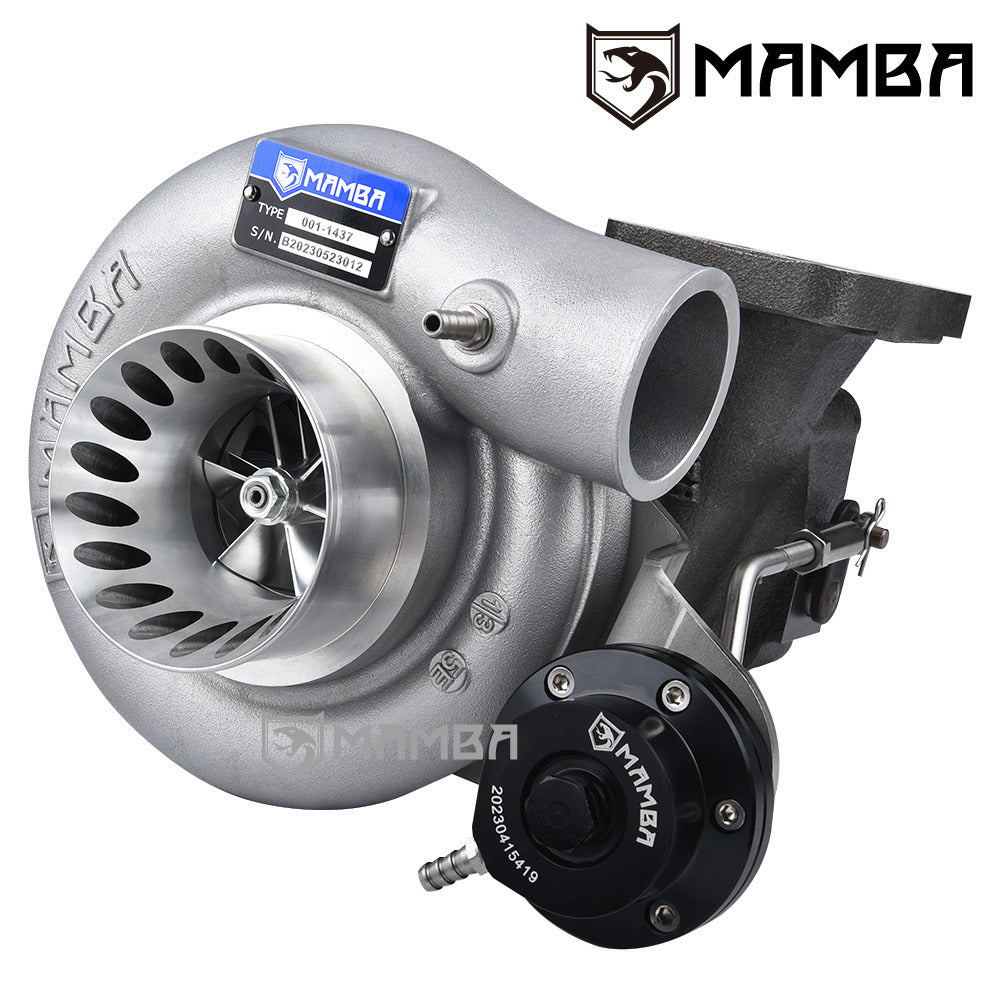

MAMBA 12-6 Billet Turbocharger Nissan TD42 GQ Safari Patrol 3” Anti Surge TD05H-18G with 6cm Bolt-On Housing
Brand New In Box

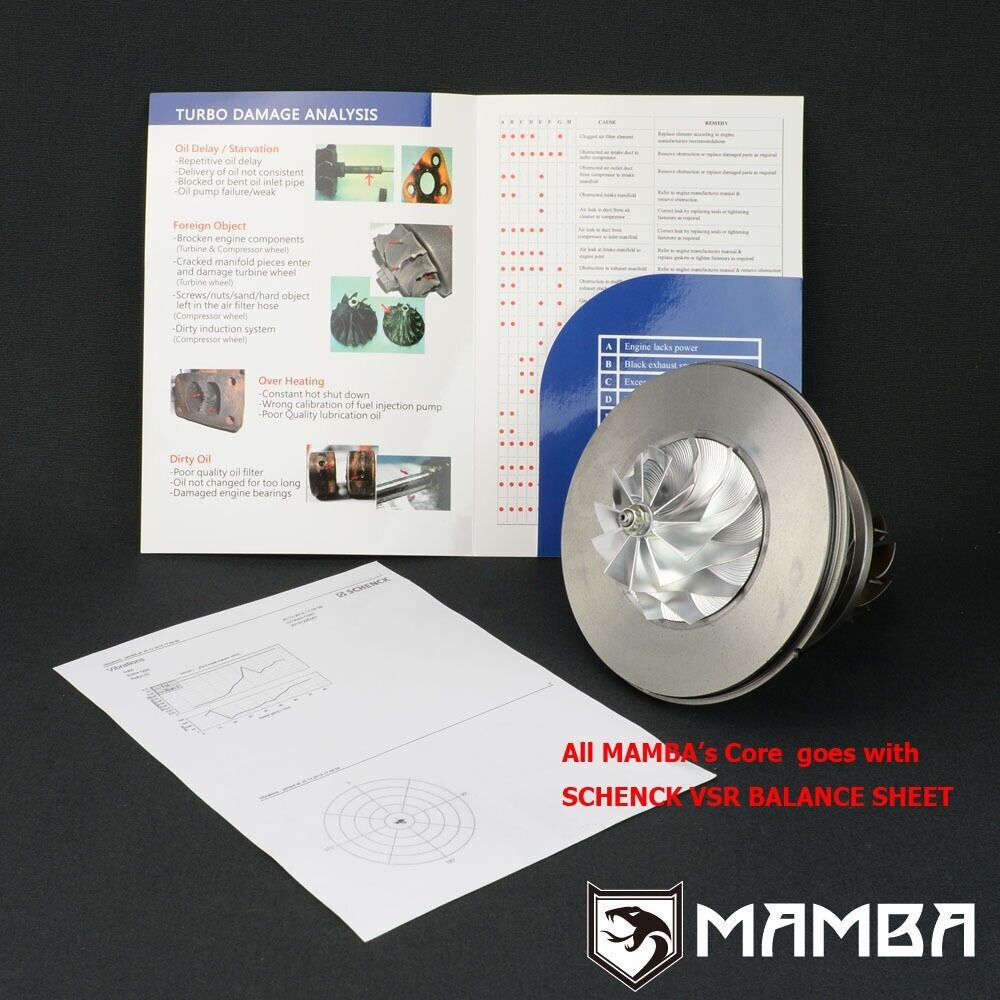

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GR GQ TD42 Diesel
Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover
Specs

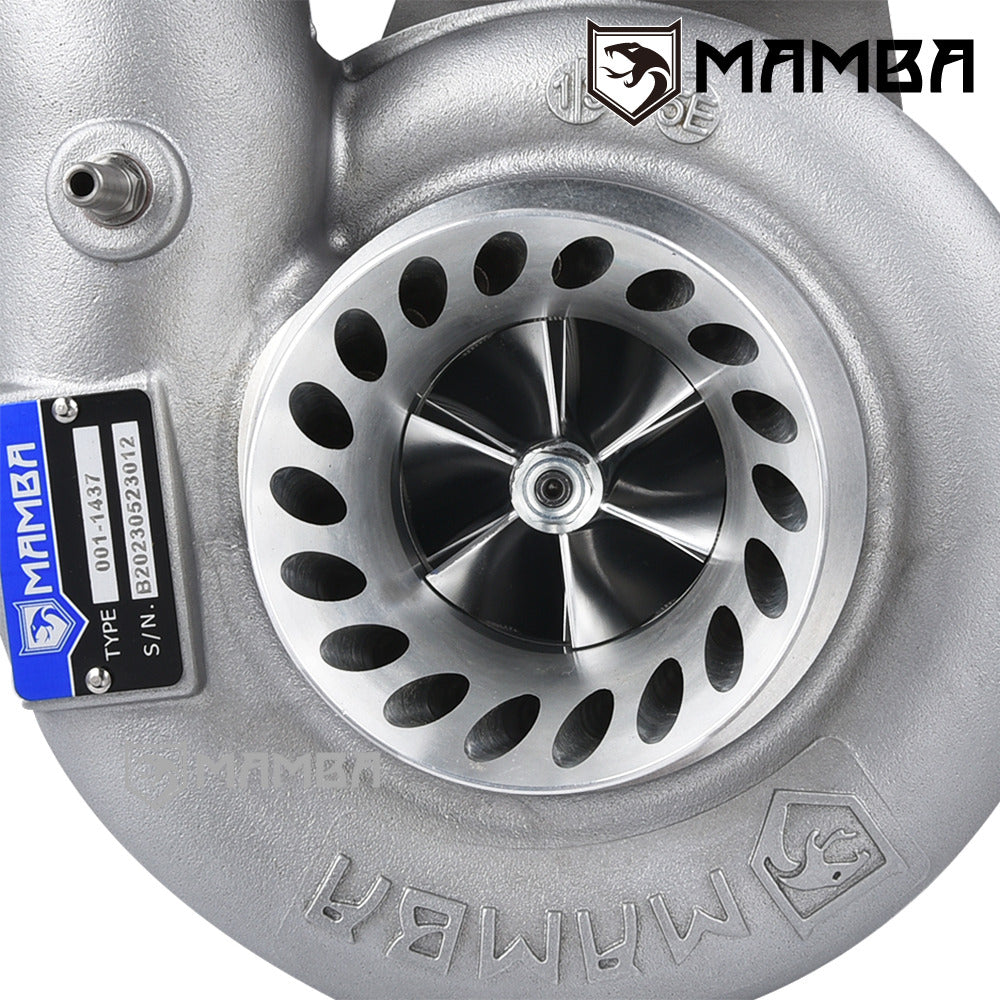

Comp. Wheel : 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)
Turbine Wheel : 49.2 / 56.4 mm (12 blade TD05H High Inconel)
Compressor Housing : 3” Inlet / 2” Outlet (76mm Inlet / 51mm Outlet)

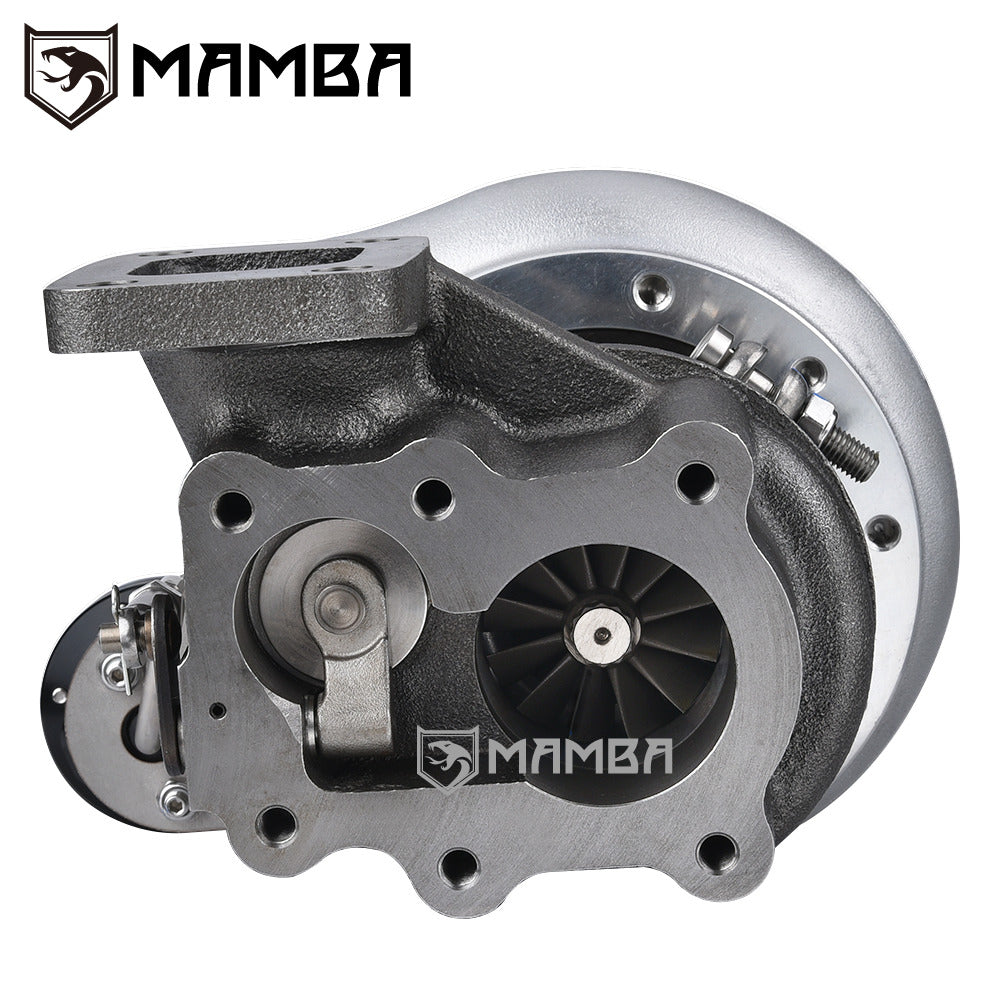

Turbine Housing
6cm^2
Standard T3 Flange
Bolt-on 6 bolt outlet
Internal Gate Type

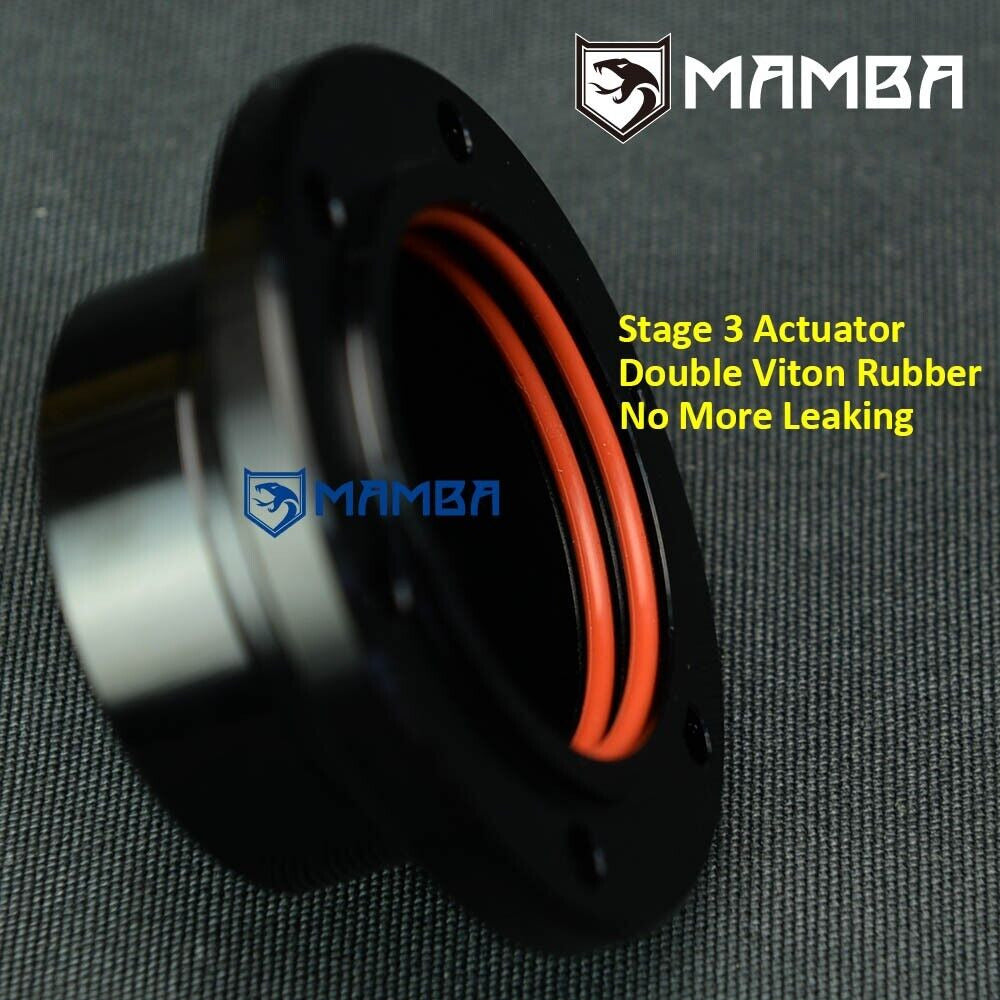

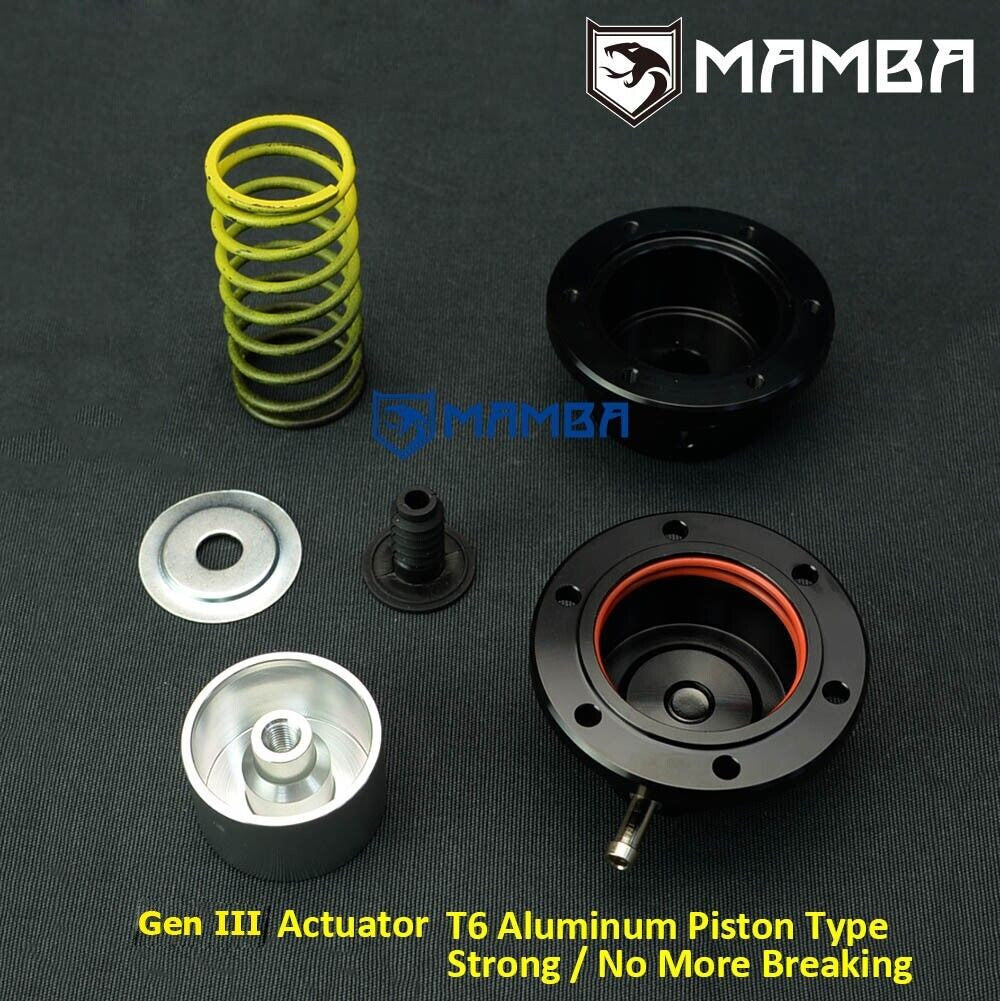

Actuator

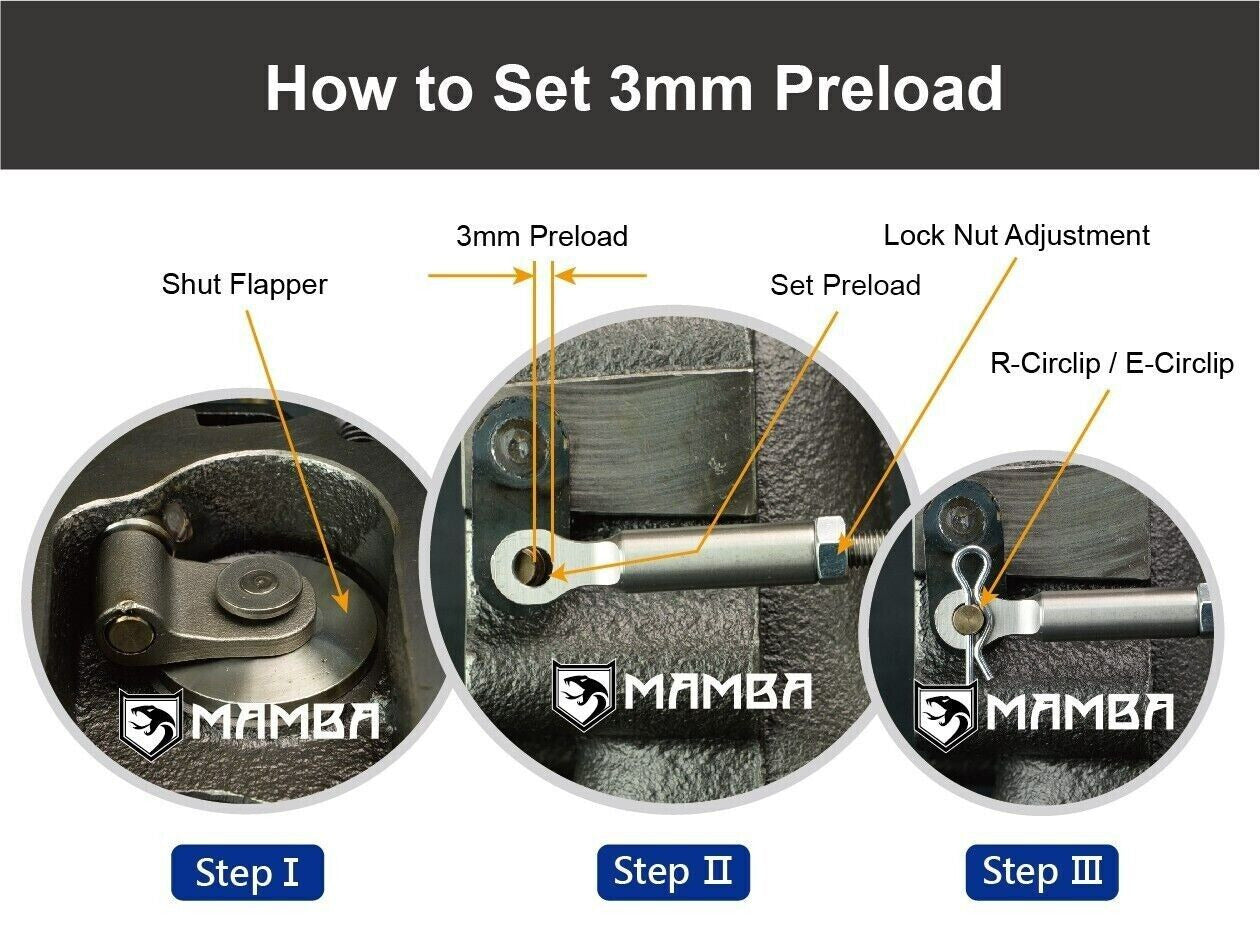

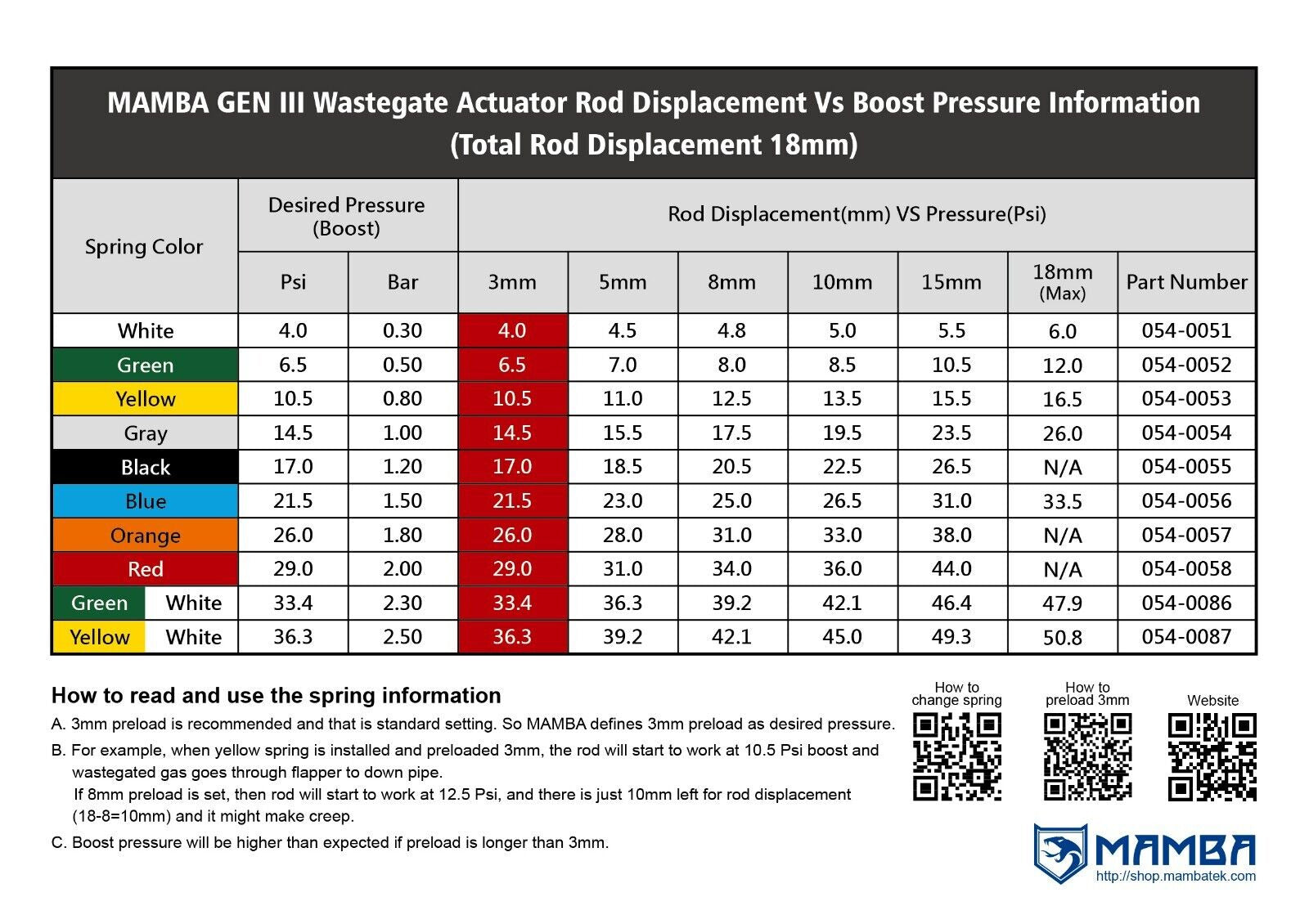

0.8bar spring will be pre-installed on the adjustable actuatorAdditional 1.2bar and 1.5bar spring will go with box
Bearing
Journal Bearing / Performance Thrust Bearing Kit Included
Cooling
Oil and Water-cooled system

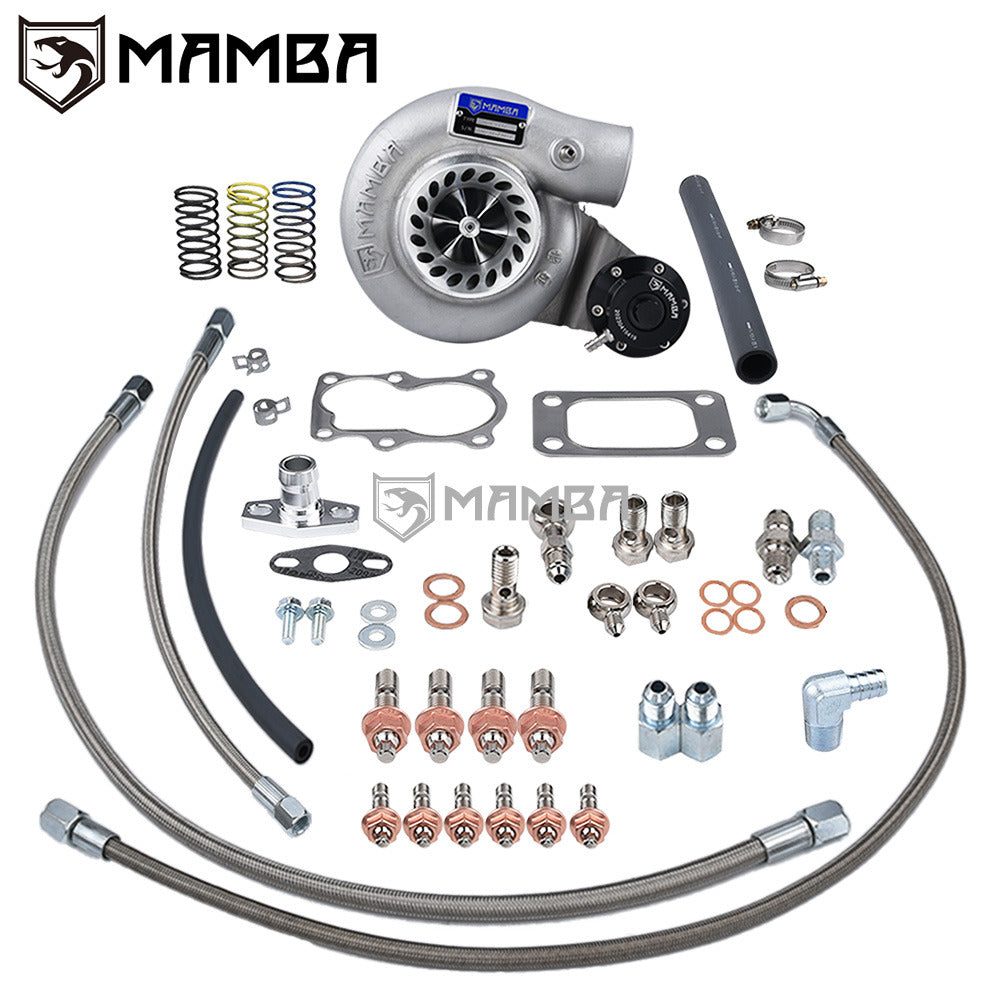

Kit Includes
1 x Oil Feed Line Kit
2 x Water Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
6 x M8x1.25 Stud Kit
Everything shown on picture is included.
