12-6 Billet TD42 GQ Top Mount 3" TD05H-18G 6cm T3 V-Band



Regular price $965.00
Sale price $965.00 Regular price

  • Fully secure checkout
  • Trusted by thousands

ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL

Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.

Question about this product?

We're happy to help.

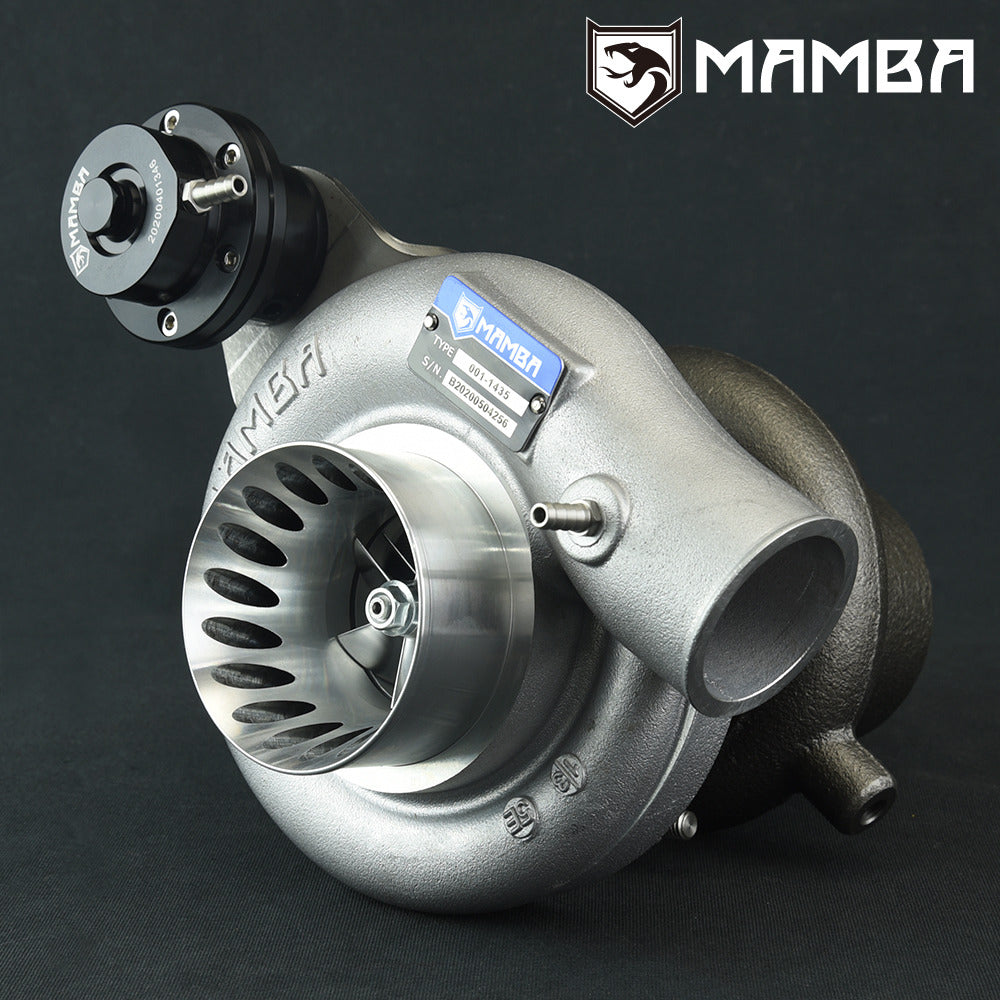

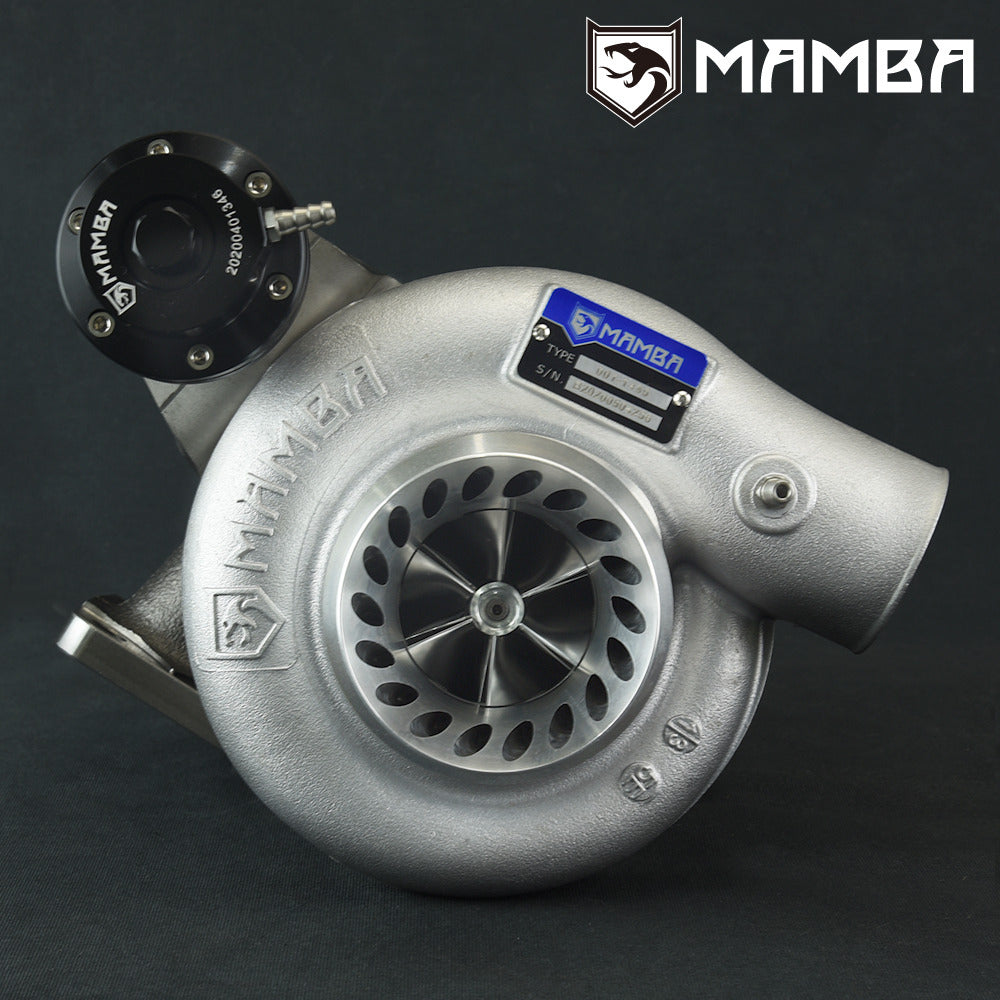

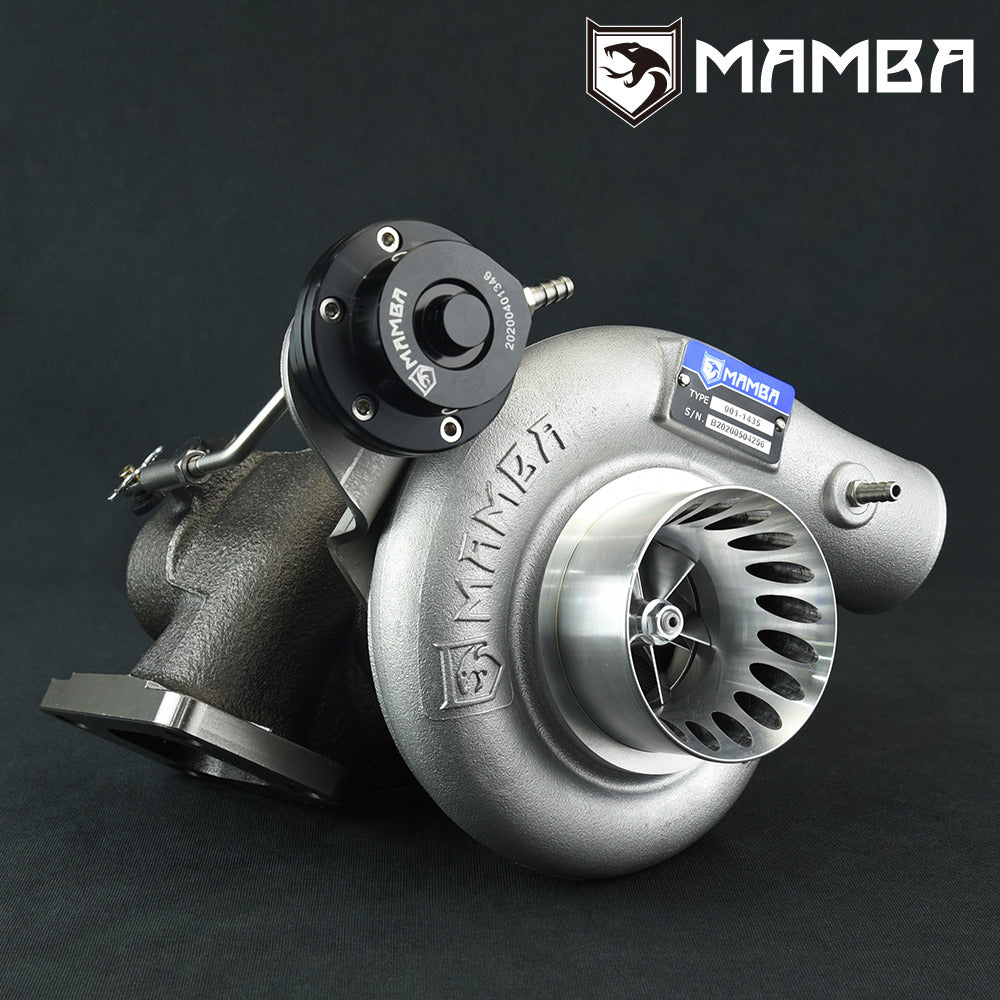

MAMBA 12-6 Billet Turbocharger Top Mount Nissan TD42 GQ Safari Patrol 3” Anti Surge TD05H-18G w/ 6cm T3 V-Band Housing

Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GQ TD42 Diesel Top Mount
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover.
It needs different oil and water line kit if your engine is GU
Specs
Compressor Wheel : 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)

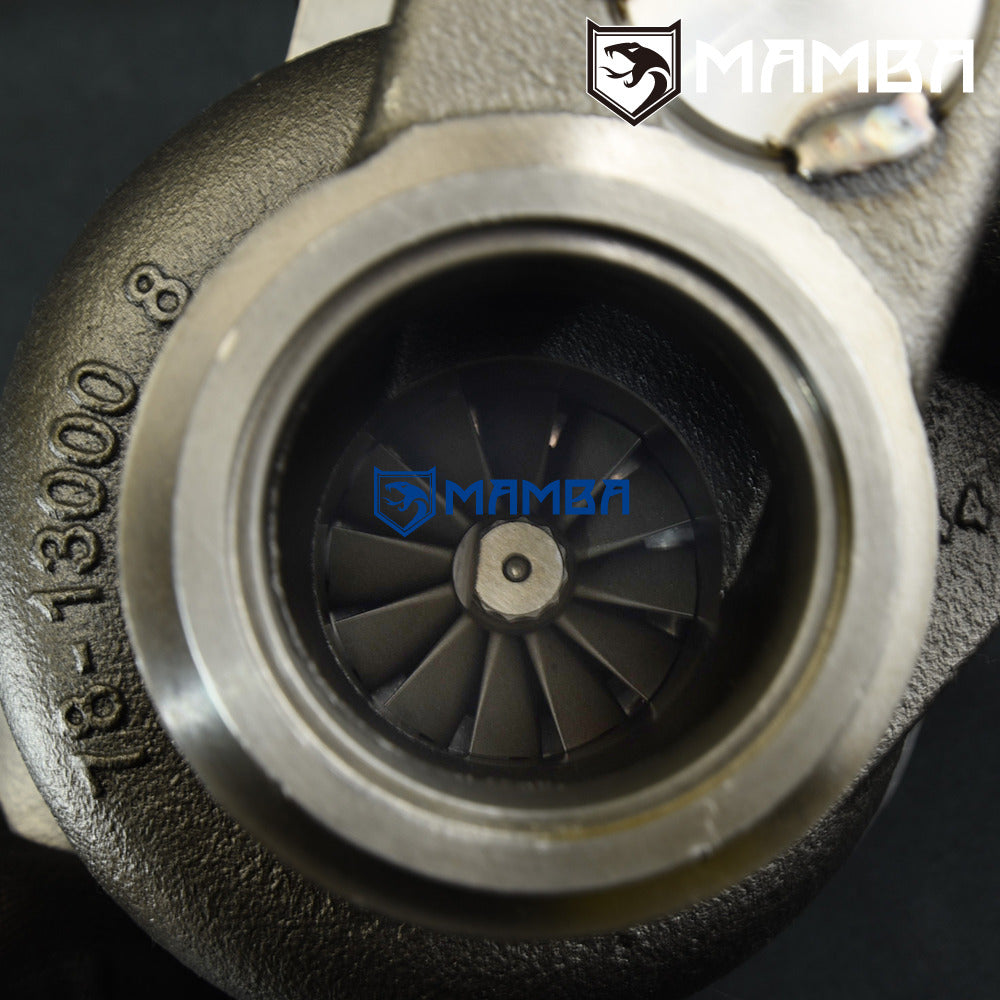

 Turbine Wheel : 49.2 / 56.4 mm (12 Blade TD05H High Inconel)

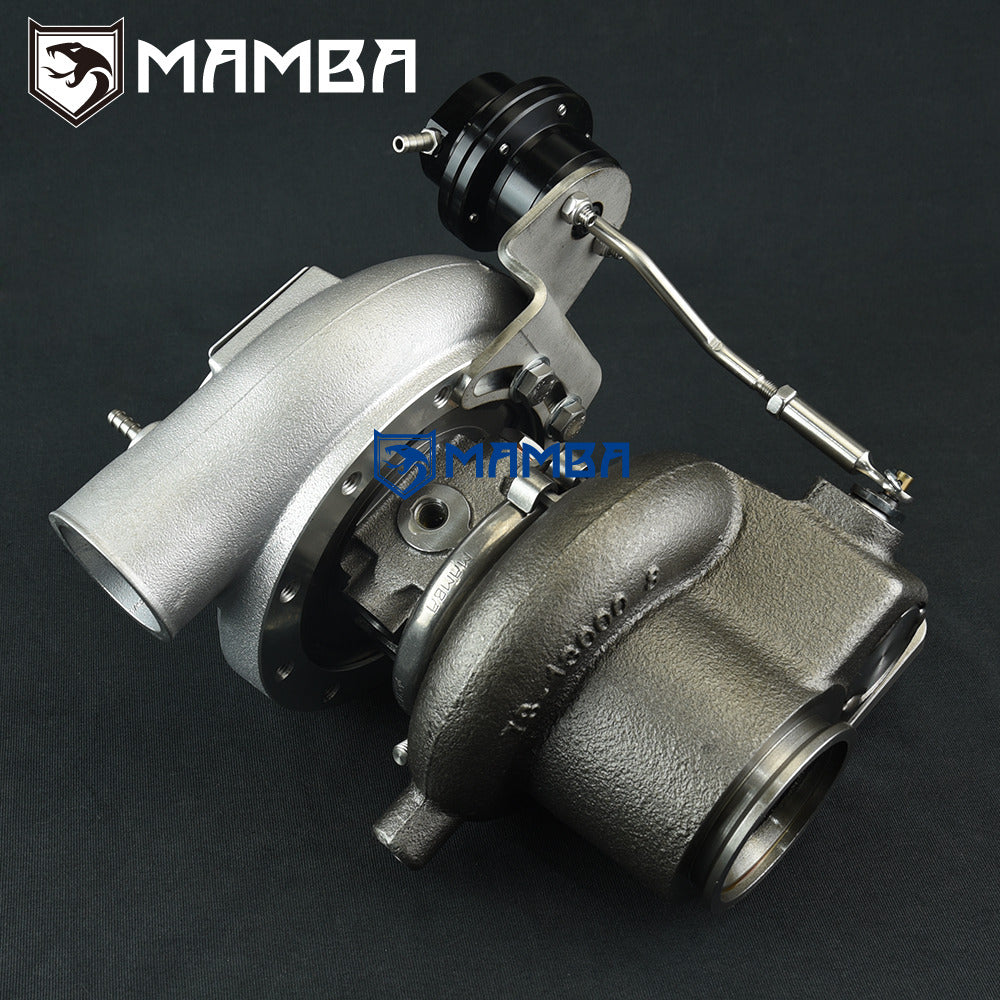

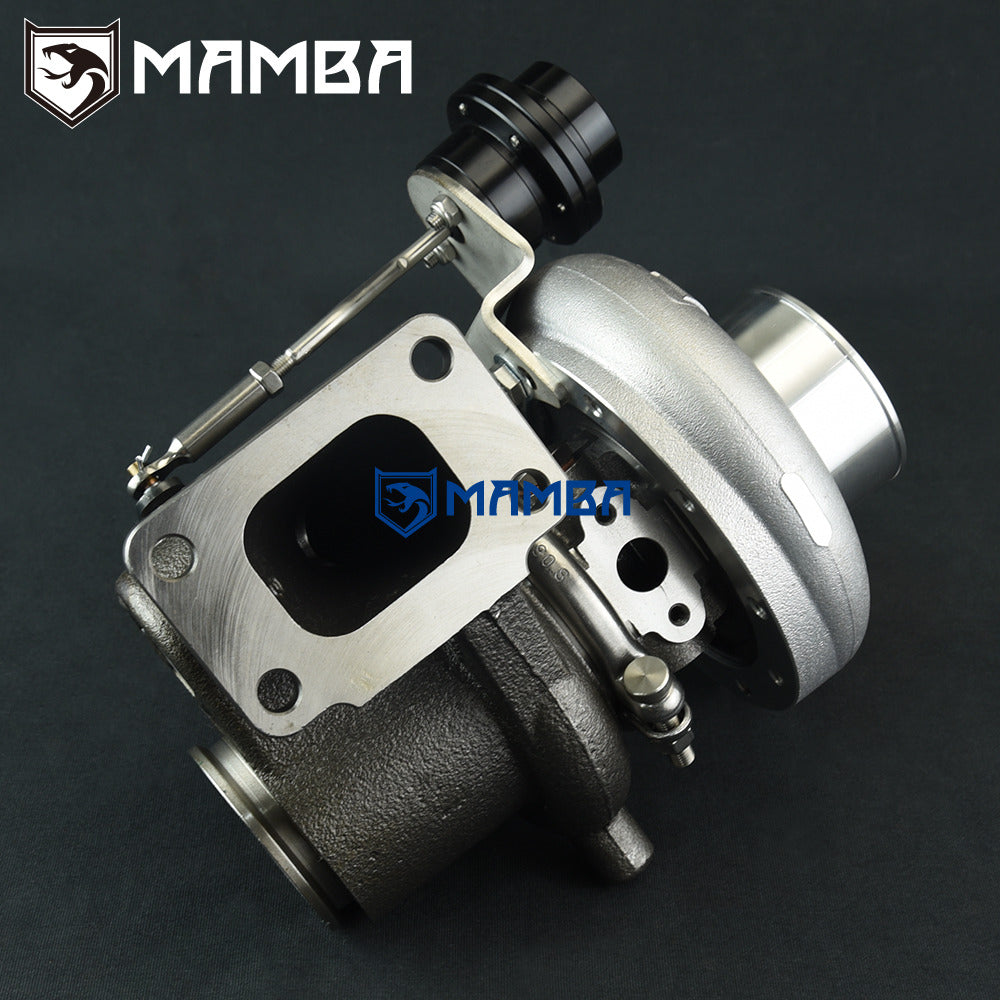

Turbine Housing
6cm ^2
Standard T3 Flange
Internal Gate Type

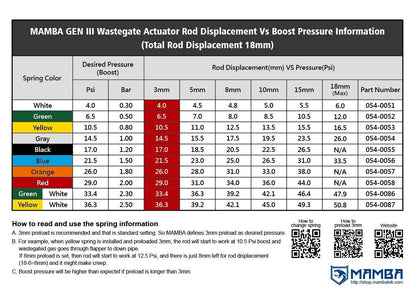

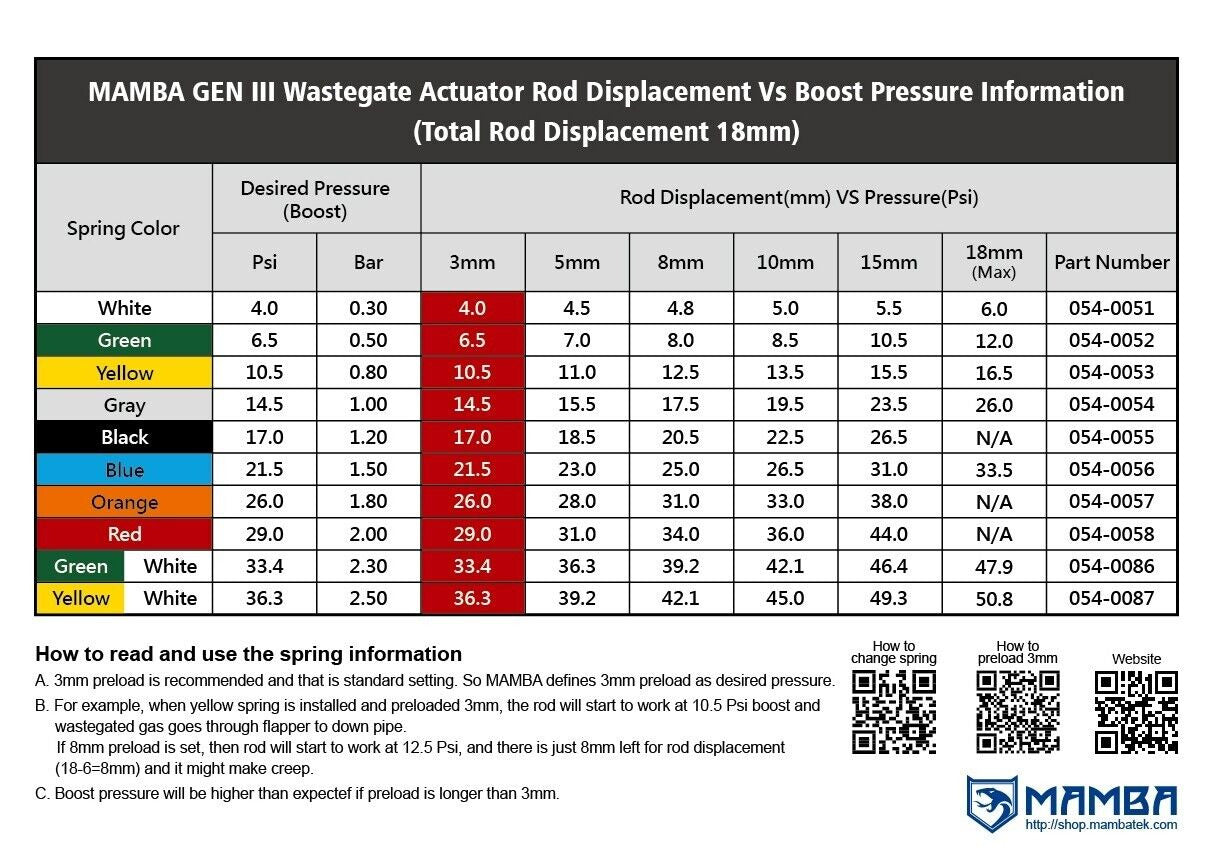

Actuator

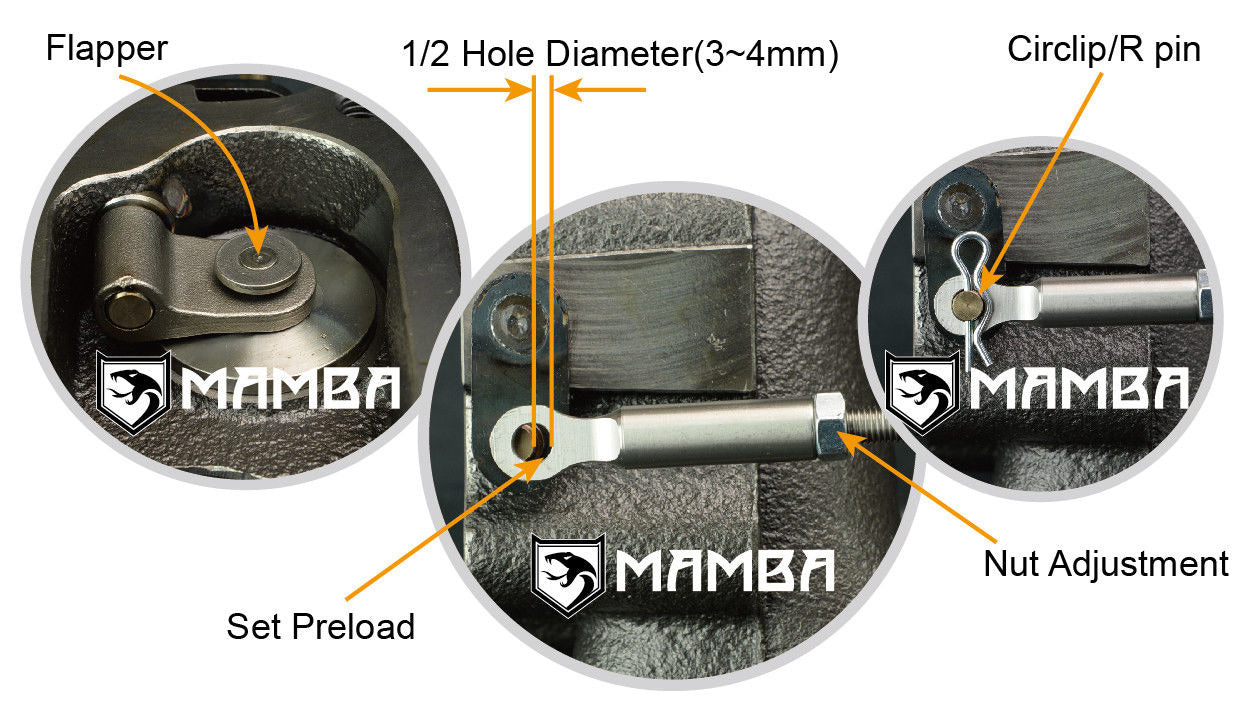

 0.8bar spring is pre-installed on the adjustable actuator
 Additional 1.2bar and 1.5bar spring go with box.
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil and Water-cooled system

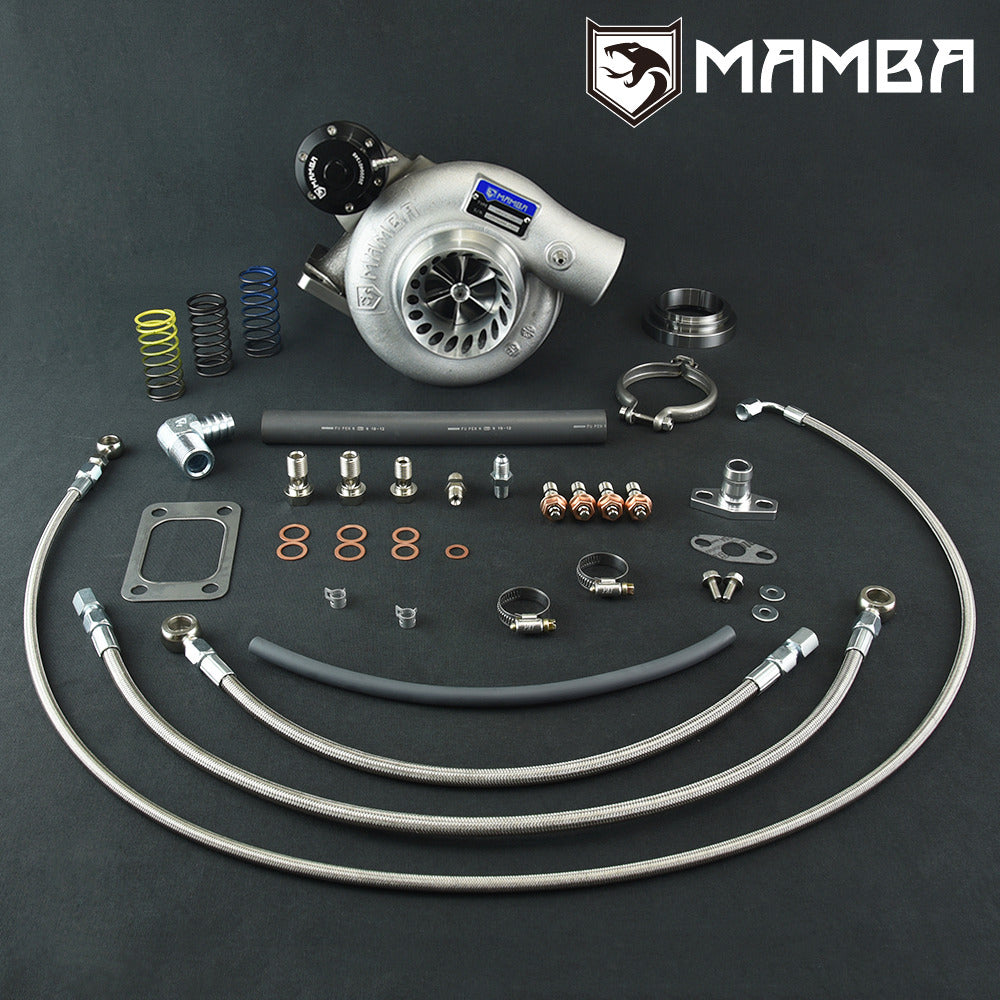

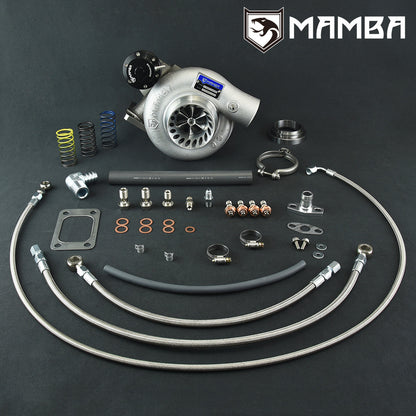

Kit Includes

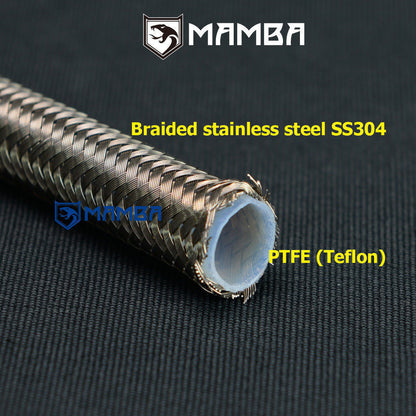

1 x Oil Feed Line Kit
2 x Water Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x 3” V-Band Adapter Ring Kit (We can offer 2.5” type if needed)
Everything shown on picture included



12-6 Billet TD42 GQ Top Mount 3" TD05H-18G 6cm T3 V-Band

$965.00

1 Year Limited Warranty

All Mamba turbochargers come with a 1 year manufacturer warranty against defect!

Fast Shipping

All Mamba turbochargers are shipped directly via DHL from the manufacturer with industry leading delivery times for international.

What's the returns policy?

All sales are final. Returns will be considered on an individual basis (incorrect part ordered or other extreme circumstances)
