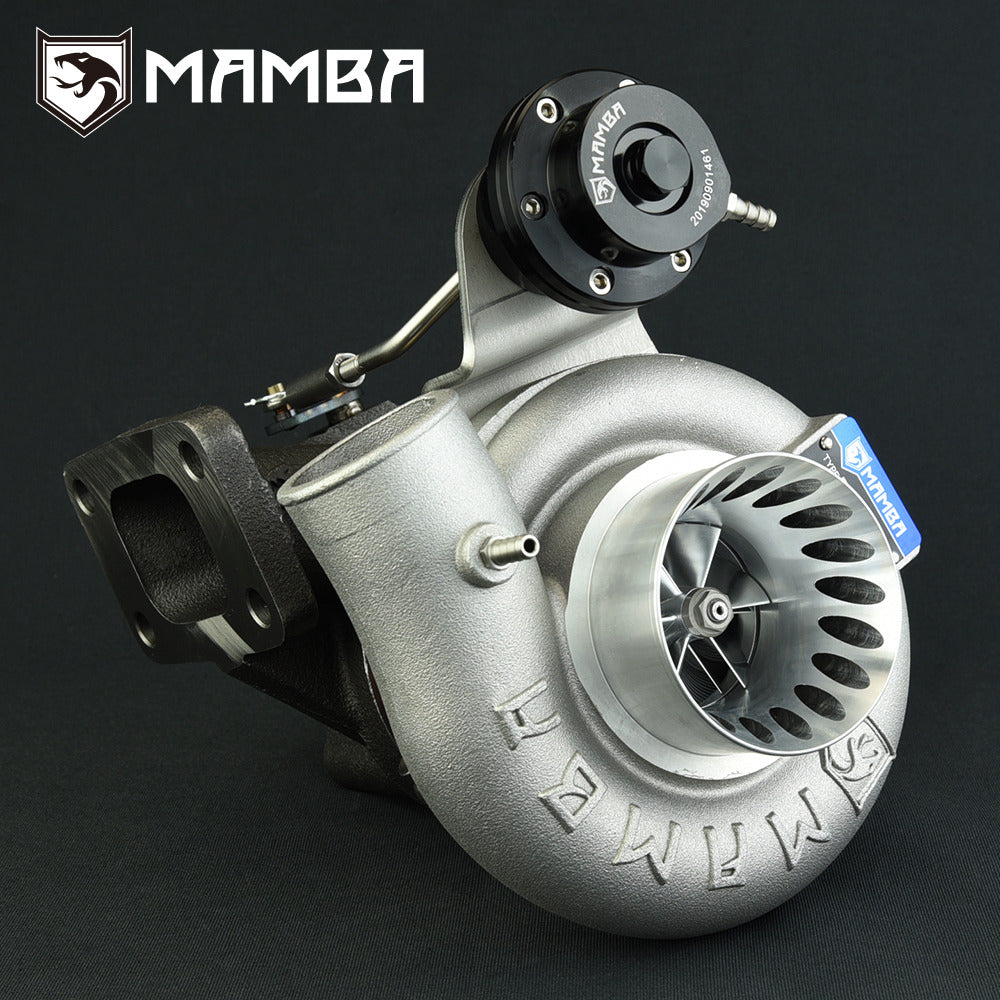

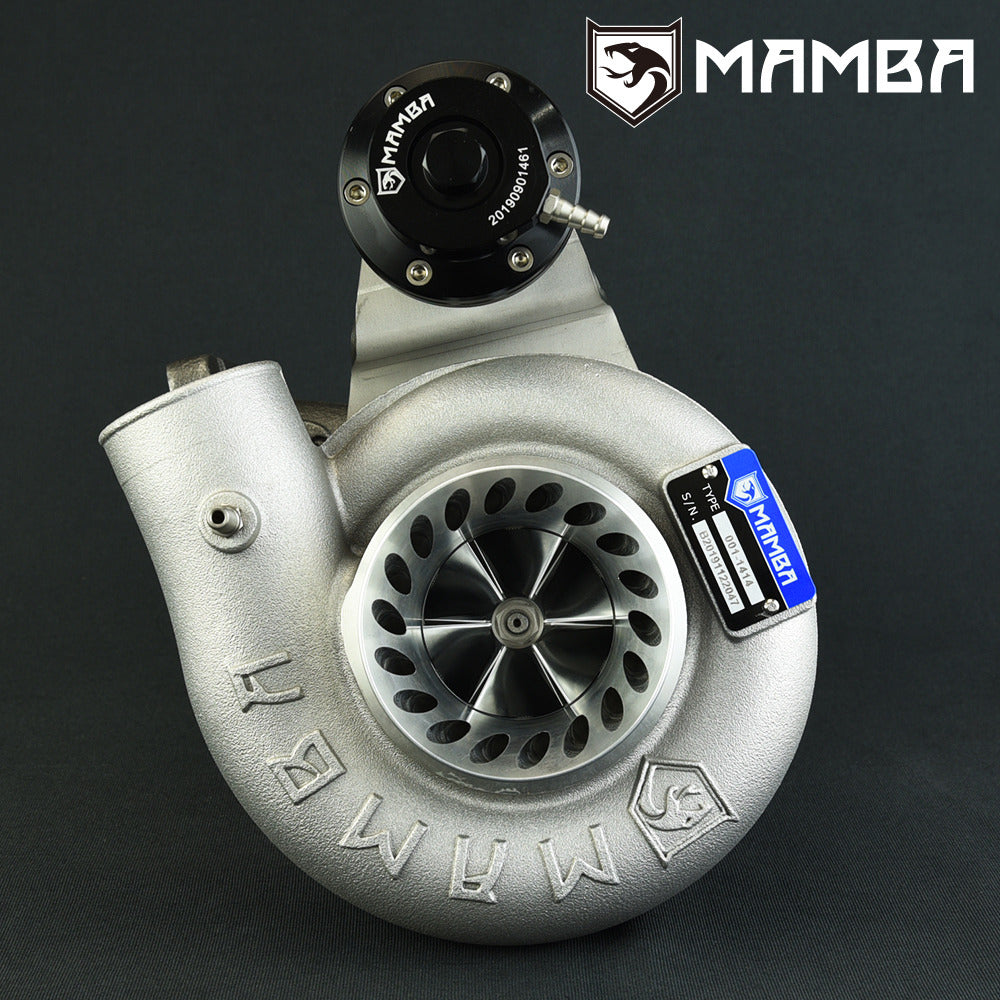

MAMBA 12-6 Billet Turbocharger Nissan TD42 GU Safari Patrol 3” Anti Surge TD05H-18G w/ 6cm Bolt-On Housing
Brand New In Box

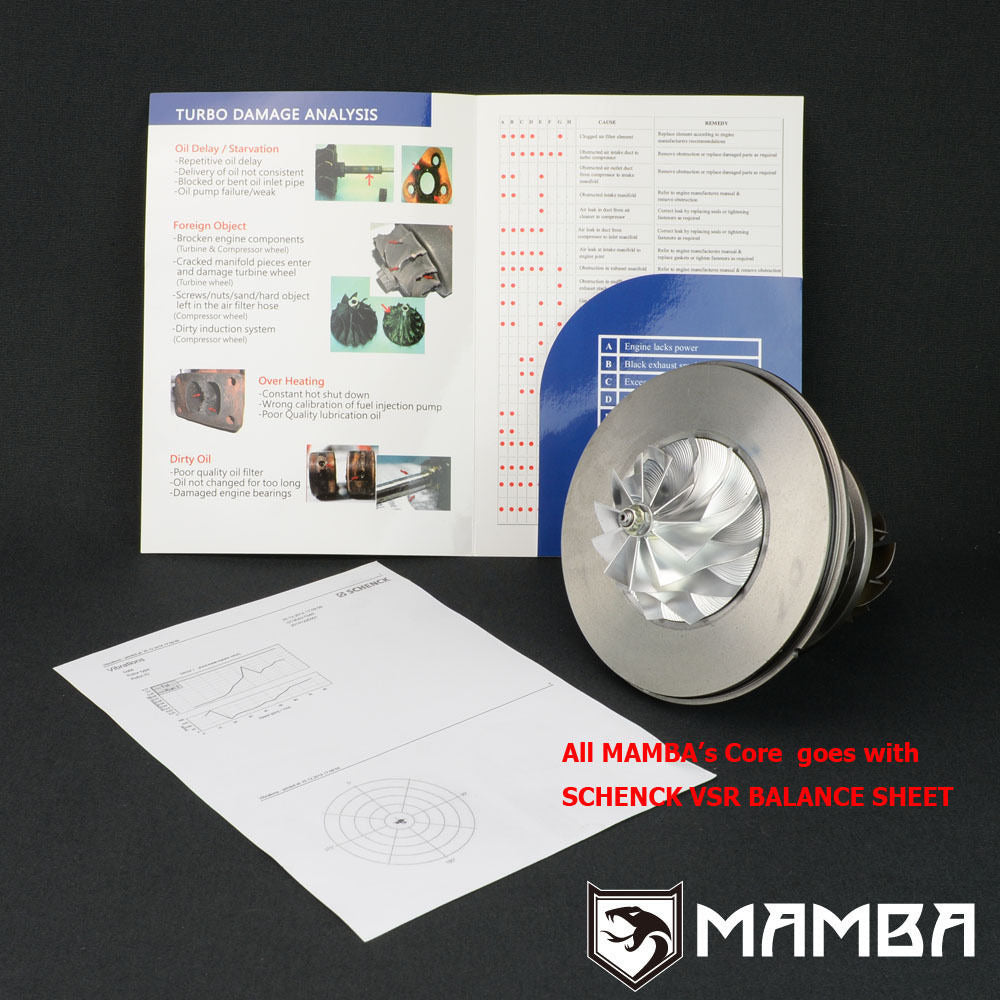

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GU TD42 Diesel
Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover.
It needs different oil and water line kit if your engine is GQ
Specs

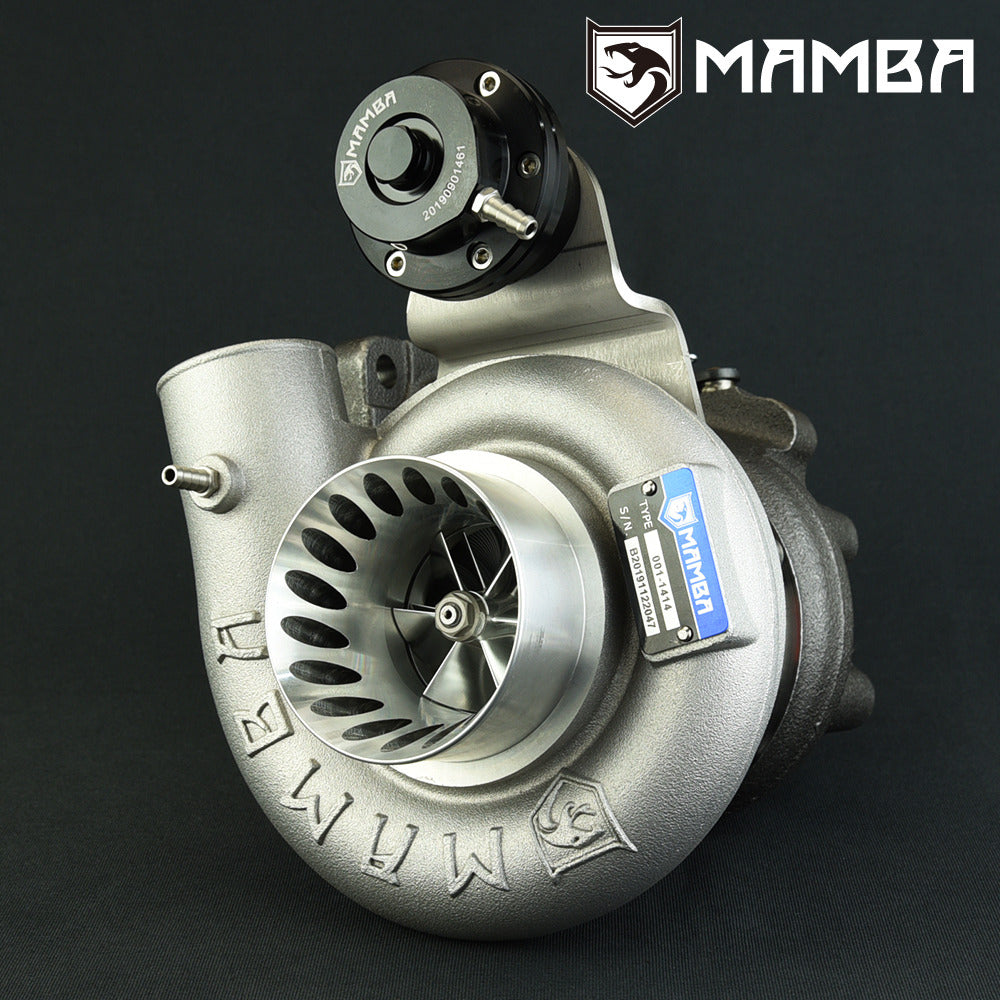

Comp. Wheel : 50.39 / 68mm (6+6 Blade Billet Wheel 18G with Extended Tip)

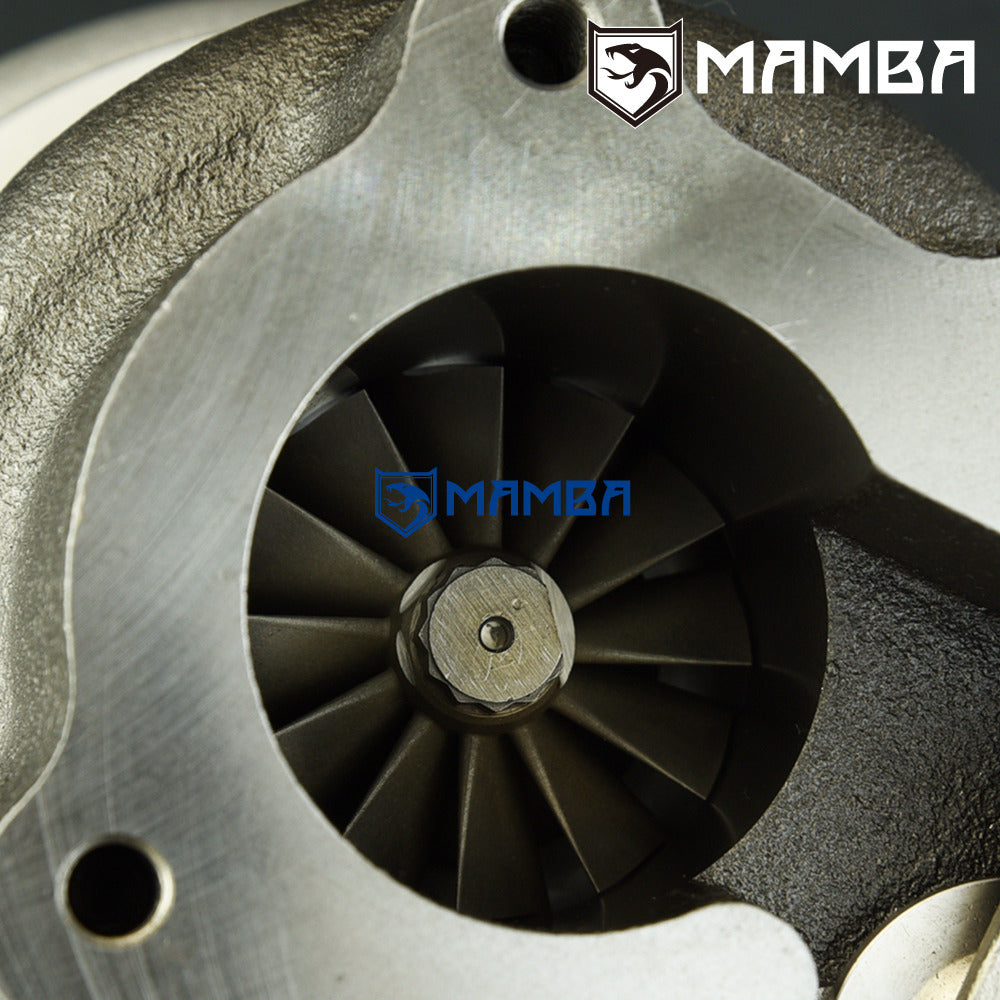

Turbine Wheel : 49.2 / 56.4 mm (12 blade TD05H High Inconel)
Compressor Housing : 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)

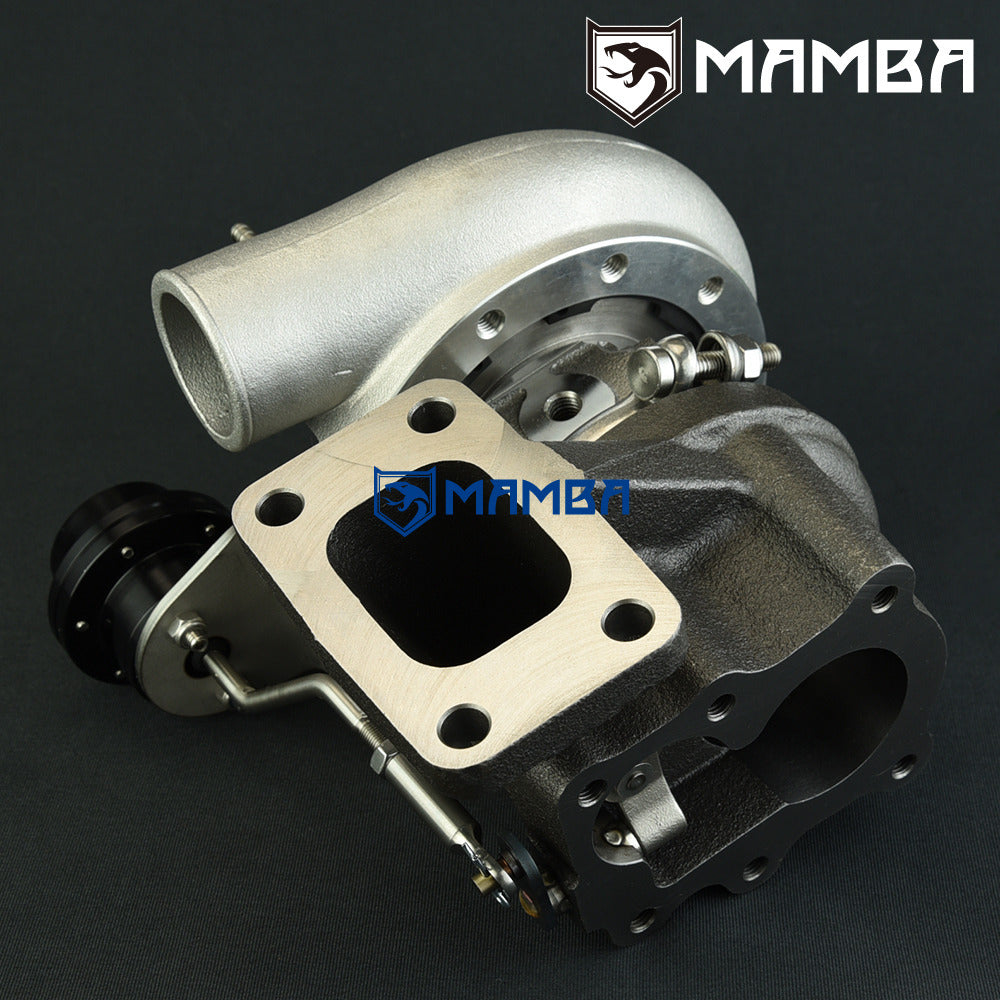

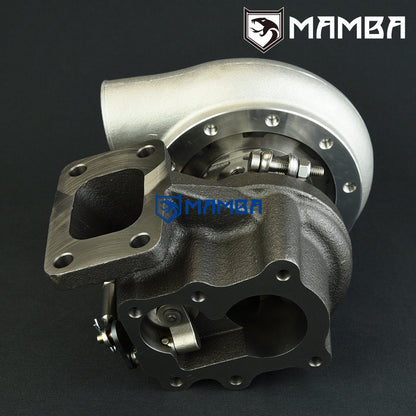

Turbine Housing
6cm^2
Standard T3 Flange
Internal Gate Type

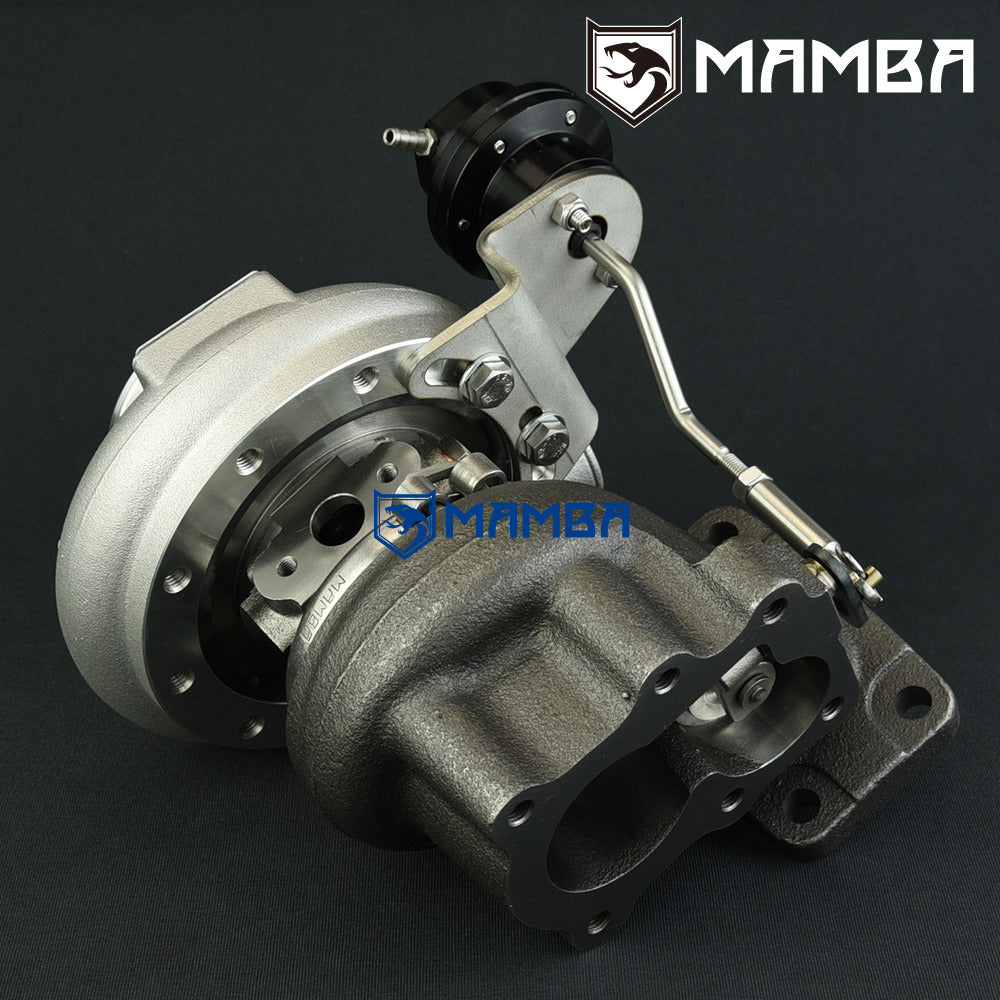

Actuator

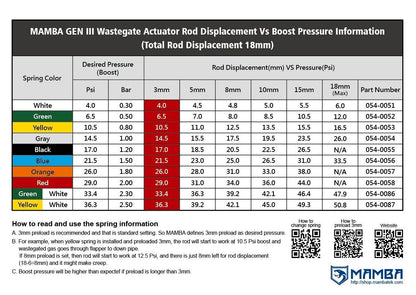

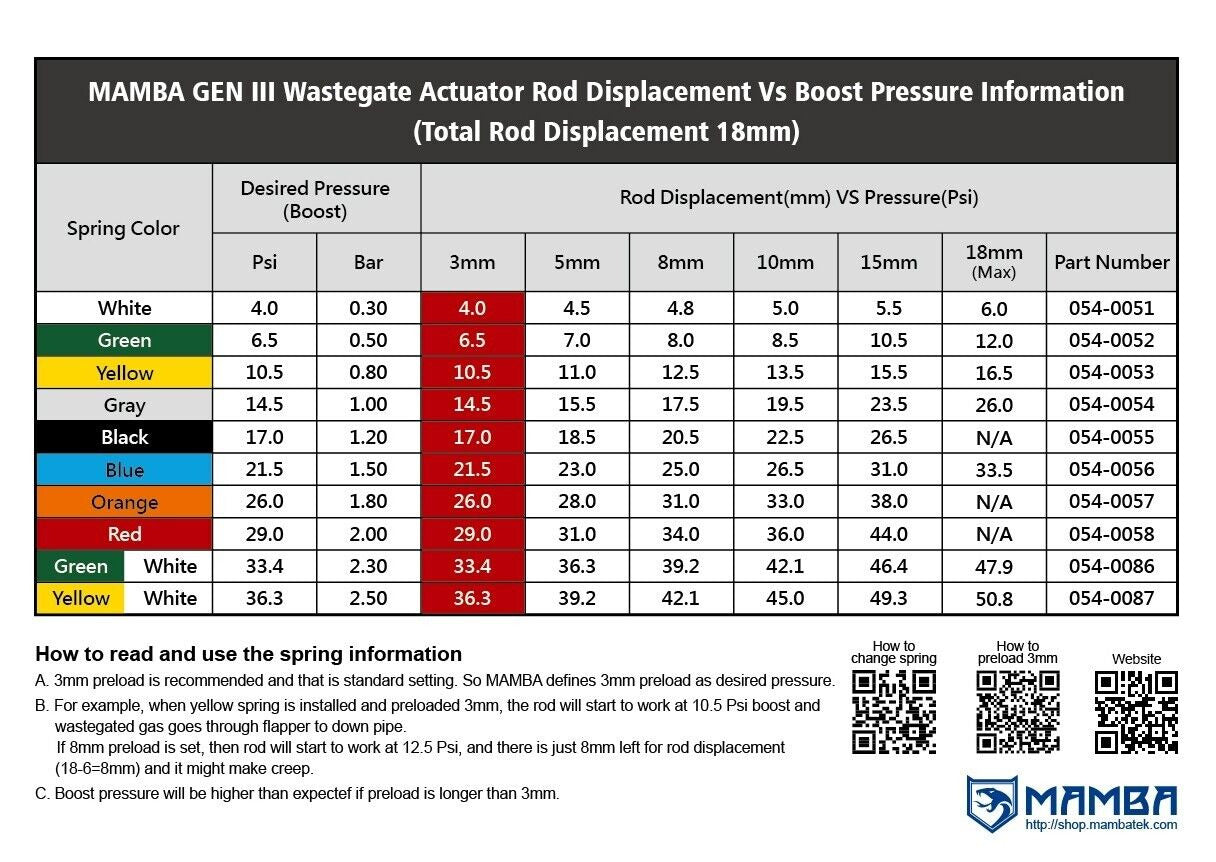

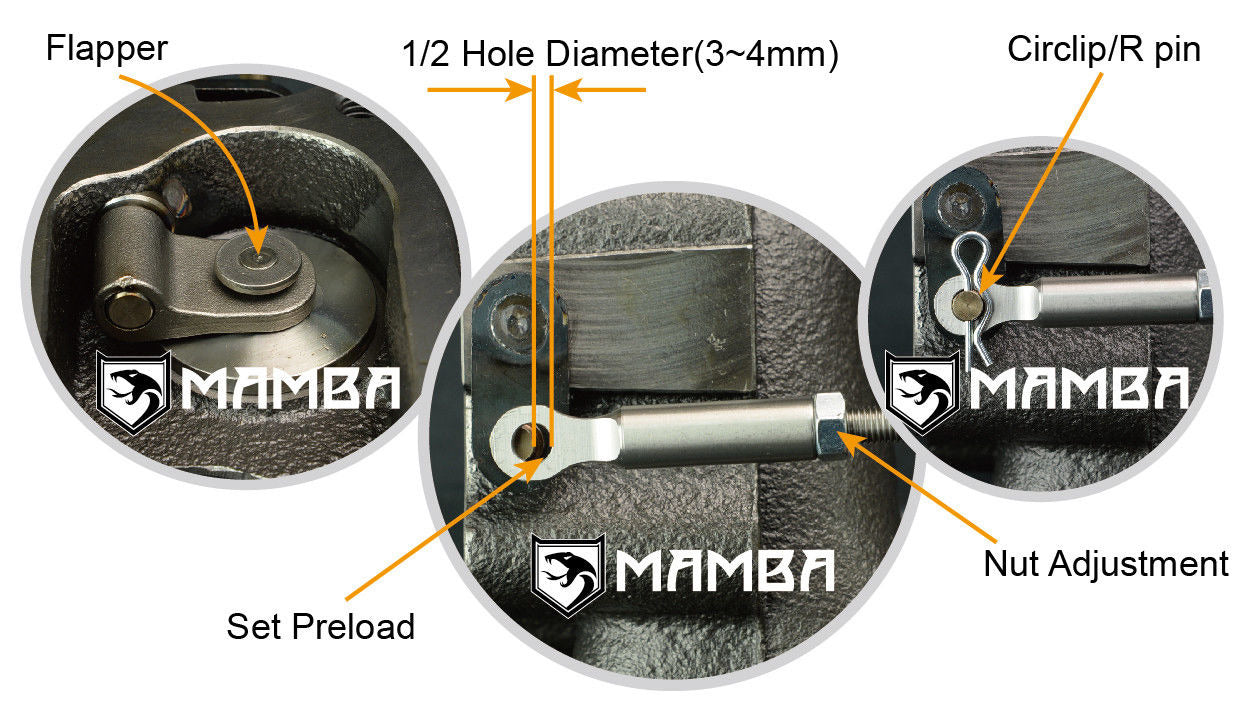

0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box
Bearing
Journal Bearing
Performance Thrust Bearing Kit Included
Cooling
Oil and Water-cooled
Kit Includes
1 x Oil Feed Line Kit
2 x Water Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
6 x M8x1.25 Stud Kit

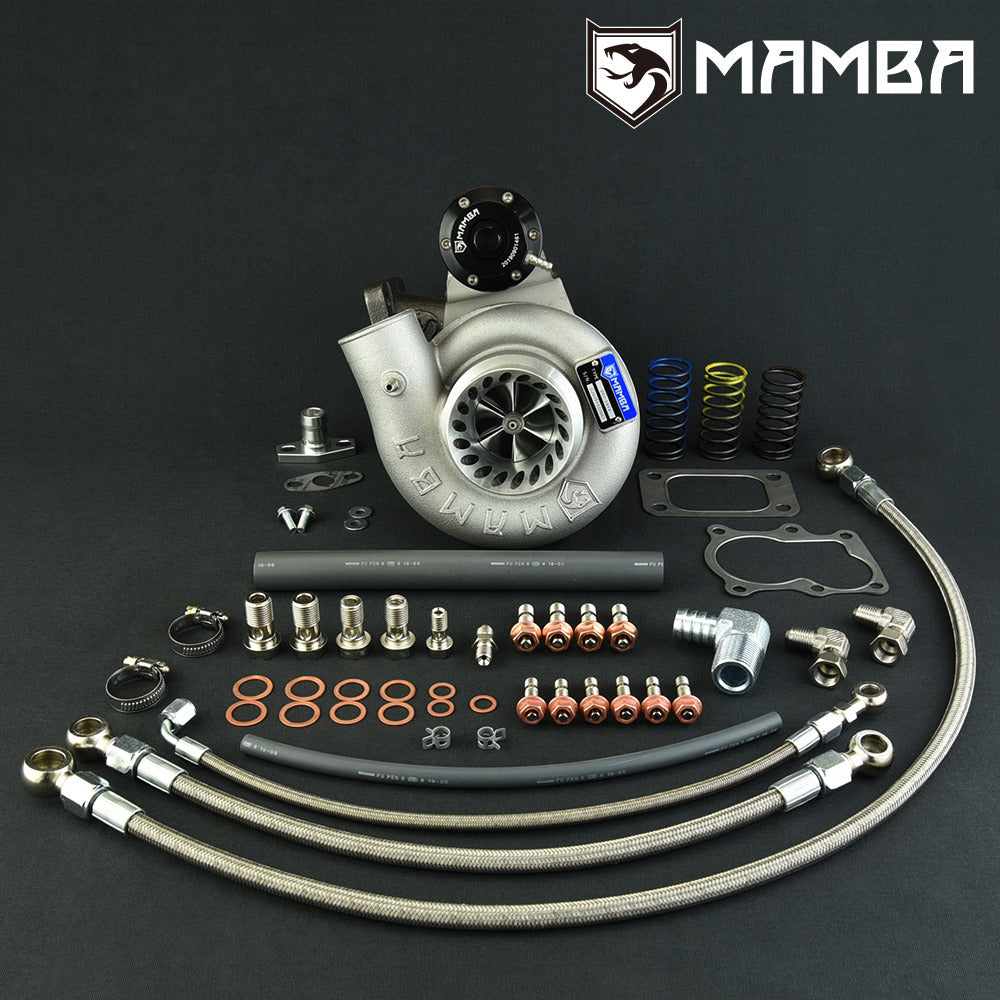

Everything shown on picture is included
