12-6 Oil-Cooled TD05H-18G 6cm Bolt-On Hsg For Nissan TD42 GU 3"
Regular price
$965.00
Sale price
$965.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

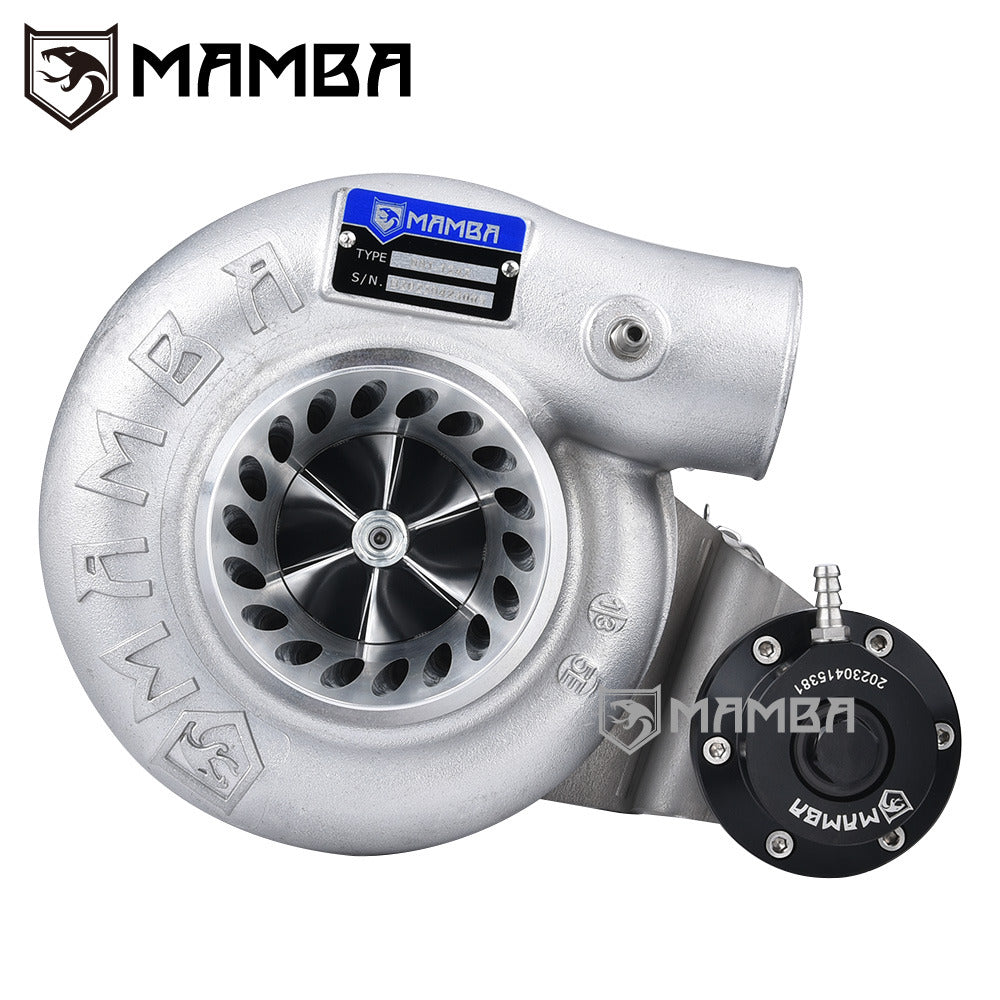

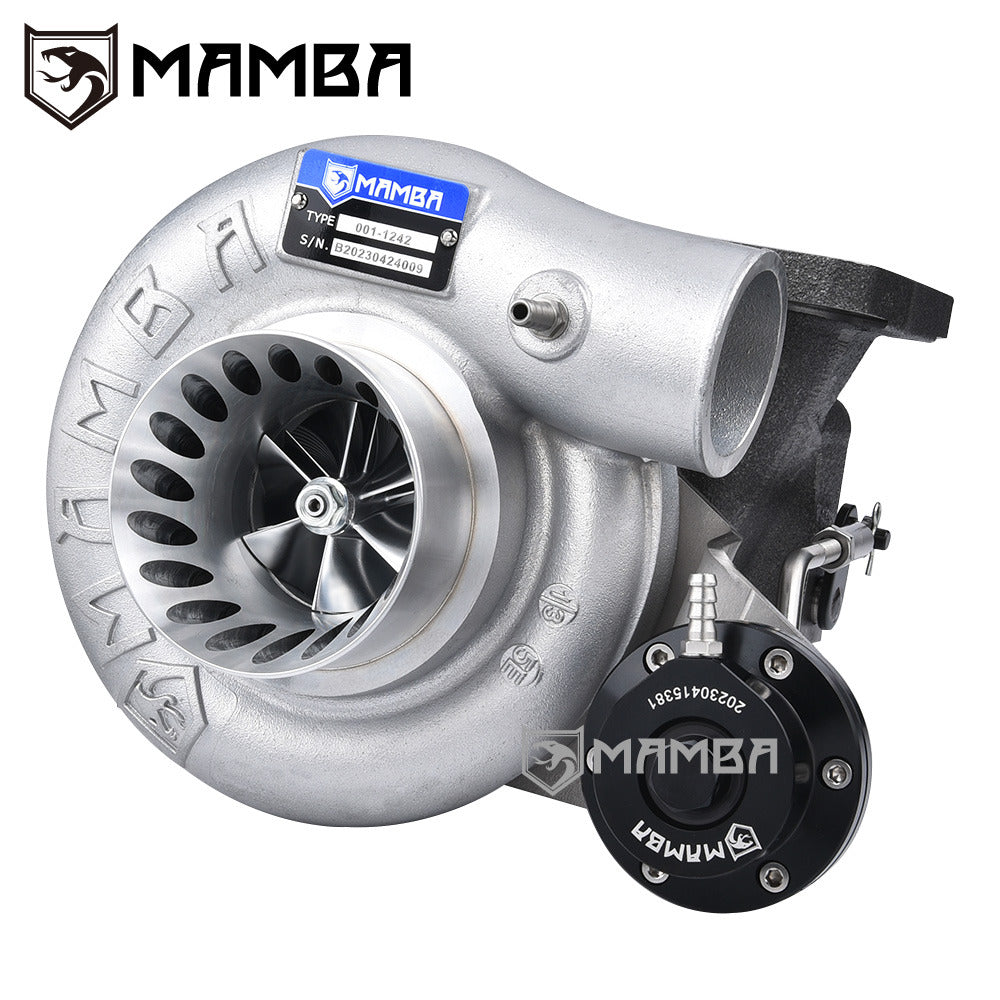

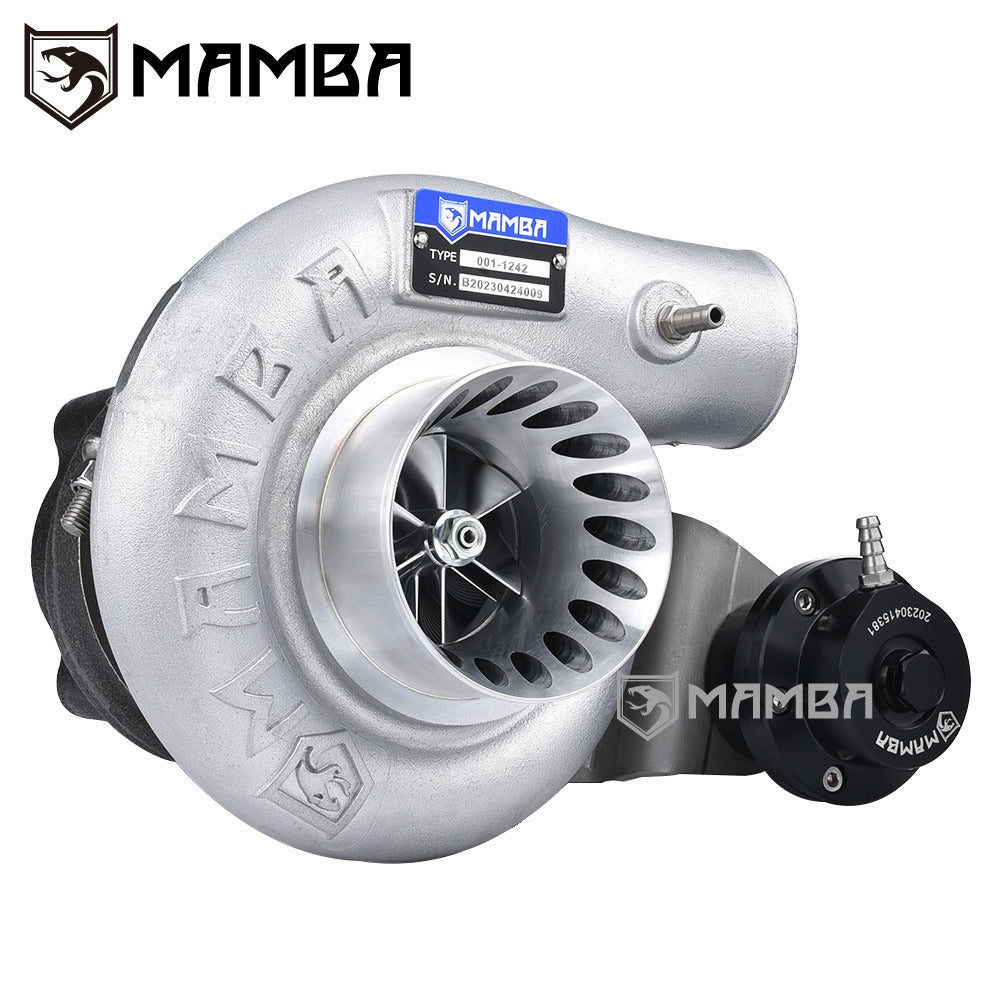

MAMBA 12-6 GTX Billet Bolt-On Turbocharger Nissan TD42 GU Patrol Oil-Cooled 3”Anti Surge TD05H-18G w/ 6cm Housing
Brand New in Box.

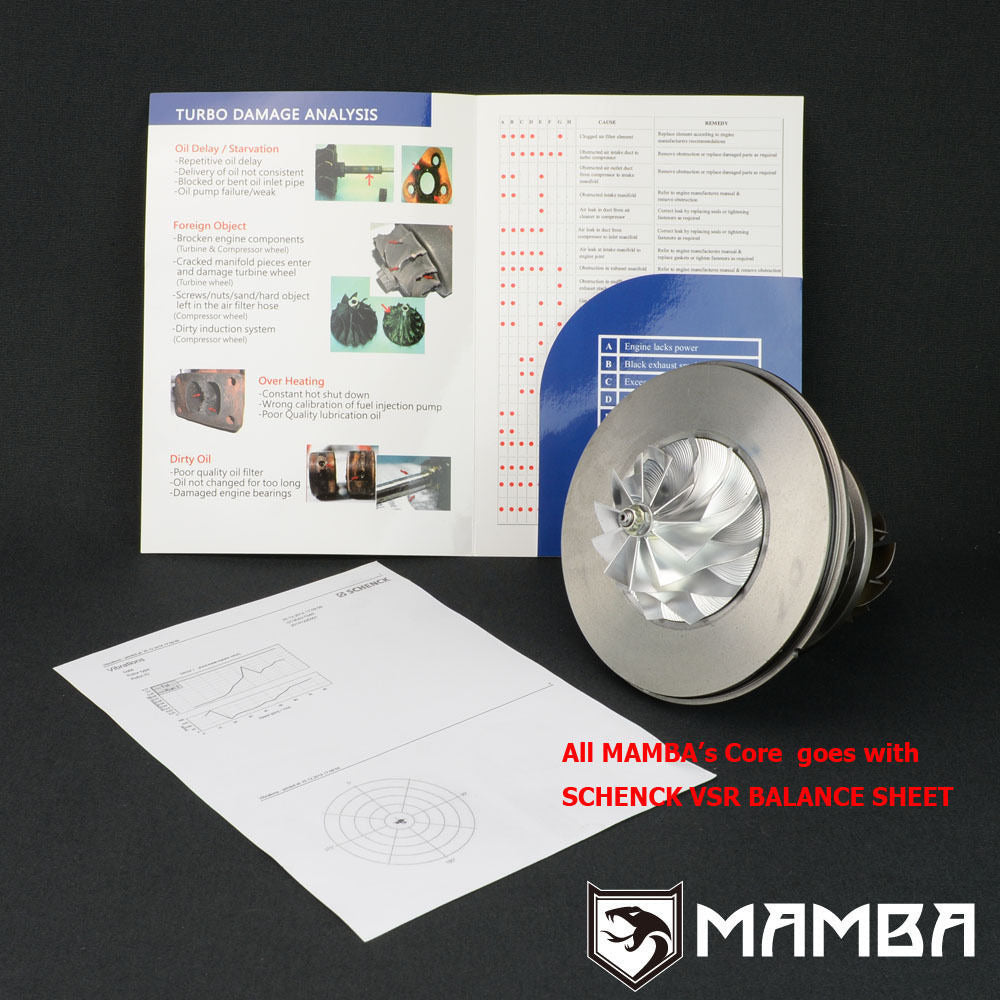

Complete CHRA balanced by SCHENCK MBRS110 Germany.
Application
Nissan Safari / Patrol GU TD42 Diesel
Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
Compressor housing inlet and outlet pipe needs to be modified to fit this 3” Cover
It needs different oil and water line kit if your engine is GQ type
Specs
Comp. Wheel : 50.39 / 68 mm (GTX 6+6 Blade Billet Wheel 18G with Extended Tip)
Turbine Wheel : 49.2 / 56.4 mm (TD05H 12 Blade Performance High Inconel)

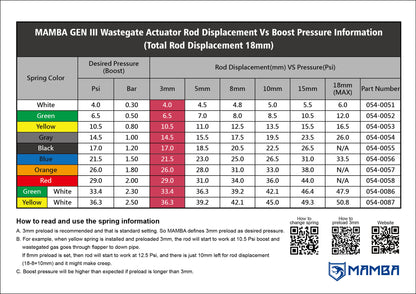

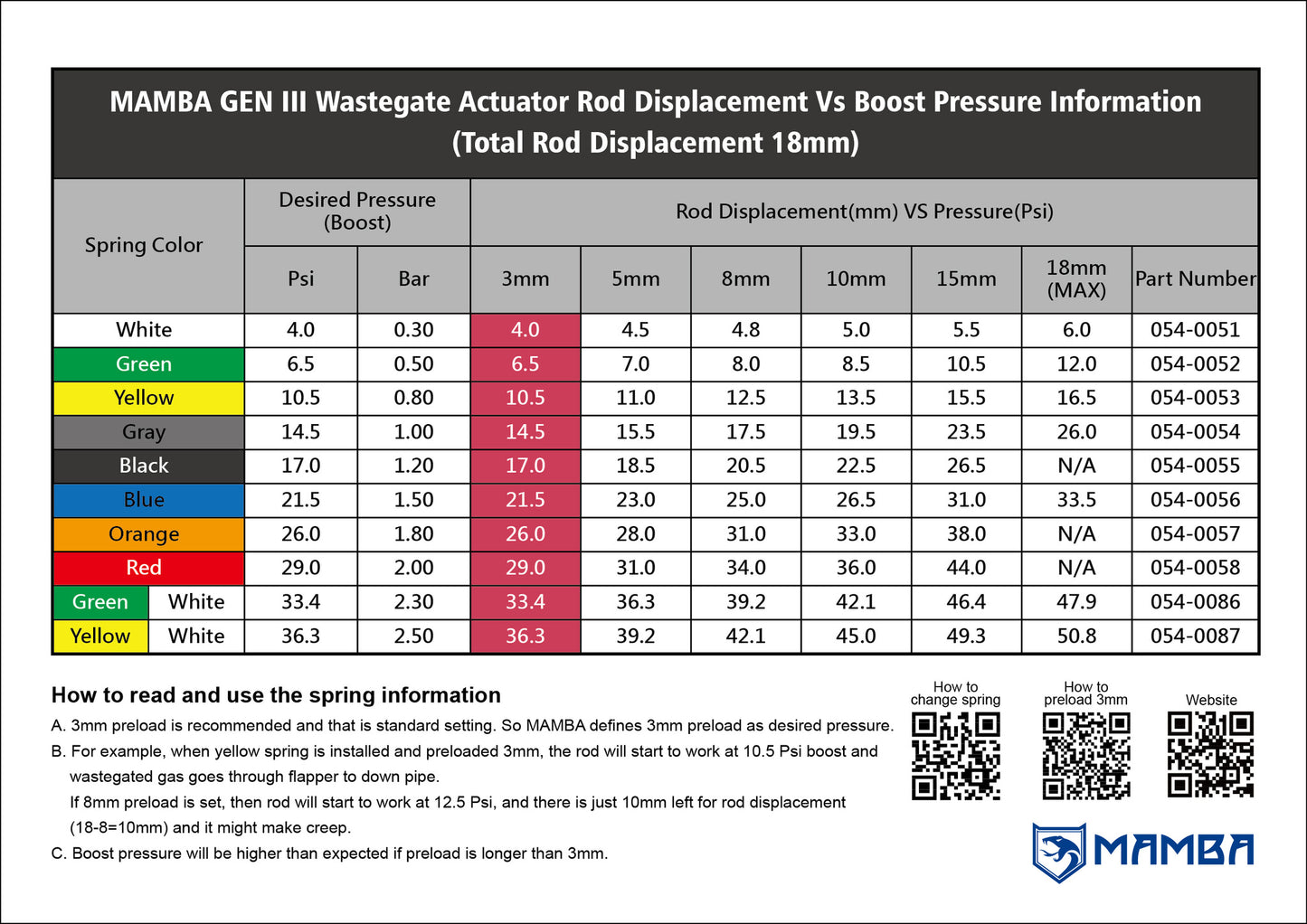

Actuator
0.8bar spring pre-installed on the adjustable actuator
1.2bar and 1.5bar spring will go with box

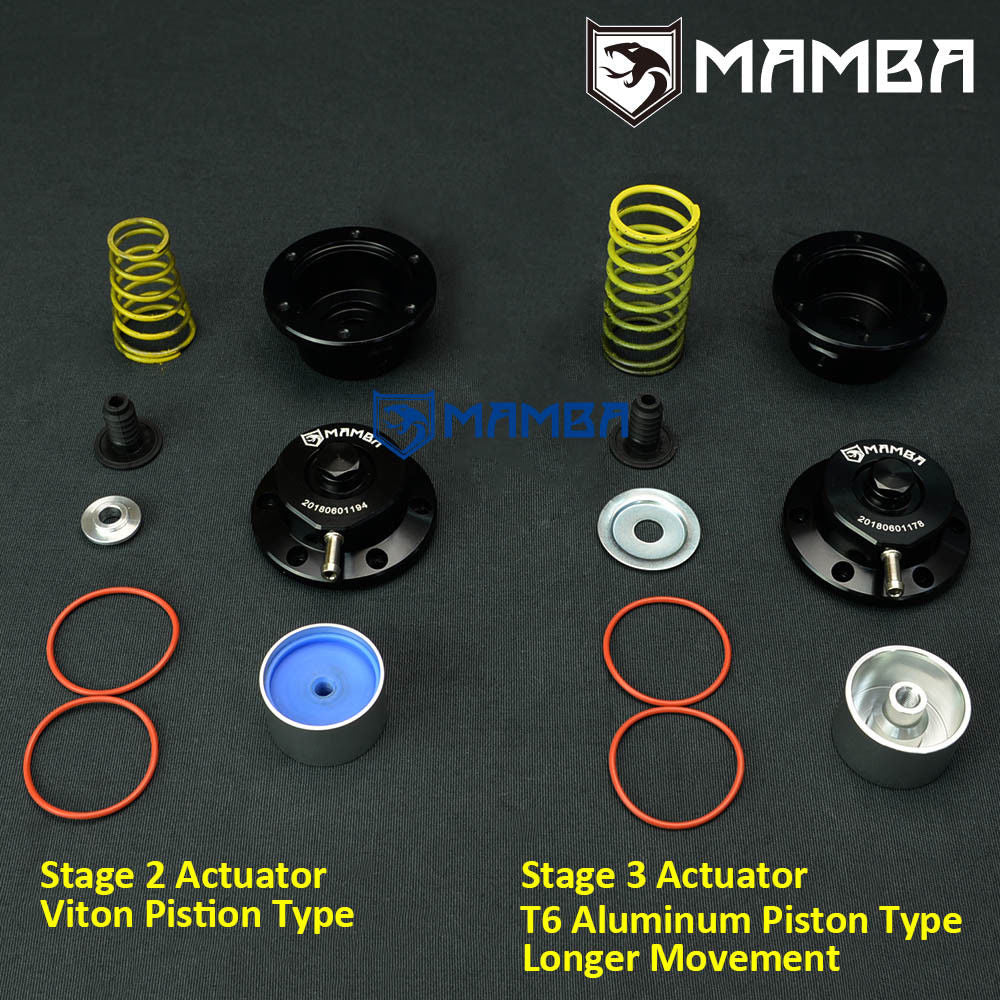

Stage 2 Viton Piston type of Adjustable actuator (Replace diaphragm type)
Comp. Housing
Compressor Housing Inlet OD: 3” / 76.2mm
Compressor Housing Outlet OD: 2” / 51.3 mm
Compressor Housing A/R: .60

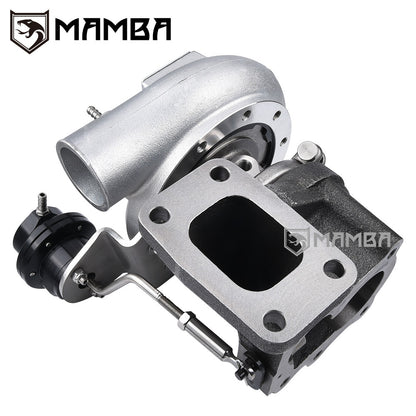

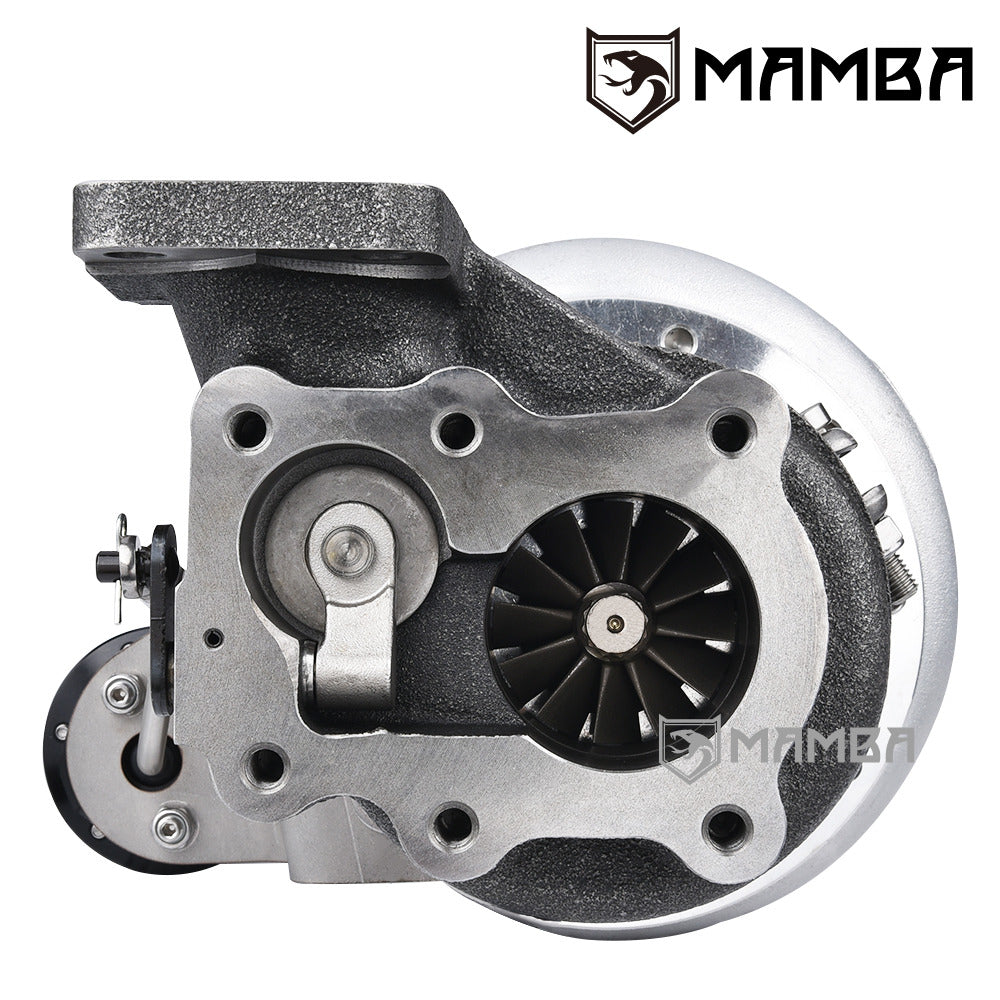

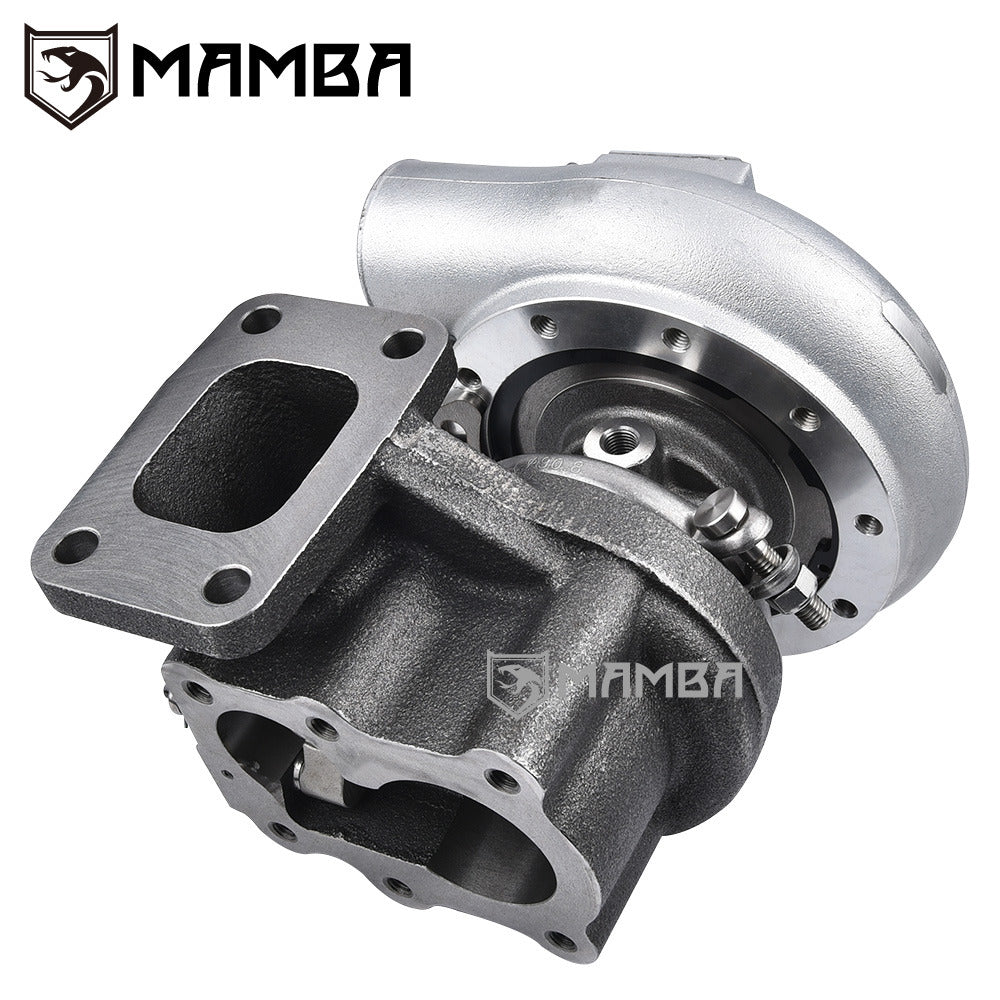

Turbine Housing
6cm^2
Standard T3 Flange
Internal Gate Type
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil-Cooled system

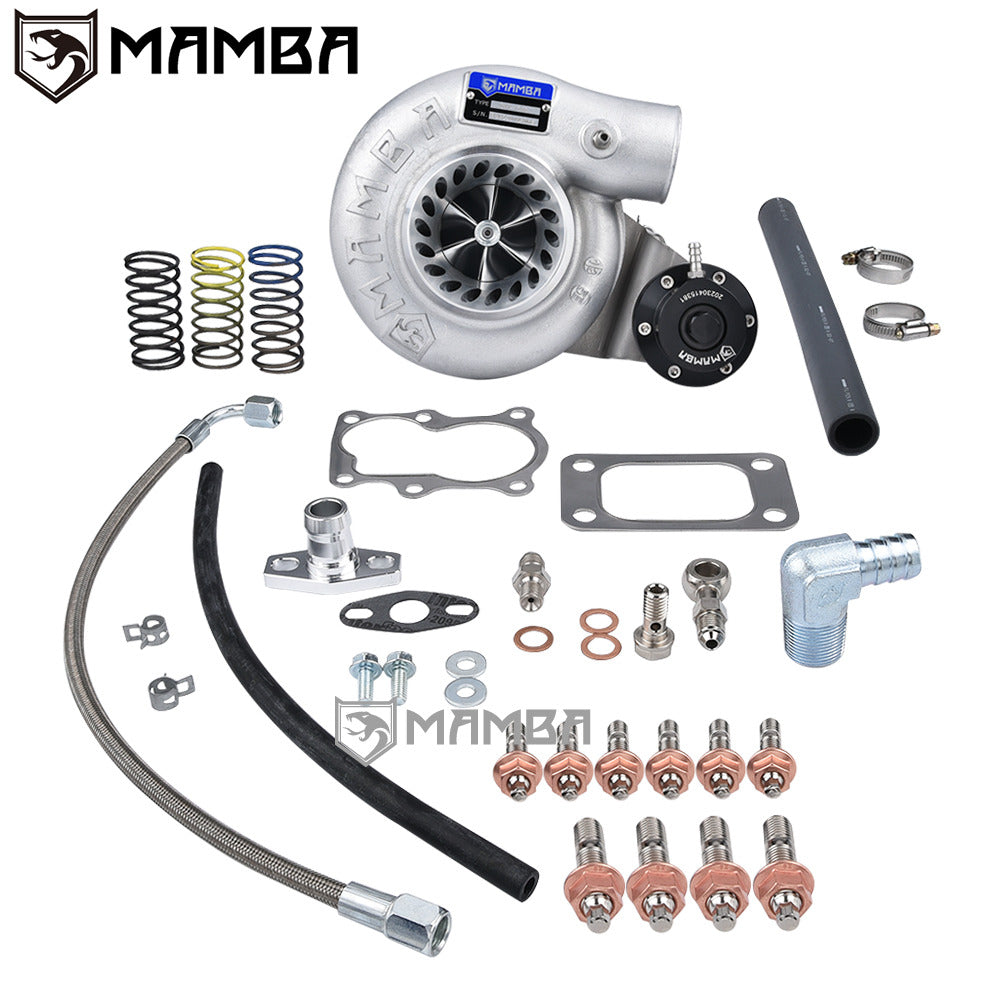

Kit Includes
1 x Oil Feed Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
6 x M8x1.25 Stud Kit
Everything shown on first picture is included.
