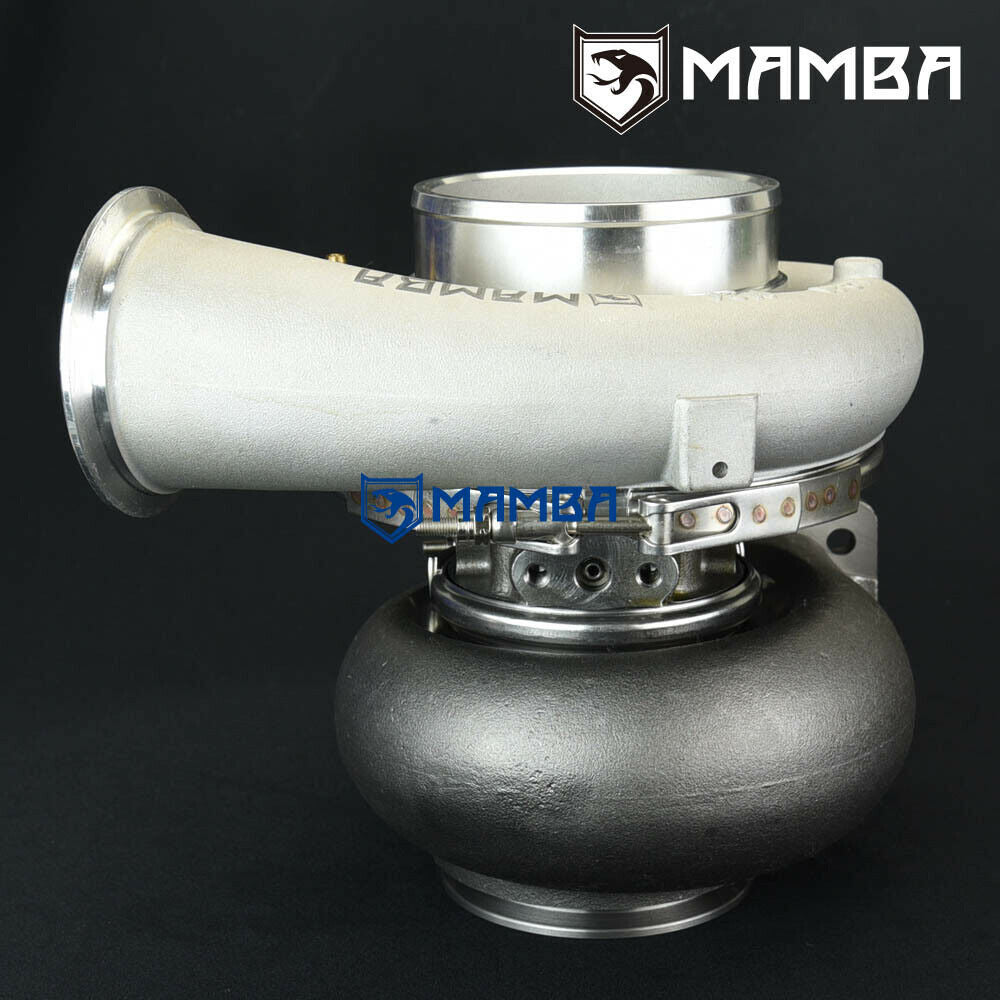

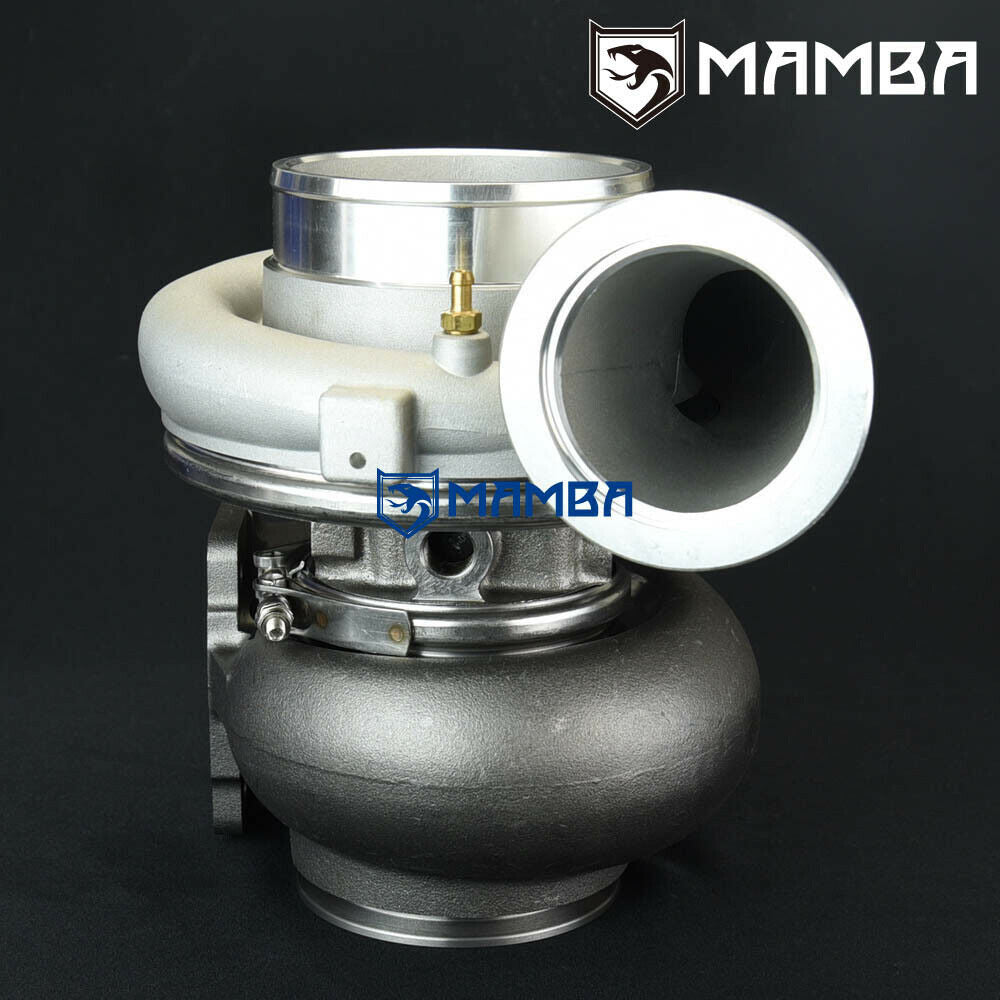

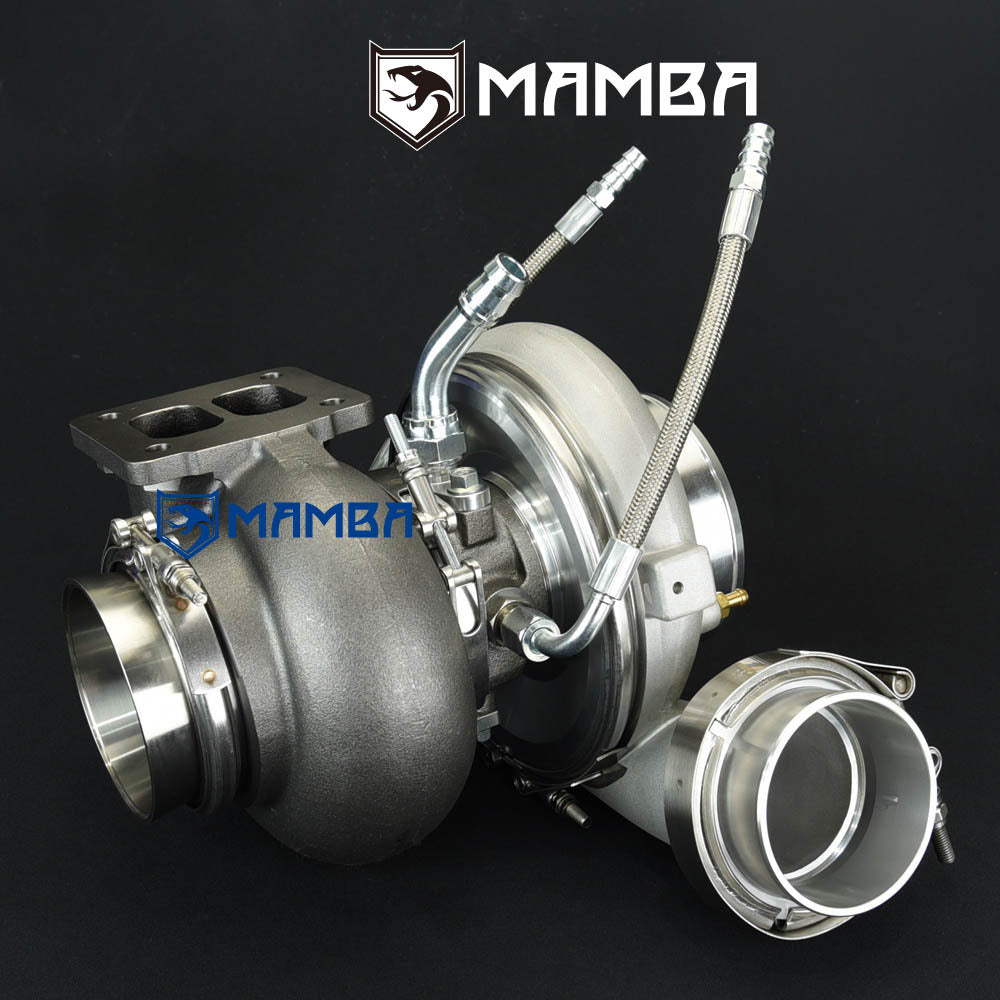

MAMBA 5” GTX4202R Ball Bearing Turbocharger with 1.01 T4 V-band turbine housing

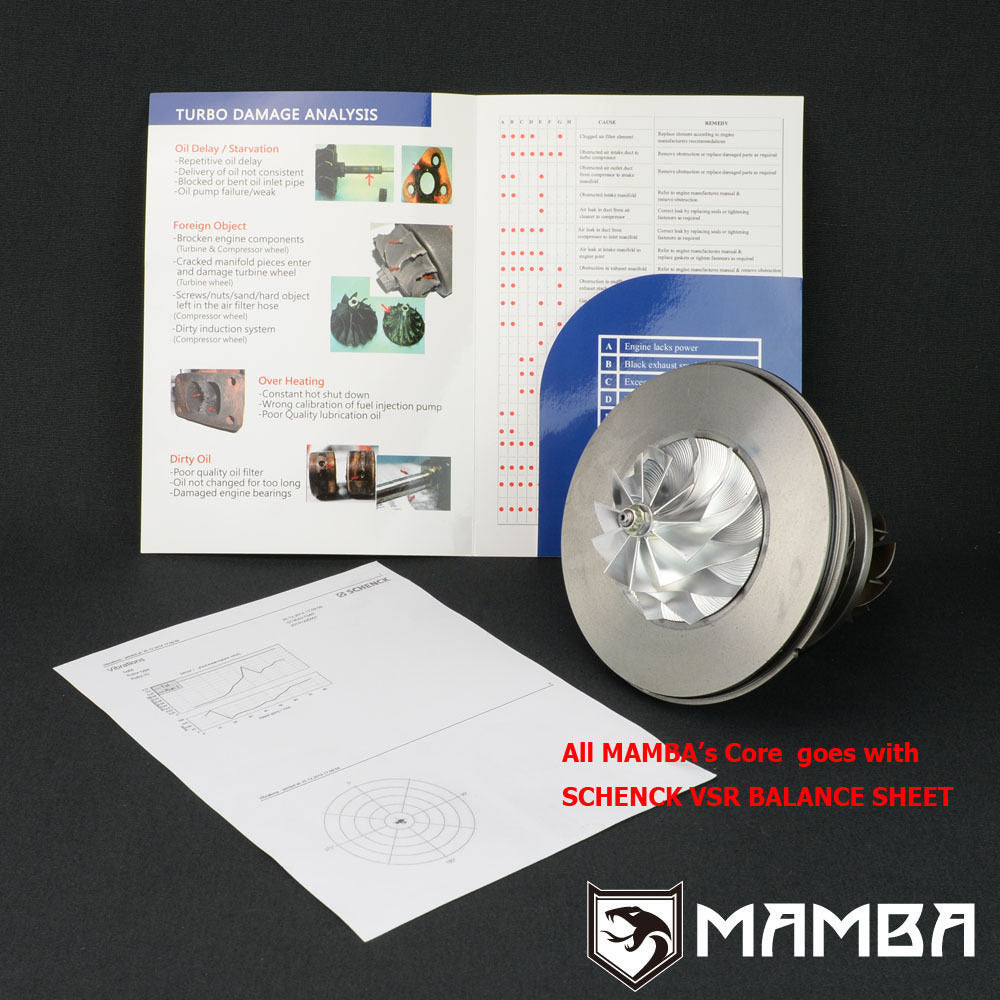

Complete CHRA was balanced by Schenck MBRS 110 and is ready to work.
Application
Universal Use.
Support HP: 850~1150HP
Displacement: 3.0~7.0L
Specs

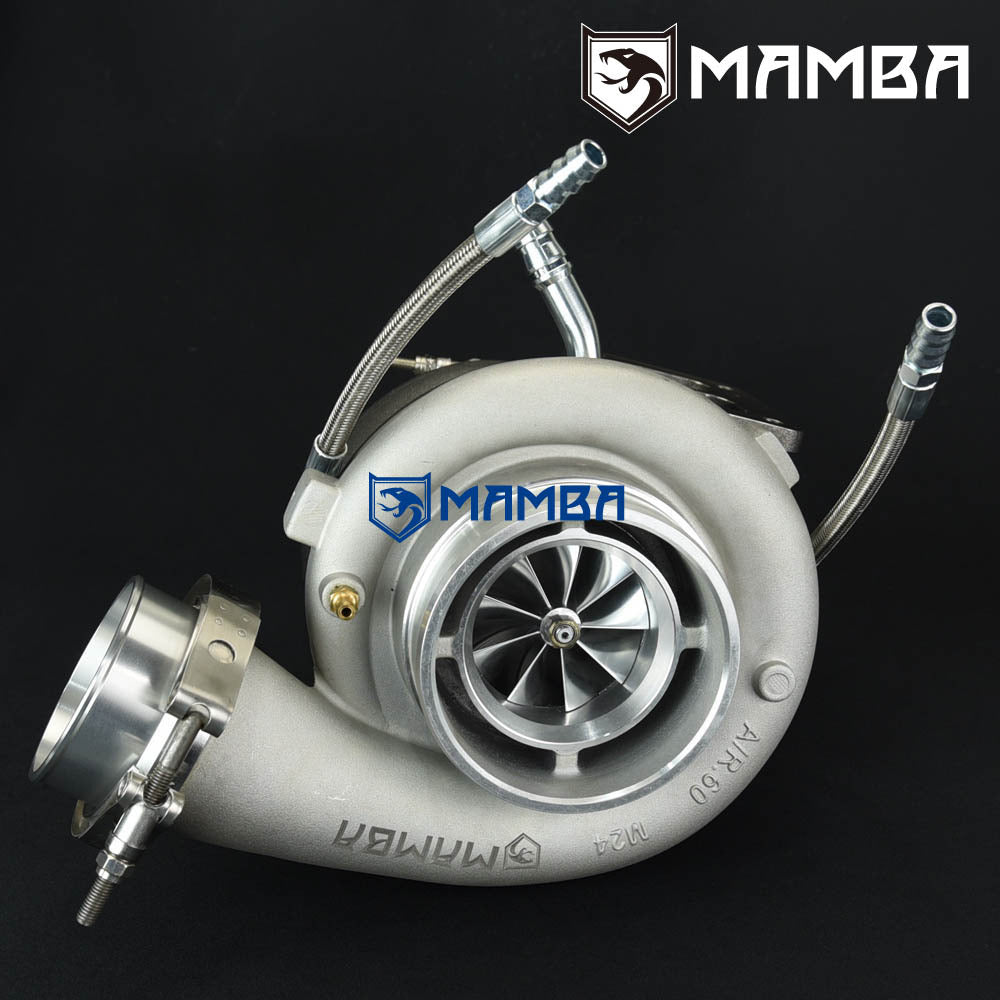

Comp. Wheel: 75.8/102.7/ Trim 55 (9+0 Billet Wheel with Extended Tip)

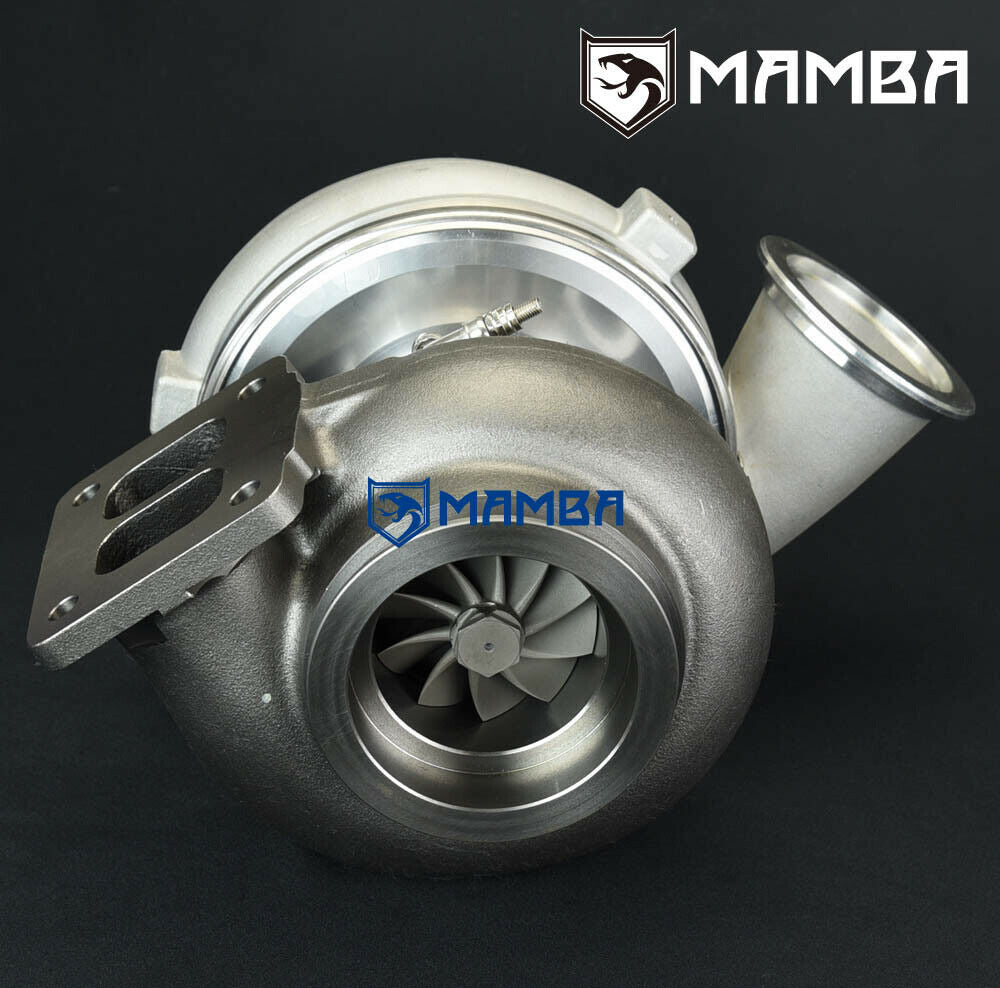

Turbine Wheel: 75/82/ Trim 84 (10 Blade Turbine Wheel)
Compressor Housing Inlet OD: 5”
Compressor Housing Outlet OD: 4.2”
Compressor Housing A/R: .60

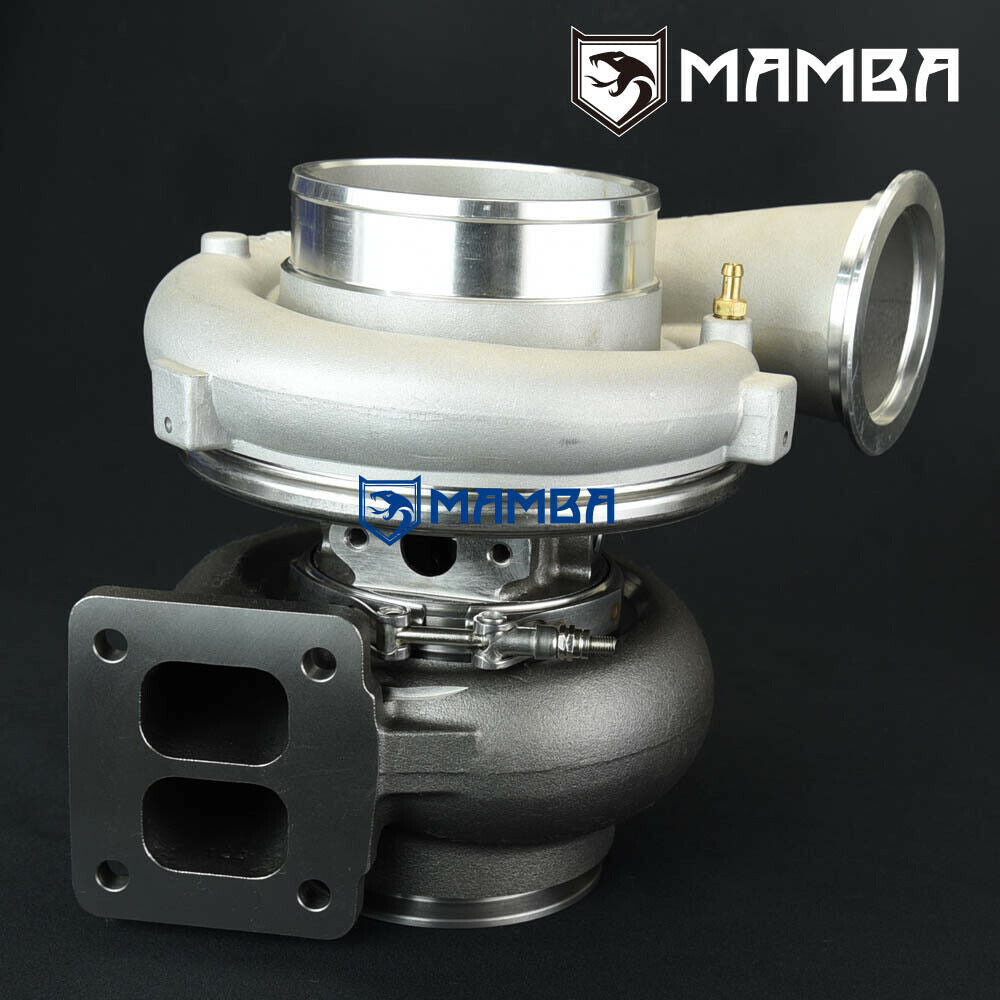

Turbine Housing Inlet: Standard T4 Twin Entry

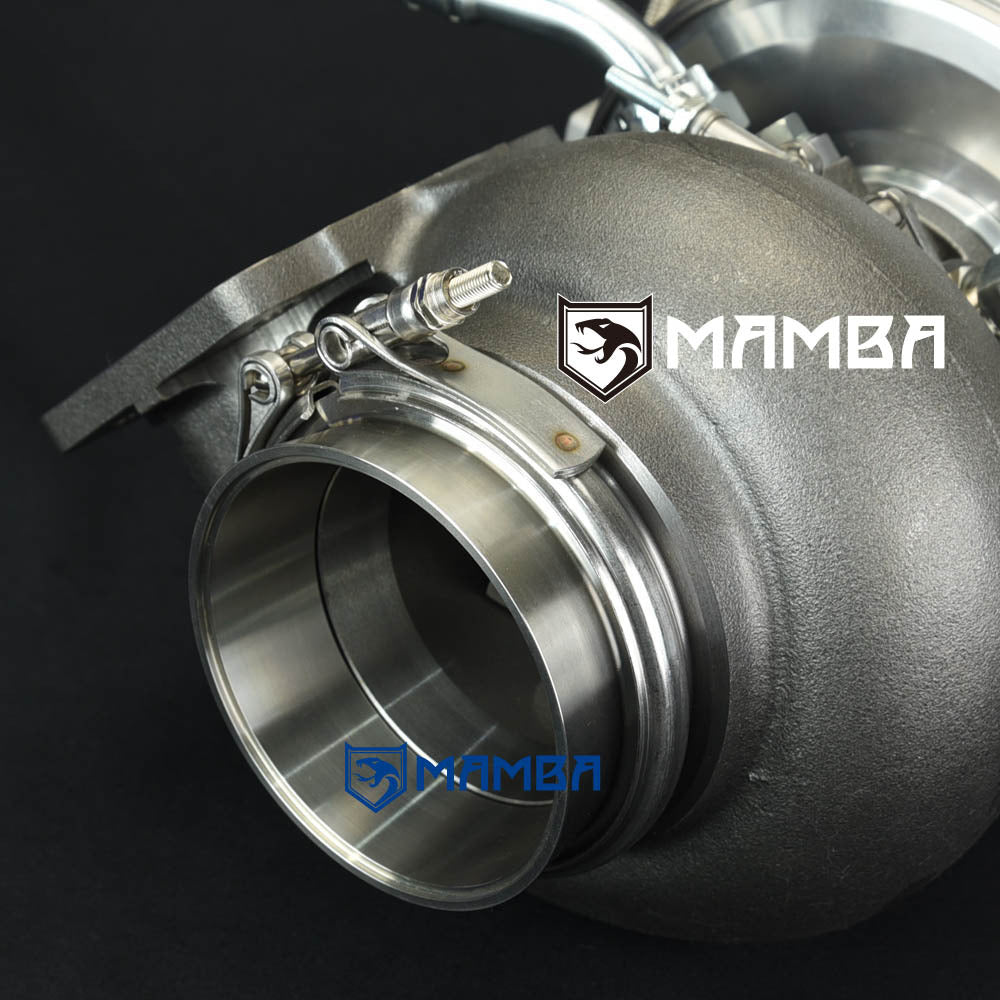

Turbine Housing Outlet: 4.5” V-Band (Fit Garrett GTX42R/GTX45R Flange adapter & Clamp)
Turbine Housing A/R: 1.01
Bearing
NTN Dual Ceramic Ball Bearing
Cooling
Oil and Water-Cooled

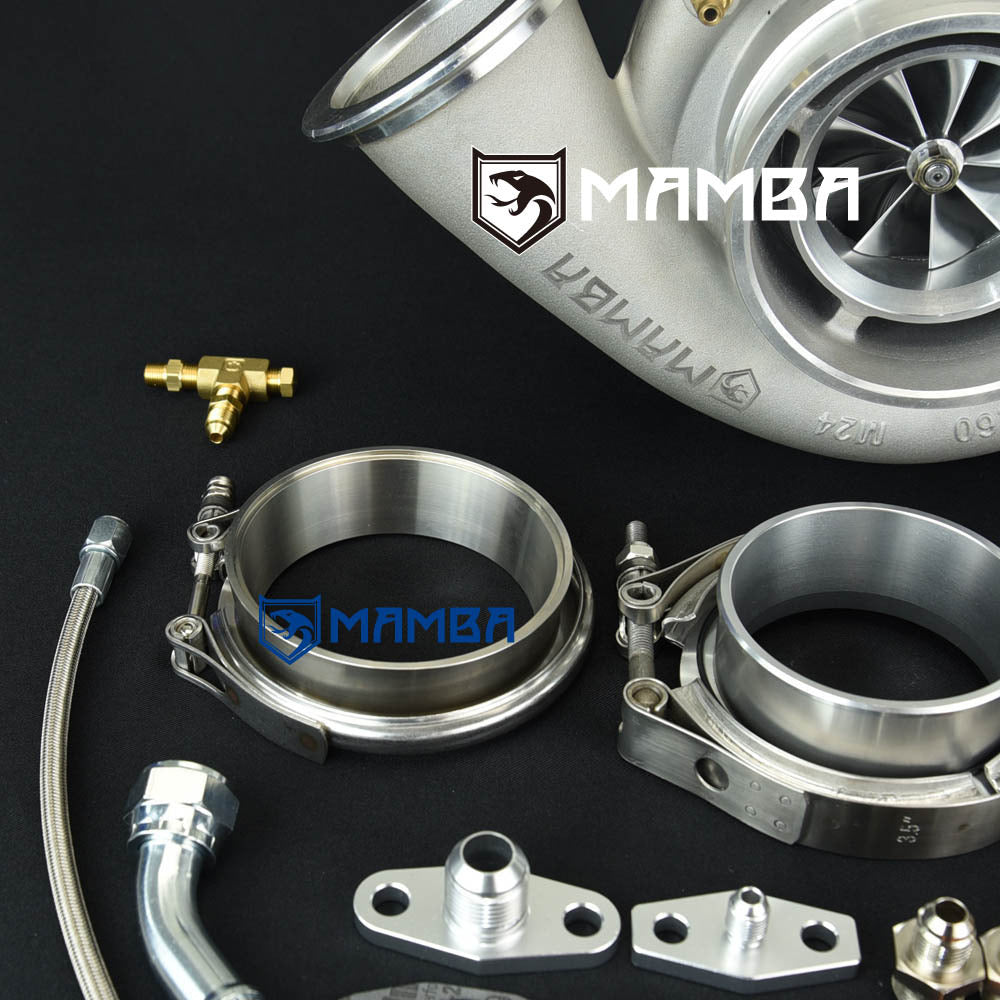

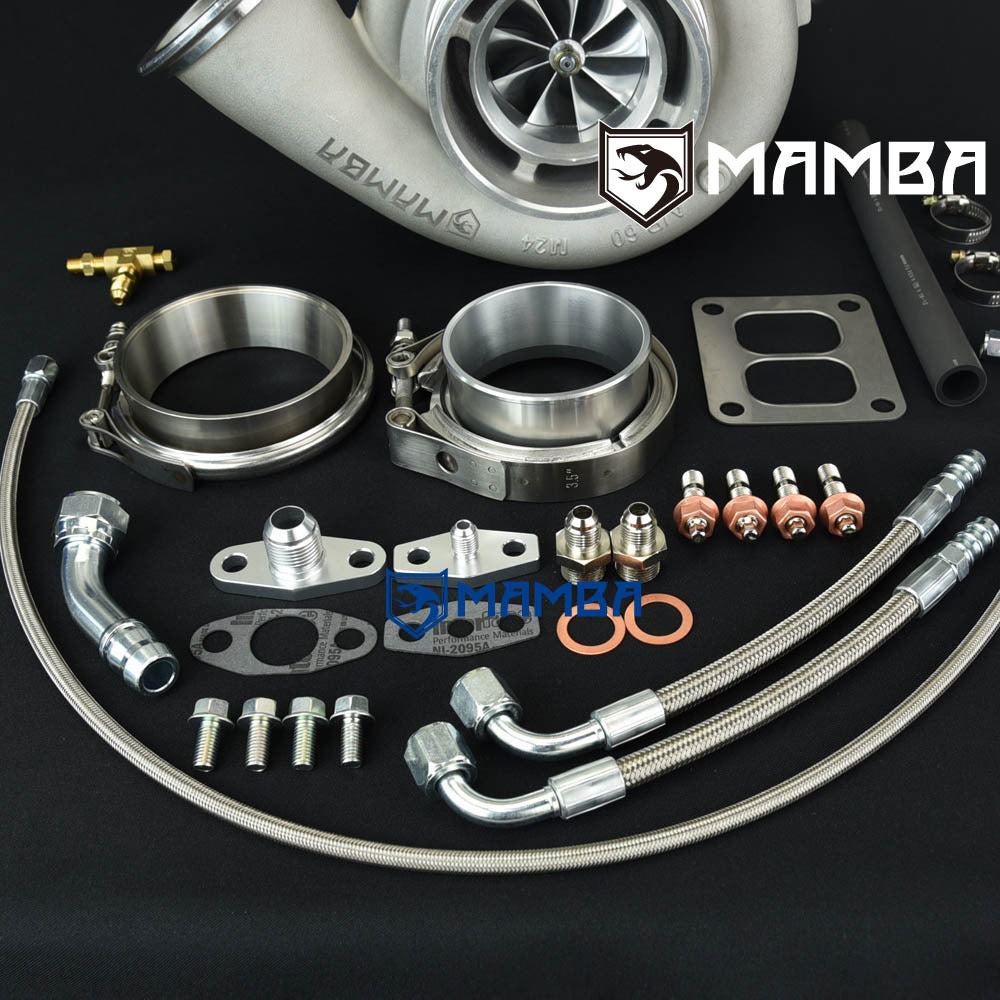

Kit Includes
1 x 9+0 MAMBA 5” A/R .60 GTX4202R Turbocharger with A/R 1.01 T4 V-Band Turbine Housing
1 x 100cm 4AN S-90 PTFE Turbo Oil Feed Line with 2.5mm restrictor to turbo.
2 x 6AN Adapter Fitting to Turbo Water

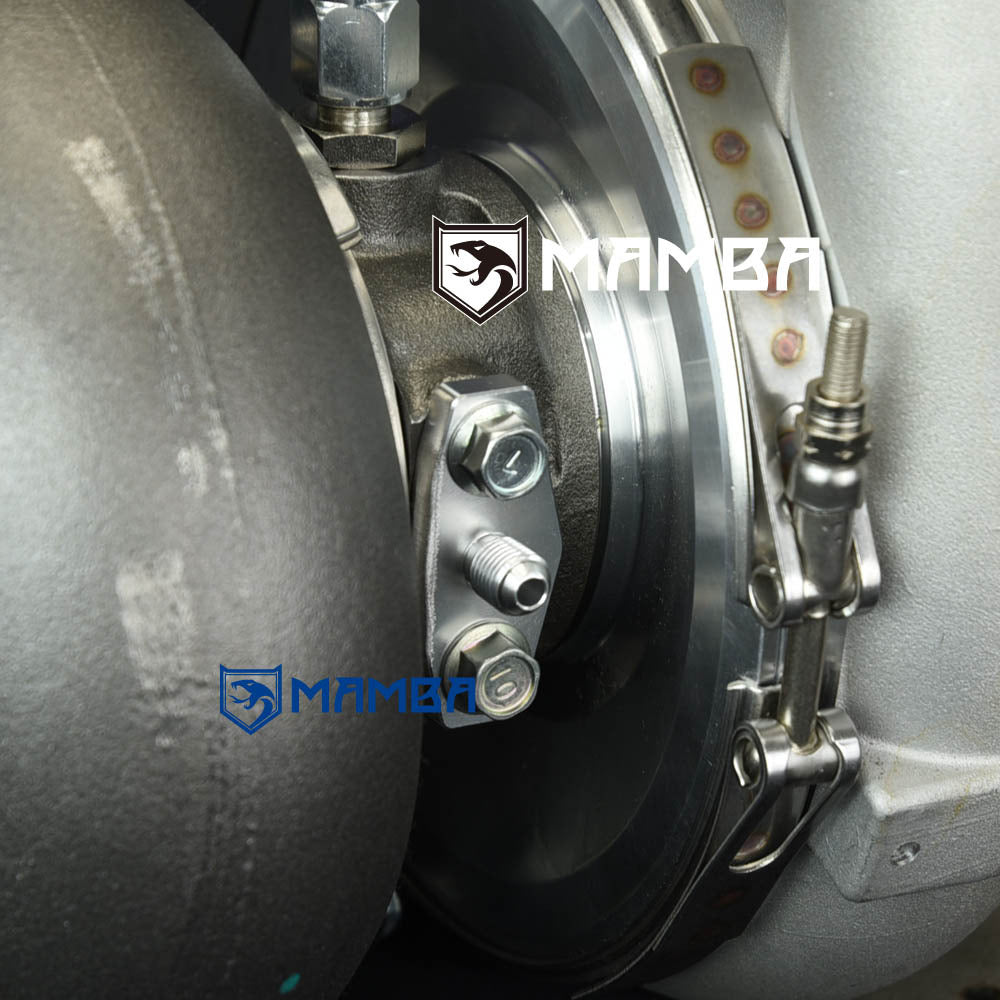

1 x 10AN Oil Return flange
4 x 40mm M10x1.25 Stud Kit.
Everything shown on picture is included.
