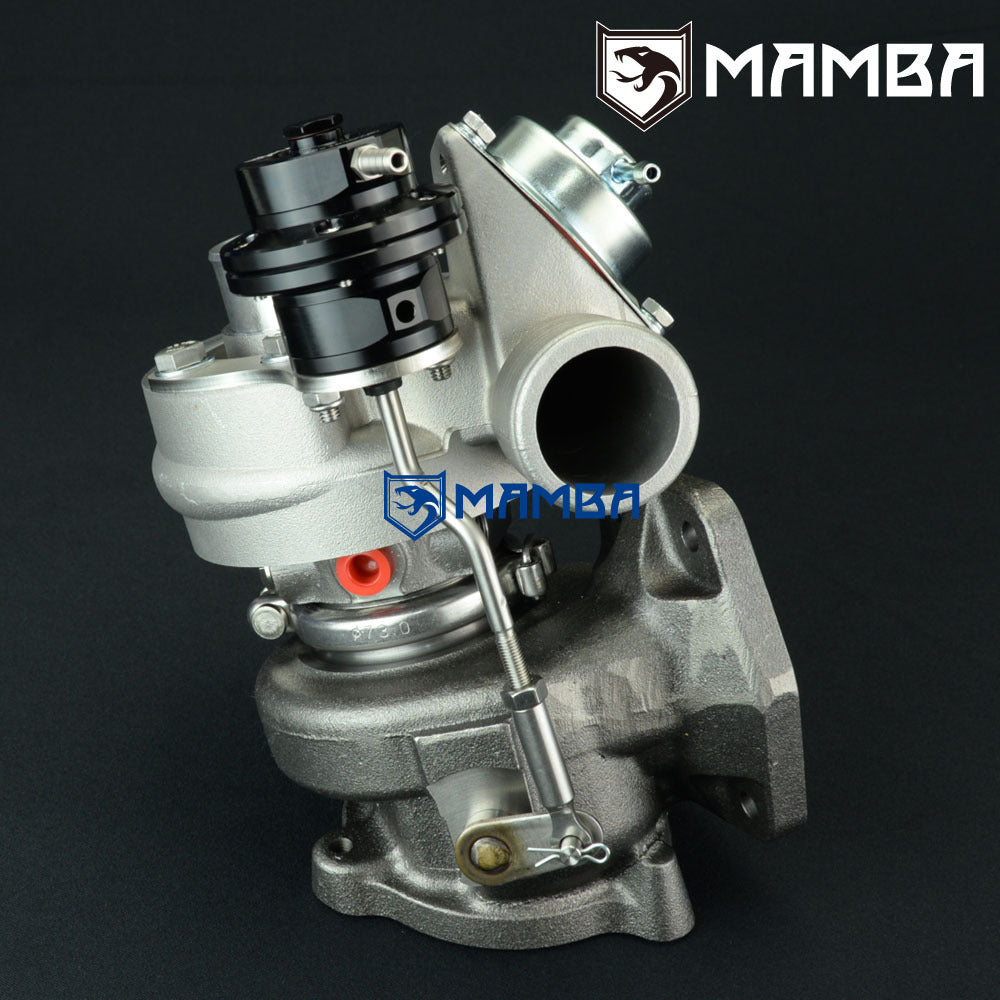

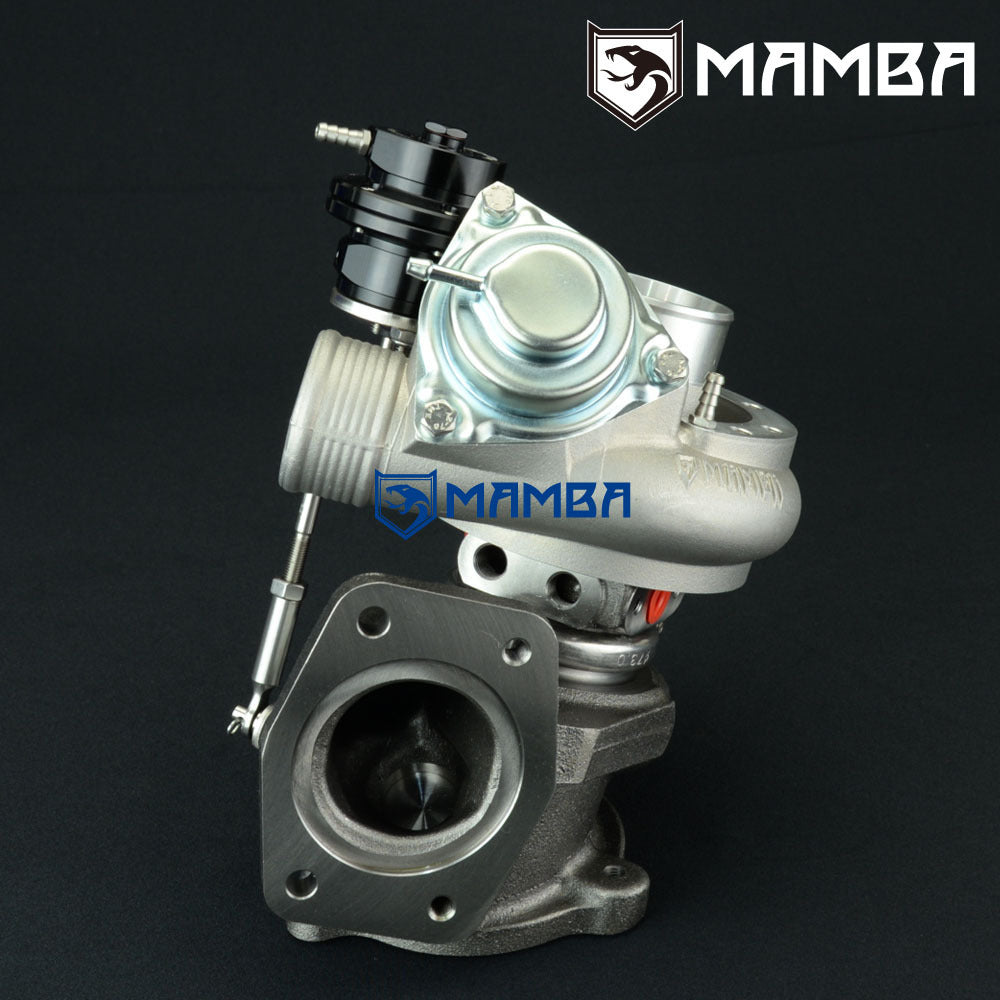

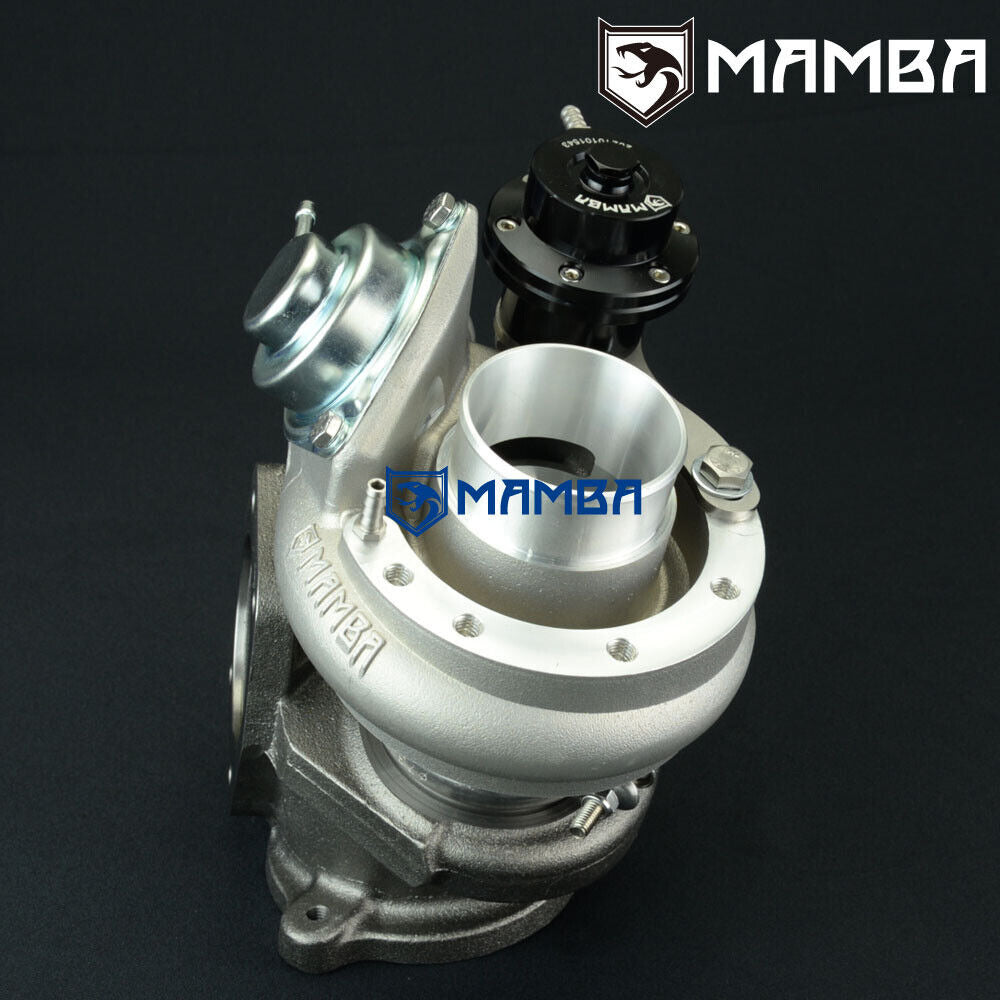

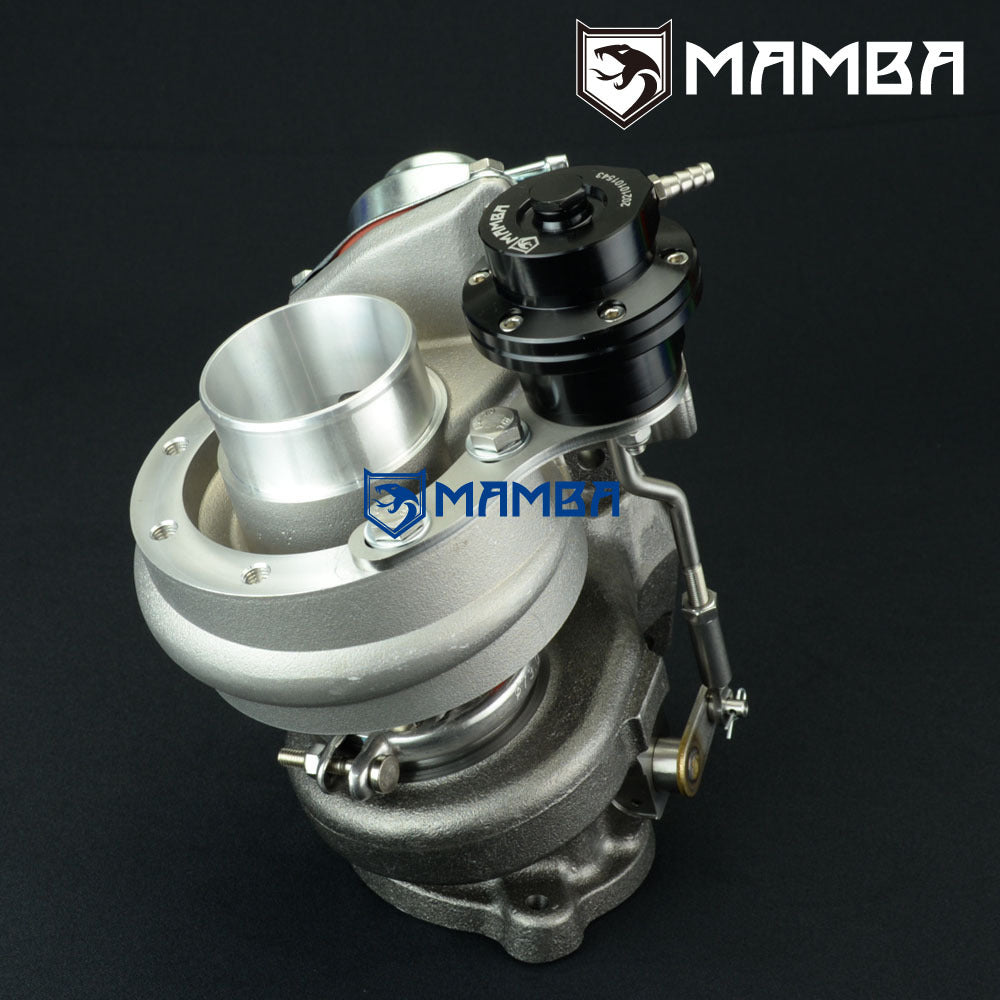

MAMBA 9-6 VOLVO TD04HL-16T-7 Heavy Duty Angled Turbocharger (300HP)
Brand New in Box.
Complete CHRA balanced by SCHENCK MBRS110 Germany.
Application
HP Support: 250~300HP
Bolt-On upgrade turbo for VOLVO S60/S70/V70/C70/XC70 B5234/B5244/N2P25LT with factory TD04HL-13T/16T & angled turbine housing.
Replace & Upgrade factory turbo #: 49189-05000, 49189-05010, 49189-05100, 49189-05101, 49189-05102, 49189-05111, 49189-05112 (TD04HL-16T), 49189-05200, 49189-05201, 49189-05202, 49189-05210, 49189-05211, 49189-05212 (TD04HL-13T).
Wheel Specs

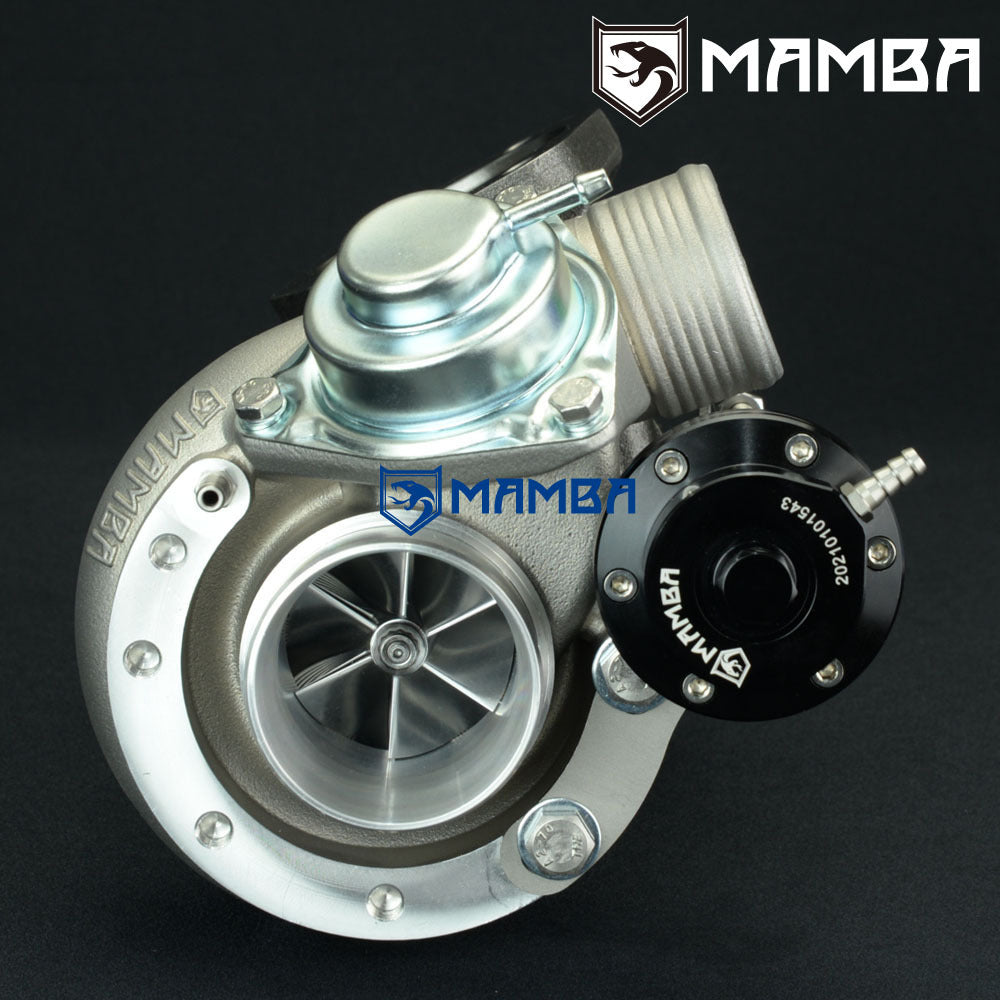

Compressor Wheel : 43.4/56 mm (Performance 6+6 16T Billet Wheel)

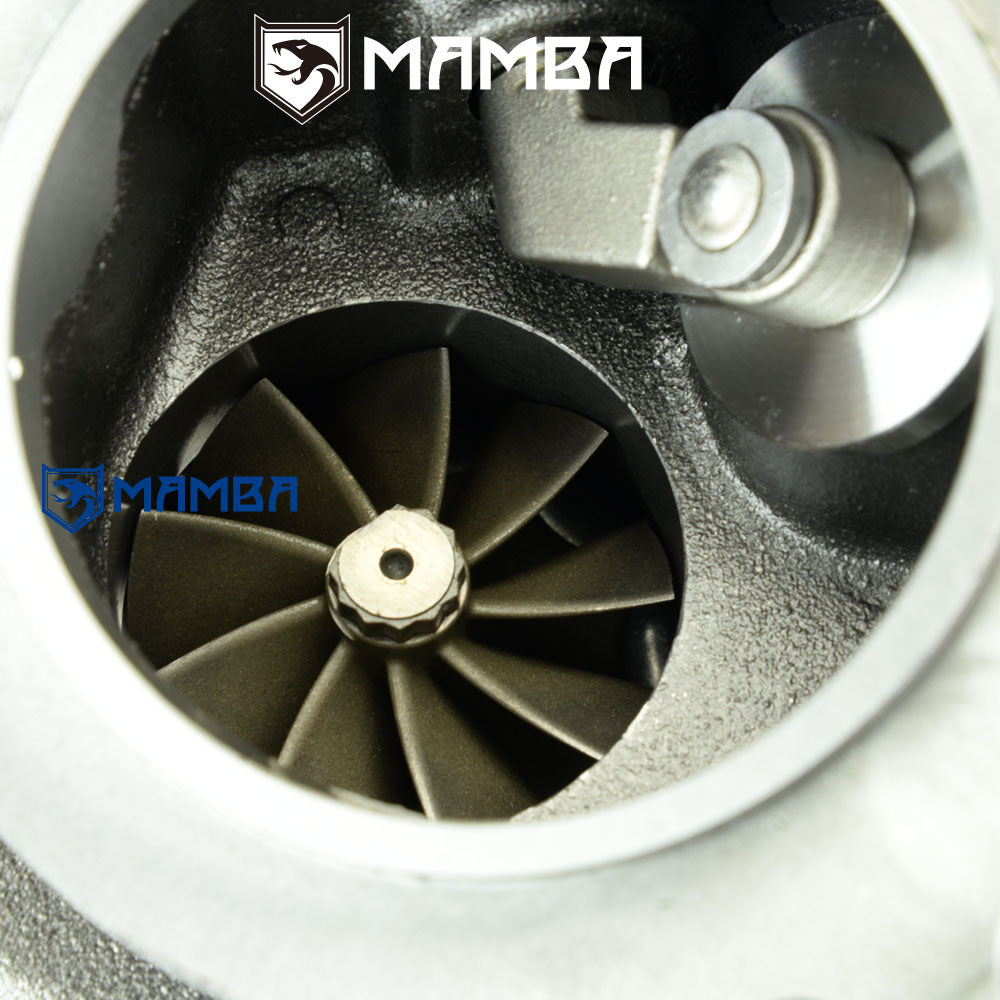

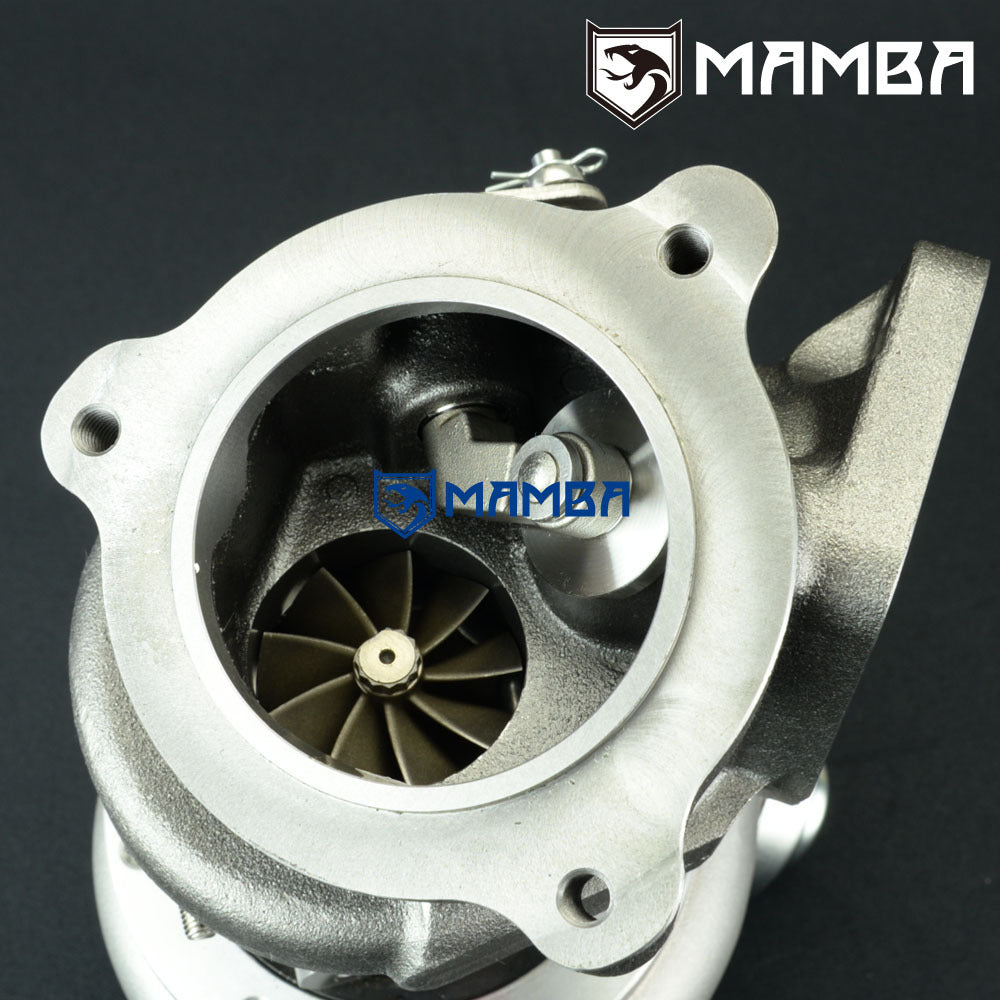

Turbine Wheel : 45.6/52mm (9 Blade TD04HL High Flow)
Turbine Housing

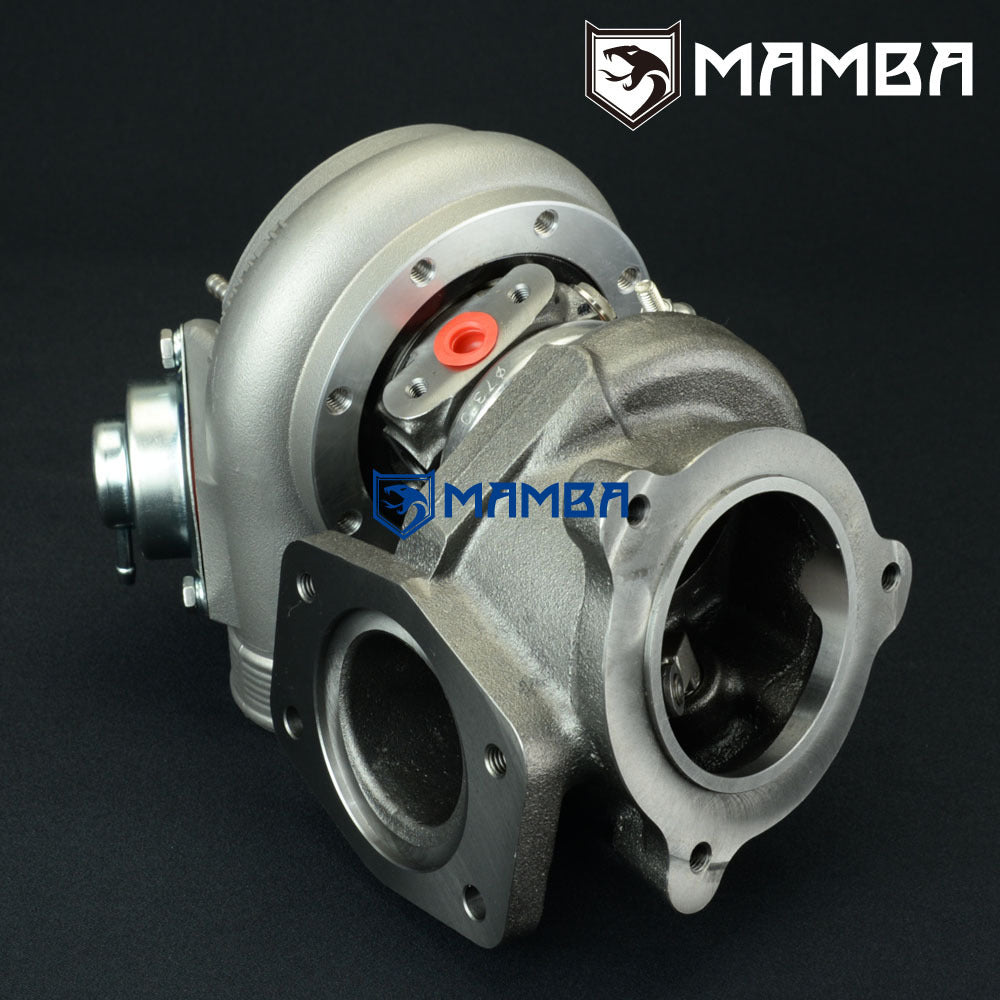

7cm (A/R .49) Angled Turbine Housing

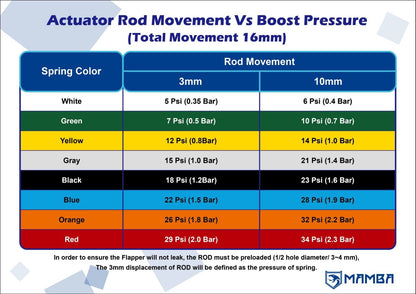

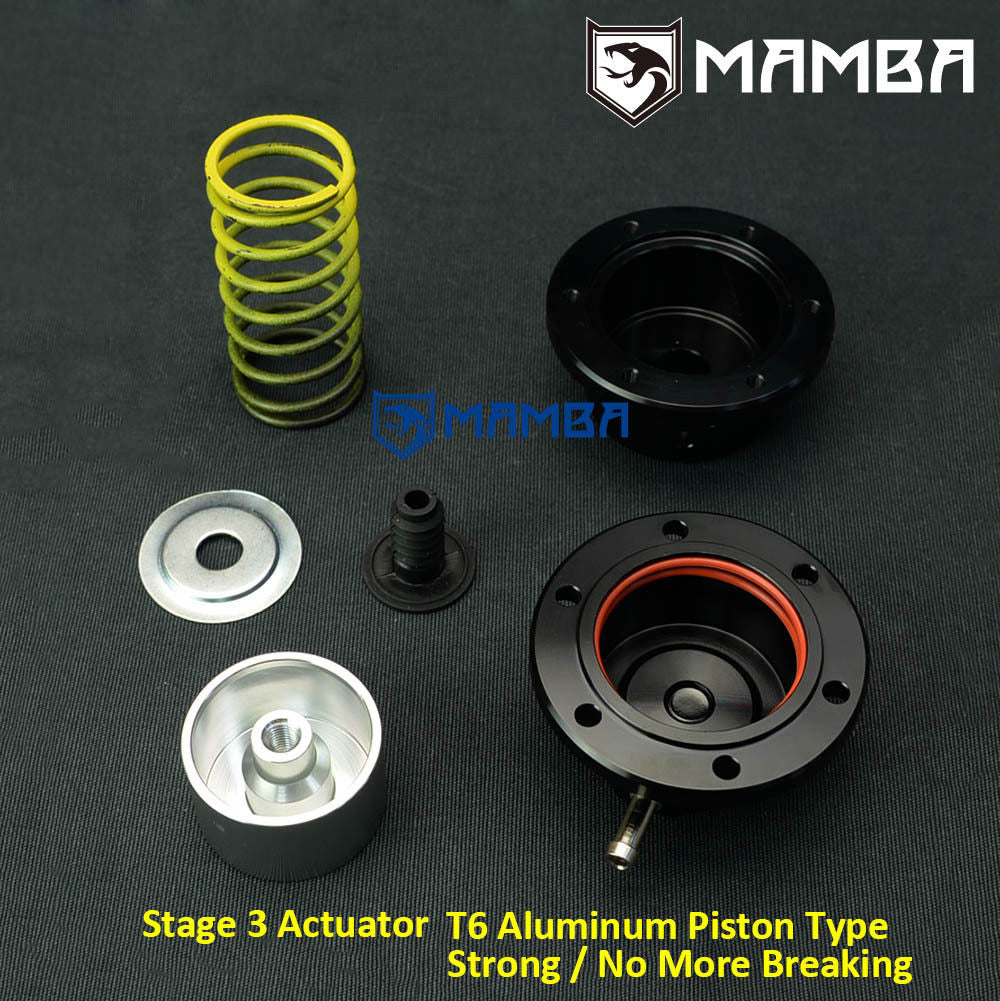

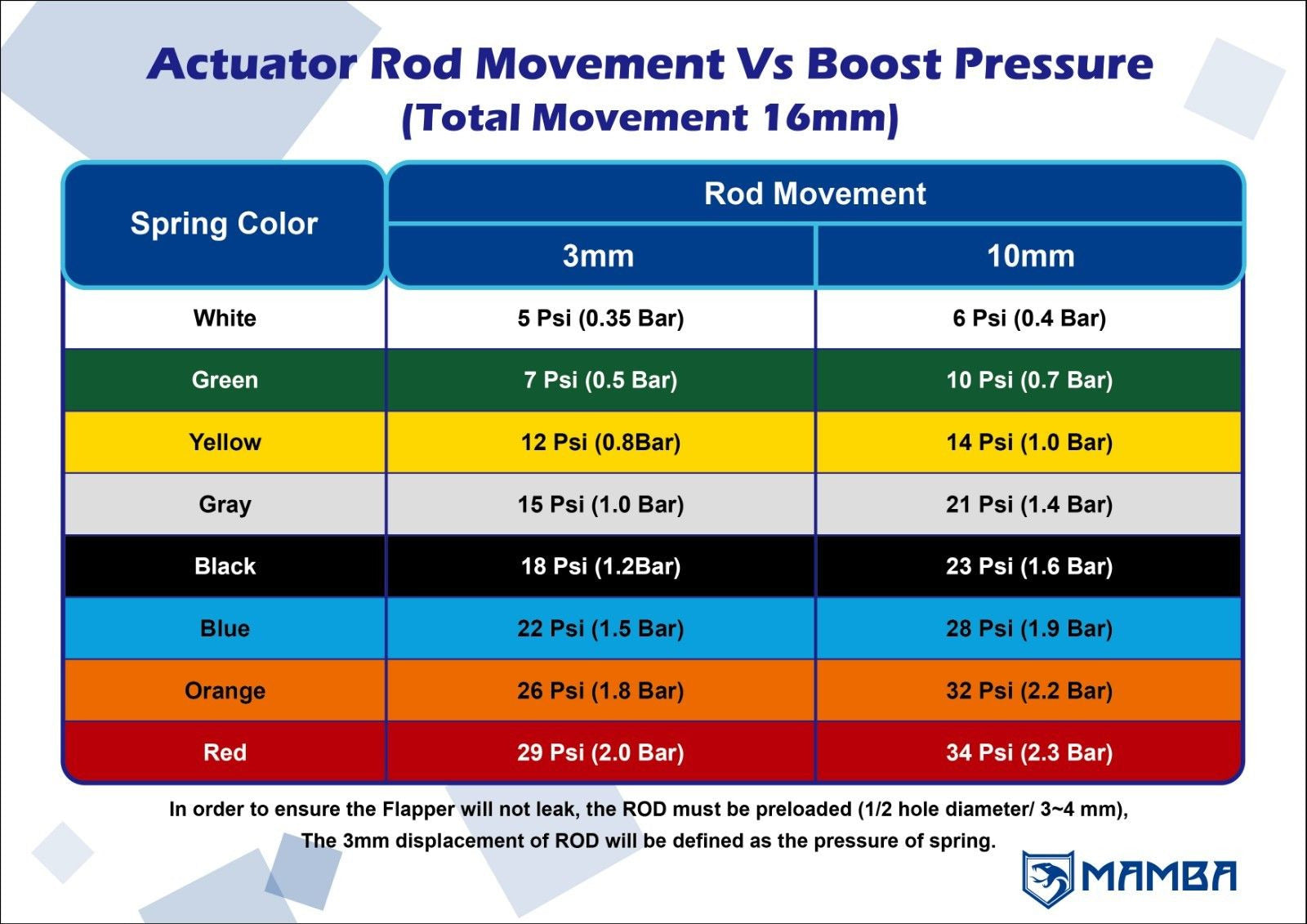

Actuator
0.8 Bar spring pre-installed.
Additional 1.2bar and 1.5Bar are included in box.
Bearing/ Cooling
Journal Bearing

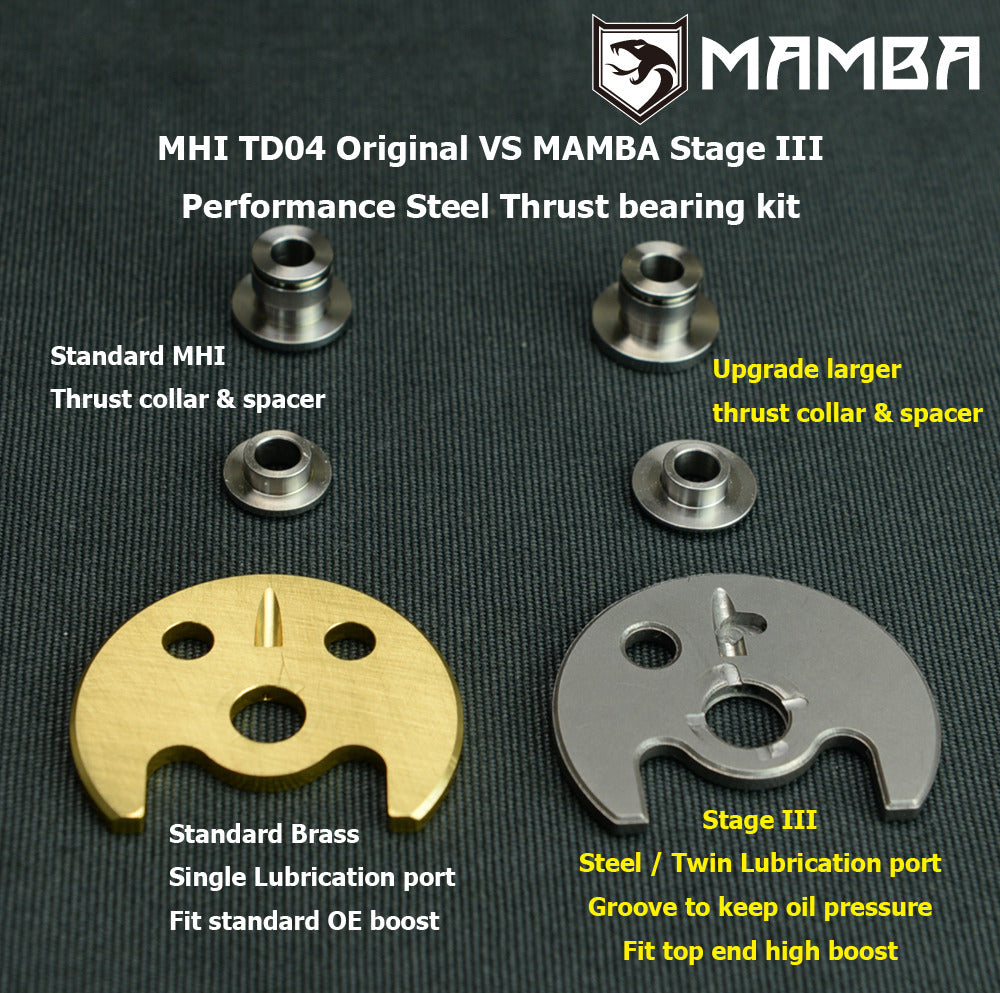

Heavy Duty Thrust Bearing Kit included.
Oil & Water-Cooled

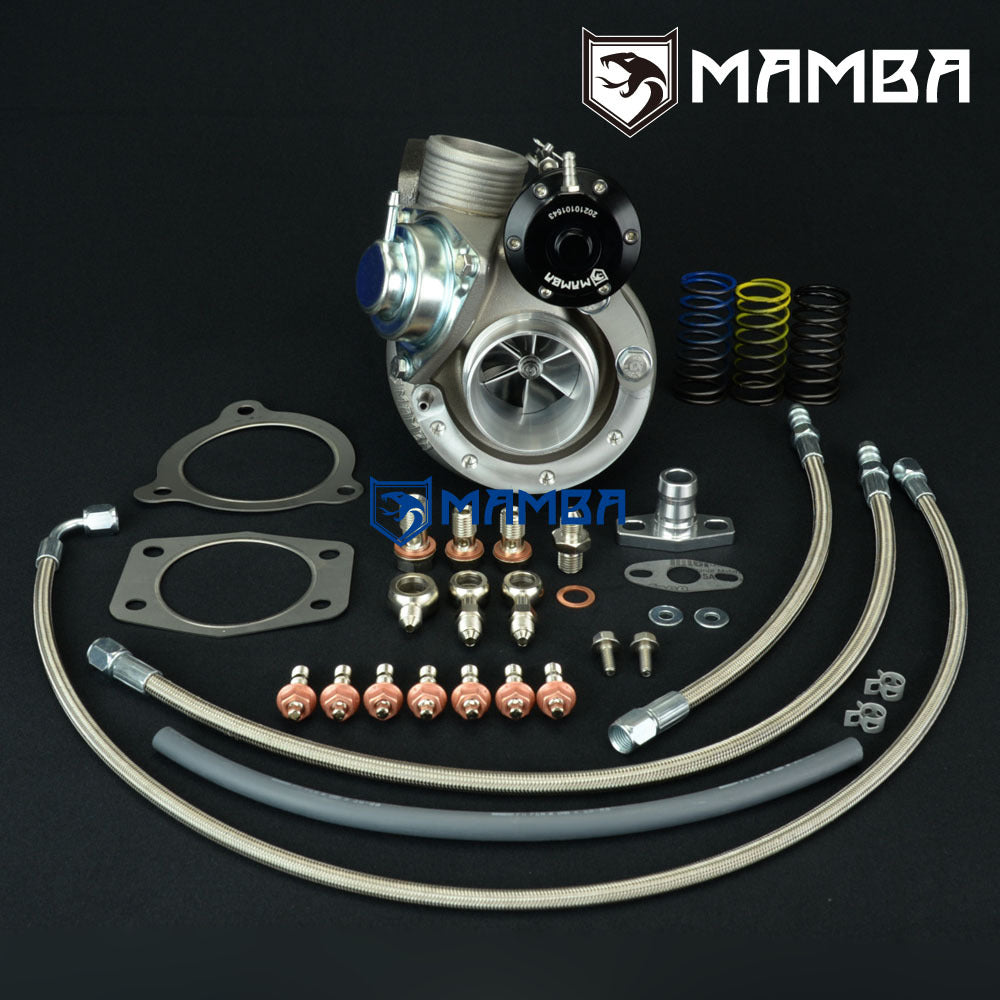

Kit Includes
1 x MAMBA Turbo
1 x 1/4” PTFE Oil Feed line with 2.5mm restrictor.
2 x 5/16” PTFE Water line
1 x 3/4” Oil Return flange
1 x SUS304 T3 Turbine Inlet Gasket
1 x SUS304 Turbine Outlet Gasket
7 x 8mm Stud Kit
Everything shown on first picture is included.
