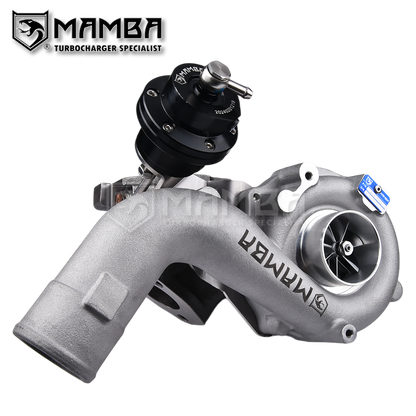

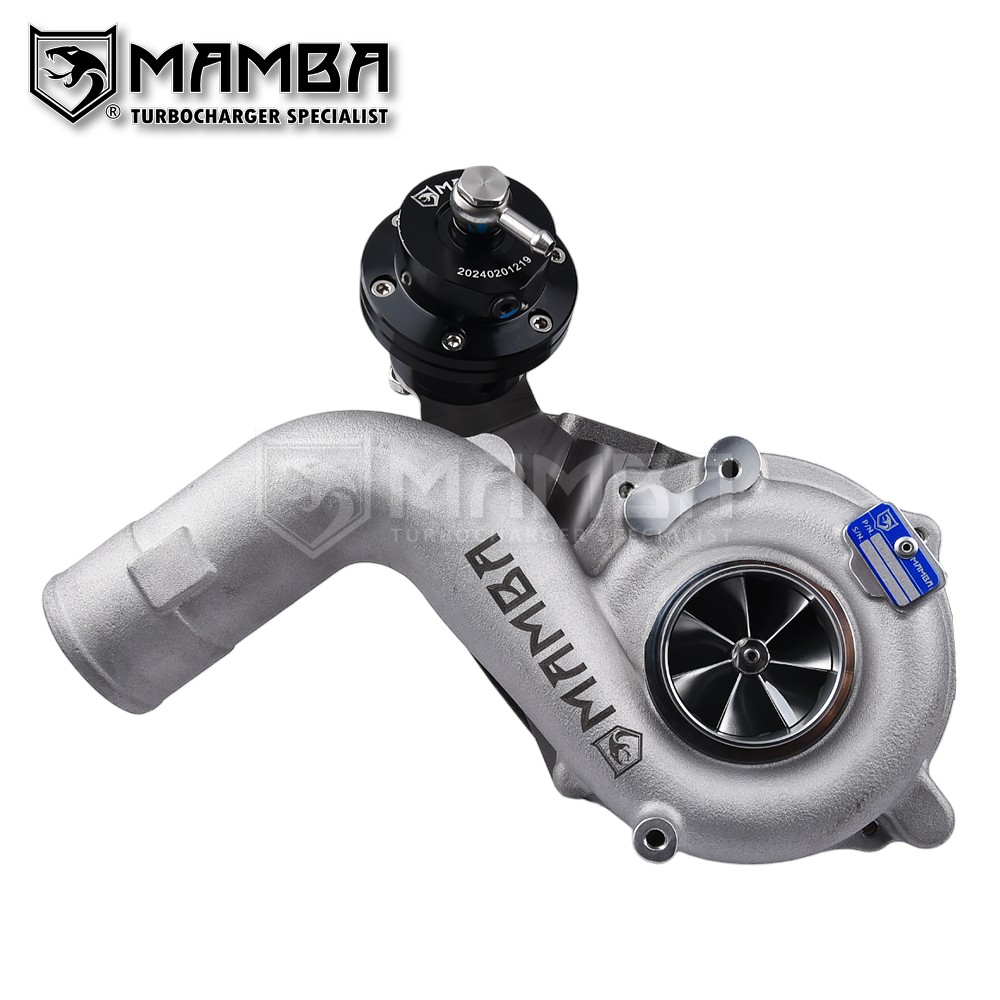

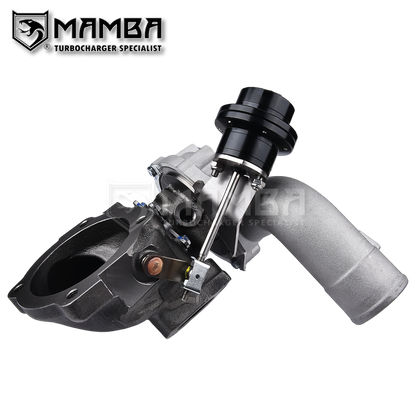

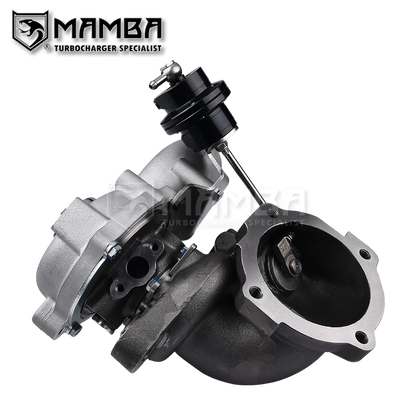

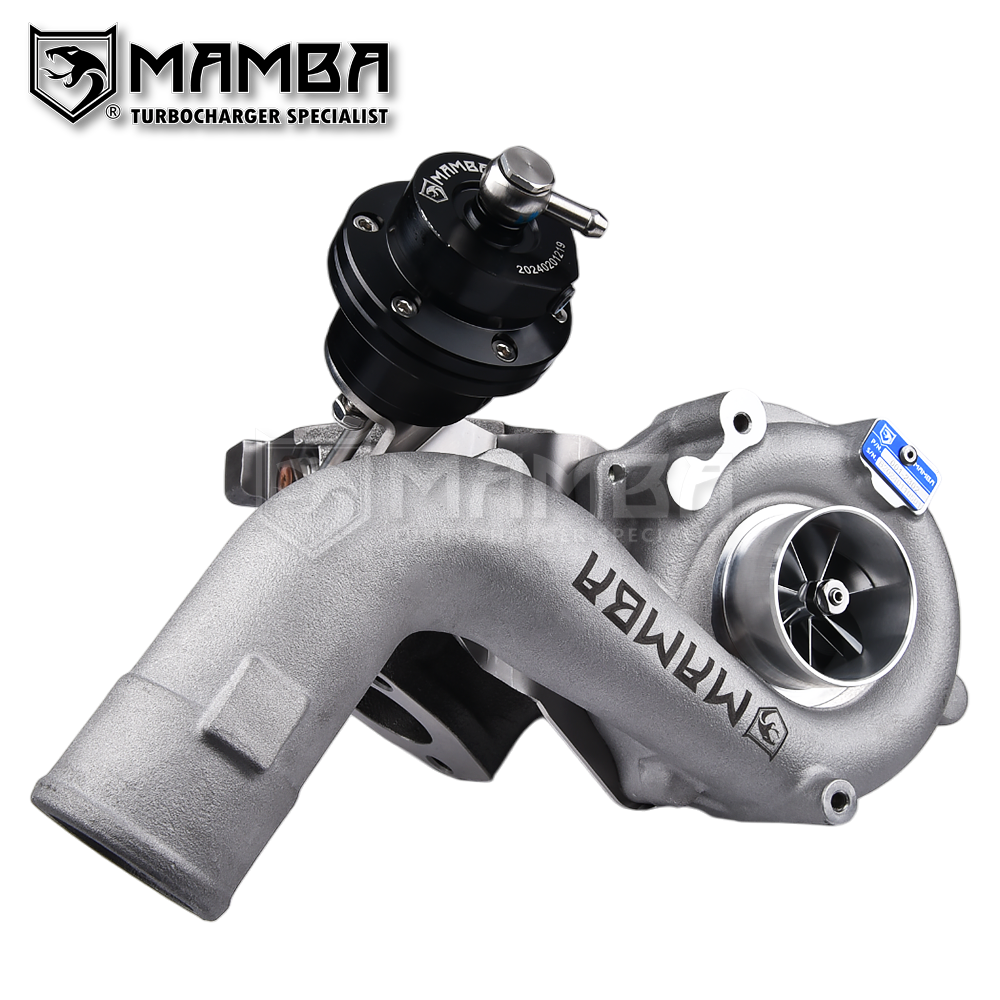

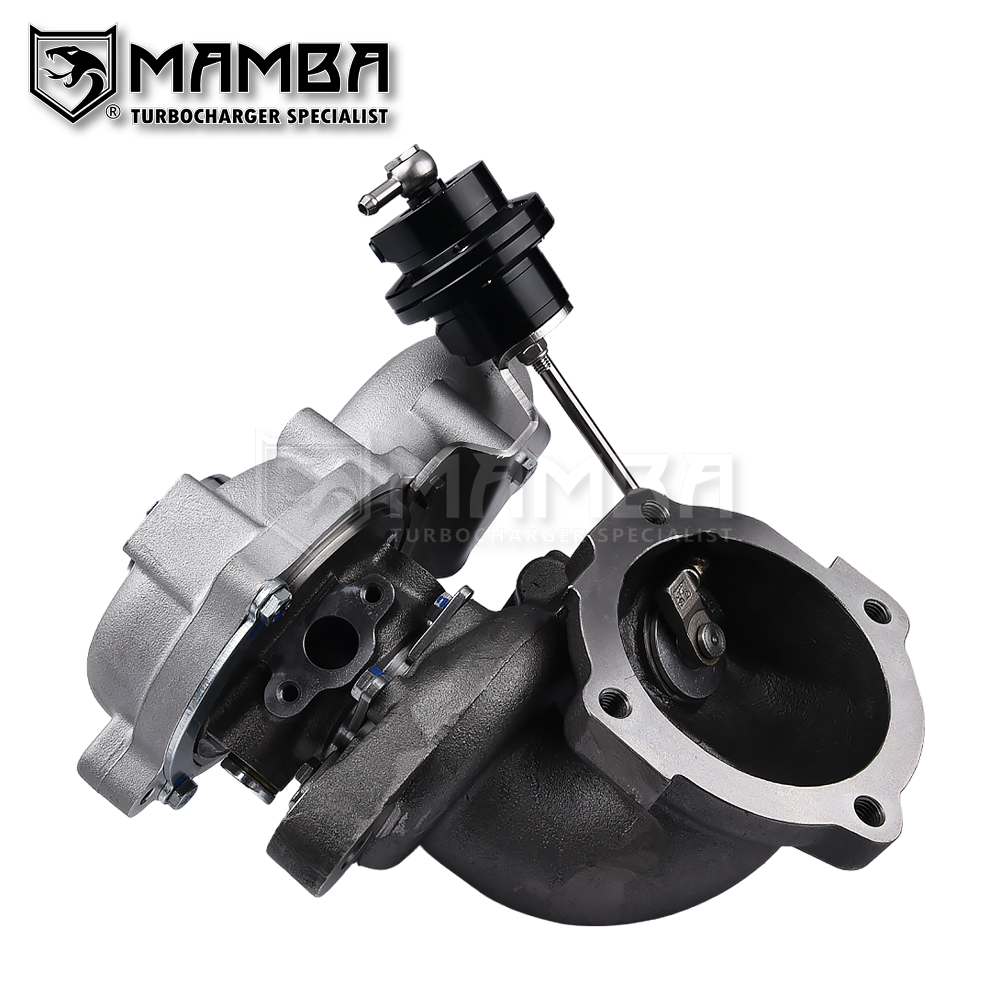

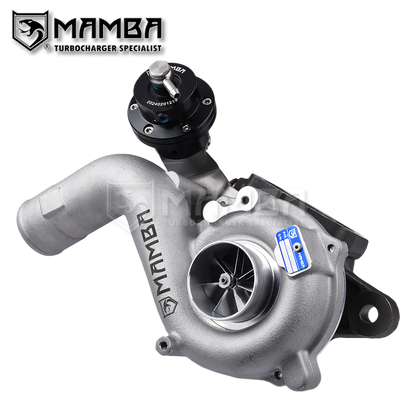

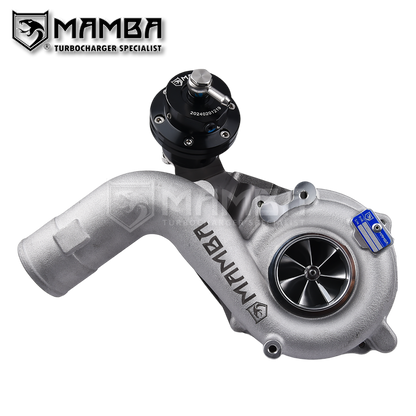

9-7 Extreme K04-4660 Turbocharger MK4 VW Golf/Jetta/Beetle 1.8T 20V 350P
Regular price
$779.00
Sale price
$779.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA 9-7 Extreme K04-4660 AUDI VW 1.8T Transverse Bora Beetle Golf 4 A3 Turbocharger
Cover inlet needs to be modified as OD is larger.
Application
53039700011, 53039700058, 53039700044, 53039700026, 53039700035, 53039700052, 53039700053, 53039700045, 53049500001
Bolt up to replace factory
1.8T 5V transversal engine AVC, APH, AGU, ALN, ARZ, AWP 110KW/150HP
96~01 AUDI A3 1.8T 5-Valve transverse
96~01 VW Beetle 1.8T 5-Valve transverse
96 VW Golf 1.8T 5-Valve transverse
1997~1998 Volkswagen Golf IV 1,8 Engine AGU
2000 ~ 2005 Volkswagen Bora 1,8T Engine AVC,APH,AGU
1999 ~ 2000 Volkswagen Beetle 1,8T Engine AVC,APH,AGU
1997 ~ 2000 Skoda Octavia I 1.8 T Engine AGU
1996 ~ 2003 Audi A3 1.8 T (8L) Engine AGU, ALN, ARZ
2000~2009 Audi A3 with AUQ, ARZ Engine
2000~2009 Audi TT with AUQ, ARZ Engine
2000~2009 Seat Leon with AUQ, ARZ Engine
2000~2005 Seat Leon Cupra with AUQ, ARZ Engine
2000~2009 Skoda Octavia with AUQ, ARZ Engine
2000~2009 Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine
Specs
Compressor wheel : 45.2/60 (7+ Blade Billet Compressor Wheel)
Turbine Wheel: 46/52 (K04 Extreme 9 Blade)
Turbine Housing A/R: 5cm^2
HP Support: 320HP~350HP
Bearing
Journal Bearing with Performance thrust bearing with 3 oil holes.
Cooling
Oil & water-cooled

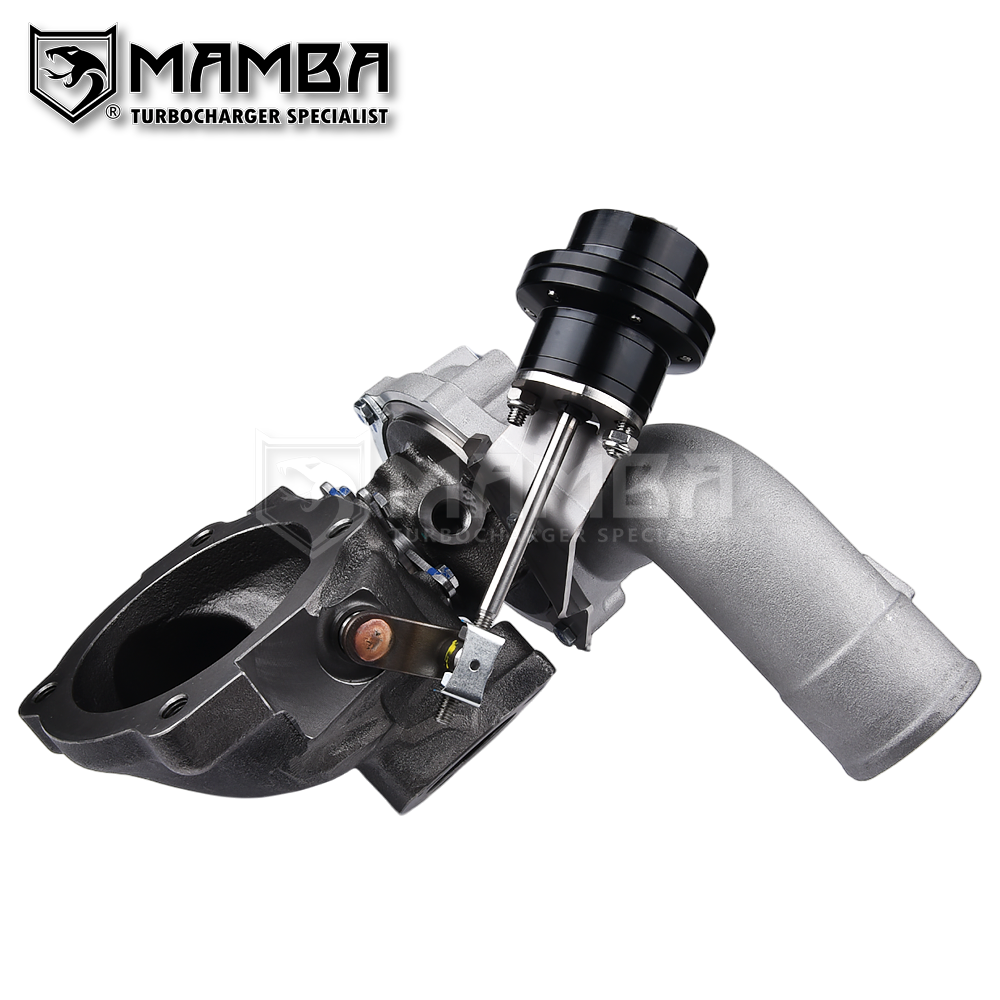

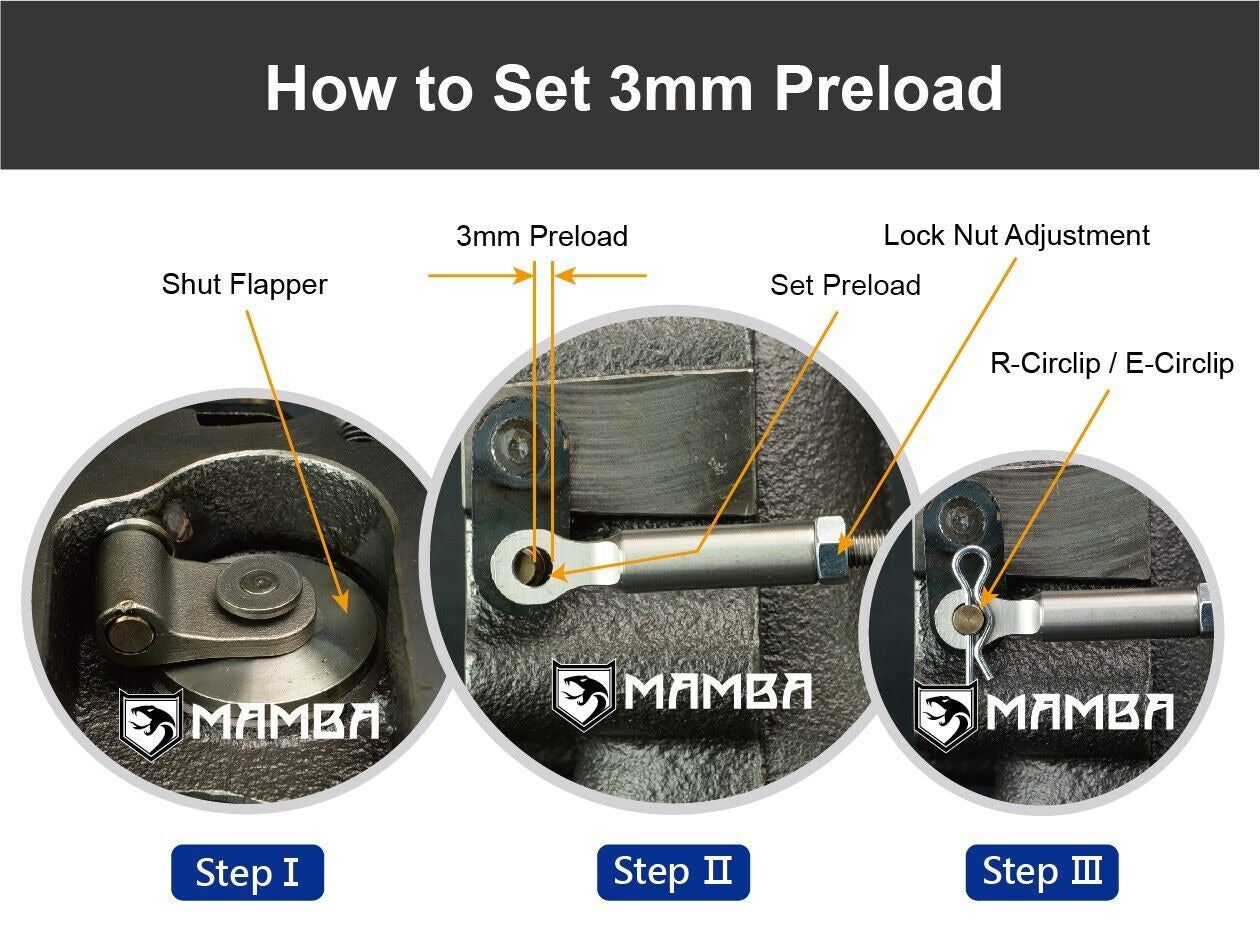

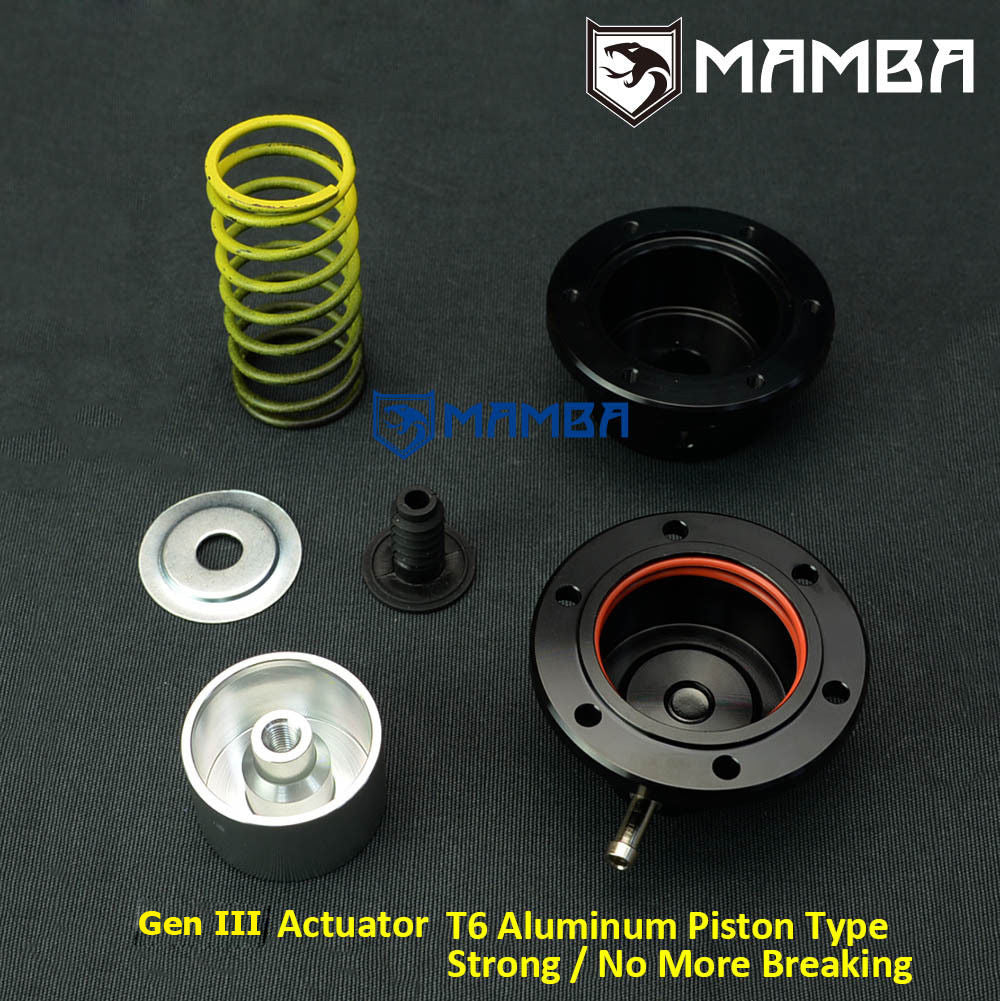

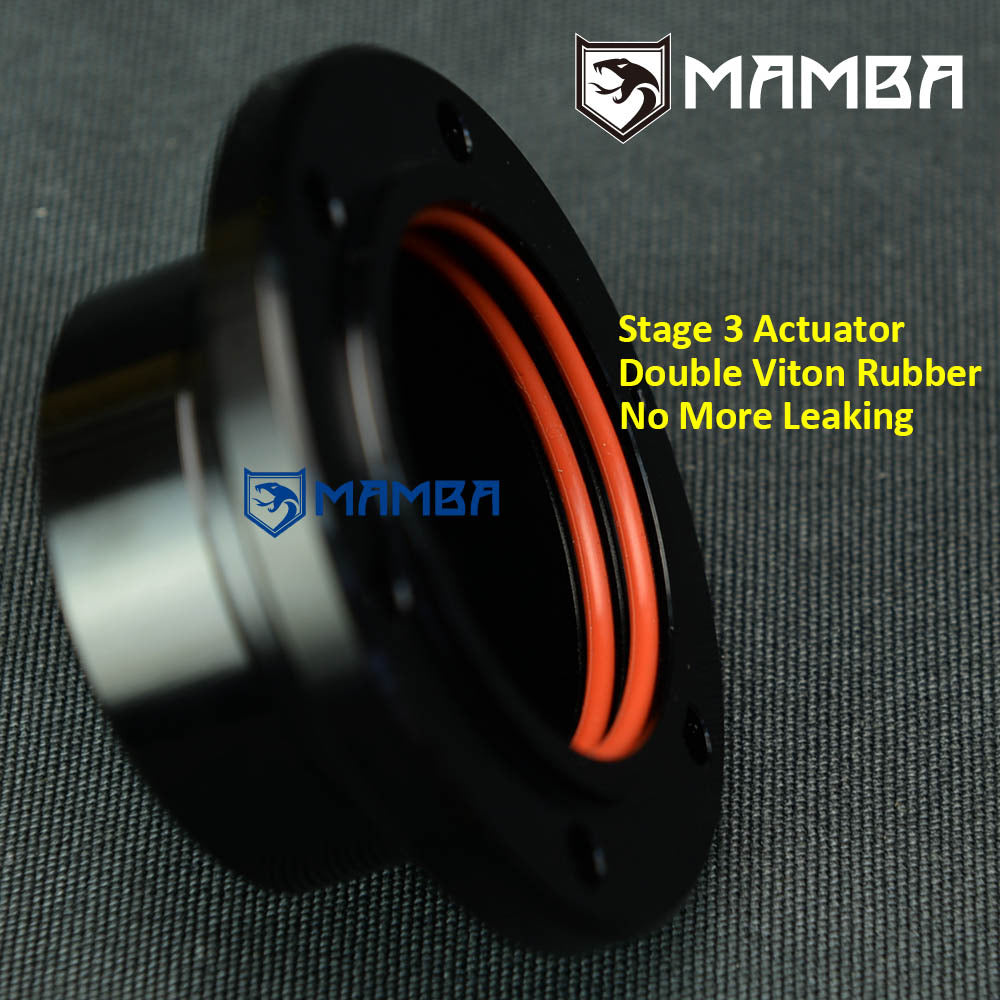

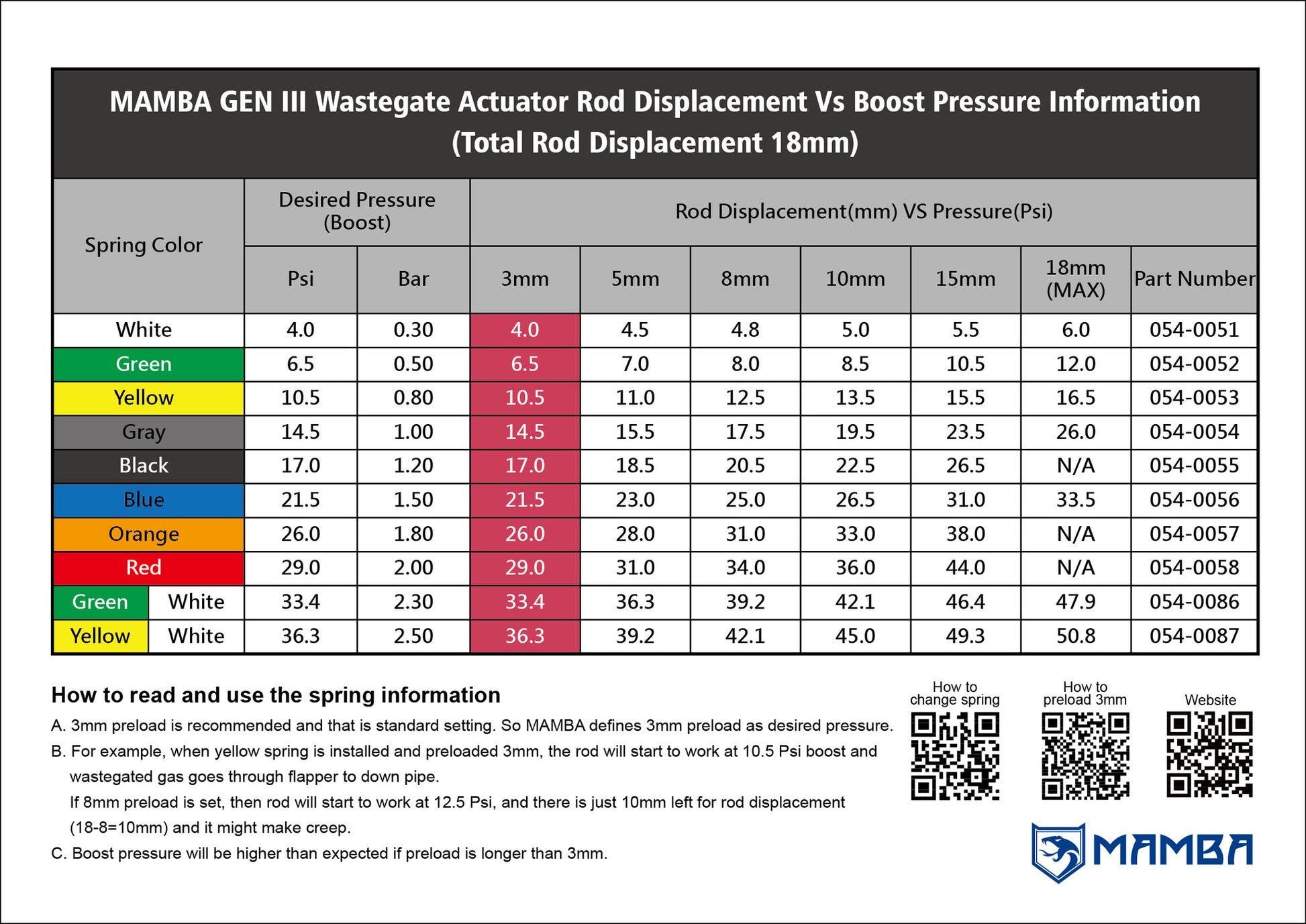

Actuator

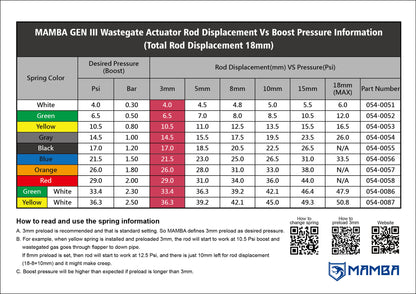

0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.

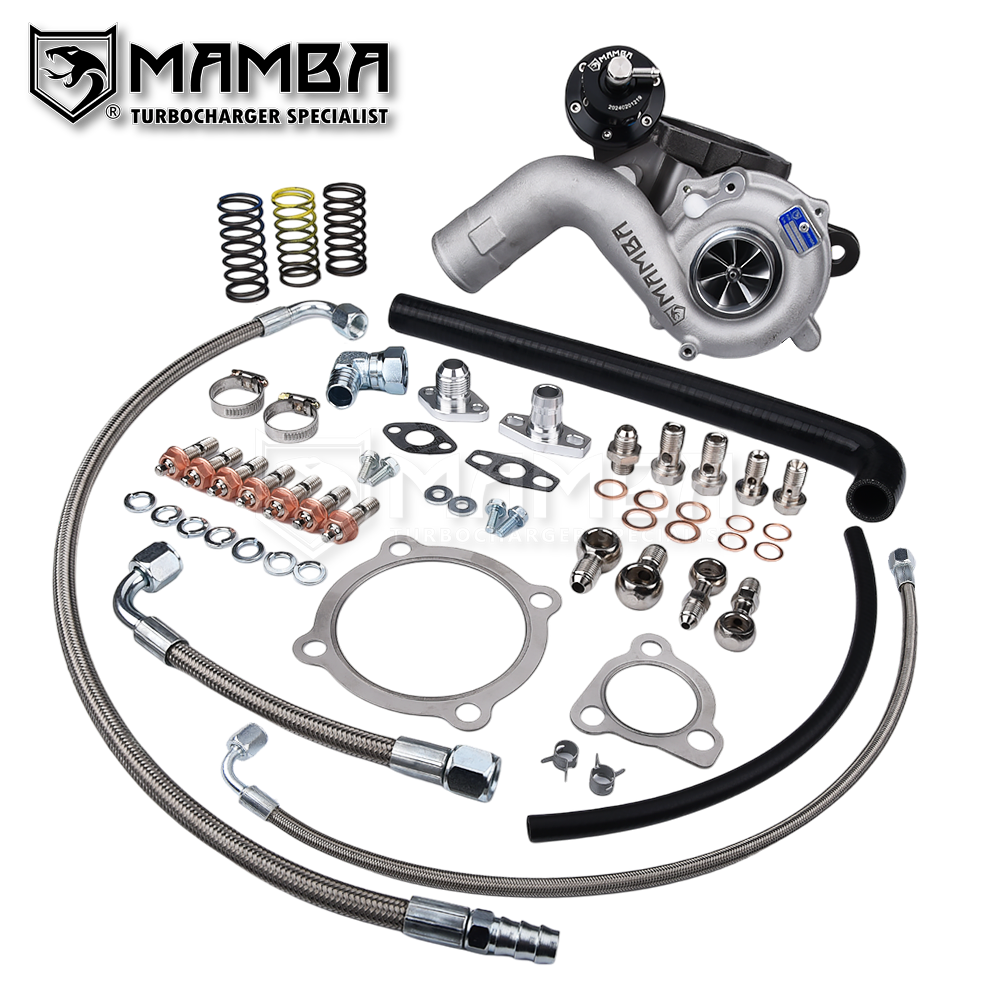

Kit Includes
1 x K04-4660 Turbocharger
1 x Oil Feed Line Kit
2 x Water Coolant line kit
1 x Oil Return Line kit
1 x SS301 Turbine Inlet Gasket
1 x SS301 Turbine Outlet Gasket
7 x 10mm Stud Kit
Everything shown on first picture is included.
