G40-1150 D5-10 4" Ball Bearing Turbocharger + .85 T4 V-Band Housing

$1,700.00

Fully secure checkout
Trusted by thousands

ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL

Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

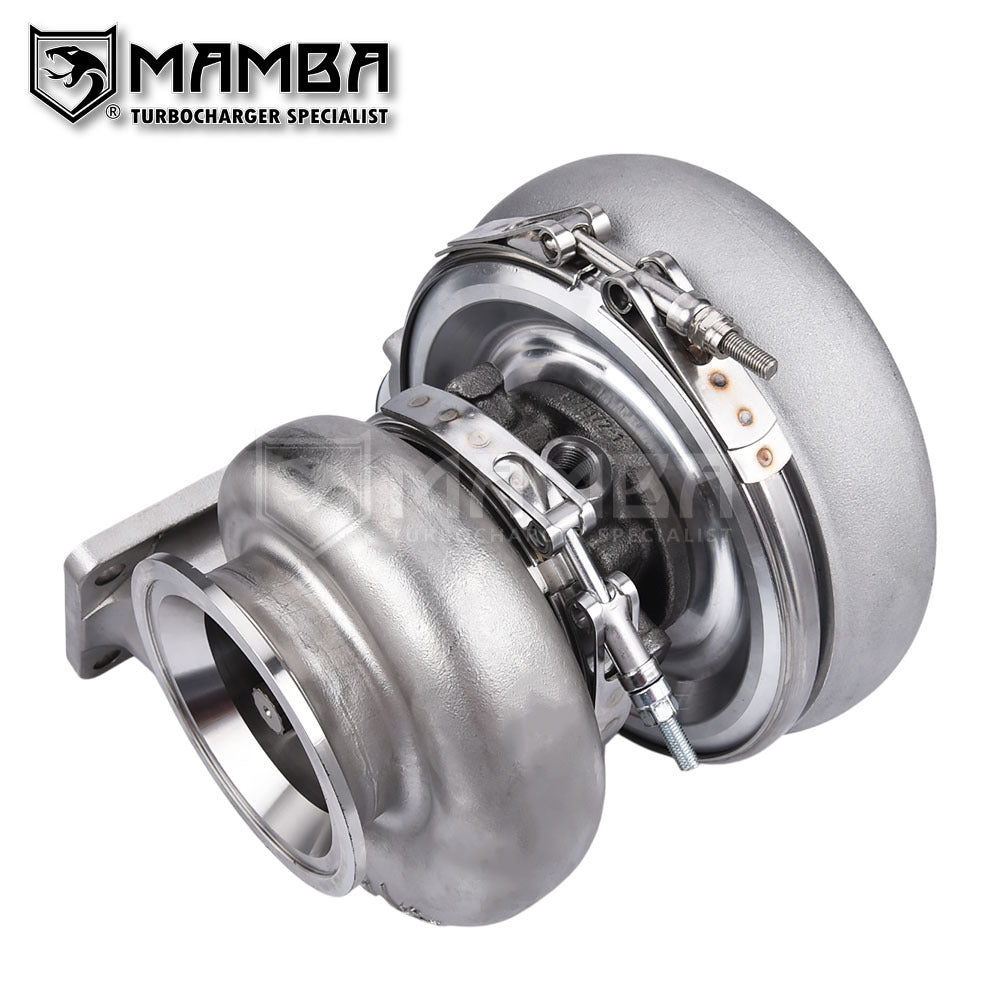

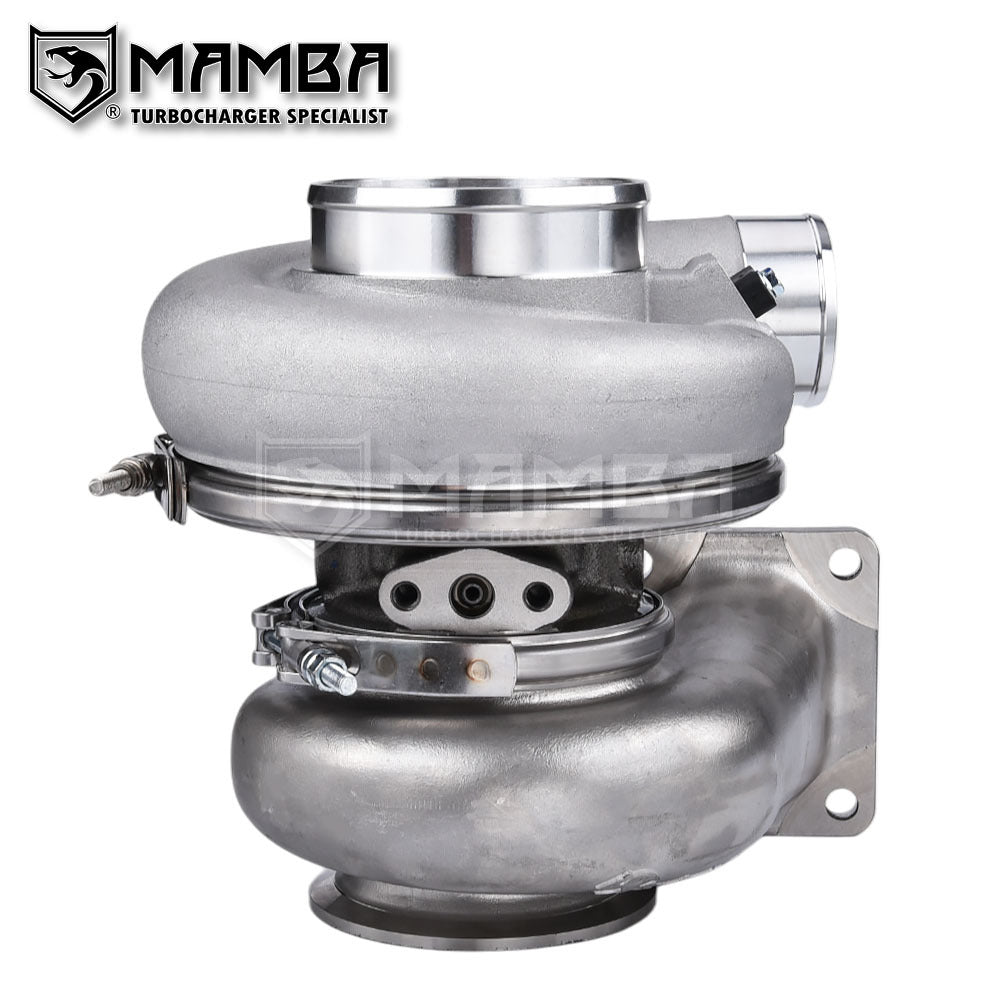

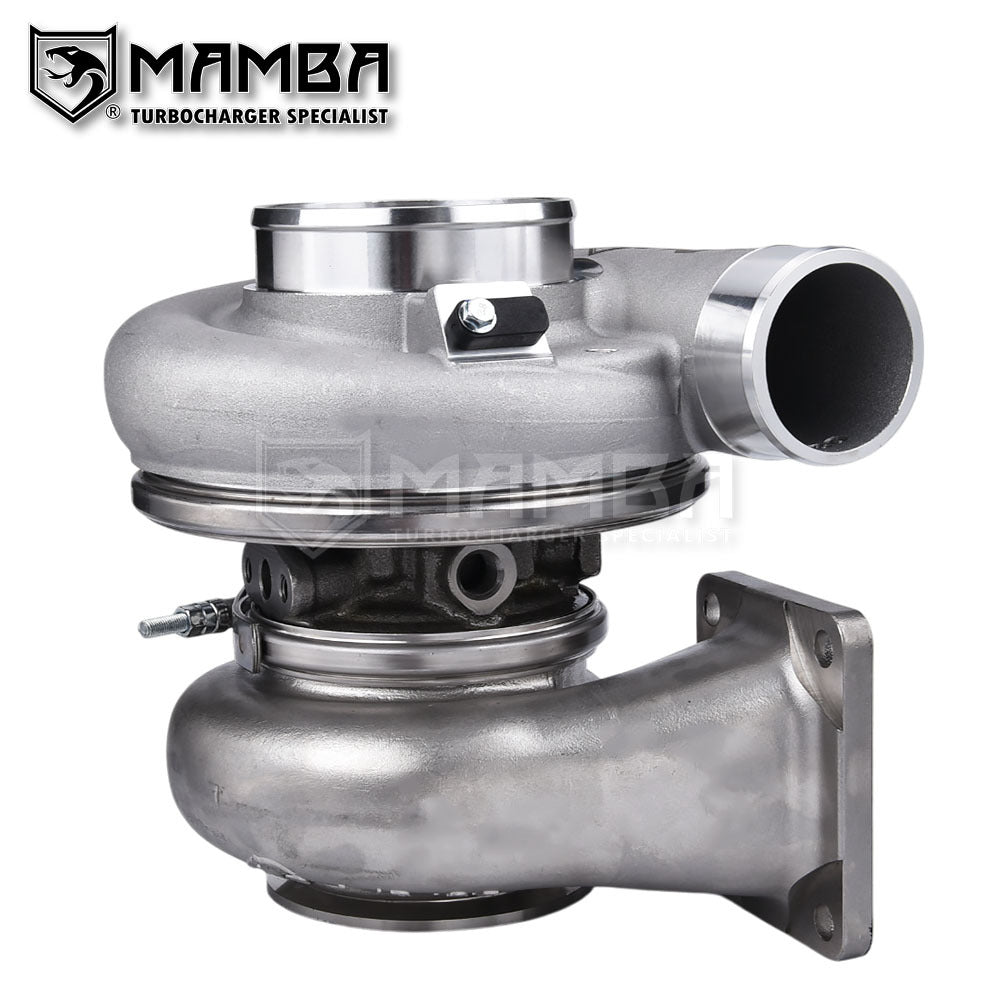

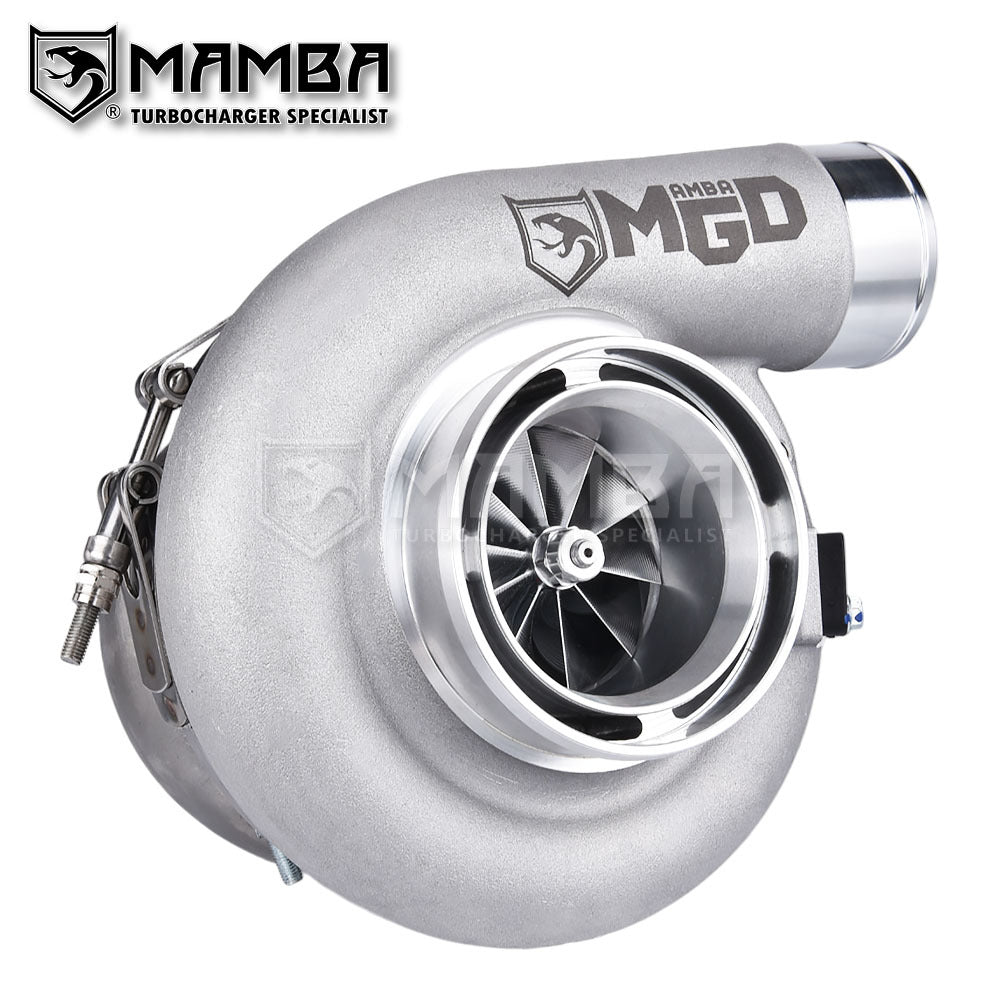

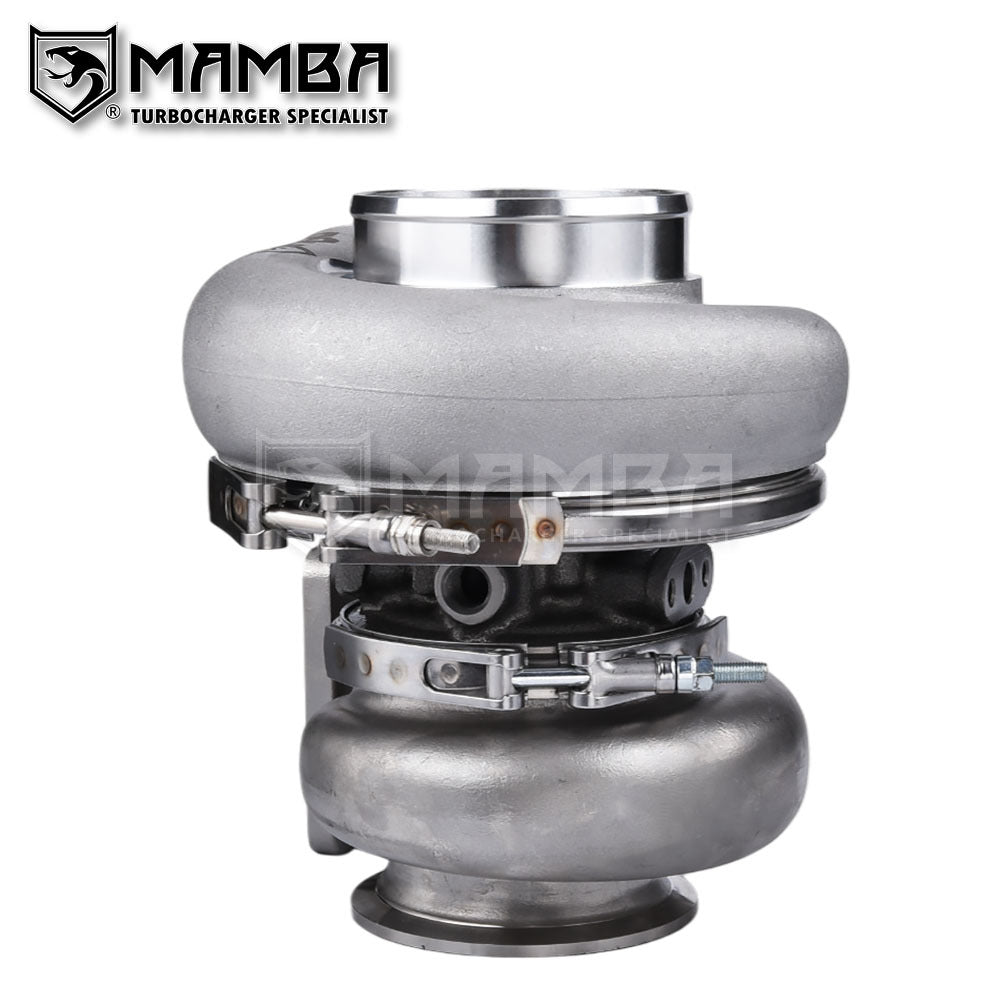

MAMBA MGD D5-10 4” G40-1150 Ball Bearing Turbocharger + .85 T4 V-Band Turbine Housing

Application
Featured MAMBA MGD D5 (5 Long + 5 Short Blade, Dual 5) turbine wheel spools faster and reduces back pressure to support higher top end HP.
Replace and Upgrade MAMBA MGD / Garrett G40-1150 Ball Bearing with .85 T4 V-Band Turbine Housing.
Replace and upgrade Garrett turbo P/N: 757707-0032.
Support 500~1150HP
Displacement: 2.0~6.0L

Specs

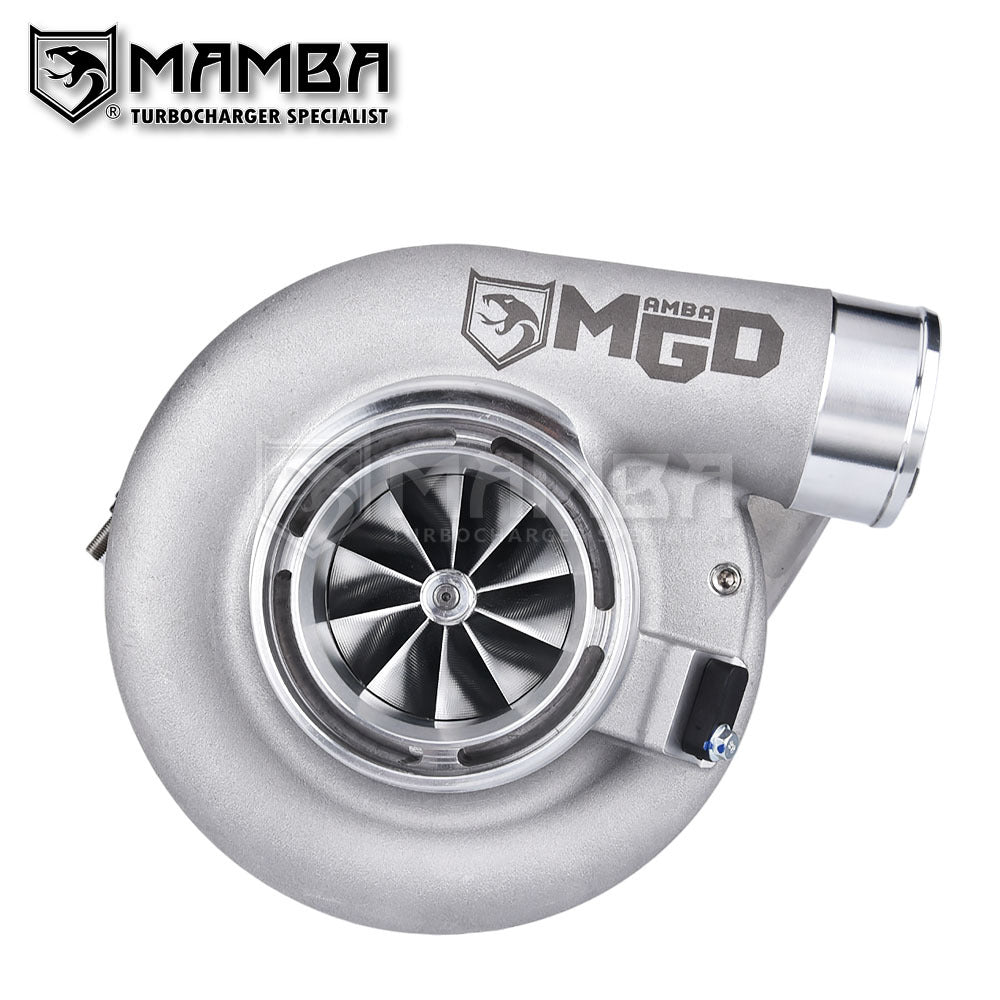

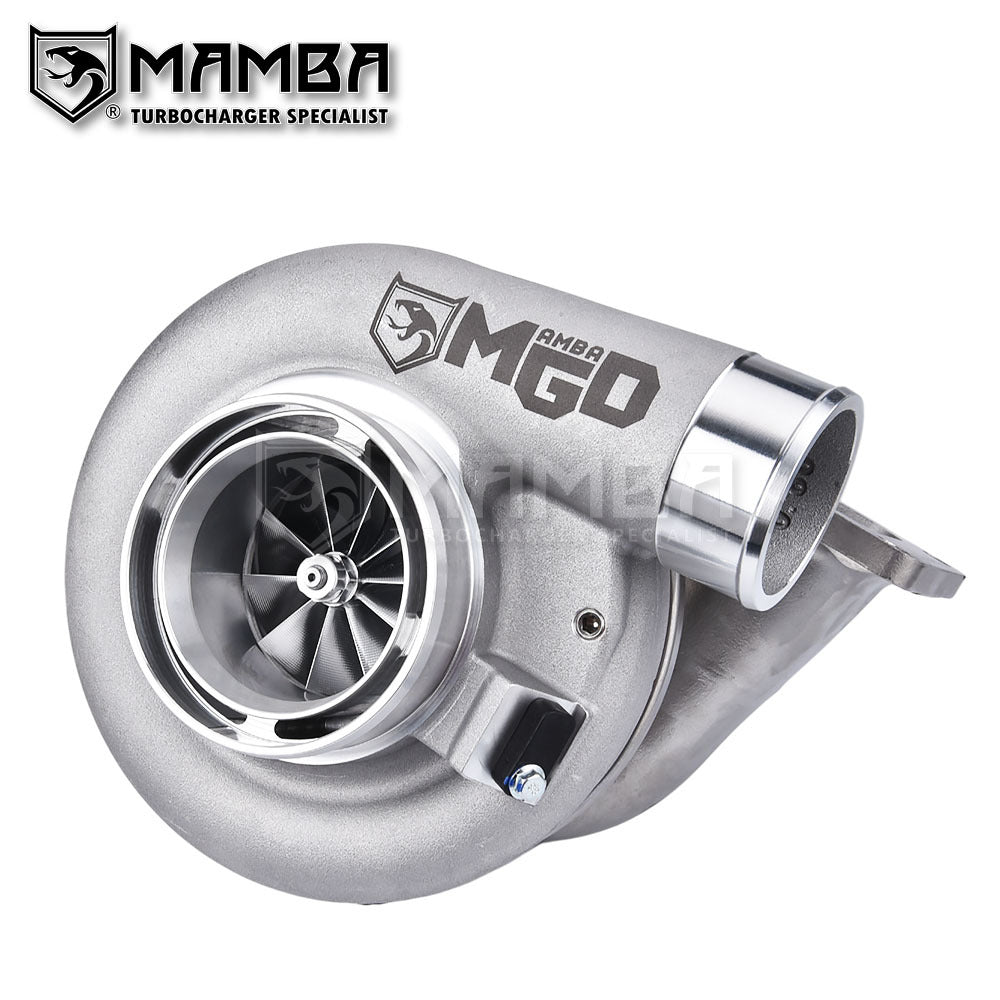

Compressor wheel: 71.0/88.0/65T/10+0 Blade/Point Milling designed/2618 Billet

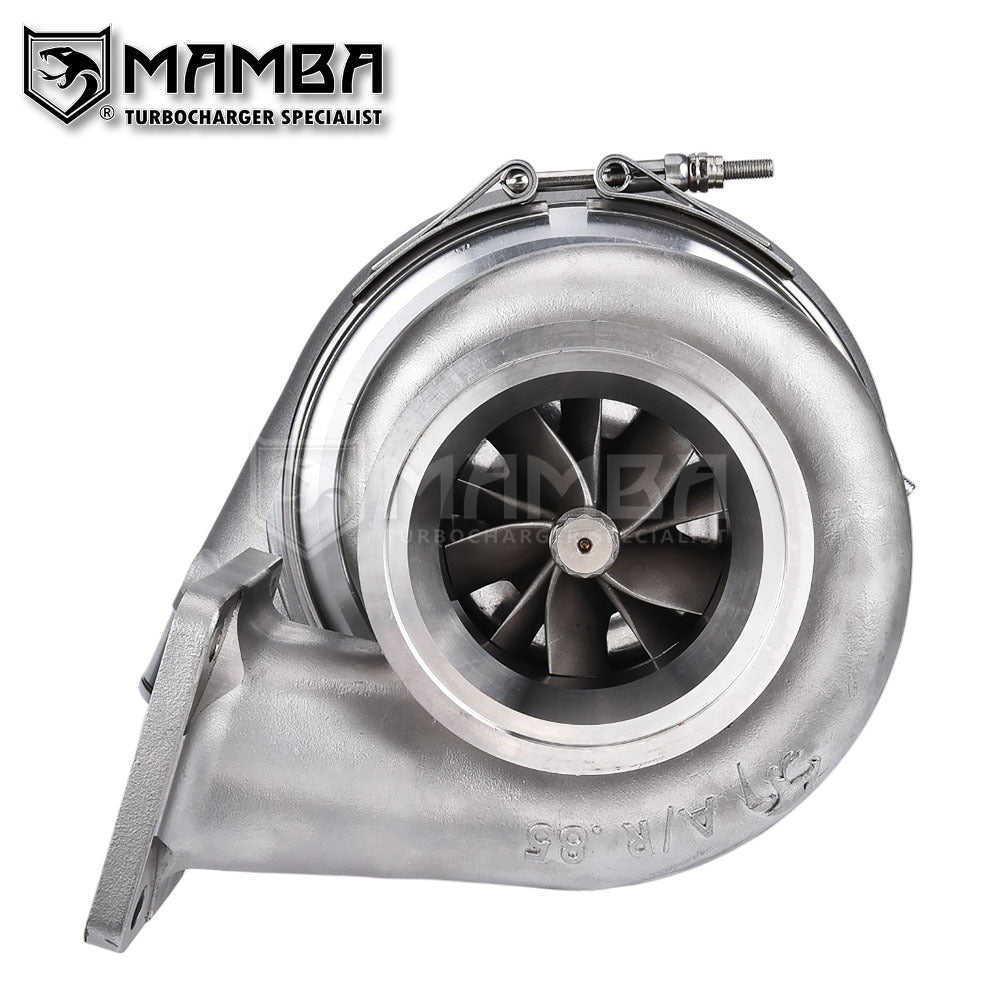

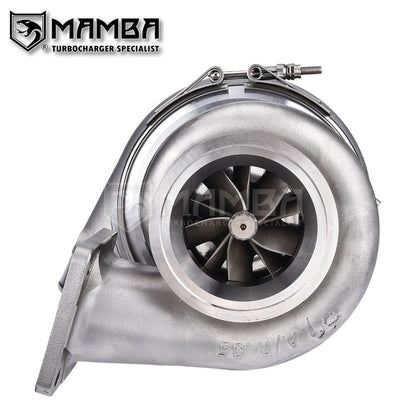

Turbine wheel: 70.0/77.0/84T/5+5 Blade/D5 Design/713C Inconel
Compressor Housing Inlet OD: 4” / 101.6 mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor housing A/R: .80

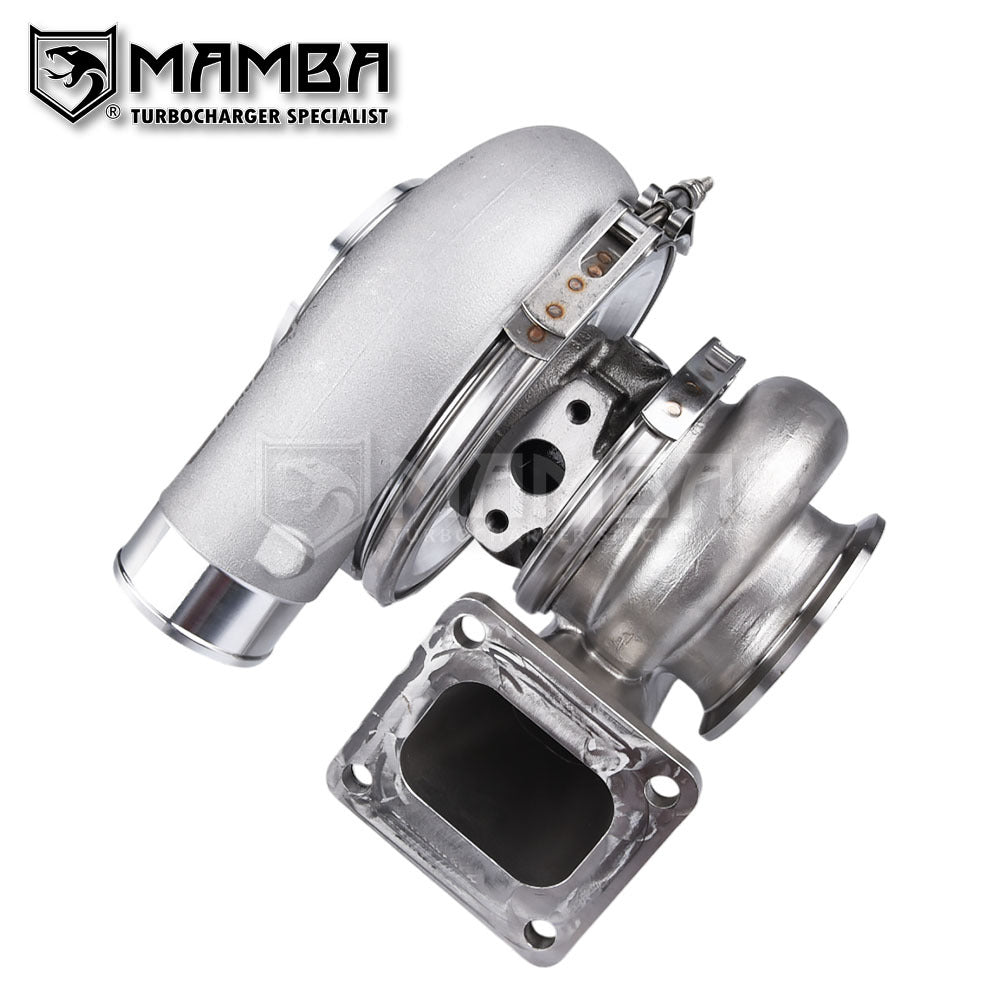

Turbine Housing Inlet: Standard T4 Single Entry
Turbine Housing Outlet: 3.5” V-Band
Turbine housing A/R: .85

Bearing
Ceramic ball bearing
Inconel cage

Cooling
Oil & water-cooled

Kit Includes
1 x MAMBA MGD D5-10 4” G40-1150 ball bearing turbocharger
1 x PTFE Turbo oil feed line kit
2 x PTFE Turbo water line Kit
1 x NBR Turbo oil return line Kit
1 x SUS304 turbine inlet gasket
1 x 3.5” V-Band Flange with Clamp Set
4 x 10mm SCM440 Stud Kit (turbine inlet)

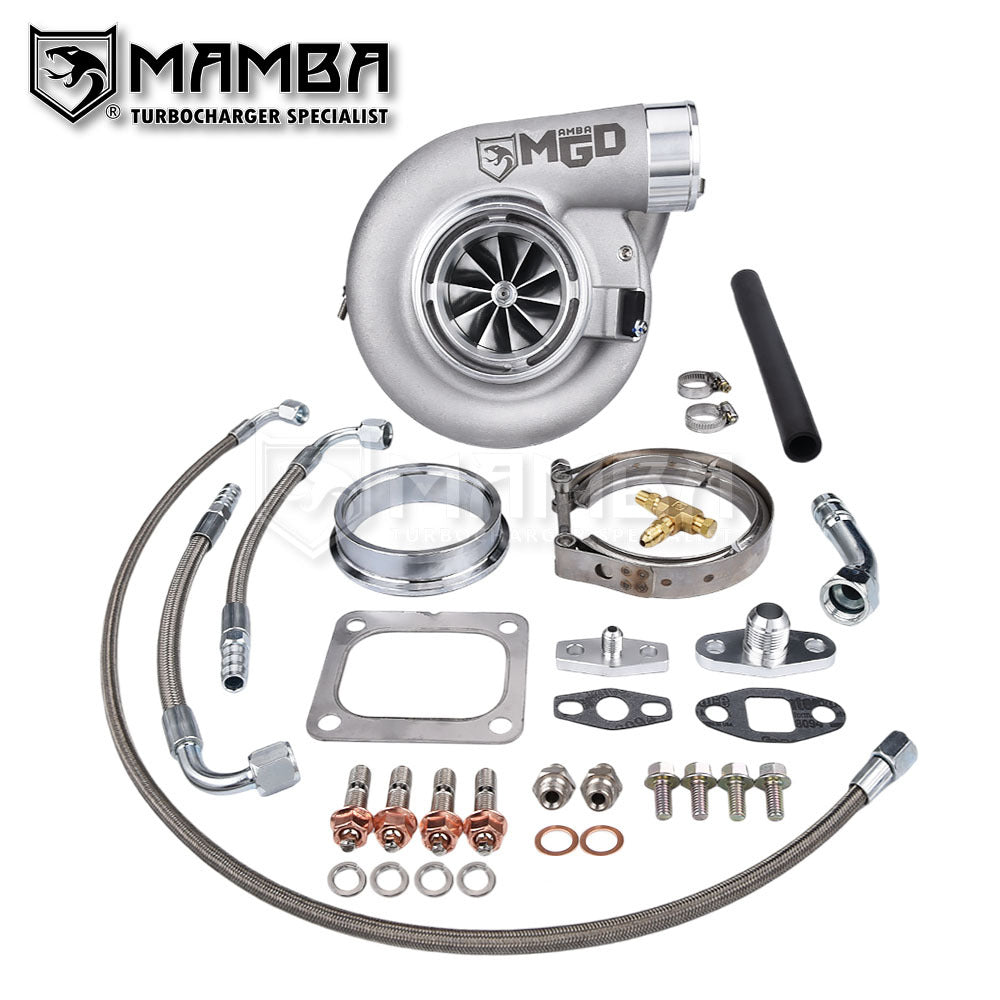

Everything shown on first picture is included.
