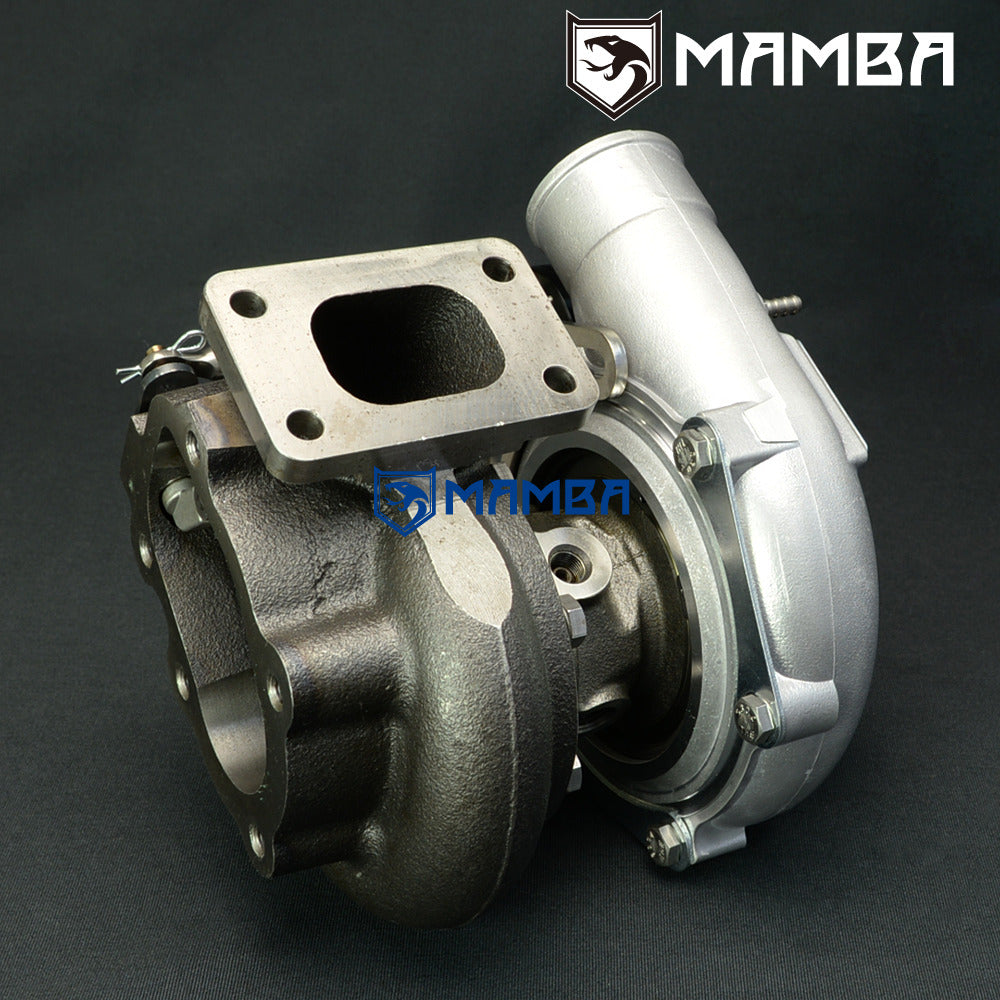

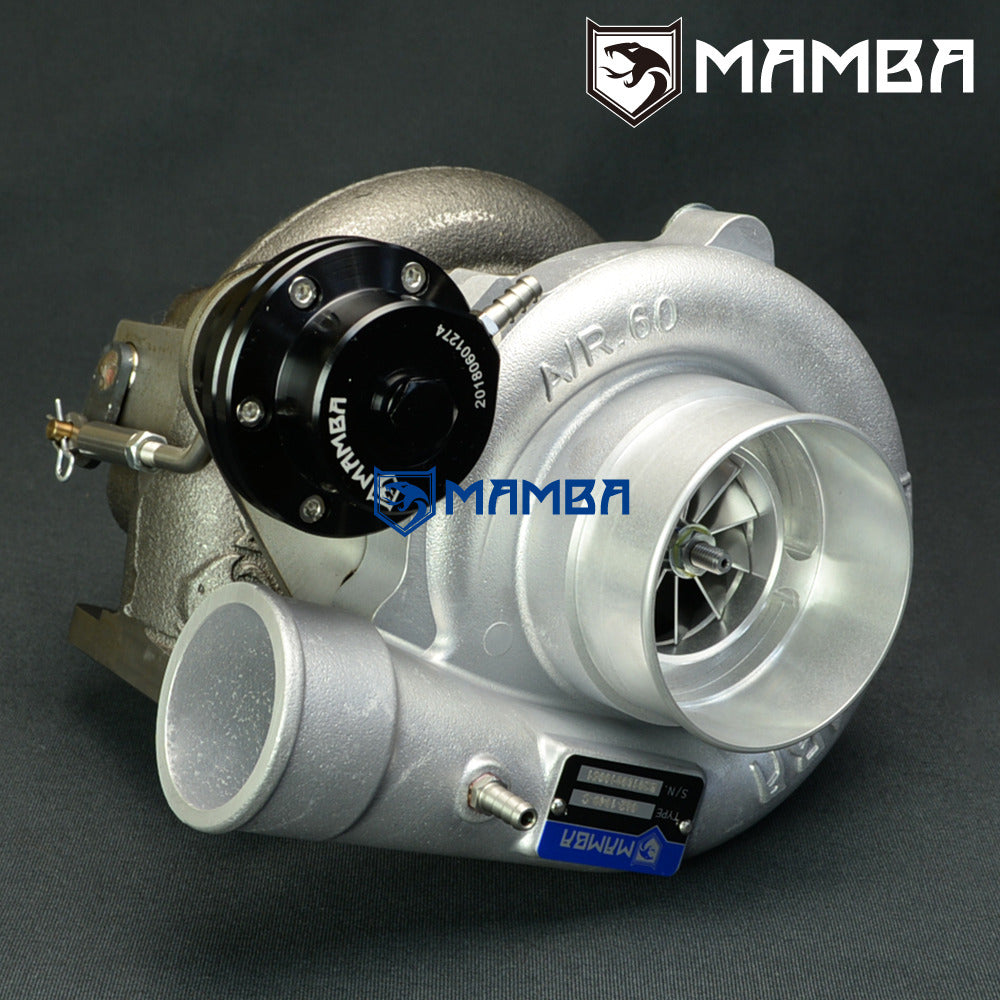

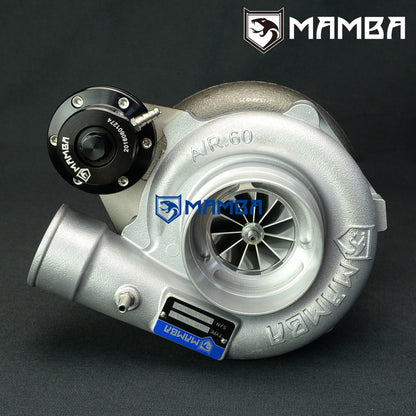

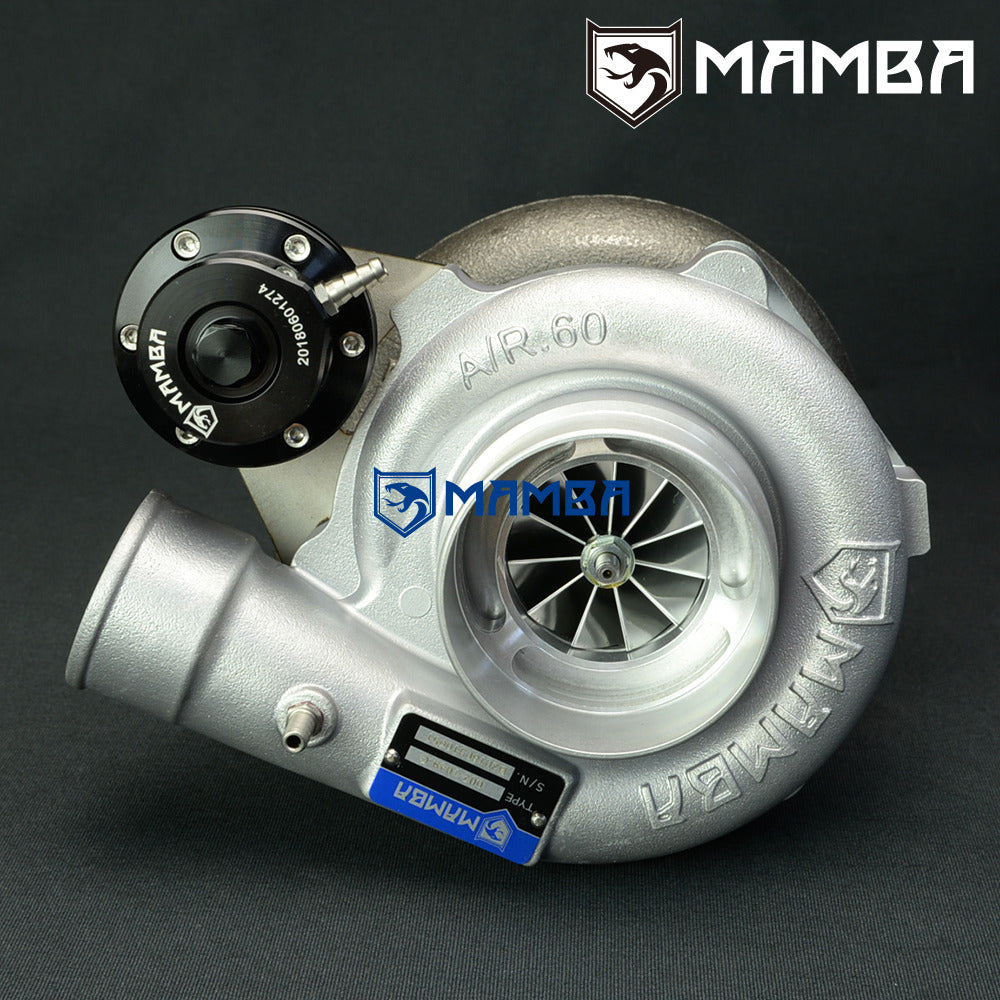

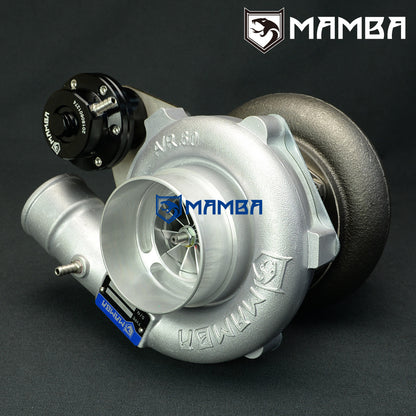

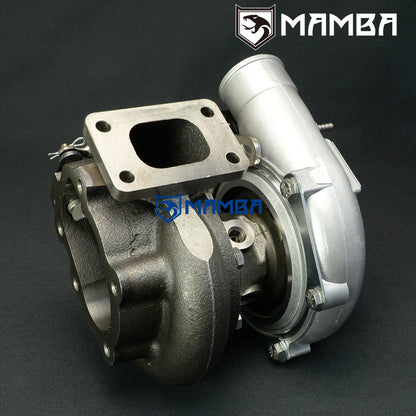

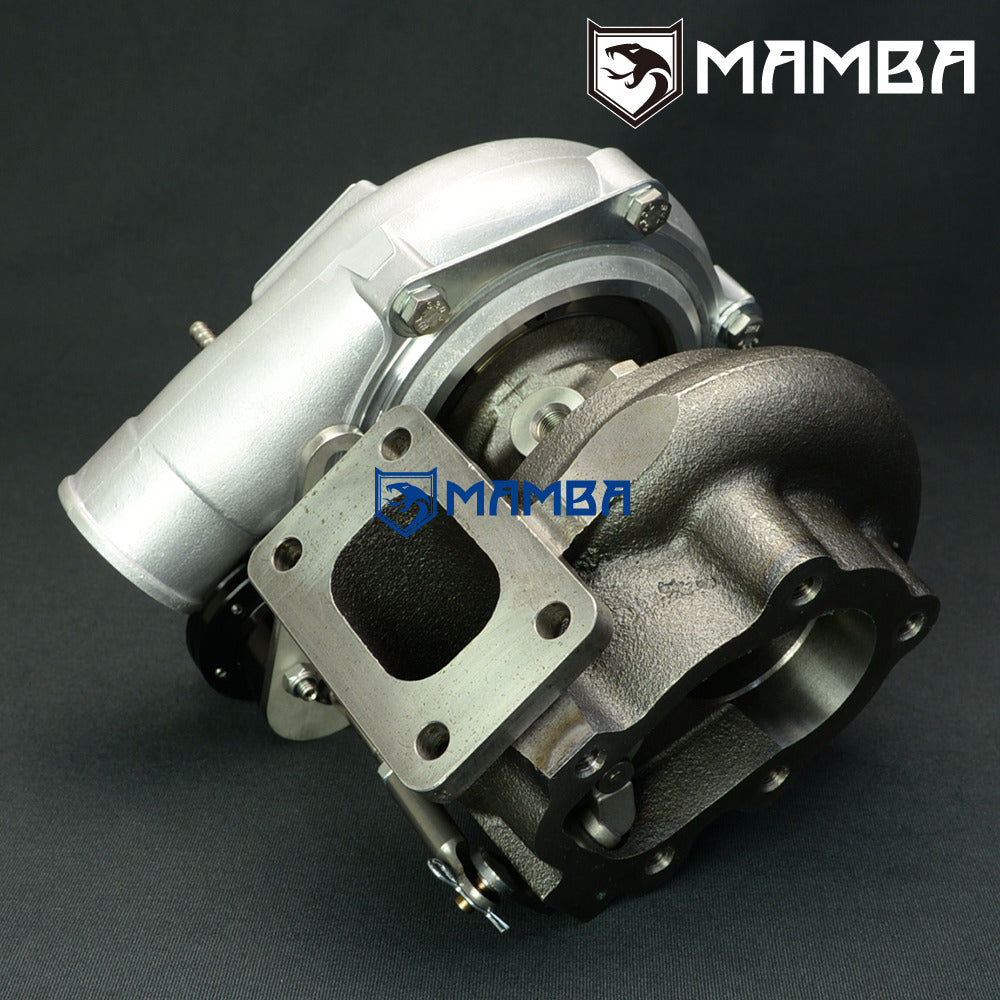

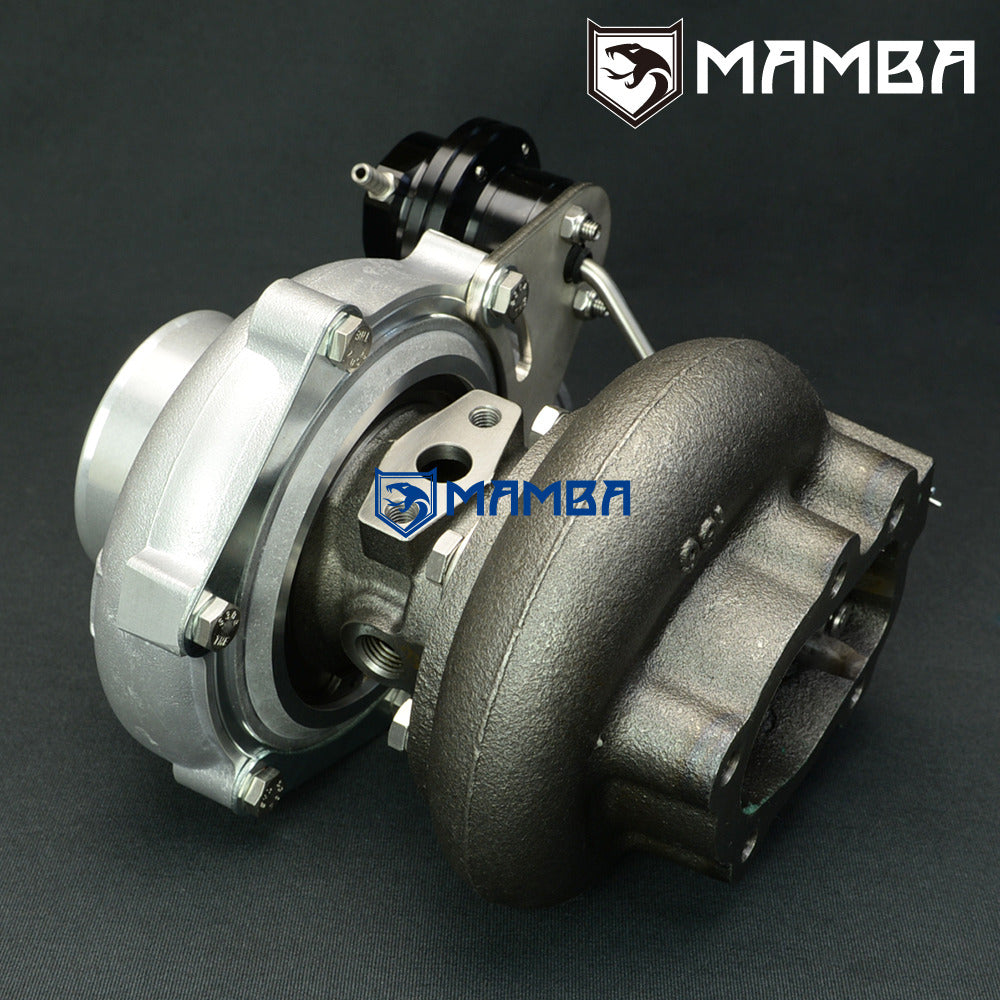

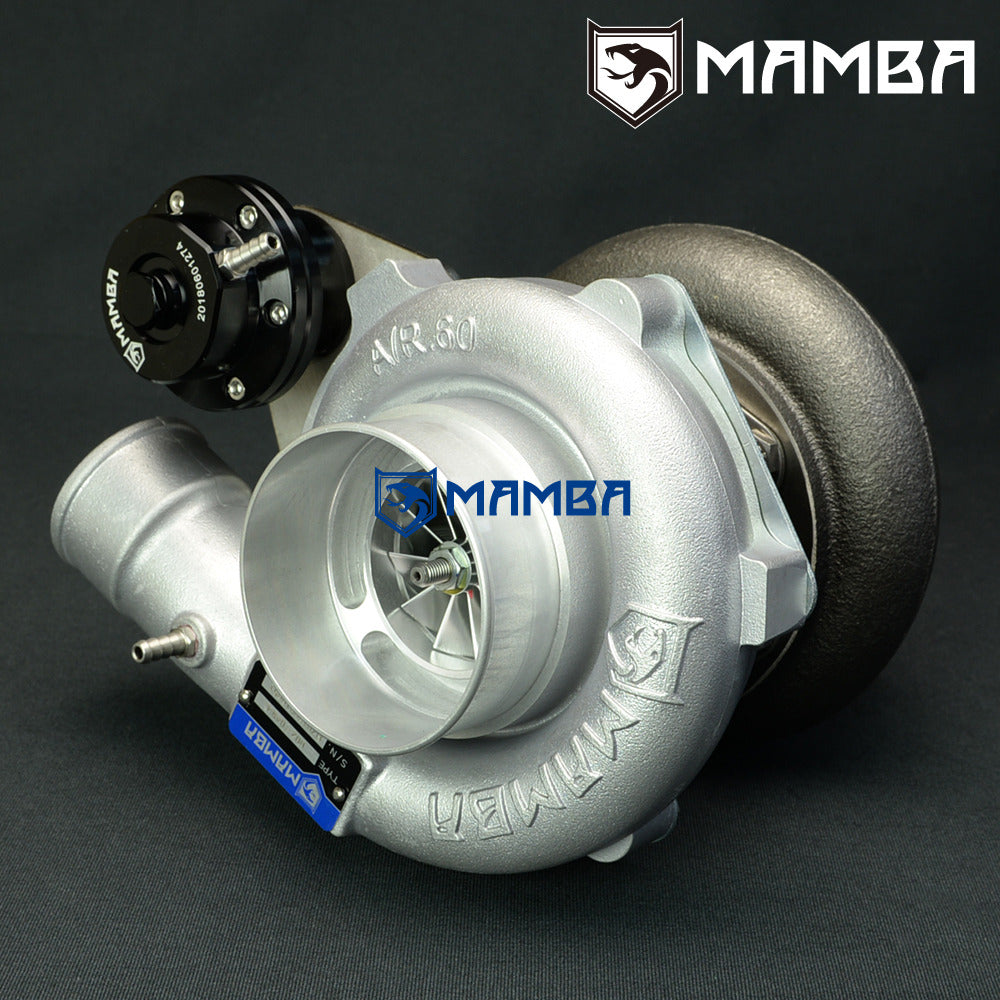

GT2860RS GTX Anti Surge 3" Ball Bearing Turbocharger 62T w/ .64 T25 Hsg
Regular price
$1,110.00
Sale price
$1,110.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA Universal 3” Anti Surge GTX GT2860R Ball Bearing Turbocharger w/ A/R .64 T25 5-Bolt Turbine Housing
Application
1.6~2.5L Gasoline Engine
3.5~5L Diesel engine
Max HP: 250~380HP (Gasoline)
Wheel Specs
Compressor Wheel : Wheel : 47.2 mm / 60 mm/Trim 62(11+0 GTX Billet Wheel w/ Extend Tip)
Turbine Wheel: 47.0 mm / 53.8 mm / Trim 76
Comp. Housing
Compressor Housing Inlet OD: 3” / 76.2mm
Compressor Housing Outlet OD: 2” / 51.3 mm
Compressor Housing A/R: .60

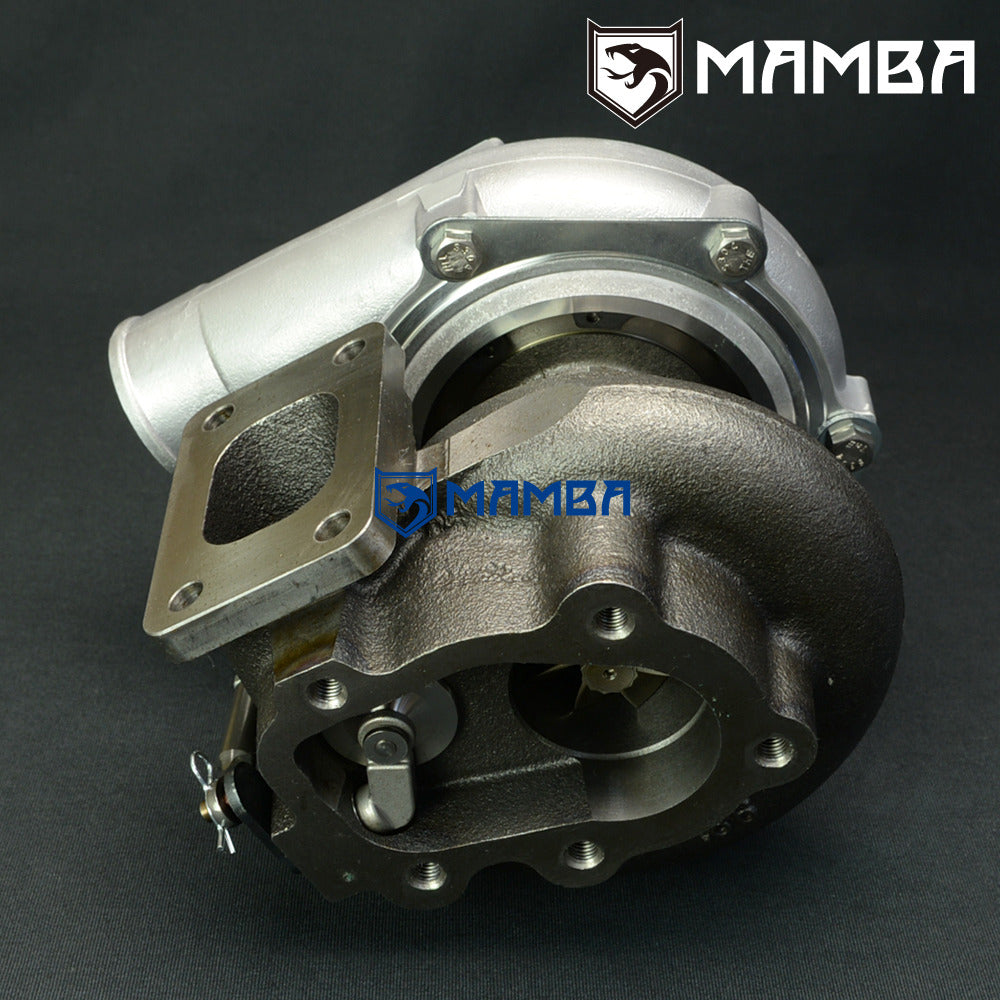

Turbine Housing
A/R .64
T25 / 5 Bolt
Bearing system
Ceramic Dual Ball Bearing (NTN Japan)
Cooling system
Oil and Water-Cooled

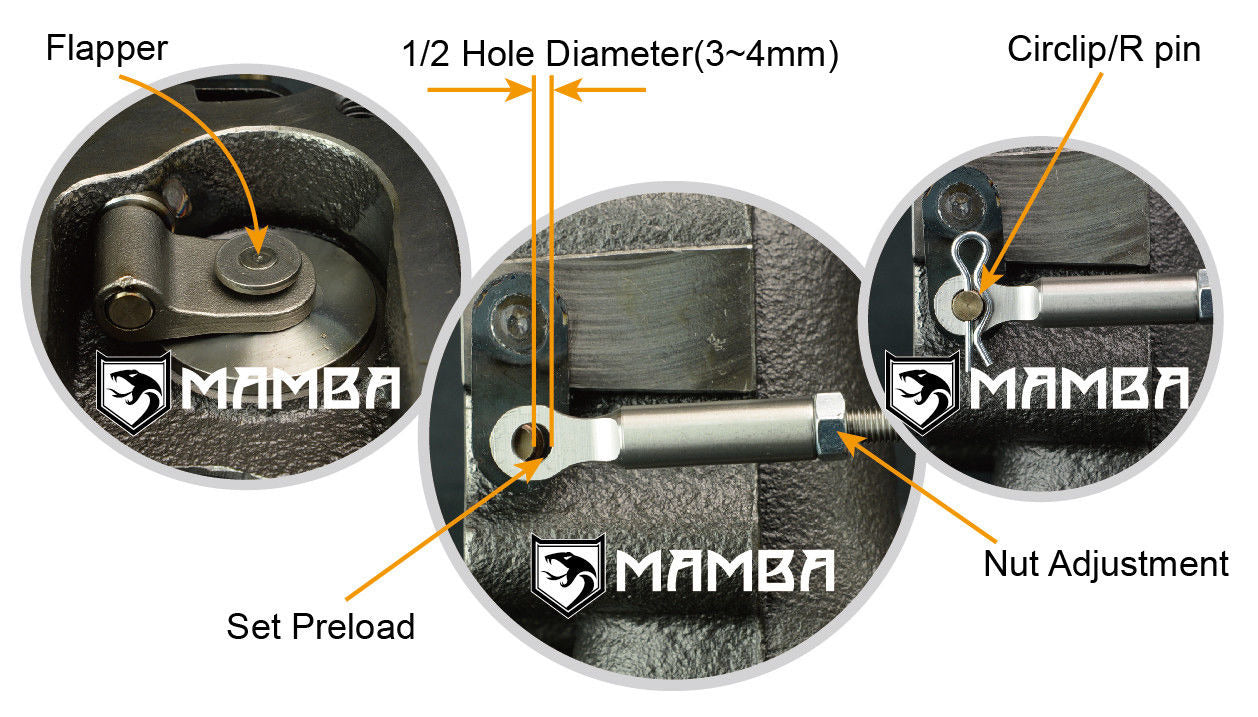

Actuator

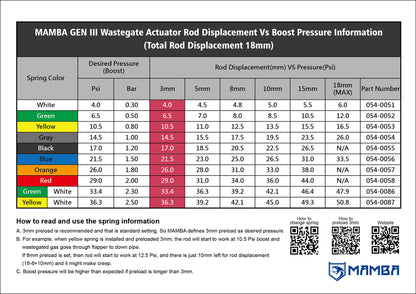

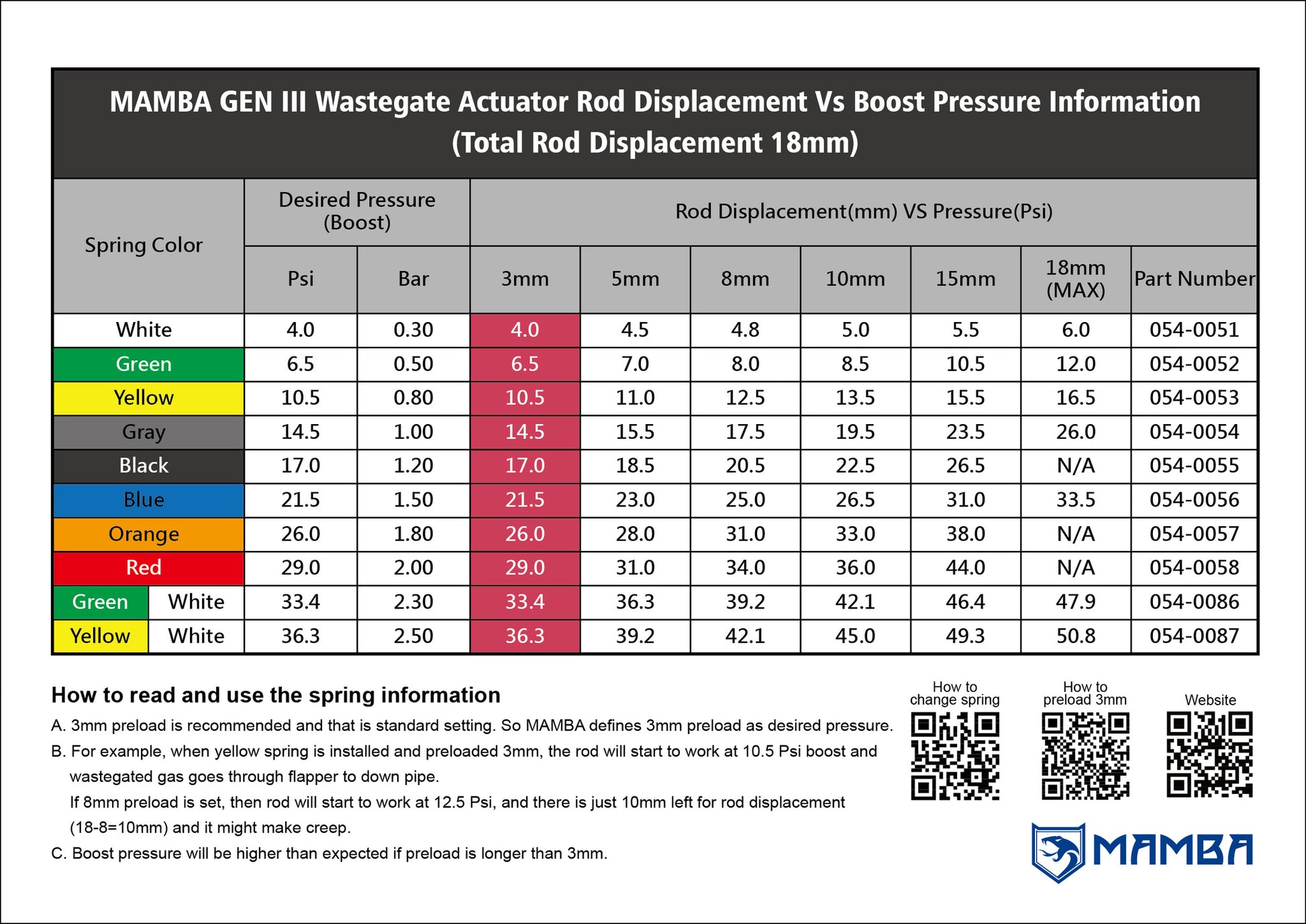

0.8bar spring pre-installed on the adjustable actuator
1.2bar and 1.5bar spring will go with box

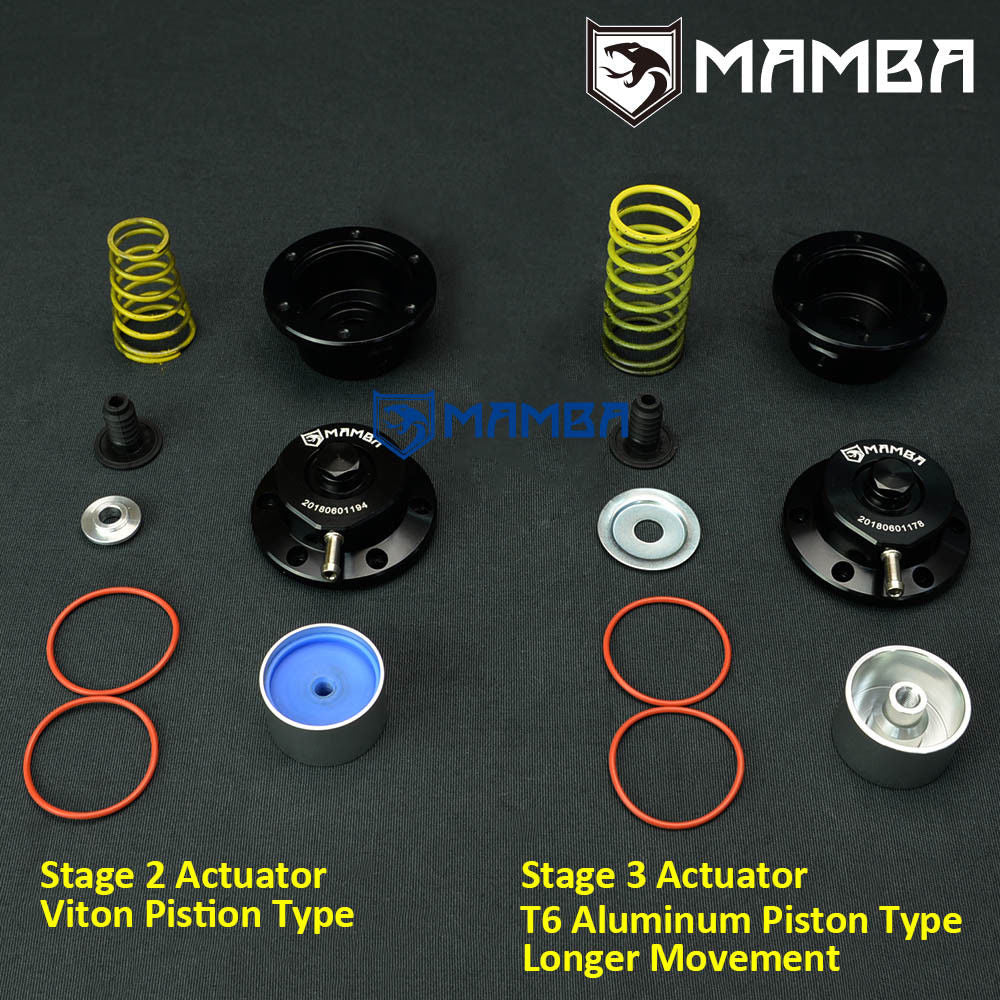

Stage 3 Aluminium Piston type of Adjustable actuator (Replace diaphragm type)

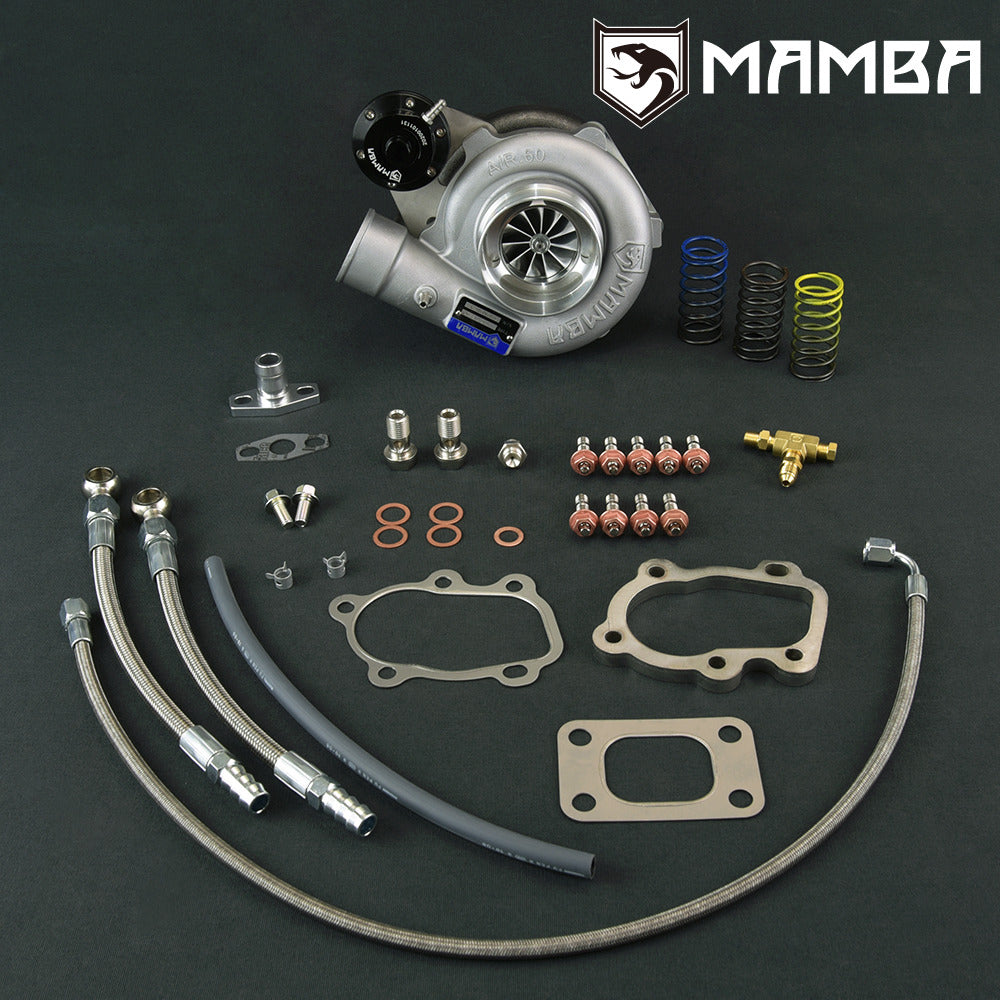

Kit Includes
1 x 4AN 70cm Str-90Deg Oil Feed Line Kit with Restrictor
2 x 6AN 25cm Water Line Kit
1 x Turbo Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x Turbine outlet Gasket
5 x 8mm Stud Kit with copper-coated nut
3 x adjustable actuator spring
1 x Vacuum Hose with two circlip
1 x VSR balance sheet for the CHRA.
Everything shown on picture is included
