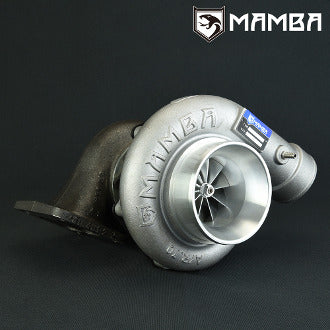

GTW3890R 4" T04Z Ball Bearing Turbocharger w/1.00 Twin Scroll
Regular price
$1,260.00
Sale price
$1,260.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA 11-10 4” A/R .70 GTW3890R T04Z-90 Ball Bearing Turbocharger with 1.00 T4 Twin Scroll V-Band Housing (CW: 71.3/90mm)
Application
Replace and Upgrade MAMBA / Garrett GT35R, GTX35R, GTW3884R, T04Z, GTW38 Journal Bearing or Ball Bearing Turbo with T4 Twin Scroll Turbine Housing.
Replace and upgrade Ball Bearing Turbo P/N: 841691-5003S, 841691-5004S, 841691-5005S.
Replace and Upgrade Garrett GTW3884 Journal Bearing Turbo with Turbo # 841297-5003S, 841297-5004S, 841297-5005S.
Replace & upgrade MAMBA & Garrett T04 Journal bearing or GT35R Ball Bearing turbo with this A/R.70 compressor housing and T4 Twin scroll turbine housing.
Universal Use.
Support HP: 550~1050HP
Displacement: 2.0~6.0L
Specs
Comp. Wheel : 71.3 mm / 90 mm / Trim 64 (10+0 Billet Wheel with Extended Tip)
Turbine Wheel: 64.3 mm / 74.2 mm / Trim 76 (11 Blade Turbine Wheel)
Compressor Housing Inlet OD: 4” / 101.6 mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor Housing A/R: .70
Turbine Housing Inlet: Standard T4 Twin Entry
Turbine Housing Outlet: 3” V-Band
Turbine Housing A/R: 1.00
Bearing
NTN Dual Ceramic Ball Bearing
Cooling
Oil and Water-Cooled
Kit Includes
1 x MAMBA 4” A/R .70 NAS GTW3890R Turbocharger with A/R 1.00 T4 Twin Scroll Turbine Housing
1 x 70cm 4AN S-90 PTFE Turbo Oil Feed Line with 1.0mm restrictor.
2 x 20cm 6AN 3/8” PTFE Turbo Water line kit with 3/8” Barb.
1 x 50cm NBR/PVC Flexible Oil Return Hose Kit
1 x SS304 T4 Turbine Inlet Gasket
1 x 3” V-Band Turbine outlet Adapter Ring Kit
Everything shown on picture is included.
Application
Replace and Upgrade MAMBA / Garrett GT35R, GTX35R, GTW3884R, T04Z, GTW38 Journal Bearing or Ball Bearing Turbo with T4 Twin Scroll Turbine Housing.
Replace and upgrade Ball Bearing Turbo P/N: 841691-5003S, 841691-5004S, 841691-5005S.
Replace and Upgrade Garrett GTW3884 Journal Bearing Turbo with Turbo # 841297-5003S, 841297-5004S, 841297-5005S.
Replace & upgrade MAMBA & Garrett T04 Journal bearing or GT35R Ball Bearing turbo with this A/R.70 compressor housing and T4 Twin scroll turbine housing.
Universal Use.
Support HP: 550~1050HP
Displacement: 2.0~6.0L
Specs
Comp. Wheel : 71.3 mm / 90 mm / Trim 64 (10+0 Billet Wheel with Extended Tip)
Turbine Wheel: 64.3 mm / 74.2 mm / Trim 76 (11 Blade Turbine Wheel)
Compressor Housing Inlet OD: 4” / 101.6 mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor Housing A/R: .70
Turbine Housing Inlet: Standard T4 Twin Entry
Turbine Housing Outlet: 3” V-Band
Turbine Housing A/R: 1.00
Bearing
NTN Dual Ceramic Ball Bearing
Cooling
Oil and Water-Cooled
Kit Includes
1 x MAMBA 4” A/R .70 NAS GTW3890R Turbocharger with A/R 1.00 T4 Twin Scroll Turbine Housing
1 x 70cm 4AN S-90 PTFE Turbo Oil Feed Line with 1.0mm restrictor.
2 x 20cm 6AN 3/8” PTFE Turbo Water line kit with 3/8” Barb.
1 x 50cm NBR/PVC Flexible Oil Return Hose Kit
1 x SS304 T4 Turbine Inlet Gasket
1 x 3” V-Band Turbine outlet Adapter Ring Kit
Everything shown on picture is included.
