GTX anti surge TD42 GU TD05H-18G 6cm Bolt-On Hsg

$965.00

Fully secure checkout
Trusted by thousands

ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL

Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

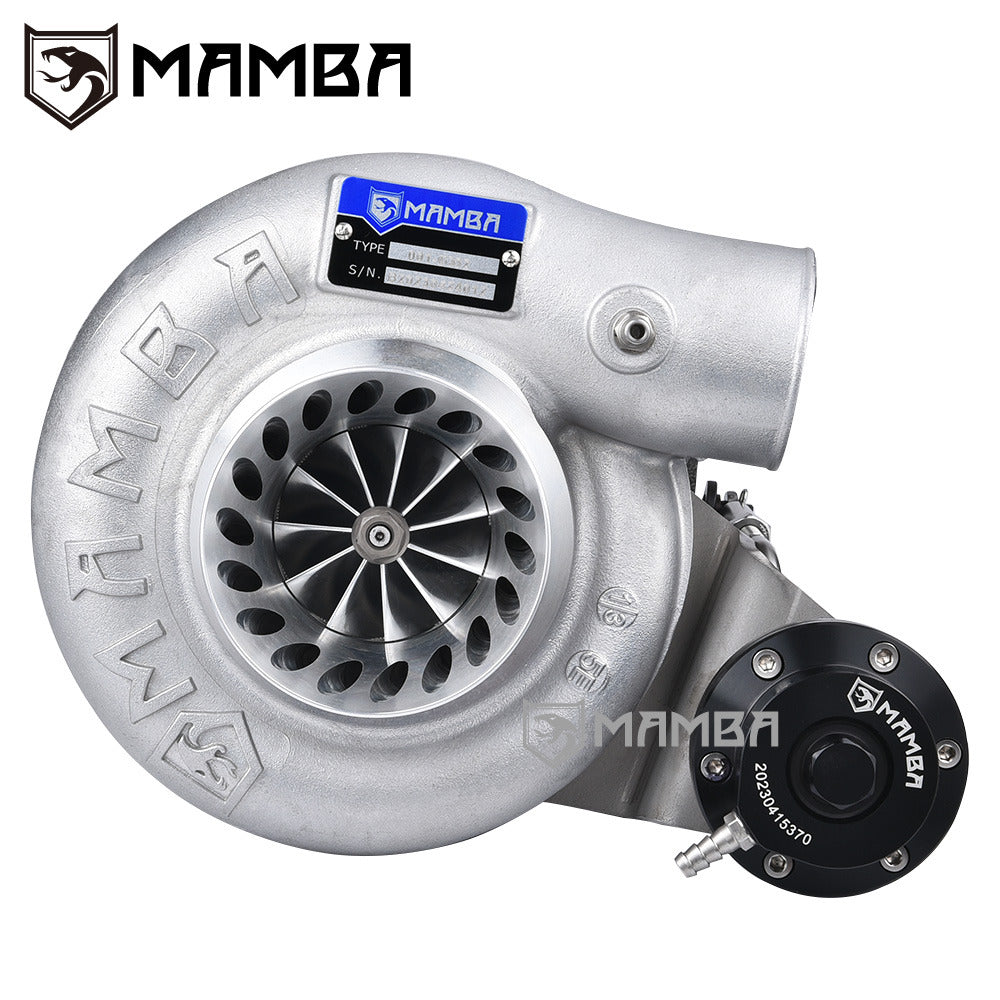

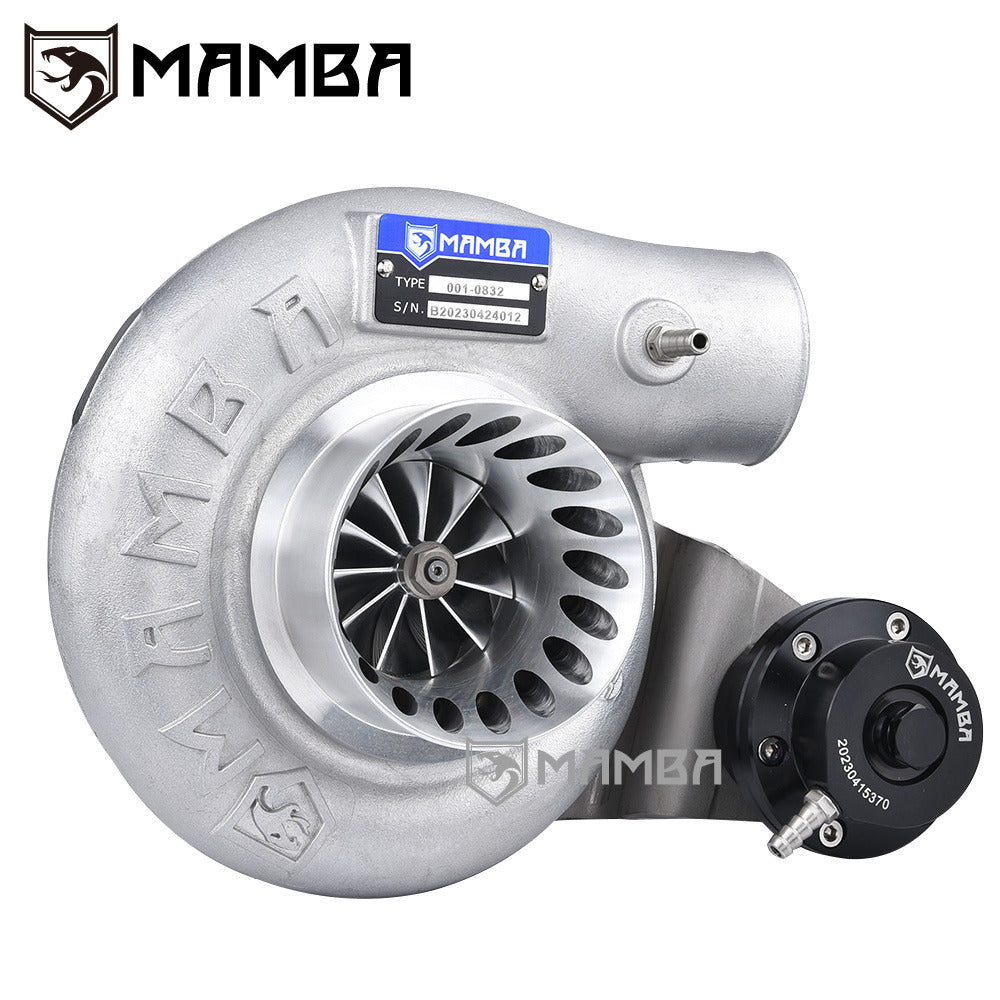

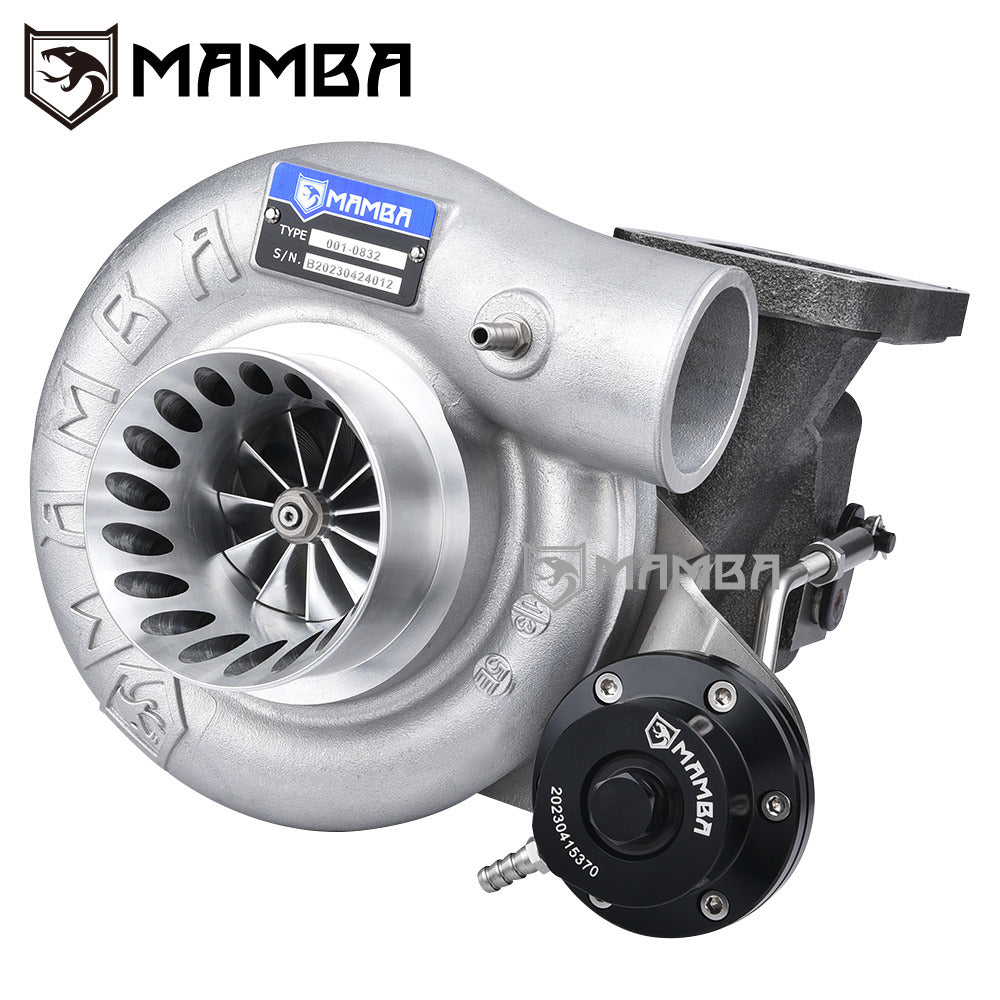

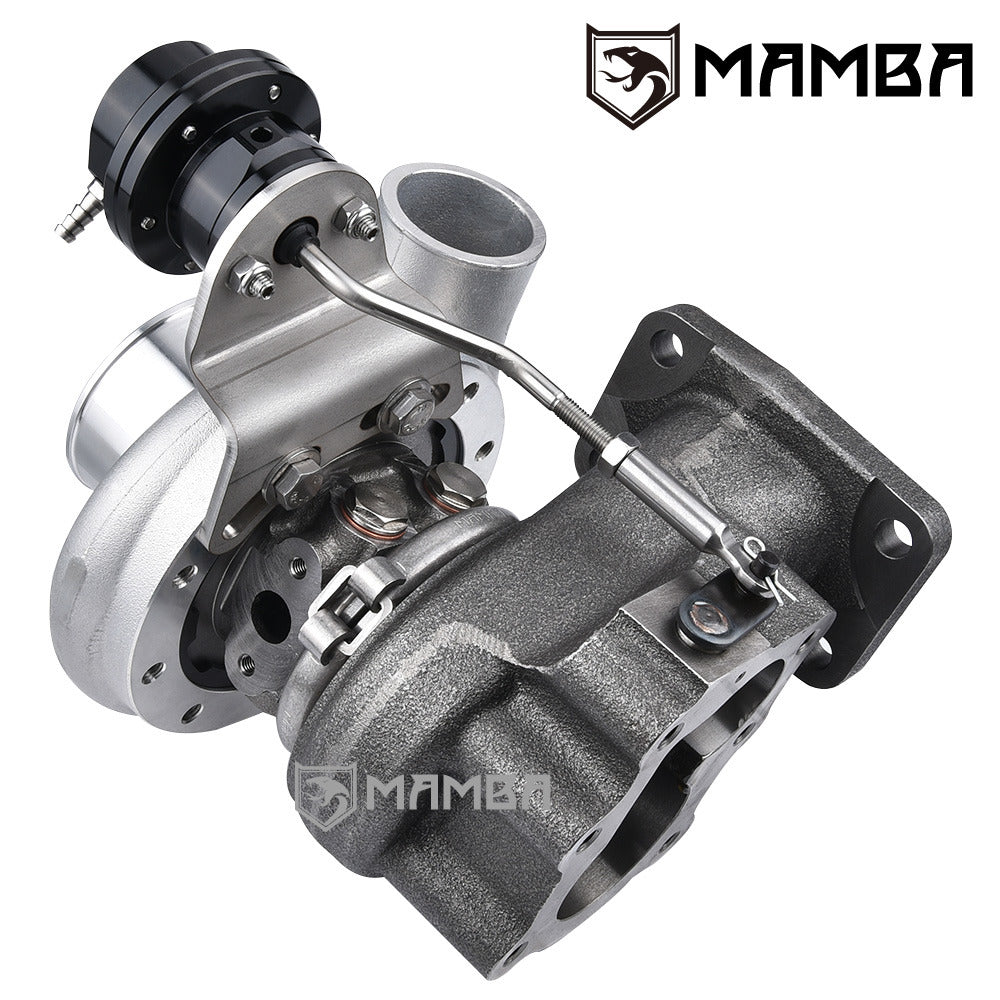

MAMBA GTX Billet Bolt-On Turbocharger Nissan TD42 GU Safari Patrol 3”Anti Surge TD05H-18G w/ 6cm Housing

Brand New In Box

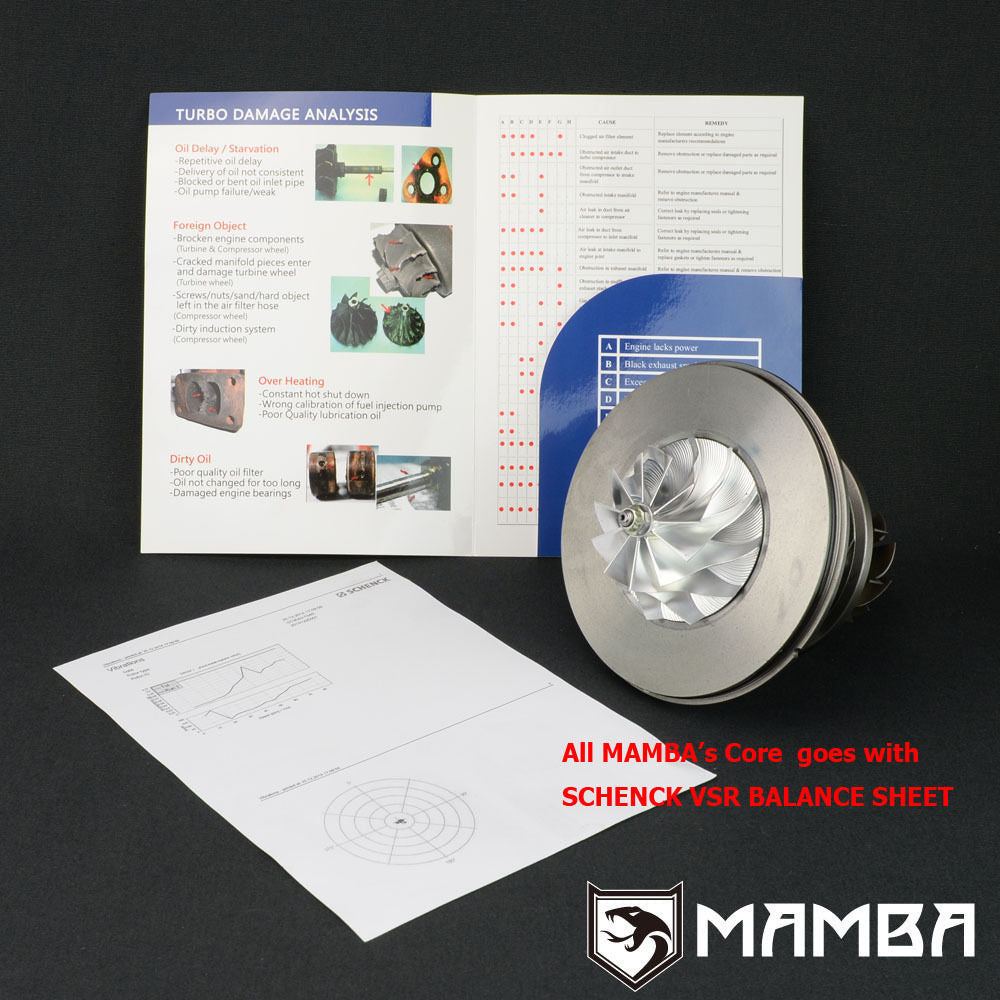

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GU TD42 Diesel
Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover
It needs different oil and water line kit if your engine is GQ type
Specs
Comp. Wheel : 50.5 mm / 68 mm (GTX 11 Blade Billet Wheel 18G with Extended Tip)
Turbine Wheel : 49.2 / 56.4 mm (9 blade TD05H Performance High Inconel)
Compressor Housing : 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
Bearing
Journal Bearing
Performance Thrust Bearing Kit Included
Cooling
Oil & water-cooled
Actuator

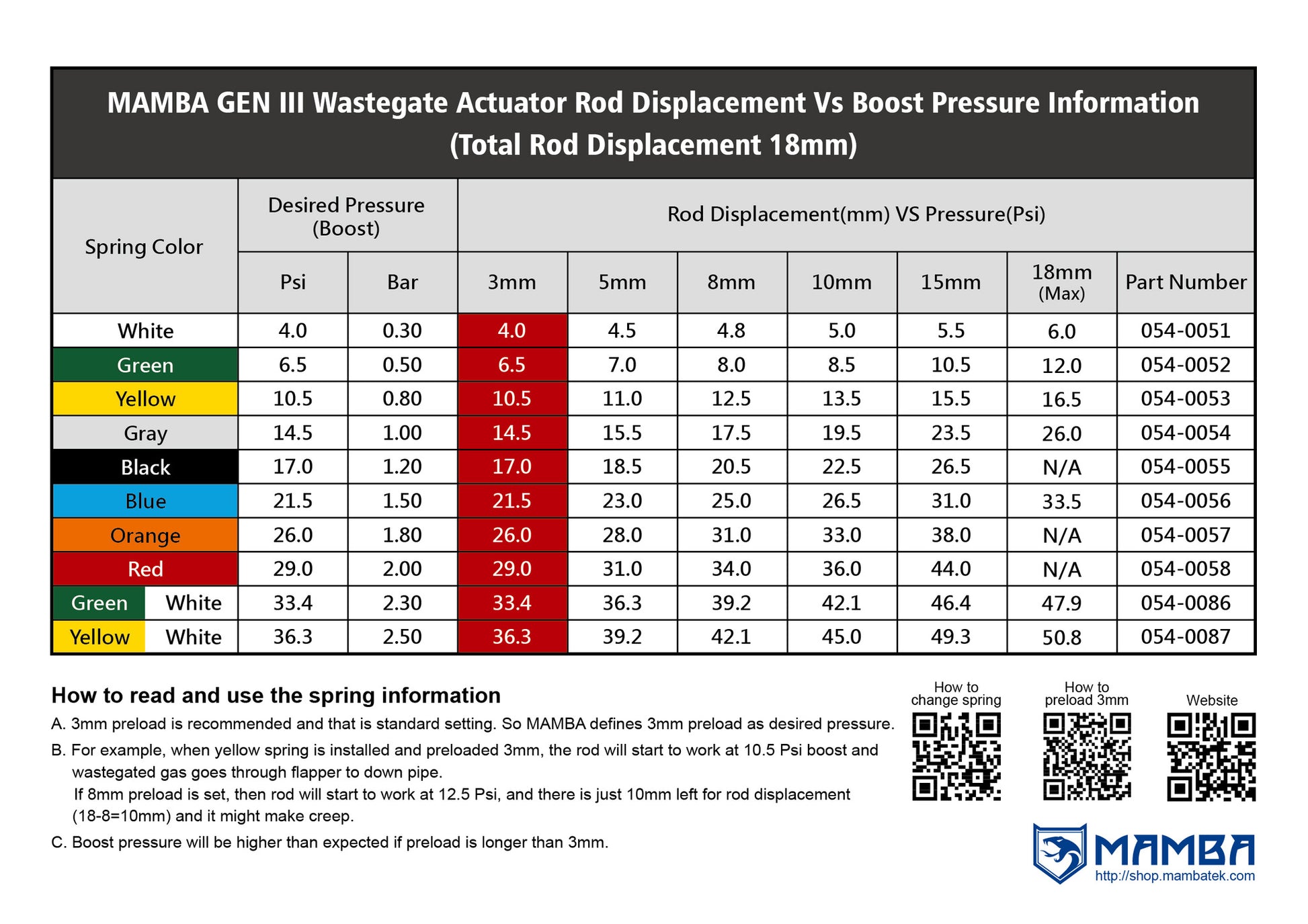

0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.

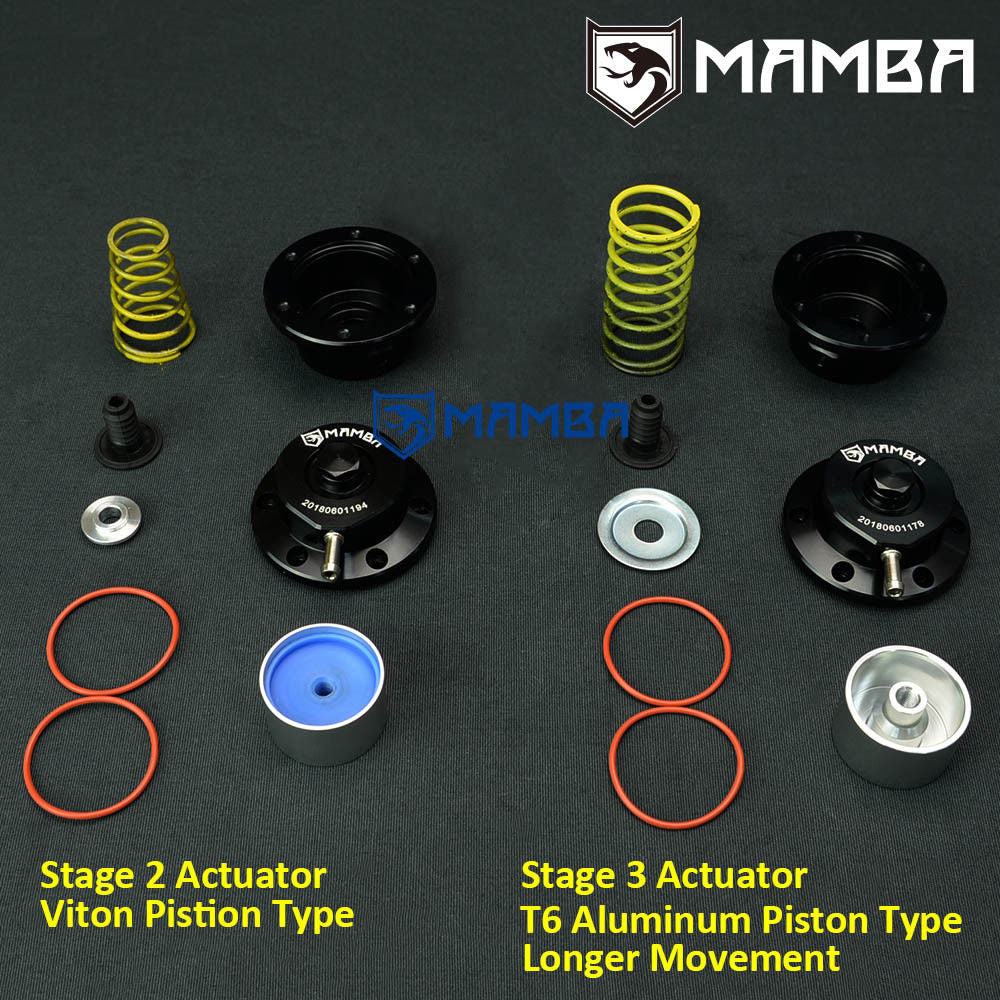

Stage 2 piston type of adjustable actuator

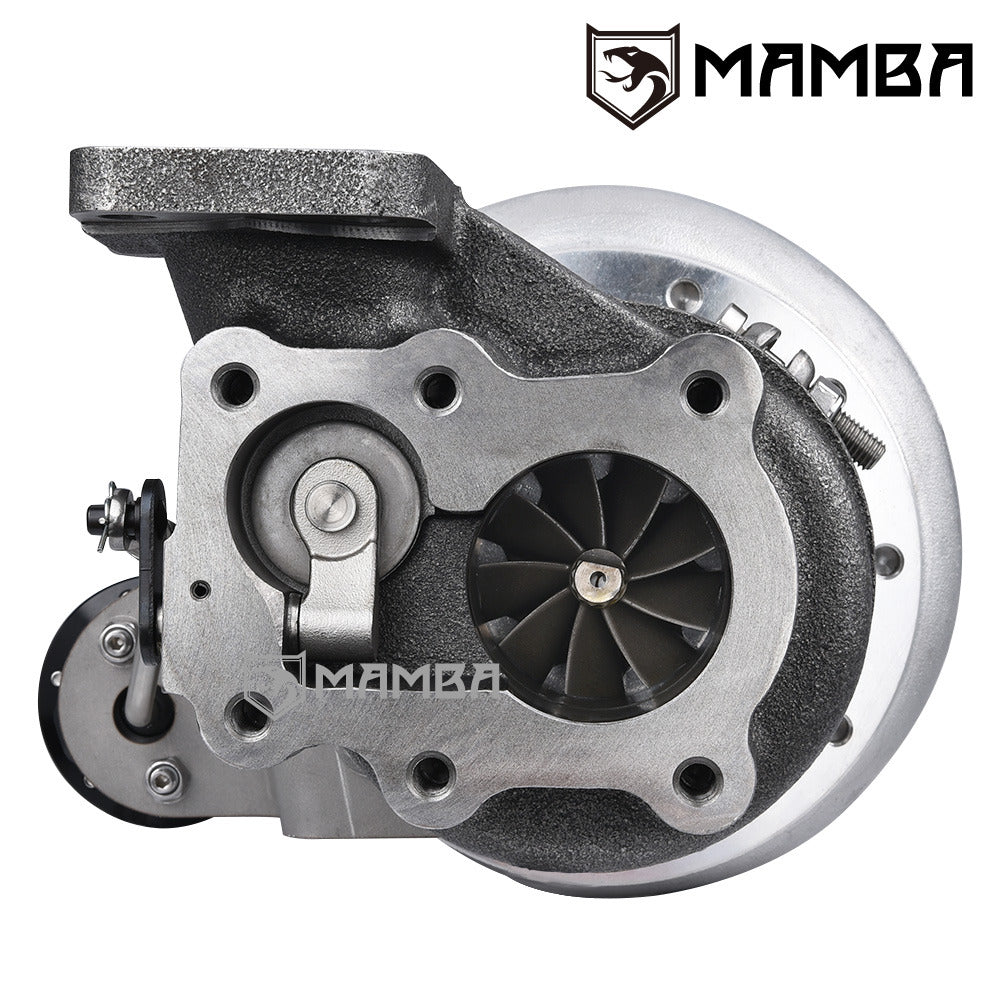

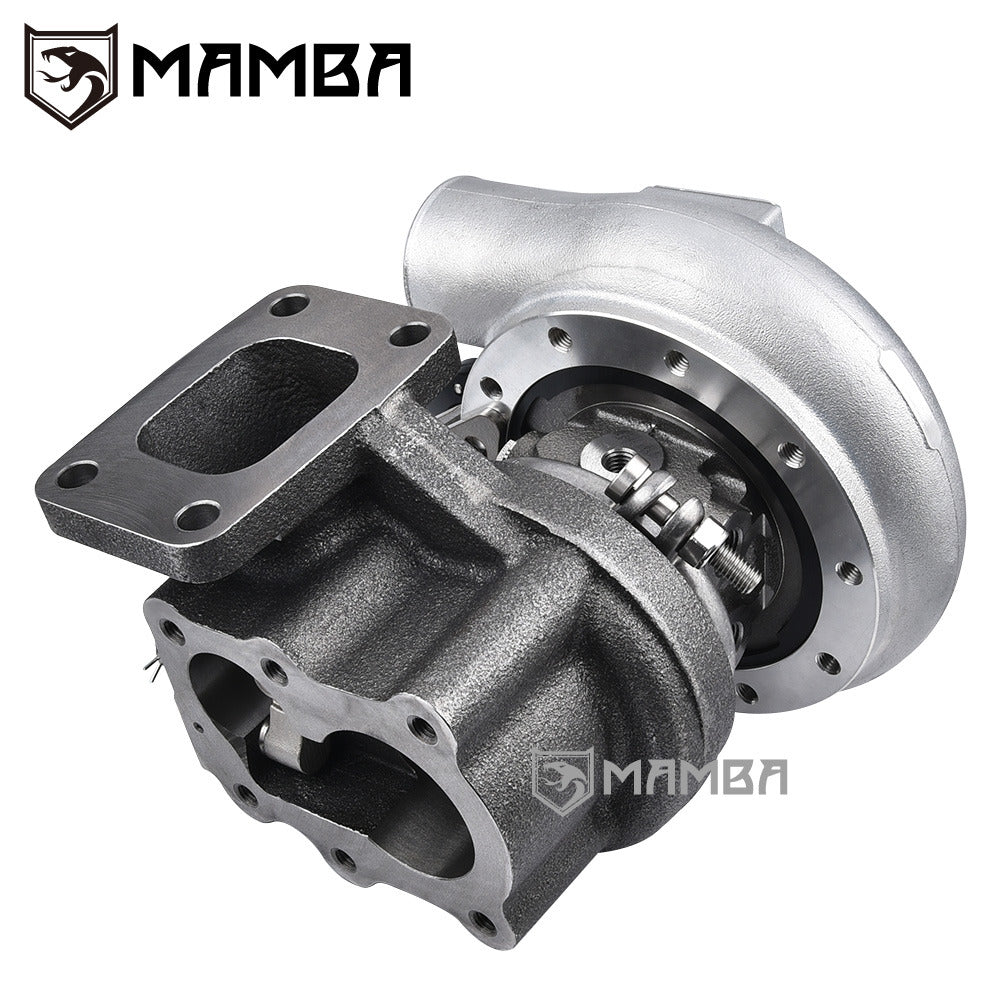

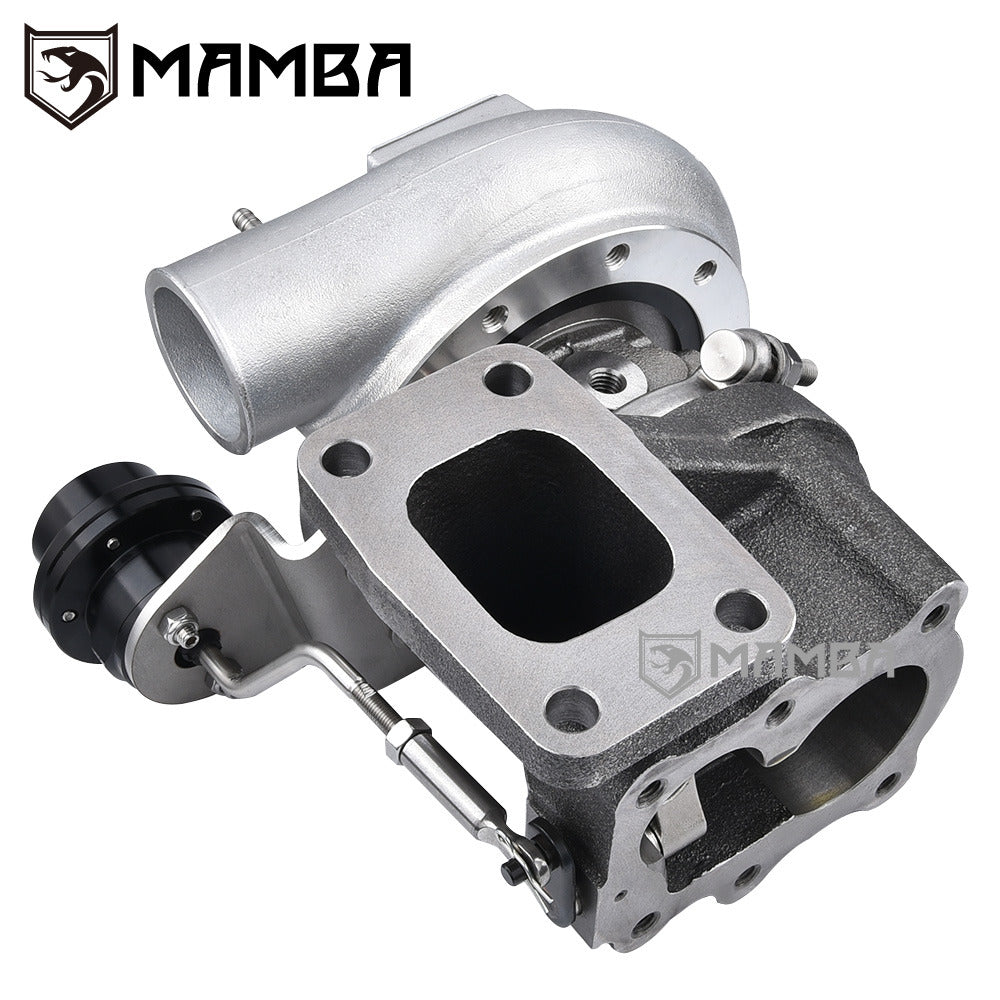

Turbine Housing
6cm^2 / A/R .42
Standard T3 Flange
Internal Gate Type

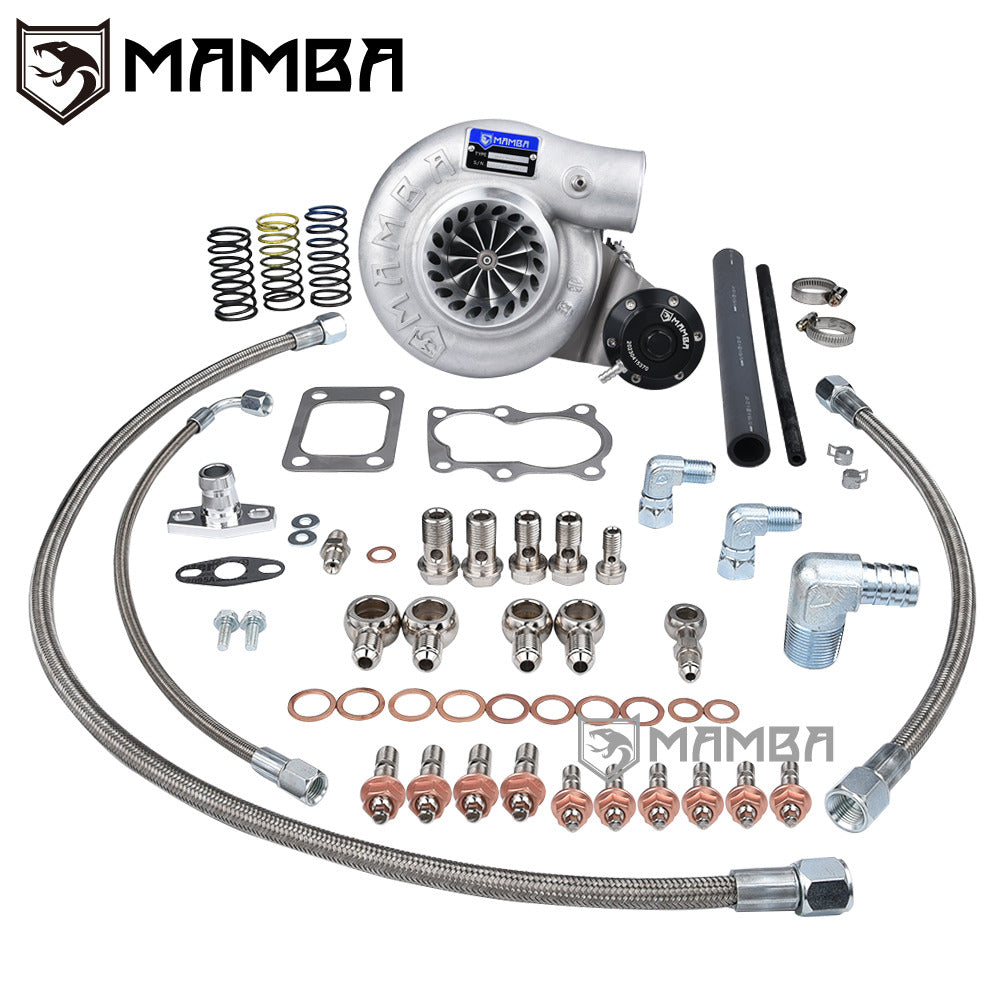

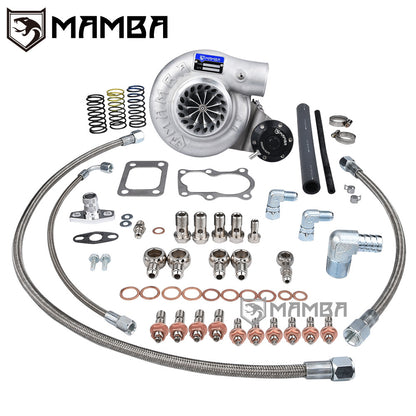

Kit Includes
1 x Oil Feed Line Kit　
2 x Water Line Kit　
1 x Oil Return Pipe Kit　
1 x Turbine Inlet Gasket　
1 x Turbine Outlet Gasket　
6 x M8x1.25 Stud Kit
Everything shown on picture included
