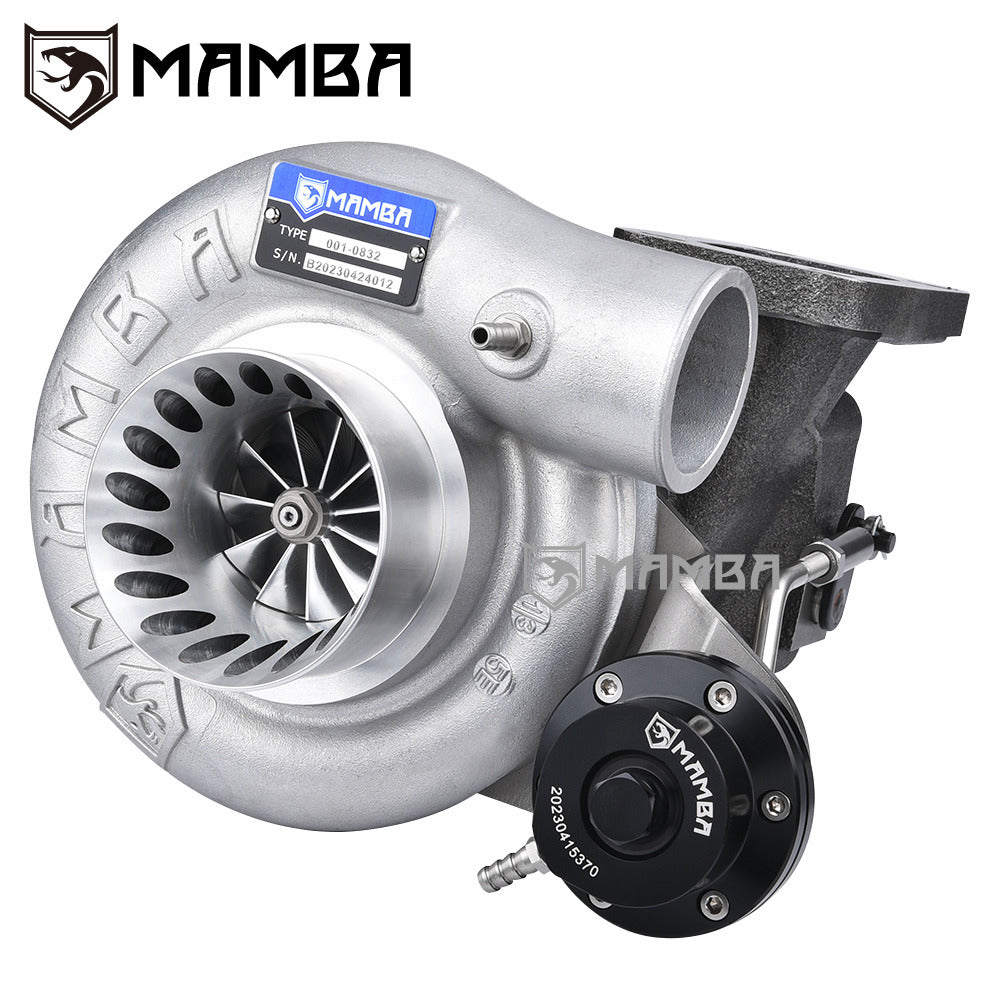

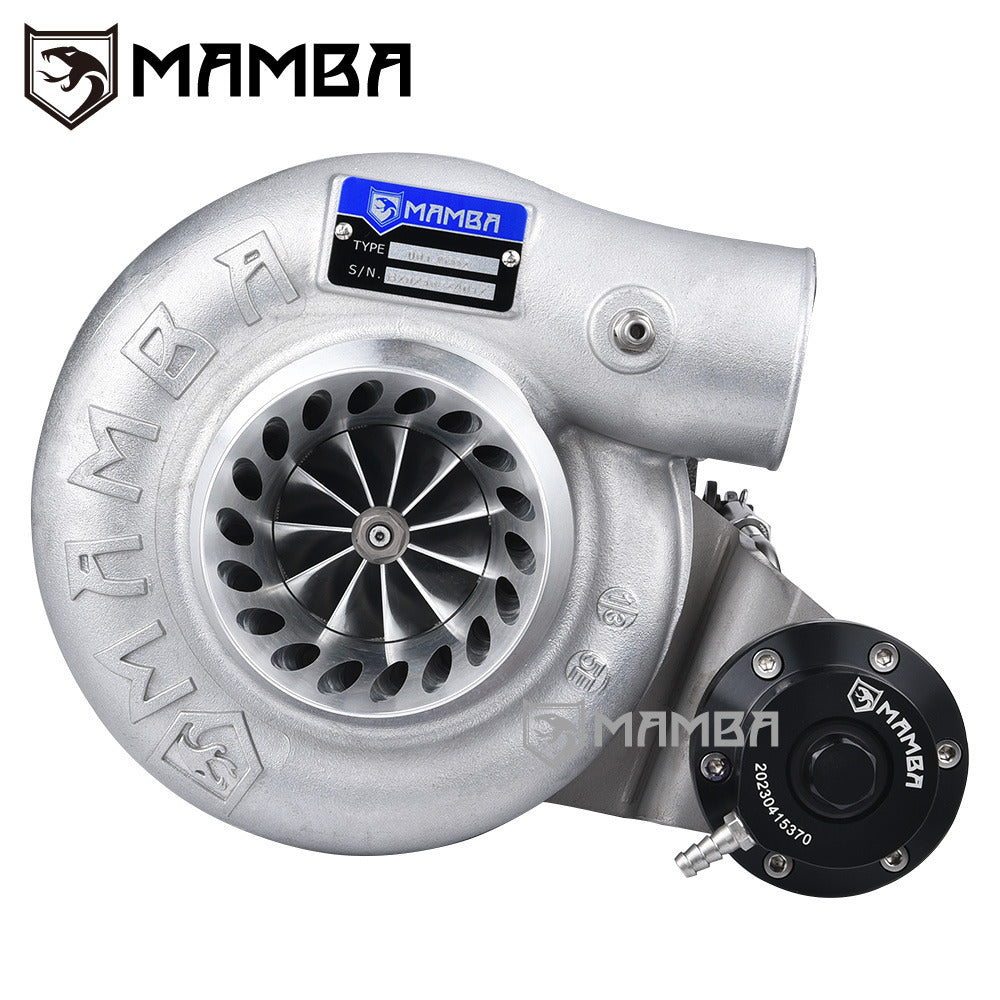

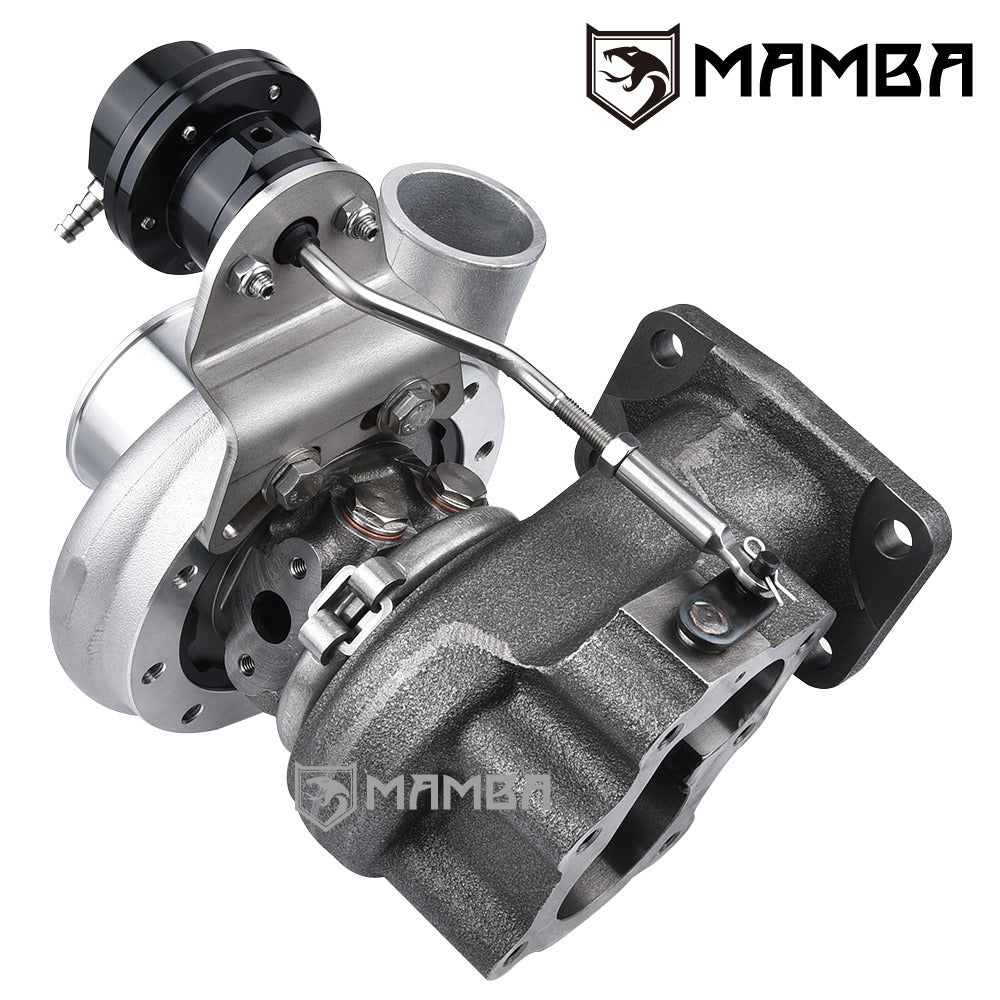

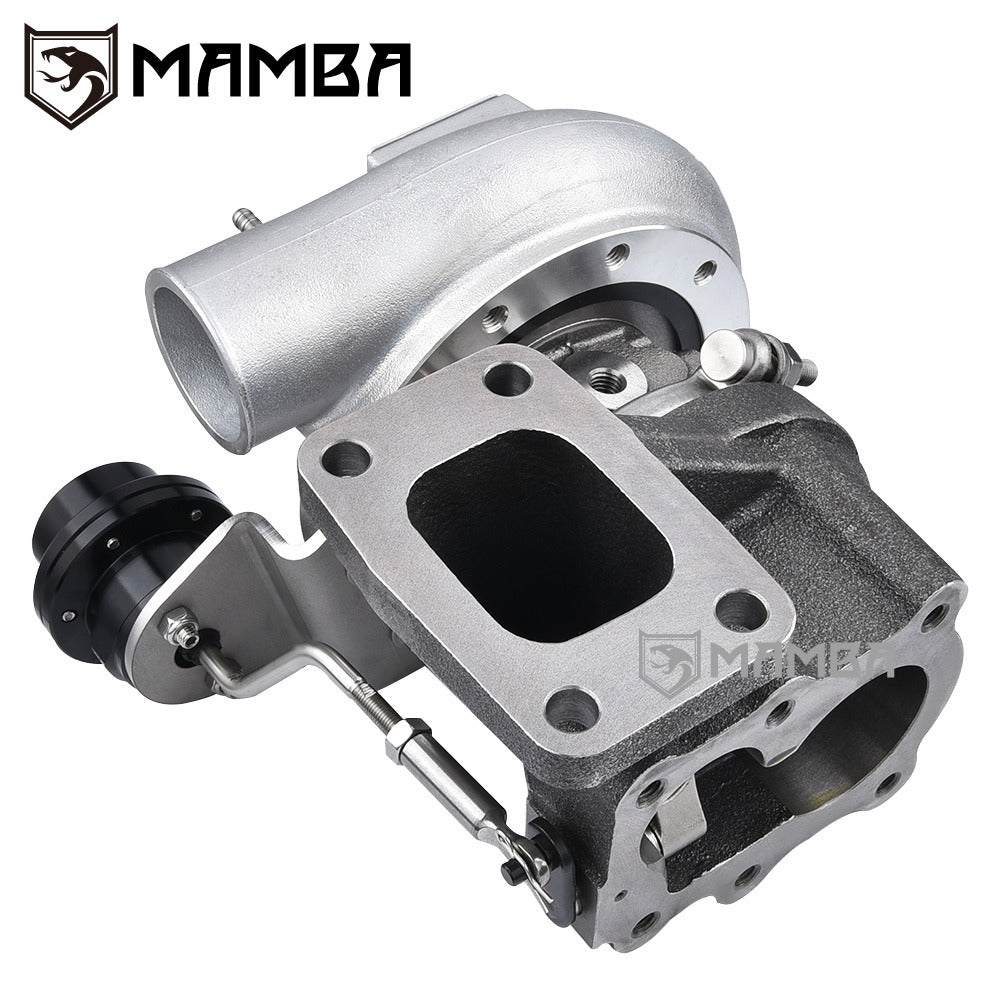

MAMBA GTX Billet Bolt-On Turbocharger Nissan TD42 GU Safari Patrol 3” Anti Surge TD05H-20G w/ 6cm Housing
Brand New In Box

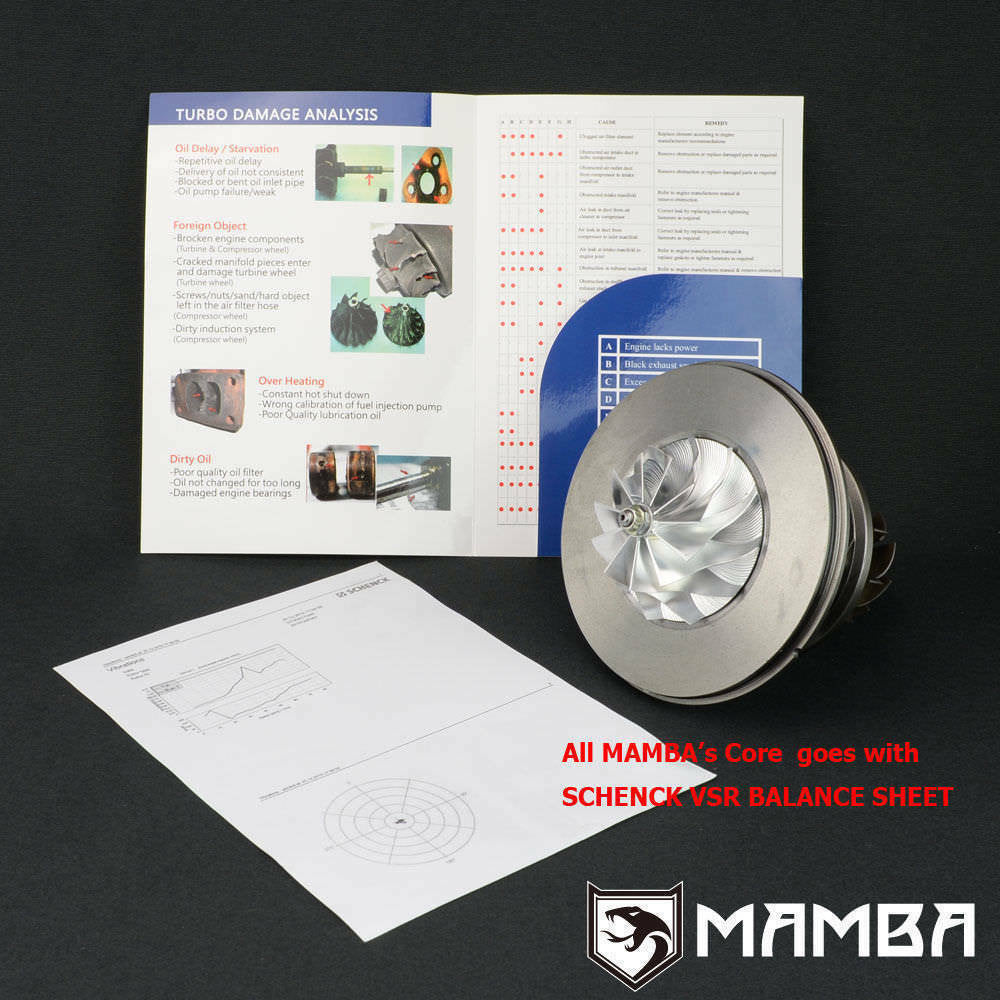

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Nissan Safari / Patrol GU TD42 Diesel
Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover
It needs different oil and water line kit if your engine is GQ type
Specs
Comp. Wheel : 52.5 mm / 68 mm (GTX 11 Blade Billet Wheel 20G with Extended Tip)
Turbine Wheel : 49.2 / 56.4 mm (9 blade TD05H Performance High Inconel)

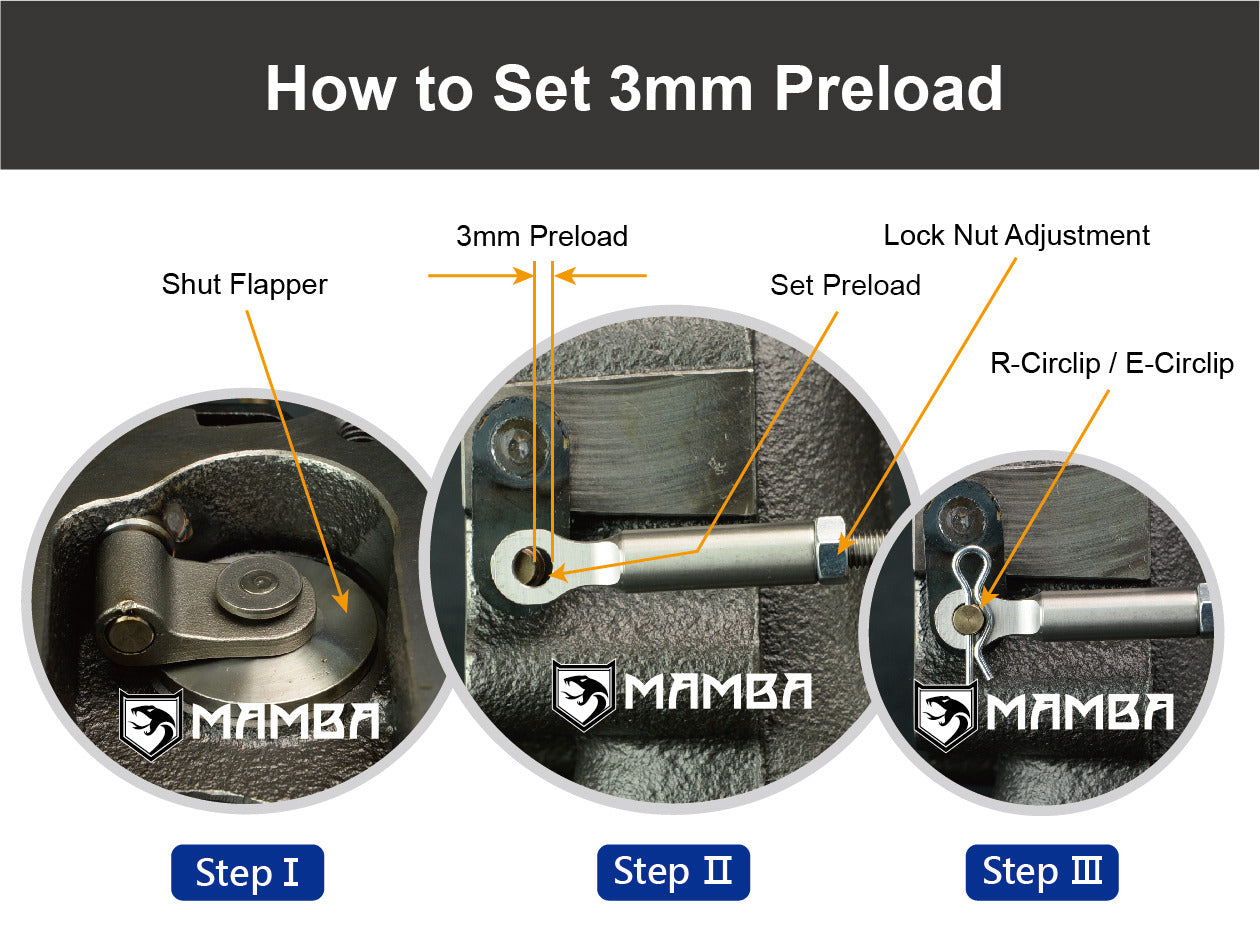

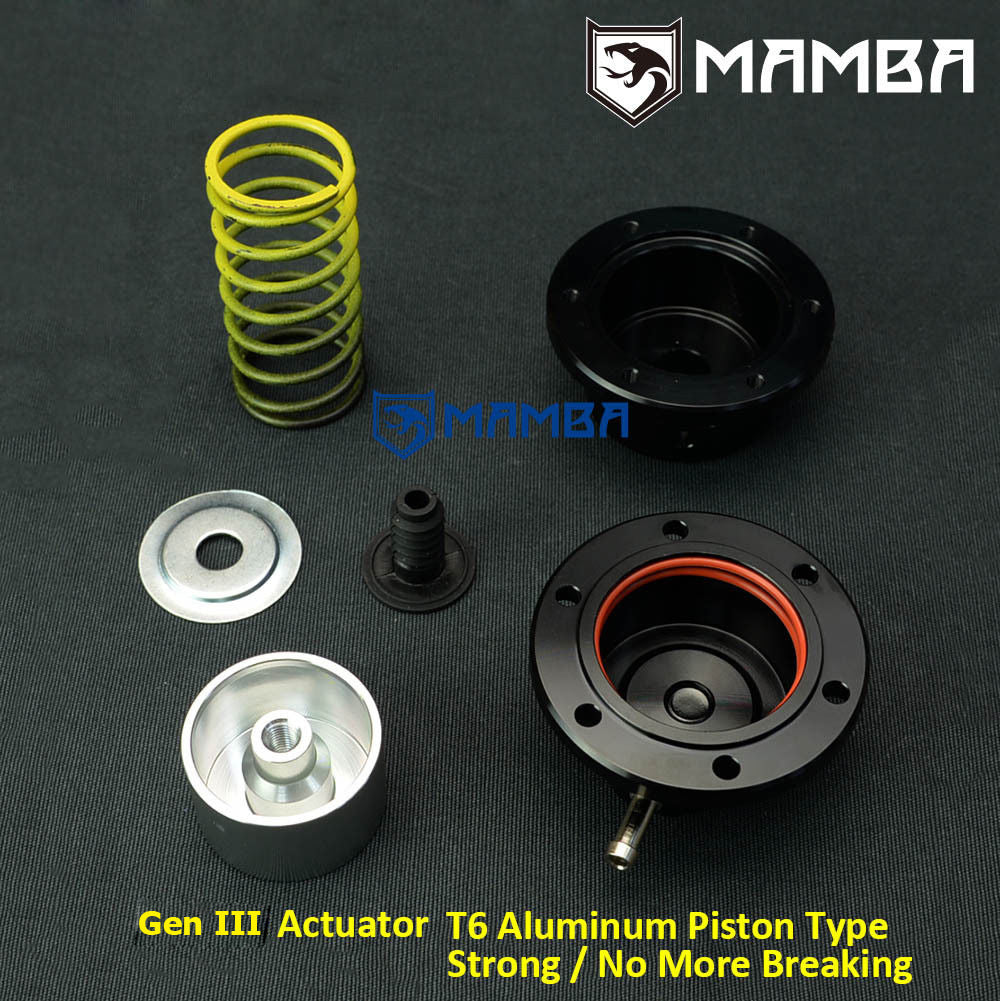

Actuator

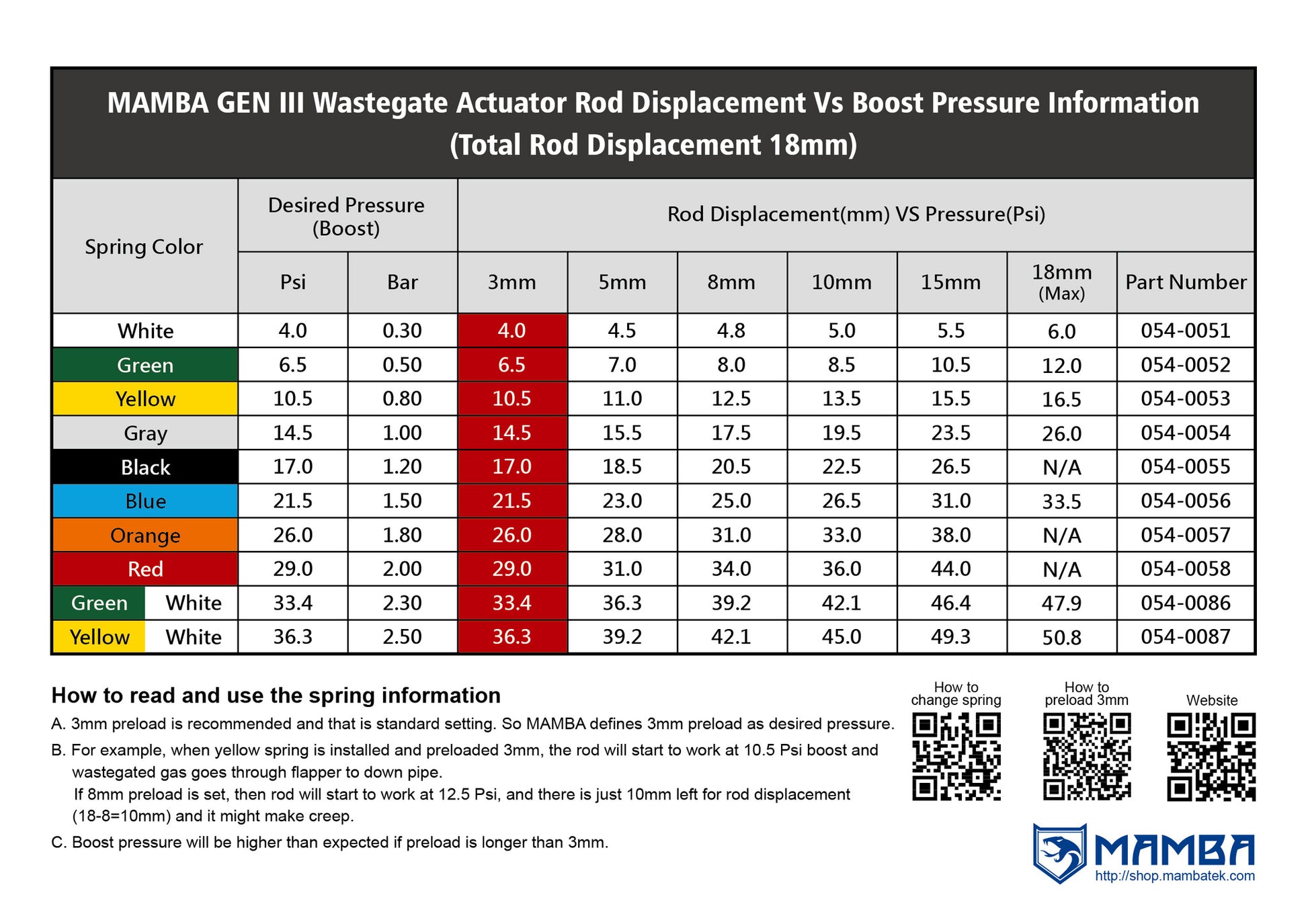

0.8bar spring pre-installed on the adjustable actuator
1.2bar and 1.5bar spring will go with box
Stage 3 Viton Piston type of Adjustable actuator (Replace diaphragm type)
Bearing system
Journal Bearing
Performance Thrust Bearing Kit Included.
Cooling System
Oil and Water-cooled system

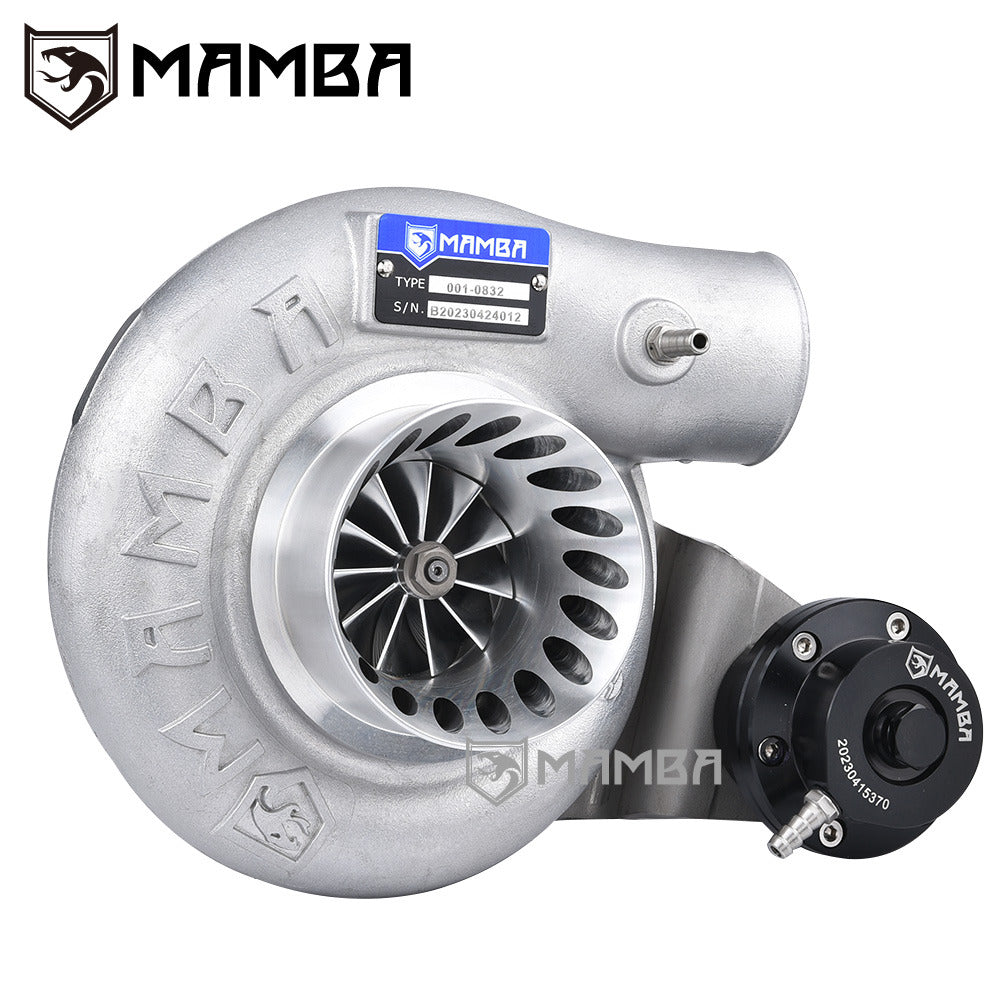

Comp. Housing
3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)

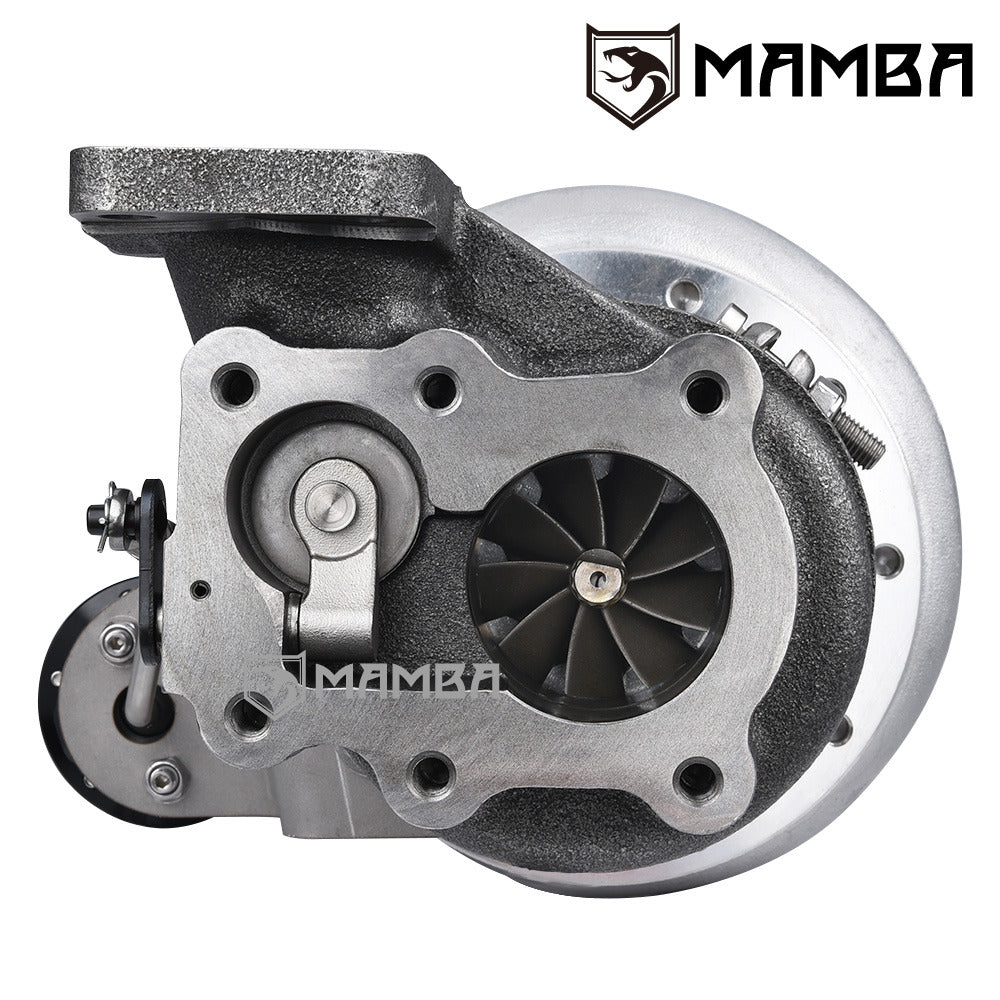

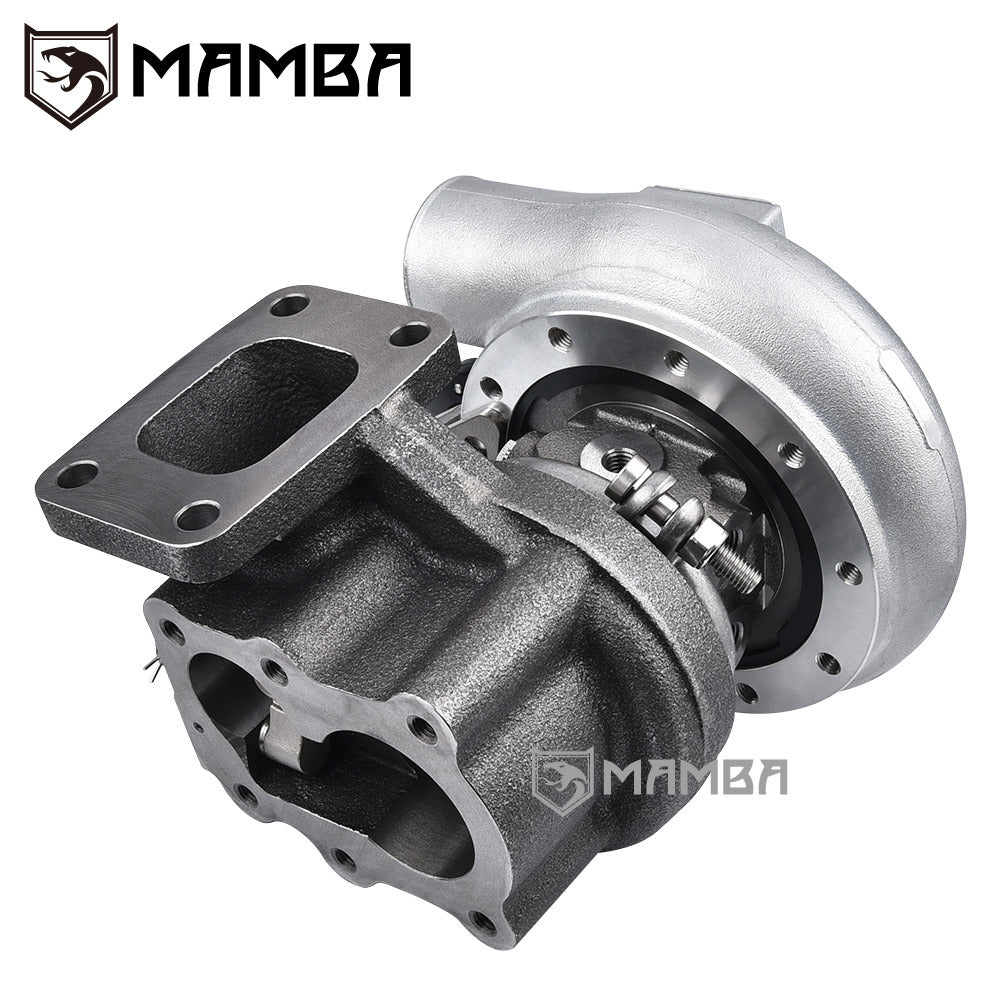

Turbine Housing
6cm^2 / A/R .42
Standard T3 Flange
Internal Gate Type

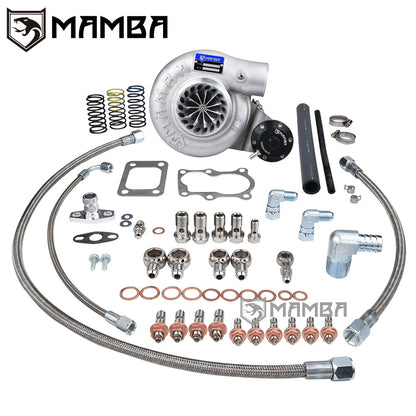

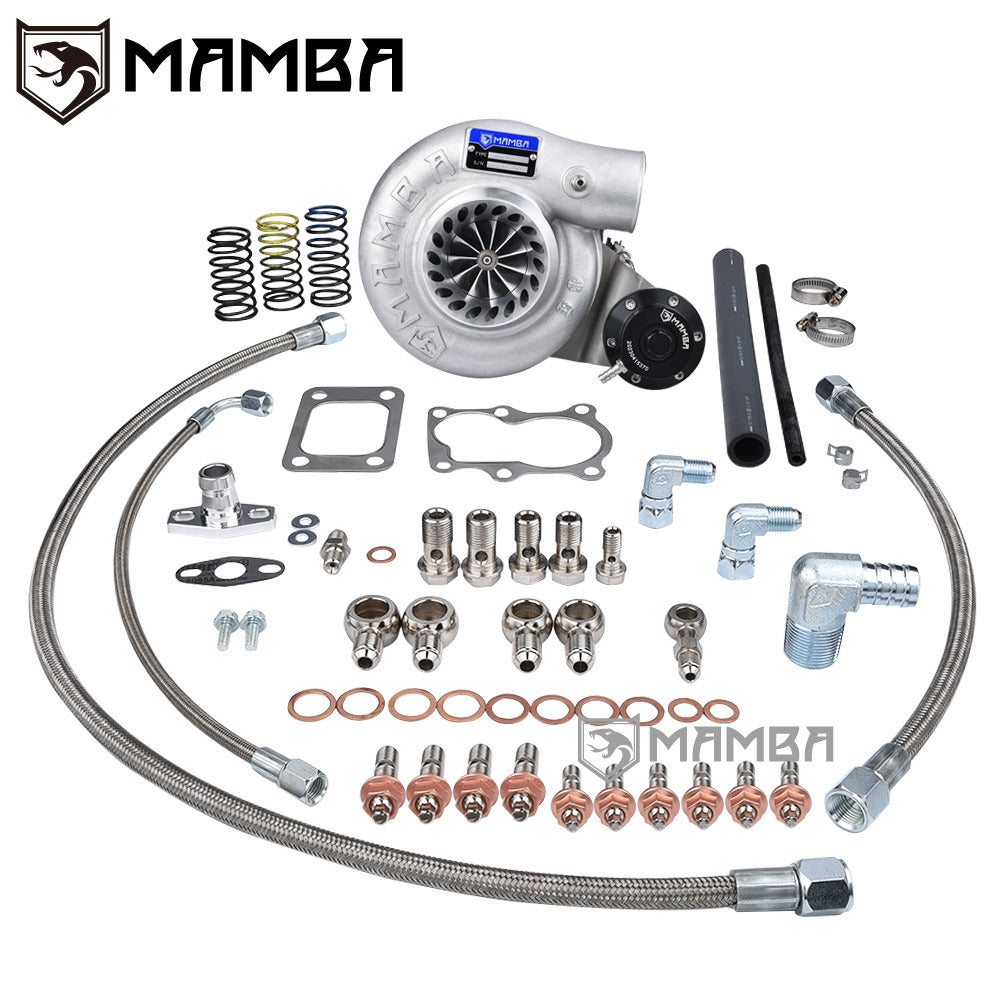

Kit Includes
1 x Oil Feed Line Kit
2 x Water Line Kit
1 x Oil Return Pipe Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
6 x M8x1.25 Stud Kit
Everything shown on picture is included
