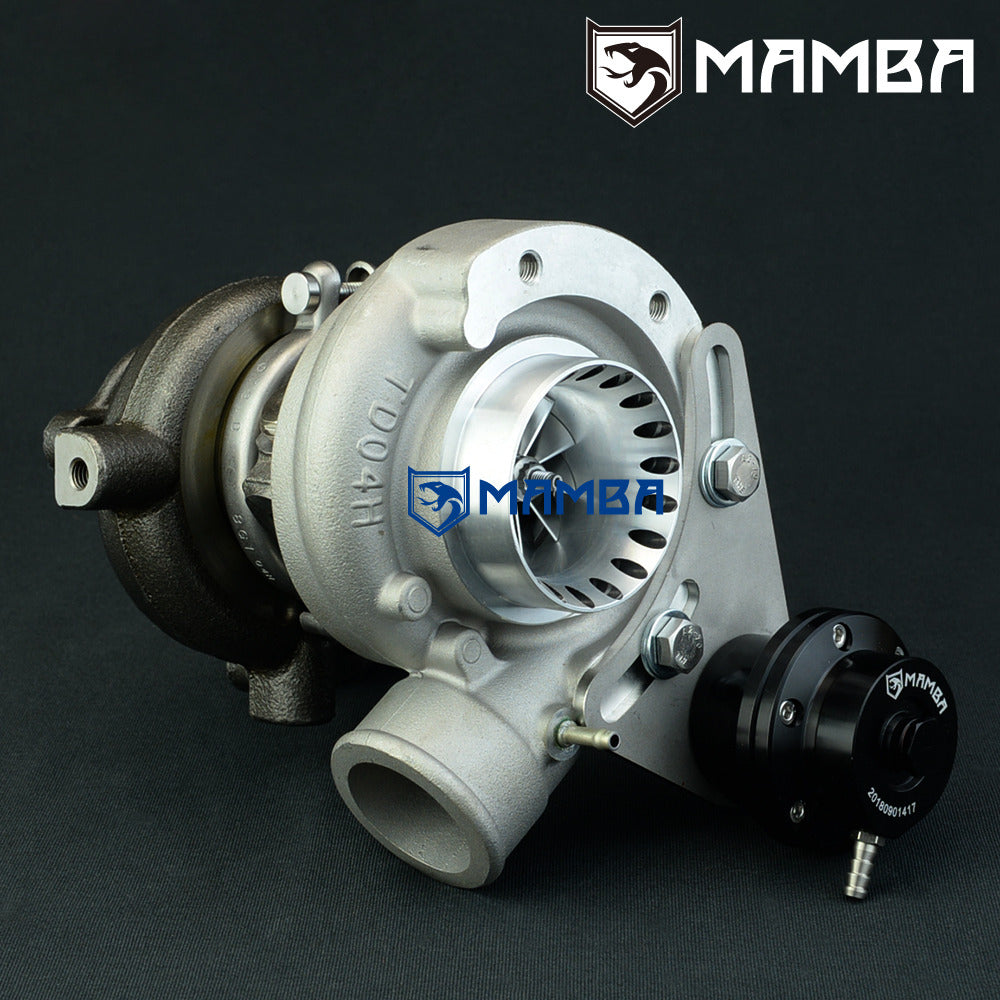

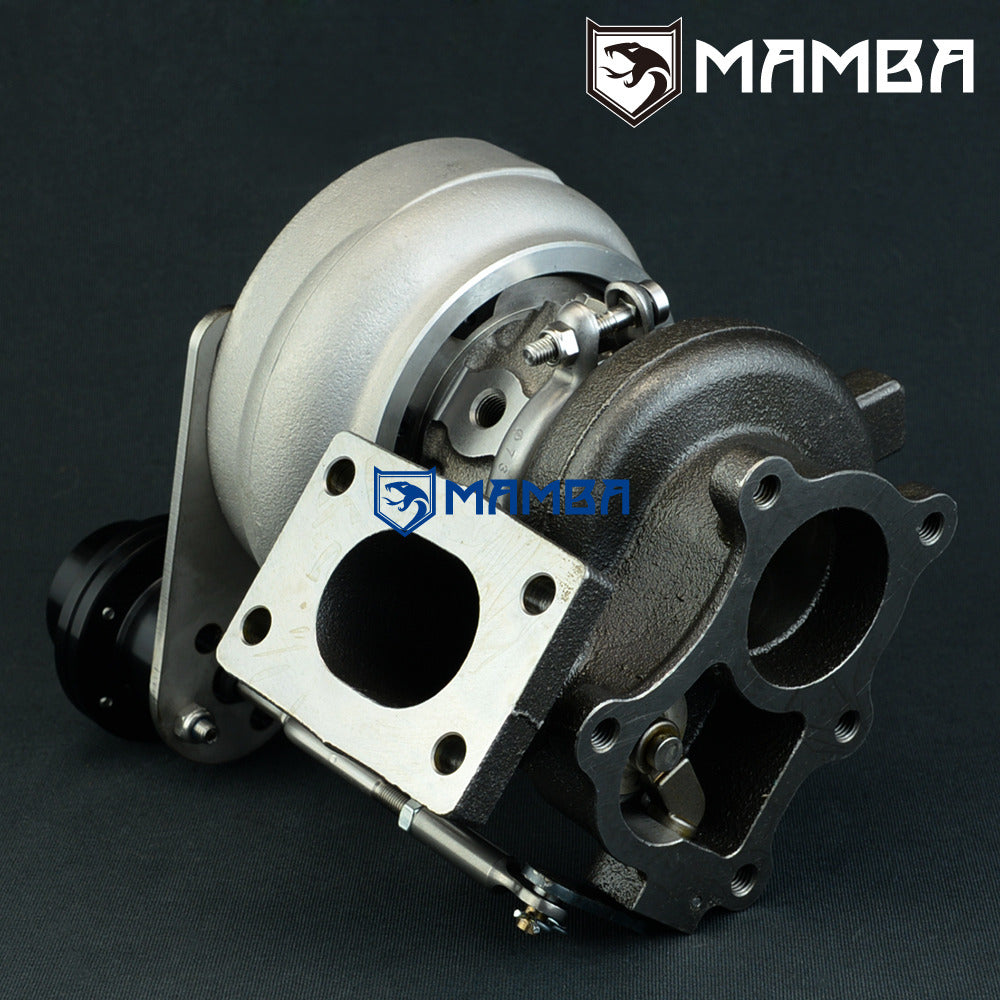

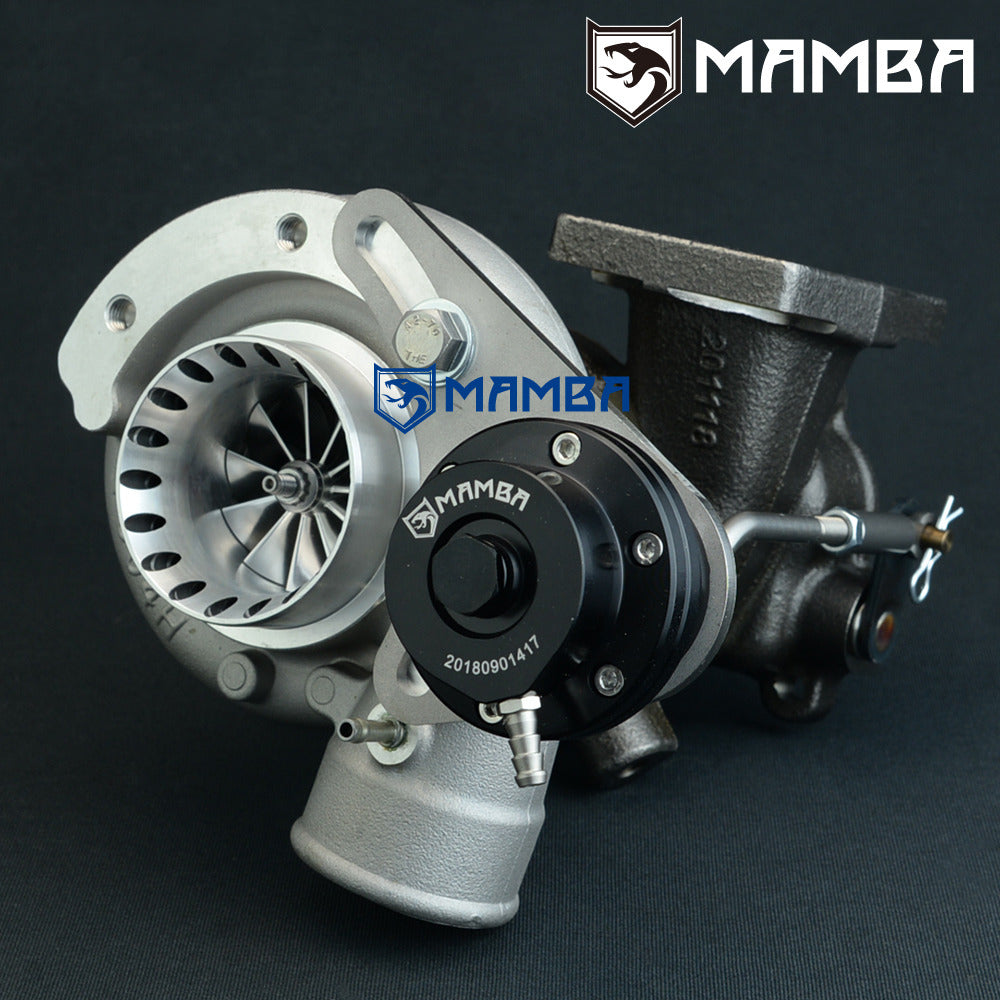

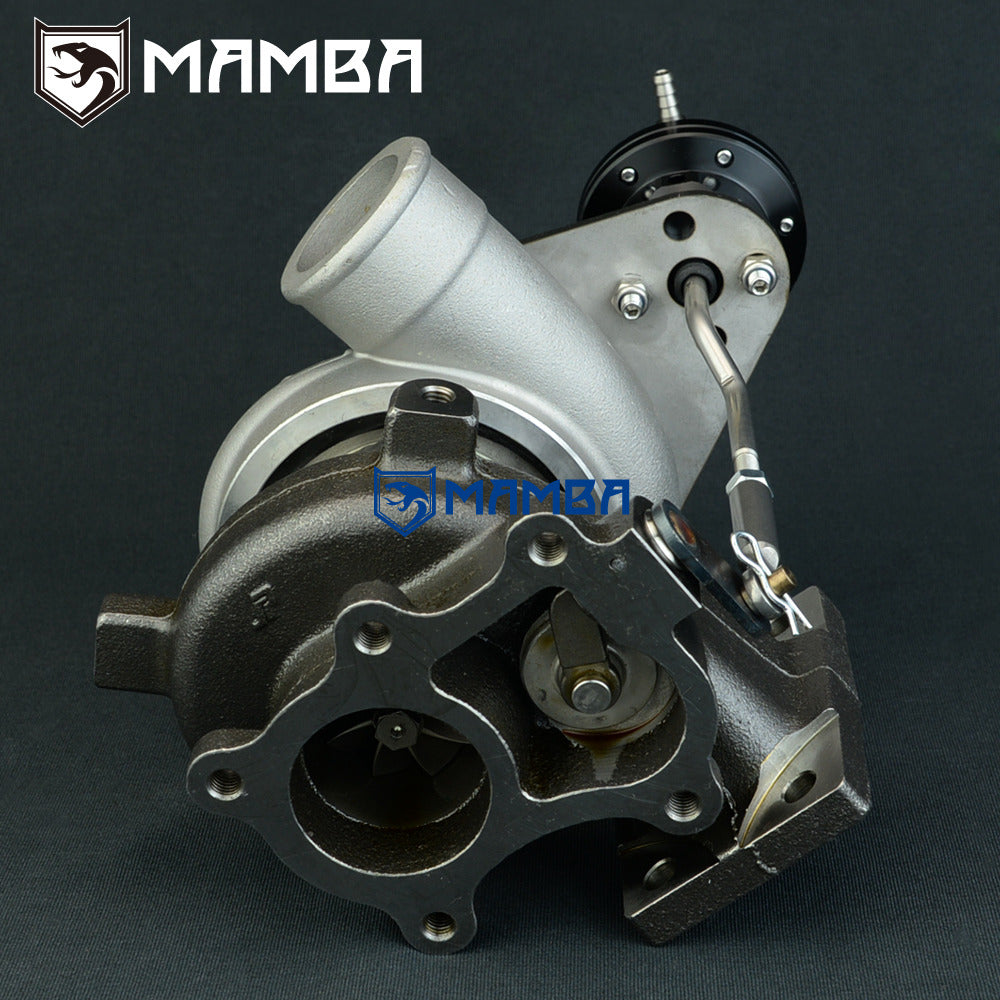

MAMBA GTX Billet Anti Surge Turbocharger 2.5" TD04L-19T w/ 6cm T25 Hsg 1.3~2.0L
Complete CHRA balanced by SCHENCK MBRS 110 Germany
Application
1.3~2.L Gasoline Engine / 200~350HP
3L~4L Diesel Engine
Specs

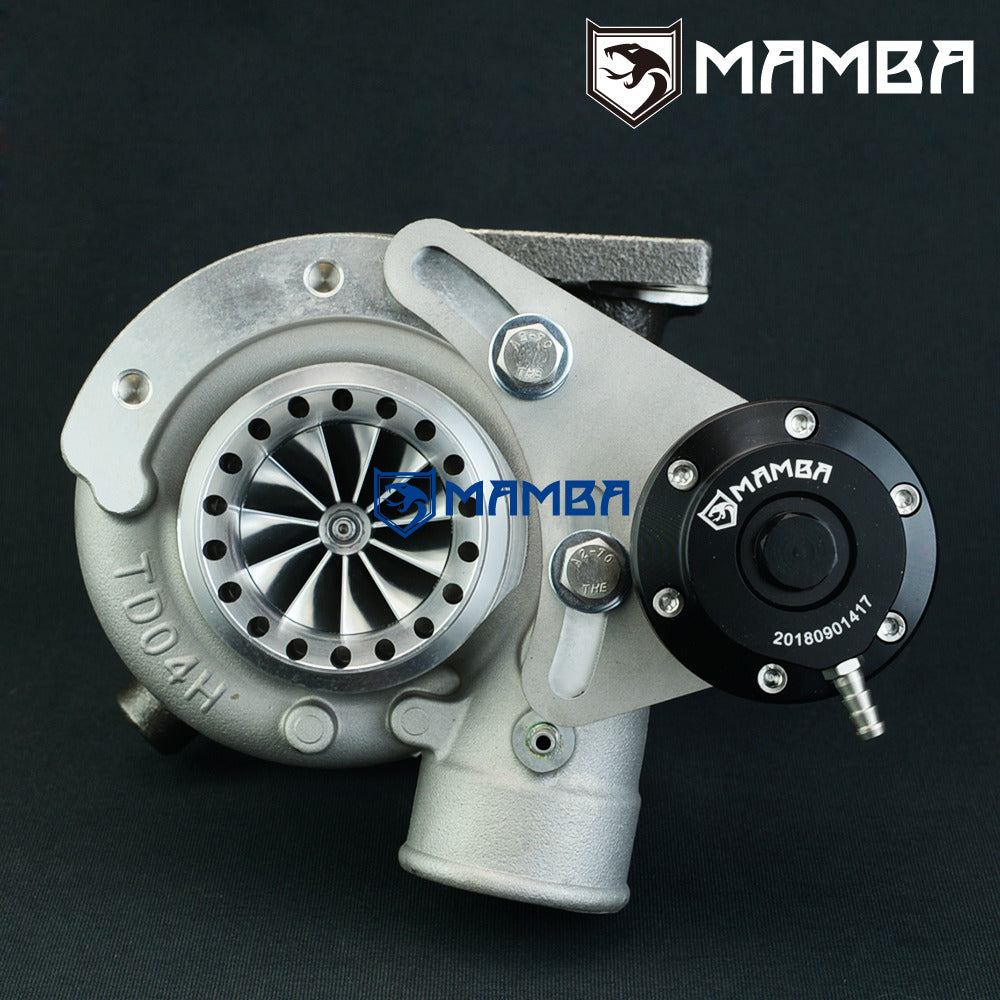

Compressor Wheel : 46mm / 58mm (GTX 11 Blade Billet Wheel 19T with Extended Tip)

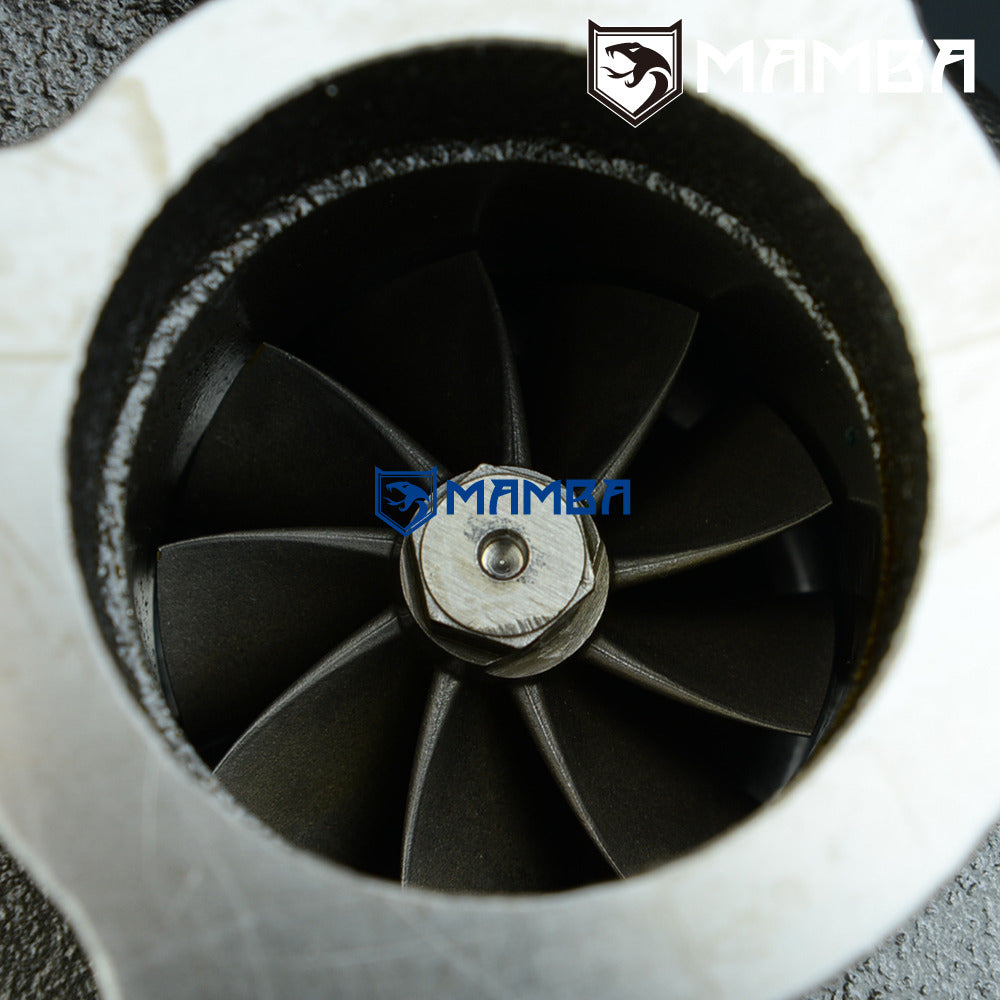

Turbine Wheel : 41.3 / 47 mm (TD04L Performance High Inconel)
Compressor Housing : 2.5” Inlet / 2” Outlet (63.1 mm Inlet / 50.3 mm Outlet)
HP Support : 200~350 HP

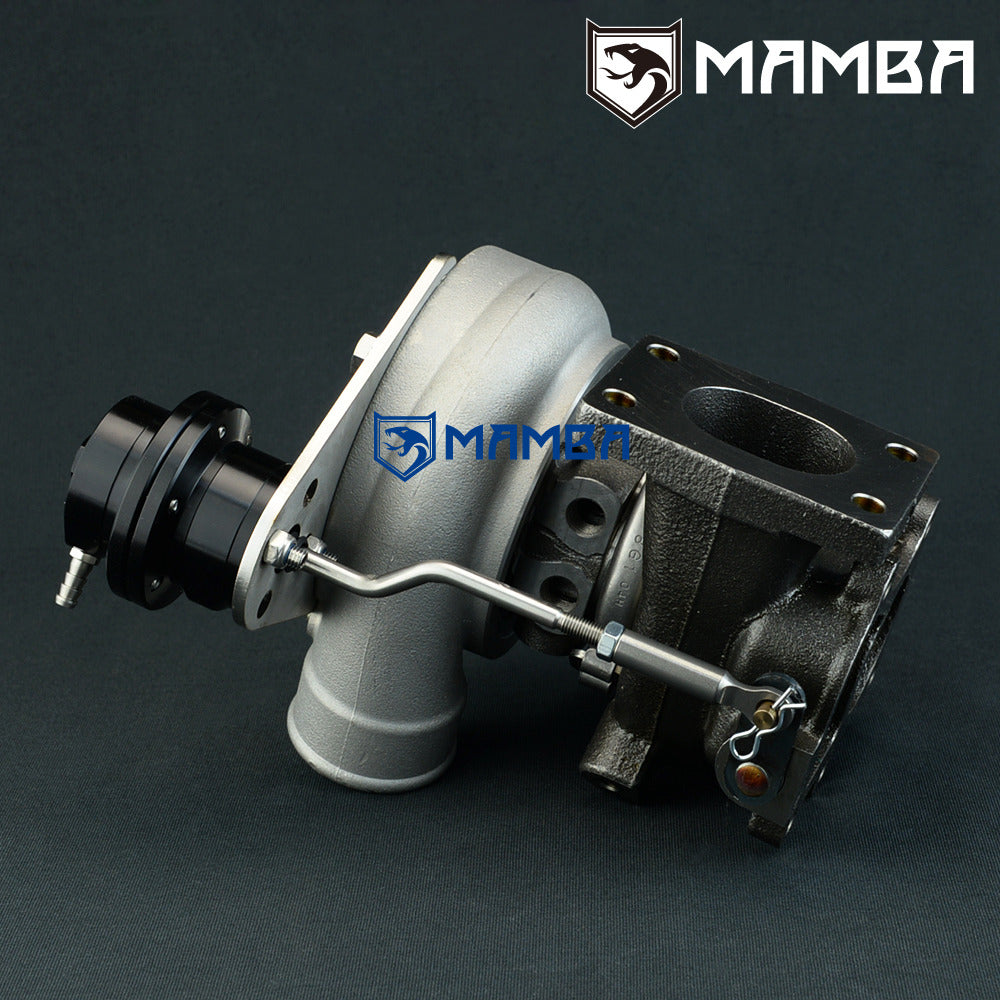

Actuator

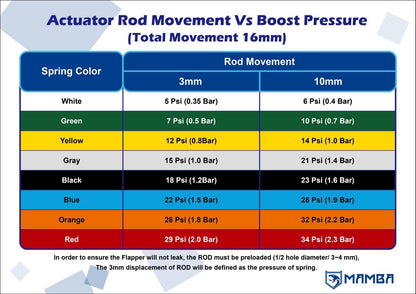

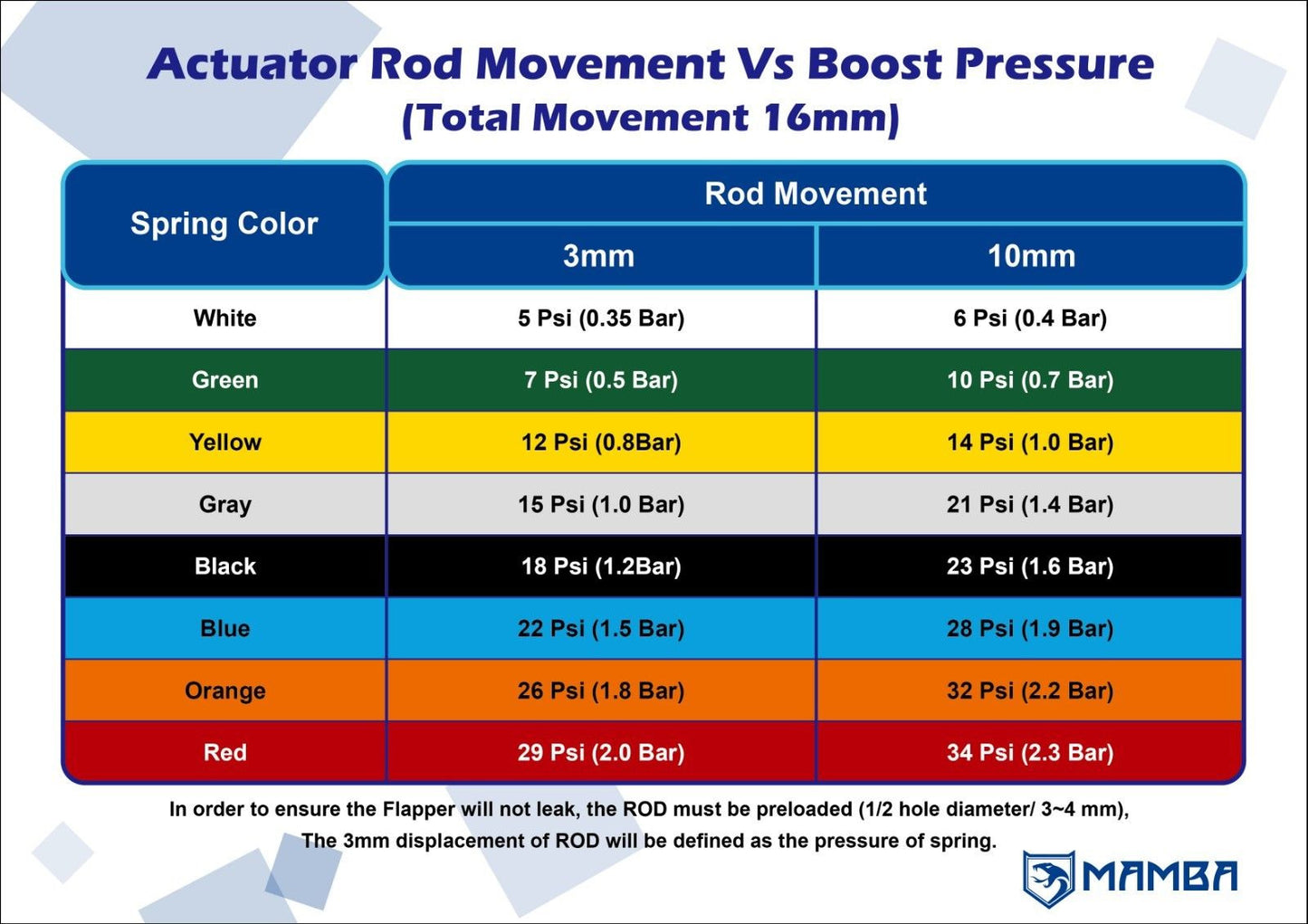

Adjustable 0.6 Bar Spring Installed.
We offer 0.4bar, 0.6bar, 0.8bar, 1.2bar and 1.5bar spring on our shop if needed.
Bearing system
Journal Bearing
Performance Thrust Bearing Kit Included.
Cooling System
Oil and Water-cooled system

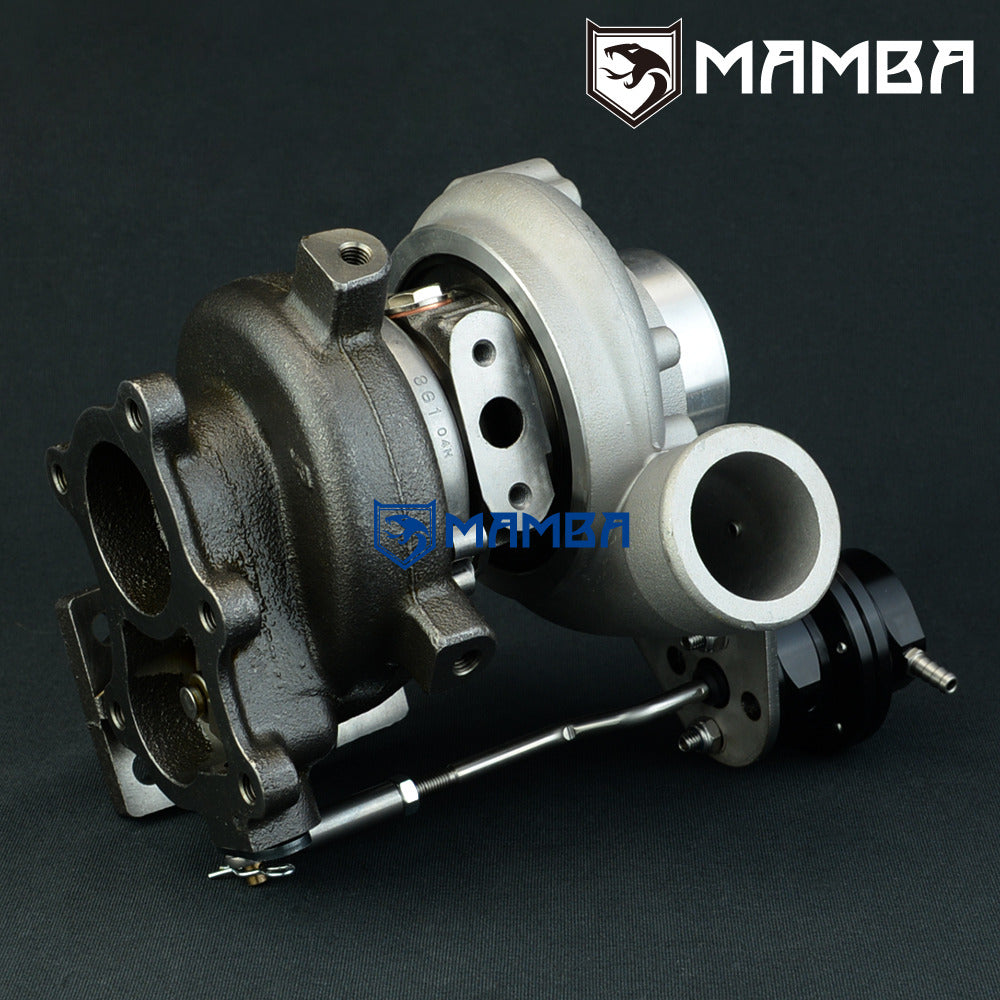

Turbine Housing
6cm / A/R .41
Standard T25 Flange
Internal Gate Type

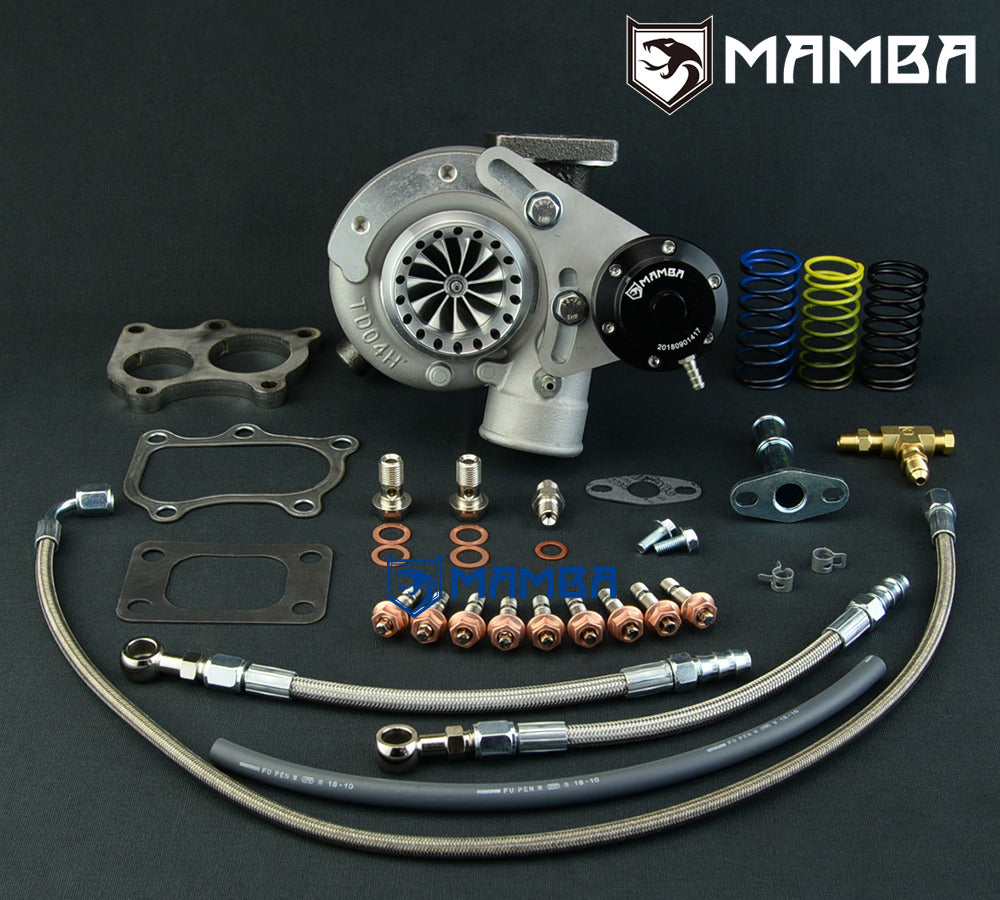

Kit Includes
1 x MAMBA TD04L-19T-6 Anti Surge GTX Billet Turbocharger.
1 x 70cm Oil Feed Line with 1/8PT Tee and 12mm Banjo Bolt Kit with 1.8mm restrictor to turbo side.
2 x 25cm cm Water Line Kit.
1 x Oil Return Pipe Kit.
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
9 x Stud Kit for exhaust manifold and dump pipe.
Everything shown on picture included
