GTX Billet 2.35" TD04L-13T w/ 5cm T25 Hsg
Regular price
$779.00
Sale price
$779.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

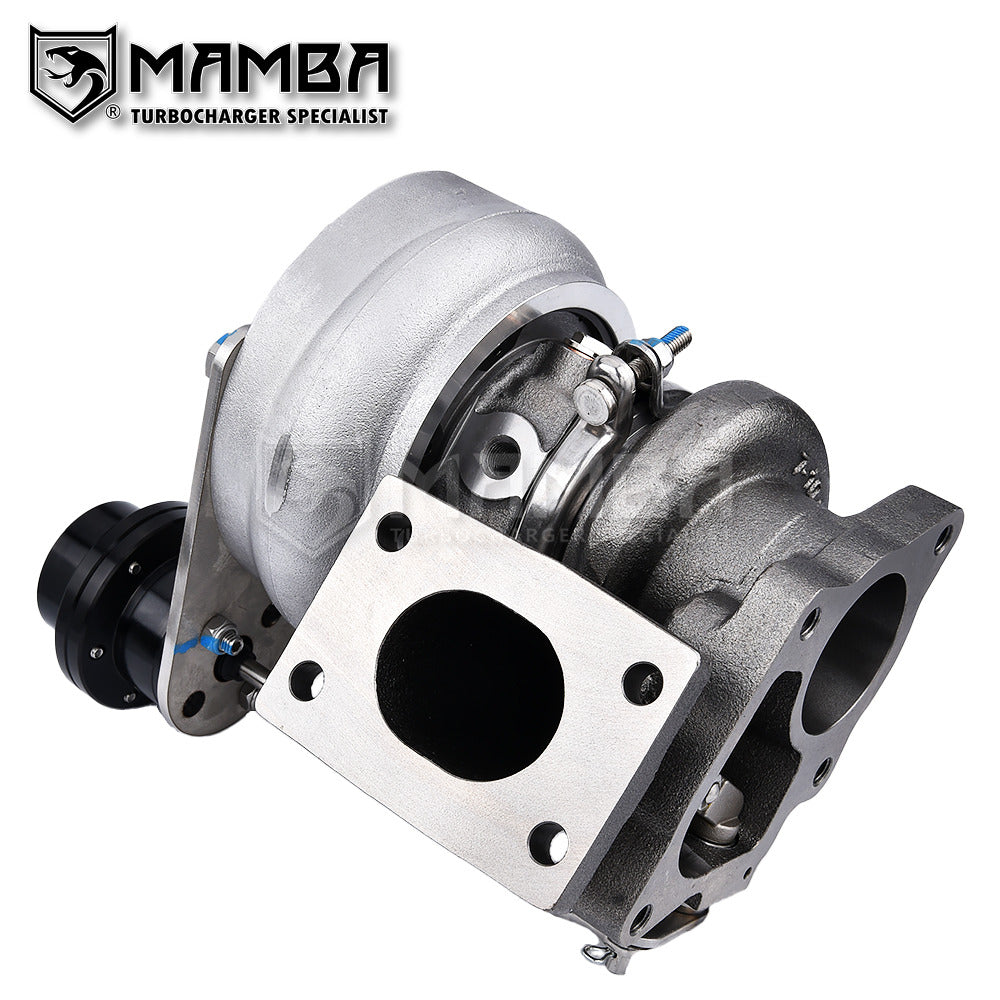

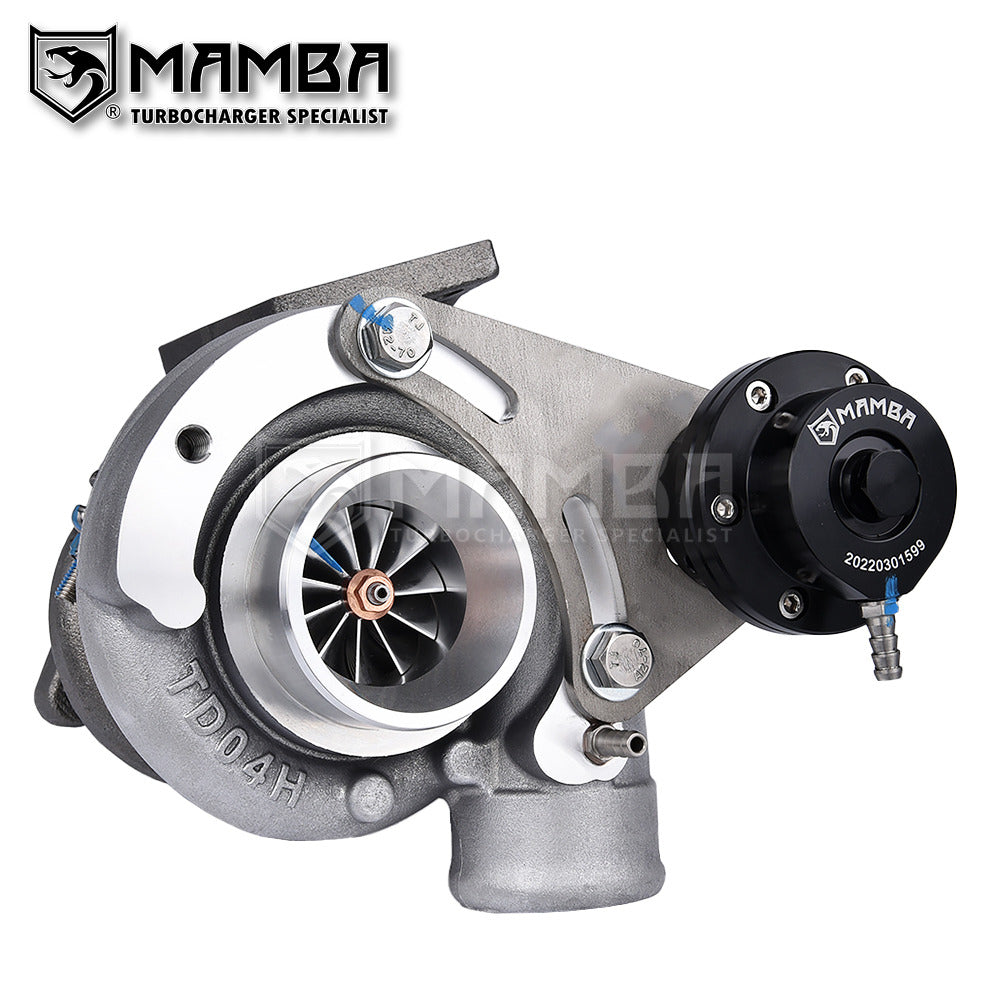

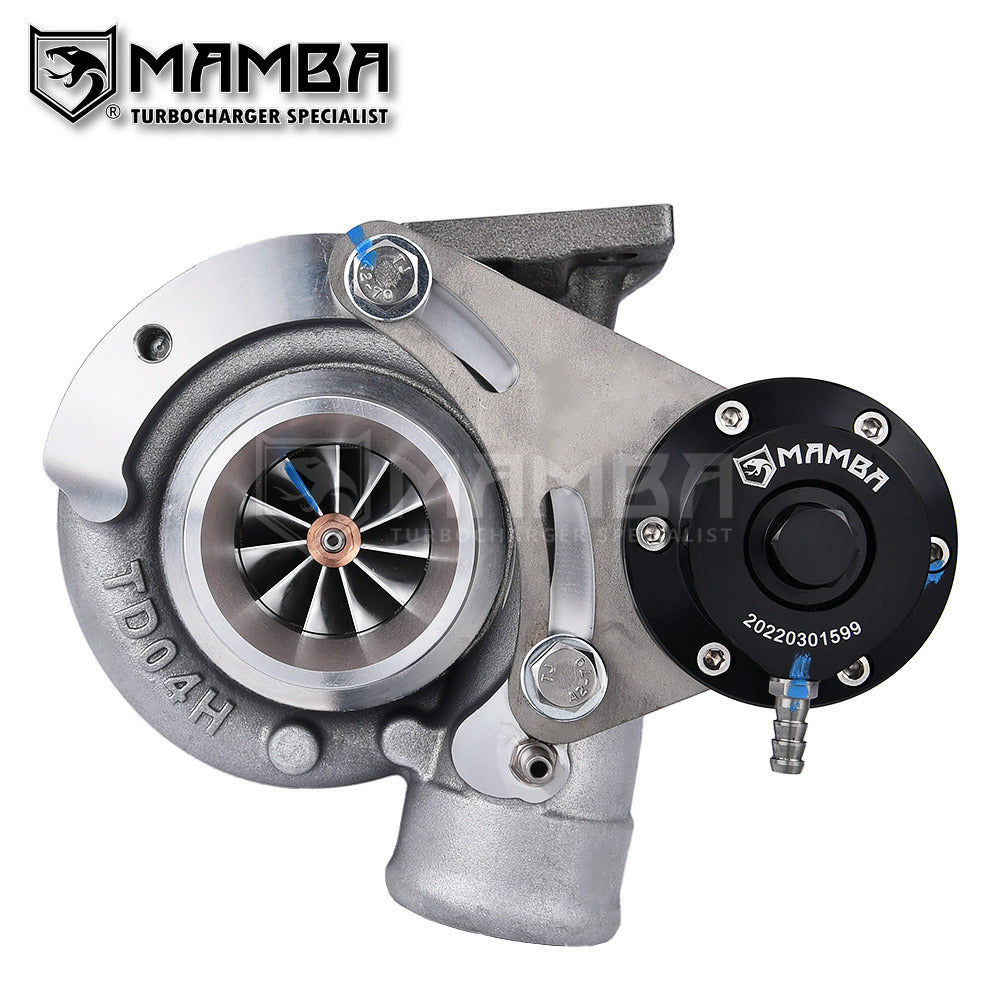

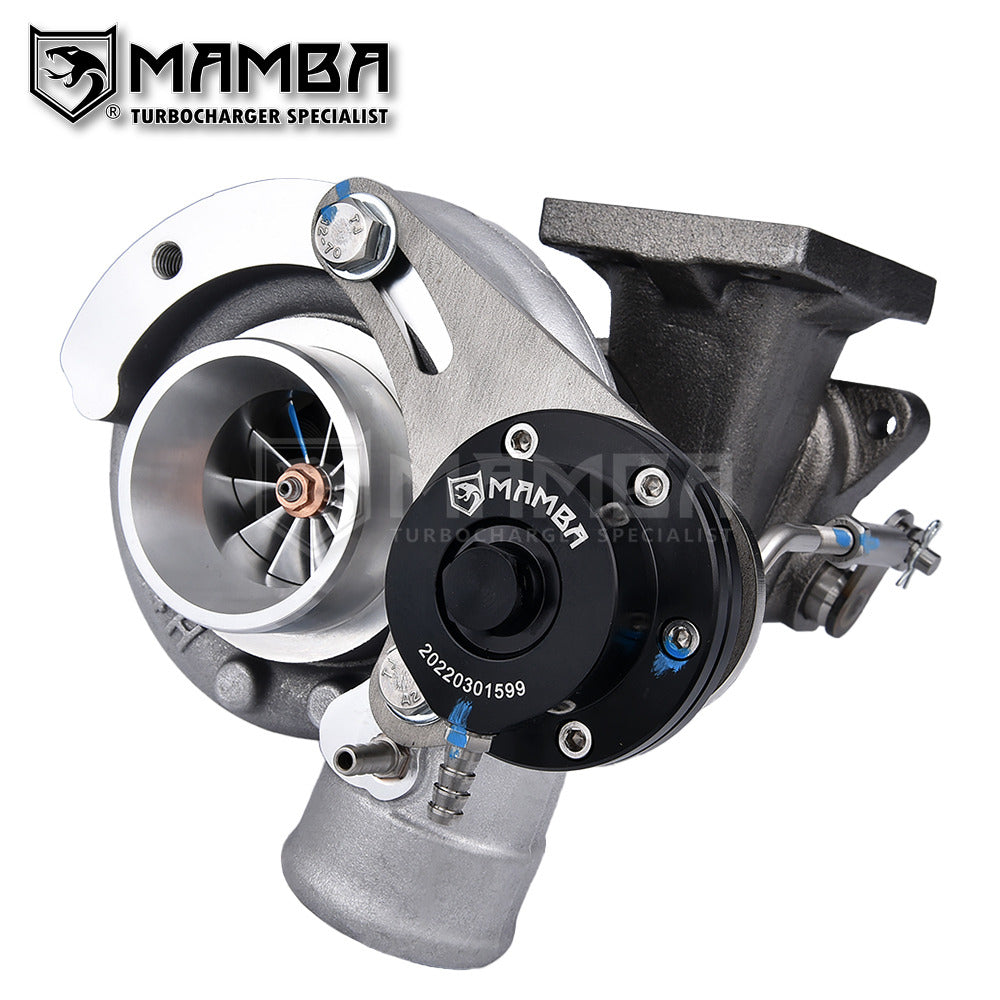

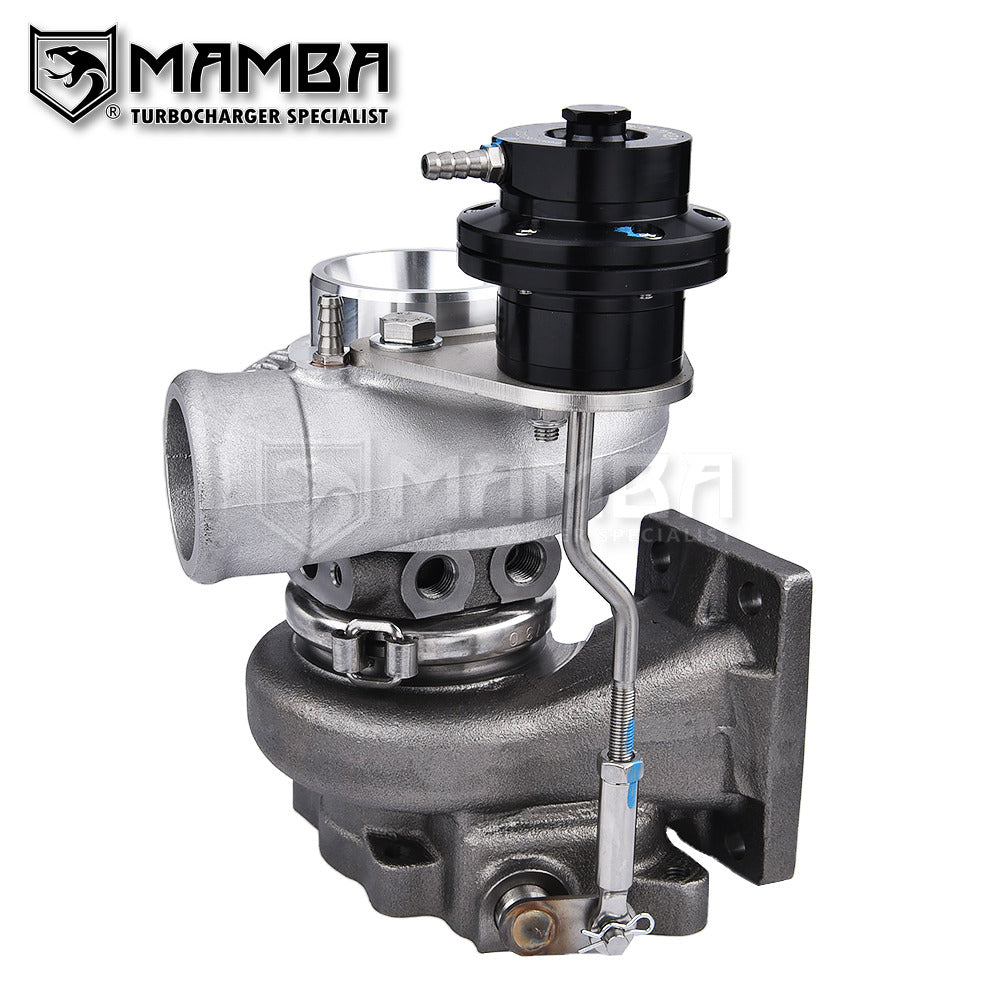

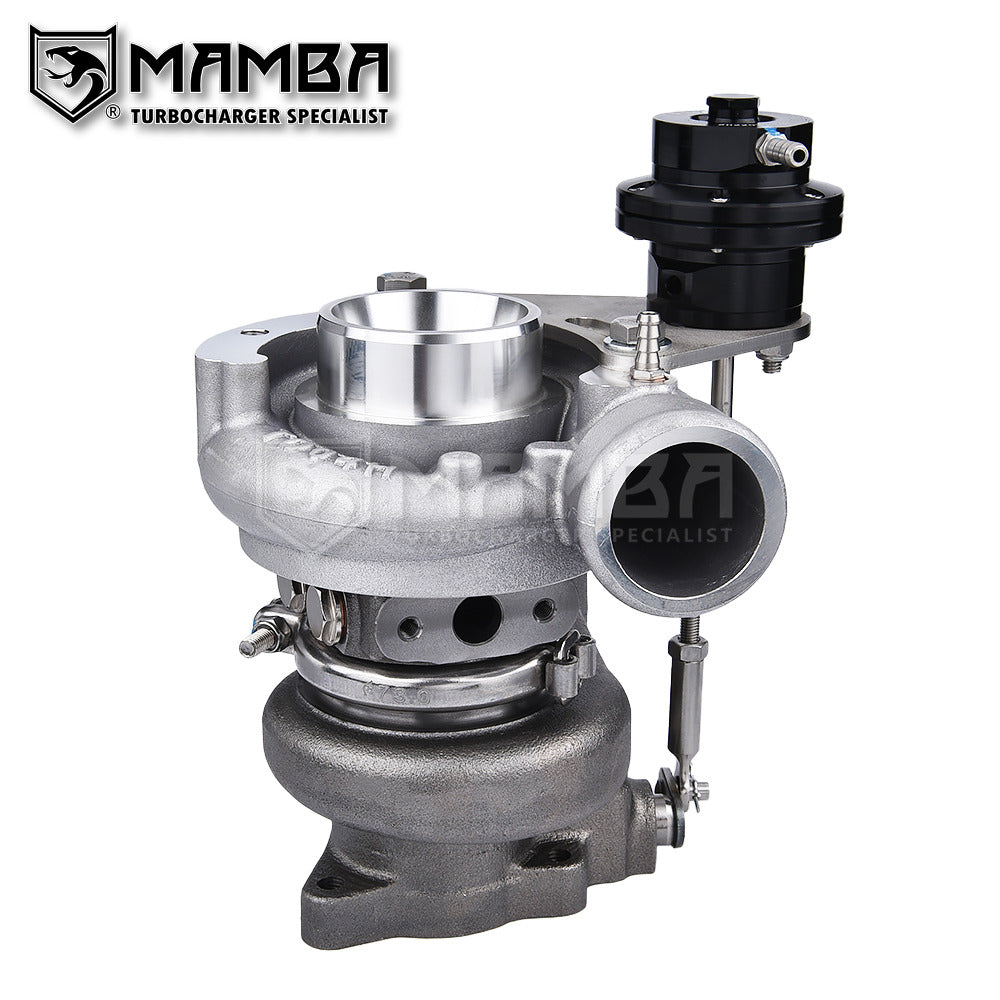

MAMBA GTX Billet Turbocharger TD04L-13T with 2.35” Cover + 5cm T25 Turbine Housing
Product Situation
Brand New In Box

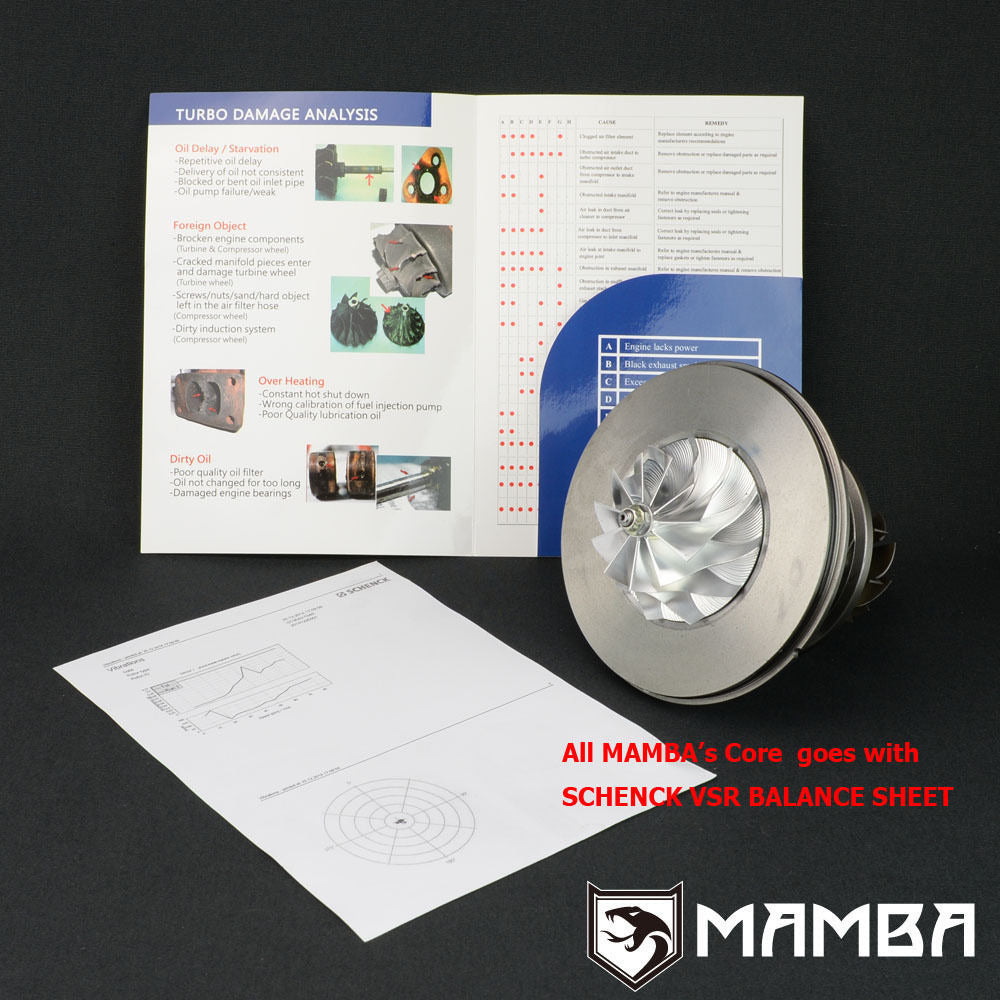

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
1.3~2.L Gasoline Engine / 200~350HP
3L~4L Diesel Engine
Specs
Compressor Wheel : 40.3mm / 56mm (GTX 11 Blade Billet Wheel 13T with Extended Tip)

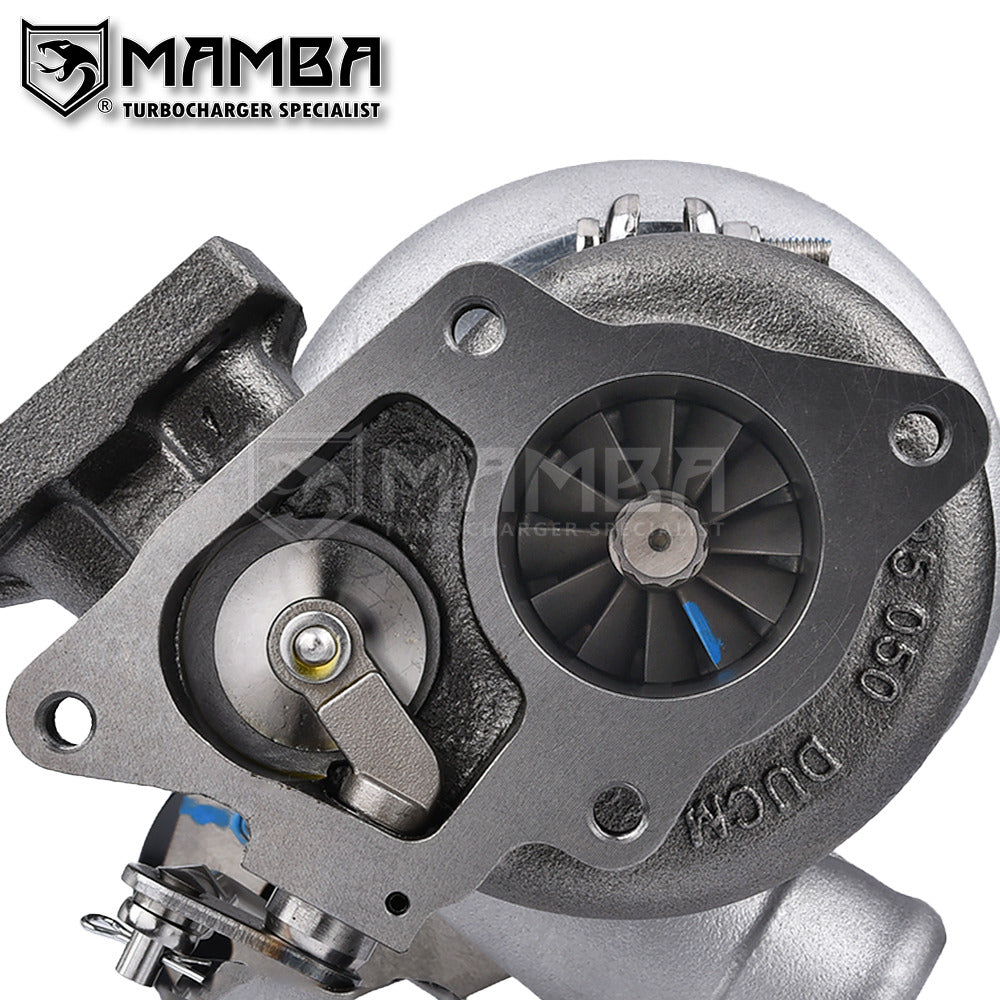

Turbine Wheel : 41.3 / 47 mm (TD04L Performance High Inconel)
Compressor Housing : 2.35” Inlet / 2” Outlet (60 mm Inlet / 50 mm Outlet)
HP Support : 200~350 HP

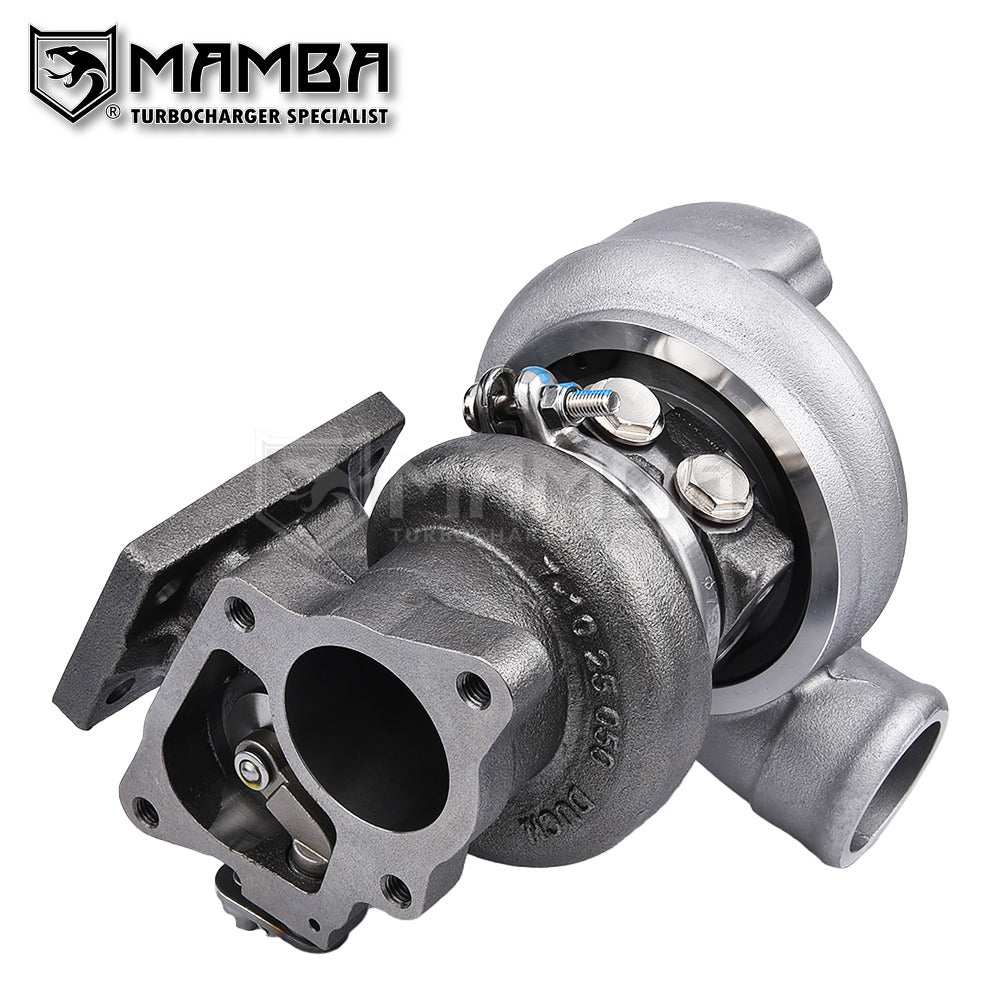

Turbine Housing
5cm / A/R .33
Standard T25 Flange
Internal Gate Type

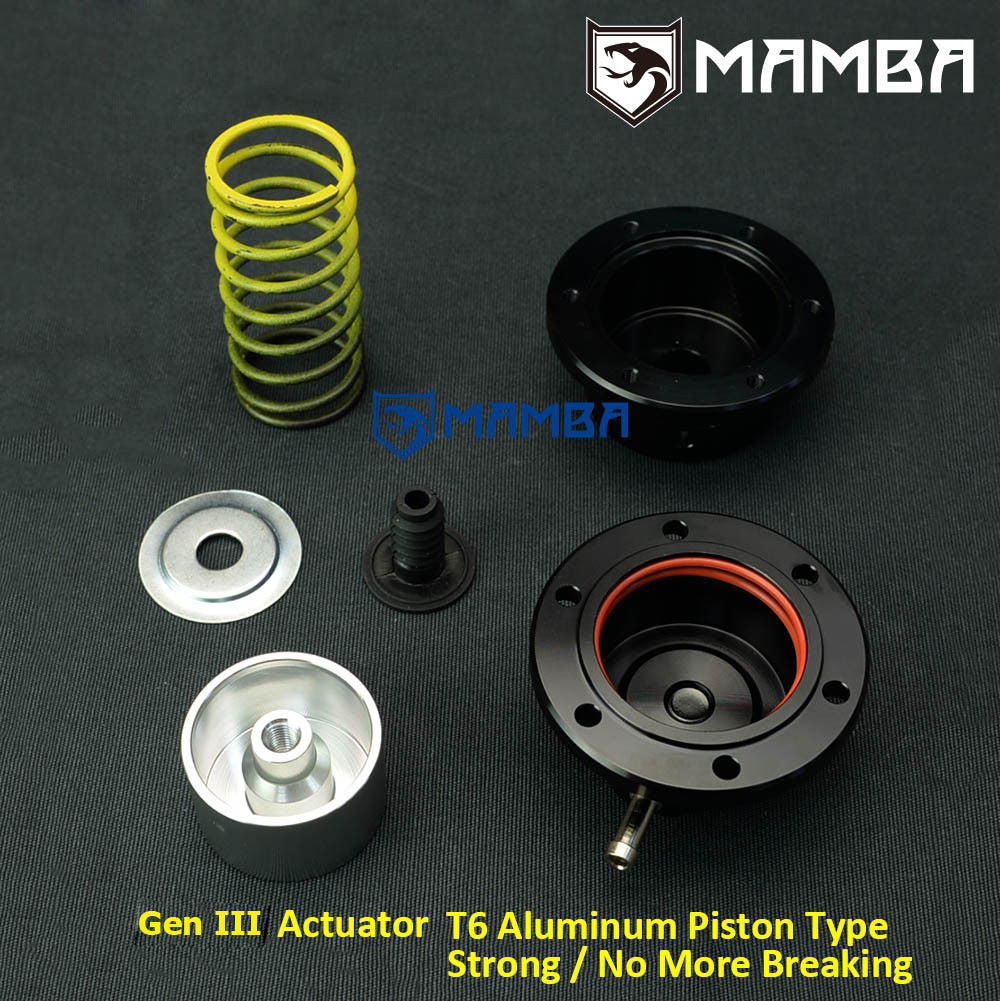

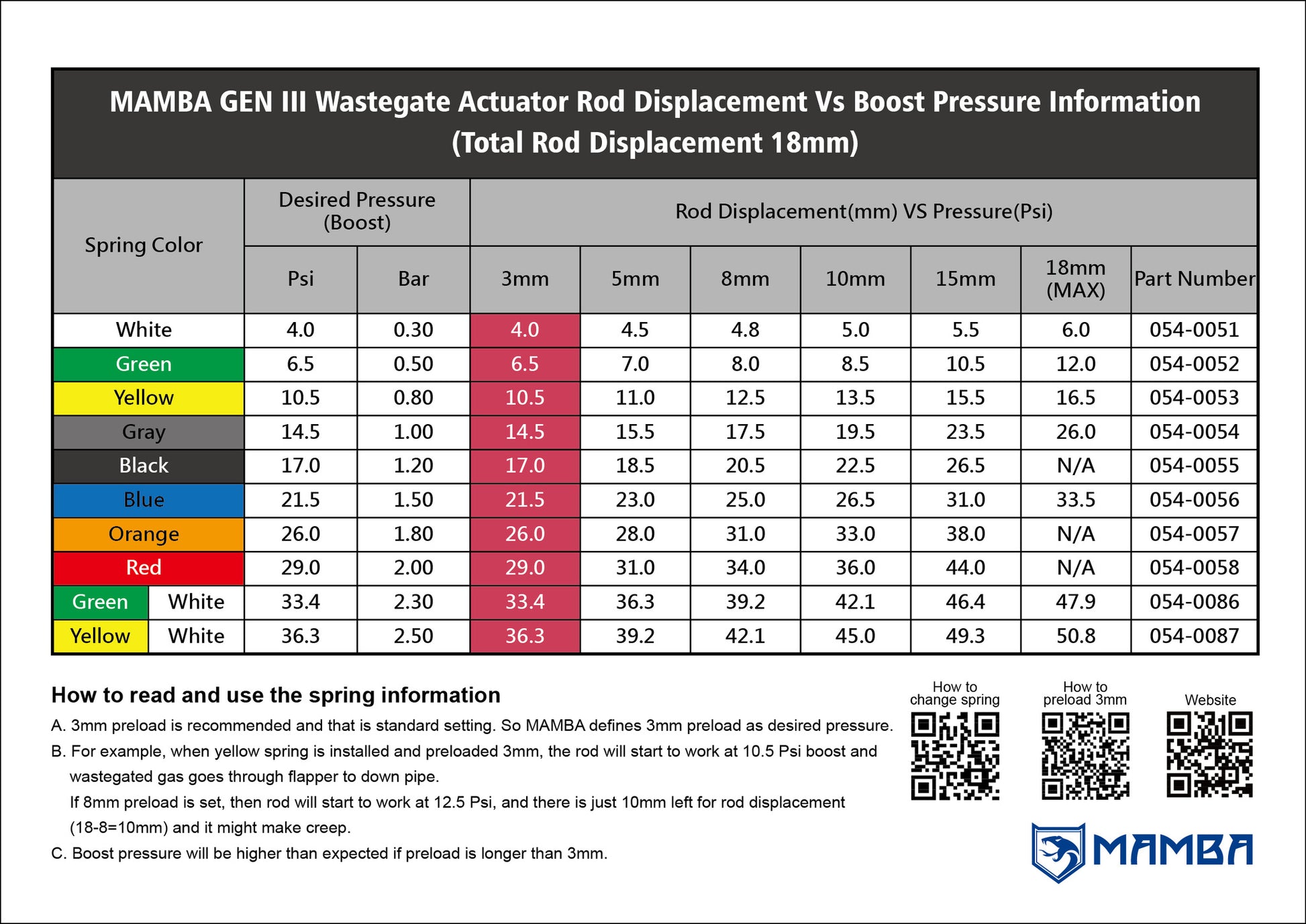

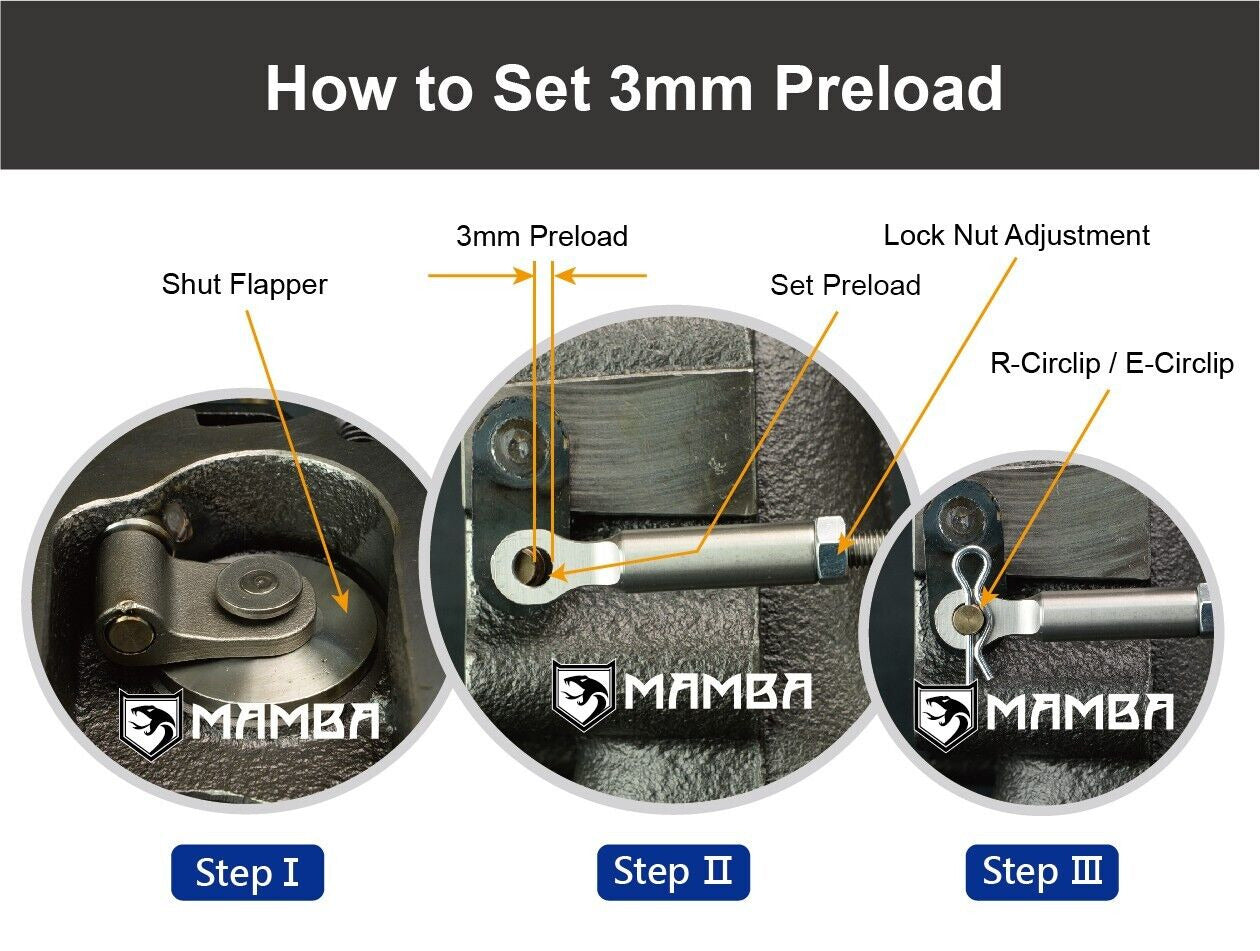

Actuator
0.8bar spring will be pre-installed on this adjustable
Additional 1.2bar and 1.5bar spring goes with box.
Stage 2 piston type of adjustable wastegate actuator.
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil and Water-Cooled

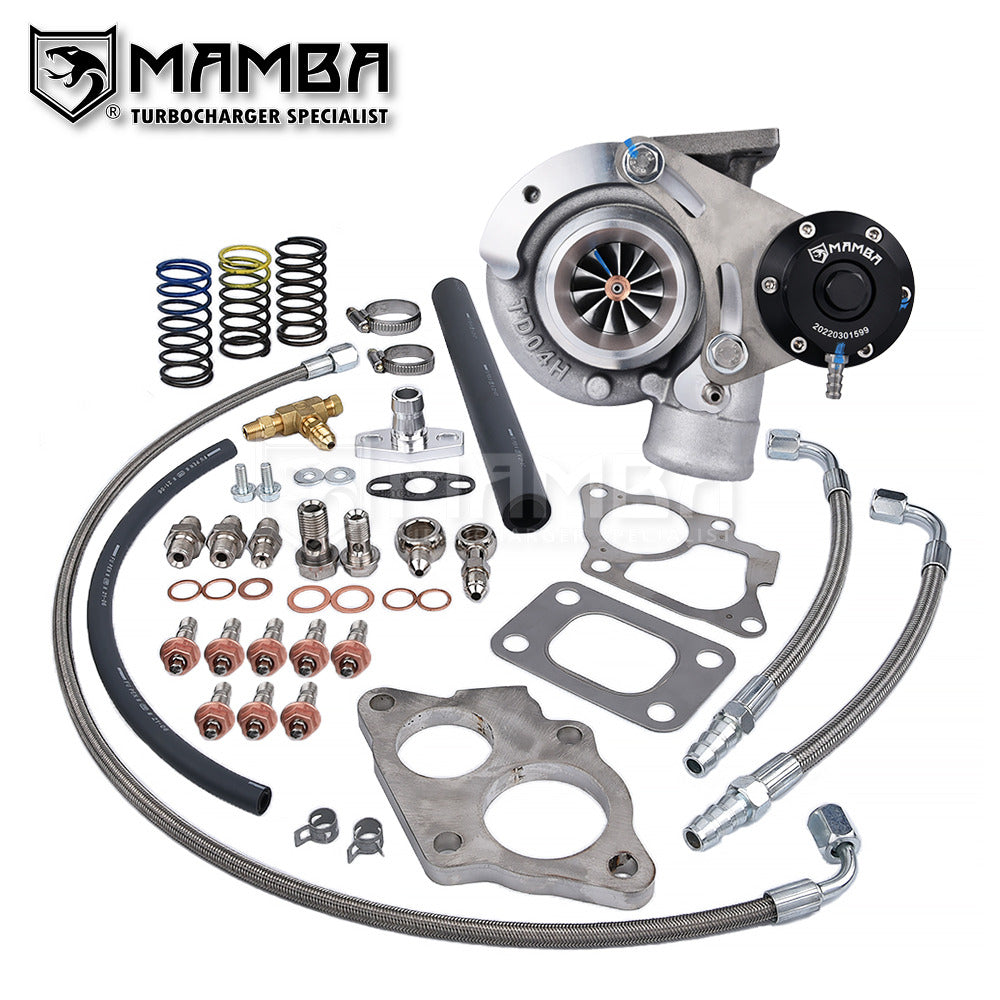

Kit Includes
1 x MAMBA TD04L-13T-5 Turbocharger.
1 x 70cm Oil Feed Line with 1/8PT Tee and 12mm Banjo Bolt Kit with 1.8mm restrictor to turbo side.
2 x 25cm cm Water Line Kit.
1 x Oil Return Pipe Kit.
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket

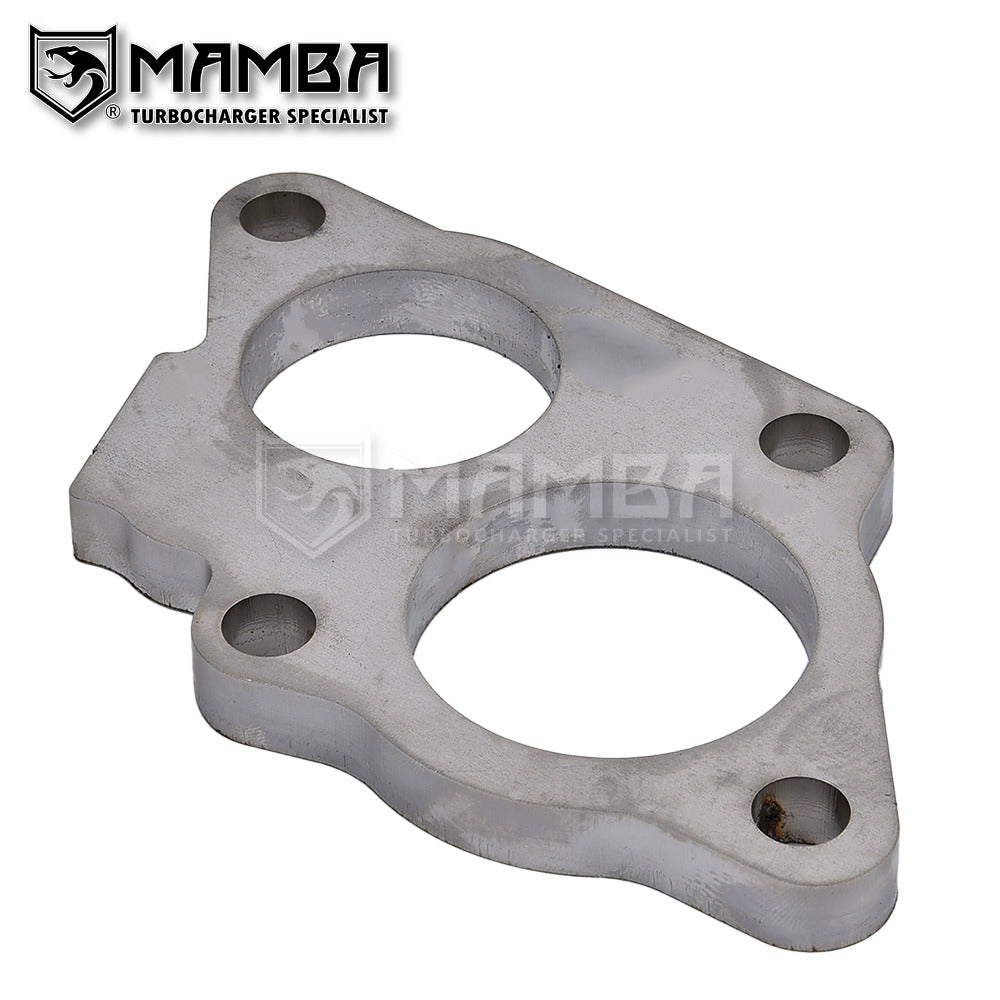

8 x Stud Kit for exhaust manifold and dump pipe.
Everything shown on picture included
