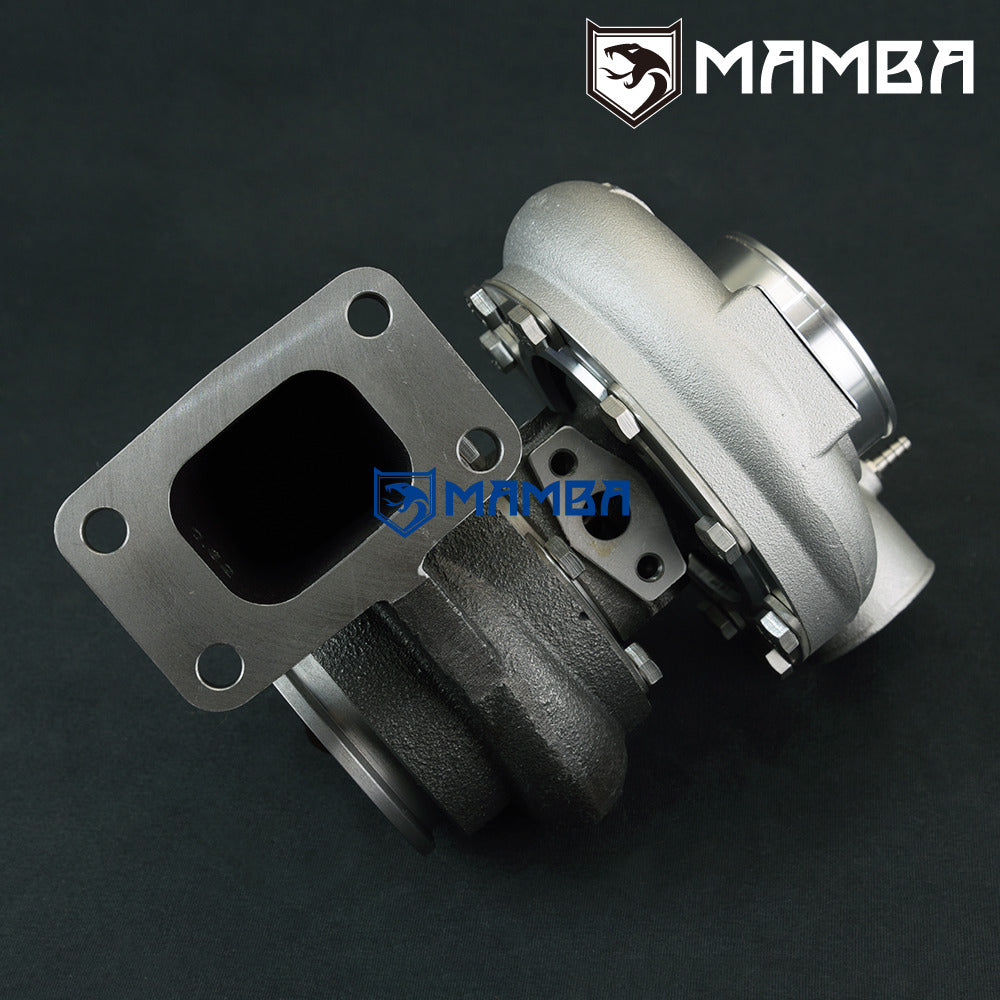

GTX GTX3076R w/ .82 T3 V-Band RB20DET RB25DET 3" 5200
Regular price
$1,189.00
Sale price
$1,189.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

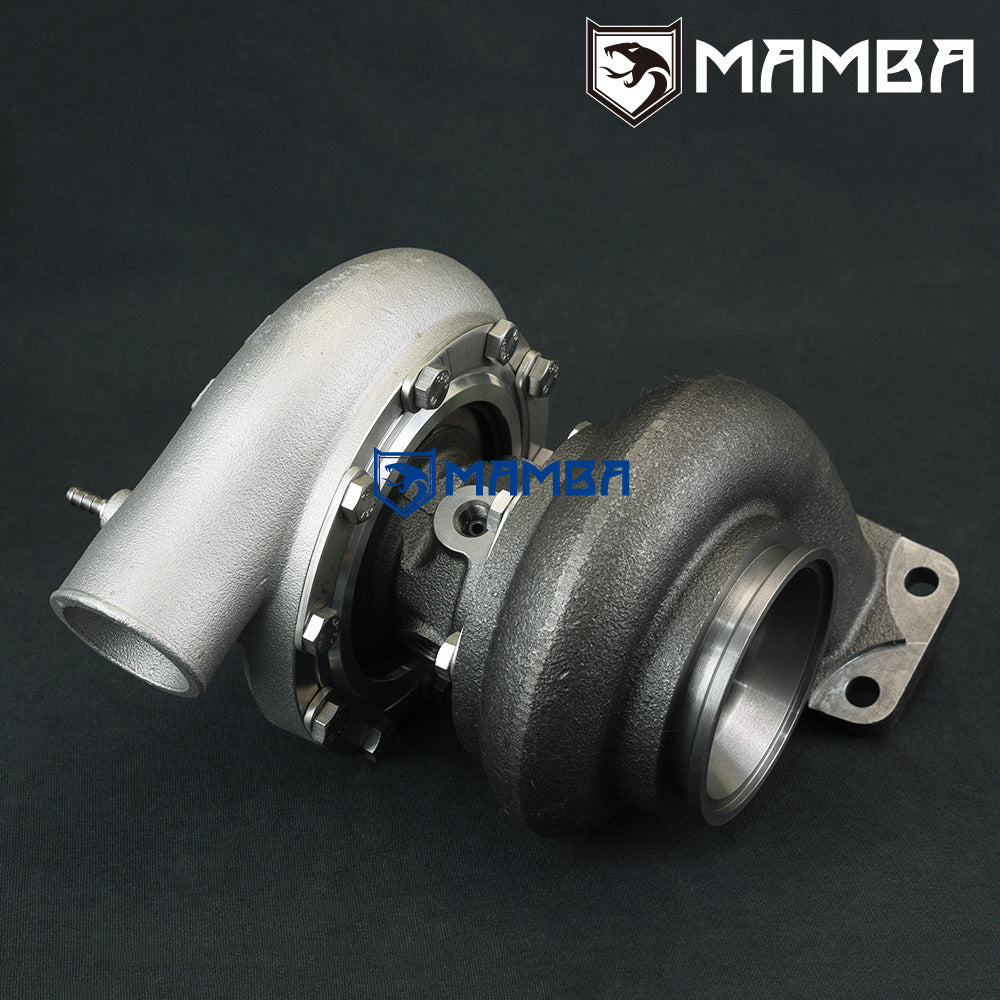

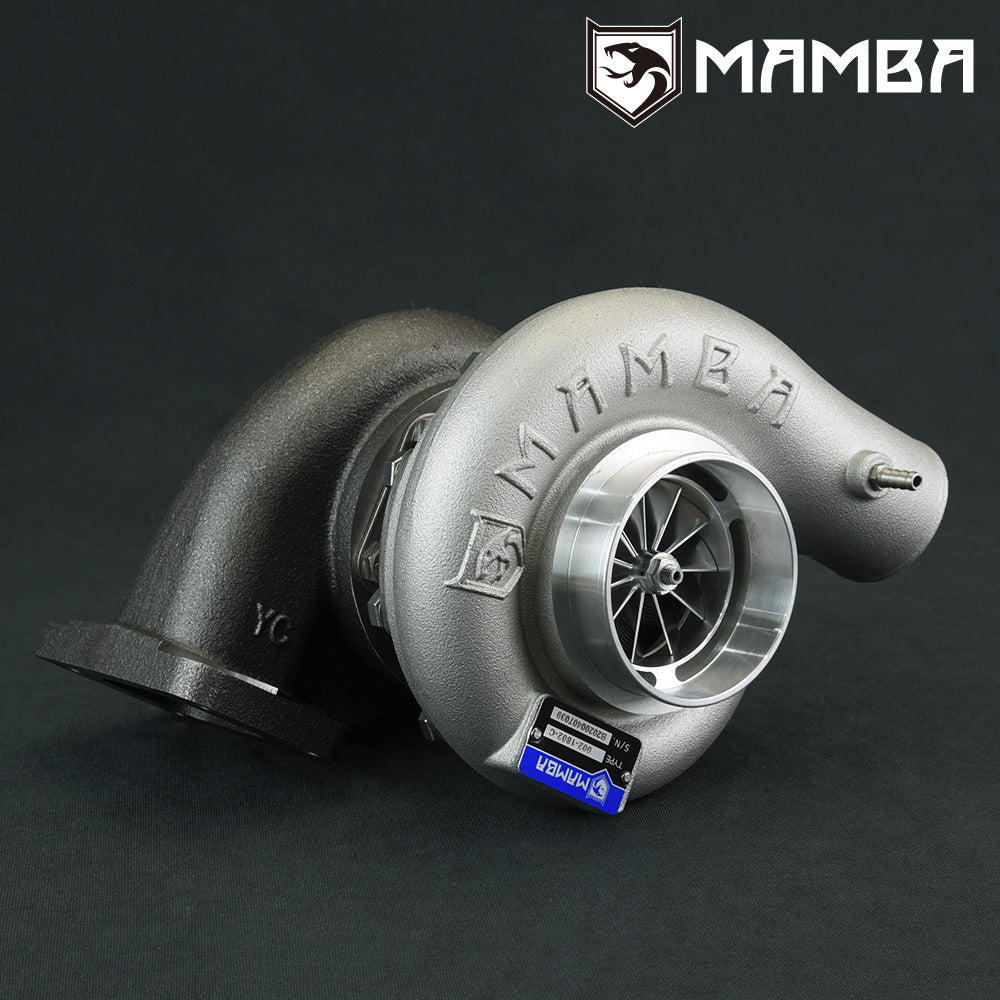

MAMBA GTX Ball Bearing Turbocharger Nissan RB20DET RB25DET Top Mount 3" 5200 Anti surge GTX3076R w/ .82 T3 V-Band Hsg
Brand New In Box

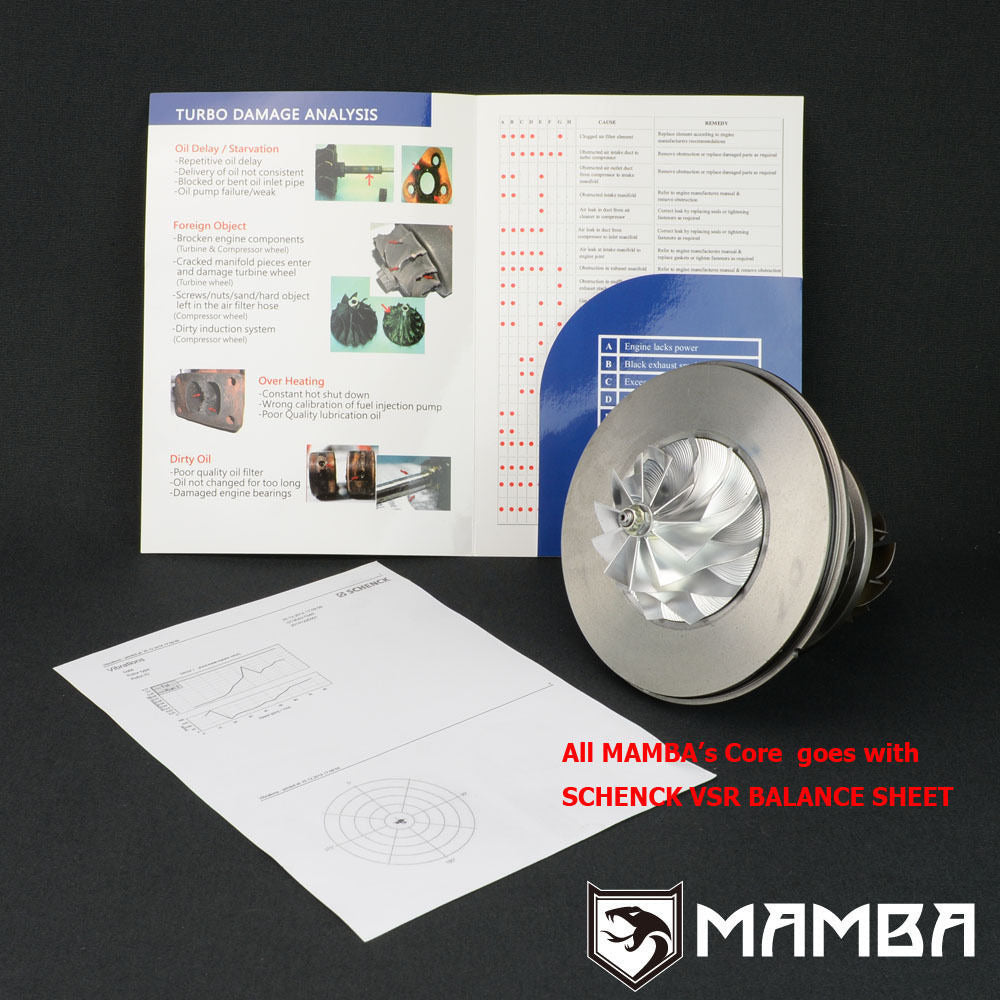

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
NISSAN SKYLINE GTR RB20DET / RB25DET Top Mount
Turbo is assembled for top mount type, so original low mount dump pipe cannot be used. New dump pipe is necessary.

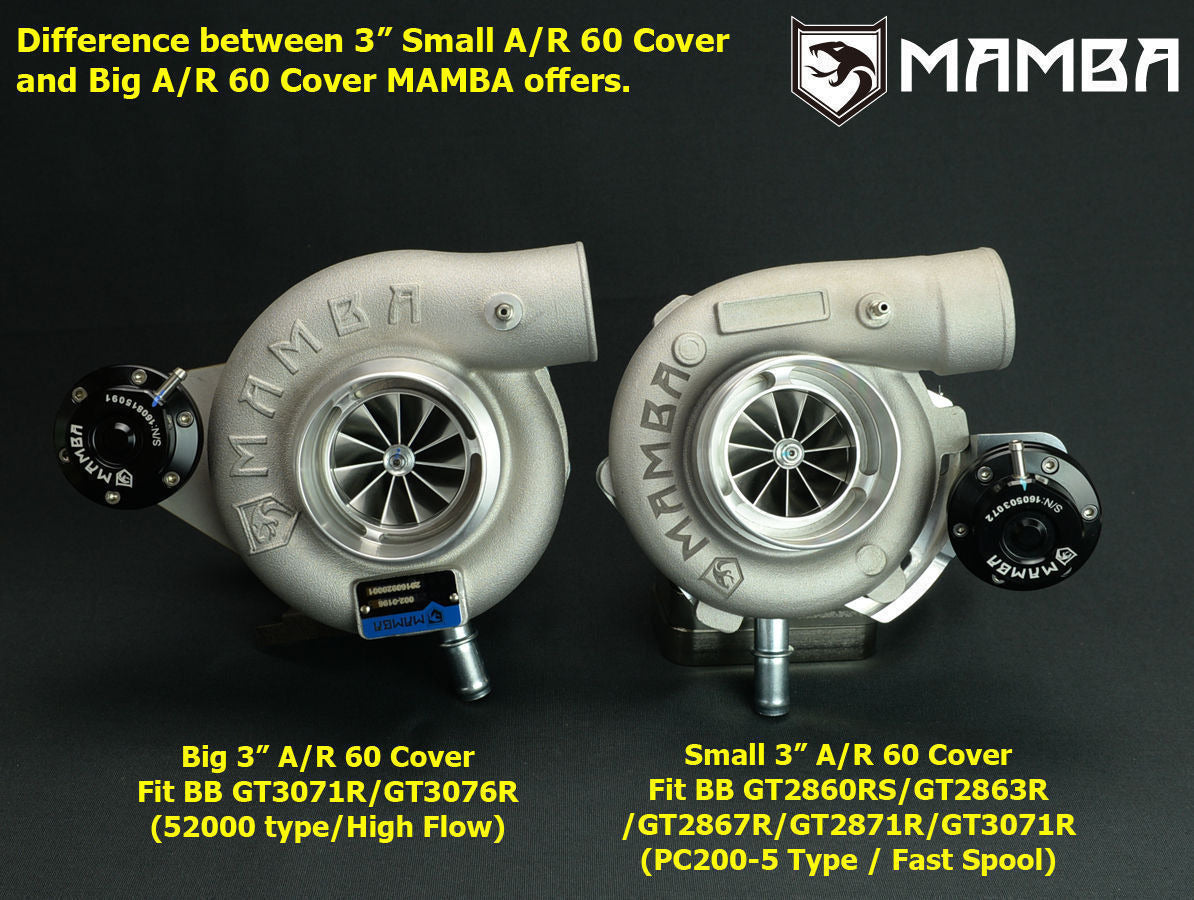

Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover
400~750HP
Wheel Spec

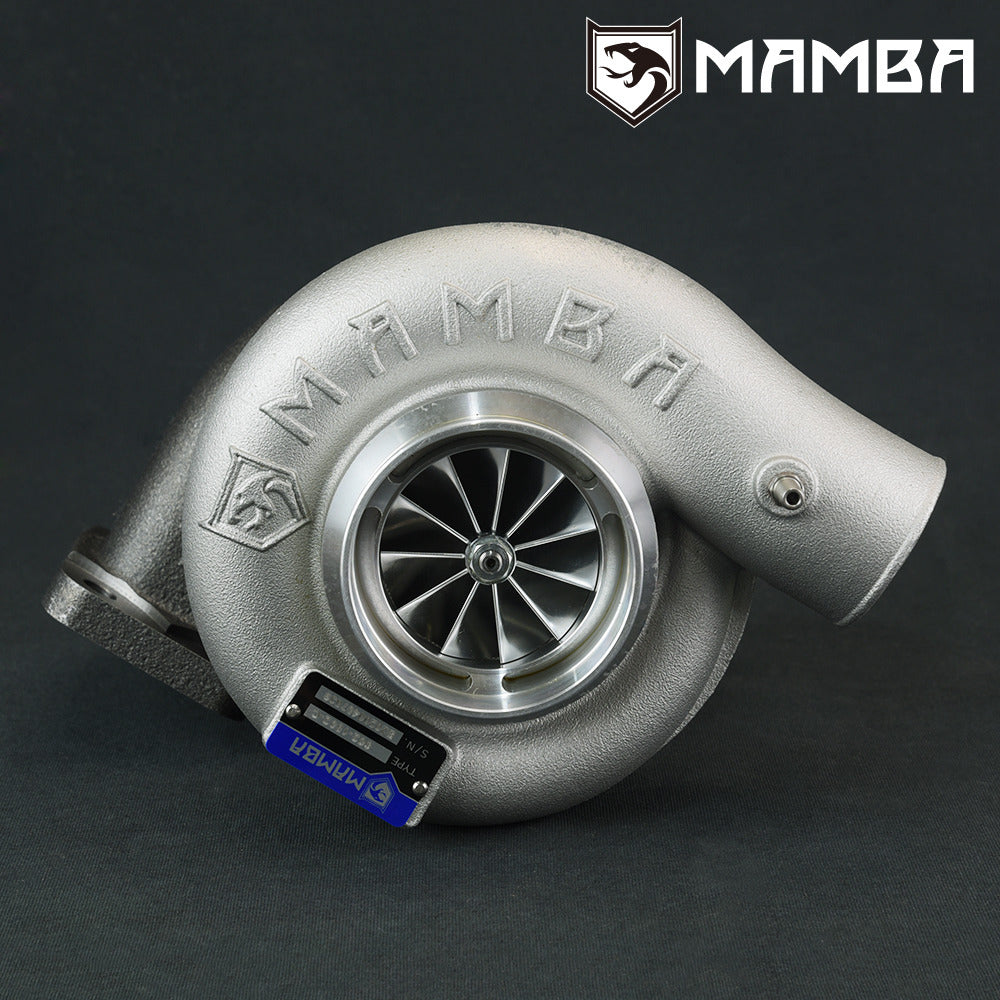

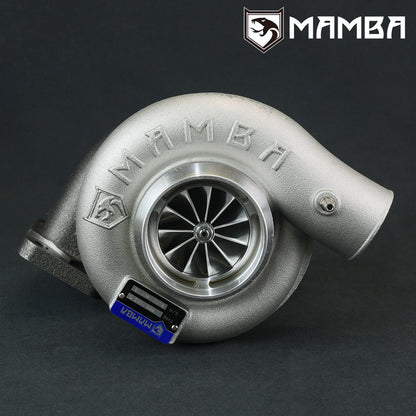

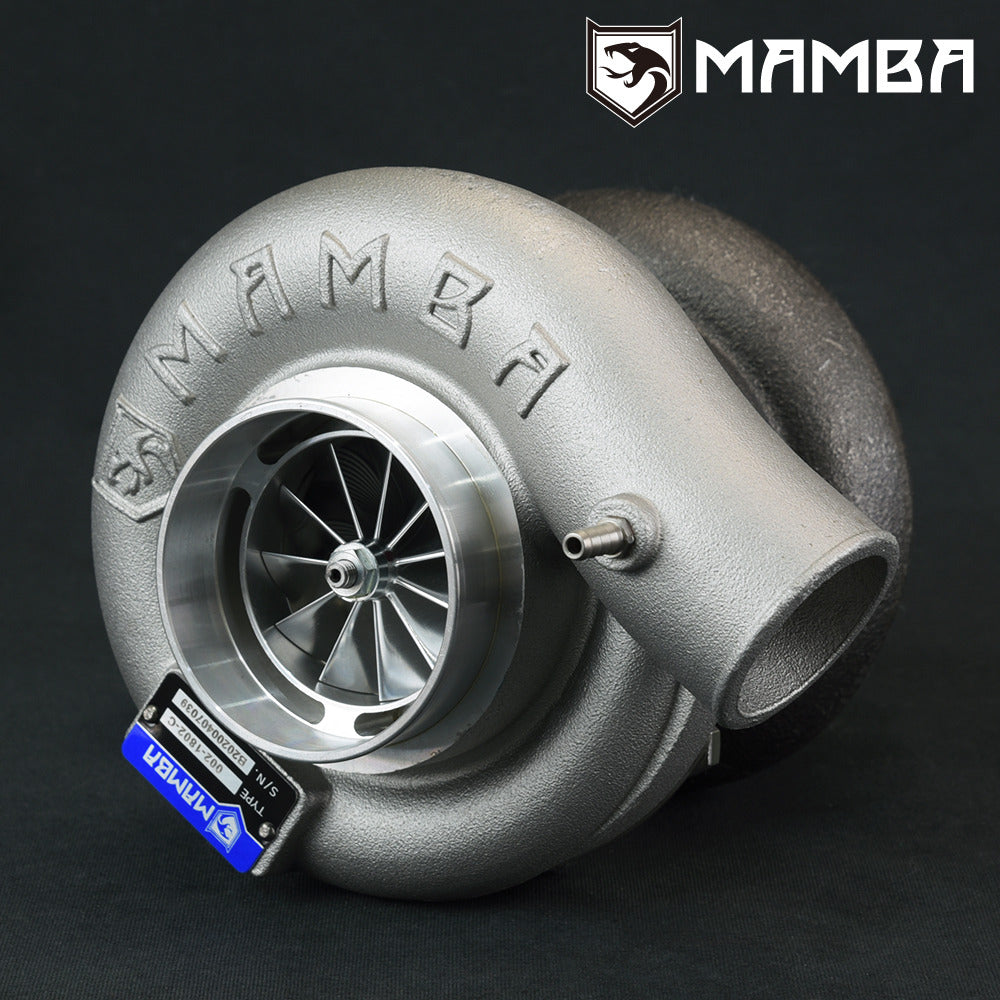

Compressor Wheel : 58 mm / 76.6 mm / Trim 58 (GTX 11+0 Blade billet Wheel W/ Extend tapered tip)
Turbine Wheel : 55.0 mm / 60.0 mm / Trim 84

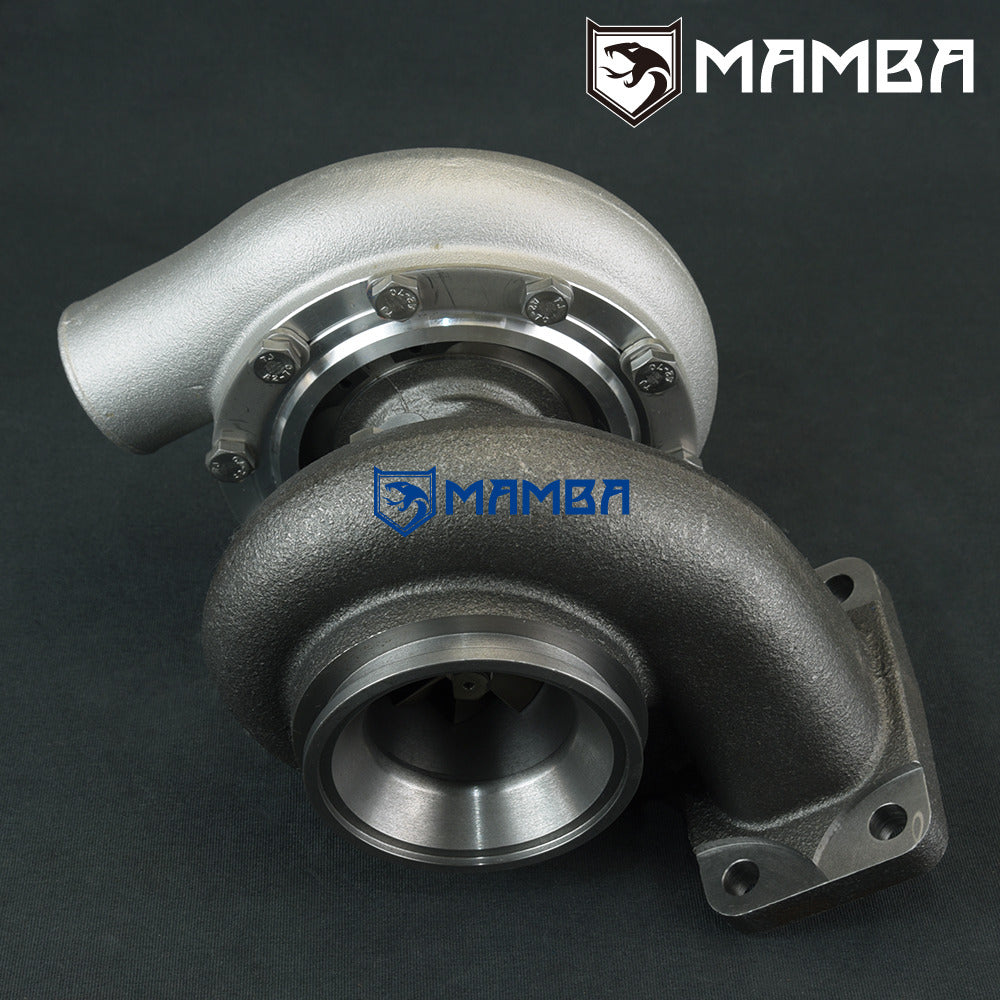

Housing Specs
Compressor Housing Inlet OD: 3”
Compressor Housing Outlet OD: 2”
Compressor Housing A/R: .60
Turbine Housing A/R : .82
Turbine Inlet Flange: T3
Turbine Outlet: 3” V-Band
Actuator

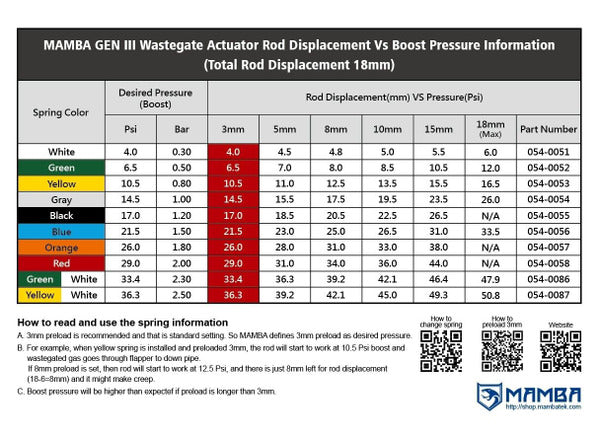

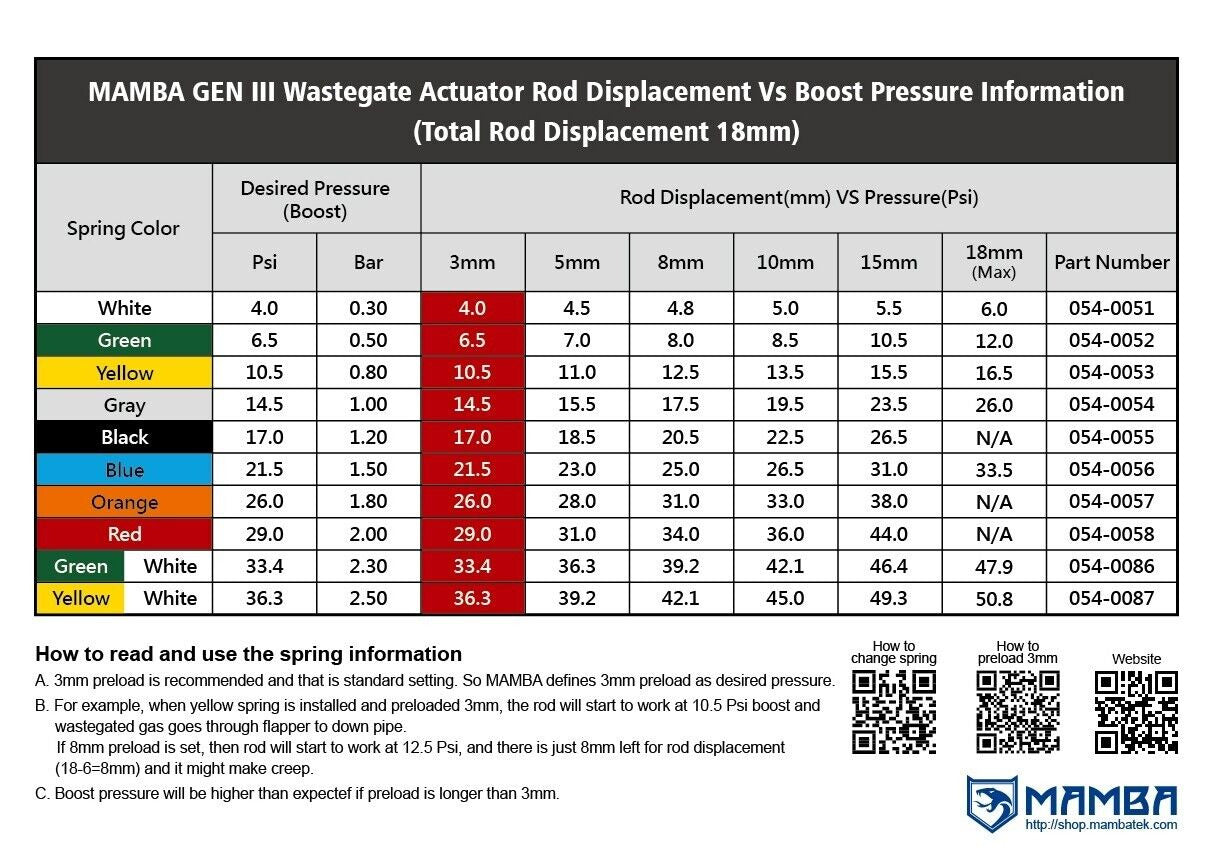

0.8bar spring (Yellow) will be pre-installed on the adjustable actuator.
1.2bar and 1.5bar spring will go with box.
Bearing
Ceramic Dual Ball Bearing (NTN Japan)
Cooling
Oil & Water-Cooled

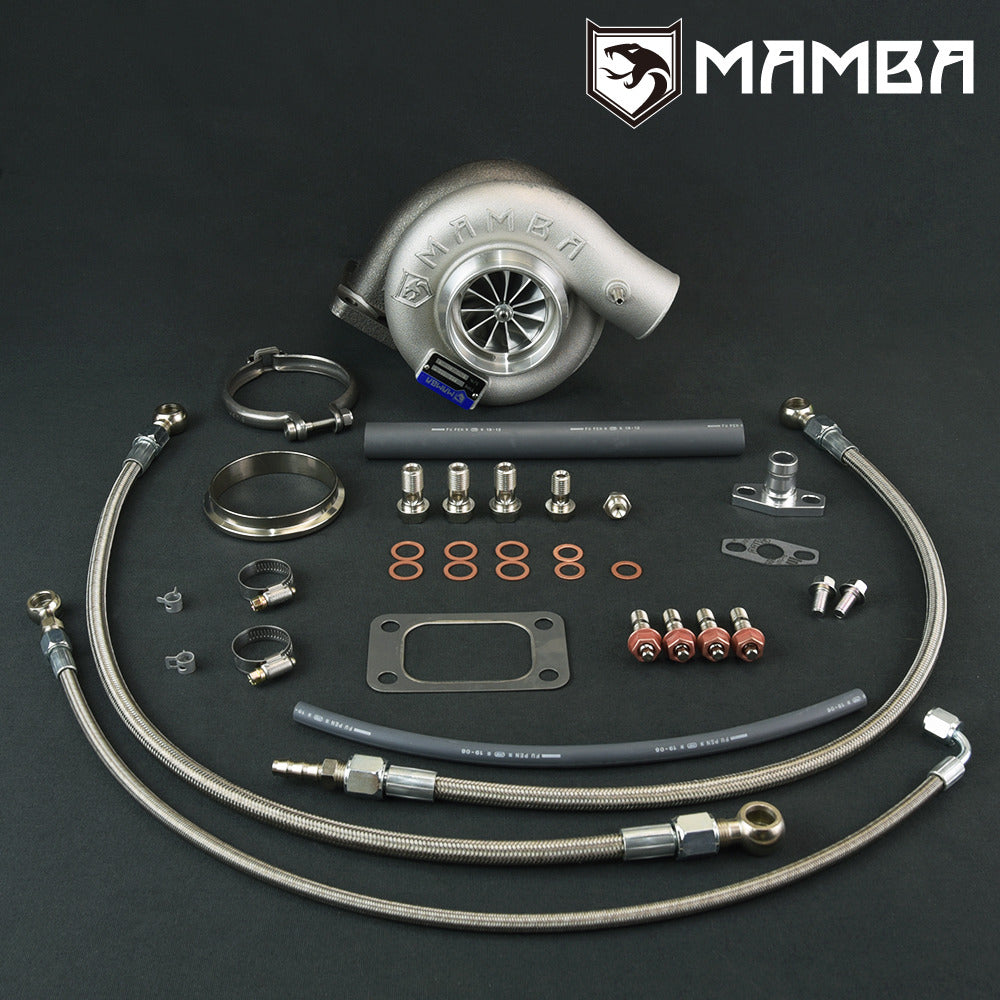

Kit Includes
1 x 4AN oil feed line kit with 1.0mm restrictor
2 x 6AN water feed & return line kit
1 x Oil return pipe kit
1 x 3" V-Band adapter ring kit
1 x T3 turbine inlet gasket
Everything shown on picture is included
