GTX2863R 2.36" Ball Bearing Turbocharger + .42 IWG T3 V-Band Hsg
Regular price
$1,110.00
Sale price
$1,110.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

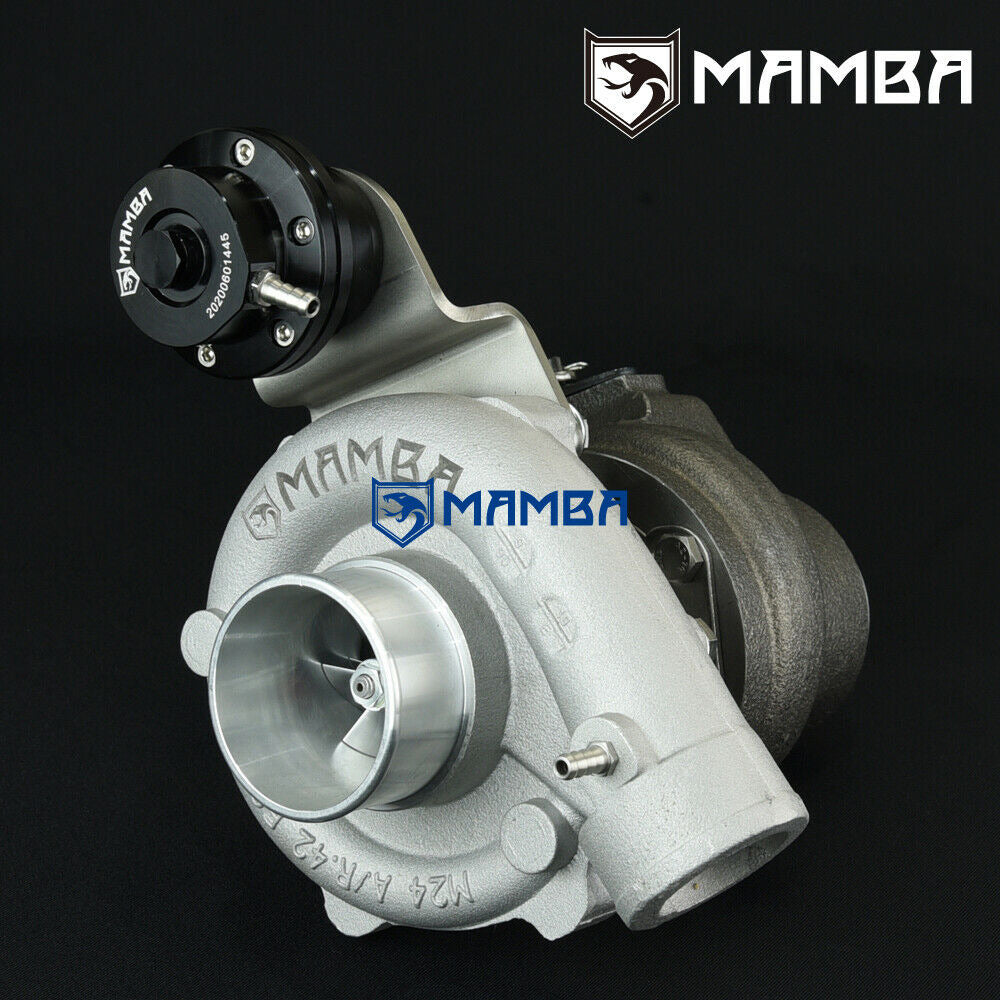

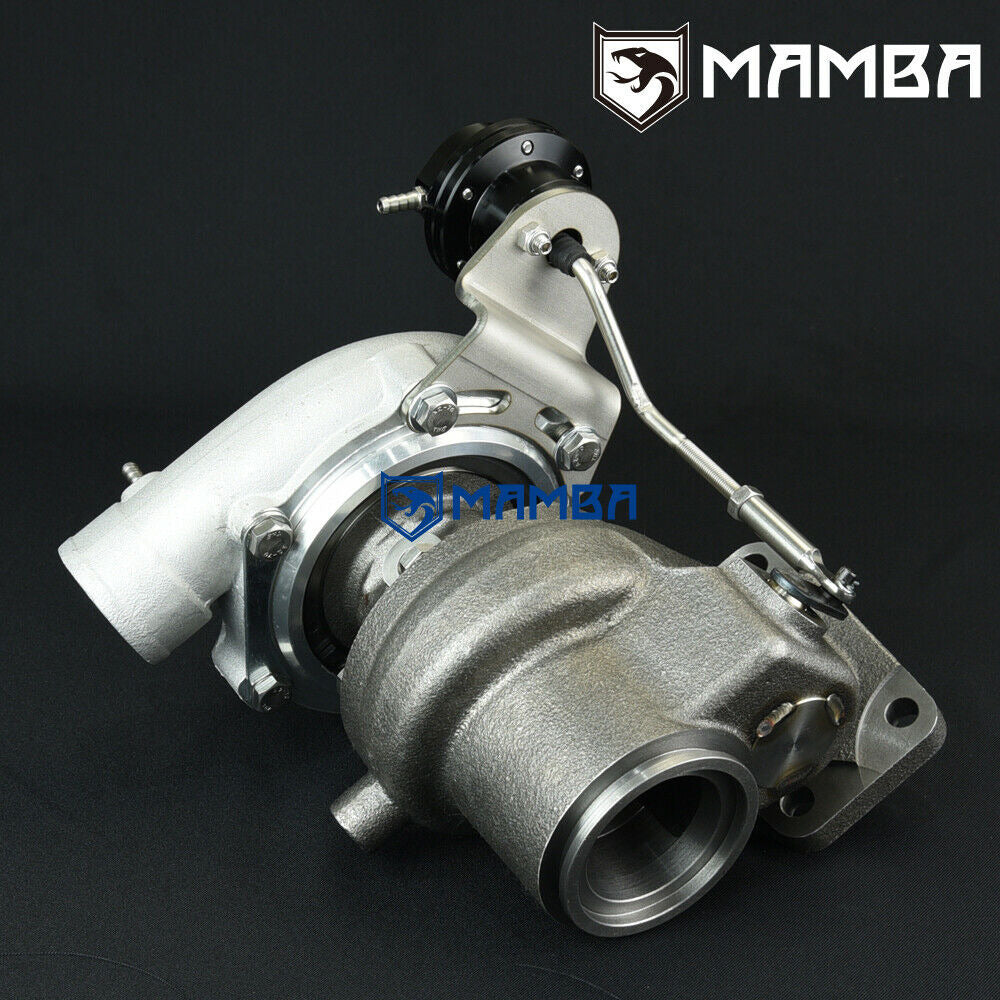

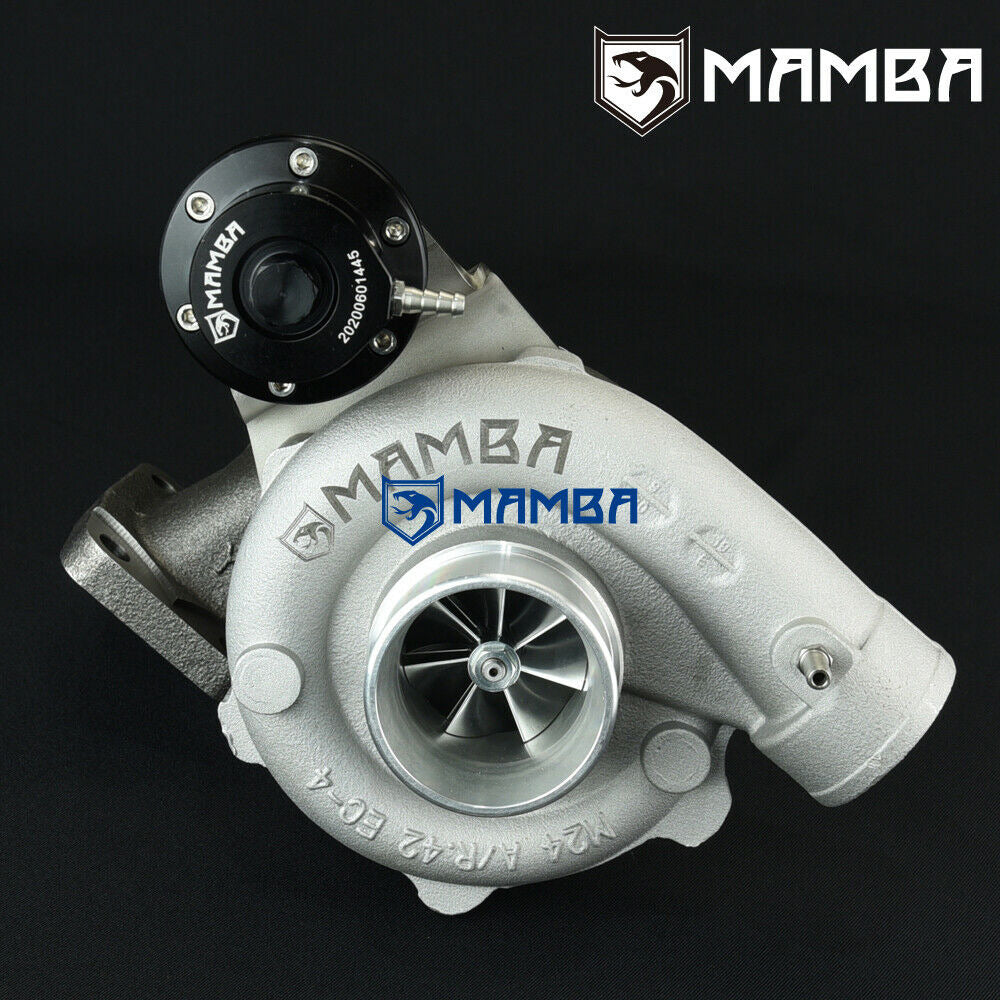

MAMBA Universal 2.36” A/R.42 GTX2863R Ball Bearing
Turbocharger + .42 T3 V-Band Turbine Housing
Application
Universal Use
HP Support: 350~420 HP
Engine: 1.6~2.5L (Gasoline), 3.5~5L (Diesel)
Specs
Compressor wheel : 47.1mm/63.4mm/Trim56(7+7 GTX Billet Wheel w/Extend Tip)

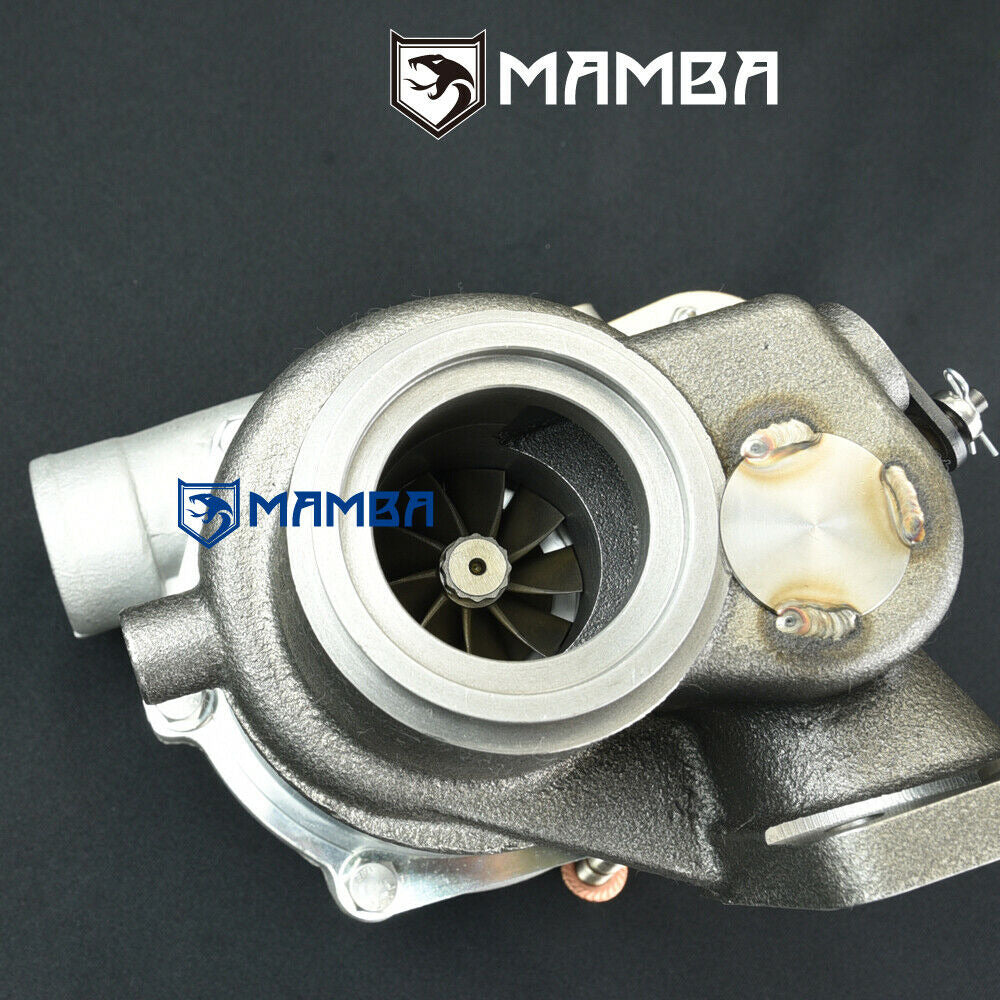

Turbine wheel : 47mm/53.8mm/Trim76
Compressor Housing A/R:.42
Compressor Inlet: 2.36” / 59.9mm
Compressor Outlet: 2” / 50.8 mm

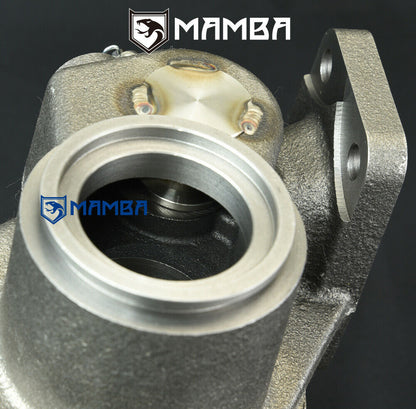

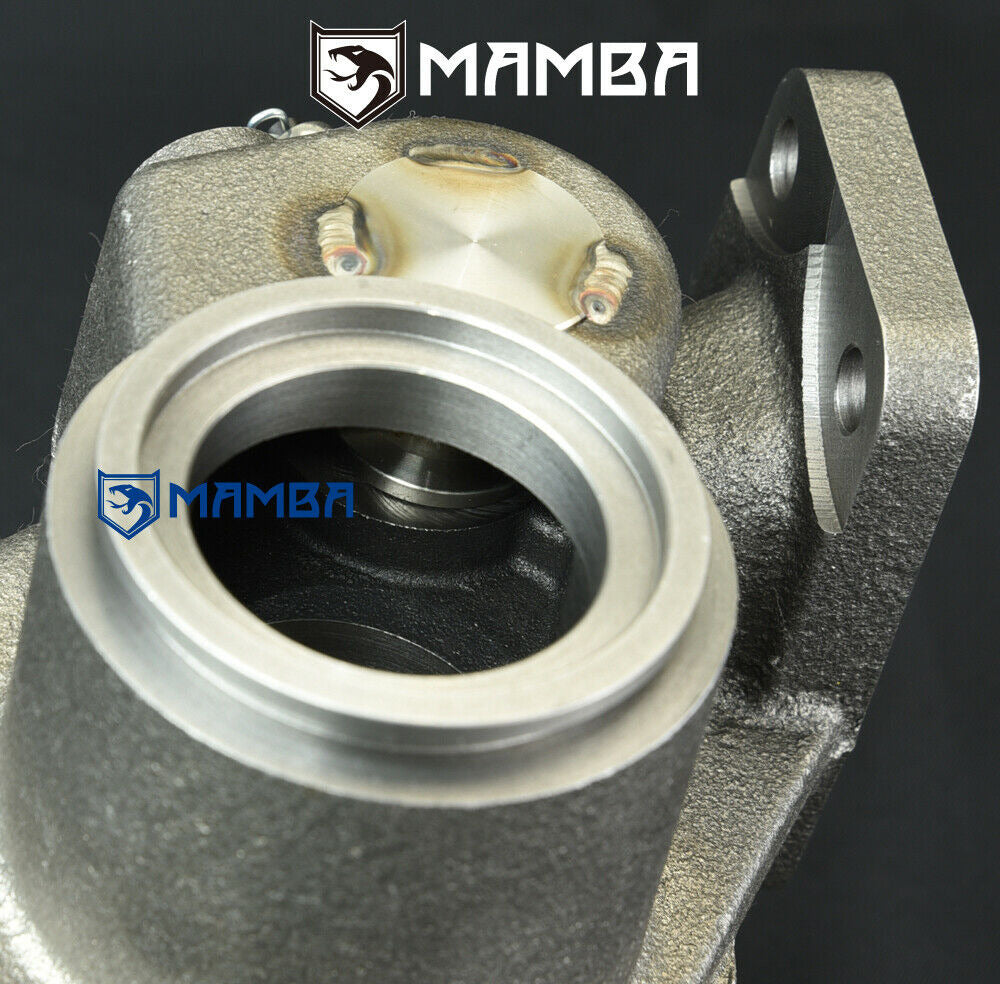

Turbine Housing A/R : .42

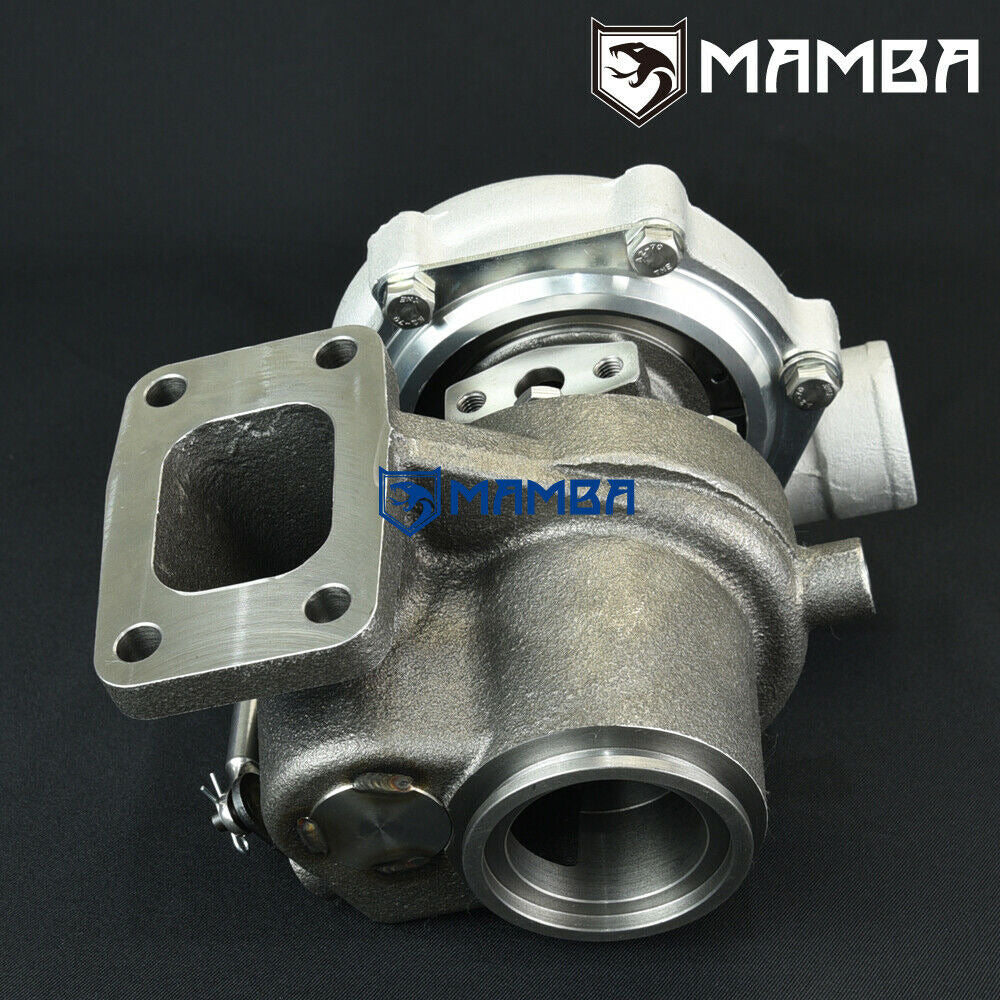

Turbine Inlet: T3 V-Band
Wastegate: Internal Wastegated (IWG)

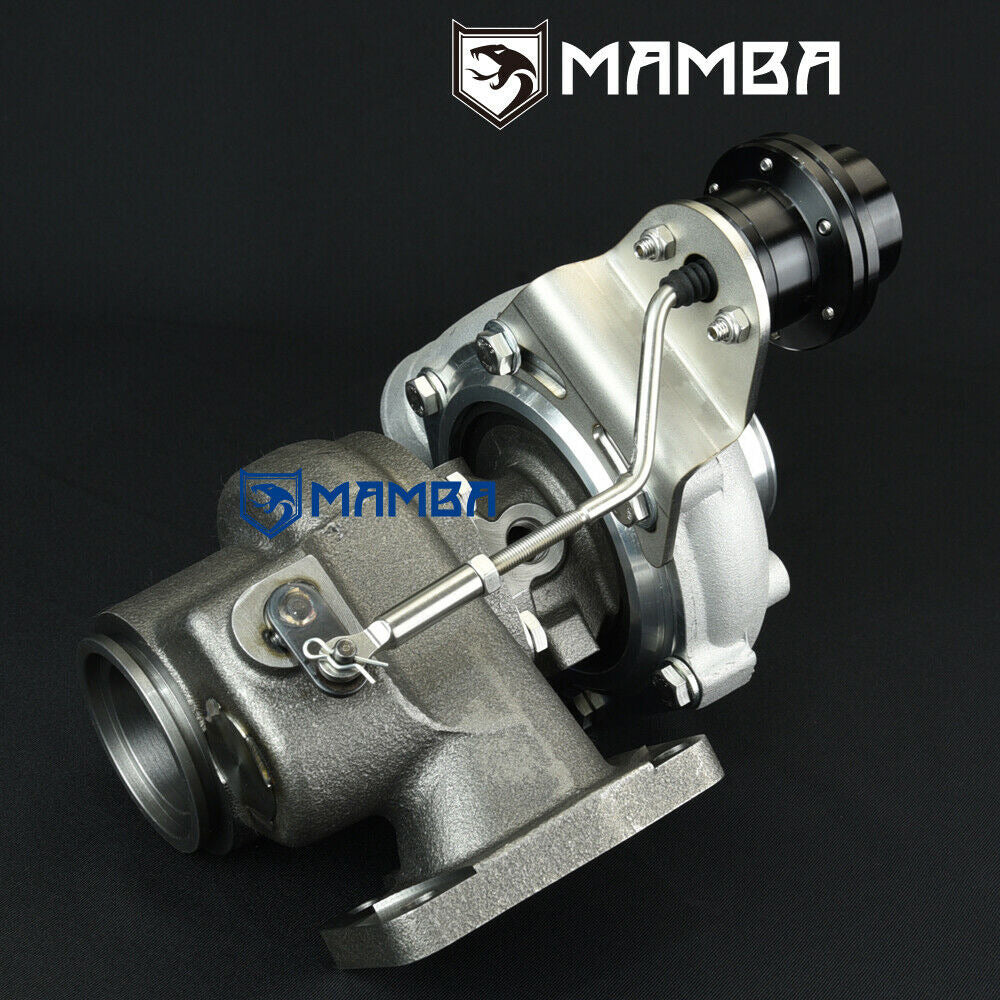

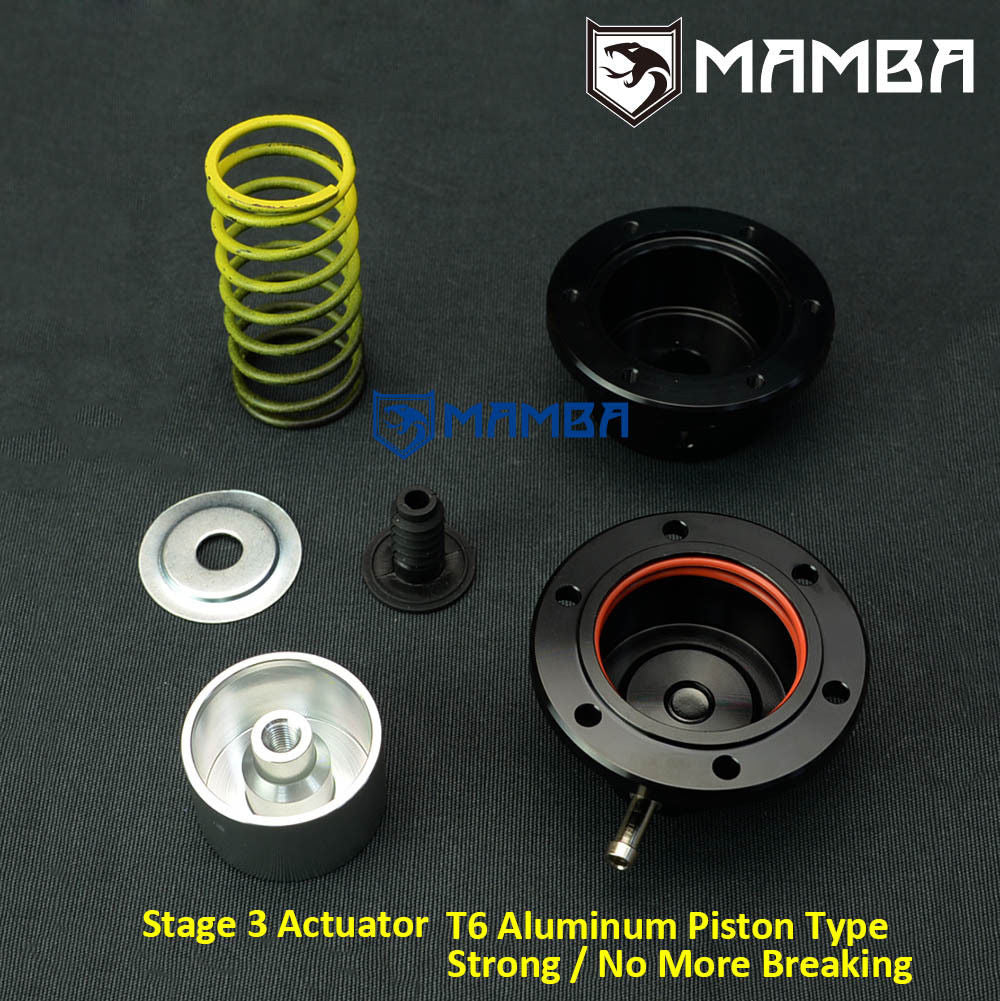

Actuator

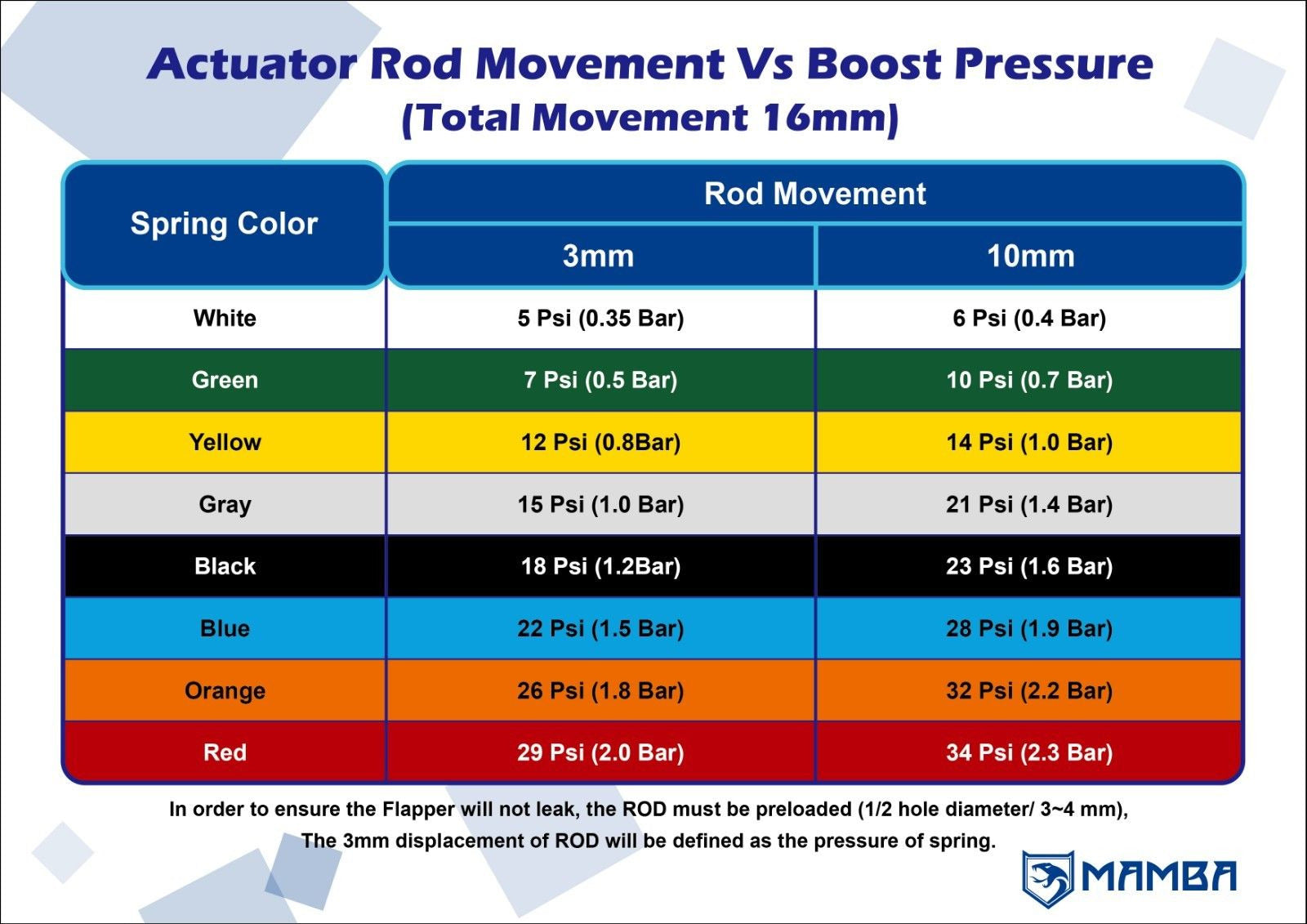

0.8bar spring (Yellow) will be pre-installed on the adjustable actuator.
1.2bar and 1.5bar spring will go with box.
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled system

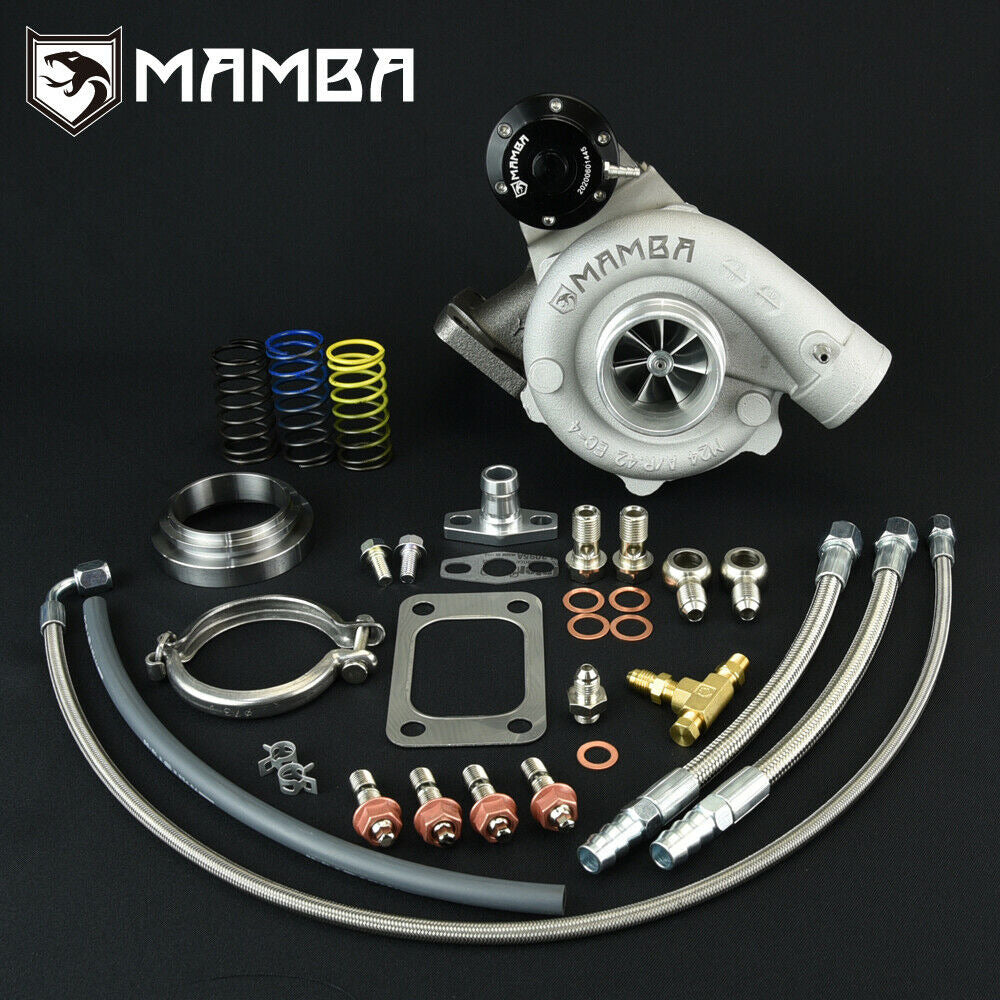

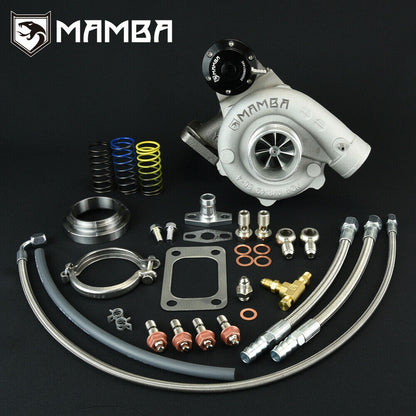

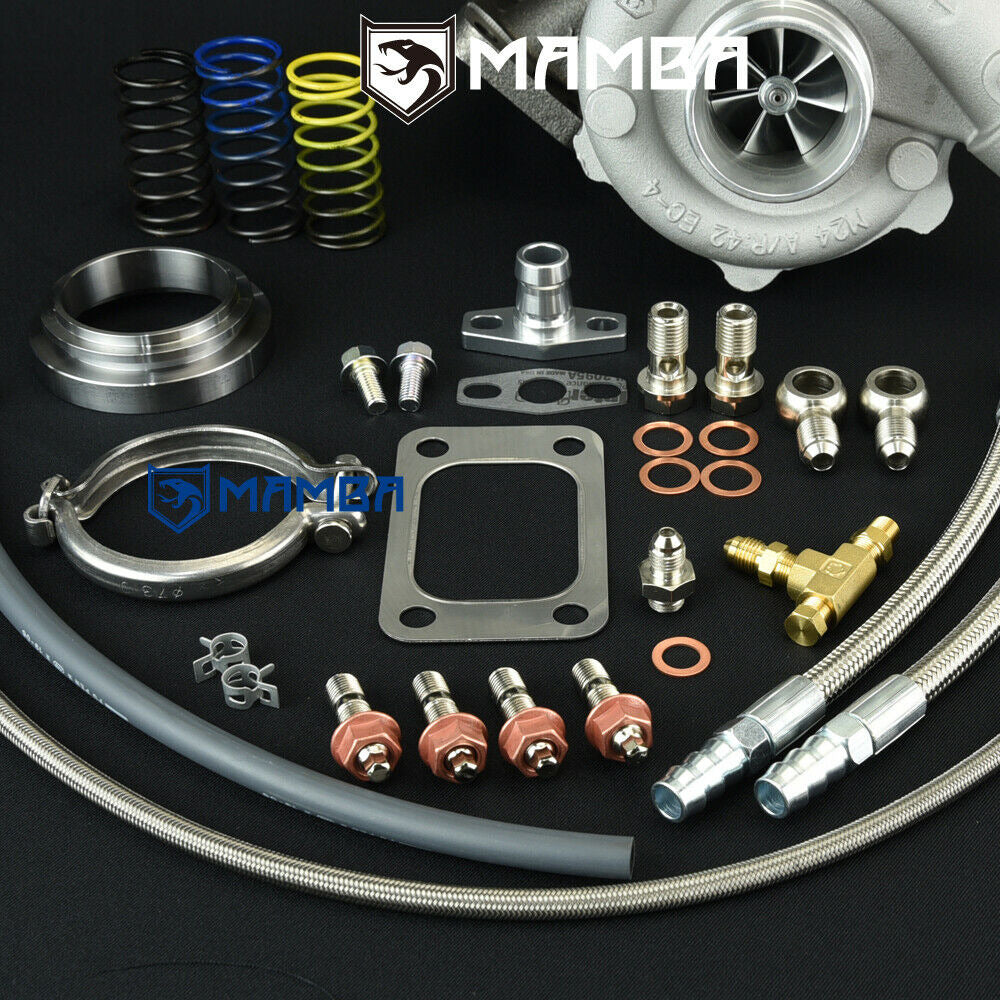

Kit Includes
1 x 4AN 70cm Str-90Deg Oil Feed Line Kit with 1mm Restrictor
2 x 6AN 25cm Water Line Kit
1 x 3/4” Turbo Oil Return Flange Kit
1 x Turbine Inlet Gasket
4 x M10x1.25 Stud Kit with copper-coated nut
1 x 3” V-Band Flange adapter
3 x adjustable actuator spring
1 x Vacuum Hose with two circlip
1 x VSR balance sheet for the CHRA.
Everything shown on picture is included
