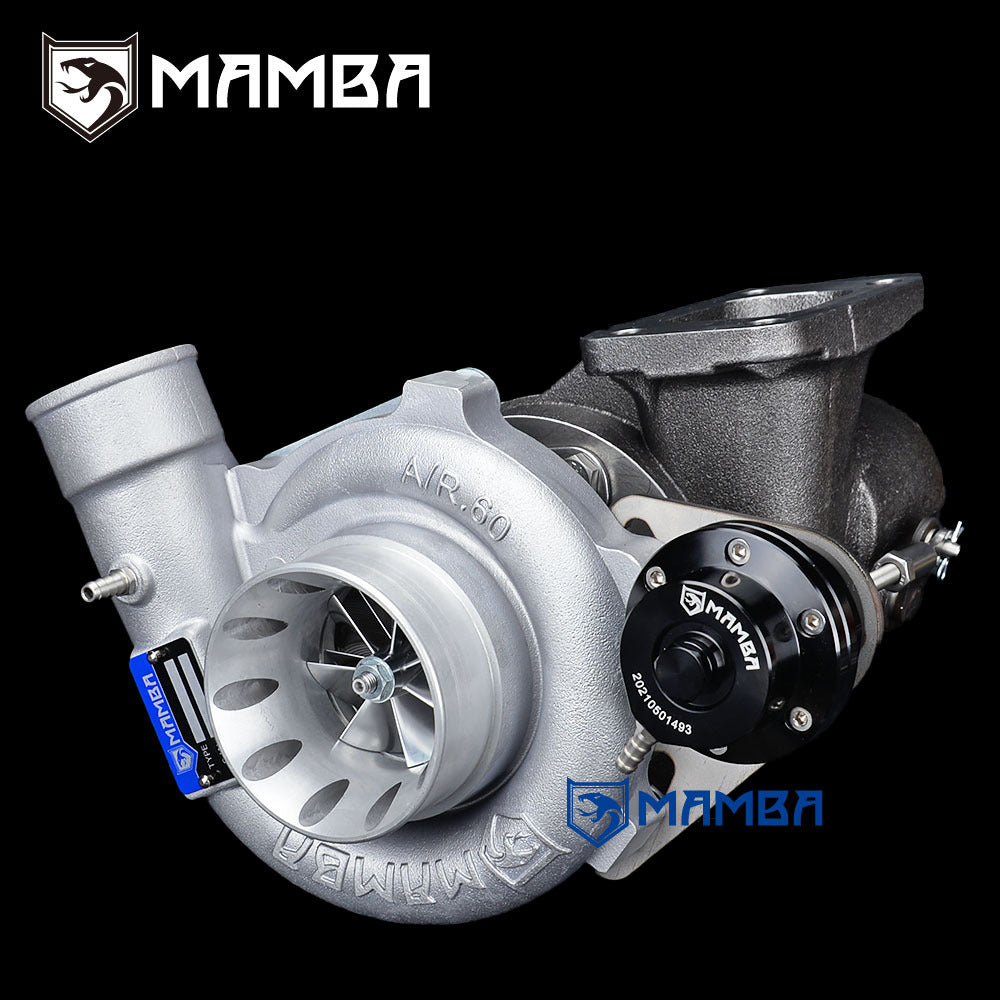

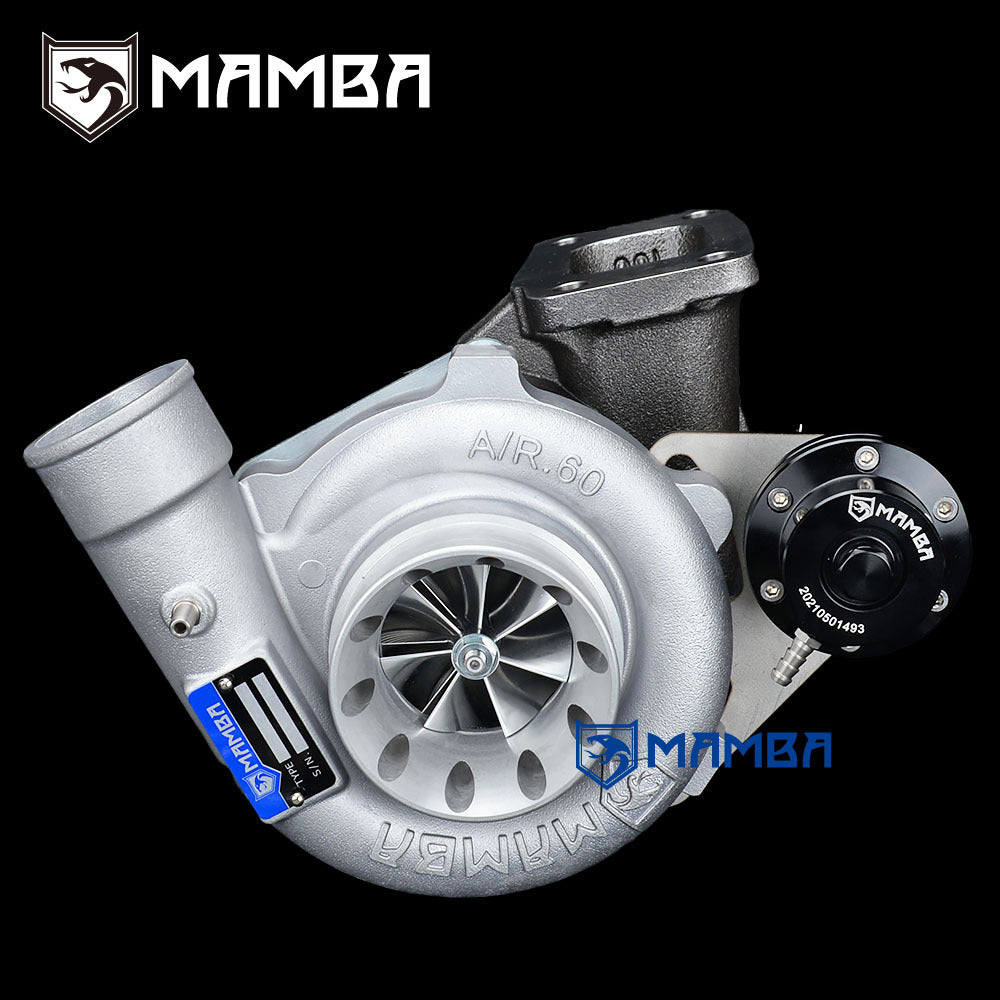

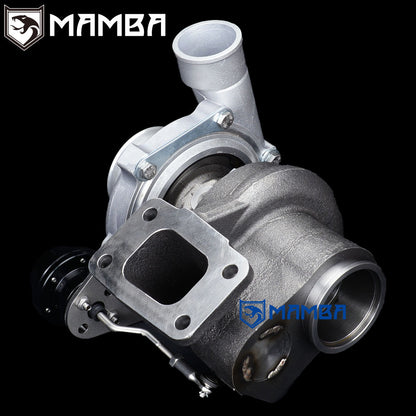

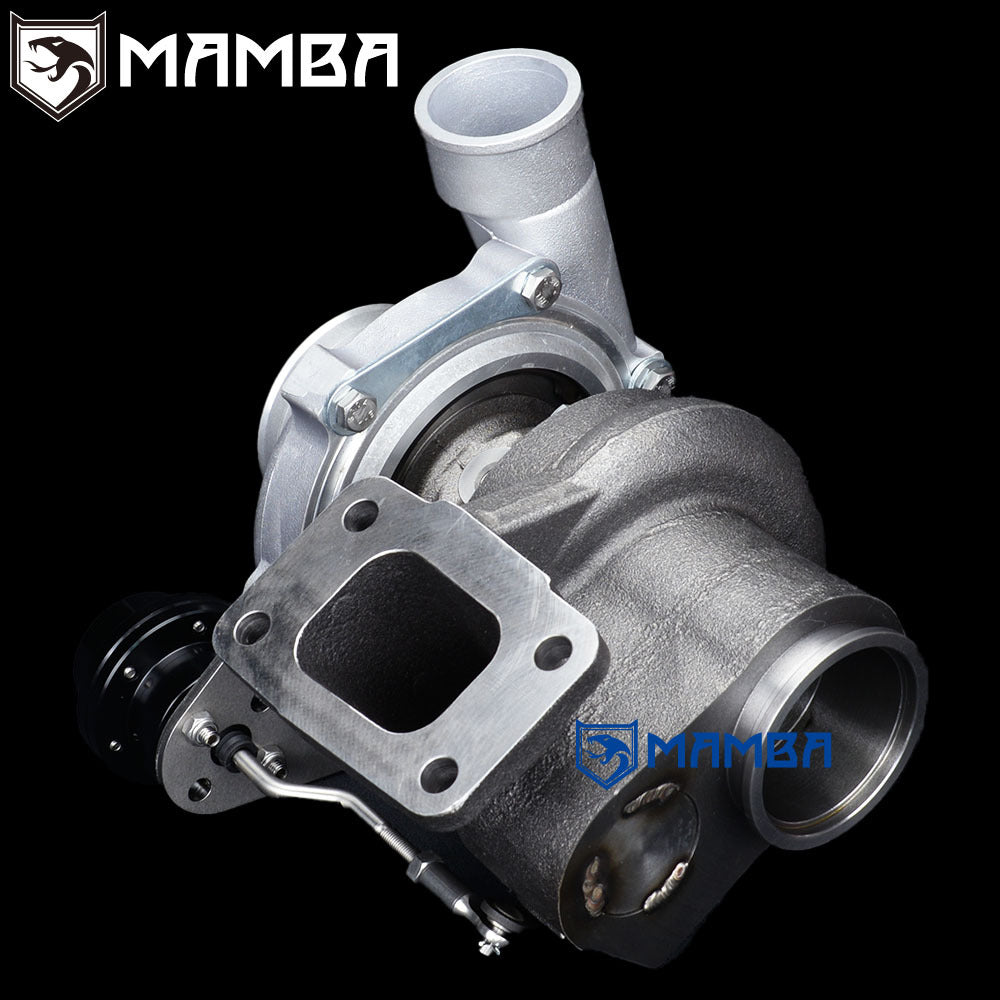

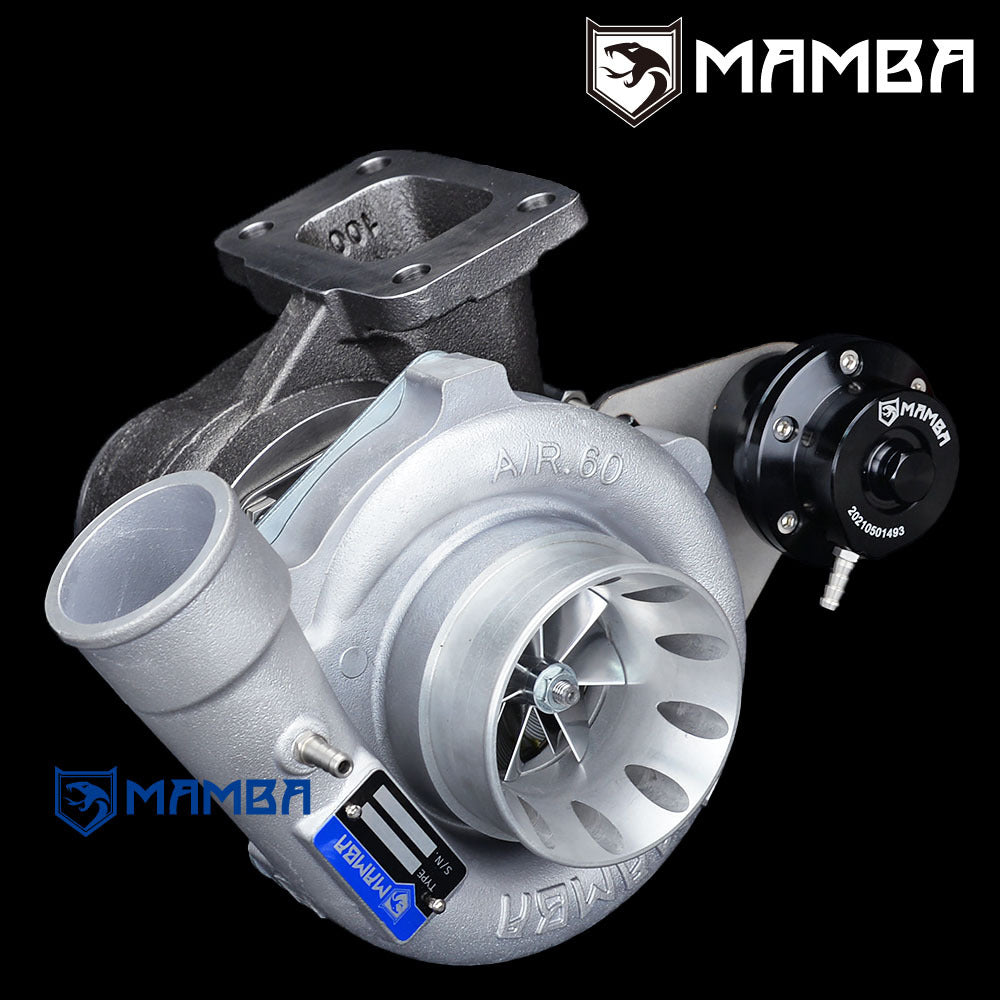

GTX2863R 3" Anti Surge Ball Bearing Turbocharger .57 T3 V-Band
Regular price
$1,110.00
Sale price
$1,110.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA Universal 7+7 3” A/R.60 GTX2863R Ball Bearing
Turbocharger + .57 T3 V-Band IWG Turbine Housing
Application
Universal Use
HP Support: 300~430 HP
Engine: 1.5~3.0L (Gasoline), 3.0~6.0L (Diesel)
Specs
Compressor wheel : 47.1mm/63.4mm/56T (Performance 7+7 Blade Billet Wheel)
Turbine wheel : 47.0mm/53.8mm/76T(9 Blade GT(X)28R)
Compressor Housing A/R:.60 (GT28R/PC200/Twisted Anti Surge)
Compressor Inlet: 3”/76.2mm
Compressor Outlet: 2”/50.8mm

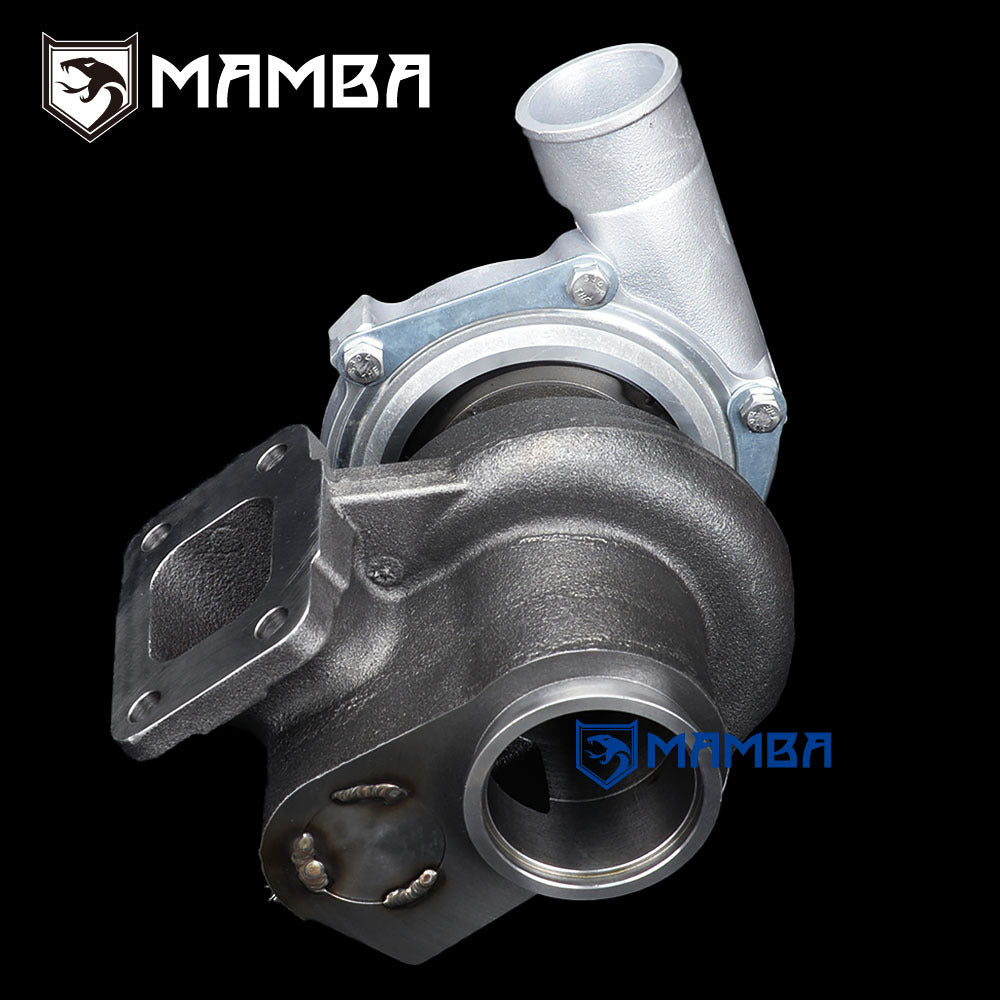

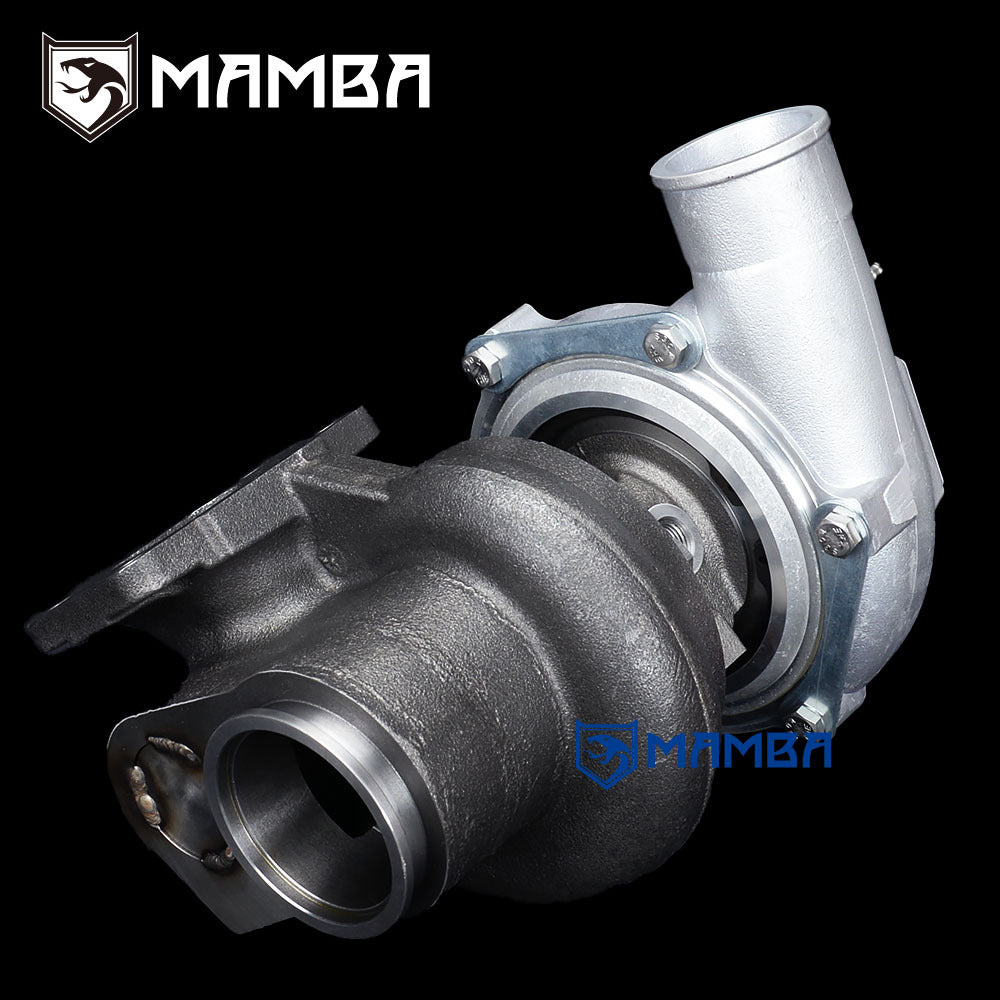

Turbine Housing A/R : .57 IWG
Turbine Inlet: T3
Turbine Outlet: V-Band (GMC)

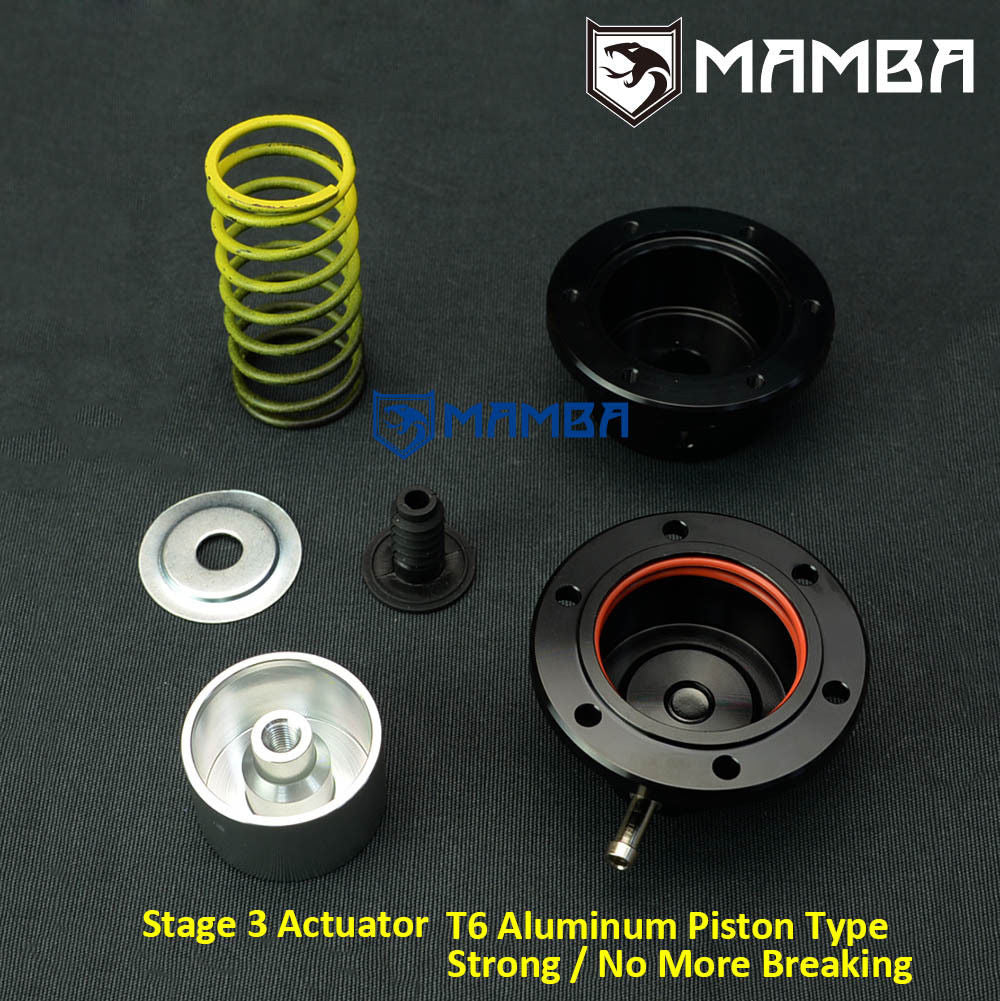

Actuator

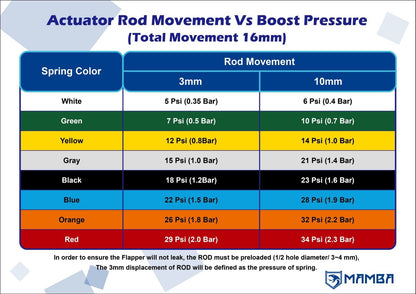

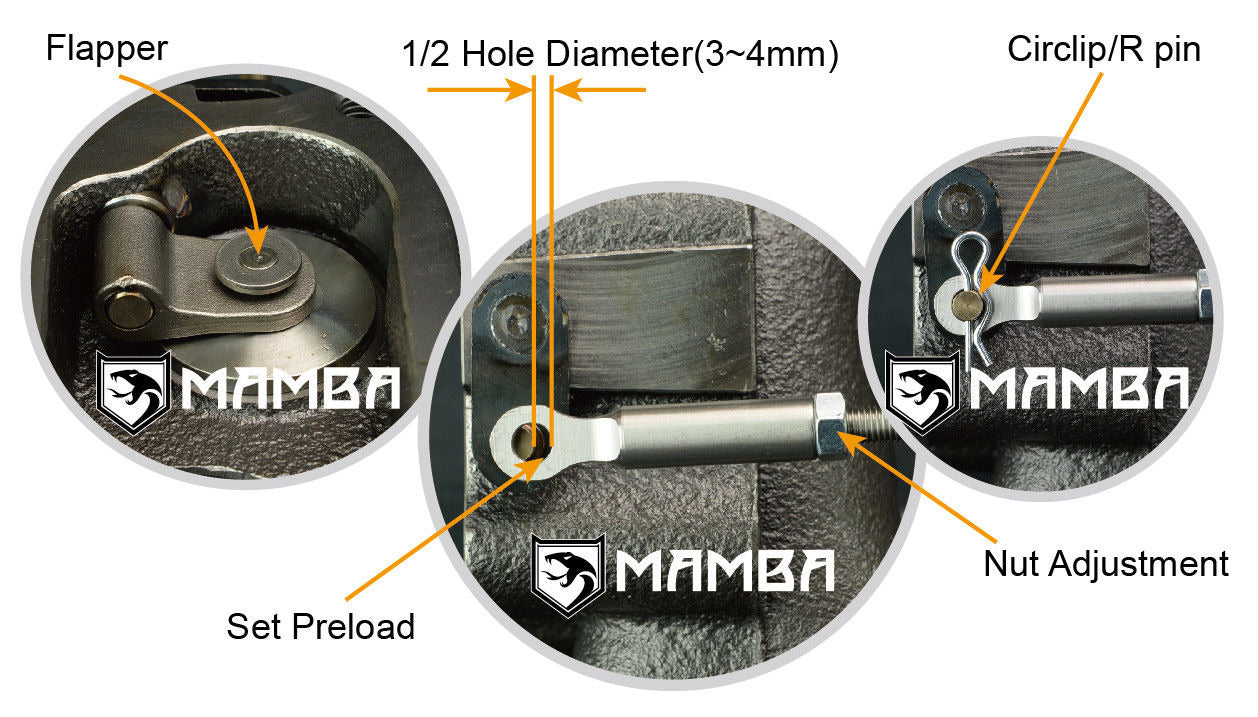

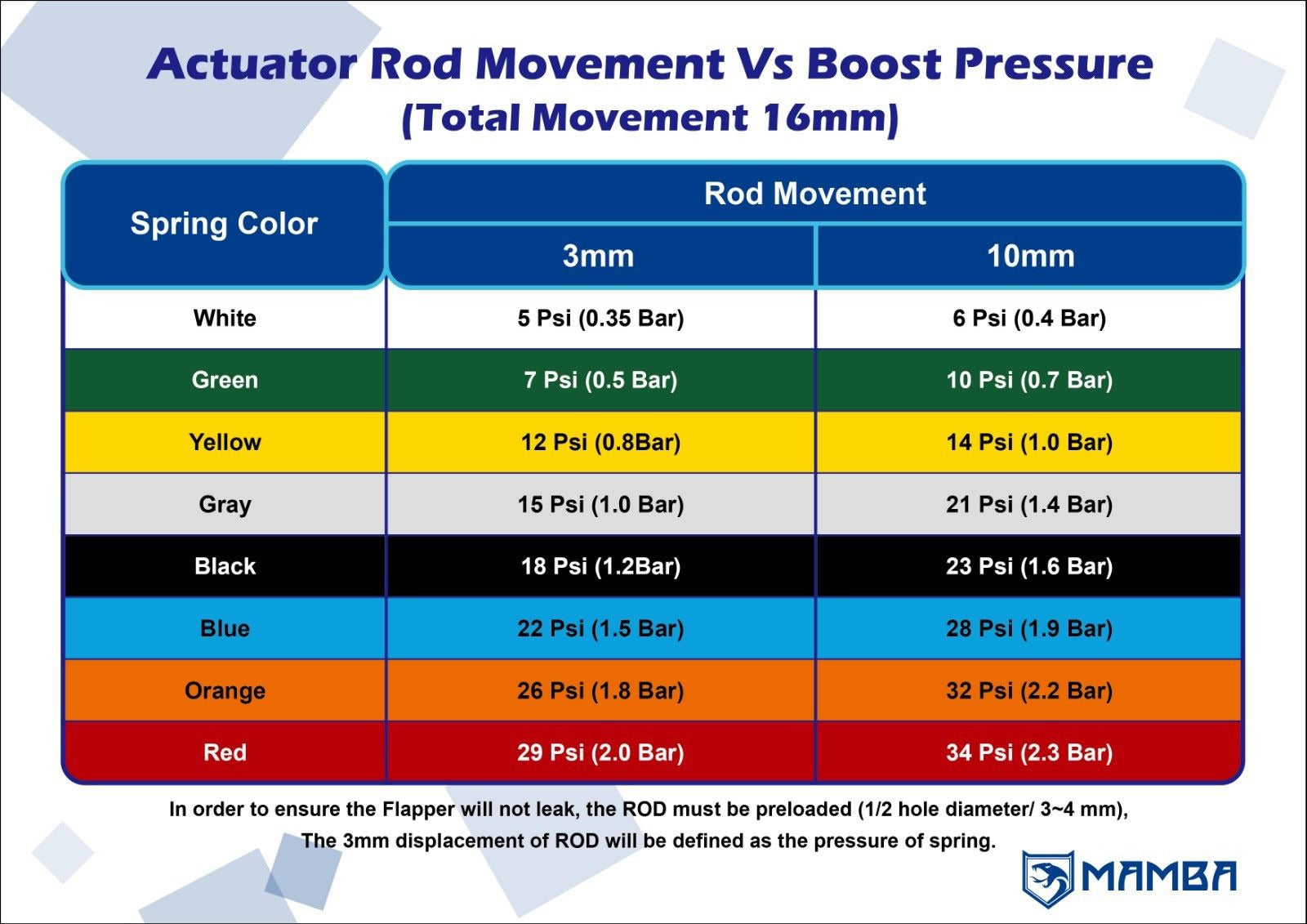

0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.

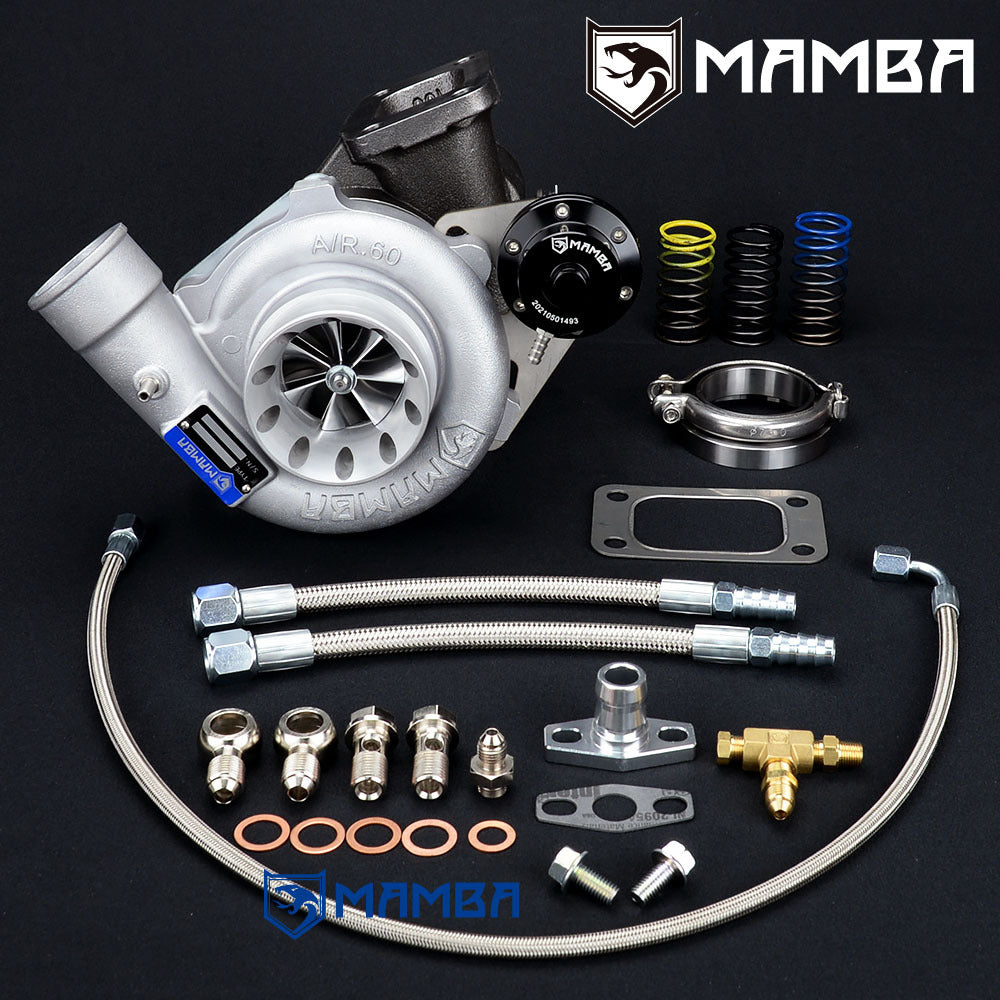

Kit Includes
1 x MAMBA 3” GTX2863R Turbo.

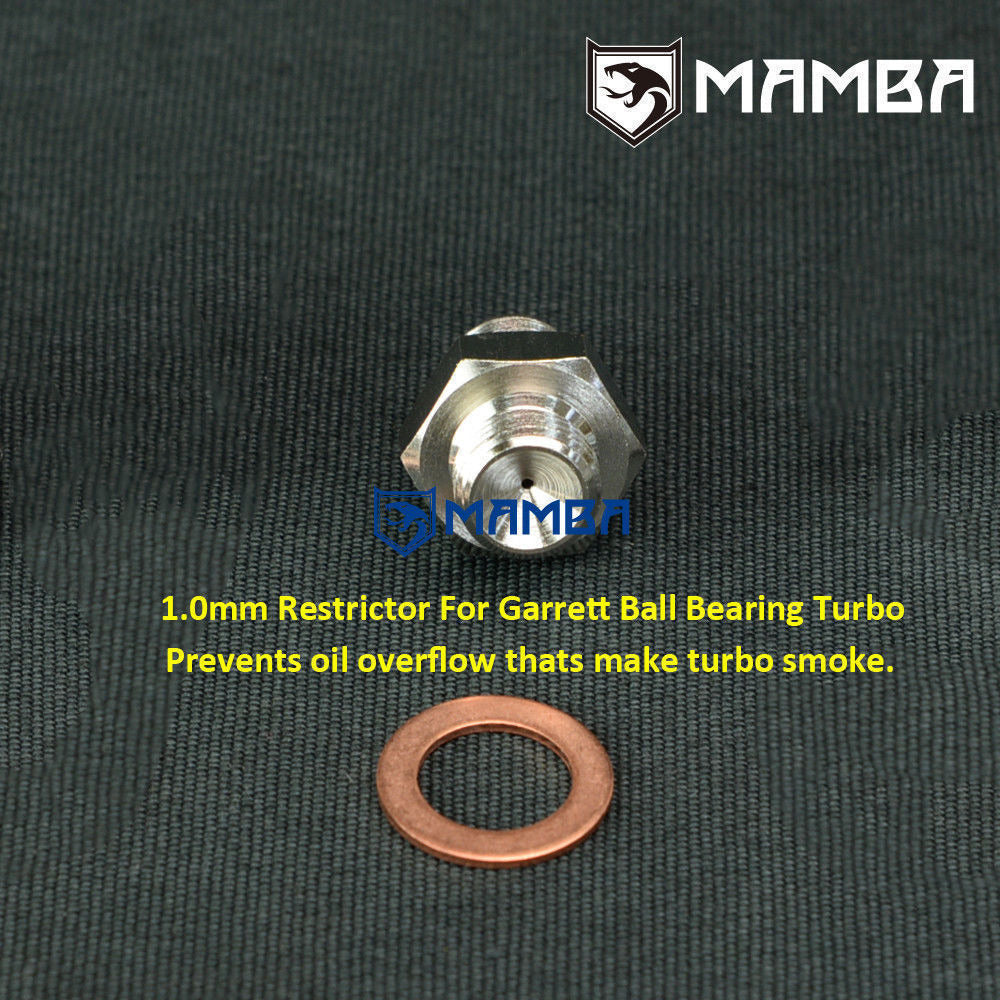

1 x 70cm 1/4” PTFE Oil Feed line with 1.0mm restrictor.
2 x 25cm 3/8” PTFE Water line
1 x 3/4” Oil return flange
1 x SUS304 T3 Turbine Inlet Gasket
1 x 3” V-Band Flange with Clamp Set
Everything shown on first picture is included
