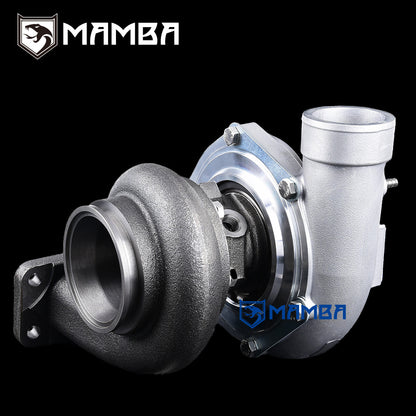

GTX3584R 4" Bullet Anti Surge Ball Bearing Turbocharger .82 T3 V-Band
Regular price
$1,260.00
Sale price
$1,260.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA 7+7 Universal 4” A/R .70 Bullet Anti Surge GTX3584R Ball
Bearing Turbocharger + .82 T3 V-Band Turbine housing
Application
Universal Use
HP Support: 500~900 HP
Engine: 2.5~5.5L (Gasoline), 5~10L (Diesel)
Specs
Compressor wheel : 66.3mm/84.0mm/Trim62 (7+7 GTX Billet Wheel w/ Extend Tip)
Turbine wheel : 62mm/68mm/Trim84
Compressor Housing A/R:.70
Compressor Inlet: 4” / 102mm
Compressor Outlet: 2.5” / 63.5 mm
Turbine Housing A/R : .82
Turbine Inlet: T3 Inlet
Turbine Outlet: 3” V-Band
Wastegate: External Wastegated (EWG)
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled system
Kit Includes
1 x MAMBA Turbocharger
1 x 4AN 70cm Str-90D Oil Feed Line Kit with 1mm Restrictor
2 x 6AN 25cm Water Line Kit
1 x 3/4” Turbo Oil Return Flange Kit
1 x T4 Turbine Inlet Gasket
4 x M10x1.25 Stud Kit with copper-coated nut
1 x 3” V-Band Flange adapter
1 x VSR balance sheet for the CHRA.
Everything shown on picture is included
Bearing Turbocharger + .82 T3 V-Band Turbine housing
Application
Universal Use
HP Support: 500~900 HP
Engine: 2.5~5.5L (Gasoline), 5~10L (Diesel)
Specs
Compressor wheel : 66.3mm/84.0mm/Trim62 (7+7 GTX Billet Wheel w/ Extend Tip)
Turbine wheel : 62mm/68mm/Trim84
Compressor Housing A/R:.70
Compressor Inlet: 4” / 102mm
Compressor Outlet: 2.5” / 63.5 mm
Turbine Housing A/R : .82
Turbine Inlet: T3 Inlet
Turbine Outlet: 3” V-Band
Wastegate: External Wastegated (EWG)
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled system
Kit Includes
1 x MAMBA Turbocharger
1 x 4AN 70cm Str-90D Oil Feed Line Kit with 1mm Restrictor
2 x 6AN 25cm Water Line Kit
1 x 3/4” Turbo Oil Return Flange Kit
1 x T4 Turbine Inlet Gasket
4 x M10x1.25 Stud Kit with copper-coated nut
1 x 3” V-Band Flange adapter
1 x VSR balance sheet for the CHRA.
Everything shown on picture is included
