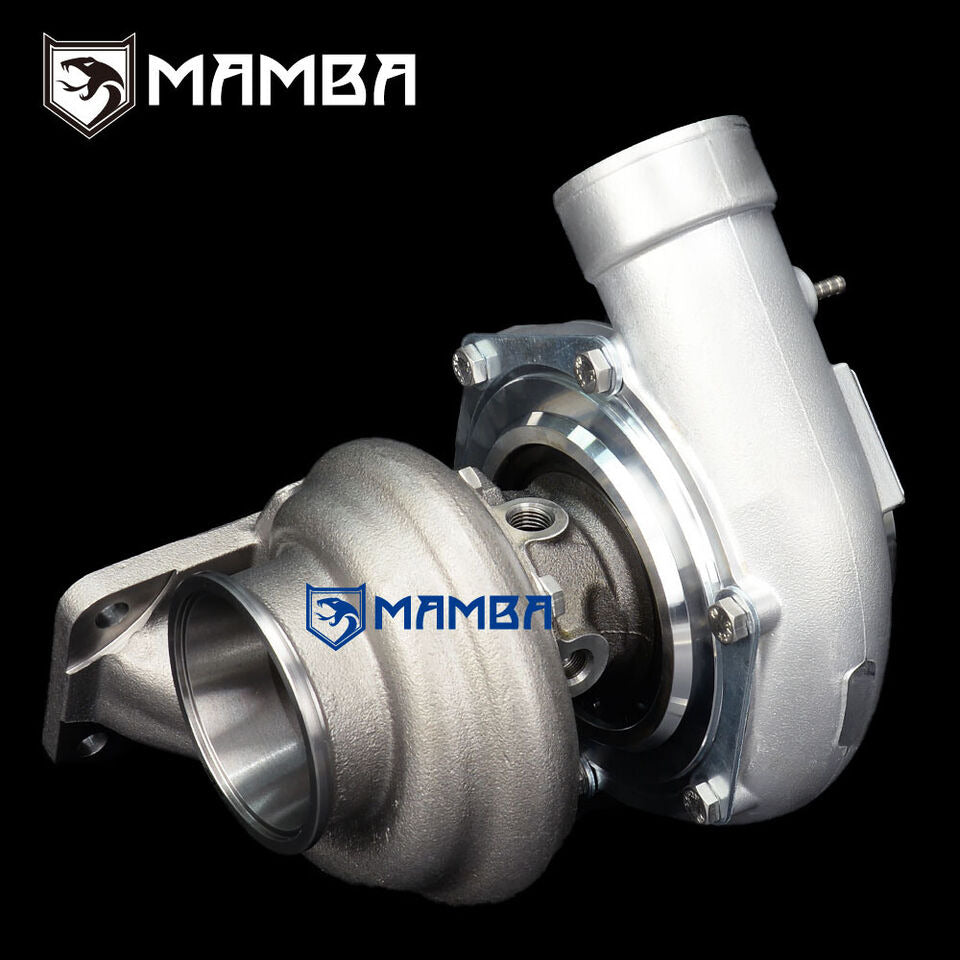

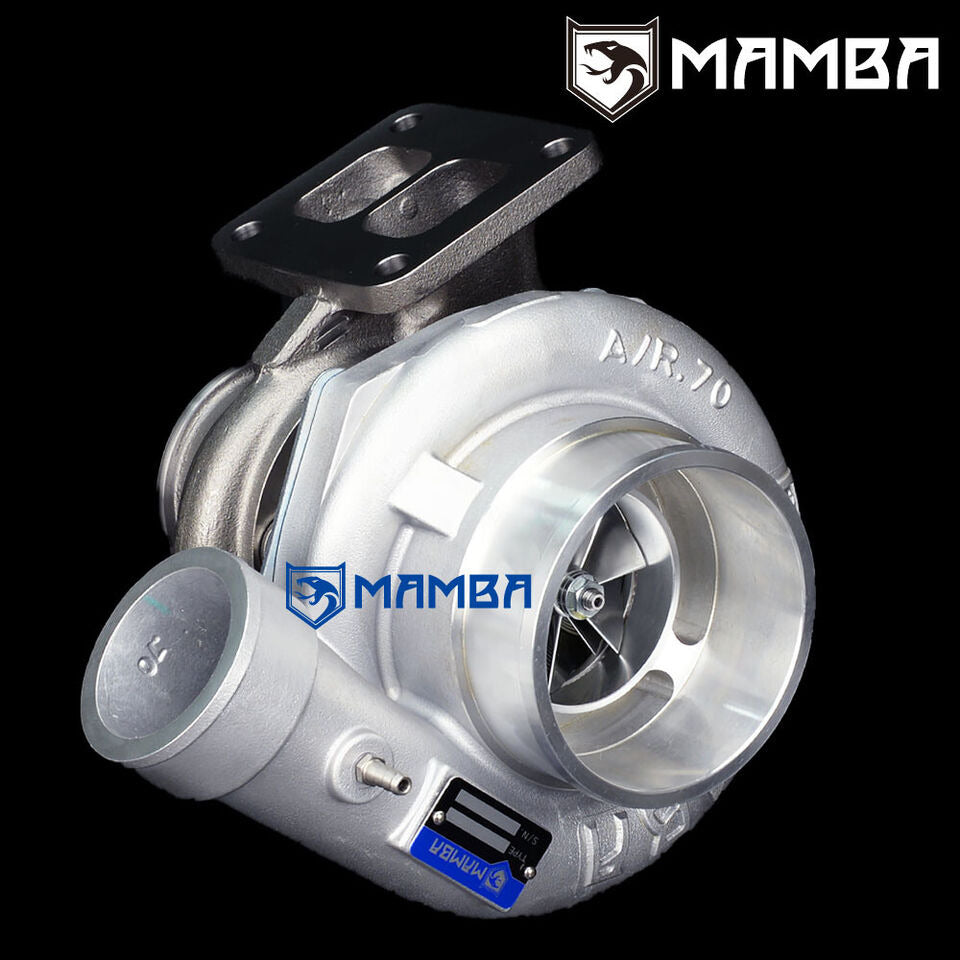

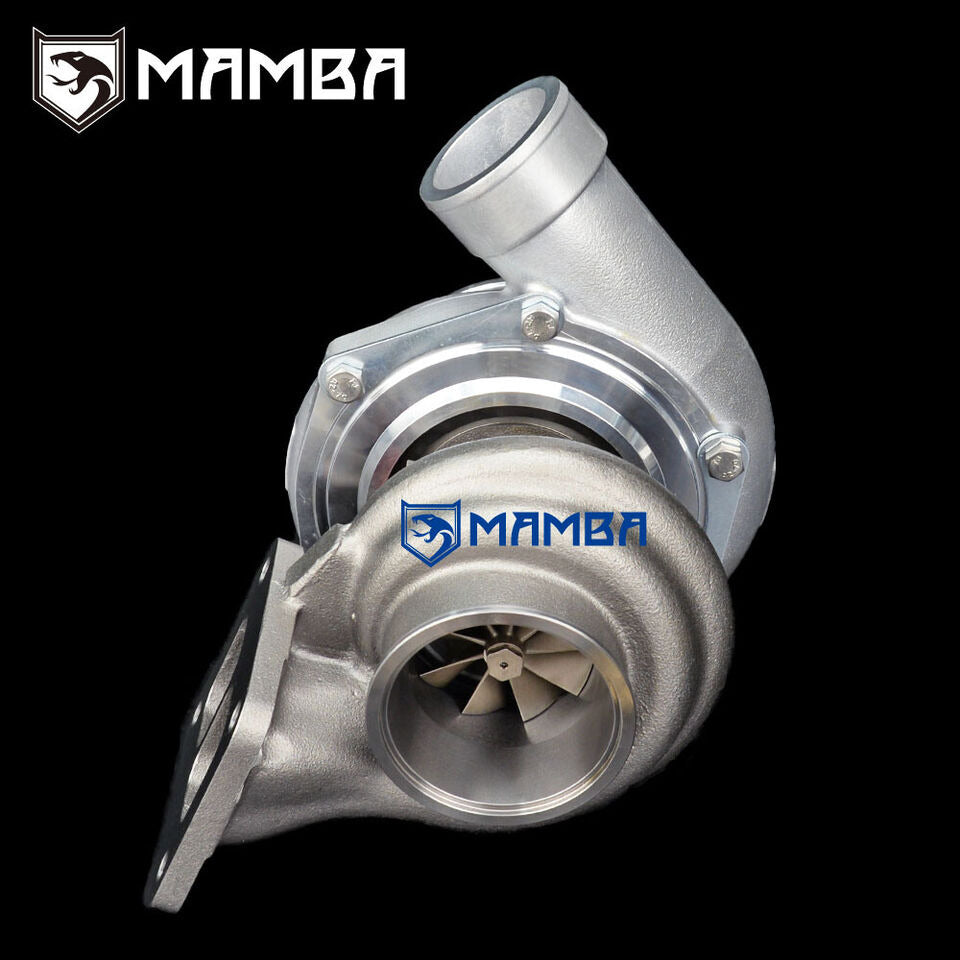

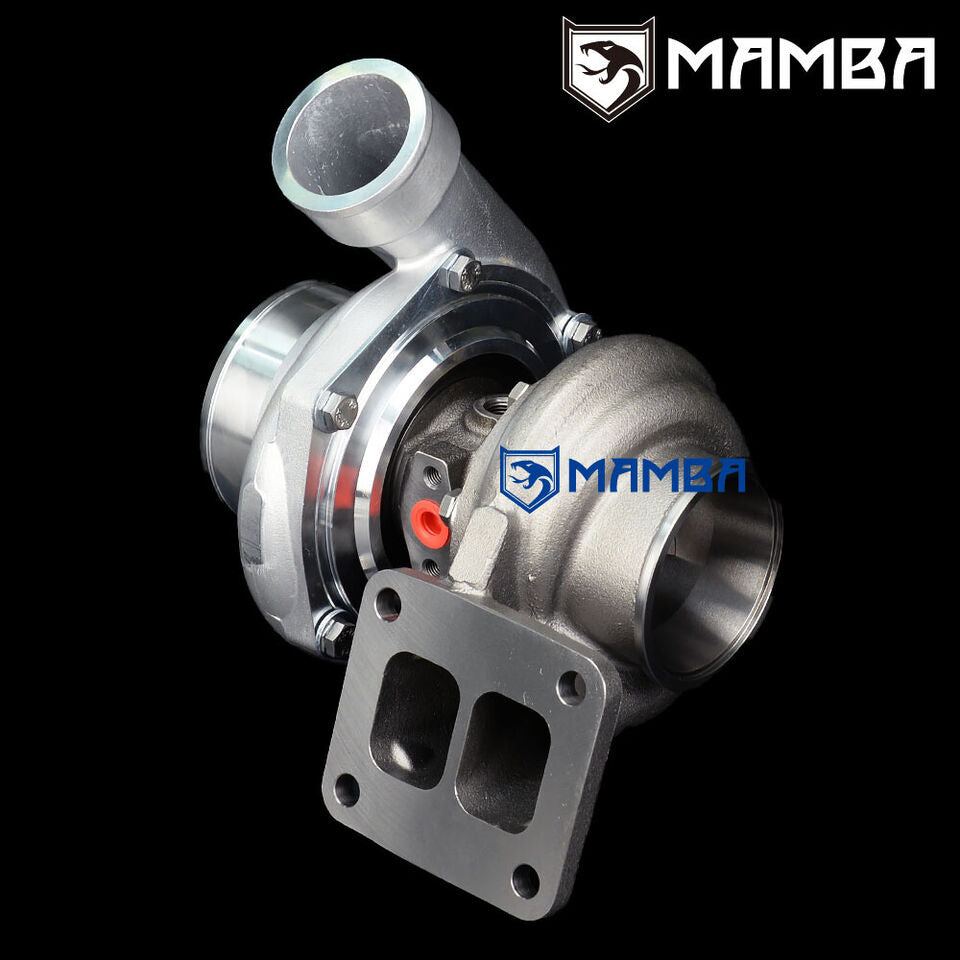

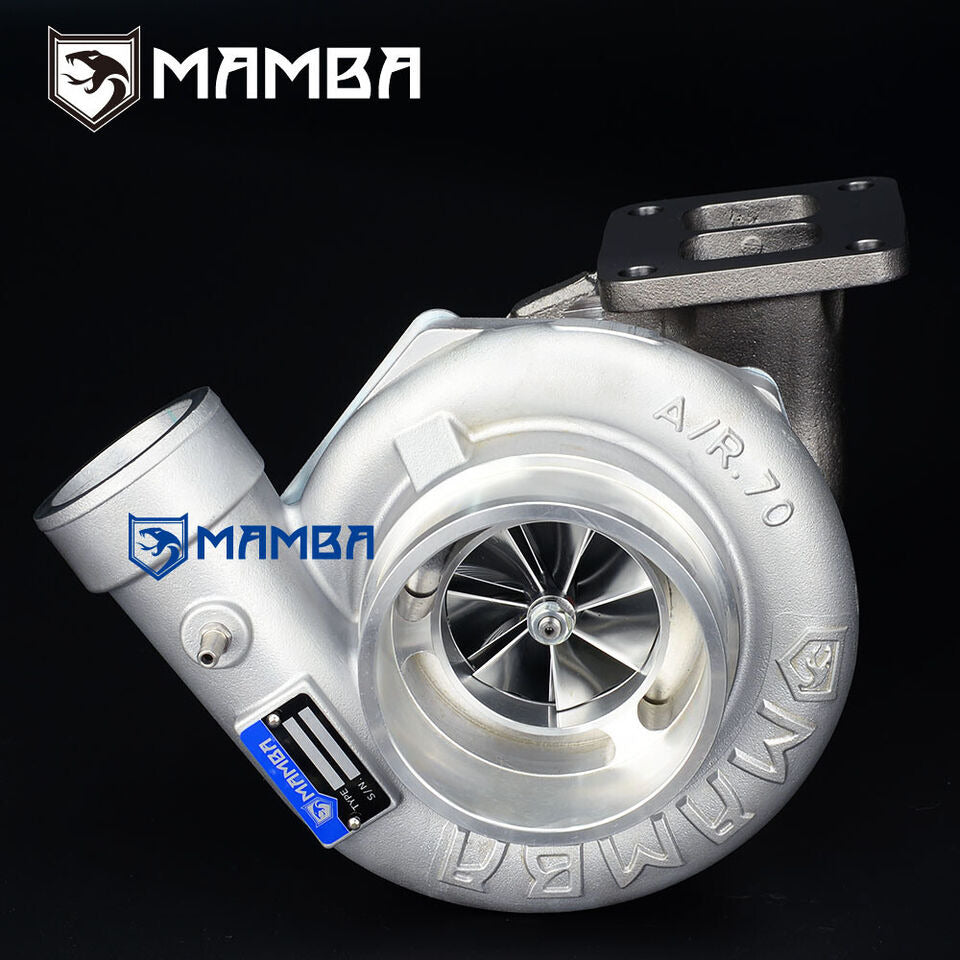

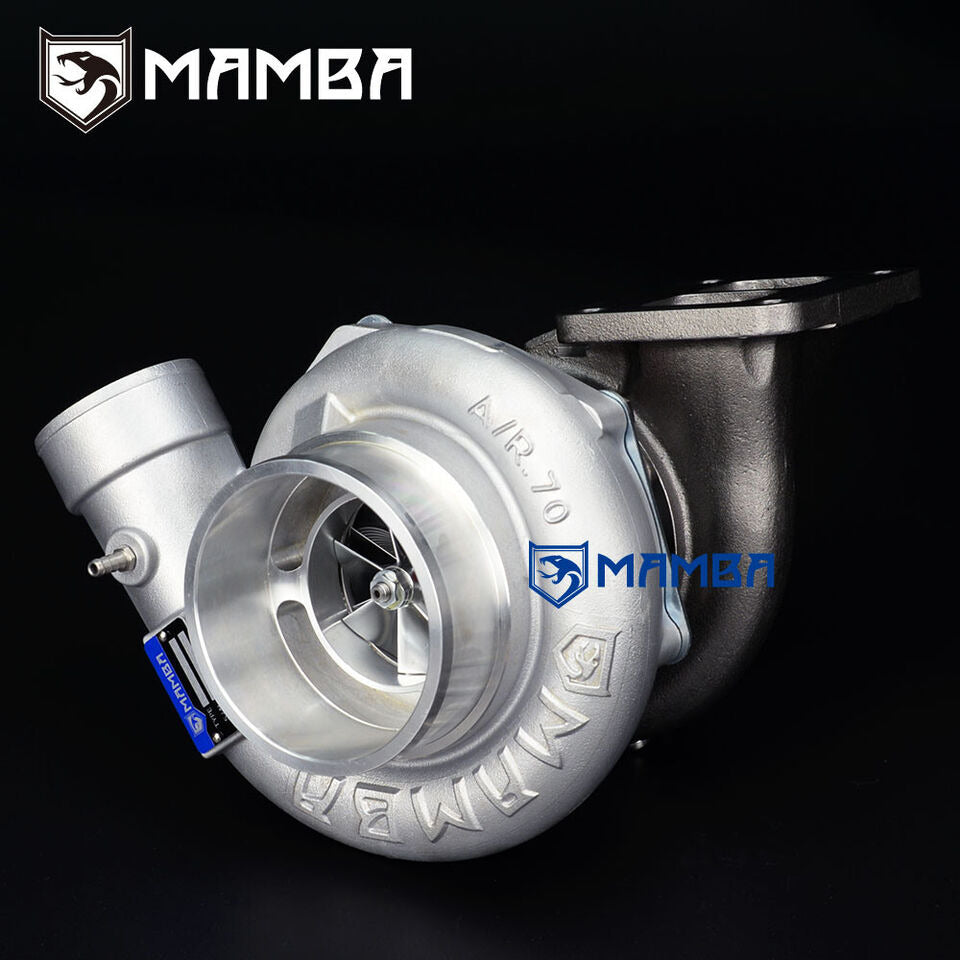

GTX3584R 7+7 4" Ball Bearing Turbocharger .86 T4 Divided
Regular price
$1,260.00
Sale price
$1,260.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA Universal 7+7 4” A/R.70 Twisted Anti Surge GTX3584R Ball Bearing
Turbocharger + .86 T4 Divided Turbine housing
Application
Universal Use
HP Support: 600~900 HP
Engine: 1.5~3.0L (Gasoline), 3.0~6.0L (Diesel)
Specs

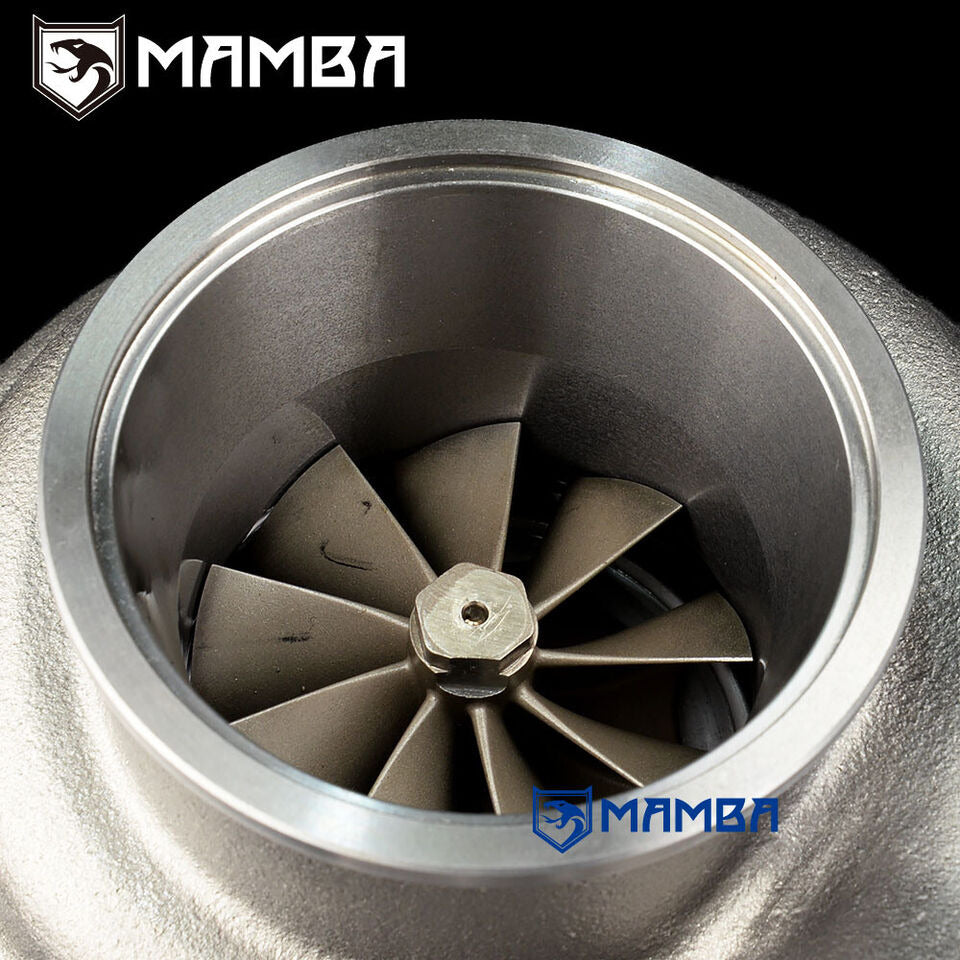

Compressor wheel : 66.3mm/84.0mm/62T (Performance 7+7 Blade Billet Wheel)
Turbine wheel : 62.0mm/68.0mm/84T(9 Blade GTX35R)
Compressor Housing A/R:.70
Compressor Inlet: 4”/101.6 mm
Compressor Outlet: 2.5”/ 63.5 mm
Turbine Housing A/R : .86
Turbine Inlet: T4 Divided
Turbine Outlet: 3” V-Band

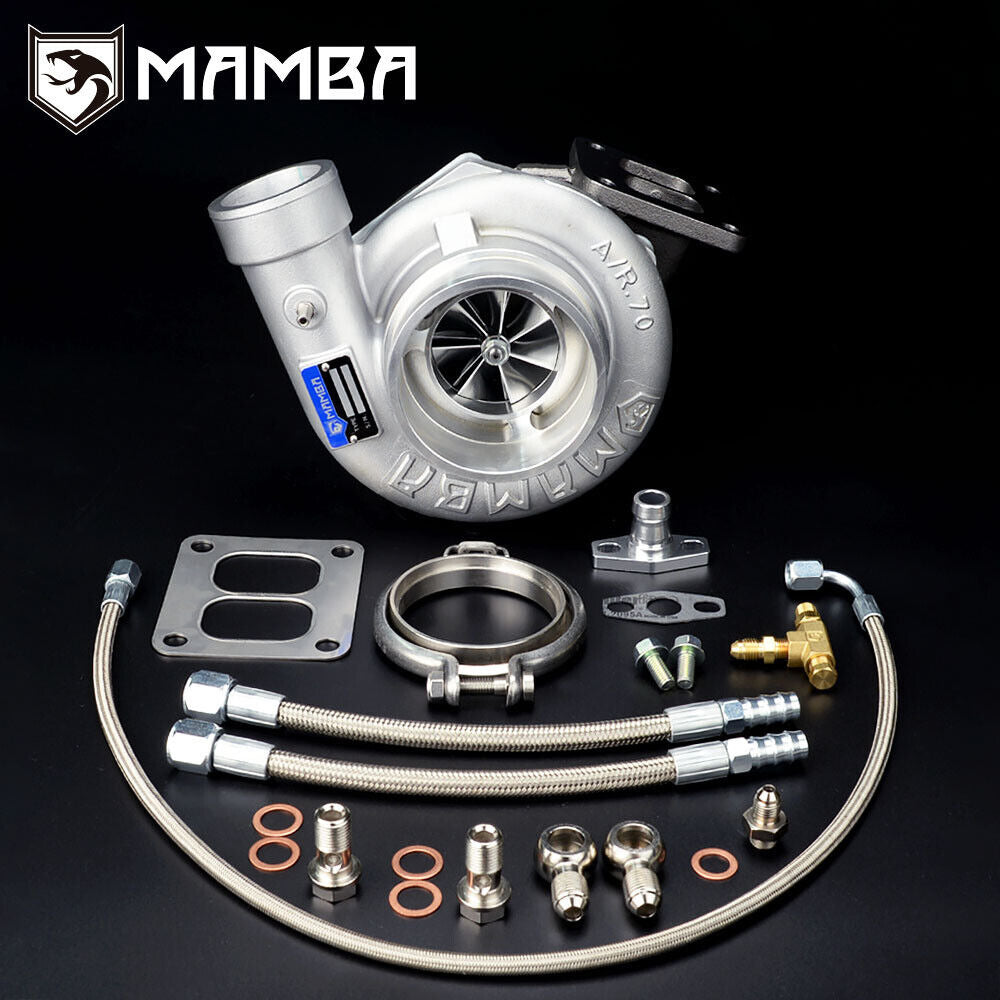

Kit Includes
1 x MAMBA 4” GTX3584R Turbo.
1 x 70cm 1/4” PTFE Oil Feed line with 1.0mm restrictor.
2 x 25cm 3/8” PTFE Water line
1 x 3/4” Oil return flange
1 x SUS304 T4 Turbine Inlet Gasket
1 x 3” V-Band Flange with Clamp Set
Everything shown on first picture is included.
