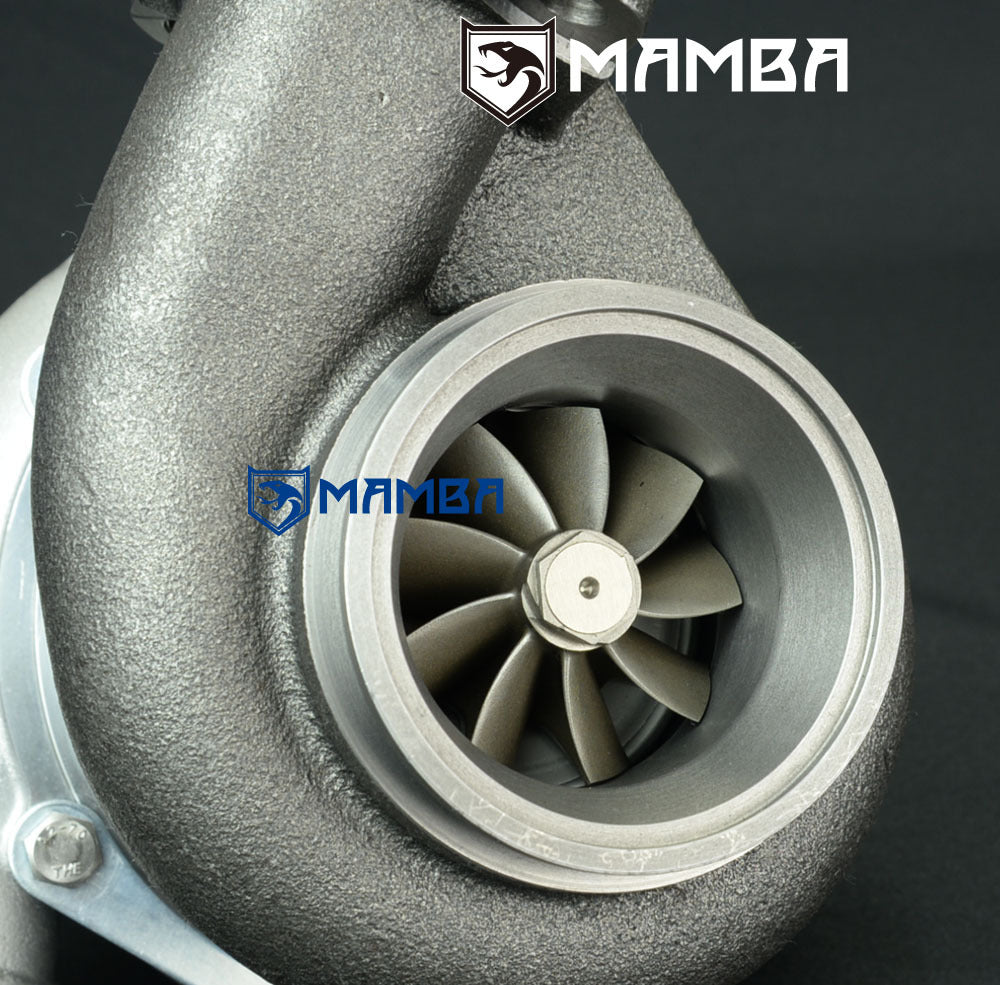

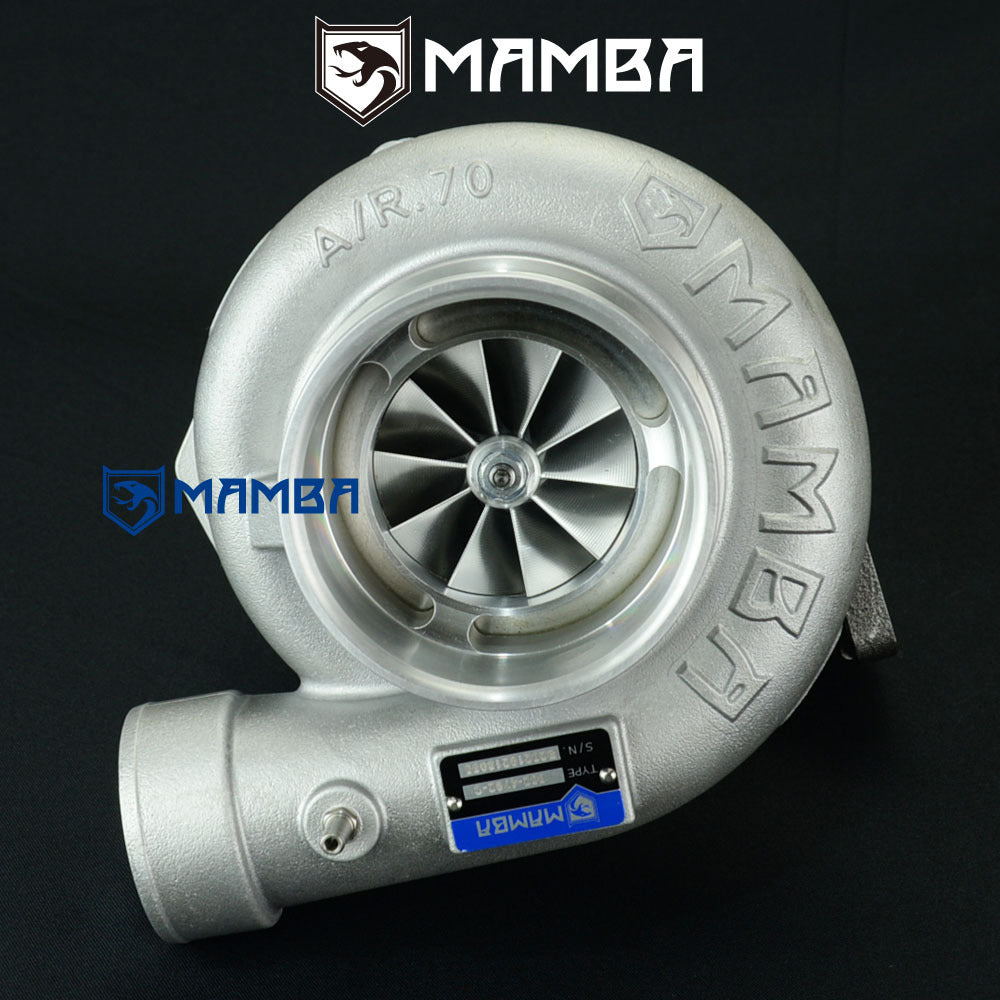

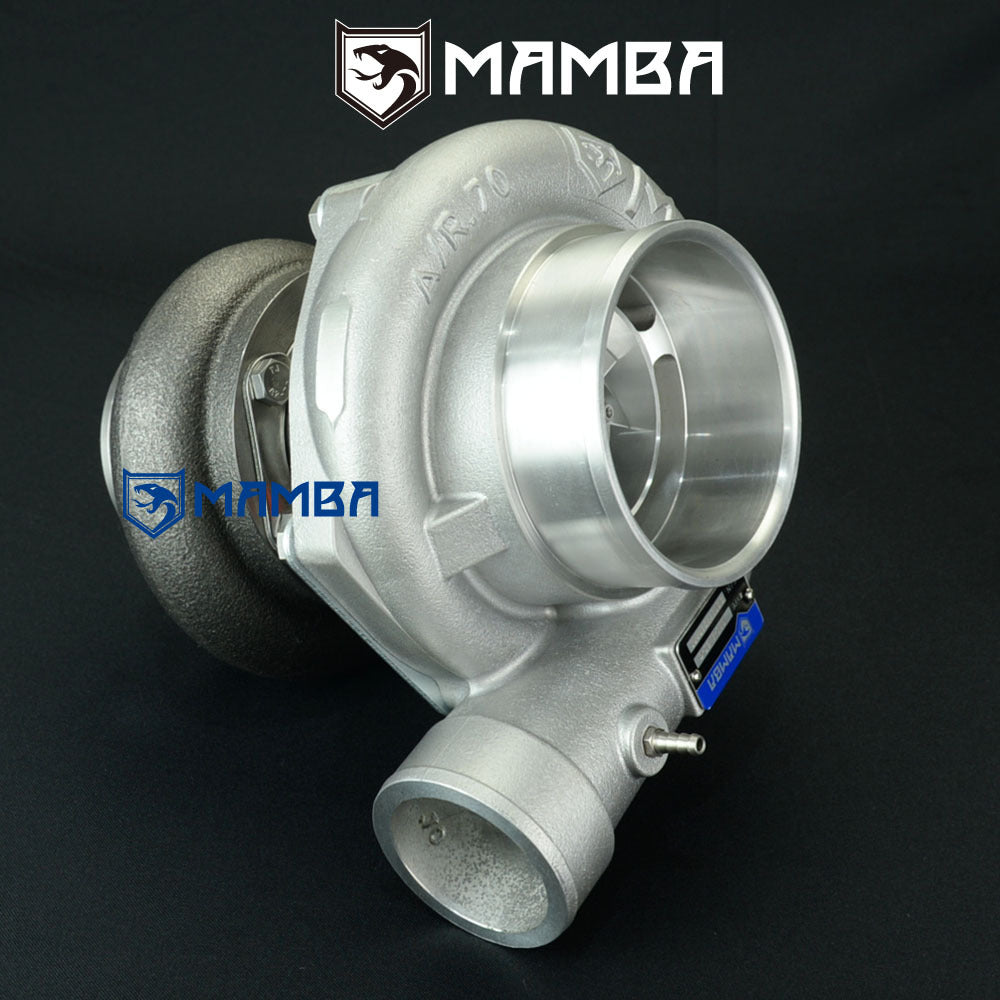

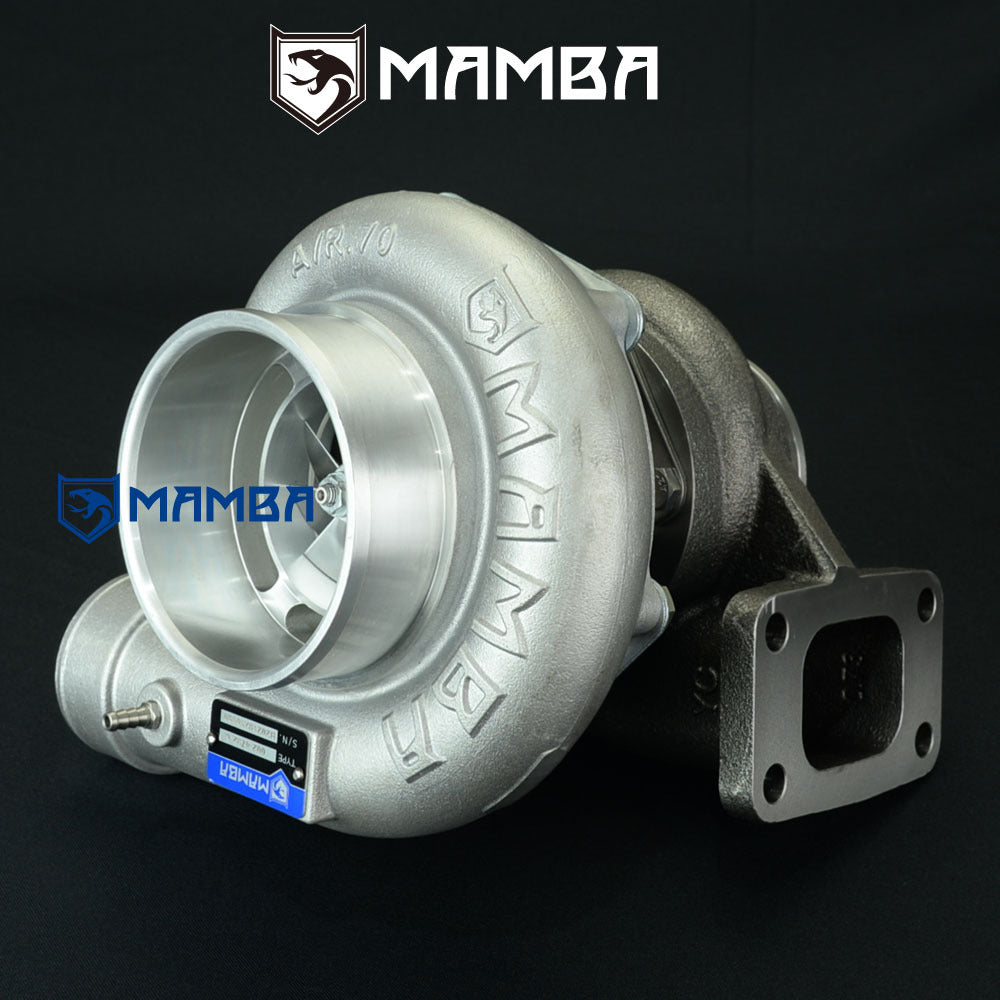

GTX3584RS 4" Ball Bearing Turbocharger + .82 T3 V-Band Hsg
Regular price
$1,260.00
Sale price
$1,260.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.
MAMBA 10+0 Universal 4” A/R .70 Anti Surge GTX3584RS Ball Bearing Turbocharger + .82 T3 V-Band Turbine housing
Application
2.5L~5.5 Gasoline Engine
5~10L Diesel engine
Max HP: 550~1000HP (Gasoline)
Specs
Compressor Wheel : 67.3 mm / 84.4 mm/ Trim 64 (10+0 Point Milling Wheel w/ Extend Tip)
Turbine Wheel: 62 mm / 68mm / Trim 84 / 9 Blade
Compressor Housing Inlet OD: 4” / 102mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor Housing A/R: .70
Turbine Housing A/R : .82
Turbine Inlet Flange : T3 Inlet
Turbine Outlet Flange: 3” V-Band
Wastegate: External Wastegated (EWG)
Bearing
NTN Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled

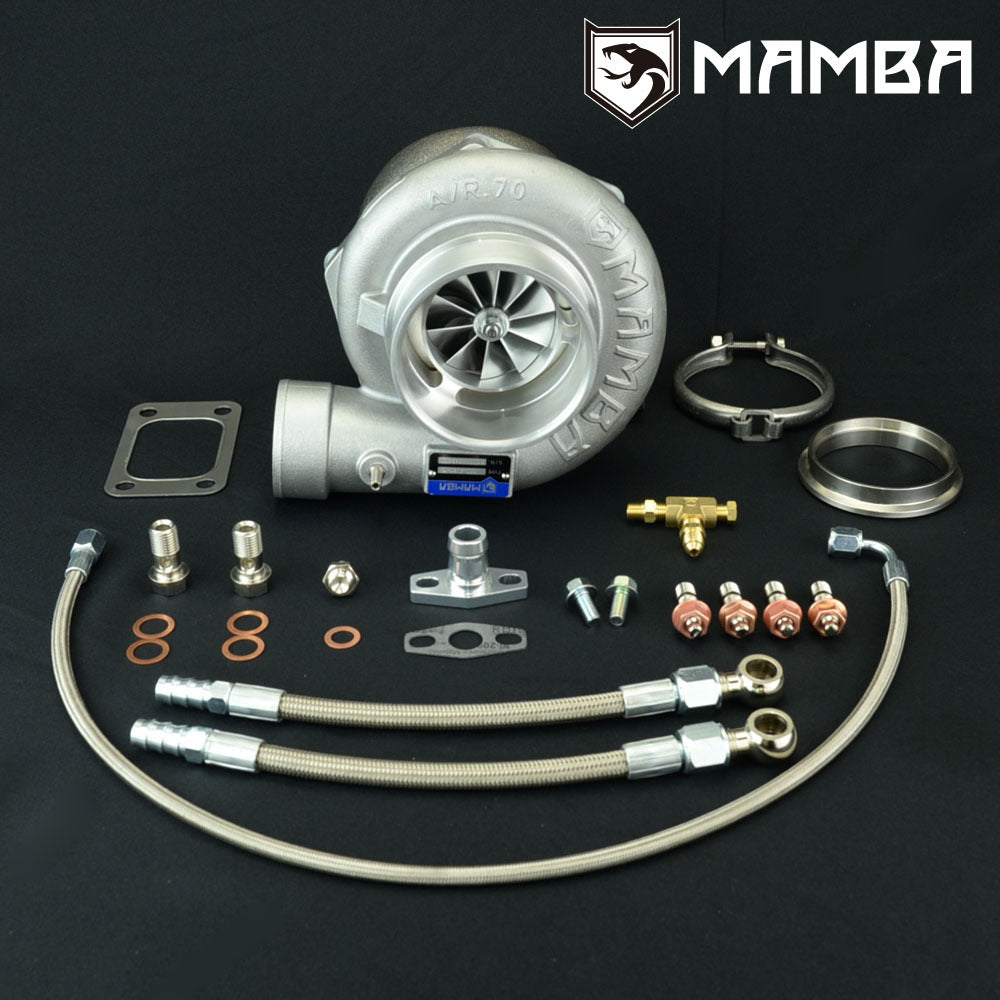

Kit Includes
1 x MAMBA Turbocharger
1 x 4AN 70cm Str-90D Oil Feed Line Kit with 1mm Restrictor
2 x 6AN 25cm Water Line Kit
1 x 3/4” Turbo Oil Return Flange Kit
1 x T4 Turbine Inlet Gasket
4 x M10x1.25 Stud Kit with copper-coated nut
1 x 3” V-Band Flange adapter
1 x VSR balance sheet for the CHRA.
Everything shown on picture is included
