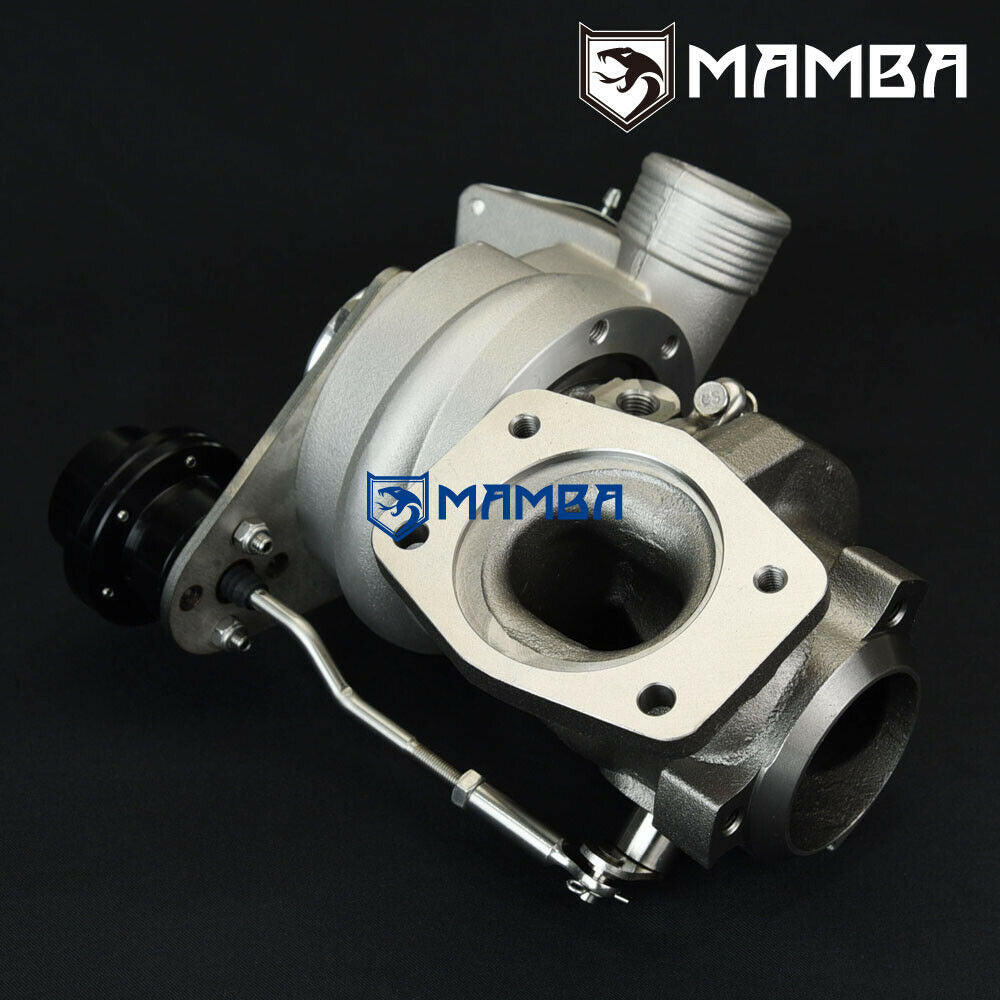

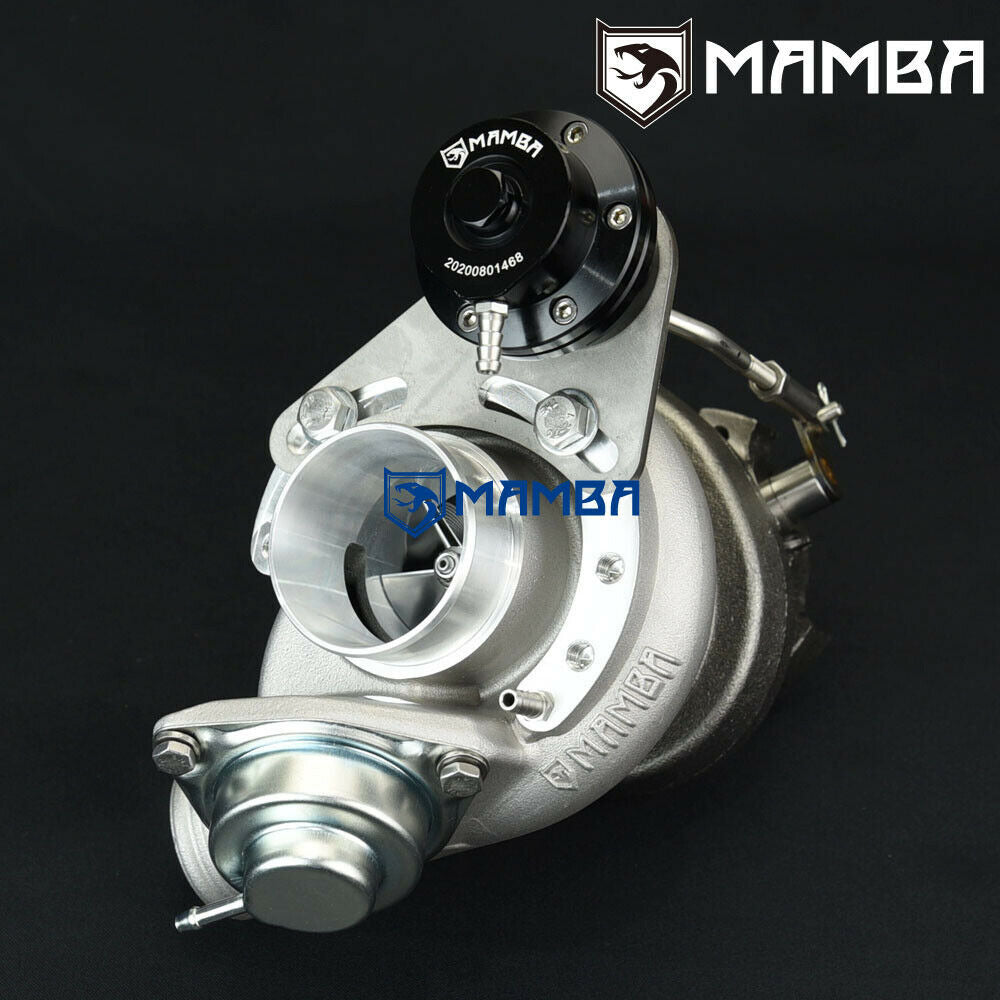

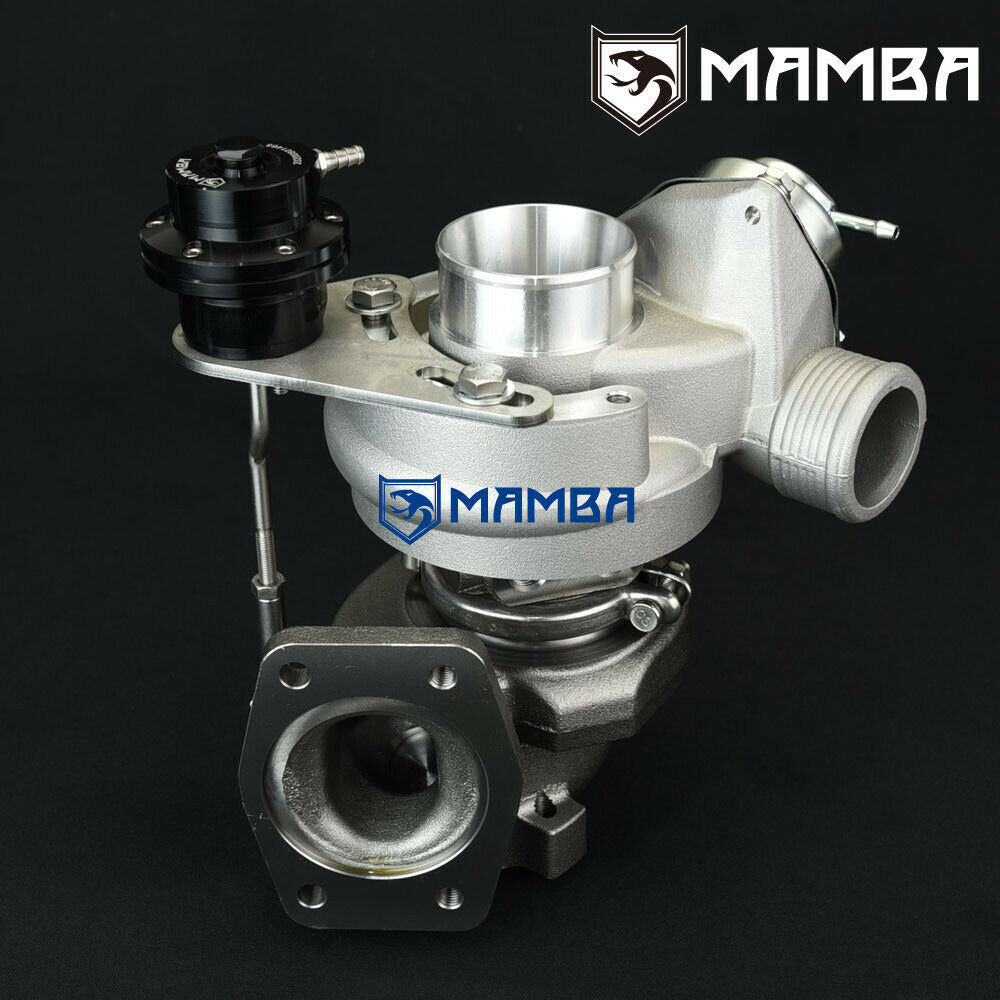

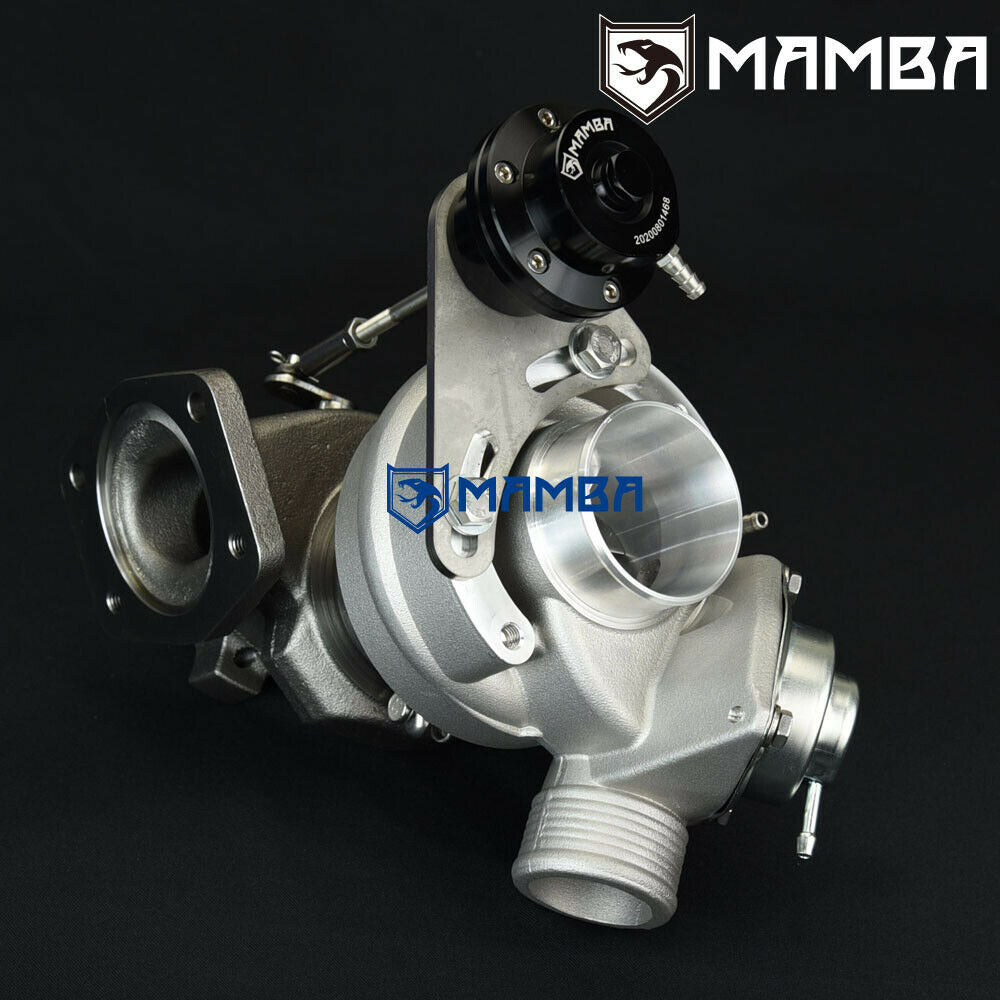

MAMBA 9-6 VOLVO 240 740 940 B230FK 2.3L TD04HL-16T-7 Turbocharger (300HP)
Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Bolt-On upgrade turbo for VOLVO 240/940/960 2.3L TD04H-13C with 6cm turbine housing to Monster TD04HL-16T-7
HP Support: 250~300HP
Factory Turbo #: 49189-01000, 49189-01200, 49189-01210, 49189-01260, 49189-01270
1990-98 Volvo 940, 960 with B230FT Engine
1989-98 Volvo 740, 760, 940, 960 with B230FT Engine
1990- Volvo 940, 960 with B200FT
1991-98 Volvo 940 with B230FK Engine
1991-98 Volvo 940 with B230FK Engine
Wheel Specs
Compressor Wheel : 43.4/56 mm (Performance 6+6 16T Billet Wheel)
Turbine Wheel : 45.6/52mm (9 Blade TD04HL High Flow)

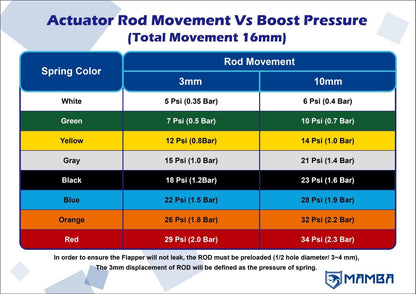

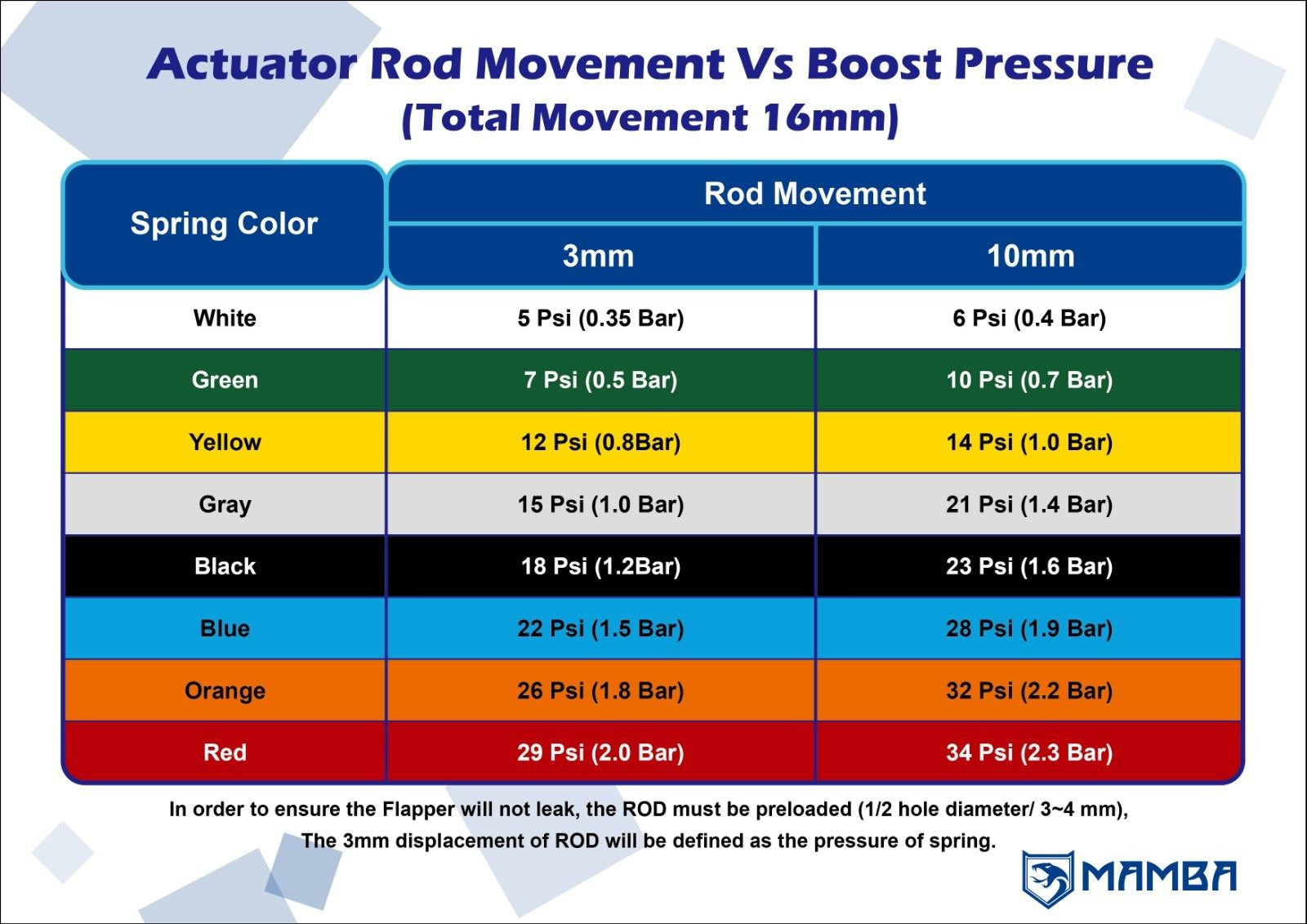

Actuator
0.8 Bar spring pre-installed.
Additional 1.2bar and 1.5Bar are included in box.
Bearing
Journal Bearing

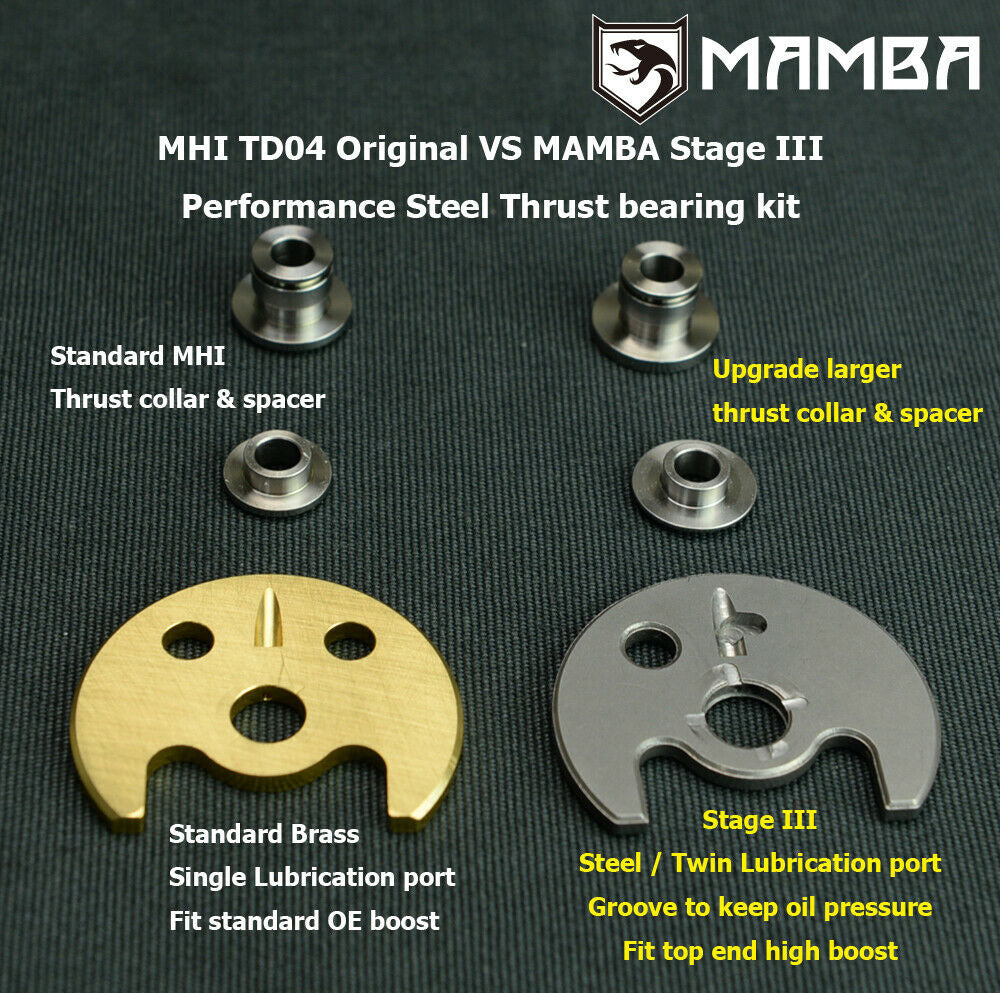

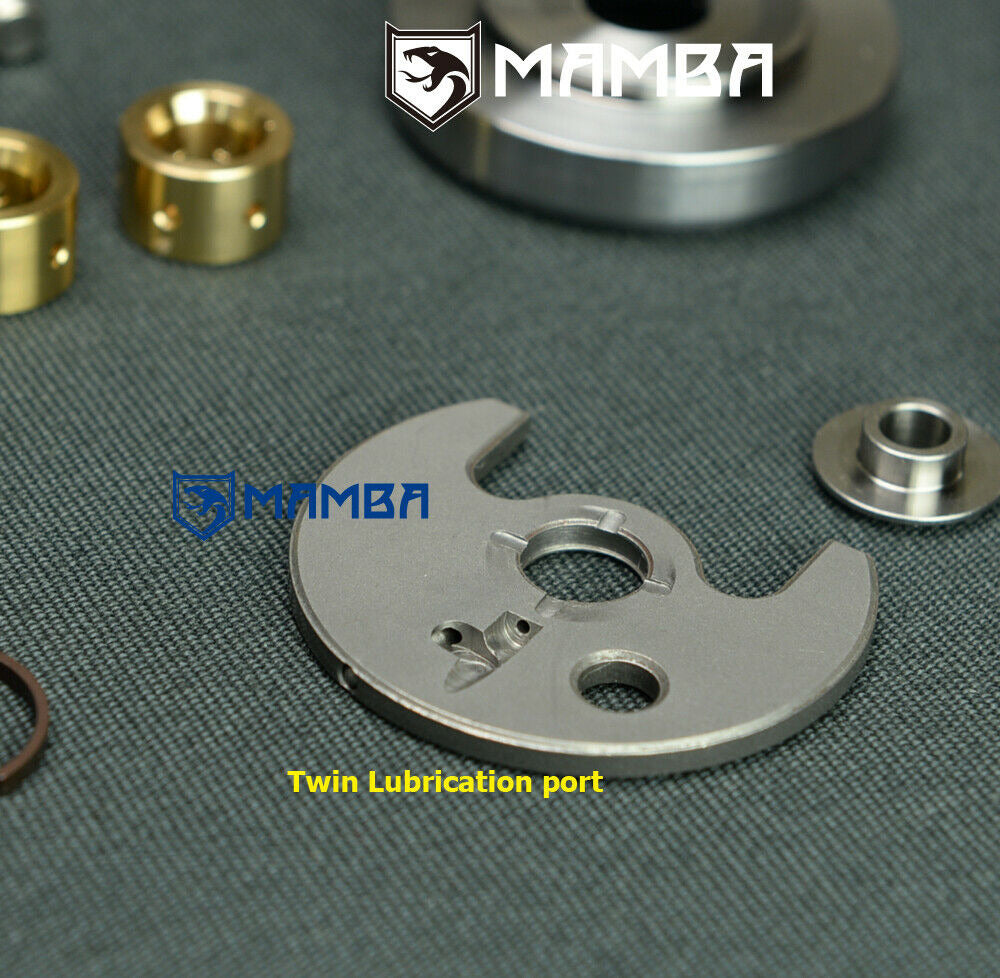

Heavy Duty Thrust Bearing Kit included.
Cooling
Oil & Water-cooled system

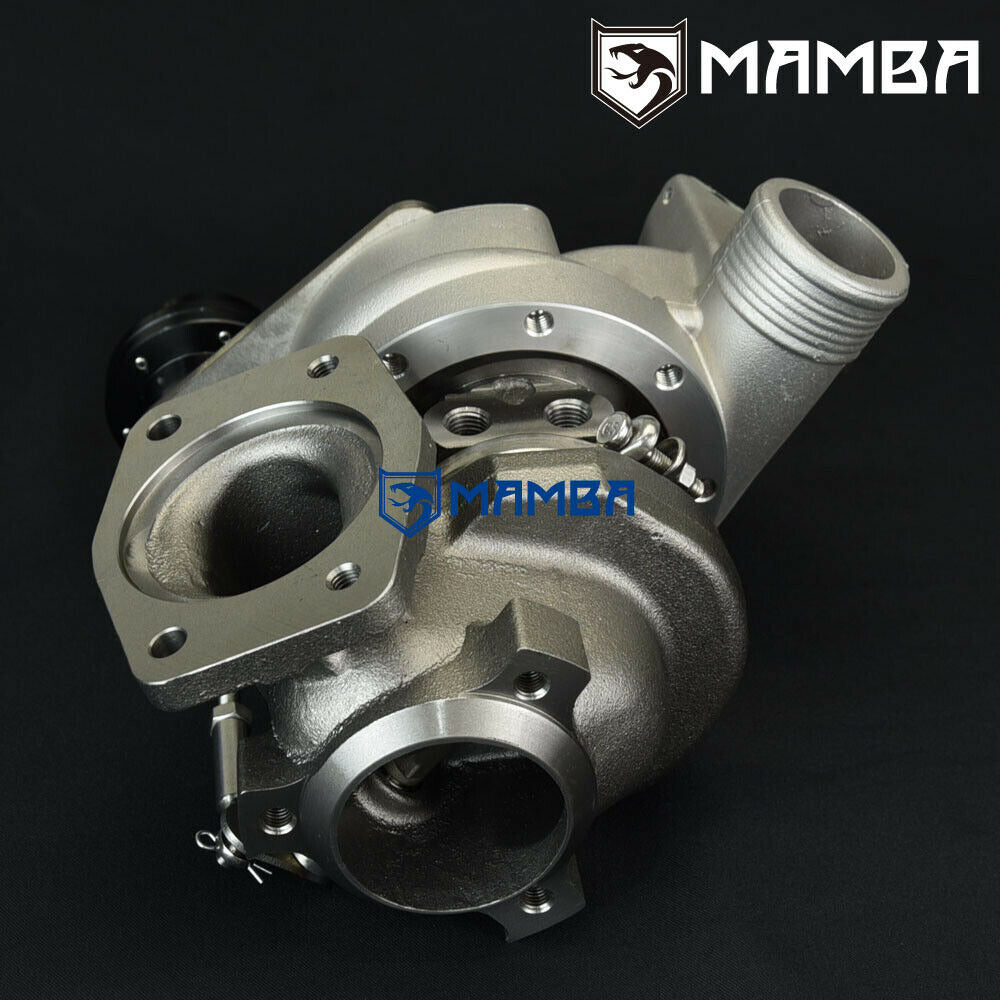

Turbine Housing
7cm (A/R .49) Conic Turbine Housing

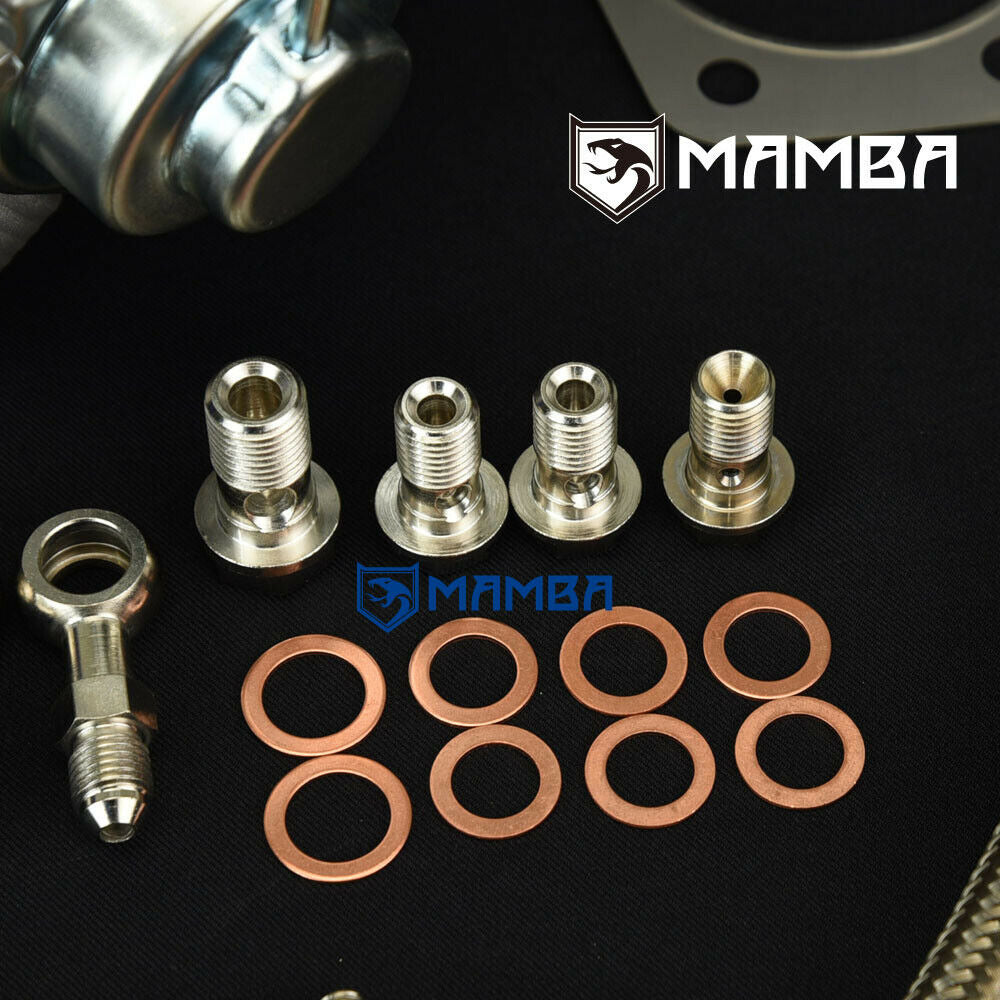

Kit Includes
1 x MAMBA Turbo
1 x 1/4” PTFE Oil Feed line with 2.5mm restrictor.
2 x 3/8” PTFE Water line
1 x 3/4” oil return flange
1 x SUS304 T3 Turbine Inlet Gasket

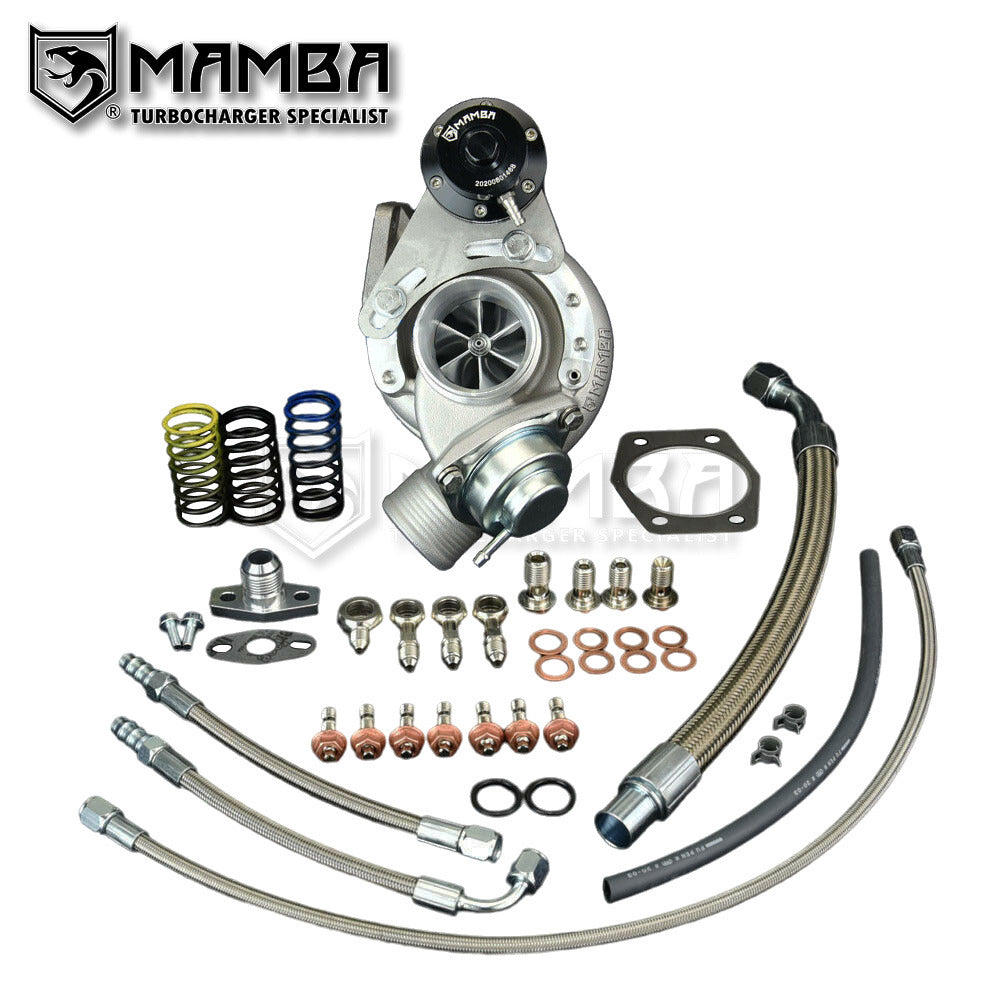

Everything shown on first picture is included.
