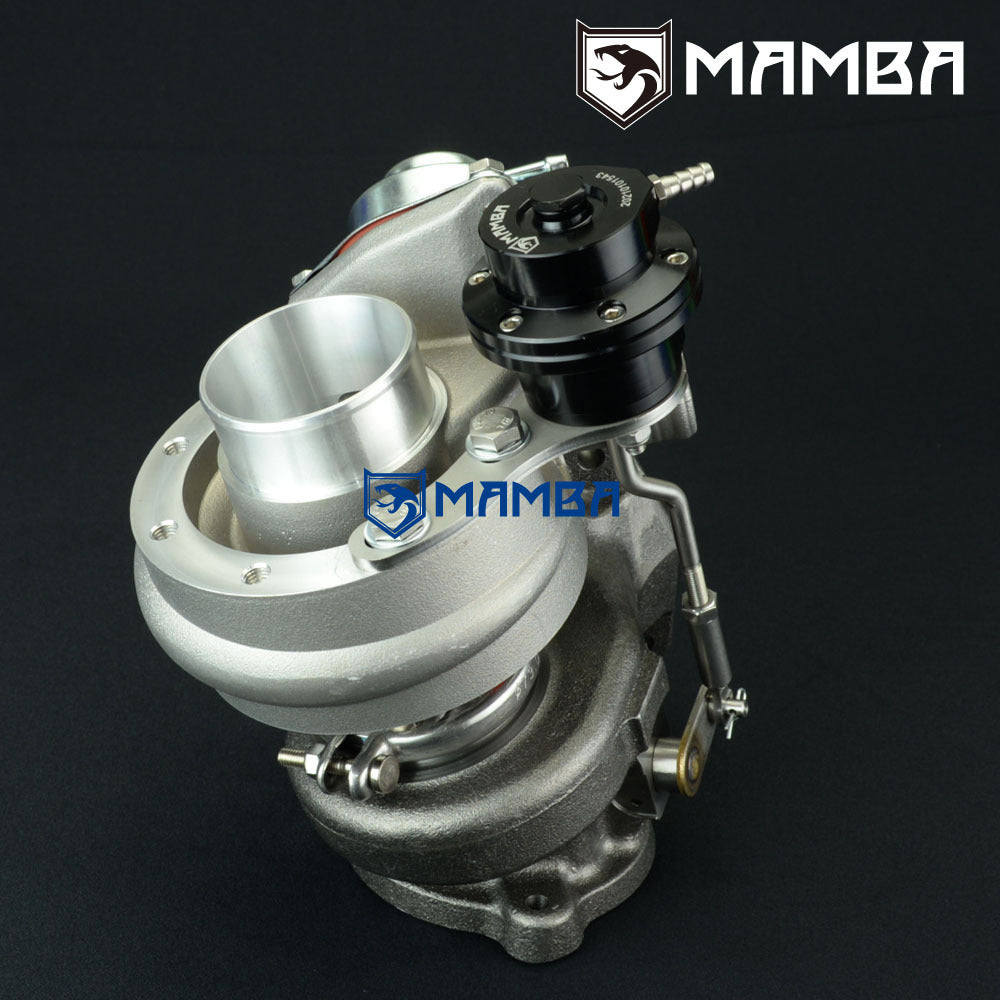

Heavy Duty 9-6 VOLVO S70 V70 TD04HLX-21TK 400HP
Regular price
$779.00
Sale price
$779.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

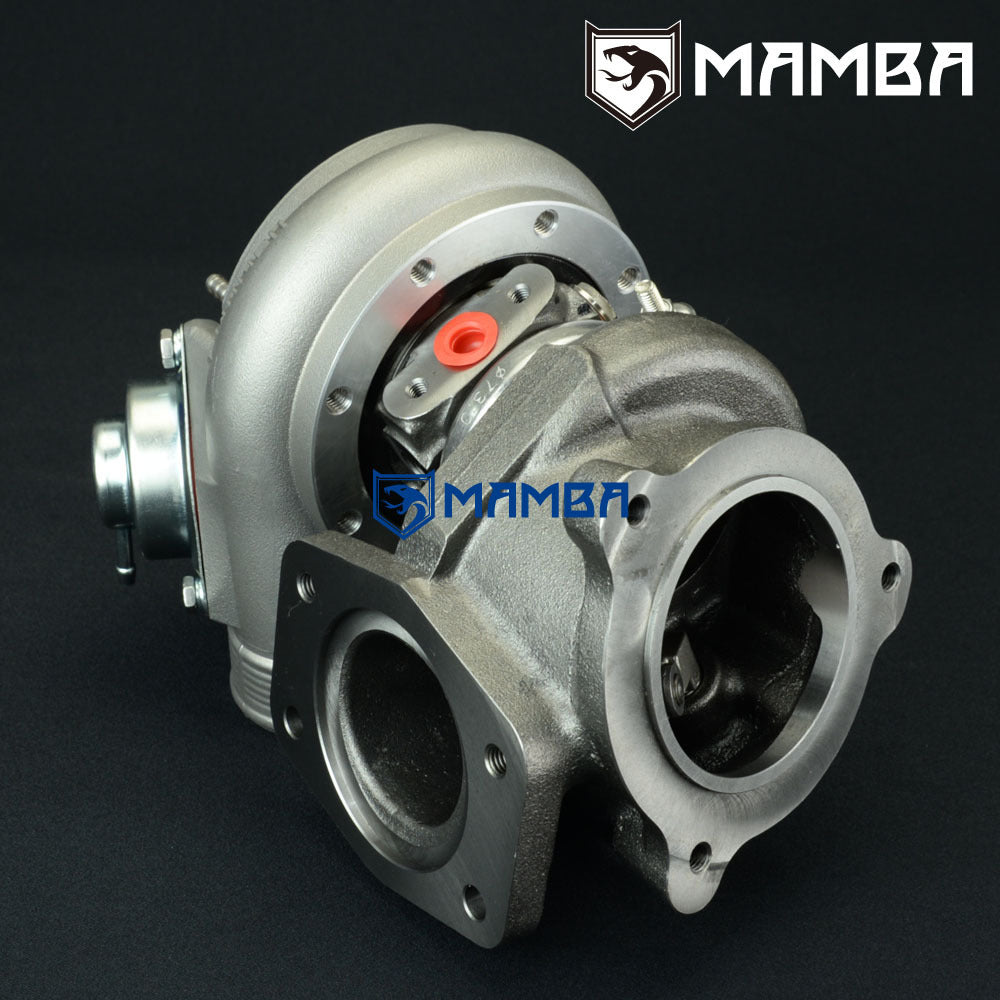

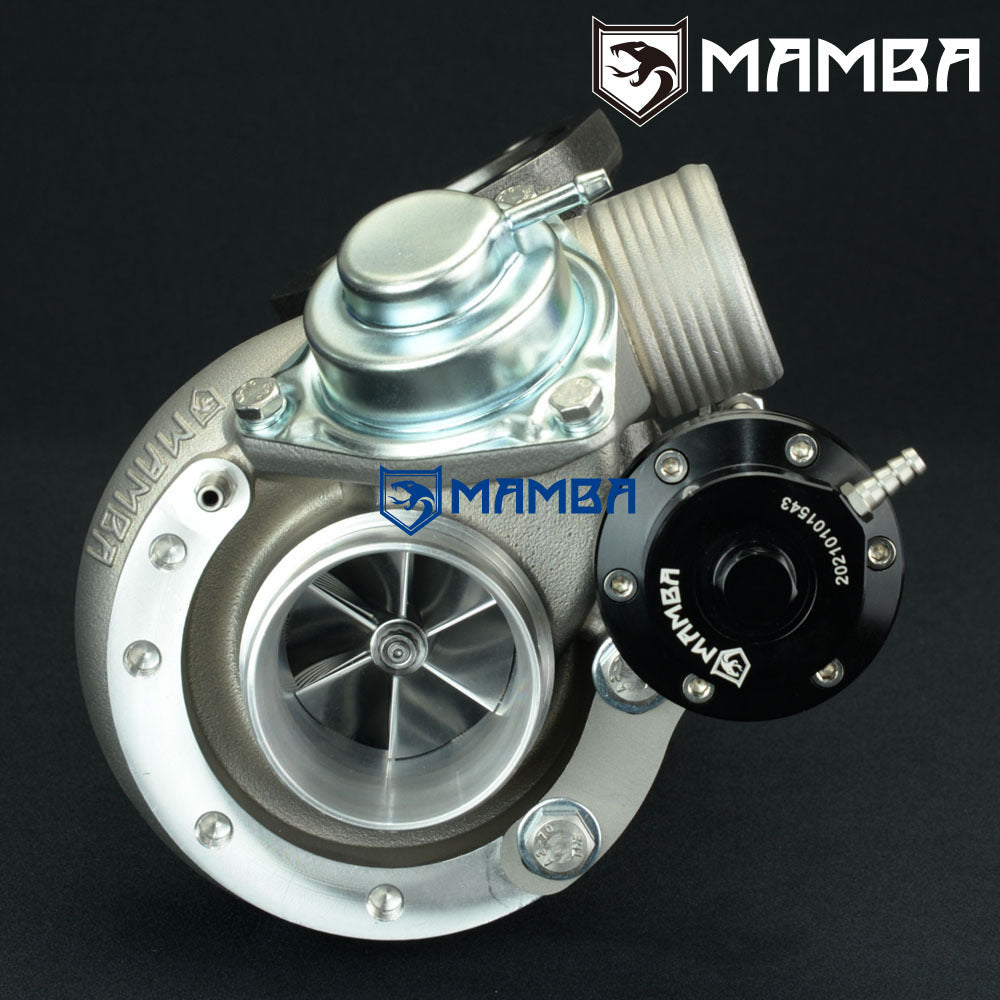

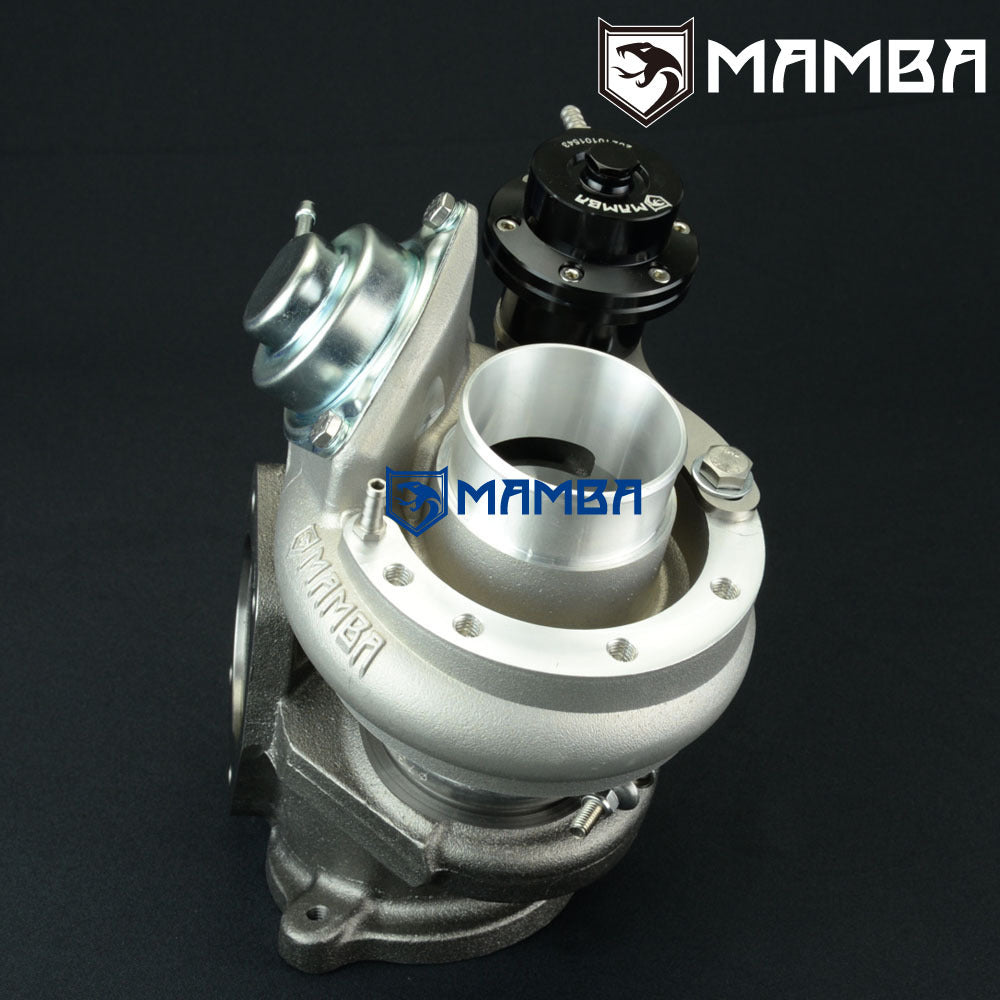

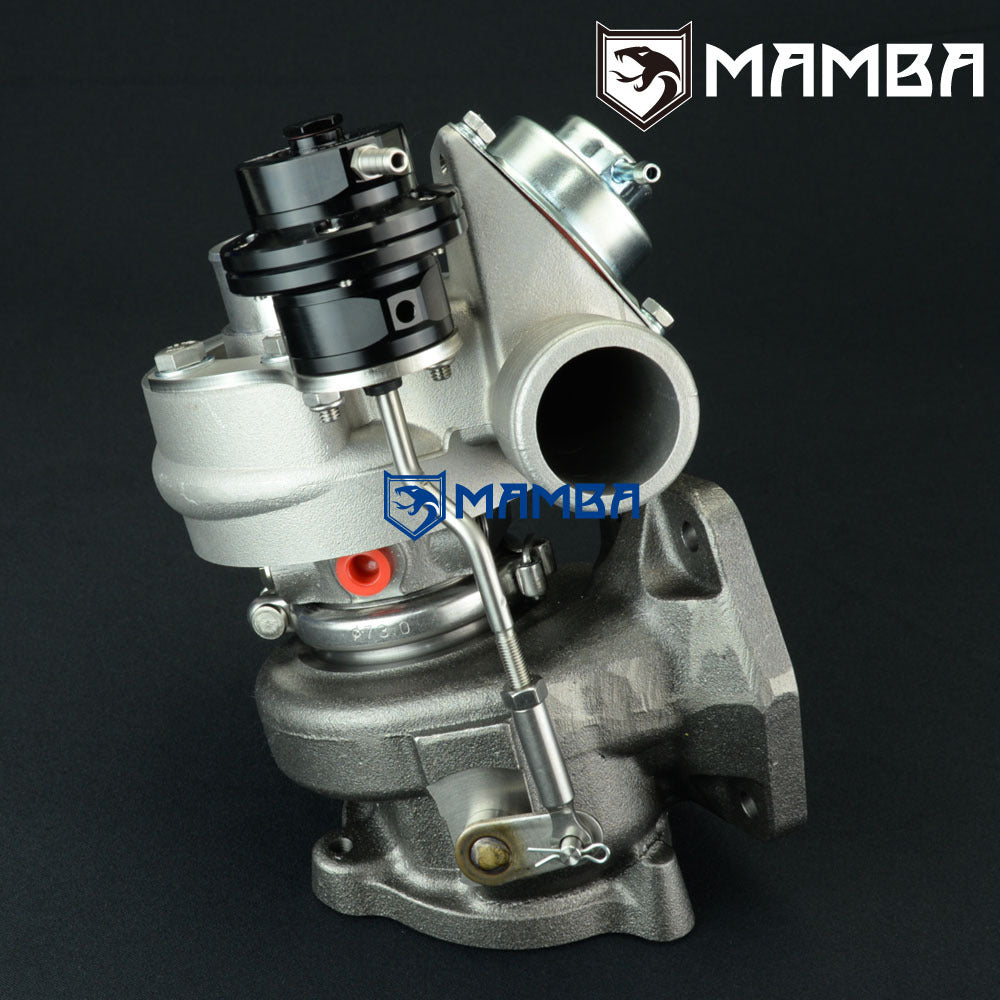

MAMBA 9-6 VOLVO TD04HLX-21TK-7 Heavy Duty Angled Turbocharger (400HP)
Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
HP Support: 350~400HP
Bolt-On upgrade turbo for VOLVO S60/S70/V70/C70/XC70 B5234/B5244/N2P25LT with factory TD04HL-13T/16T/18T/19T & angled turbine housing.
Replace & Upgrade factory turbo #: 49189-05000, 49189-05010, 49189-05100, 49189-05101, 49189-05102, 49189-05111, 49189-05112 (TD04HL-16T), 49189-05200, 49189-05201, 49189-05202, 49189-05210,49189-05211, 49189-05212 (TD04HL-13T), 49189-05300, 49189-05310 (TD04HL-18T), 49189-05400, 49189-05401, 49189-05410, 49189-05411 (TD04HL-19T).
Wheel Specs
Compressor Wheel : 49.6/61 mm (Performance 6+6 21TK Billet Wheel)

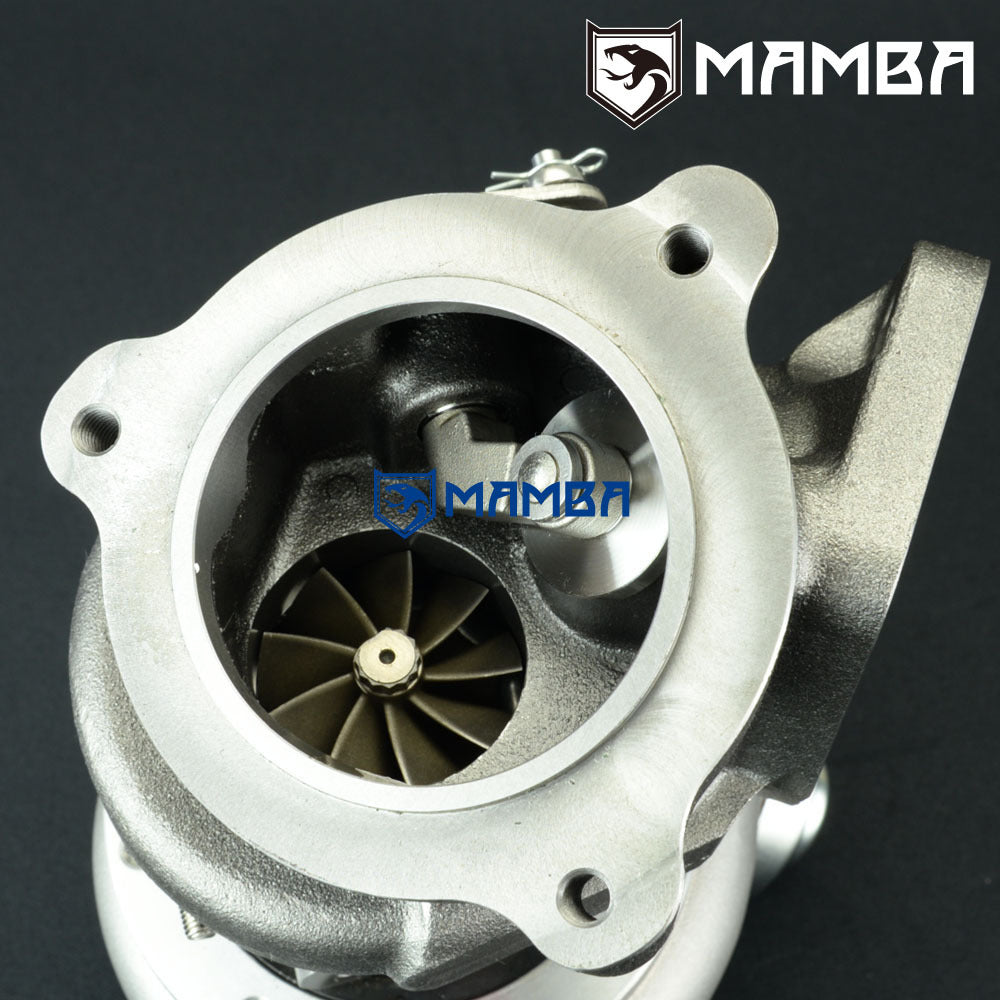

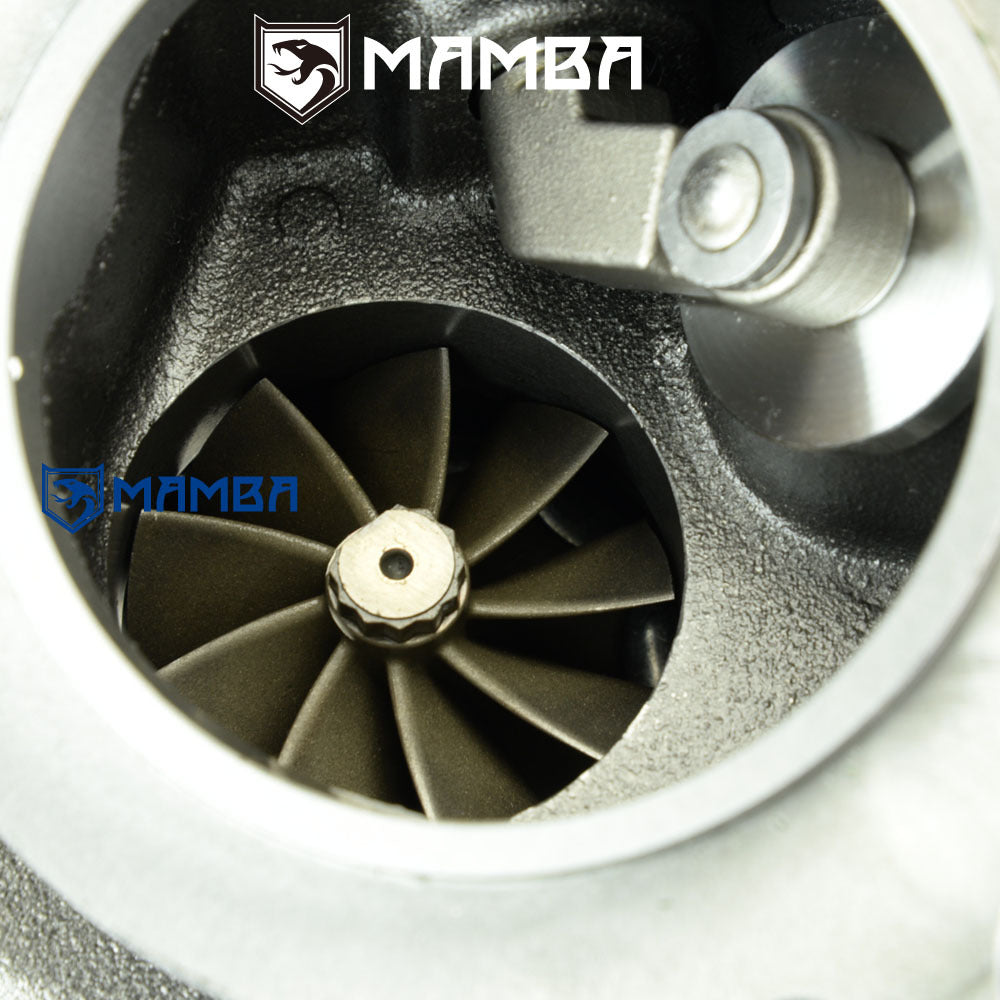

Turbine Wheel : 48/53mm (9 Blade TD04HLX High Flow)

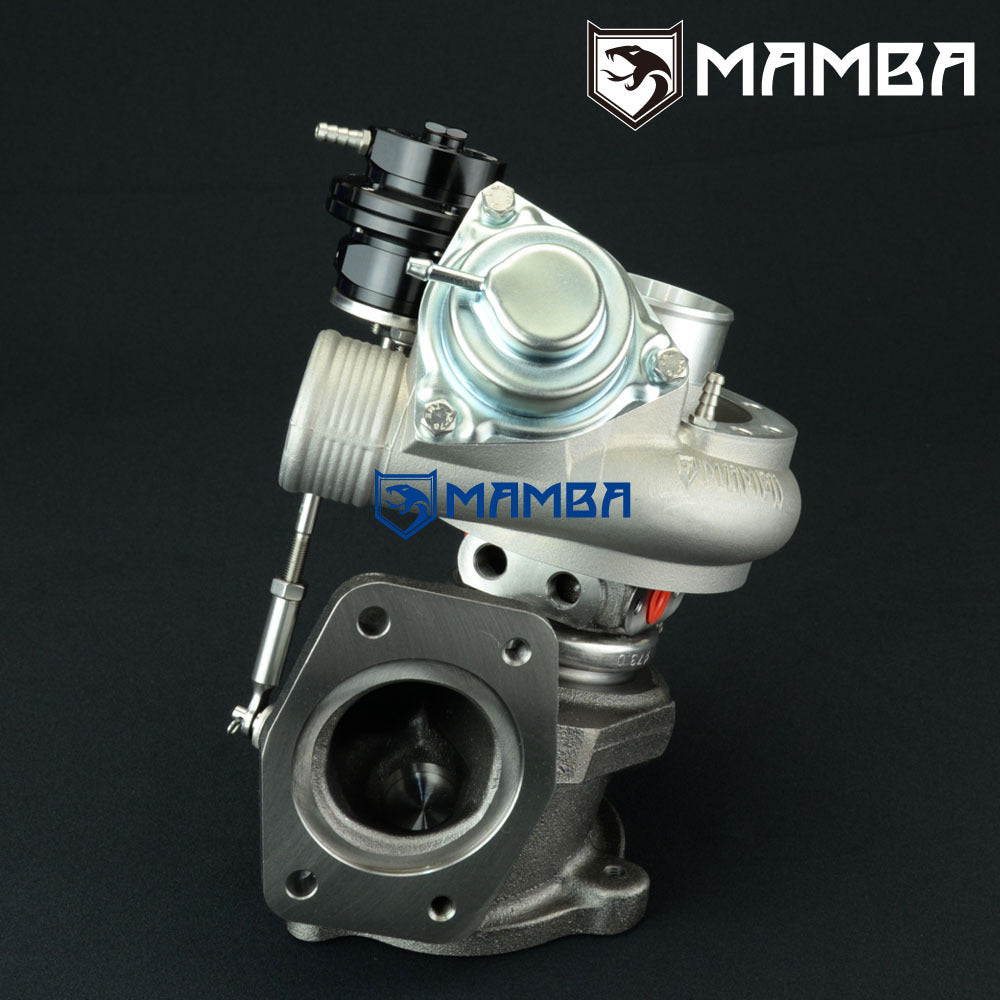

Turbine Housing
7cm (A/R .49) Angled Turbine Housing

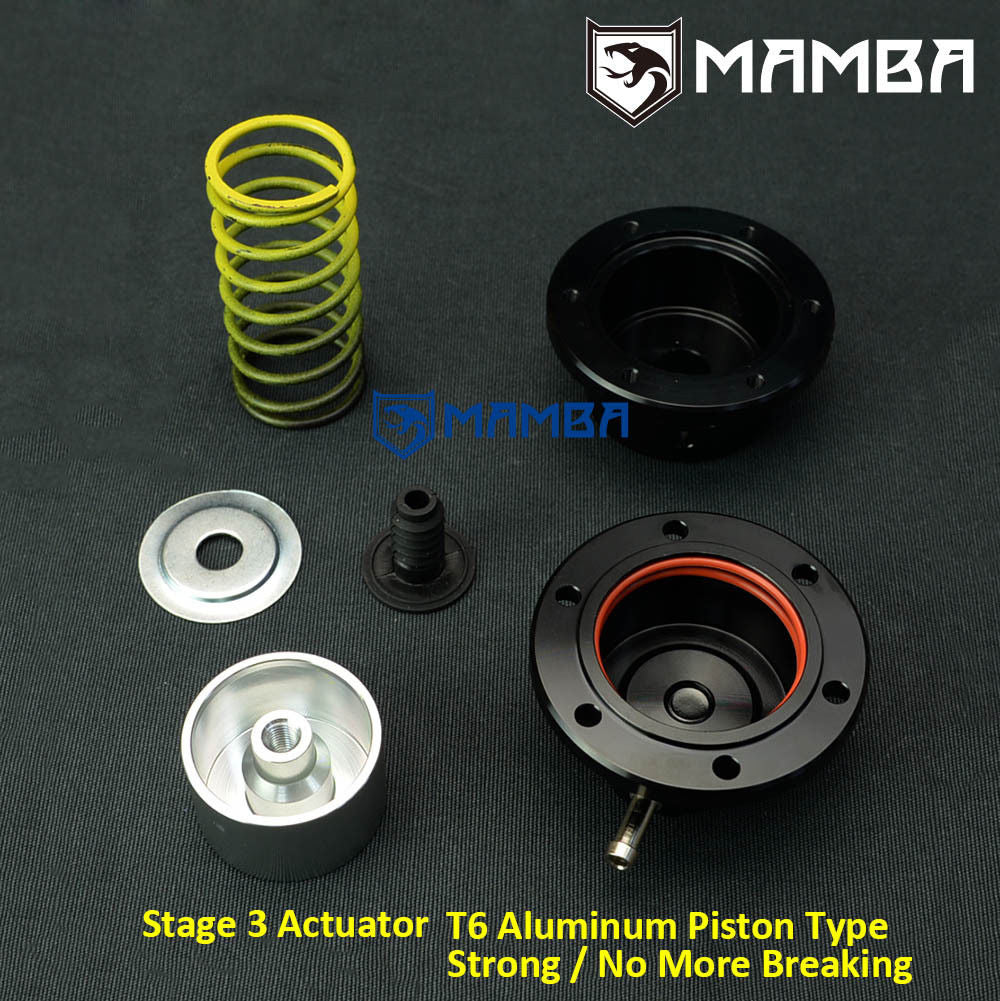

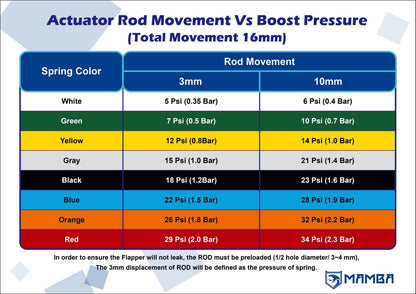

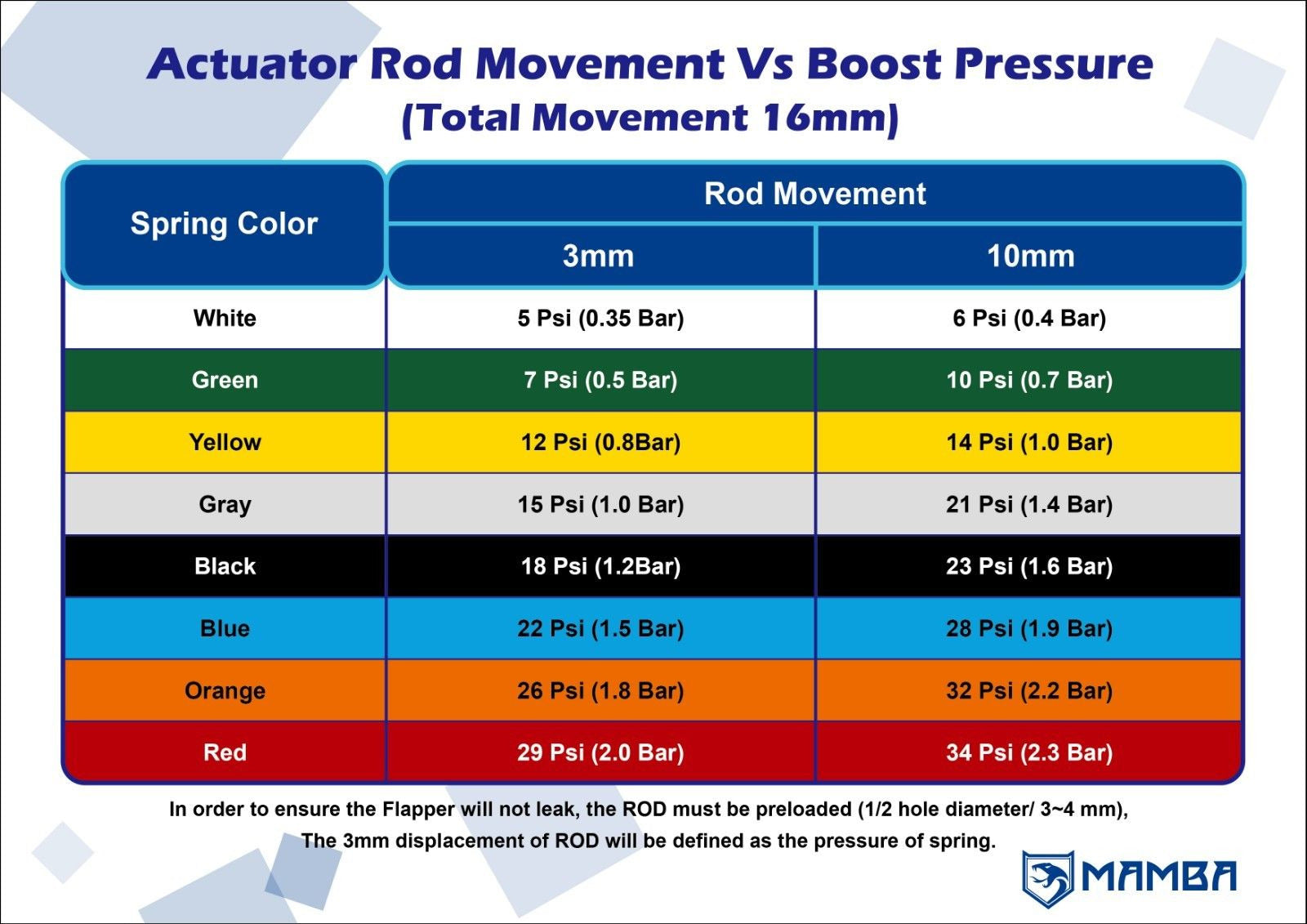

Actuator
0.8 Bar spring pre-installed.
Additional 1.2bar and 1.5Bar are included in box.
Bearing
Journal Bearing

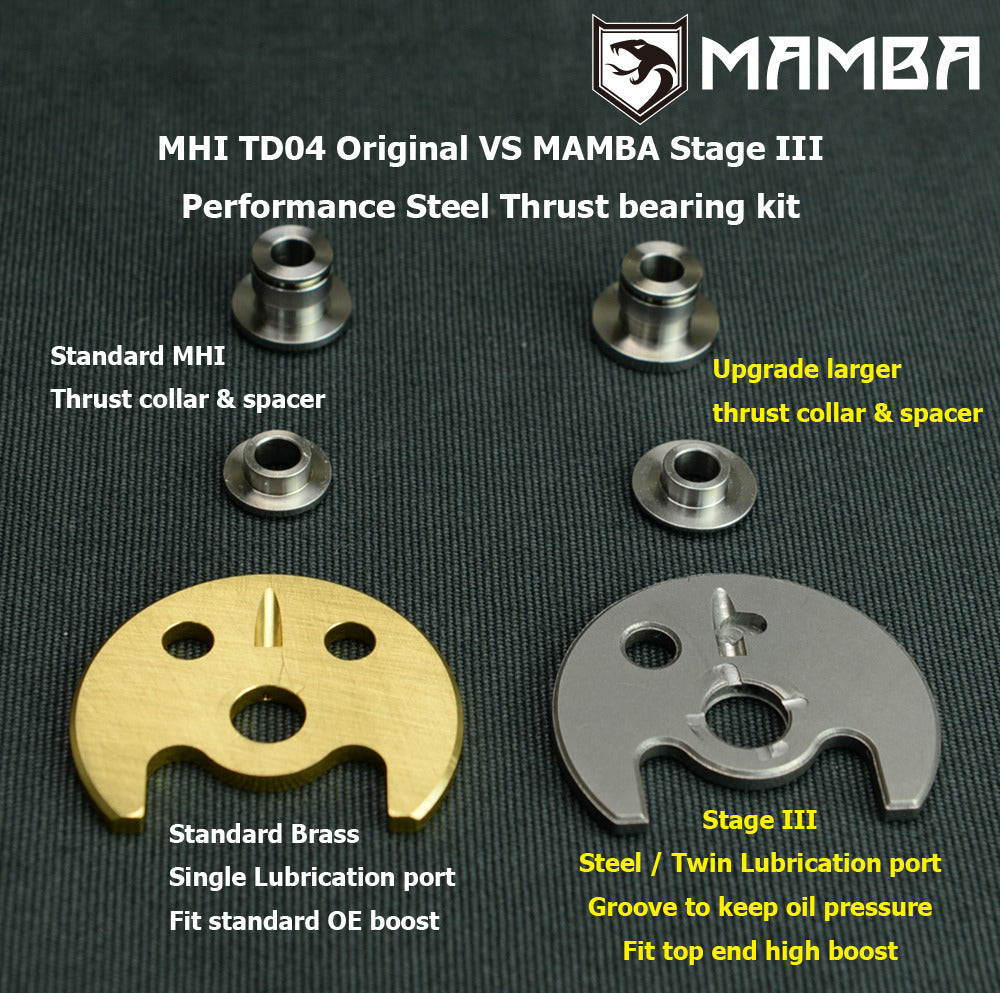

Heavy Duty Thrust Bearing Kit included.
Cooling
Oil & Water-Cooled

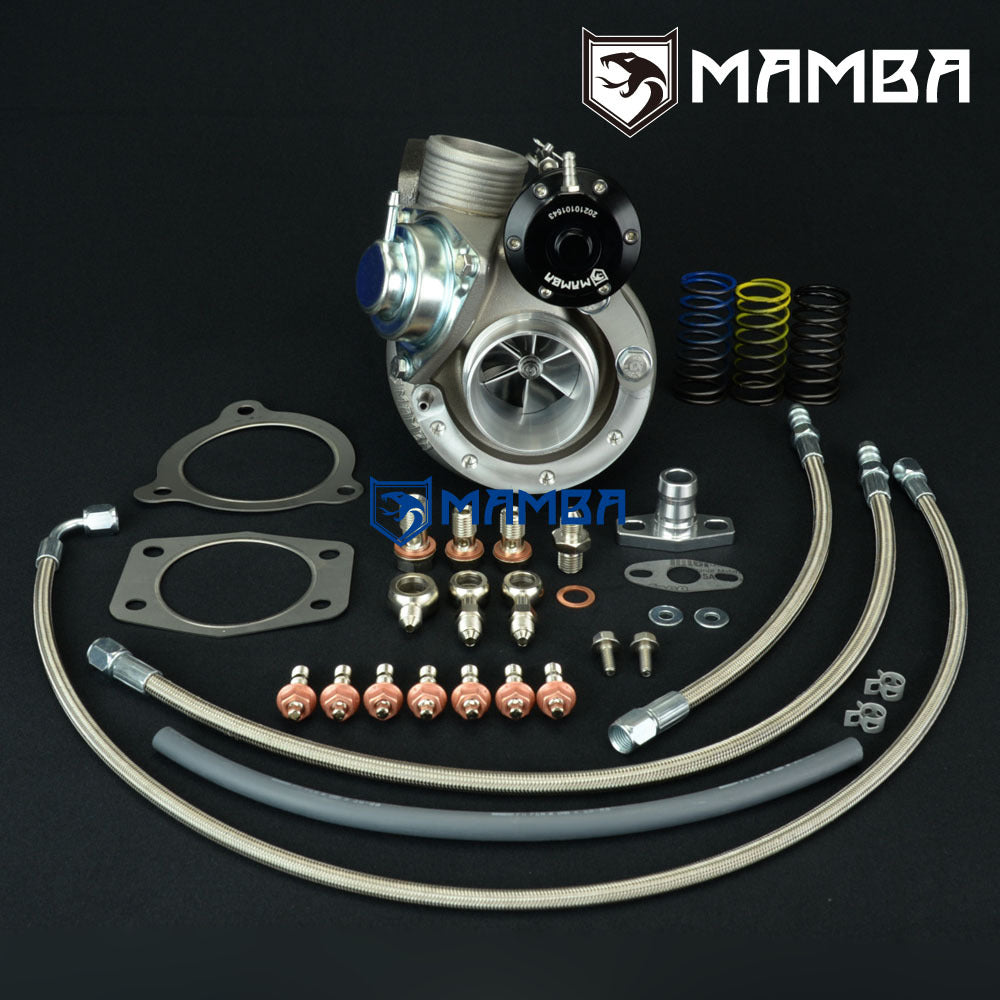

Kit Includes
1 x MAMBA Turbo
1 x 1/4” PTFE Oil Feed line with 2.5mm restrictor.
2 x 5/16” PTFE Water line
1 x 3/4” Oil Return flange
1 x SUS304 T3 Turbine Inlet Gasket
1 x SUS304 Turbine Outlet Gasket
7 x 8mm Stud Kit
Everything shown on picture is included
