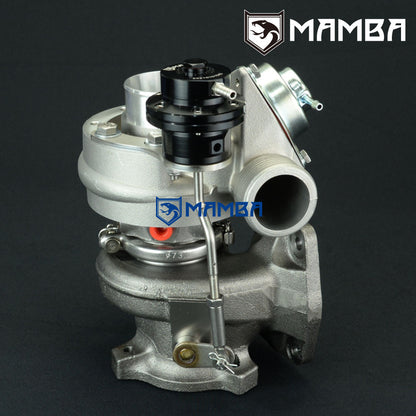

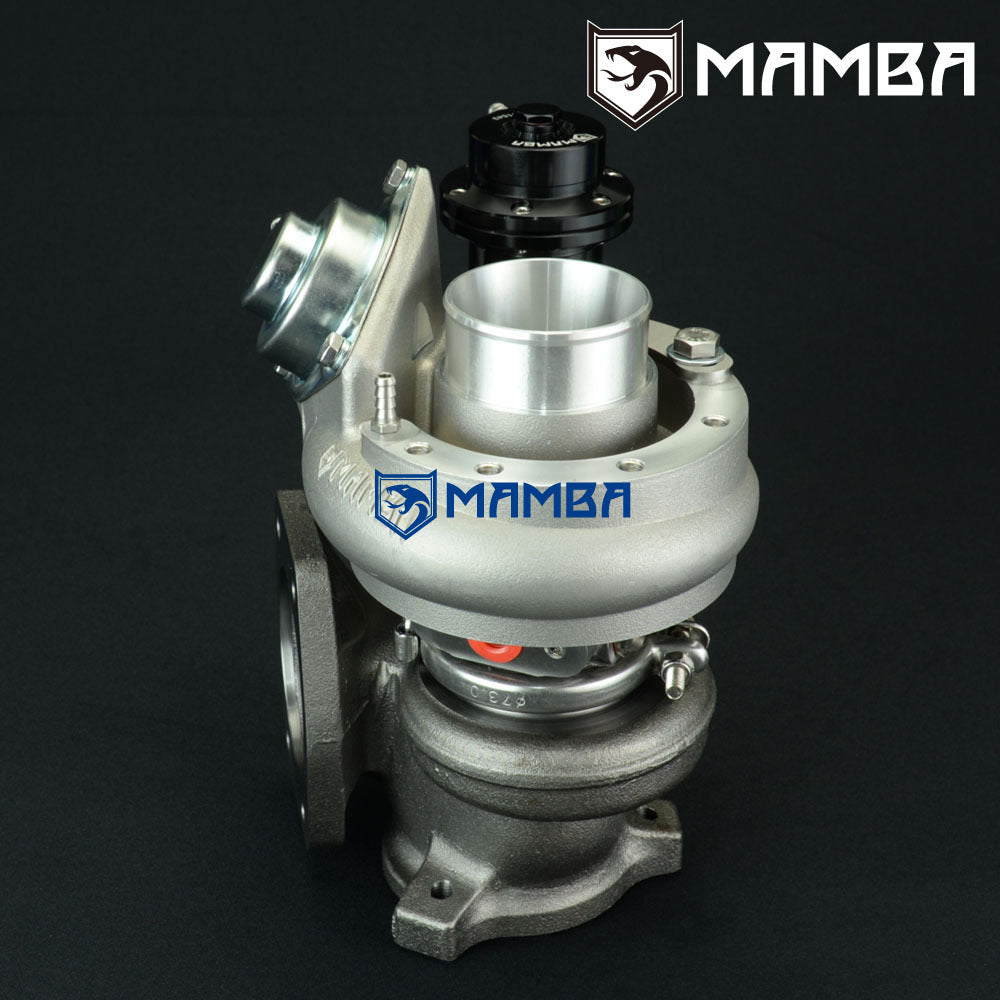

Heavy Duty 9-6 VOLVO S70 V70 TD04HLX-21TK 400HP
Regular price
$779.00
Sale price
$779.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

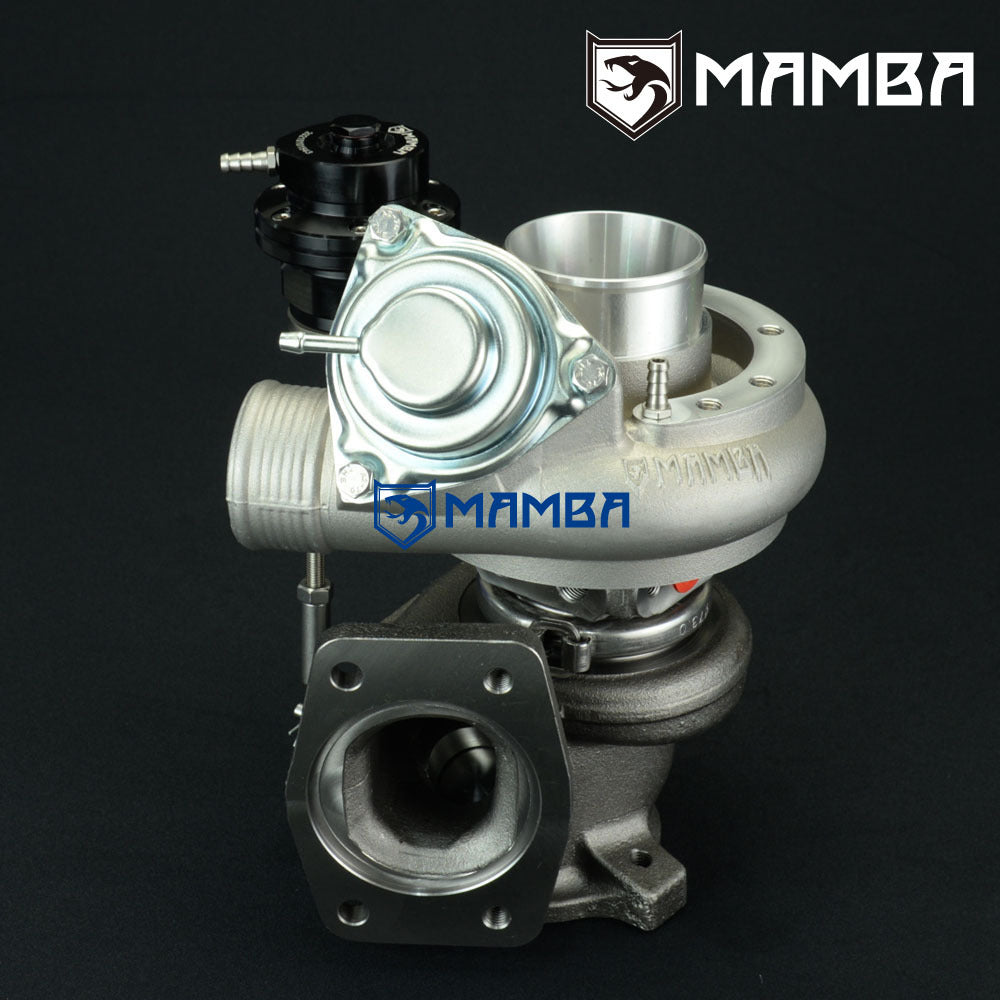

MAMBA 9-6 VOLVO TD04HLX-21TK-7 Heavy Duty Straight Turbocharger (400HP)
Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany.
Application
HP Support: 350~400HP
Bolt-On upgrade turbo for VOLVO 850/S60/S70/V70/XC70/C70/T5-R B5234/T3/T4/T6, B5254T/T2, N2P20FT,N2P20LT, N2P23FT, N2P23HT, N2P25LT with factory TD04HL-13G/15G/16T/18T & Straight turbine housing.
Replace & Upgrade factory turbo #: 49189-01310, 49189-01320 (TD04HL-15G), 49189-01330, 49189-01335, 49189-01350, 49189-01355 (TD04HL-16T), 49189-01360, 49189-01365, (TD04HL-13G), 49189-01370, 49189-01375 (TD04HL-18T), 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435 (TD04HL-13T), 49189-01450, 49189-01455 (TD04HL-16T-6)
1998- Volvo S70 with N2P23FT Engine
1998- Volvo XC70 with B5254T Engine
1996- Volvo 850 with N2P23FT Engine
Volvo S70, V70 T5, with B5234 Engine
1997- Volvo 850, C70 with N2P23HT Engine
1996- Volvo 850 Engine B5254T
1996- Volvo C70 I 2.4L T5 Engine B5254T
1996- Volvo S70 2.5L T5 Engine B5254T
1996- Volvo V70 2.5L T5 Engine B5254T
1998- Volvo S70, XC70 Car with B5254T2 Engine
1998- Volvo S60 T5, S70R, V70R with N2P23HTR Engine
2000- Volvo S60 with B2534 T4 Engine
1997- Volvo 850 T5 with N2P20FT Engine (49189-01400)
1996- Volvo 850 with N2P20FT, N2P20LT Engine (49189-01420)
1998~2005 Volvo C70 with B5204 T3 engine (49189-01450, 49189-01455)
Wheel Specs

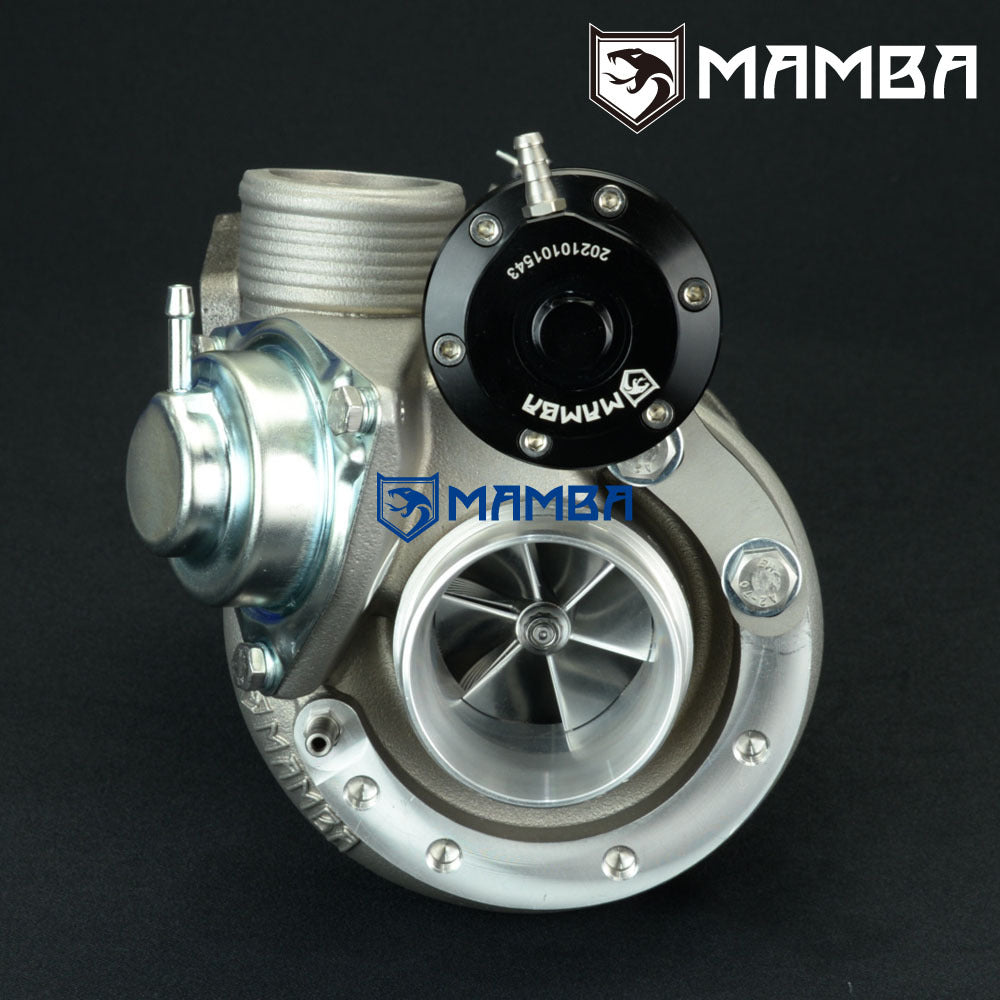

Compressor Wheel : 49.6/61 mm (Performance 6+6 21TK Billet Wheel)

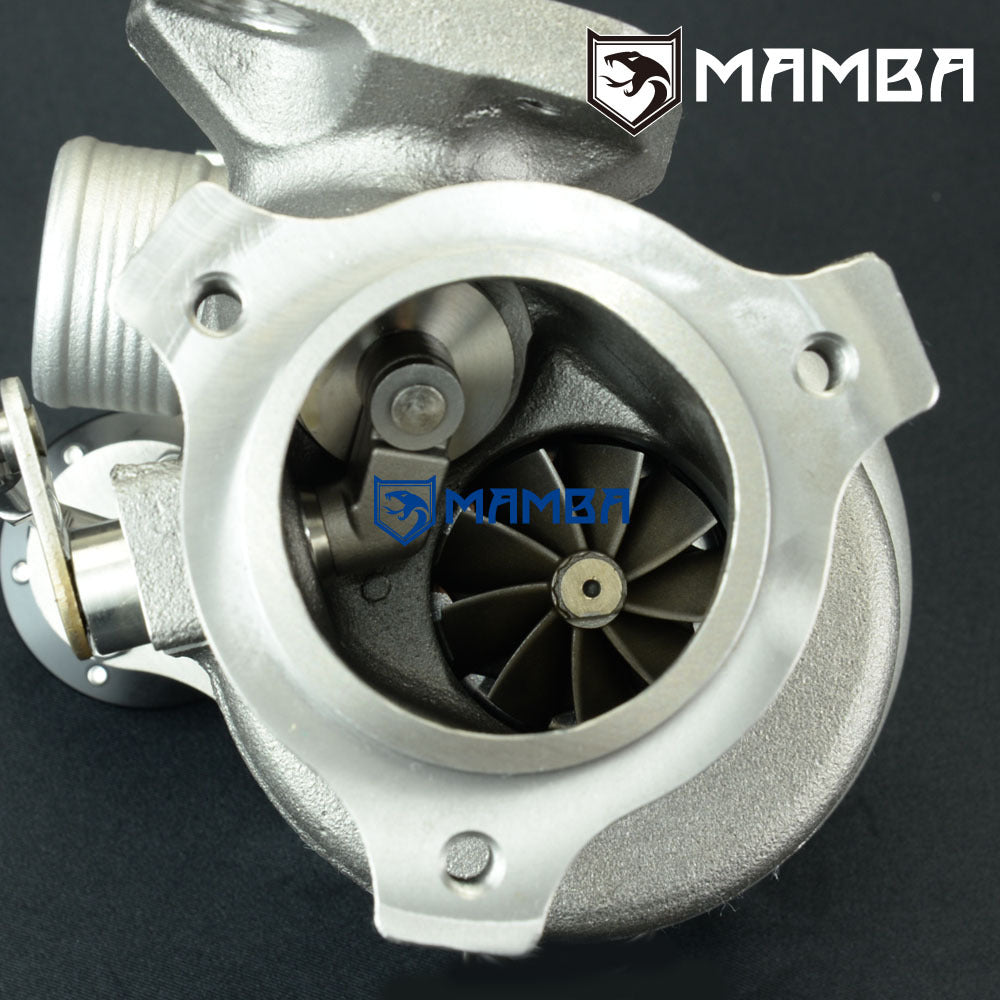

Turbine Wheel : 48/53mm (9 Blade TD04HLX High Flow)

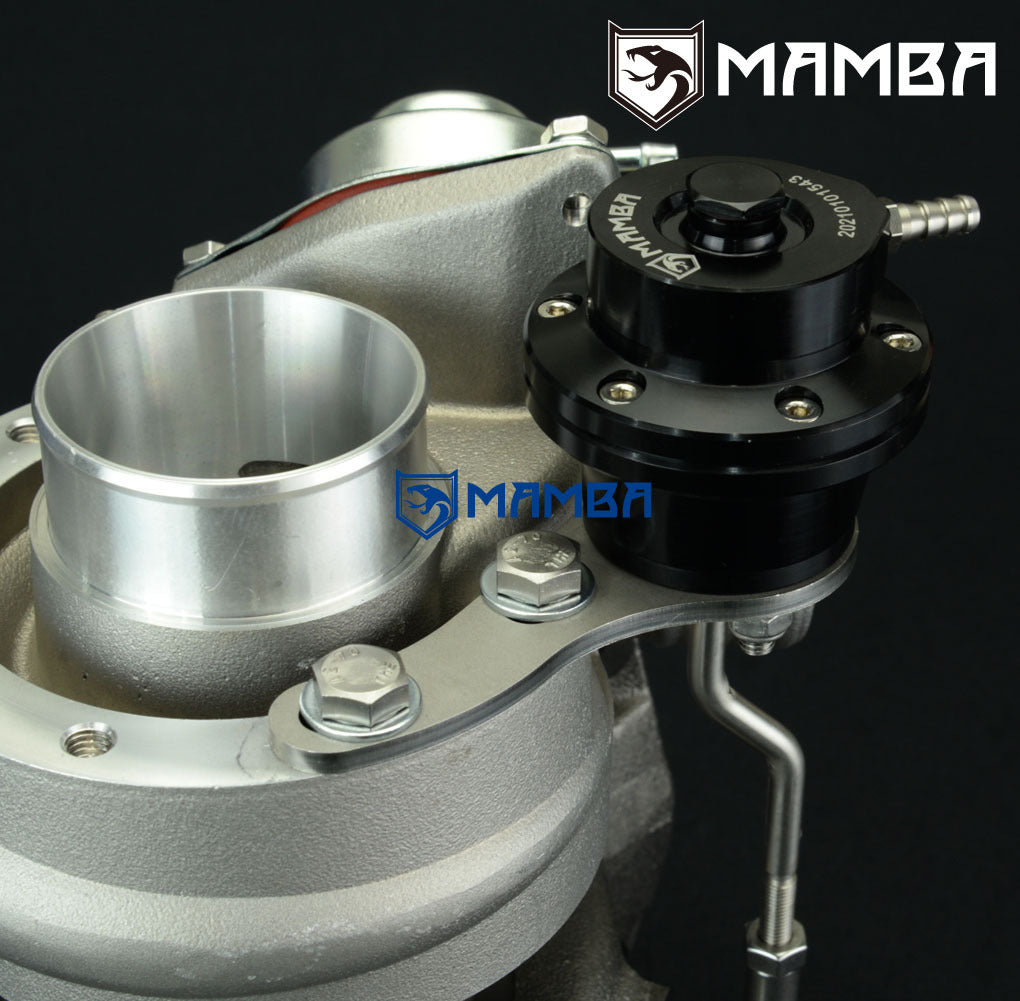

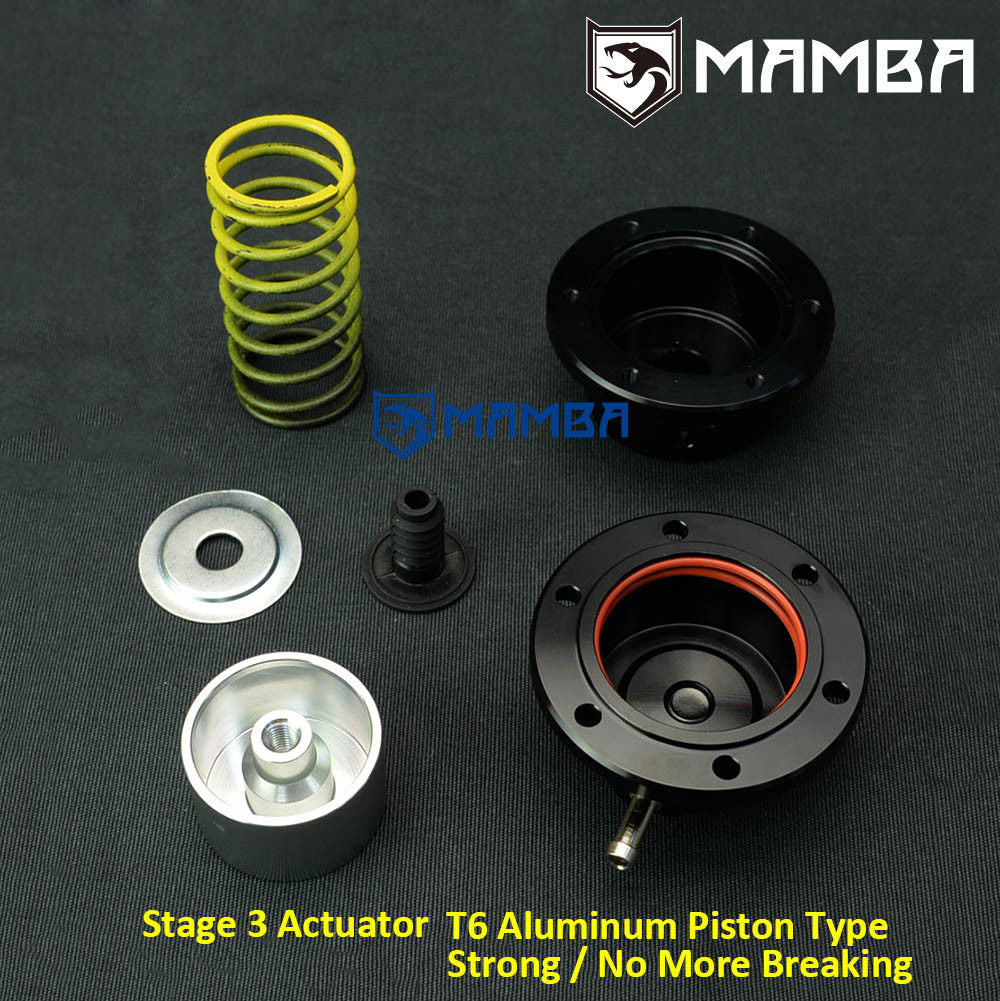

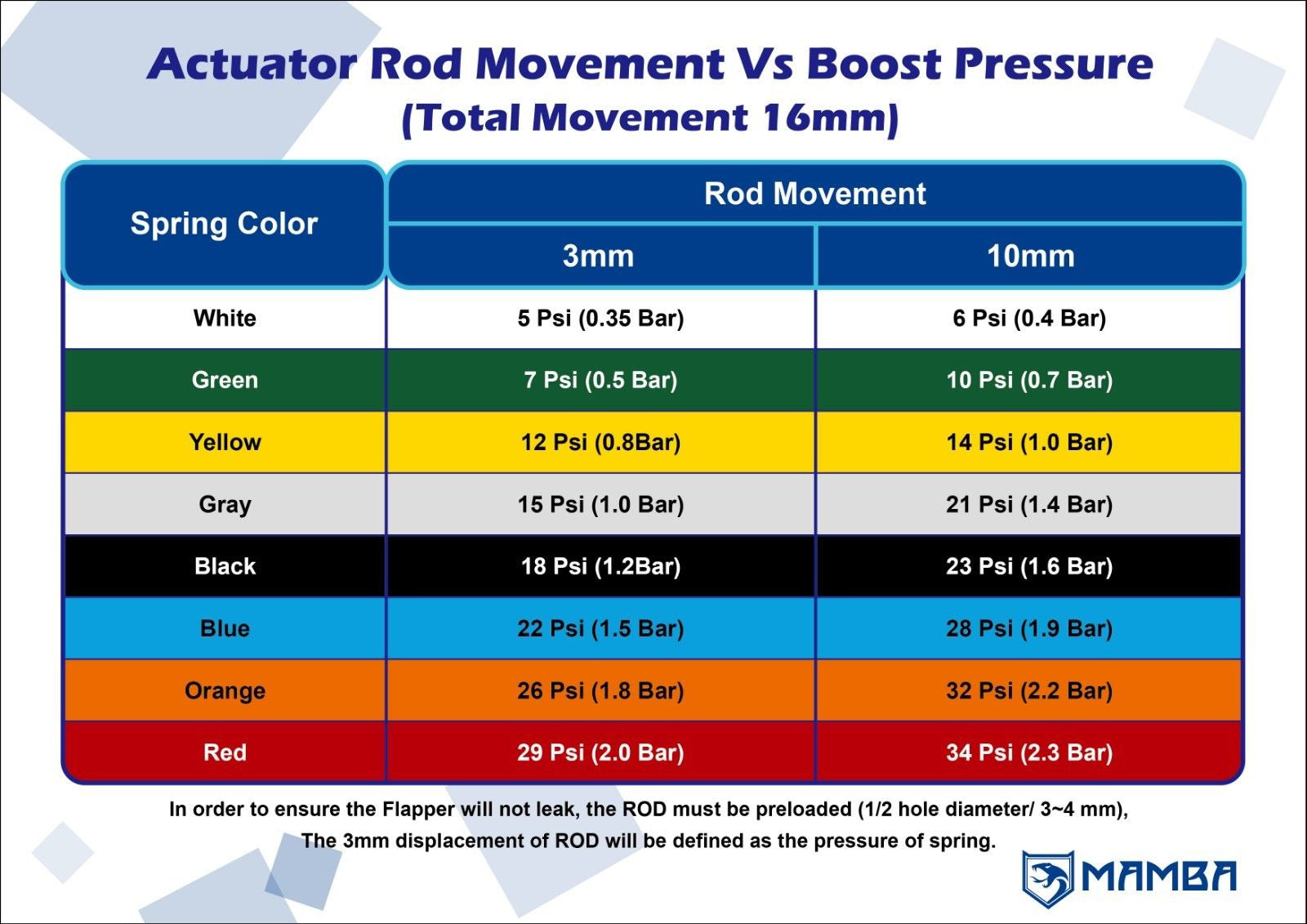

Actuator
0.8 Bar spring pre-installed.
Additional 1.2bar and 1.5Bar are included in box.

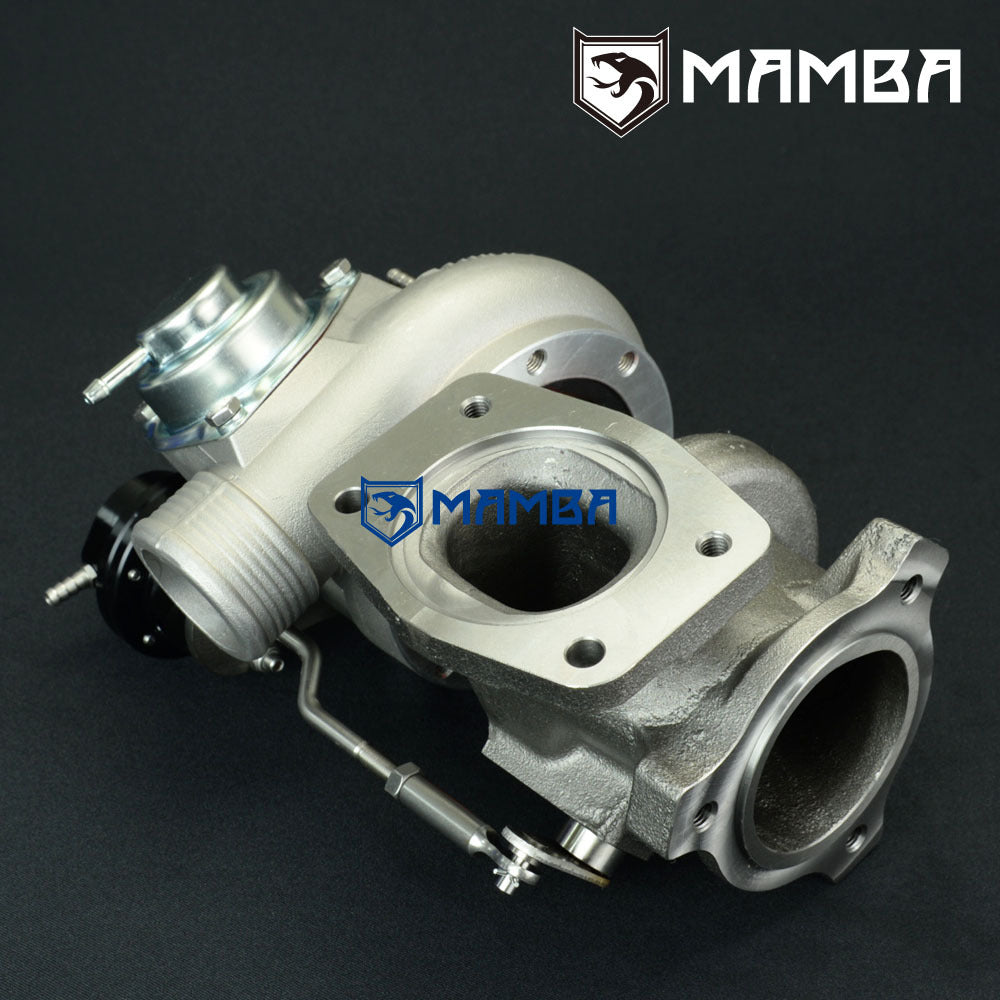

Turbine Housing
7cm (A/R .49) Straight Turbine Housing
Bearing
Journal Bearing

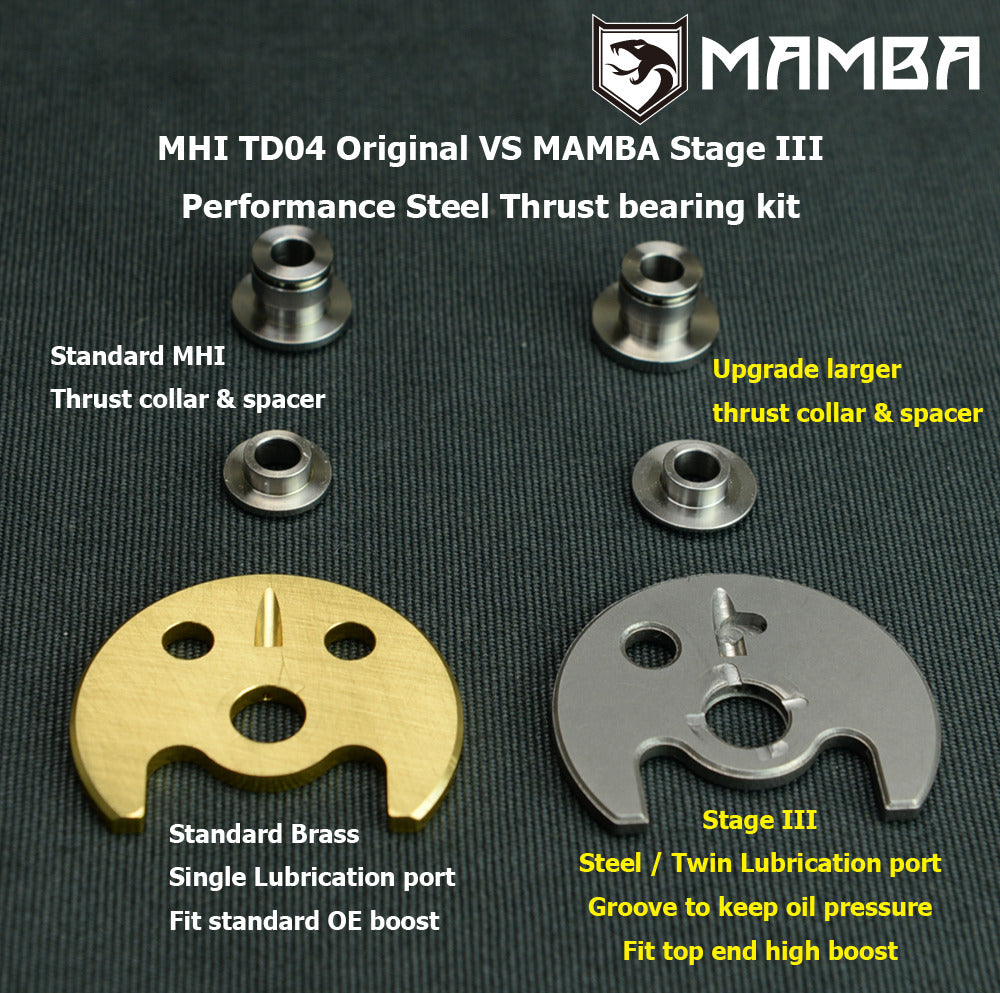

Heavy Duty Thrust Bearing Kit included.
Cooling
Oil & Water-Cooled

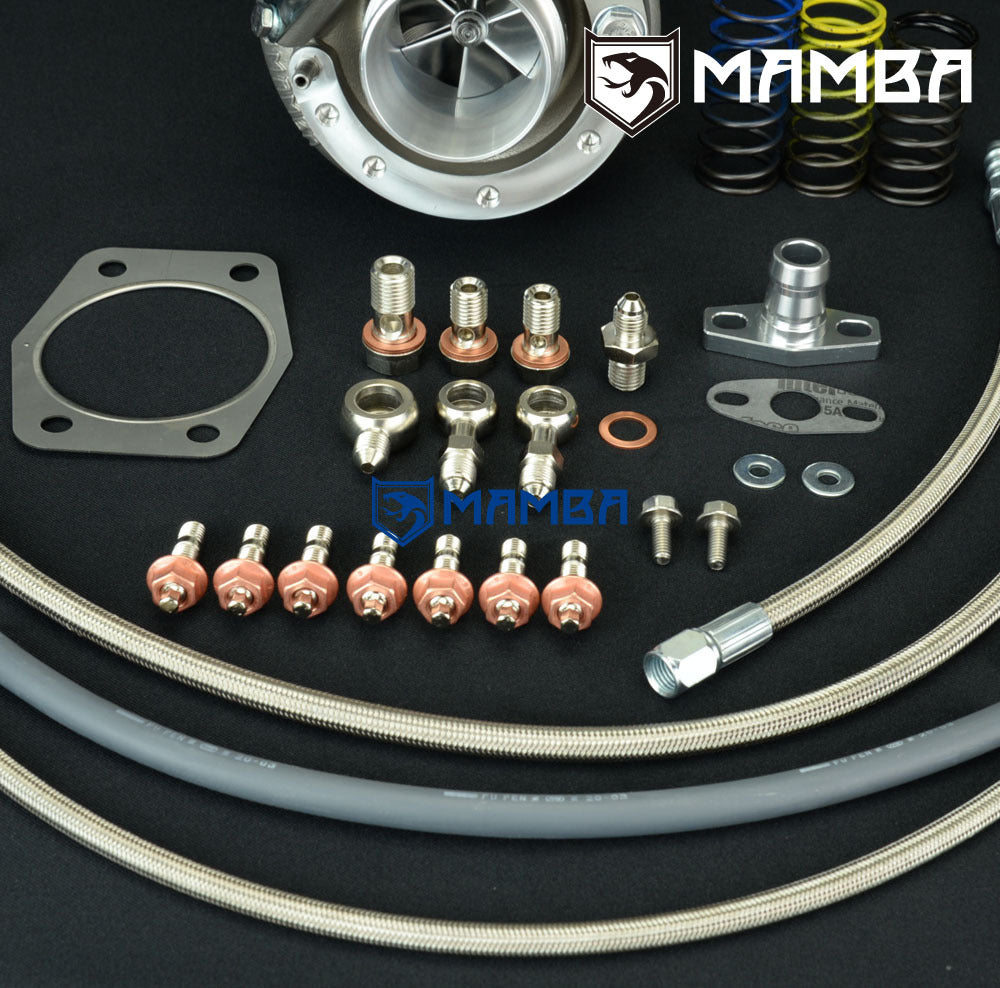

Kit Includes
1 x MAMBA Turbo
1 x 1/4” PTFE Oil Feed line with 2.5mm restrictor.
2 x 5/16” PTFE Water line
1 x 3/4” Oil Return flange
1 x SUS304 T3 Turbine Inlet Gasket
1 x SUS304 Turbine Outlet Gasket
7 x 8mm Stud Kit

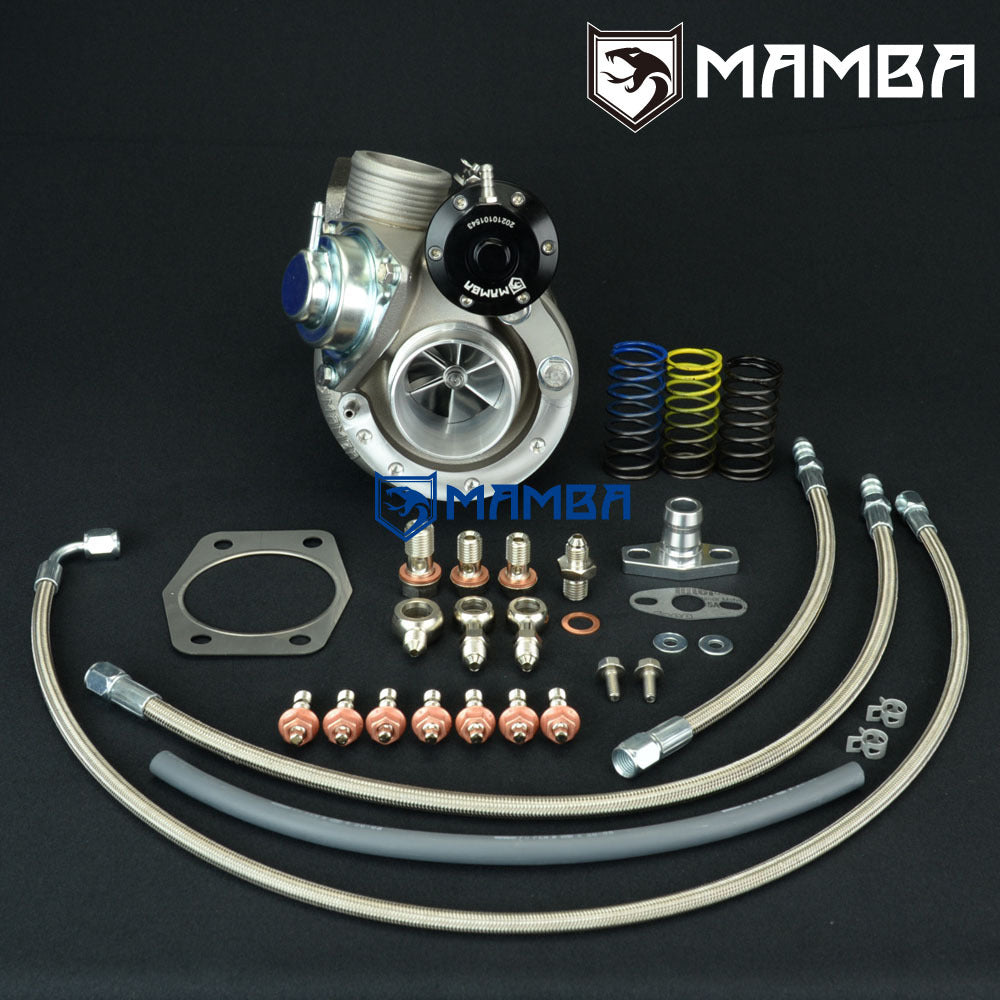

Everything shown on first picture is included.
