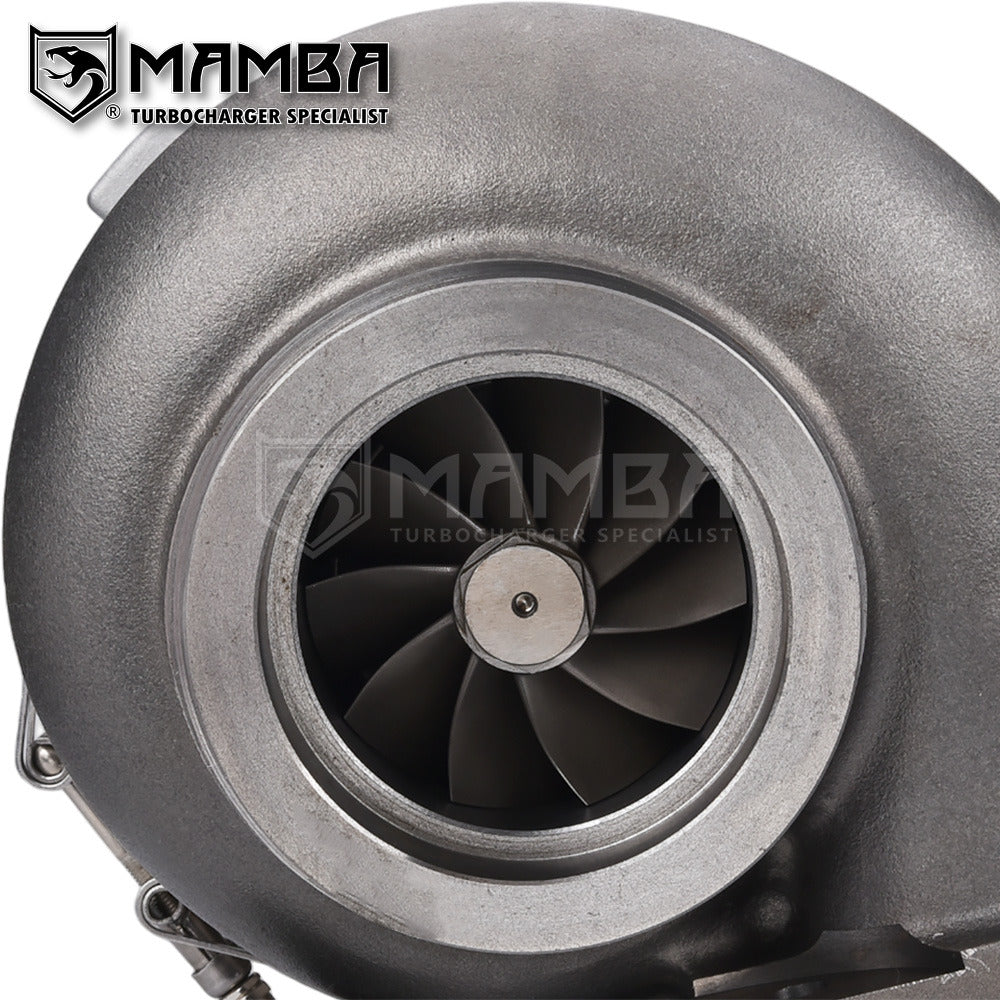

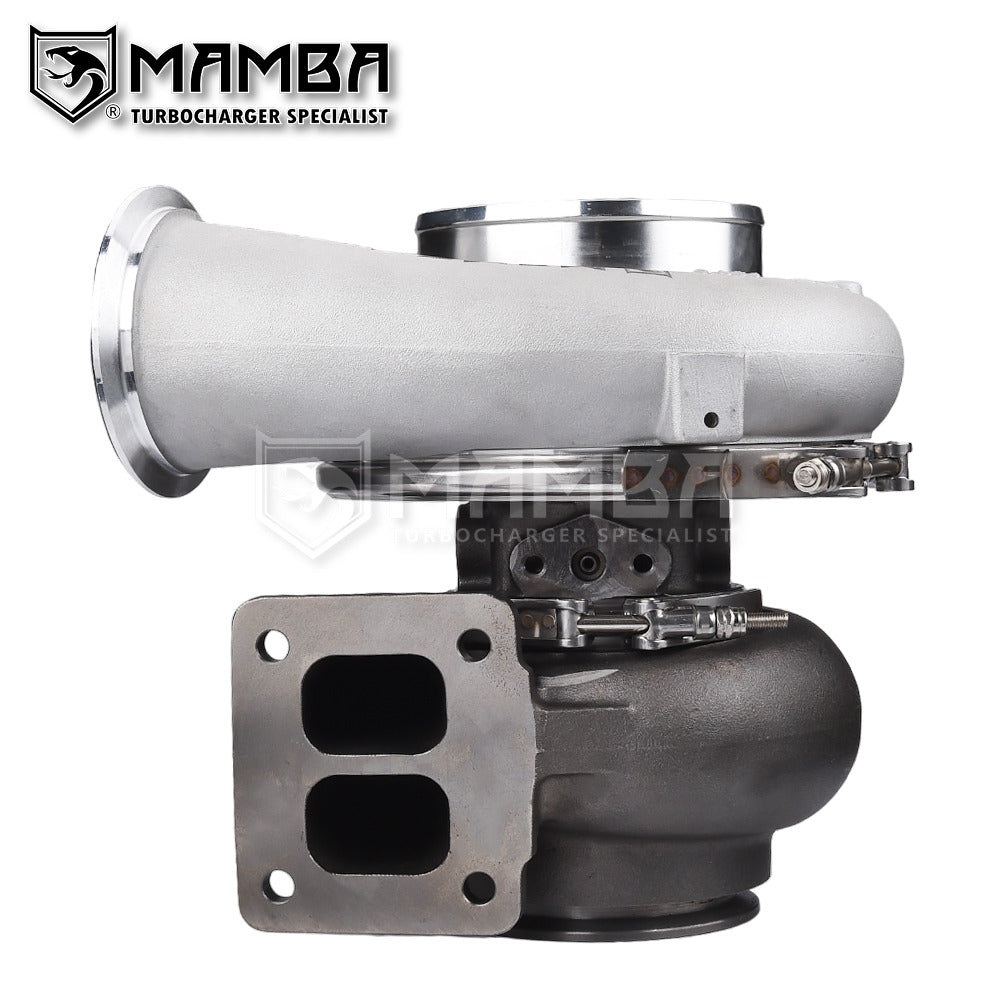

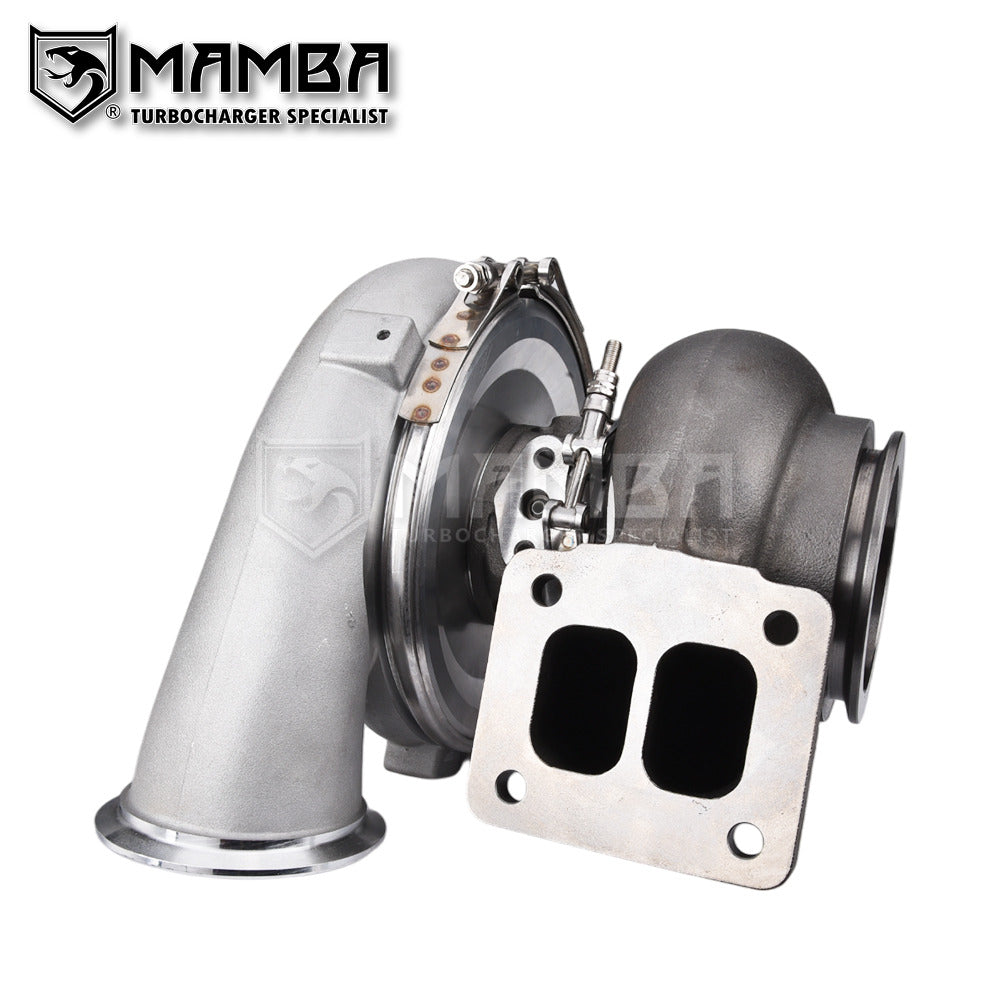

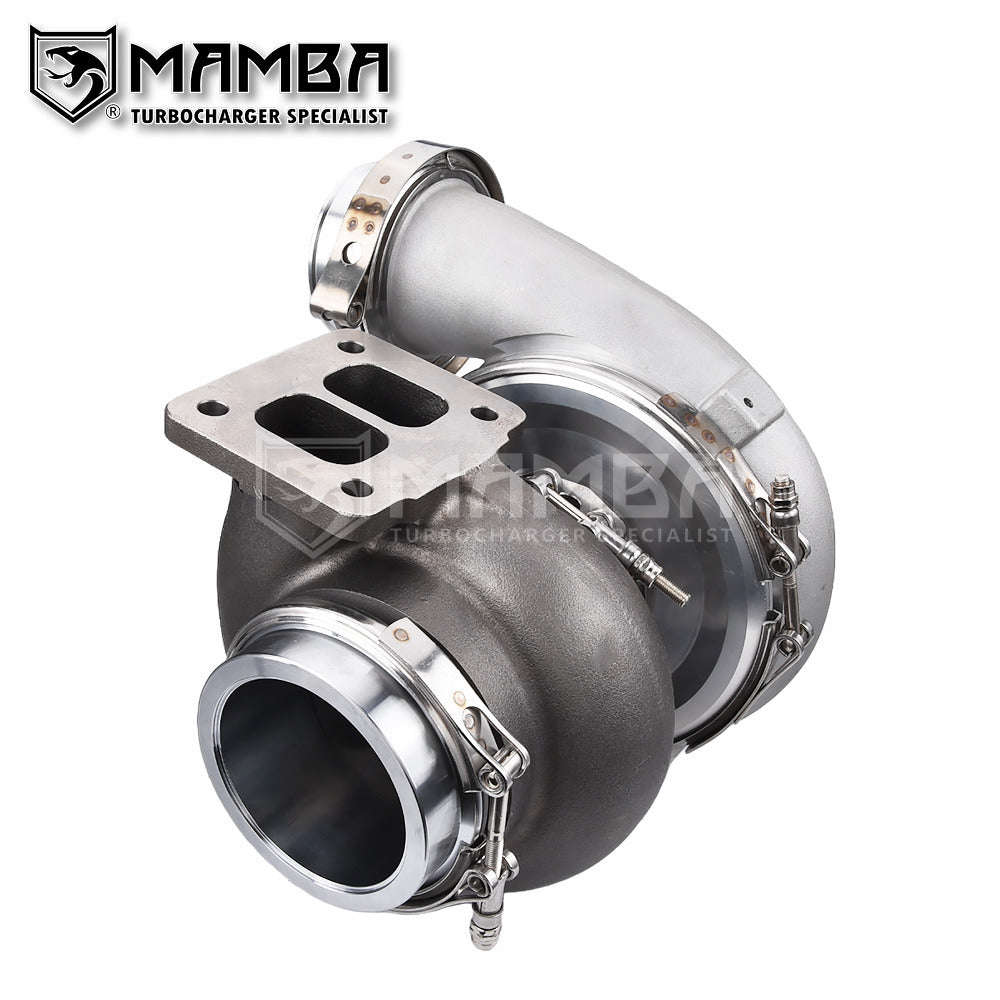

GTX4508R 5" 10-9 Ball Bearing Turbocharger + 1.22 T4 V-Band Housing
Regular price
$1,669.00
Sale price
$1,669.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

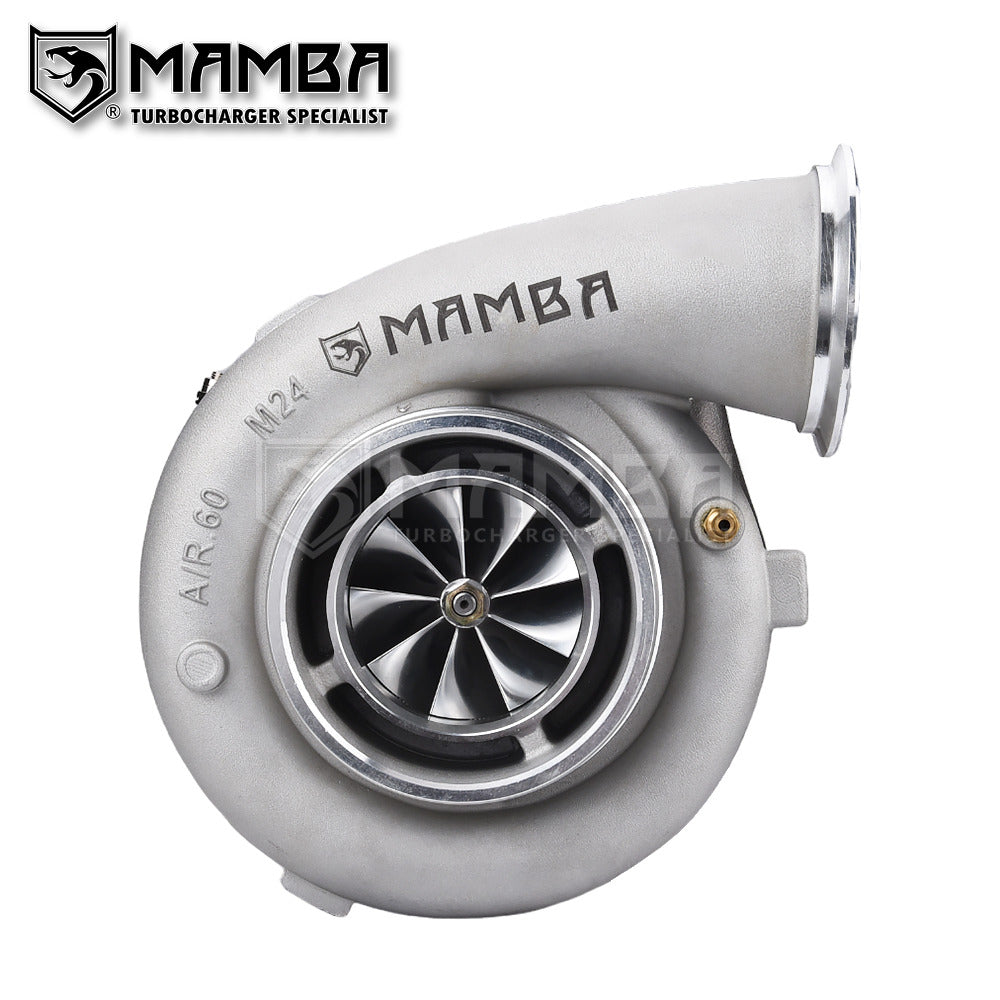

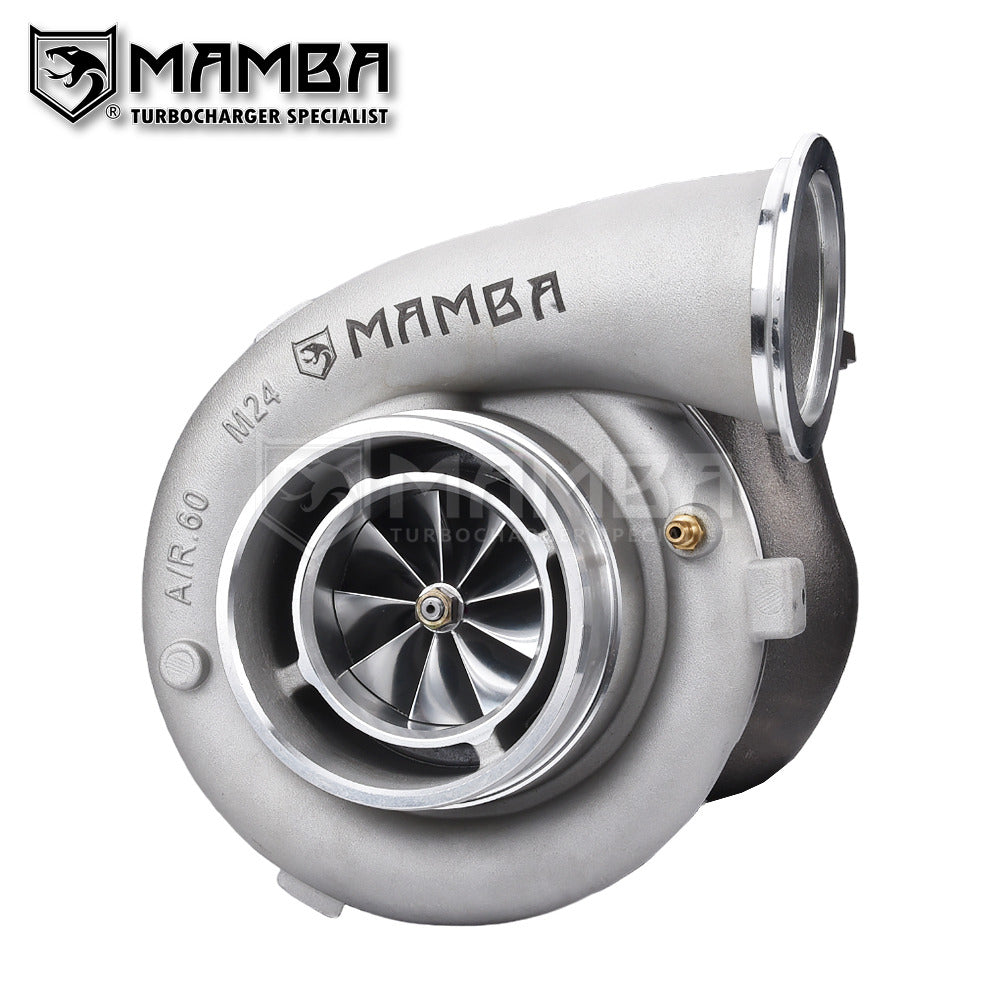

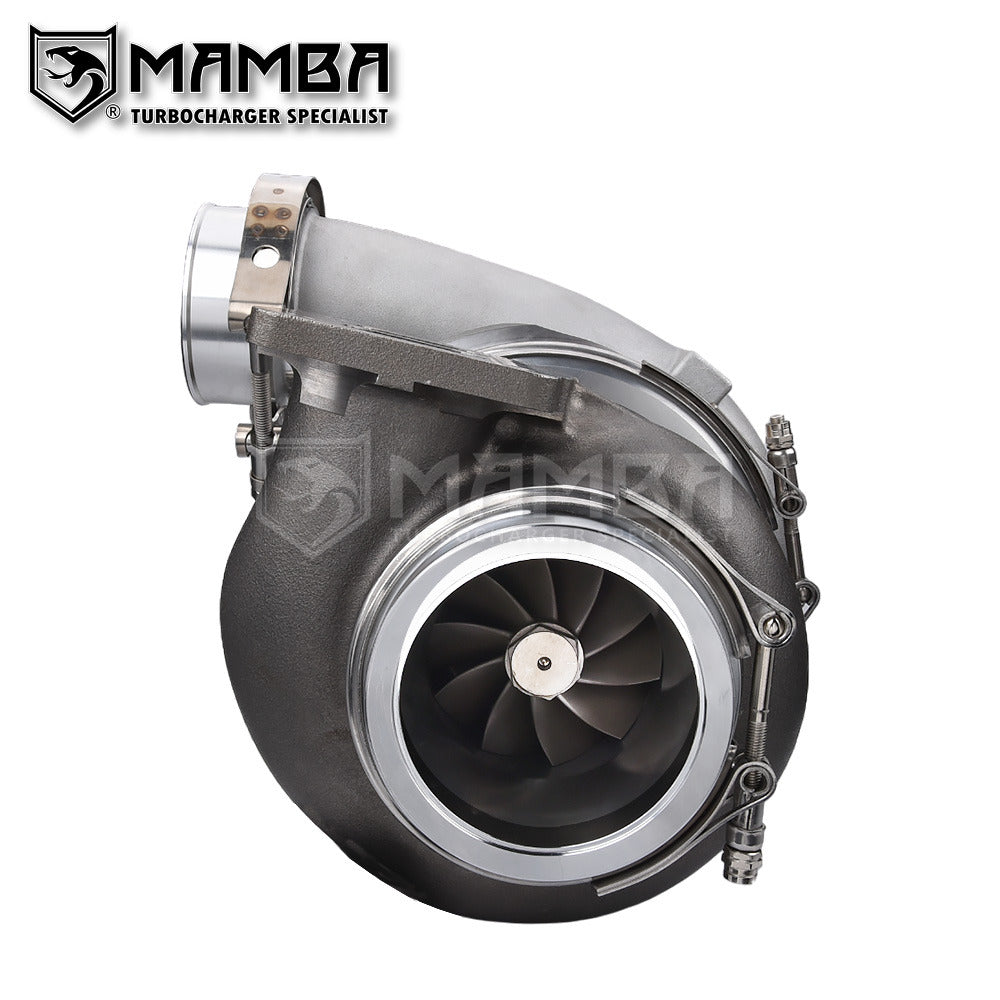

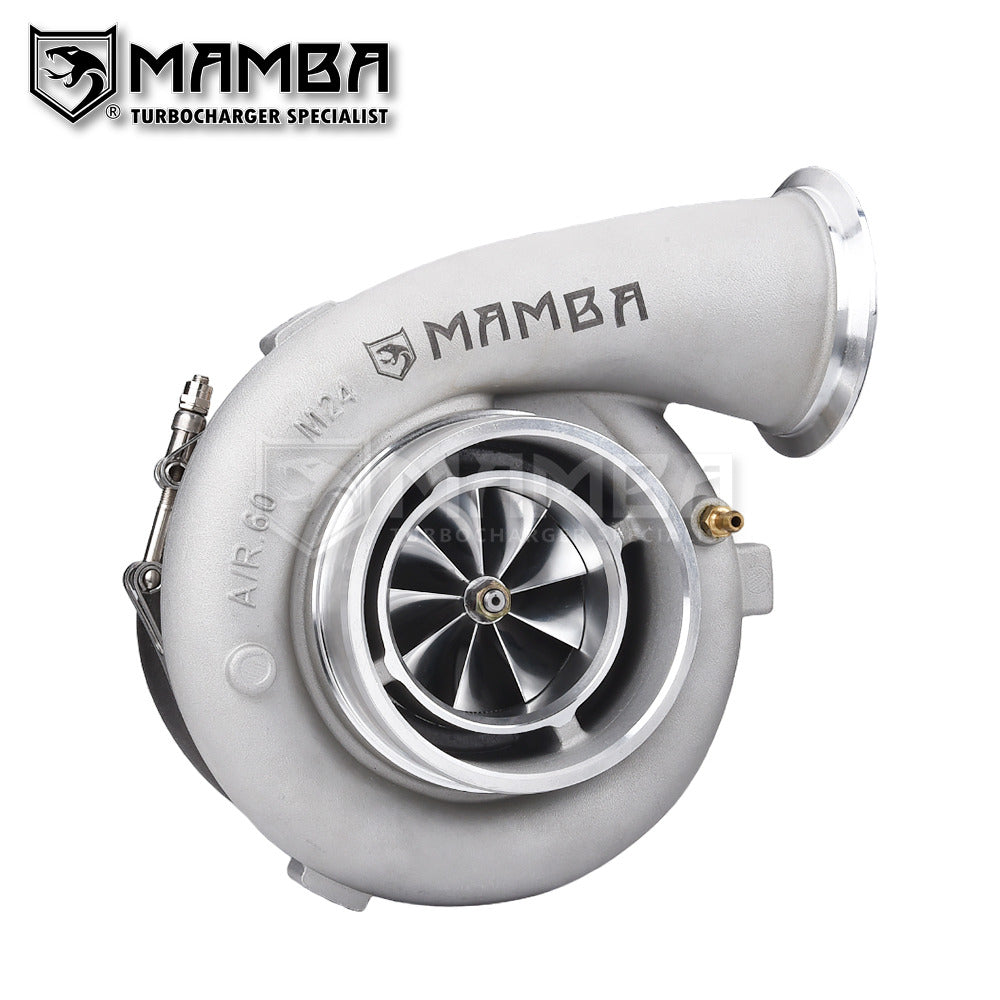

MAMBA 10-9 5” Anti-Surge GTX4508R ball bearing turbocharger w/ 1.22 T4 V-Band turbine housing

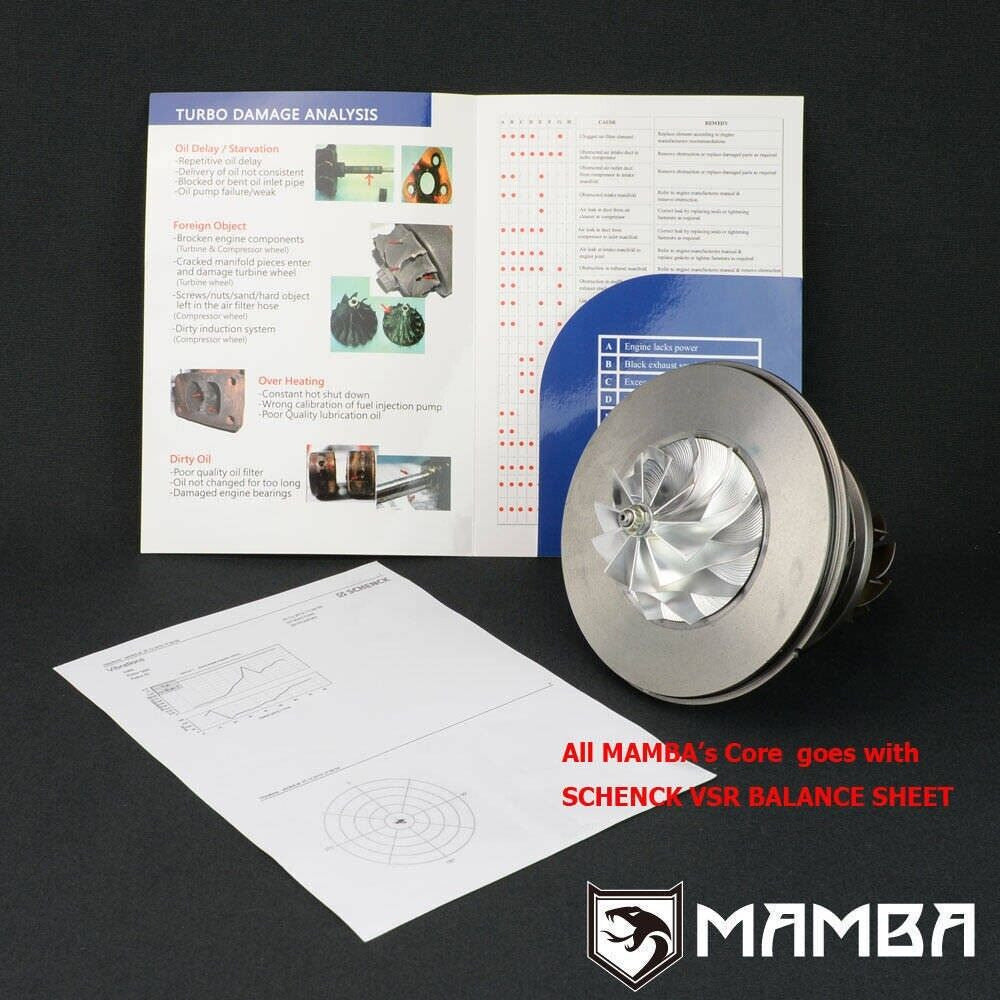

VSR CHRA balanced
Application
Support 800~1,350HP
Max boost: 3.4Bar / Recommend 1.5~1.8bar for daily street car.
Displacement: 3.0~8.0L
MAMBA 10-9 5” GTX4508R high flow turbocharger comes with featured 10 blade turbine wheel to reduce back pressure and temperature to support higher top end HP than other turbo with traditional 12 blade turbine wheel.
Specs
Compressor wheel: 79.9/108/55T/9+0 Blade/High Flow
Turbine wheel: 80.0/87.0/85T/10 Blade/High Flow
Compressor housing inlet OD: 5”
Compressor housing outlet OD: 4.2”
Compressor housing A/R: .60
Turbine housing A/R: 1.22
Turbine inlet: T4 divided

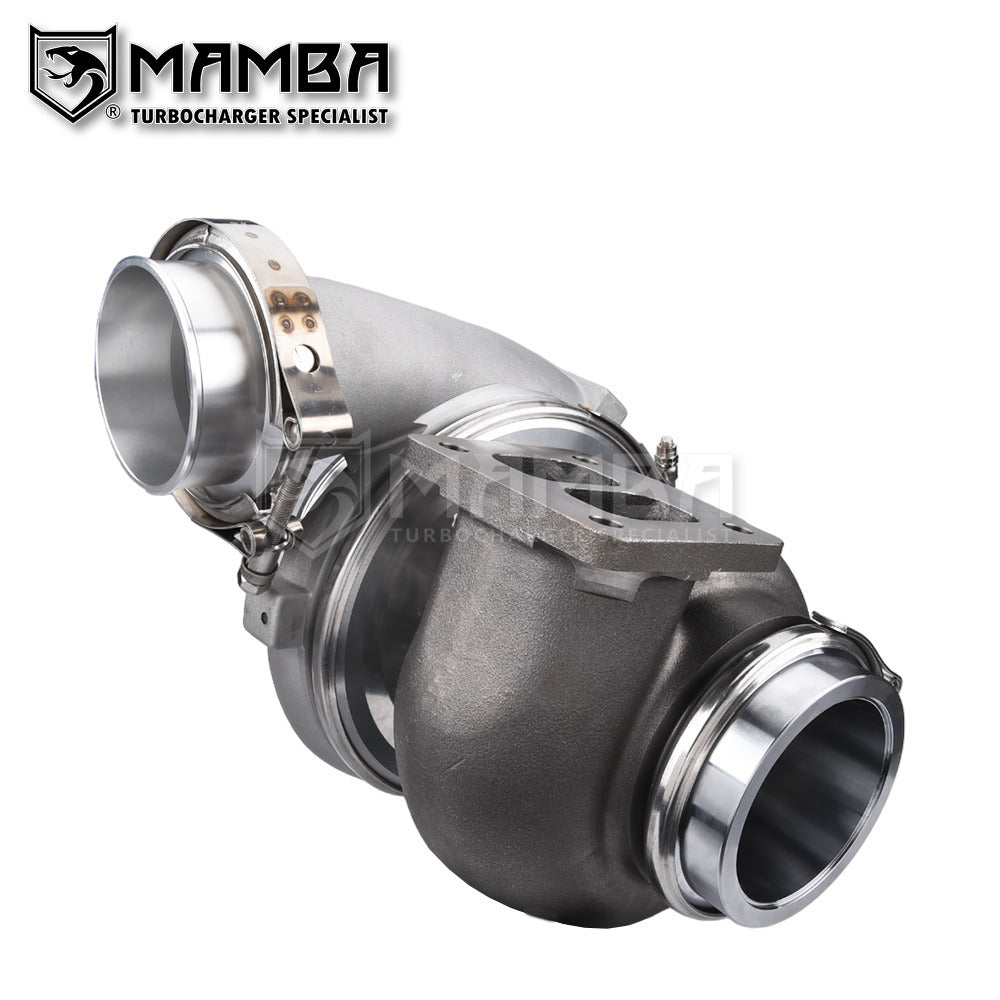

Turbine outlet: 3.5” V-Band (Fits Garrett GTX42R, GTX45R adapter)

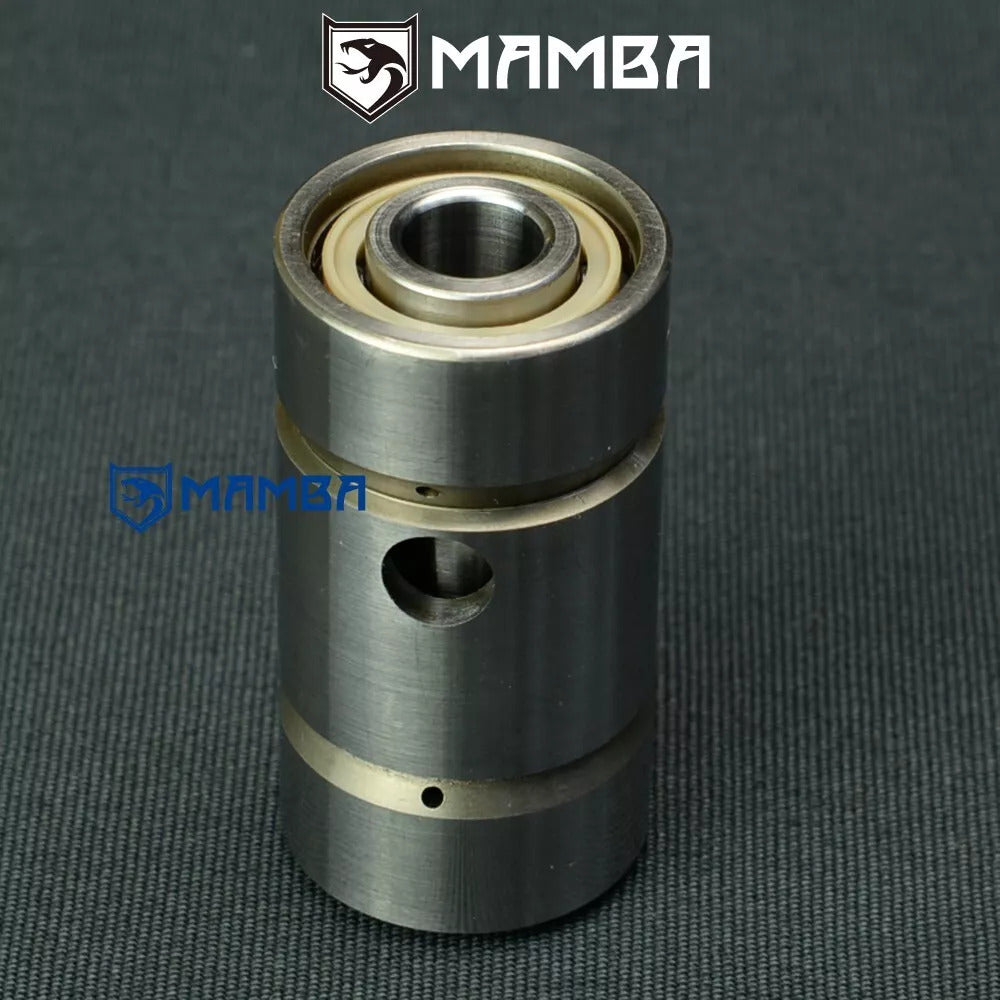

Bearing
Ceramic dual ball bearing
Peek cage
Cooling
Oil & water-cooled
Kit Includes
1 x MAMBA 10-9 5” GTX4508R ball bearing turbocharger
1 x 100cm 4AN PTFE Turbo oil feed line kit
2 x 25cm 6AN PTFE Turbo water line Kit
1 x 10AN turbo oil drain flange kit
1 x T4 twin scroll turbine inlet gasket
1 x 3.5” V-band flange kit

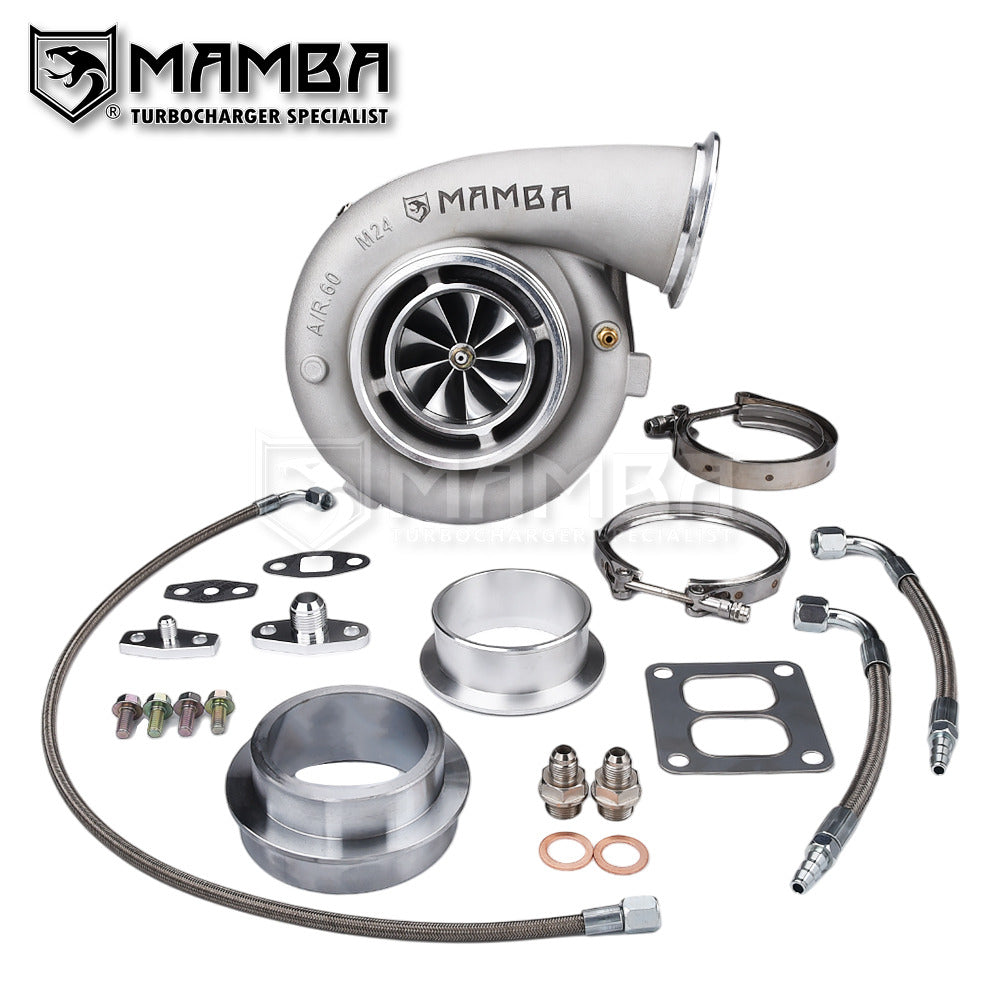

Everything shown in the first picture included
