MAMBA 11-11 GTX Billet Turbocharger 3" AS TD06H-GT3076R 60-1 w/ T3 8cm V-Band
Regular price
$965.00
Sale price
$965.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

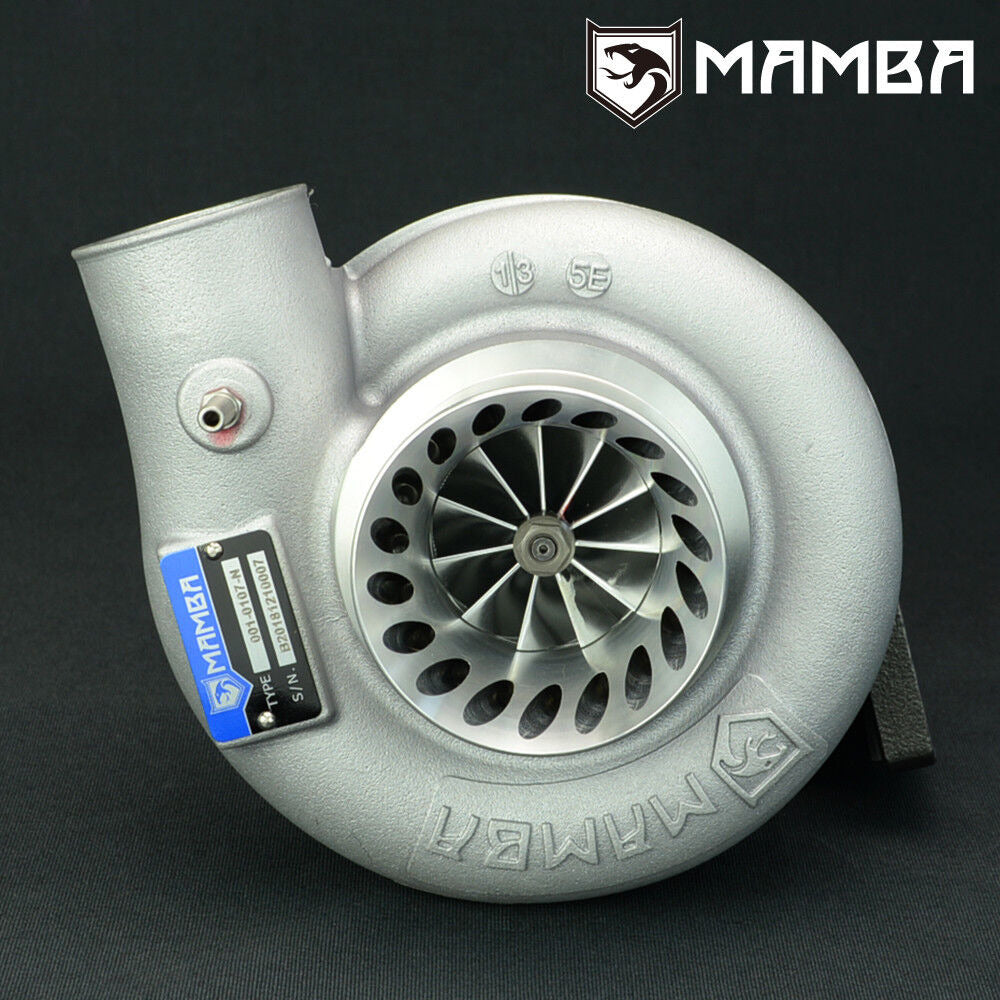

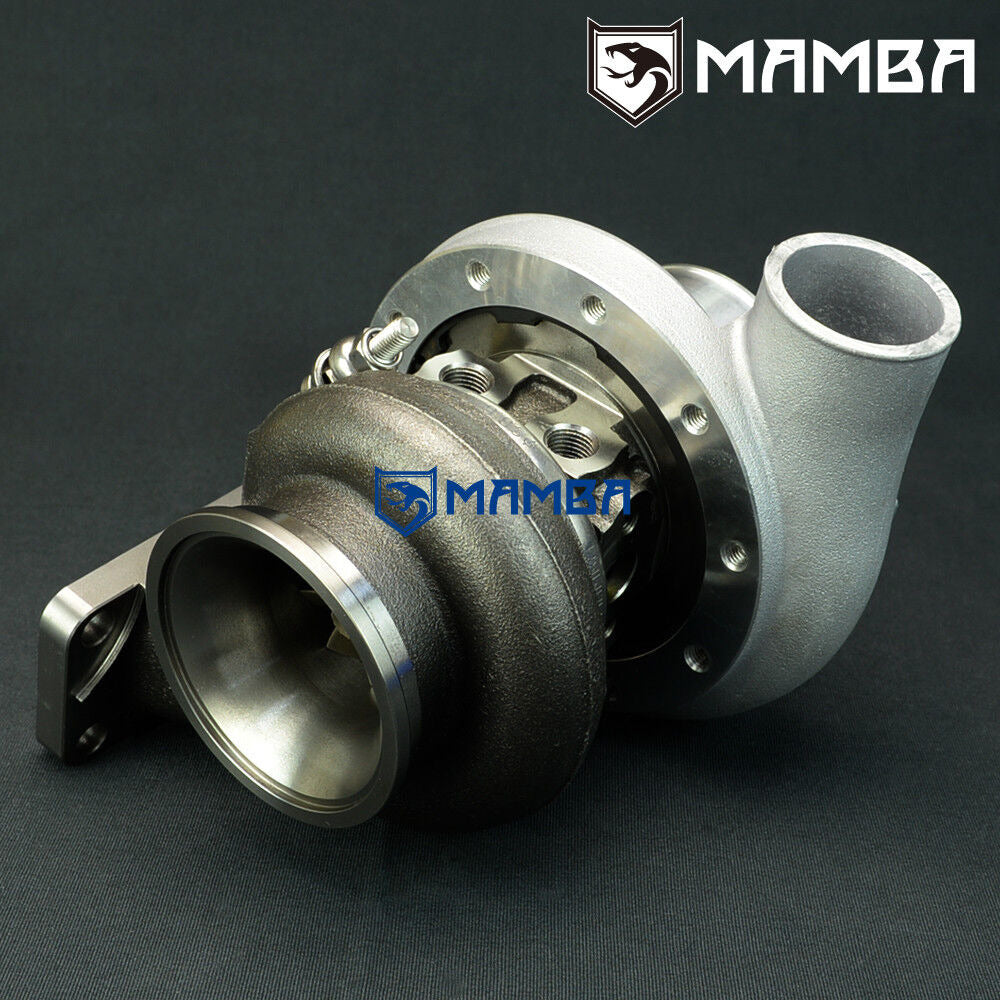

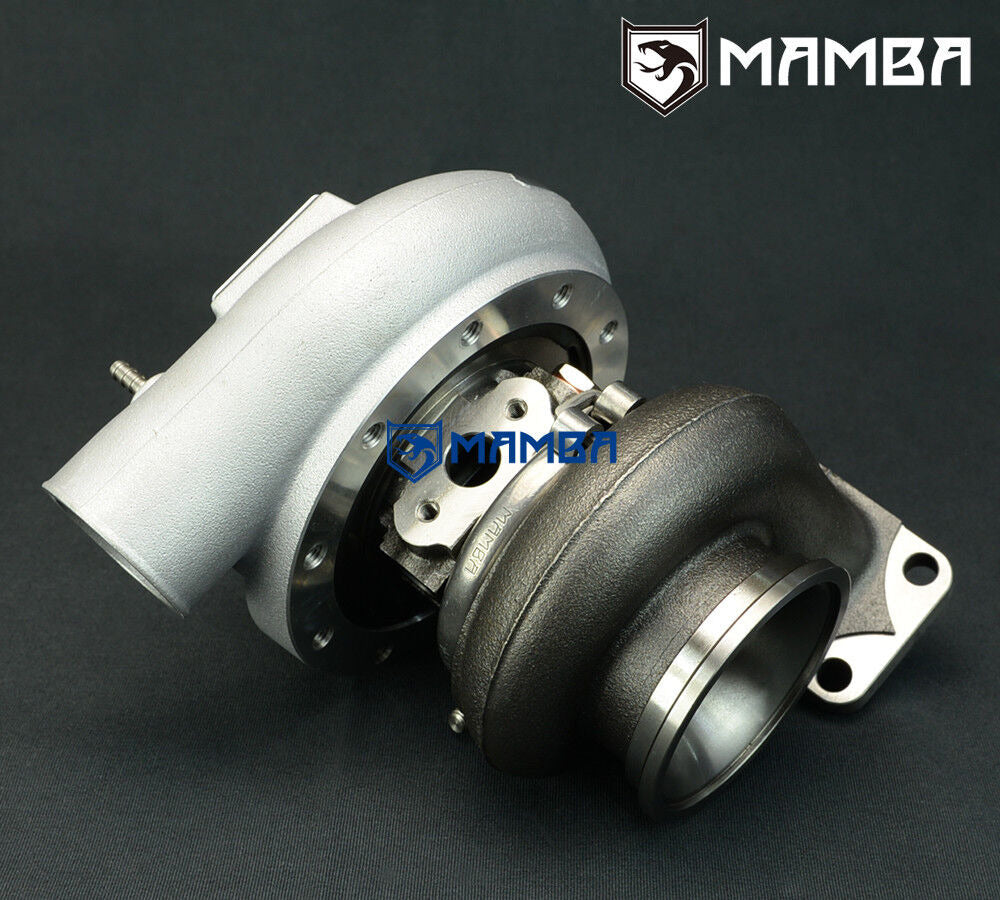

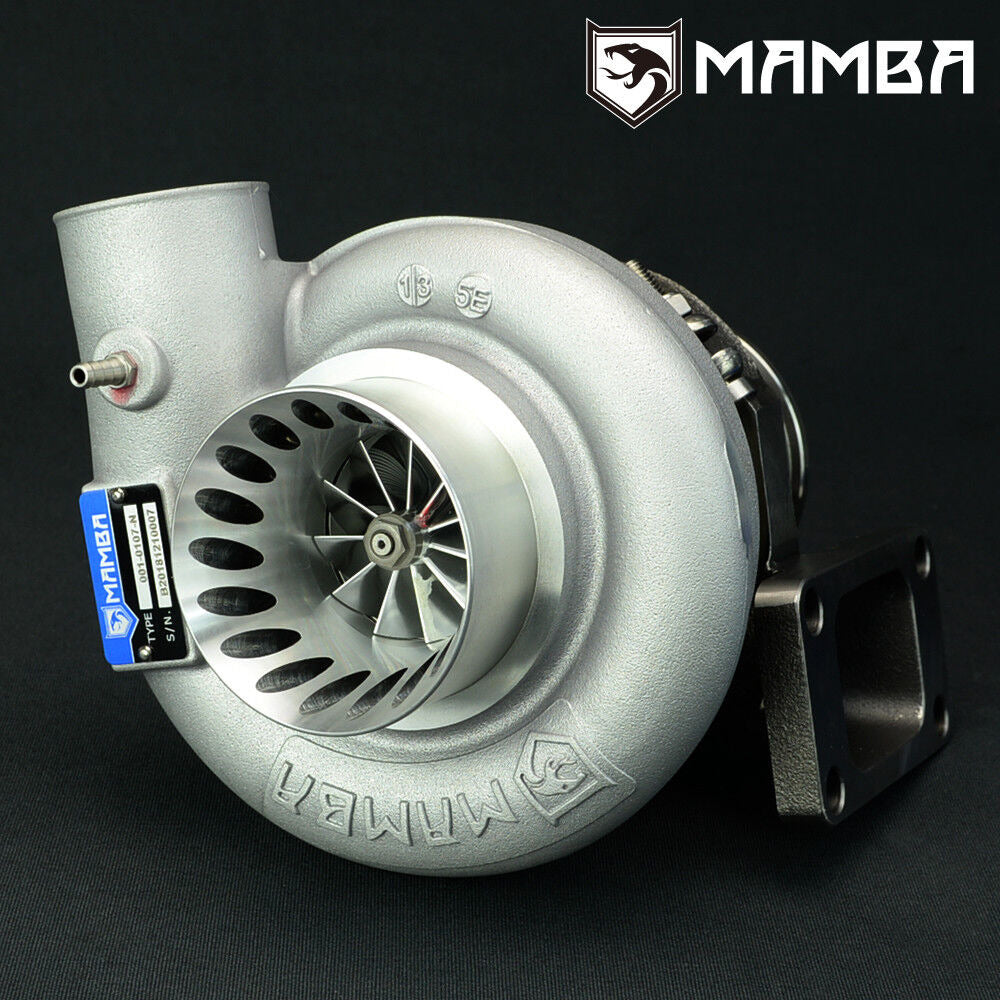

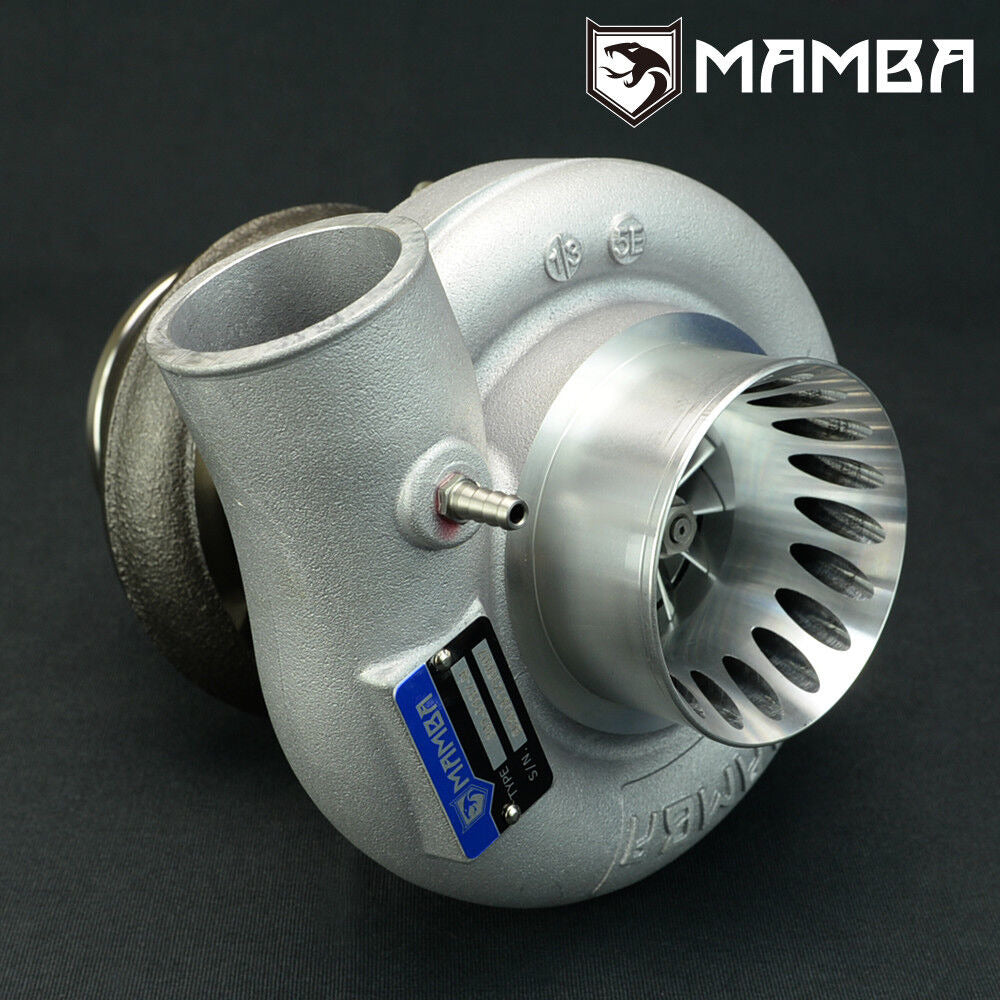

MAMBA GTX Billet Turbocharger 3” Anti Surge TD06H-GT3076R 60-1 w/ 8cm T3 V-Band Turbine Housing
Product Situation
Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
1.8~2.5L Gasoline Engine / 350~450HP
3~4.5L Diesel Engine
Specs
Compressor Wheel : 59 mm / 76.1mm (GTX 11 Blade Billet Wheel GT3076 60-1 / Extended Tip Included)
Turbine Wheel : 58.8 / 67.2 mm (TD06H 11 blade Performance High Inconel)
Compressor Housing : 3” Inlet / 2” Outlet (76.2mm Inlet / 51mm Outlet)
Actuator
No Actuator
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil and Water-cooled system

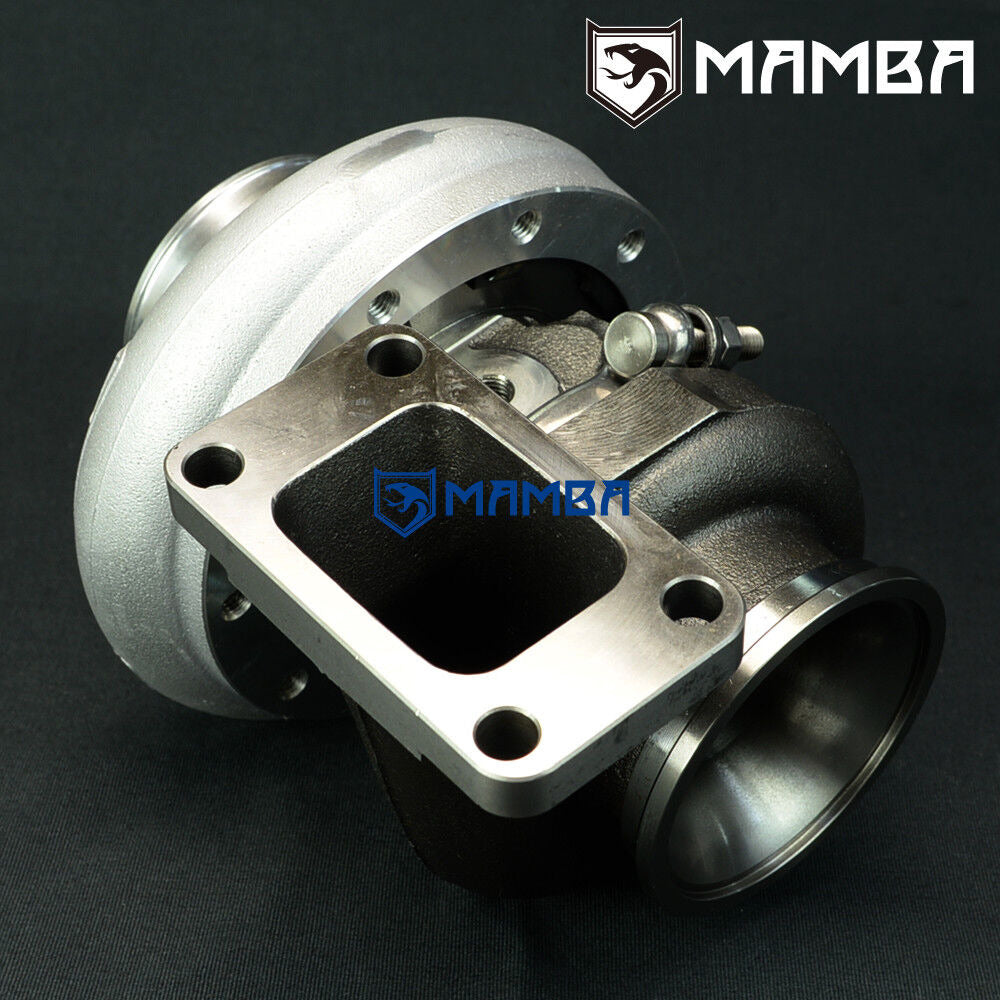

Turbine Housing
8cm / A/R .64
Standard T3 Flange
External Gate Type

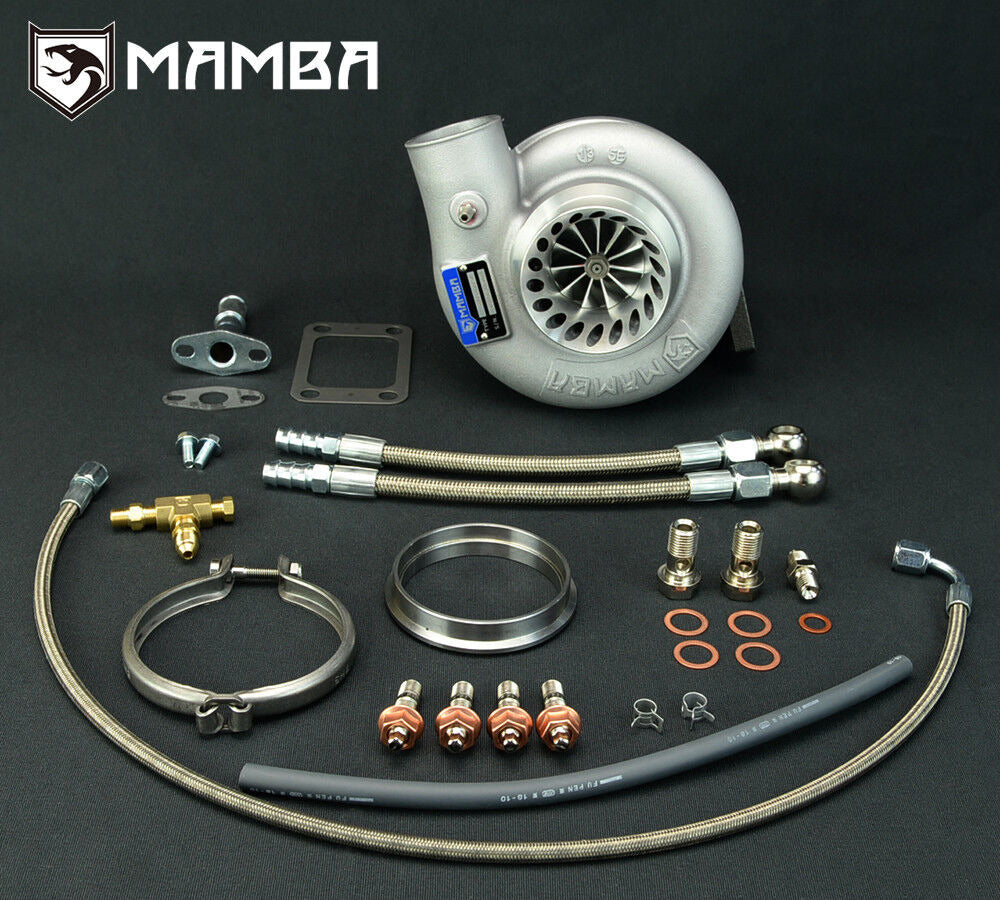

Kit Includes
- 1 x Mamba 3” TD06H-GT3076R Turbocharger with 8cm T3 V-Band Turbine Housing
- 1 x 70cm Oil Feed Line Kit with 1.8mm Restrictor.
- 2 x 20cm Water Line Kit
- 1 x Oil Return Pipe Kit
- 1 x T3 Turbine Inlet Gasket
- 1 x V-band Dump Pipe Adapter Ring Kit
- 4 x M10x1.25 Stud Kit
Everything shown on picture included
