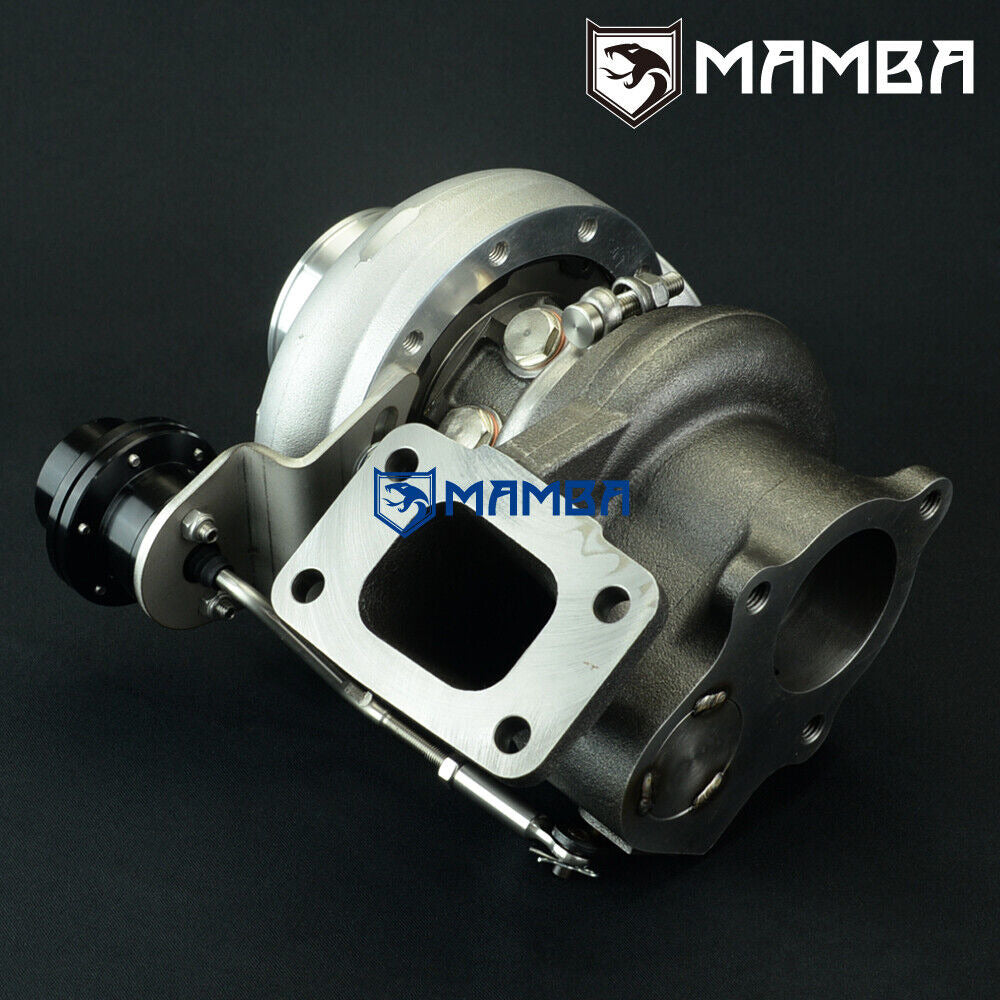

MAMBA 9-11 GTX 3" Anti Surge Turbocharger GMC Typhoon Syclone 4.3L LB4 TD06SL2-20G with 8cm^2 Turbine housing
Application
Replace & upgrade factory GMC LB4 4.3L V6 Syclone Typhoon TD06-17C-8 49179-04000 Turbo.
This MAMBA GTX goes with 9 blade TD06SL2 Viper turbine wheel to replace factory 12 blade turbine wheel that will get this turbo spool faster, and GTX 20G 11+0 blade compressor wheel to replace 17C wheel to get more airflow that would supply higher torque and top end HP.
Wheel Spec

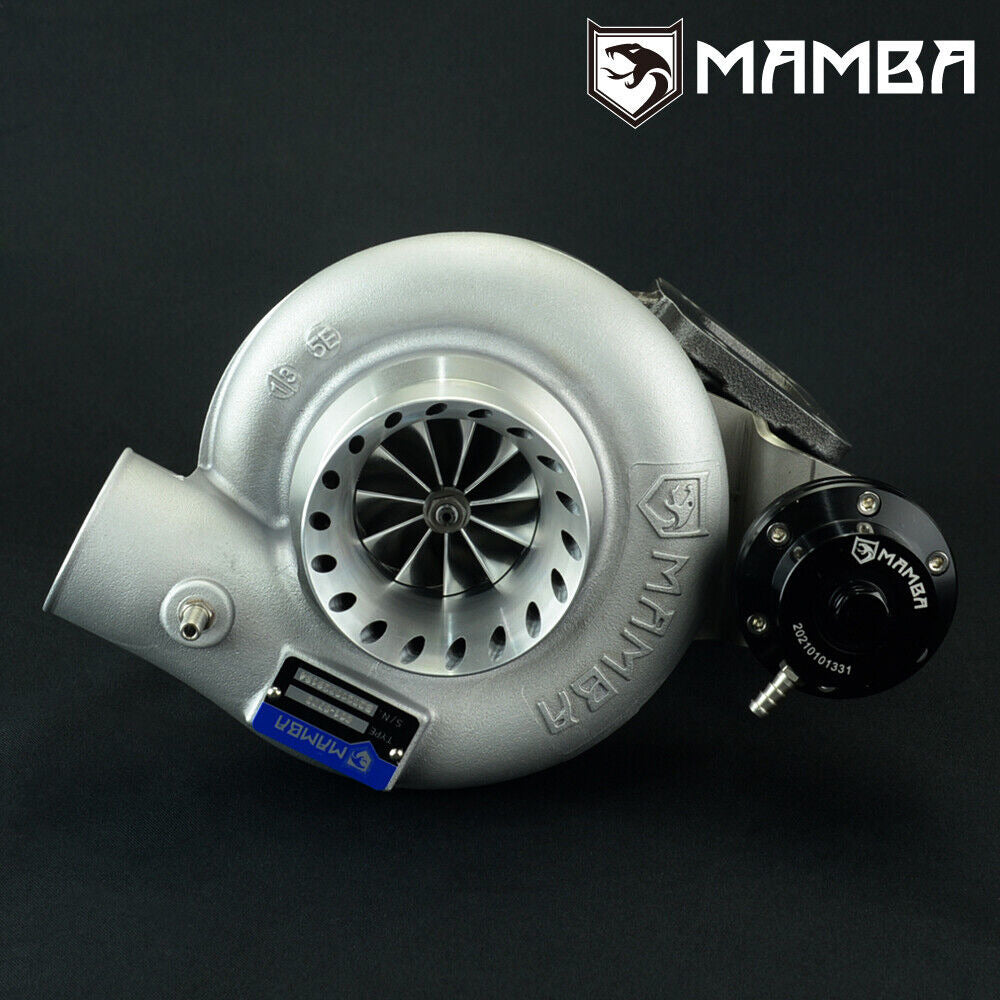

Comp. Wheel : 52.5mm/68mm (GTX 11+0 Blade 20G Billet Wheel w/ Extend tapered Tip)

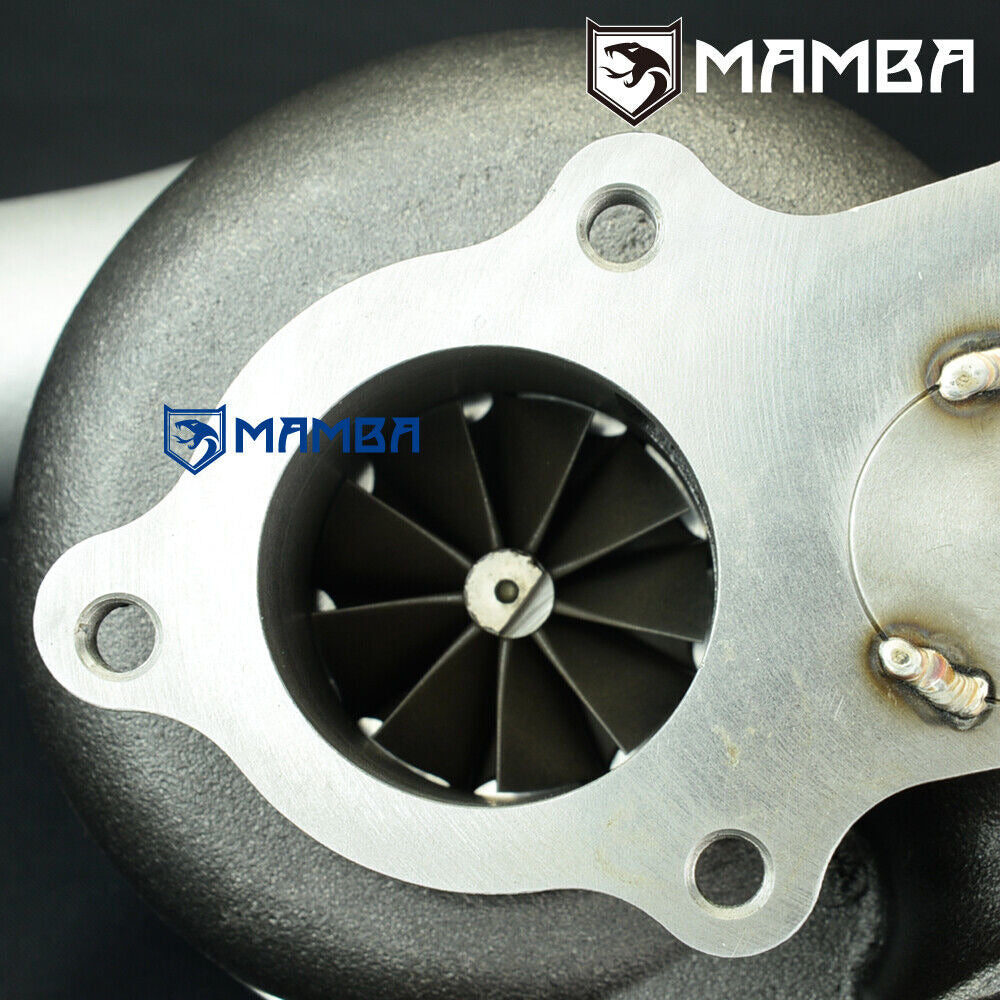

Turbine Wheel : 54.1 / 61 mm ( 9 Blade TD06SL2 Viper Turbine Wheel)
Housing Spec
Compressor Housing : 2.4” inlet / 2” outlet/ A/R .60
Turbine Housing : 8cm (A/R .57)
Bearing
Journal Bearing
Performance Thrust Bearing Kit Included
Cooling
Oil & water-cooled

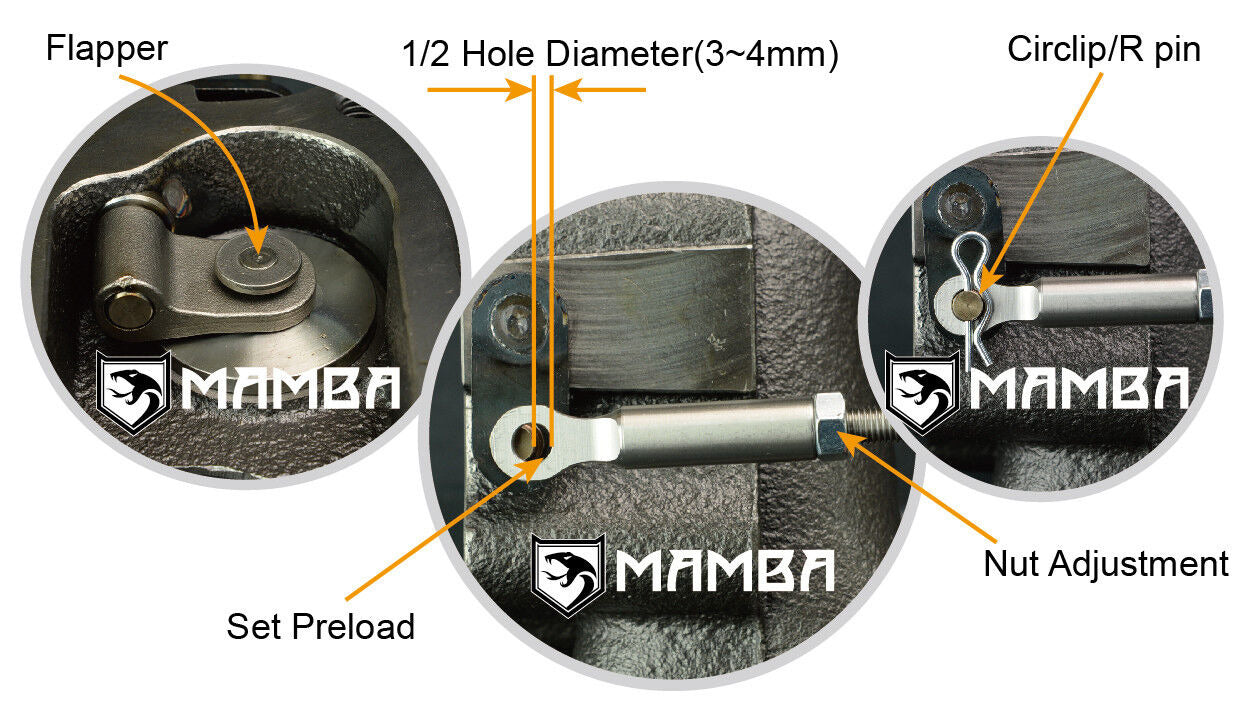

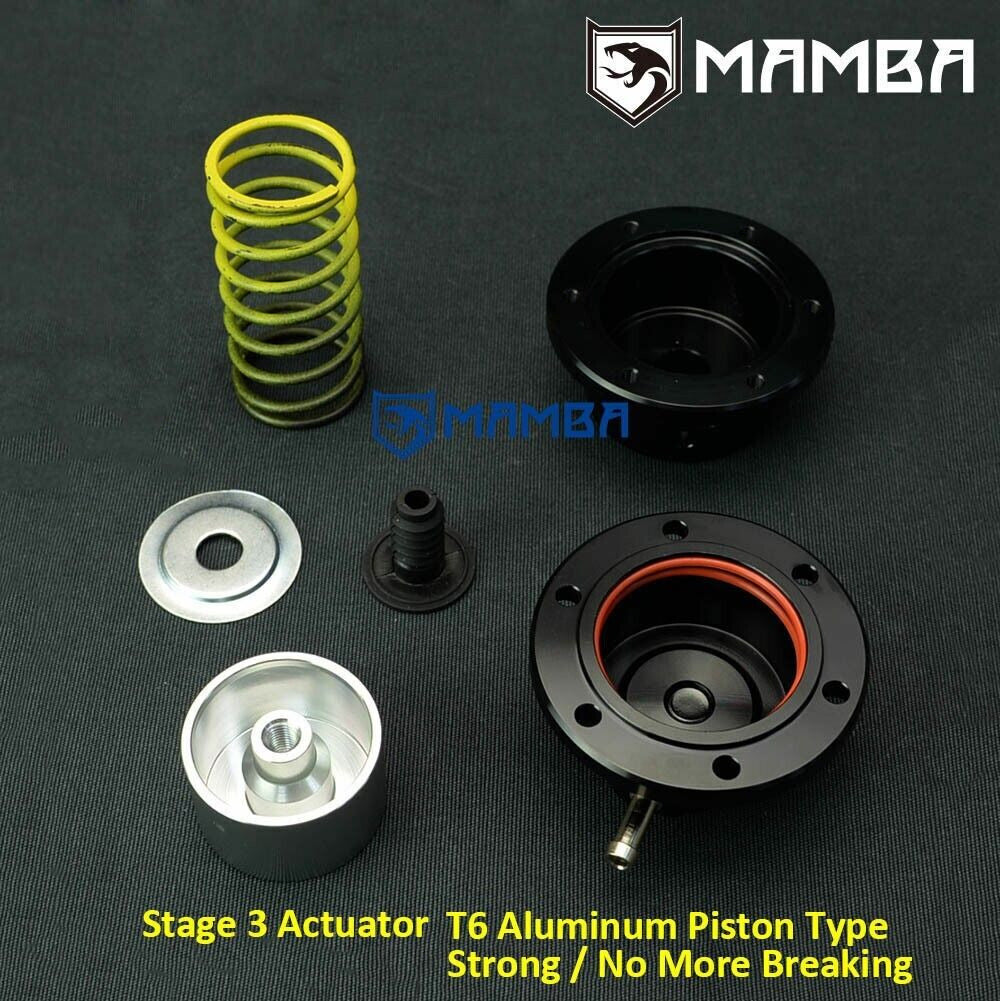

Actuator

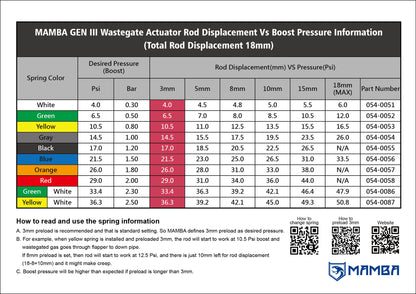

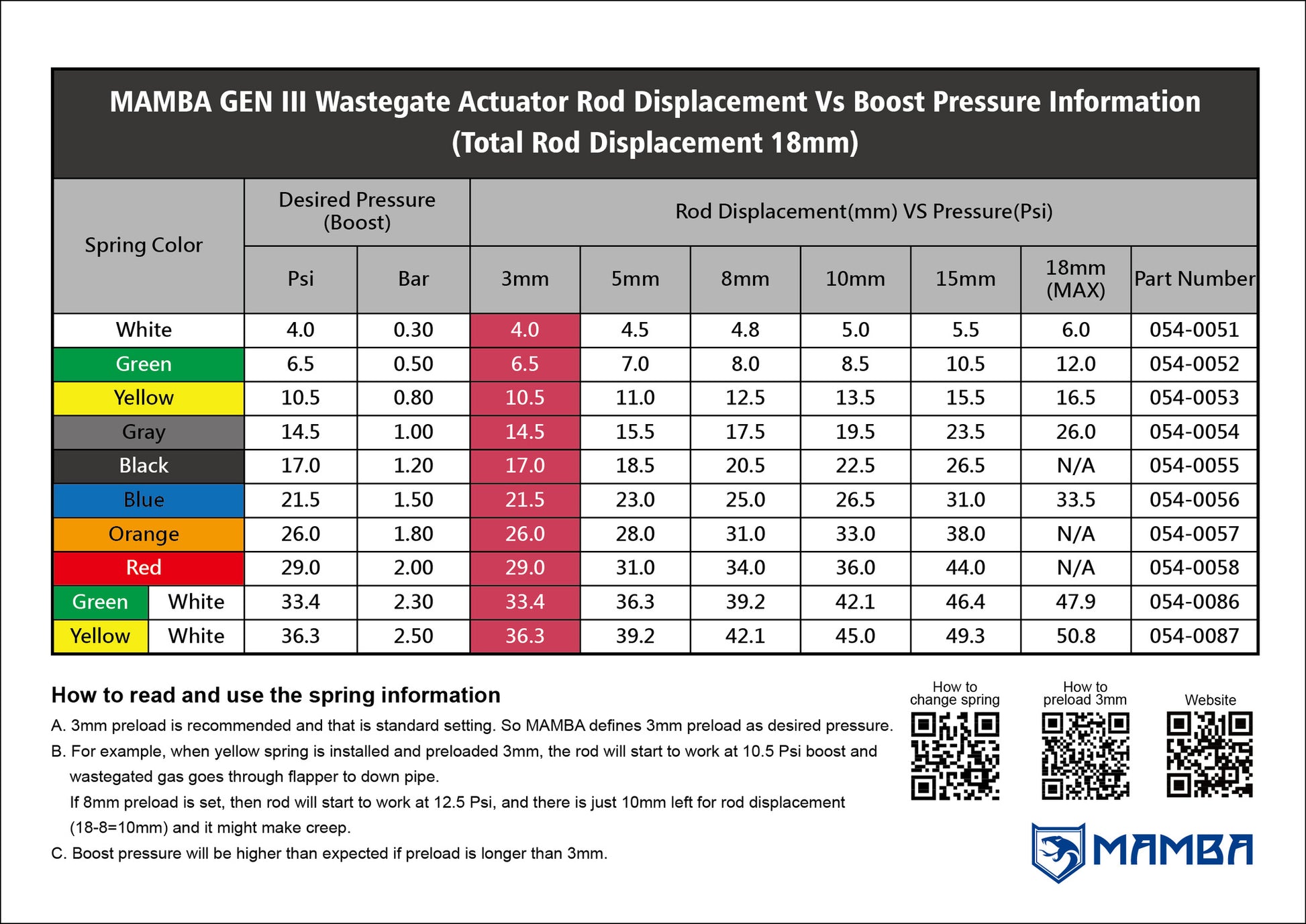

0.8bar spring pre-installed on adjustable actuator.
1.2bar and 1.65bar spring included and buyer can change it easily.

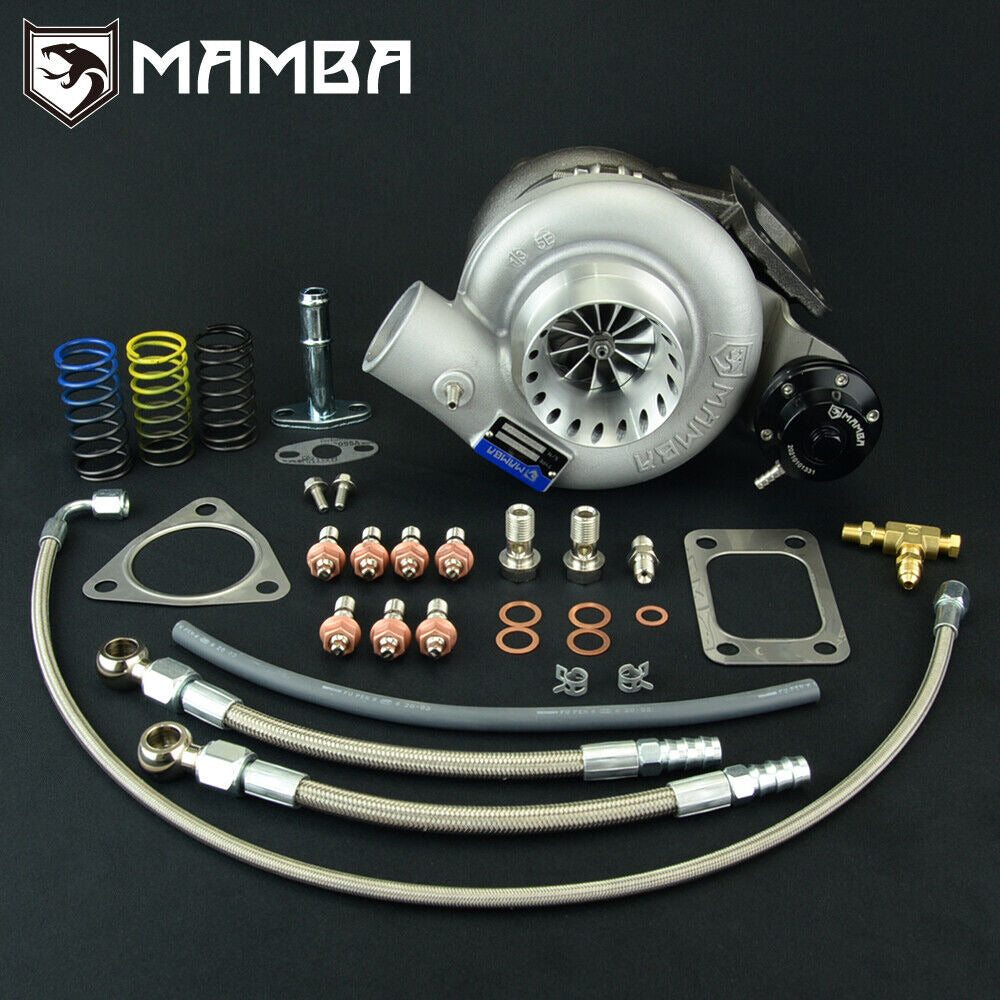

Kit Includes
1 x 3" Anti Surge GTX TD06SL2-20G-8 Turbocharger
1 x 4AN 1/4" braided steel teflone Oil Feed Line Kit
2 x 6AN braided steel teflone water line kit
1 x Oil Return Pipe
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
3 x M10x1.5mm Stud Kit

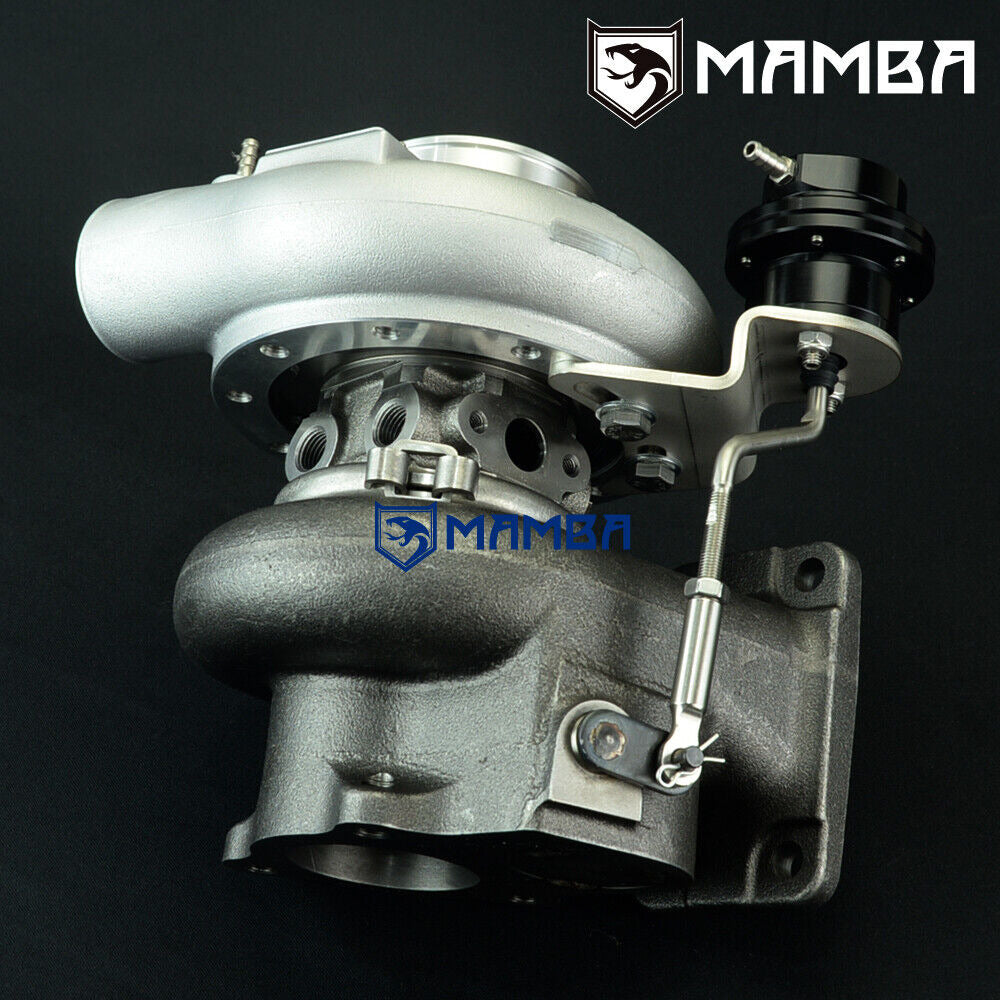

Everything shown on first picture is included.
