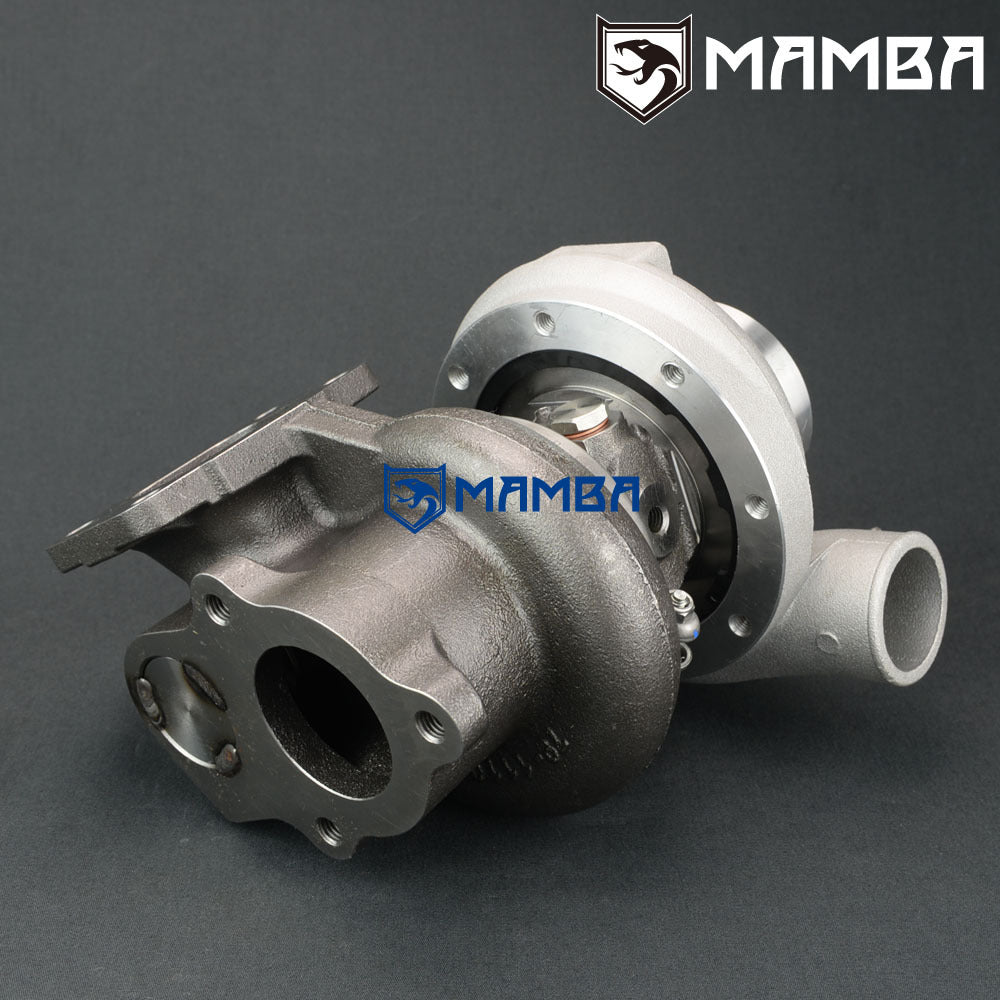

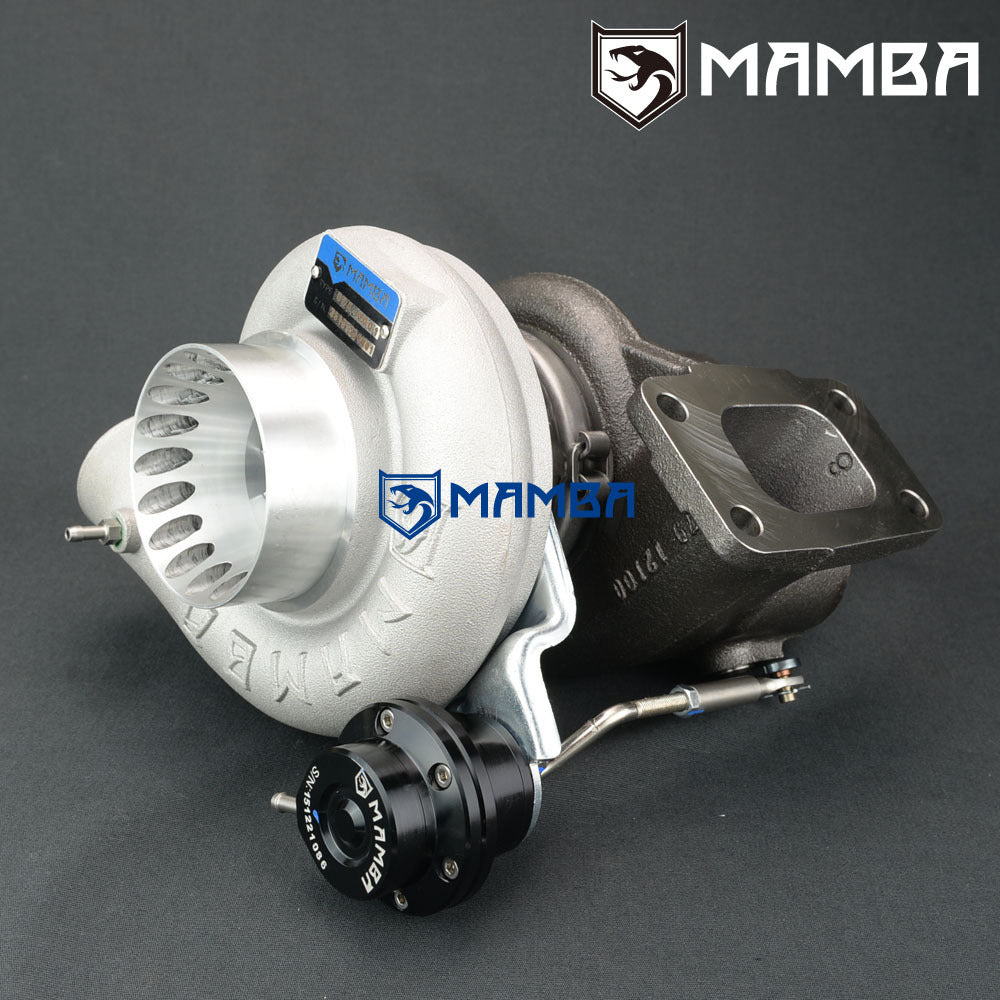

MAMBA 9-11 Turbocharger GMC Typhoon Syclone 3" AS TD06SL2-GT3076R 60-1 10cm
Regular price
$965.00
Sale price
$965.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

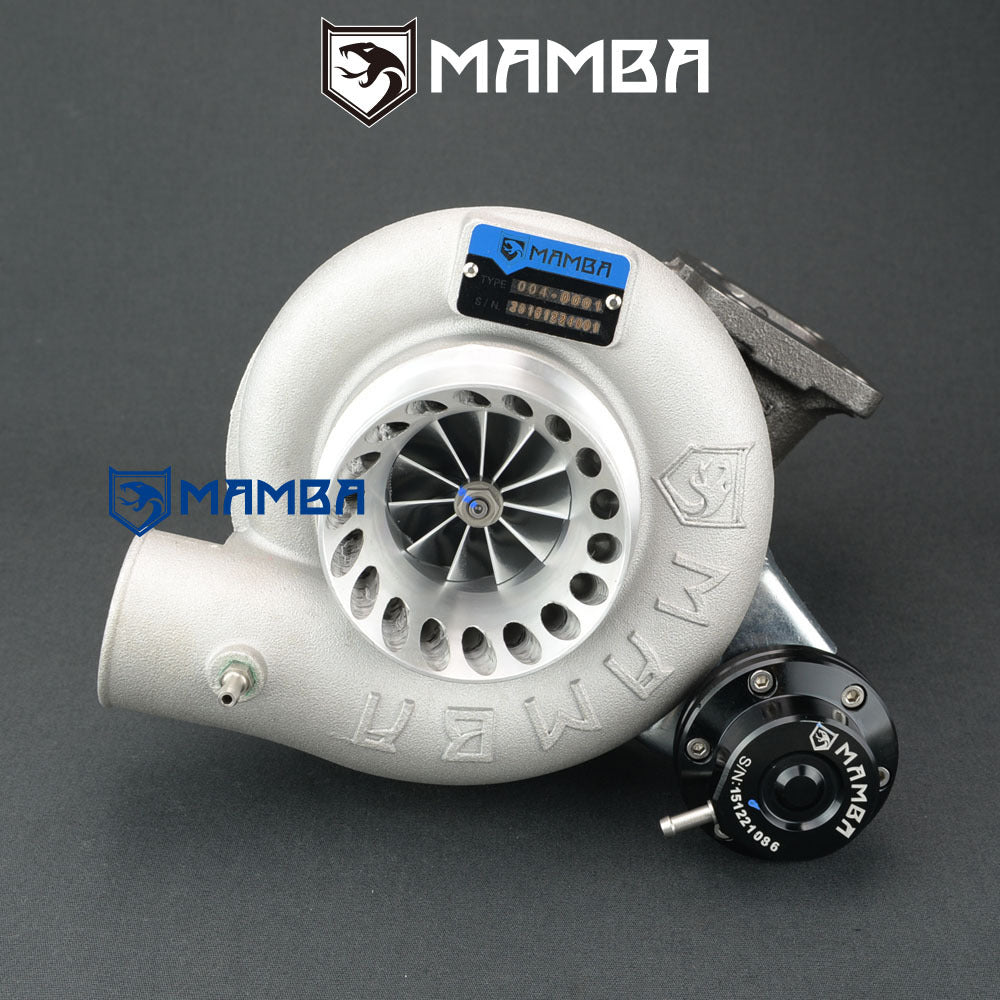

MAMBA 9-11 GTX 3" Anti Surge Turbocharger GMC Typhoon Syclone 4.3L LB4 TD06SL2-GT3076R 60-1 with 10cm^2 Turbine housing
Application
Replace & upgrade factory GMC LB4 4.3L V6 Syclone Typhoon TD06-17C-8 49179-04000 Turbo.
This MAMBA GTX goes with 9 blade TD06SL2 Viper turbine wheel to replace factory 12 blade turbine wheel that will get this turbo spool fast, and Garrett GTX 60-1 11+0 blade compressor wheel to replace 17C wheel to get more airflow that would supply higher torque and top end HP.
Wheel Spec

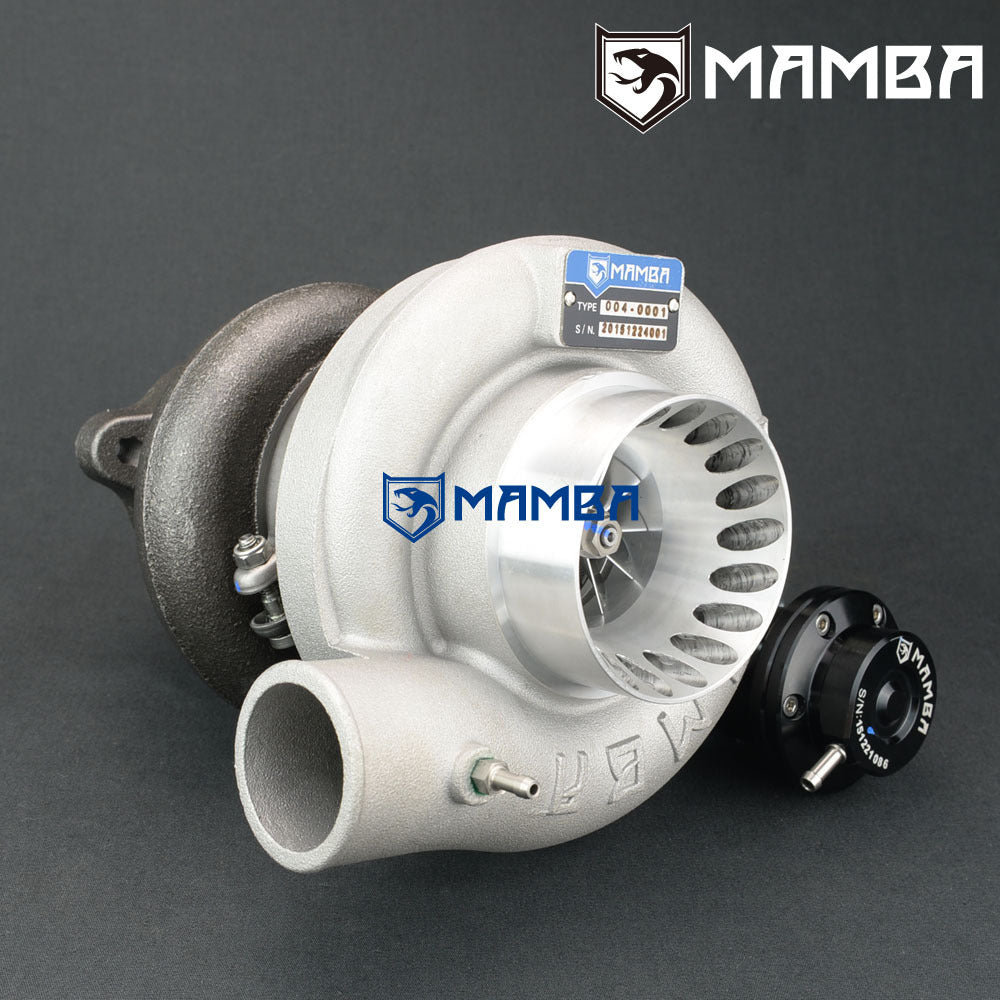

Comp. Wheel : 59mm/76mm (GTX 11+0 Blade 60-1 Billet Wheel w/ Extend tapered Tip)

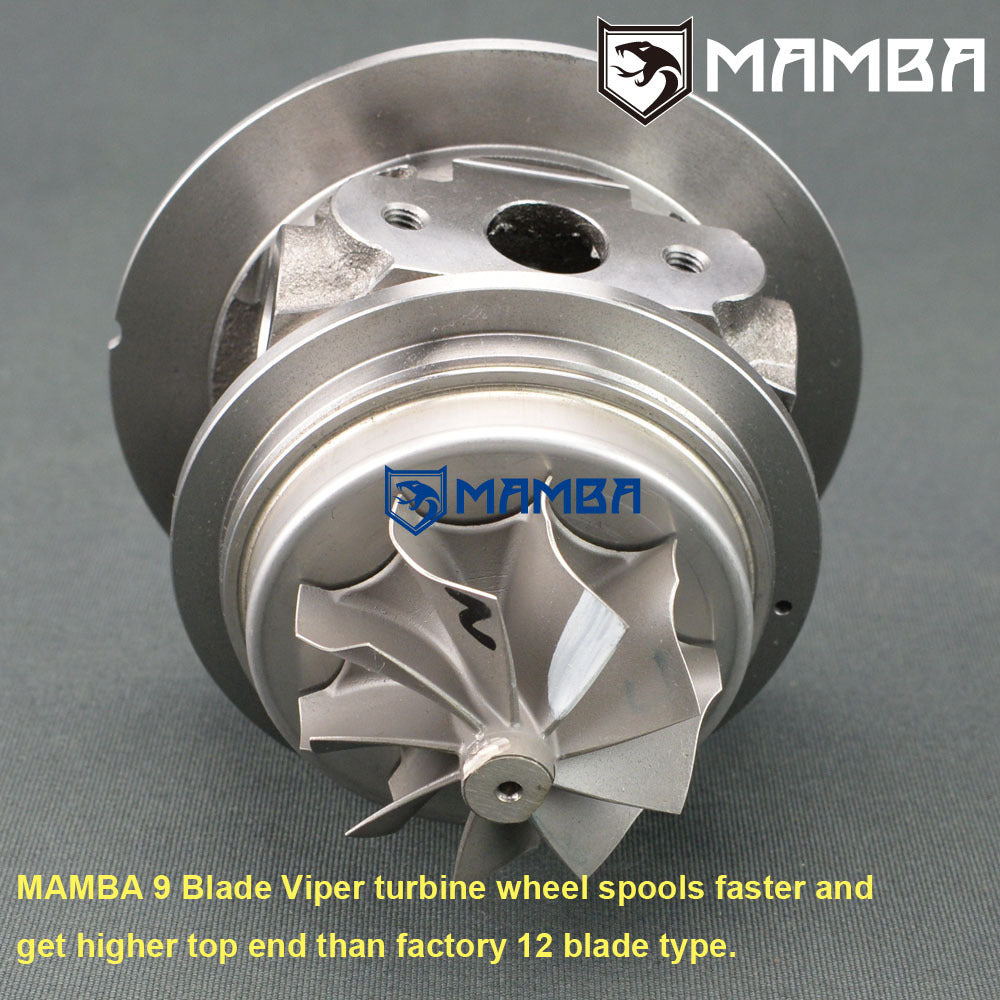

Turbine Wheel : 54.1 / 61 mm ( 9 Blade TD06SL2 Viper Turbine Wheel)
Housing Spec
Compressor Housing : 2.4” inlet / 2” outlet/ A/R .60
Turbine Housing : 10cm (A/R .73)
Bearing
Journal Bearing
Performance Thrust Bearing Kit included
Cooling
Oil & water-cooled

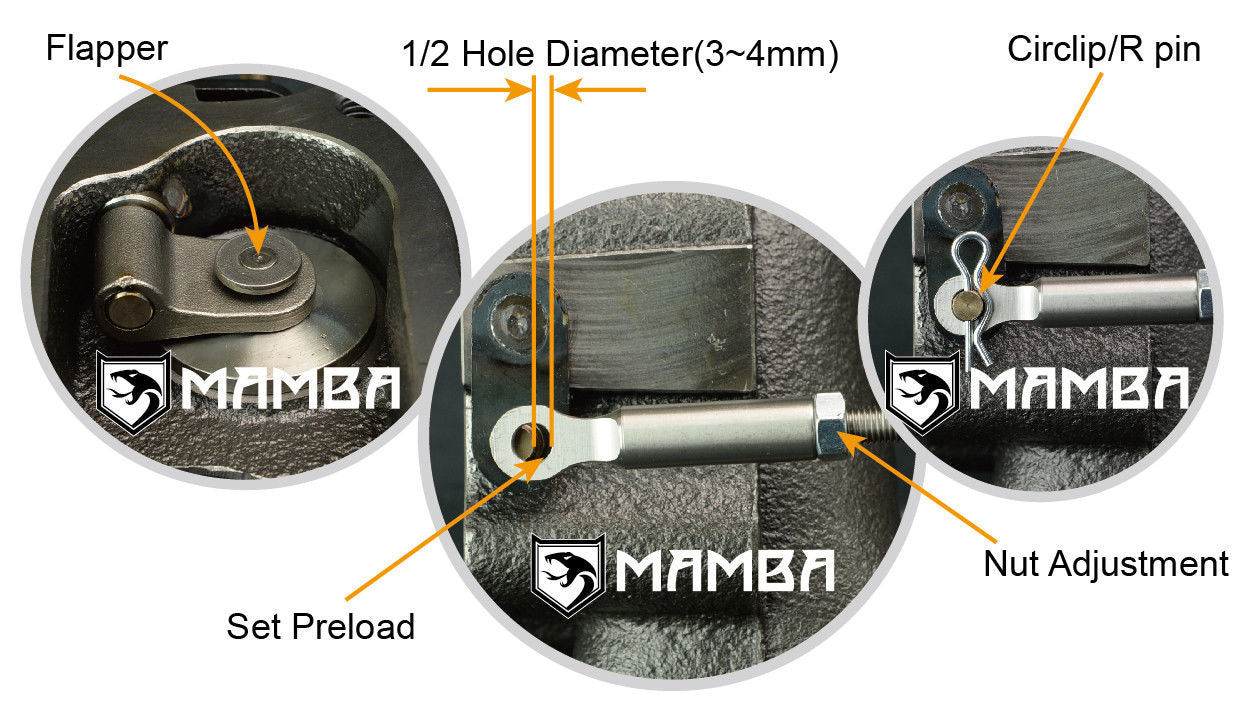

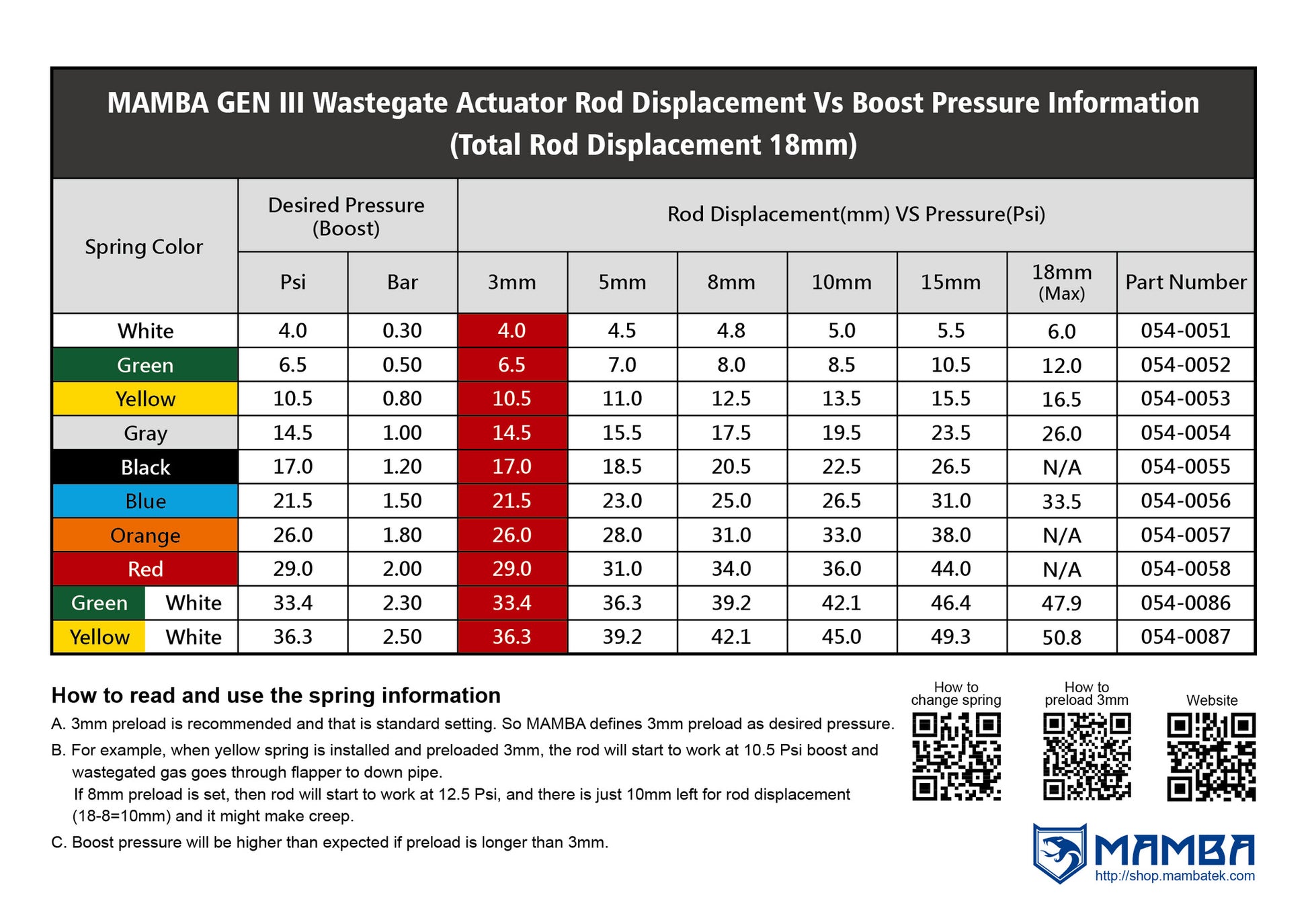

Actuator
0.8bar spring pre-installed on adjustable actuator.
1.2bar and 1.65bar spring included and buyer can change it easily.

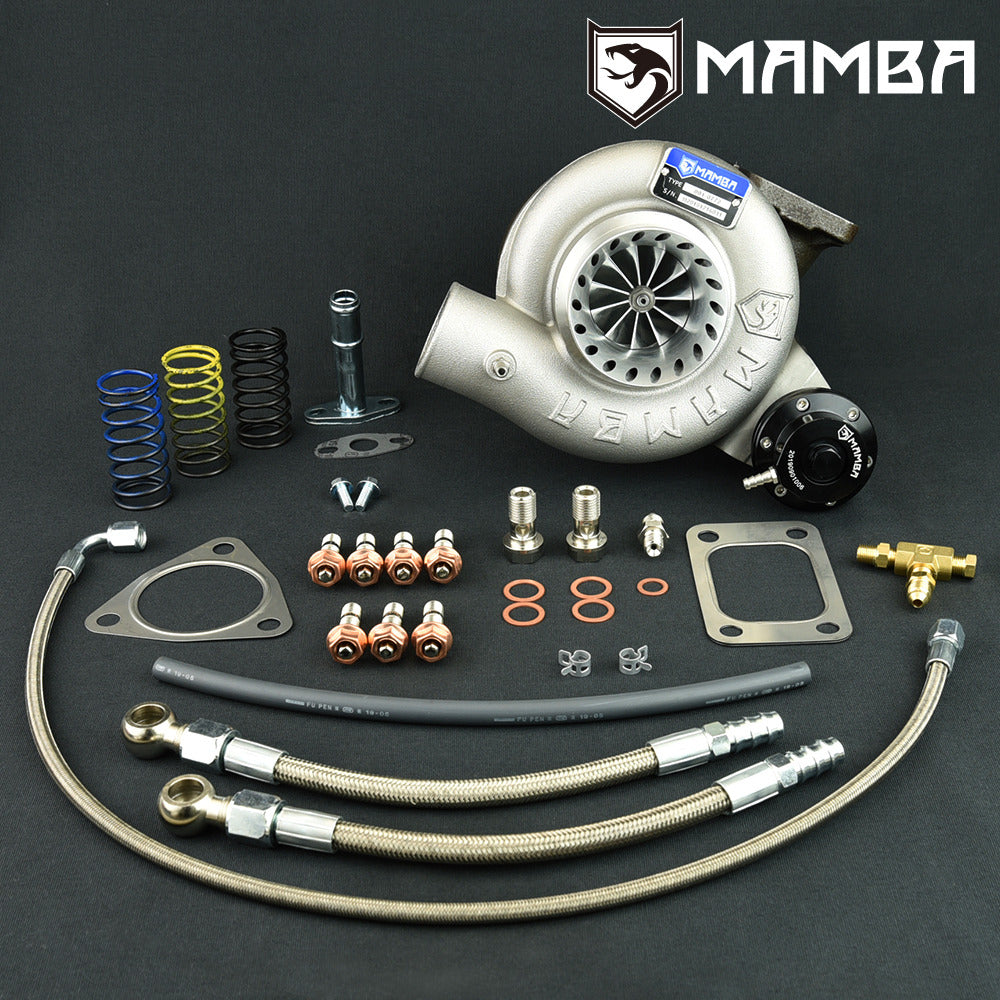

Kit Includes
1 x 3" Anti Surge GTX TD06SL2-GT3076-10 Turbocharger
1 x 4AN 1/4" braided steel teflone Oil Feed Line Kit
2 x 6AN braided steel teflone water line kit
1 x Oil Return Pipe
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
3 x M10x1.5mm Stud Kit
Everything shown on first picture is included.
