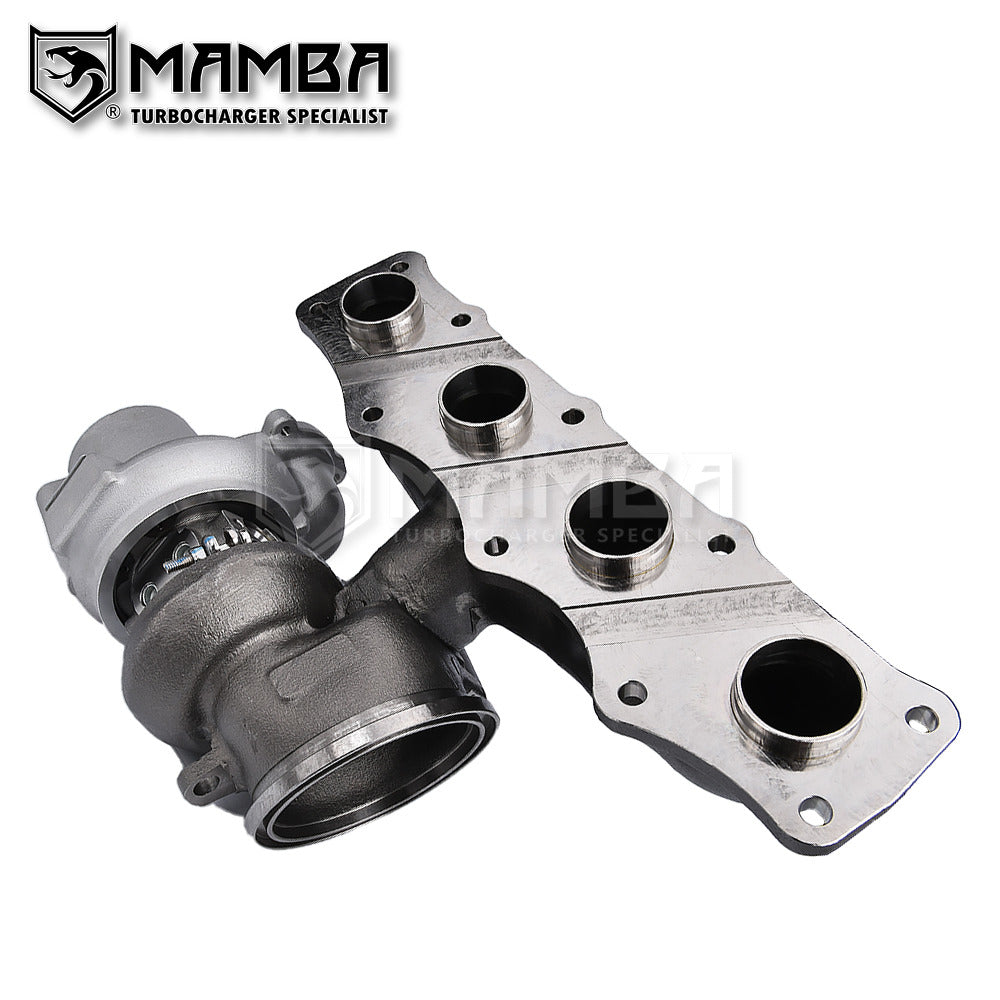

MAMBA 9-6 BMW N20 N26 TD04HLR-21TK Extreme (Electronic lWG)
Regular price
$1,150.00
Sale price
$1,150.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

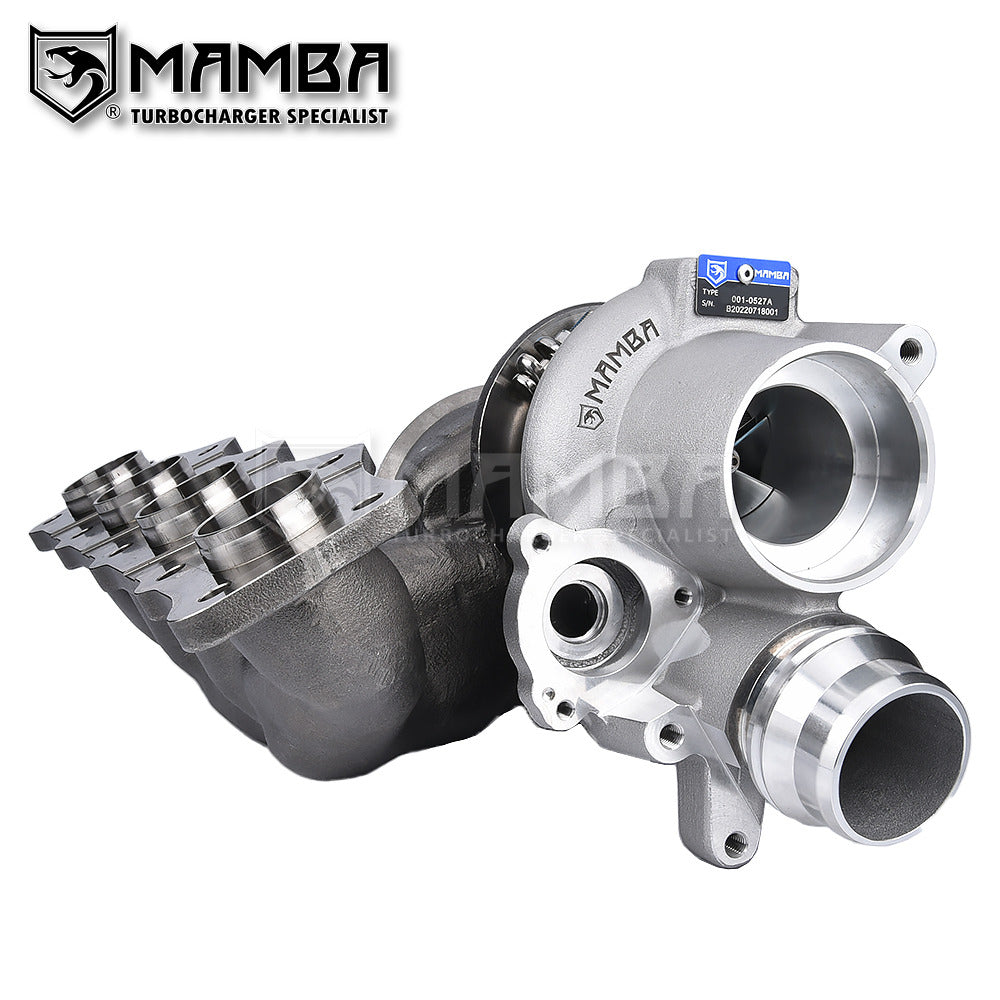

MAMBA 9-6 Extreme Upgrade Turbocharger BMW N20 TD04HLR-21TK-8

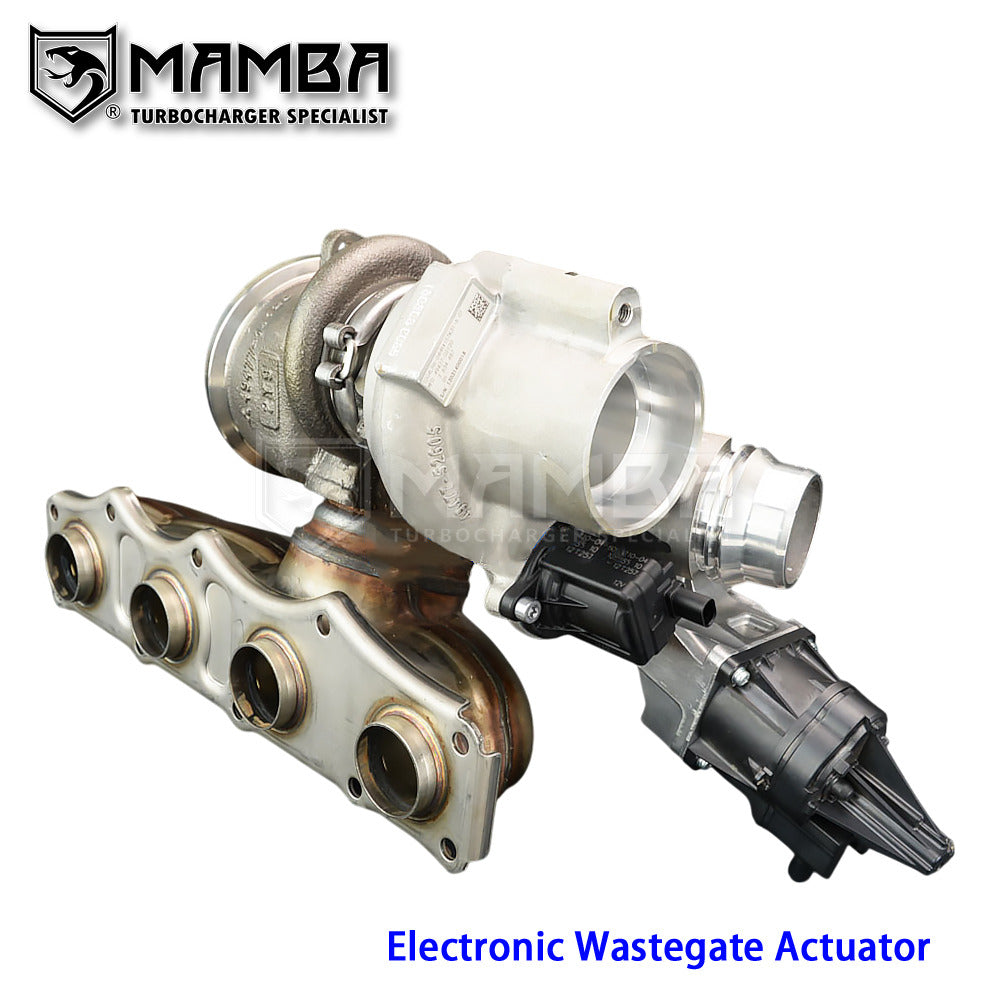

(For Electronic Wastegate Actuator)
Complete CHRA was balanced by Schenck MBRS 110.
Application
2012~2016 BMW F10 F25 F30 E84 N20 N26 320i, 328i, 528i, Z4…
Fits Turbo #: 49477-02021, 49477-02025, 49477-02120,
BMW P/N: 7634486, 7634487…
Warning:

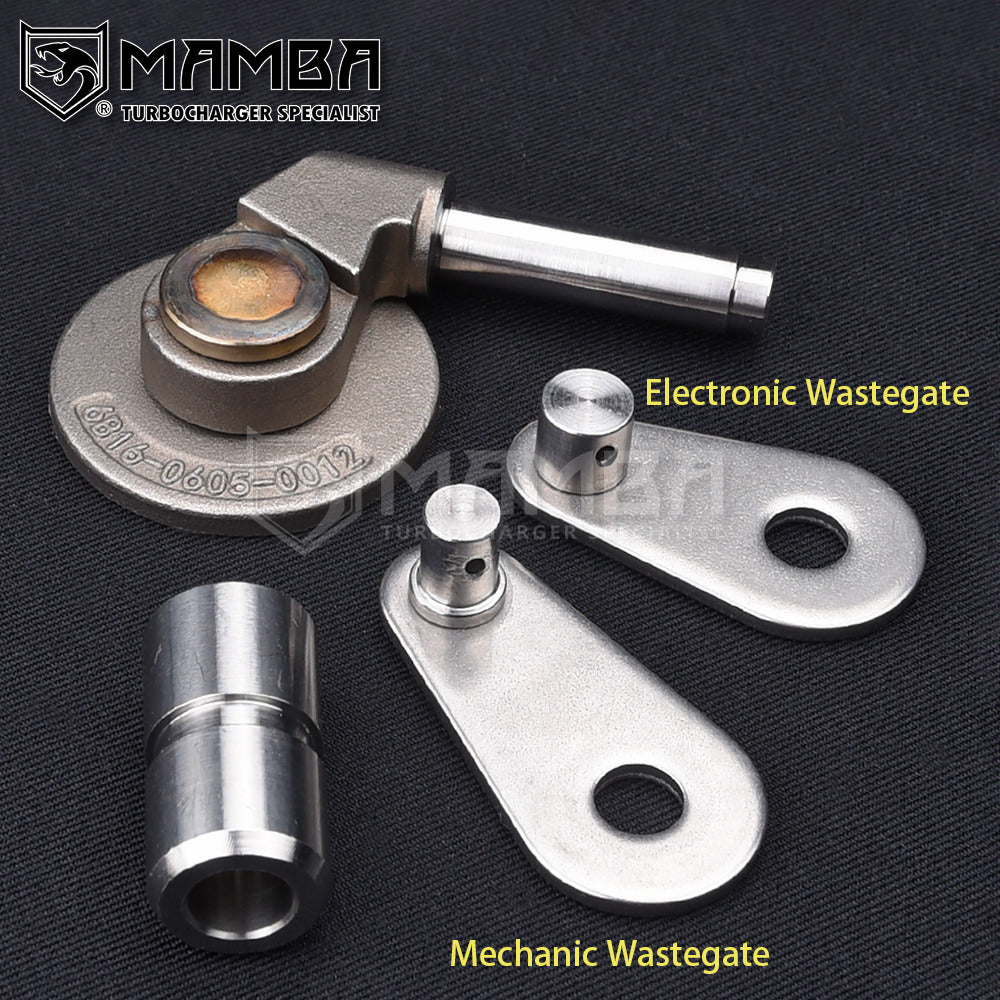

1. This turbine housing goes with short flapper arm for electronic wastegate actuator.

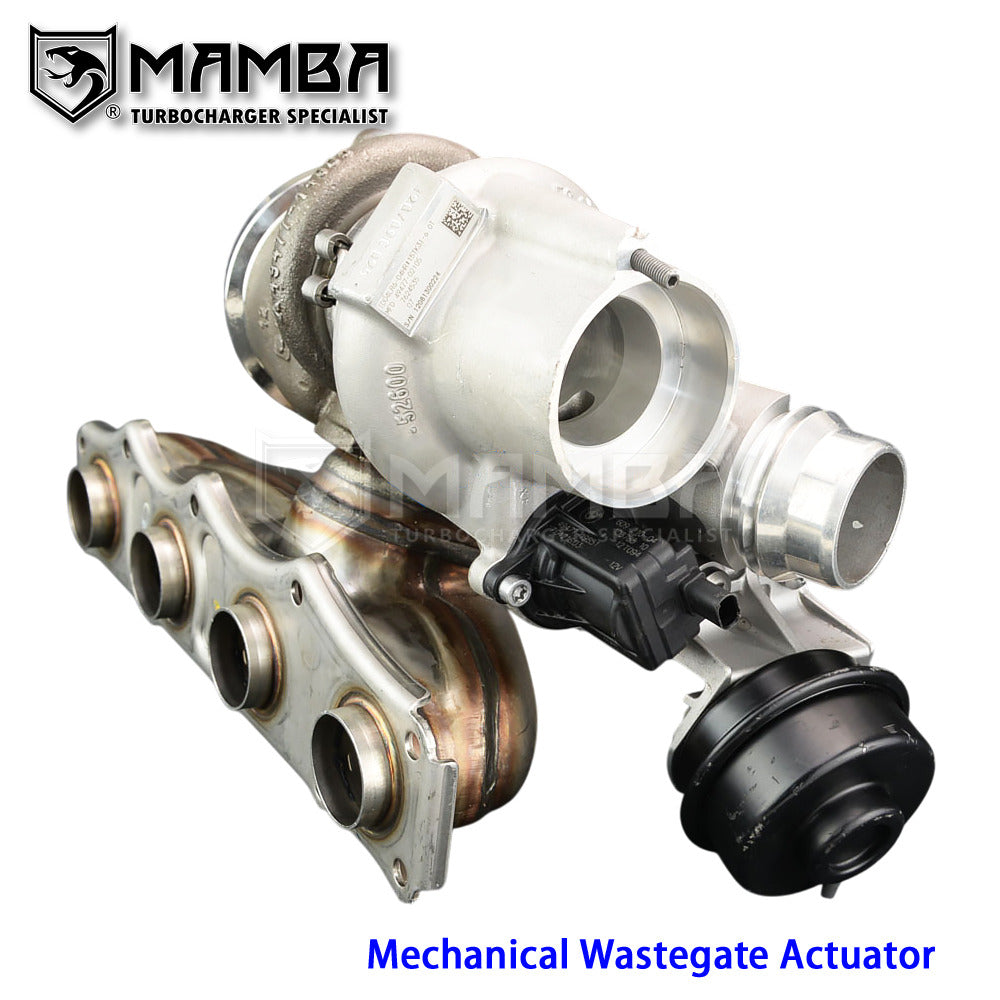

2. If your turbo goes with mechanical vacuum wastegate actuator, please order 001-2742 with longer flapper arm.
Specs
Comp. Wheel: 49.62/61.01 mm (6+6 Blade/21TK/Extend tapper Tip/LEP Performance Designed)

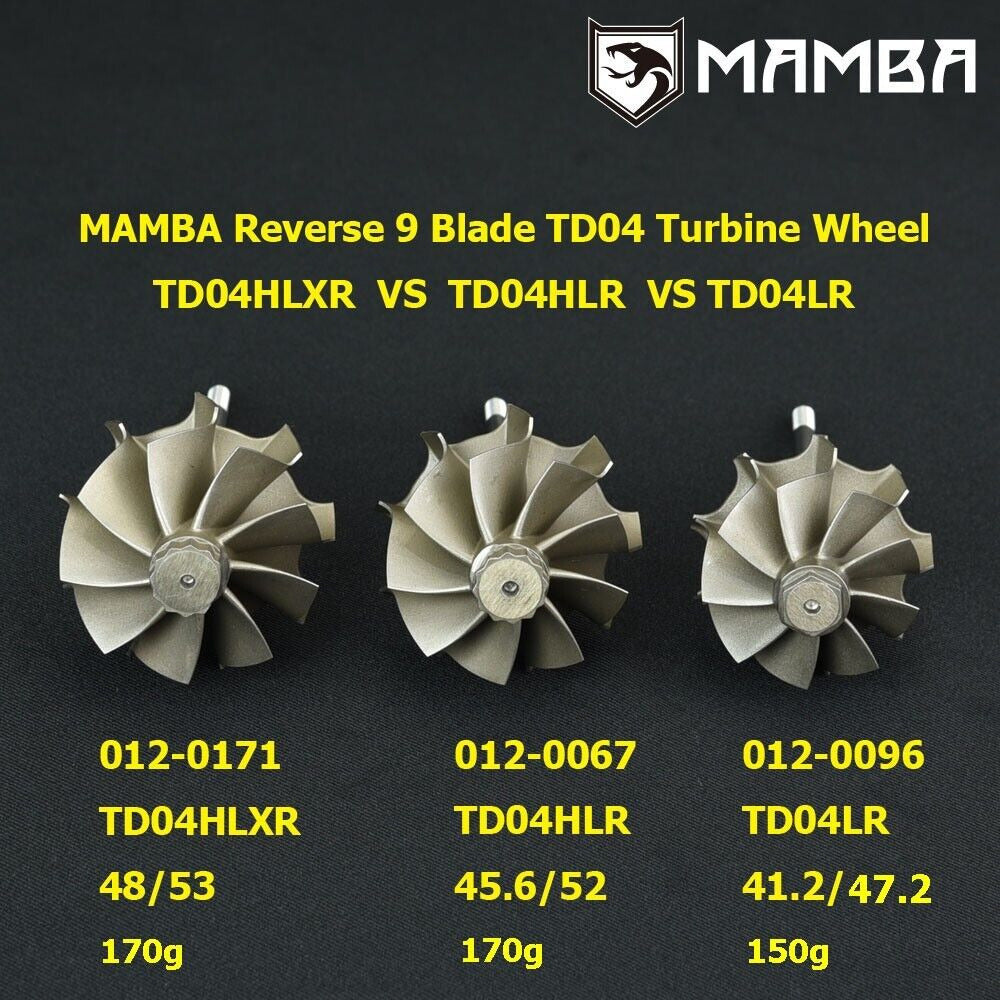

Turbine Wheel: 45.7/52 mm (9 Blade High Flow TD04HLR)
Bearing
Journal Bearing System (Steel Heavy Duty performance thrust bearing kit installed)
Cooling
Oil and Water-cooled system
Turbine Housing

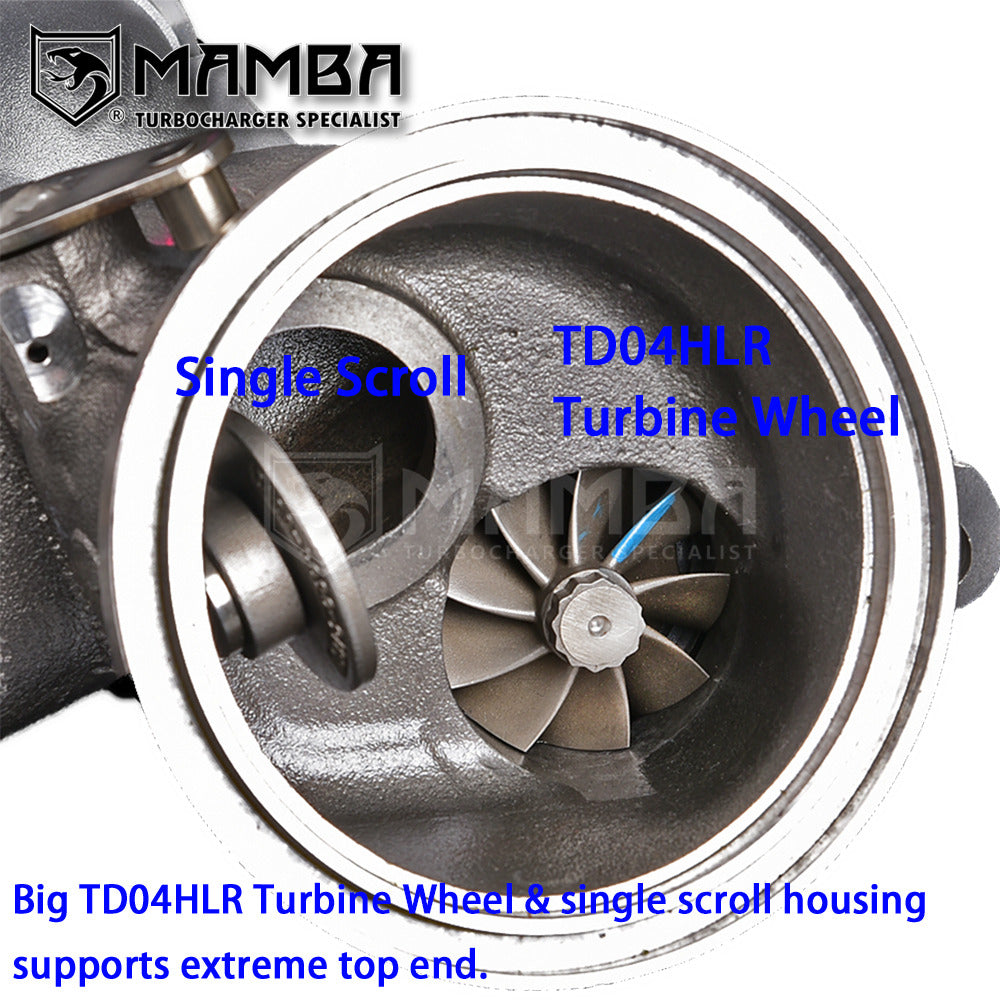

Single scroll turbine housing replaces factory twin scroll type to support extreme higher top end.

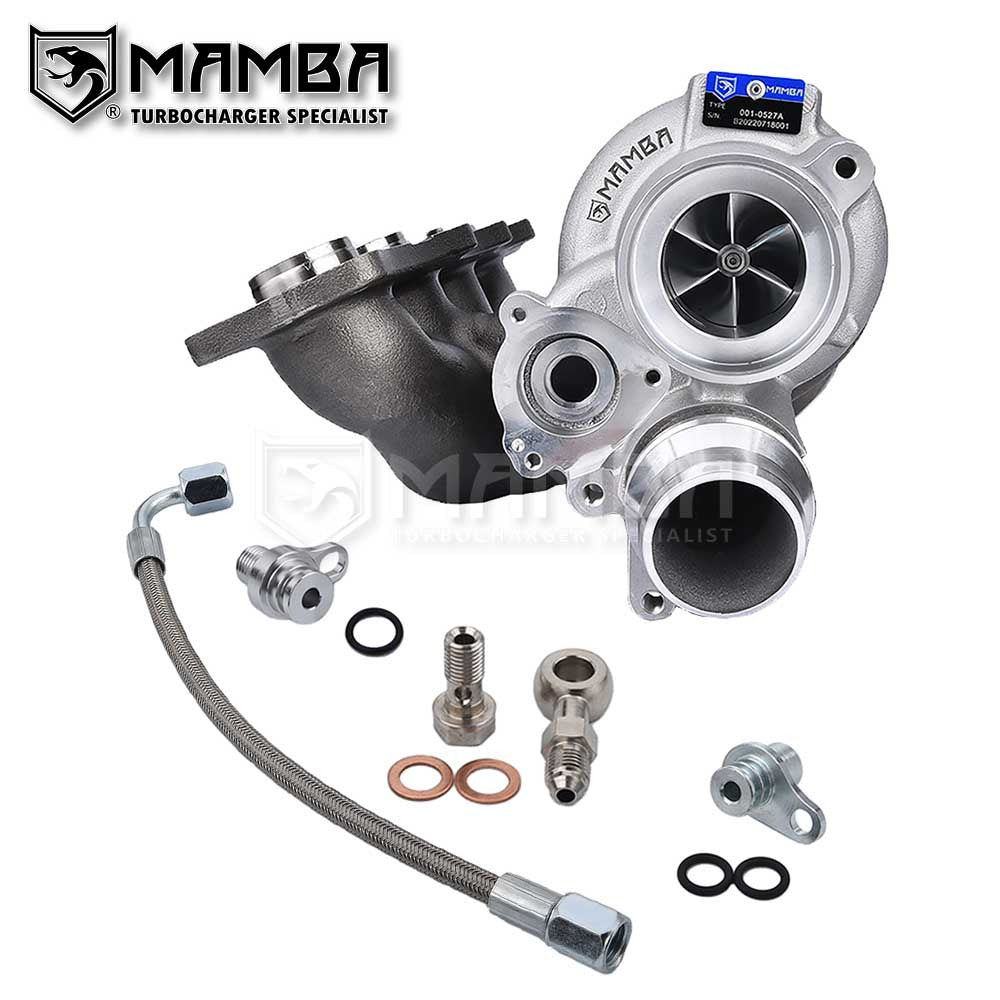

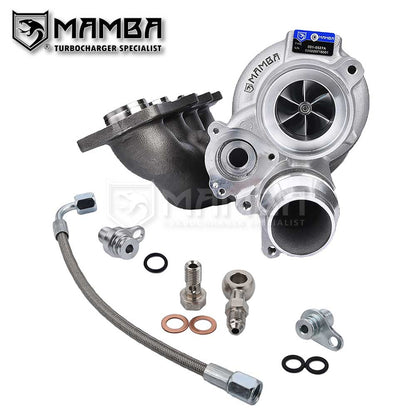

Kit Includes
1 x TD04HLR-21TK Turbo (No Actuator)
Everything shown on picture is included
