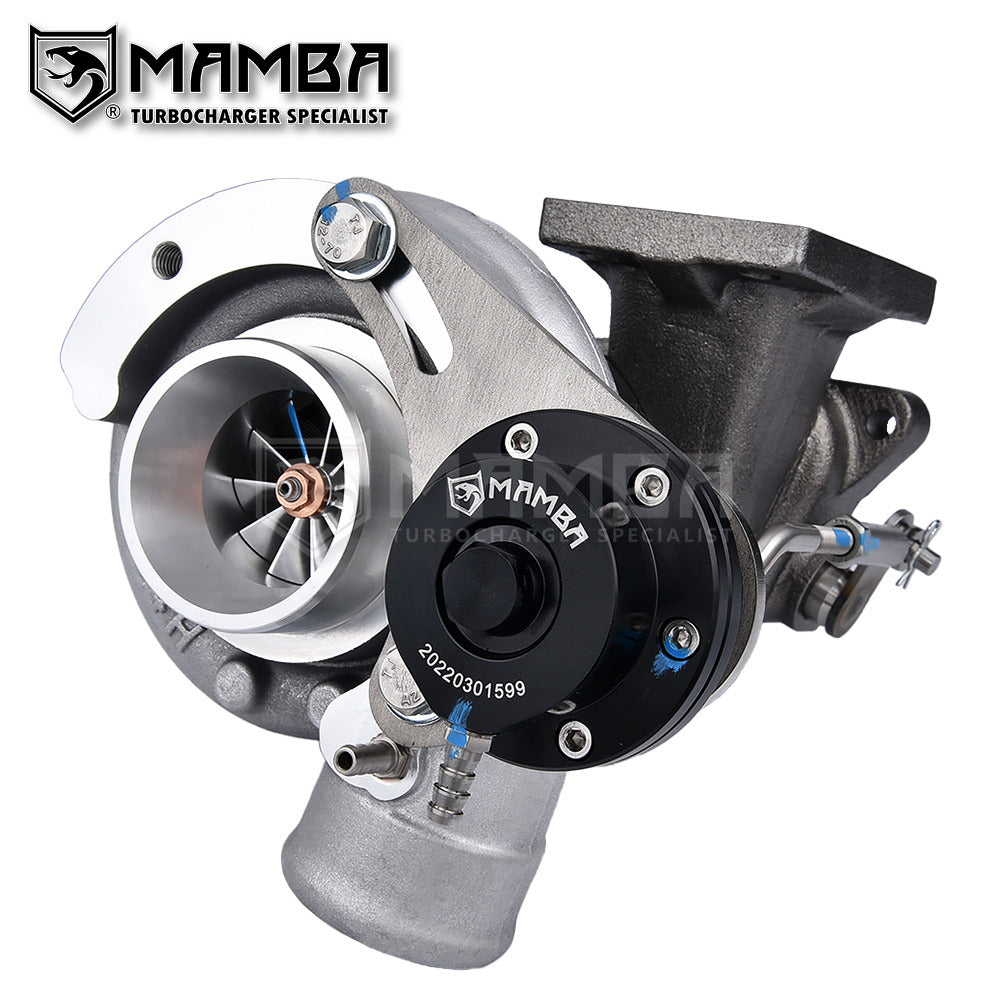

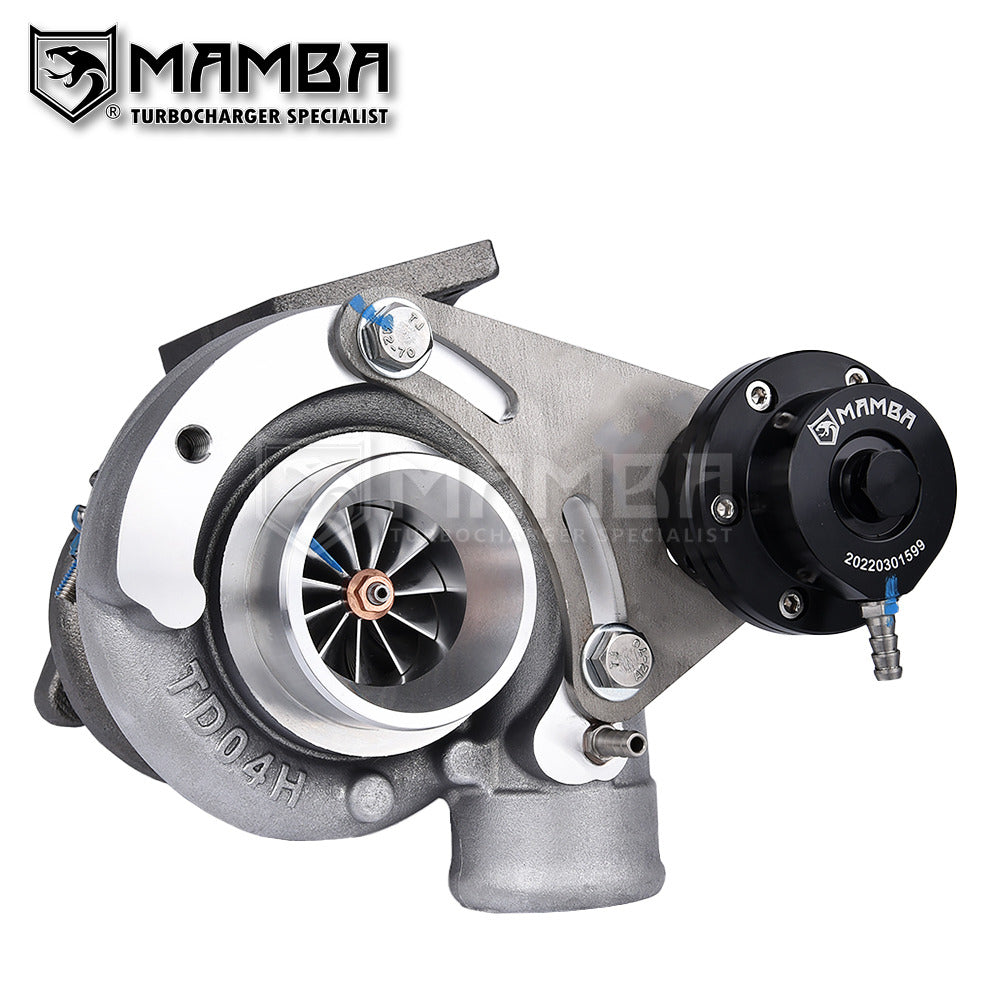

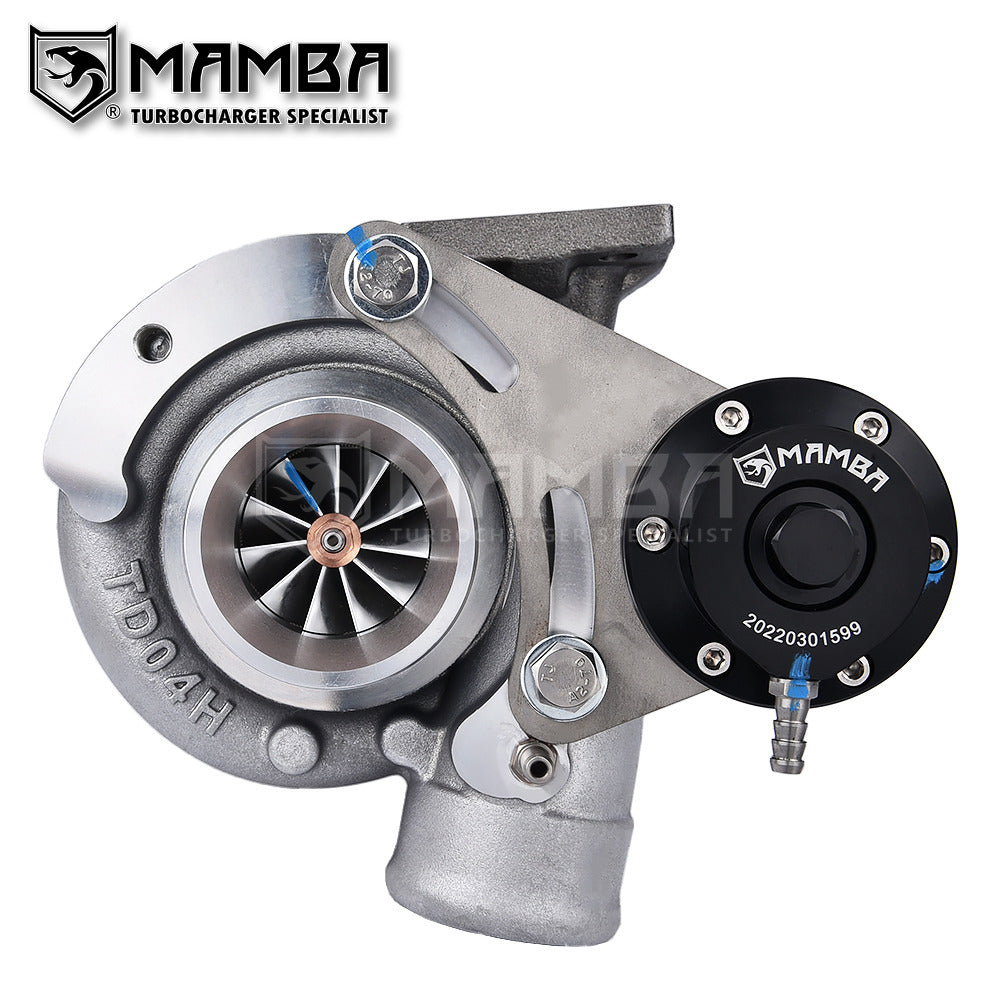

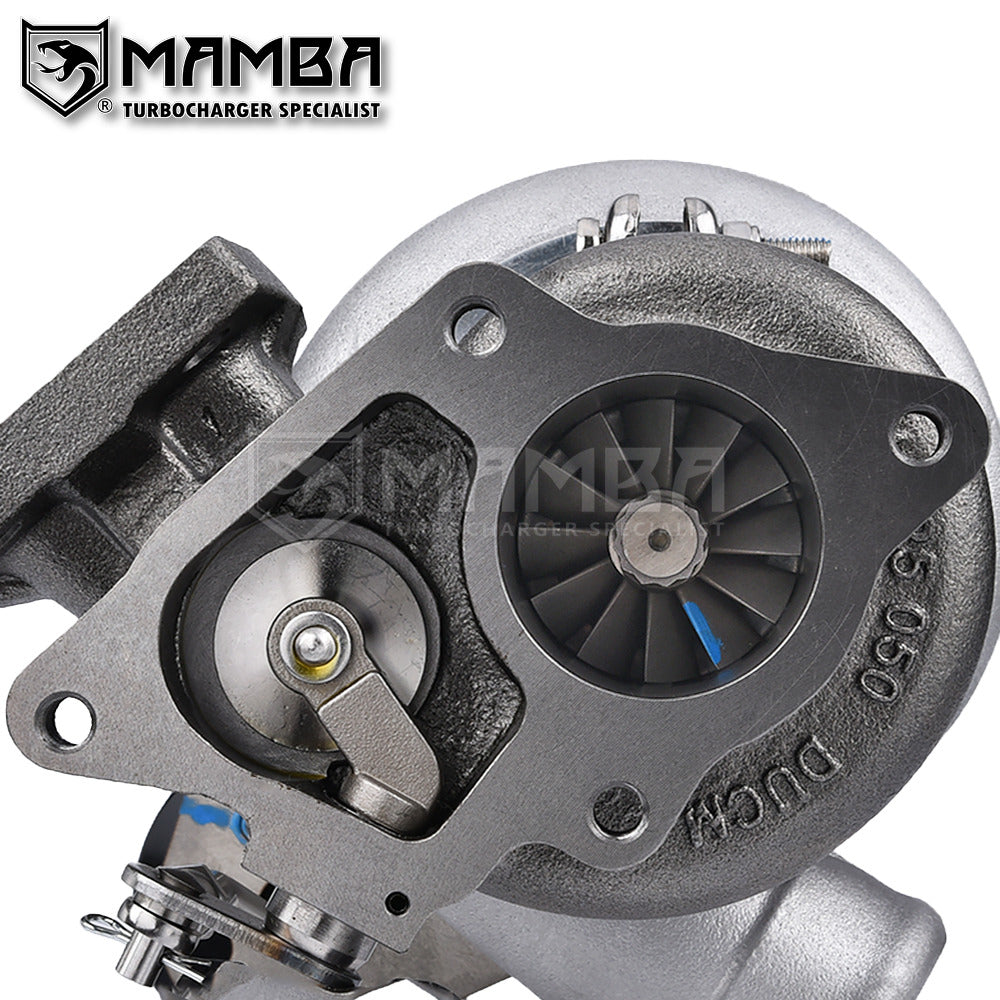

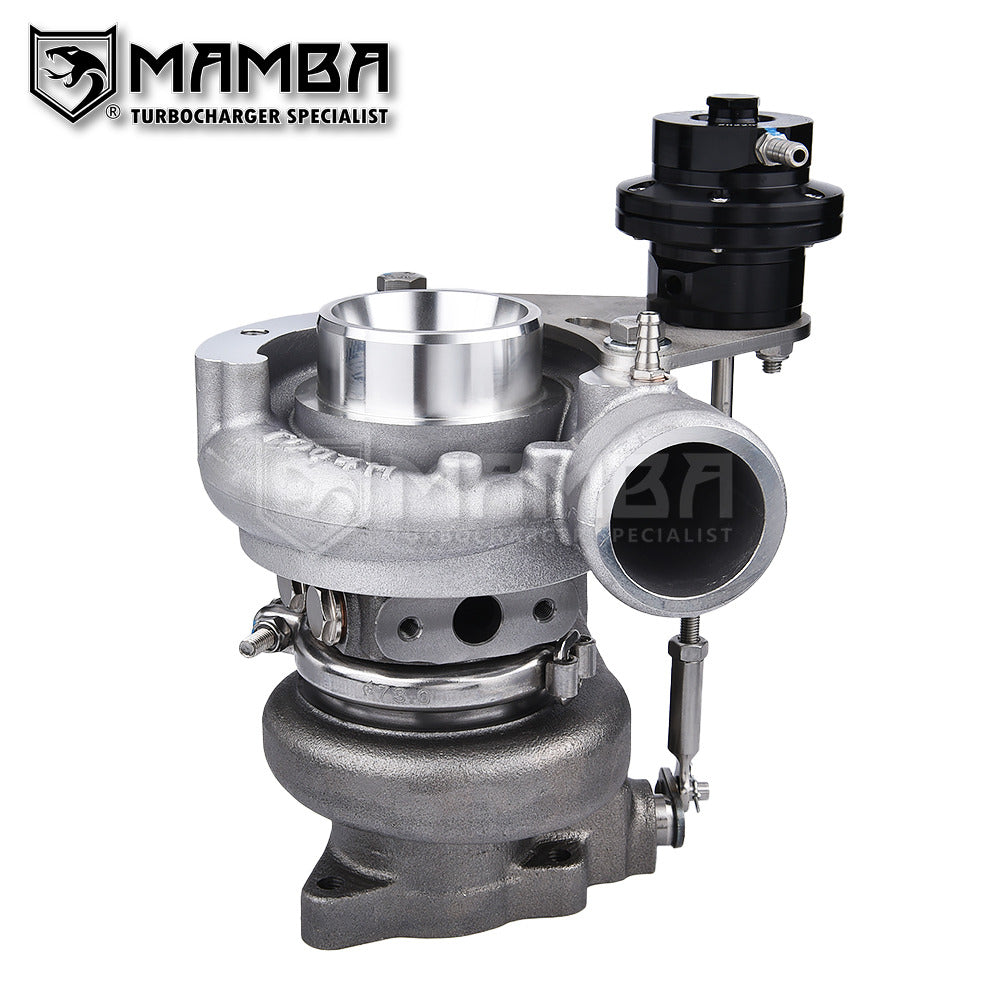

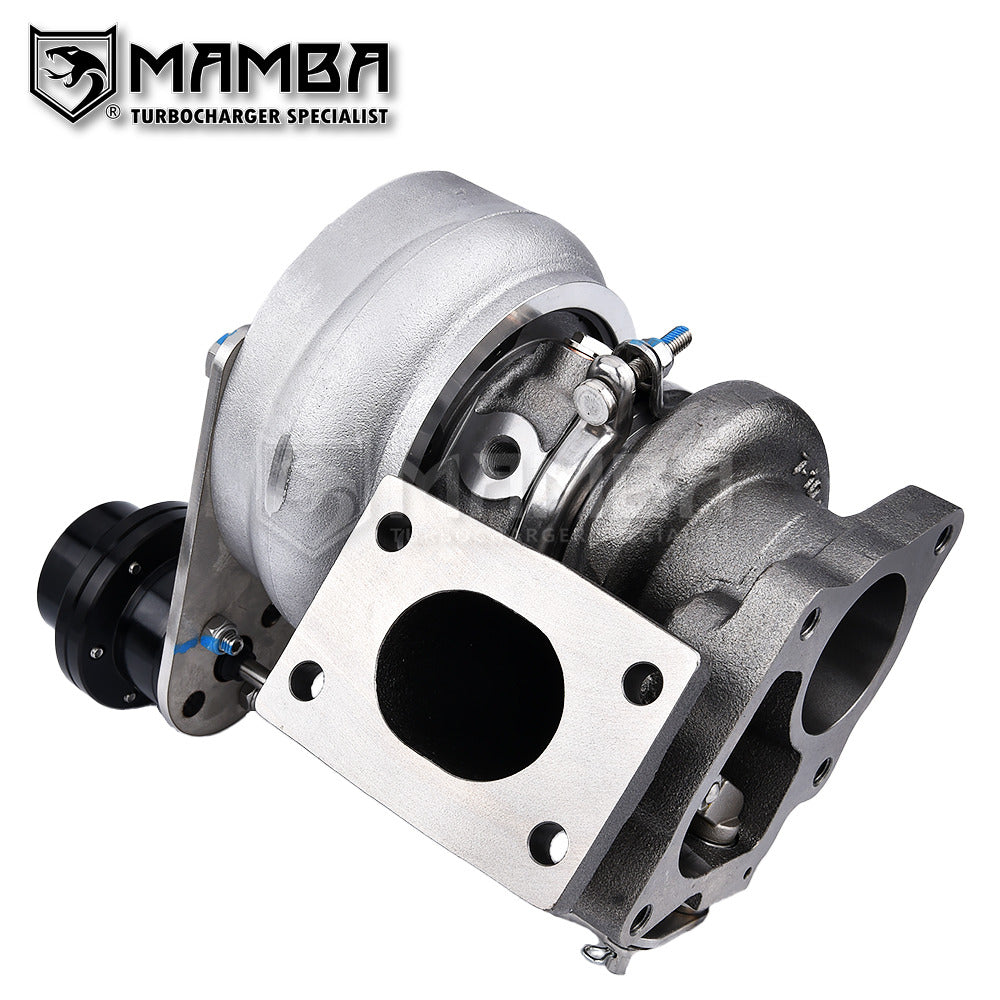

MAMBA GTX 2.35" TD04L-15T w/ 5cm Hsg For 49377-05100 Upgrade

MAMBA GTX Billet Turbocharger TD04L-15T with 2.35” Cover + 5cm T25  Turbine Housing

Product Situation
Brand New In Box

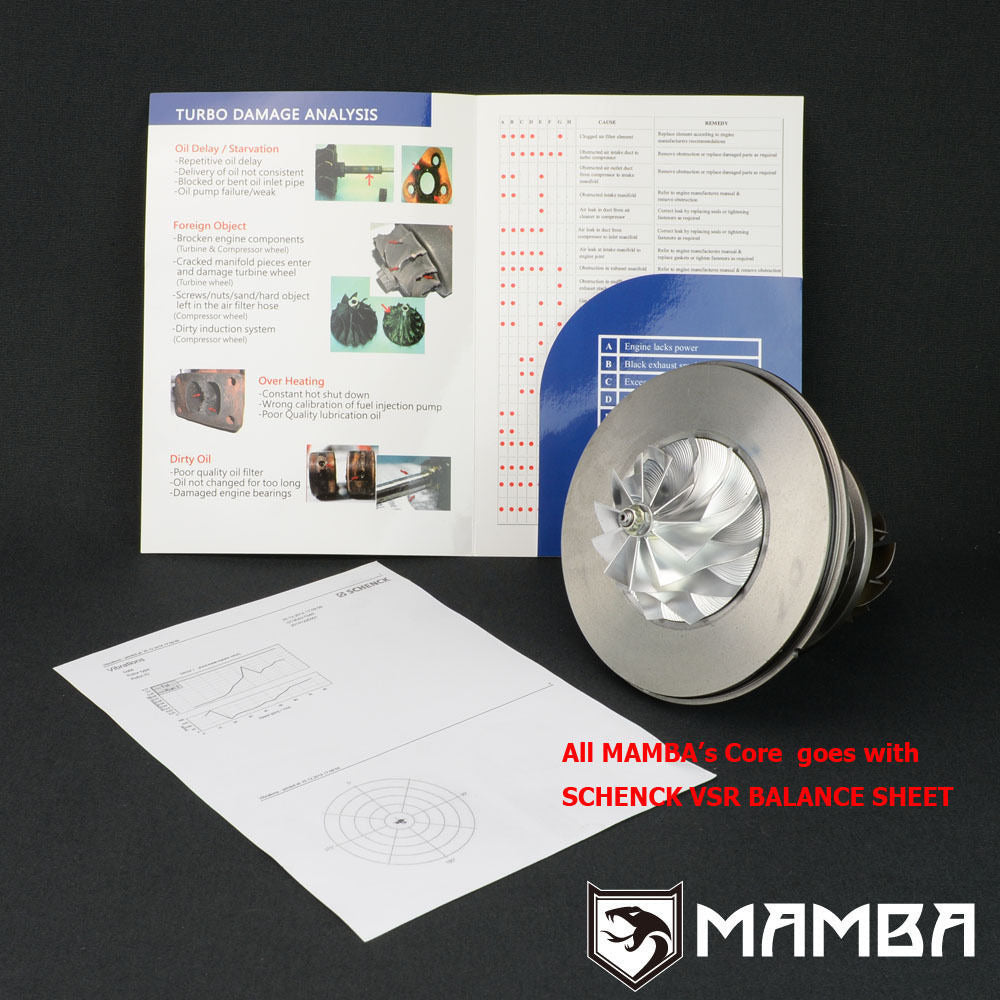

Complete CHRA balanced by SCHENCK MBRS110 Germany

Application
1.3~2.L Gasoline Engine / 200~350HP
3L~4L Diesel Engine

Specs
Compressor Wheel : 42mm / 56mm (GTX 11 Blade Billet Wheel 15T with  Extended Tip)
Turbine Wheel : 41.3 / 47 mm (TD04L Performance High Inconel)
Compressor Housing : 2.35” Inlet / 2” Outlet (60 mm Inlet / 50.3 mm  Outlet)
HP Support : 200~350 HP

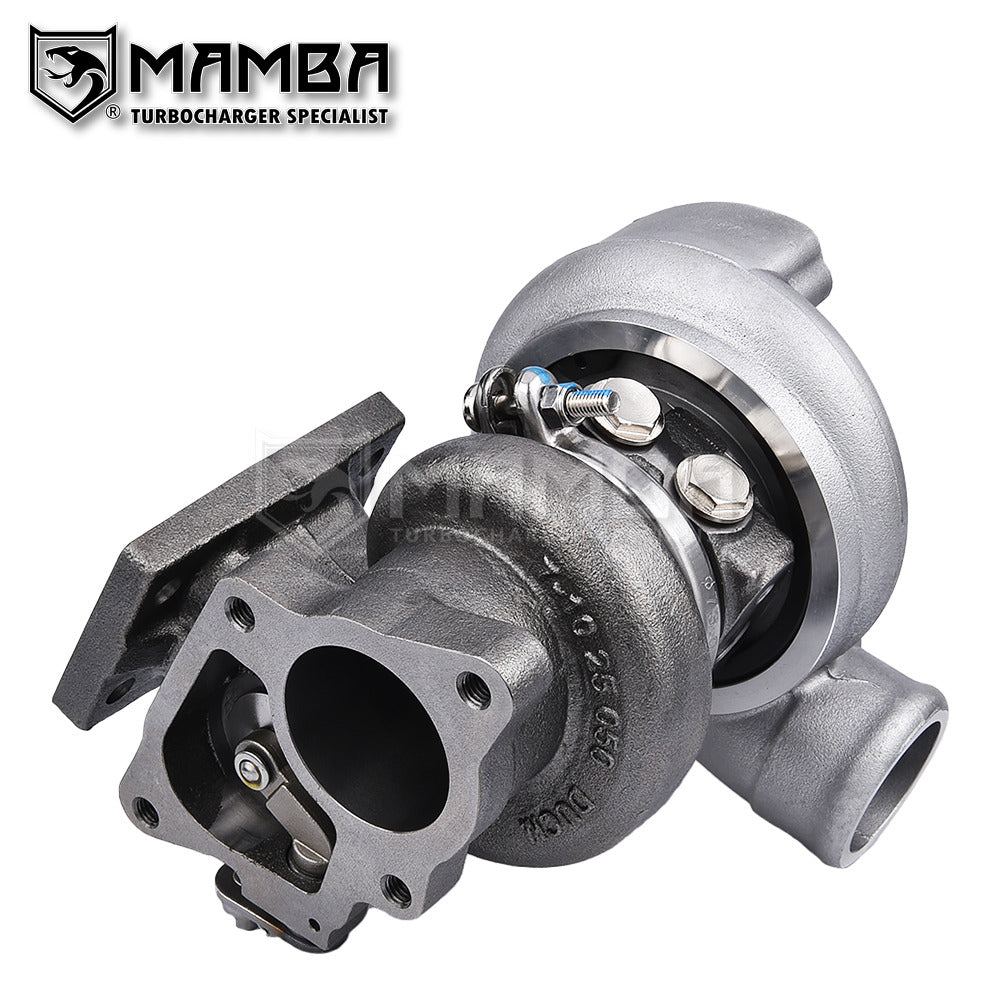

Turbine Housing
5cm / A/R .33
Standard T25 Flange
Internal Gate Type

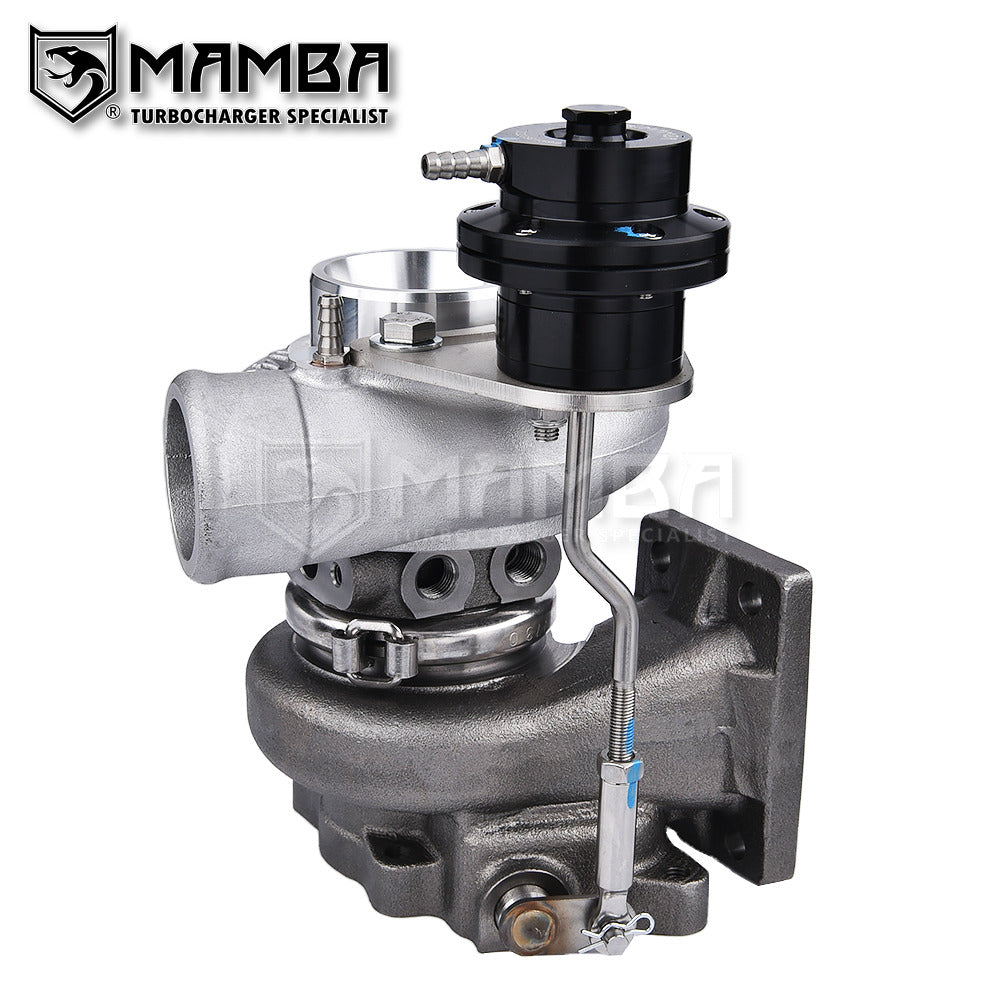

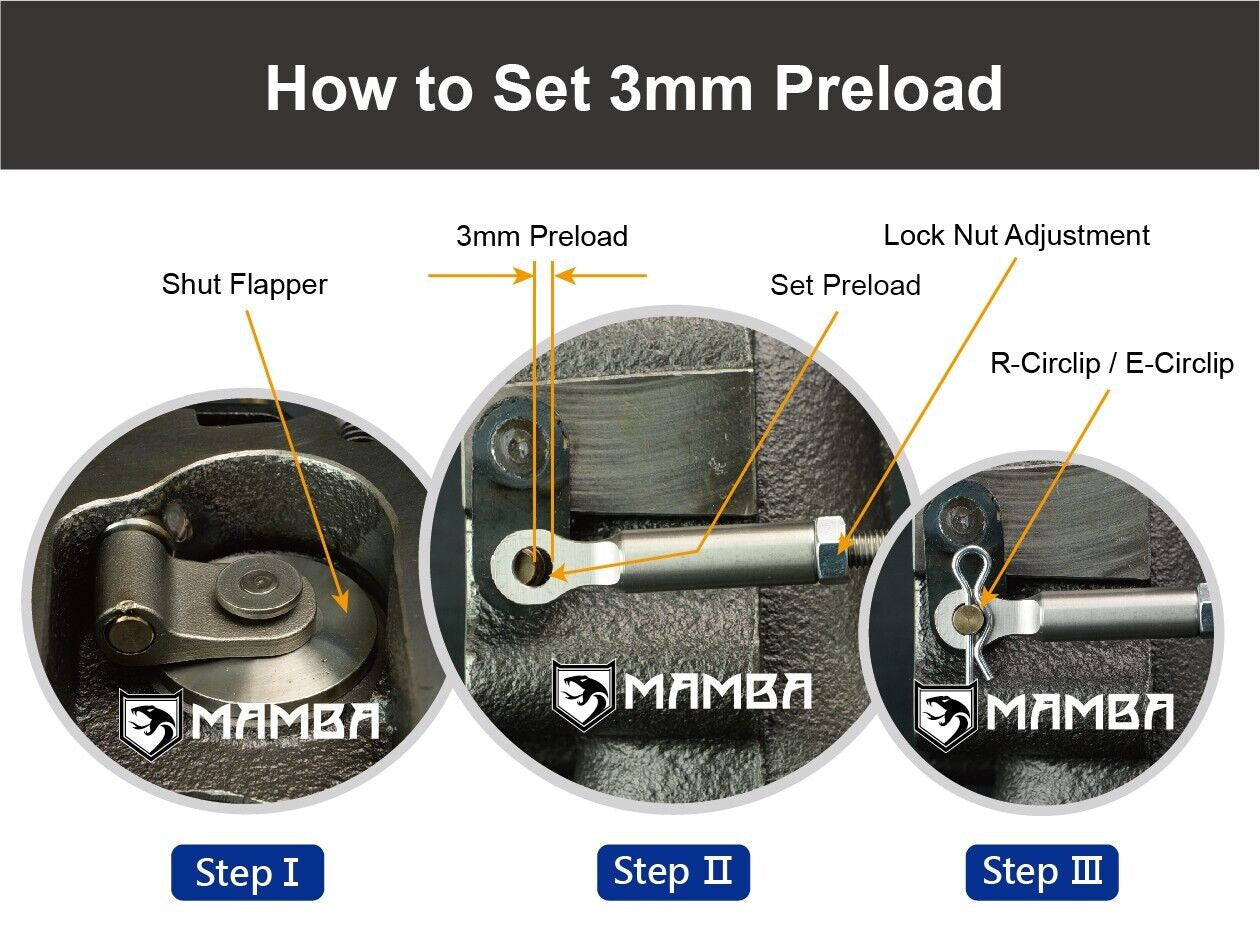

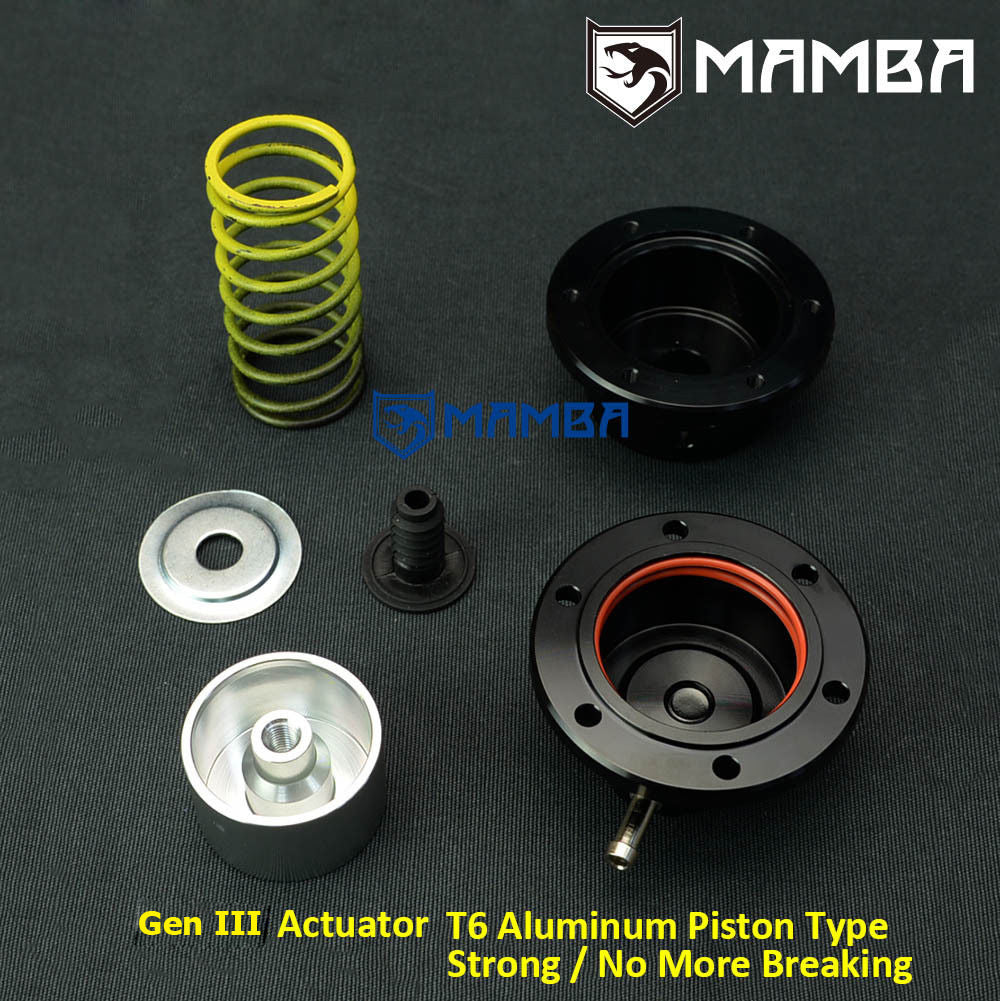

Actuator

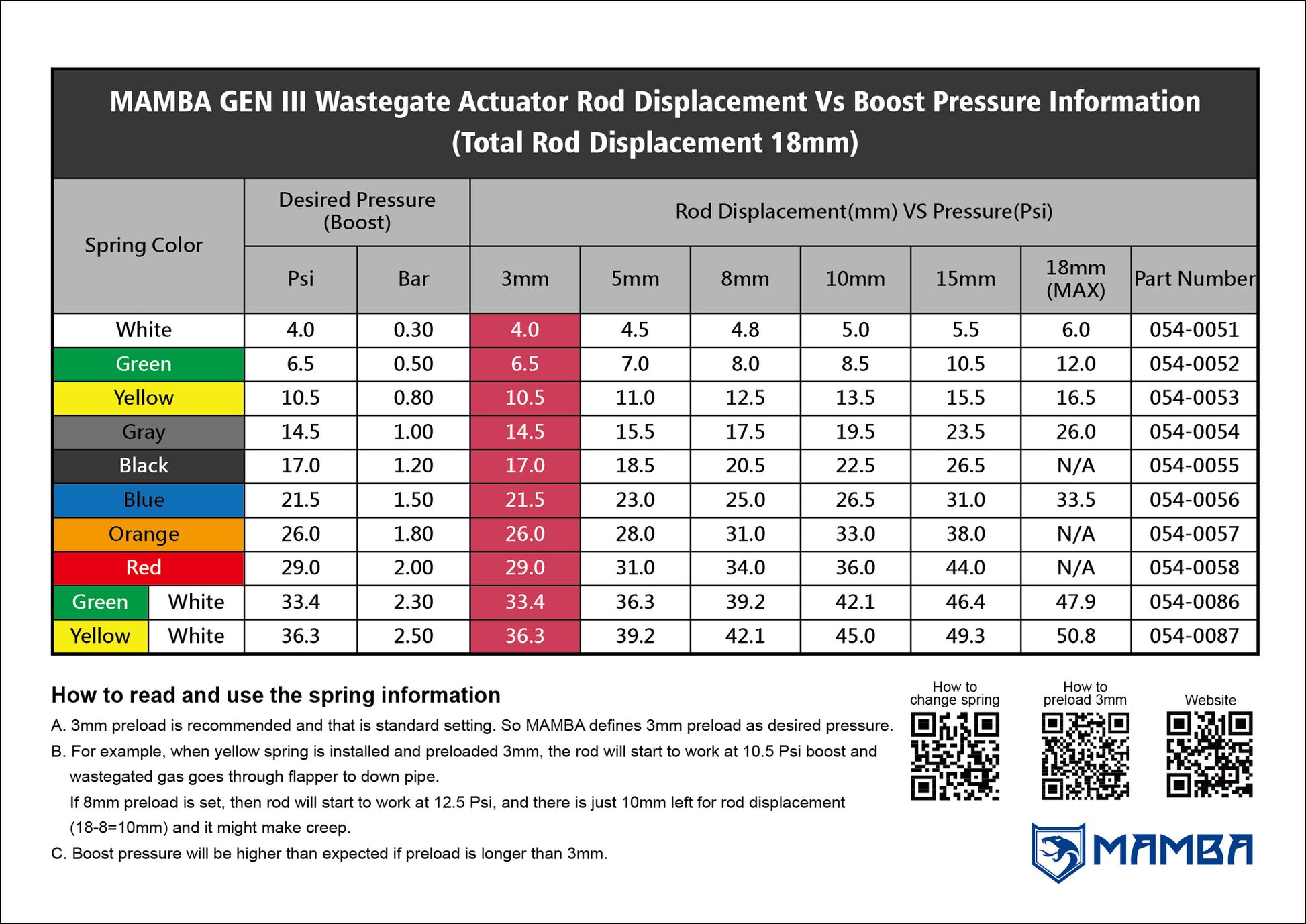

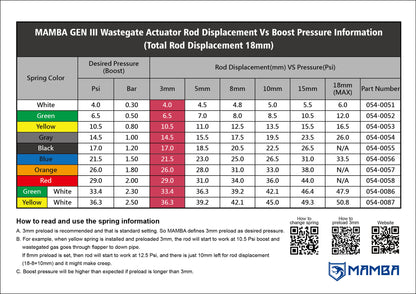

0.8bar spring will be pre-installed  on the adjustable actuator
Additional 1.2bar and 1.5bar spring will go with box

Bearing/ Cooling
Journal Bearing / Performance Thrust Bearing Kit Included
Oil and Water-cooled system

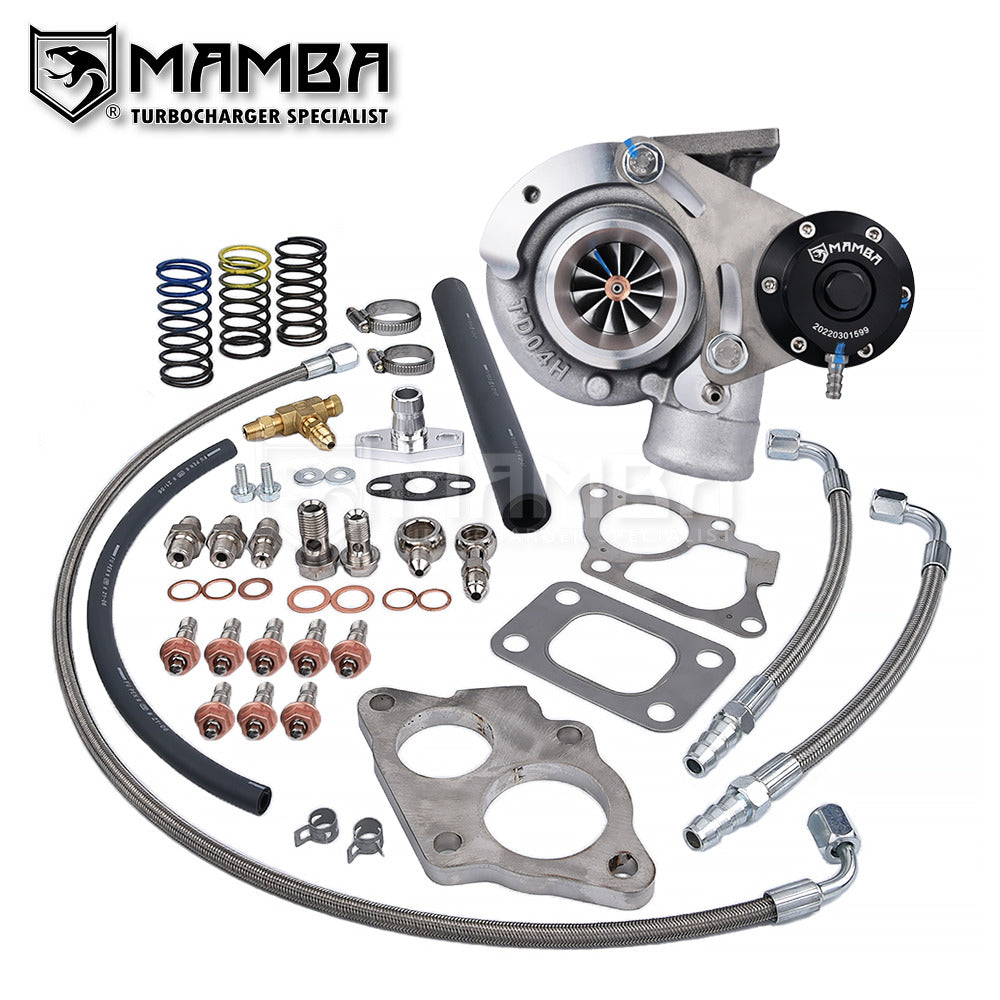

Kit Includes
1 x MAMBA TD04L-15T-5 Turbocharger.
1 x 70cm Oil Feed Line with 1/8PT Tee and 12mm Banjo Bolt Kit with  1.8mm restrictor to  turbo side.
2 x 25cm cm Water Line Kit.
1 x Oil Return Pipe Kit.
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket

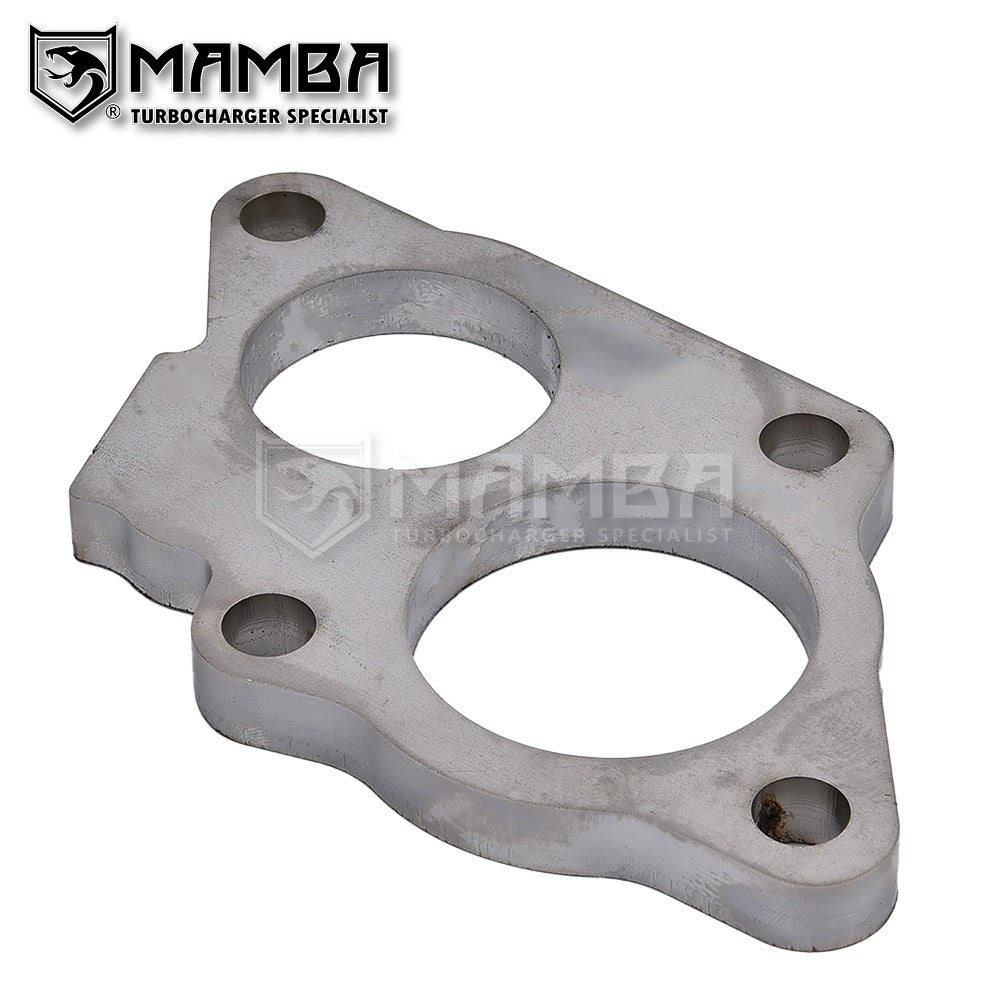

8 x Stud Kit for exhaust manifold and dump pipe.
Everything shown on picture included
