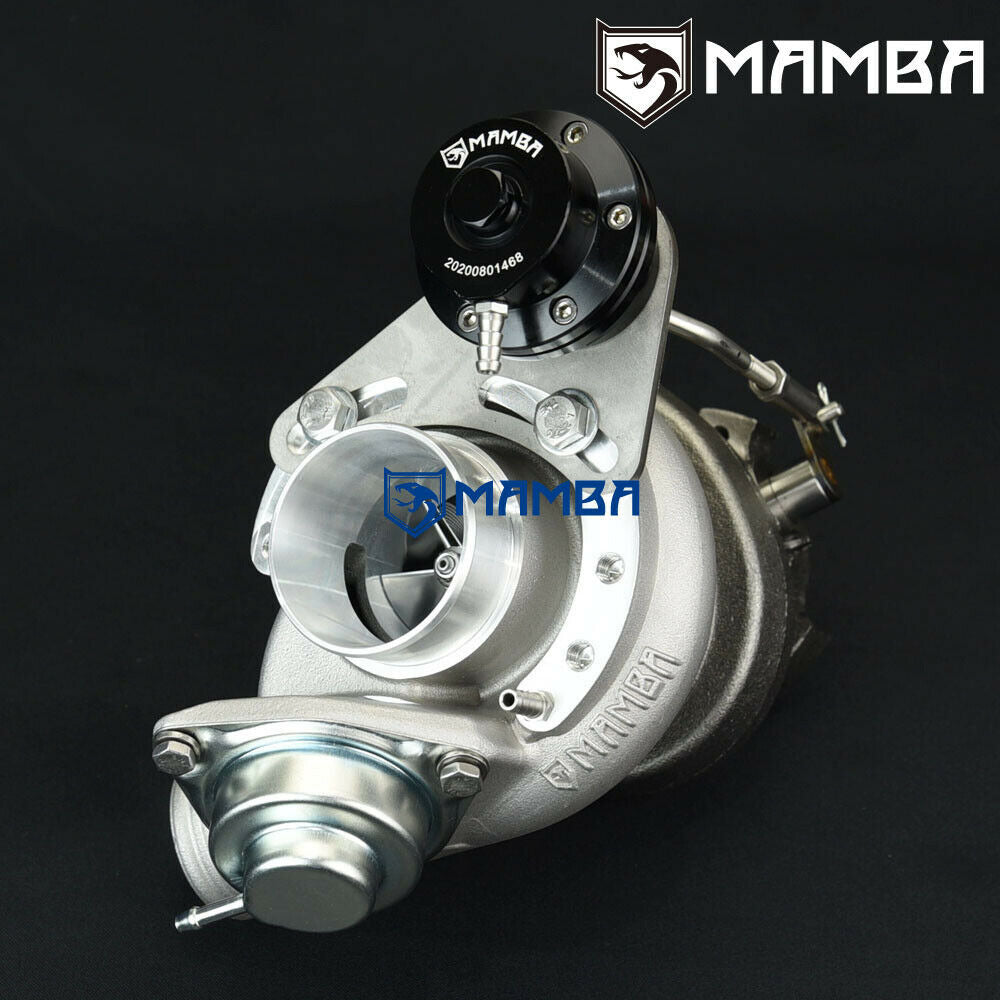

MBB 9-6 VOLVO 940 2.3L B230FK TD04HL-16T-7 Ball Bearing 300HP
Regular price
$1,110.00
Sale price
$1,110.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

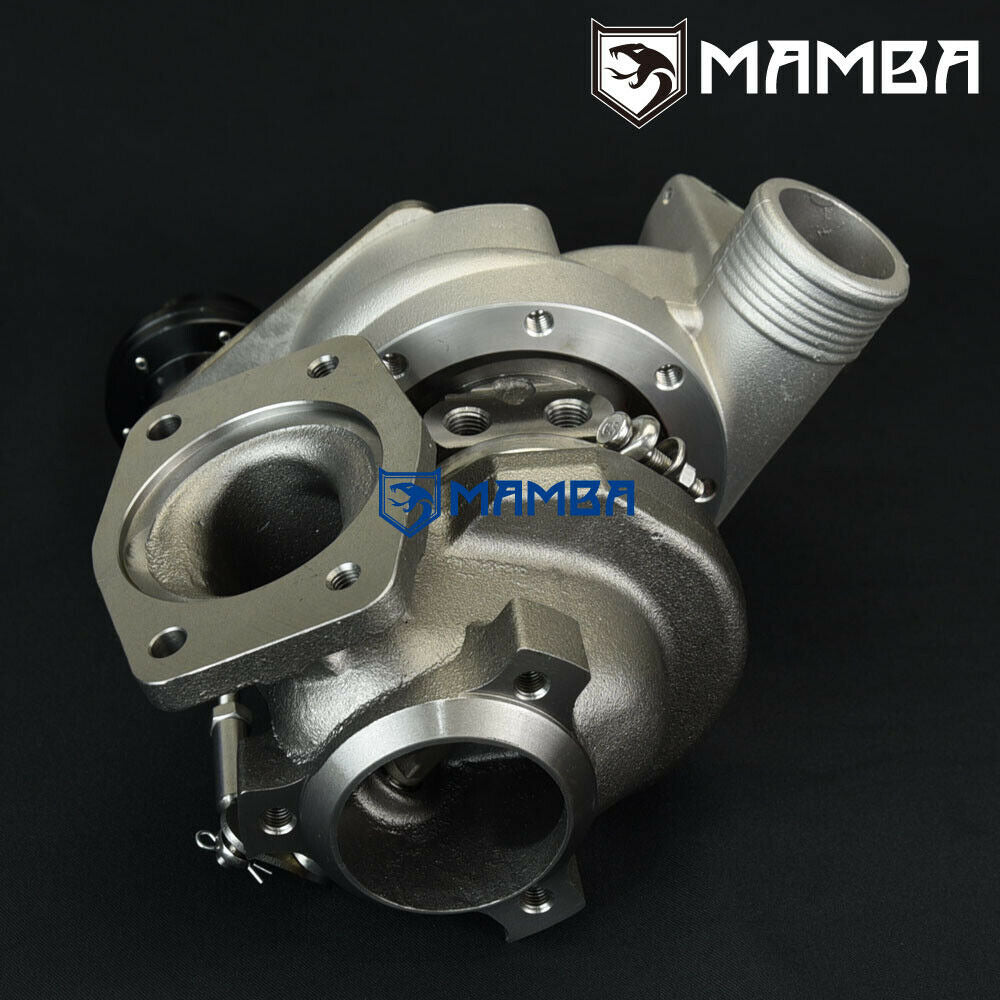

MAMBA 9-6 VOLVO 240 740 940 B230FK 2.3L TD04HL-16T-7 MBB Ball Bearing Turbocharger (300HP)
Brand New in Box.
Complete CHRA balanced by SCHENCK MBRS110 Germany.
Application
Bolt-On Ball Bearing upgrade turbo for VOLVO 240/940/960 2.3L TD04H-13C with 6cm turbine housing to Monster TD04HL-16T-7
G25 Ball bearing system is equipped on MAMBA MBB TD04 turbo to make it spool
faster, get higher top end and boost higher
HP Support: 250~300HP
Factory Turbo #: 49189-01000, 49189-01200, 49189-01210, 49189-01260, 49189-01270
1990-98 Volvo 940, 960 with B230FT Engine
1989-98 Volvo 740, 760, 940, 960 with B230FT Engine
1990- Volvo 940, 960 with B200FT
1991-98 Volvo 940 with B230FK Engine
1991-98 Volvo 940 with B230FK Engine
Wheel

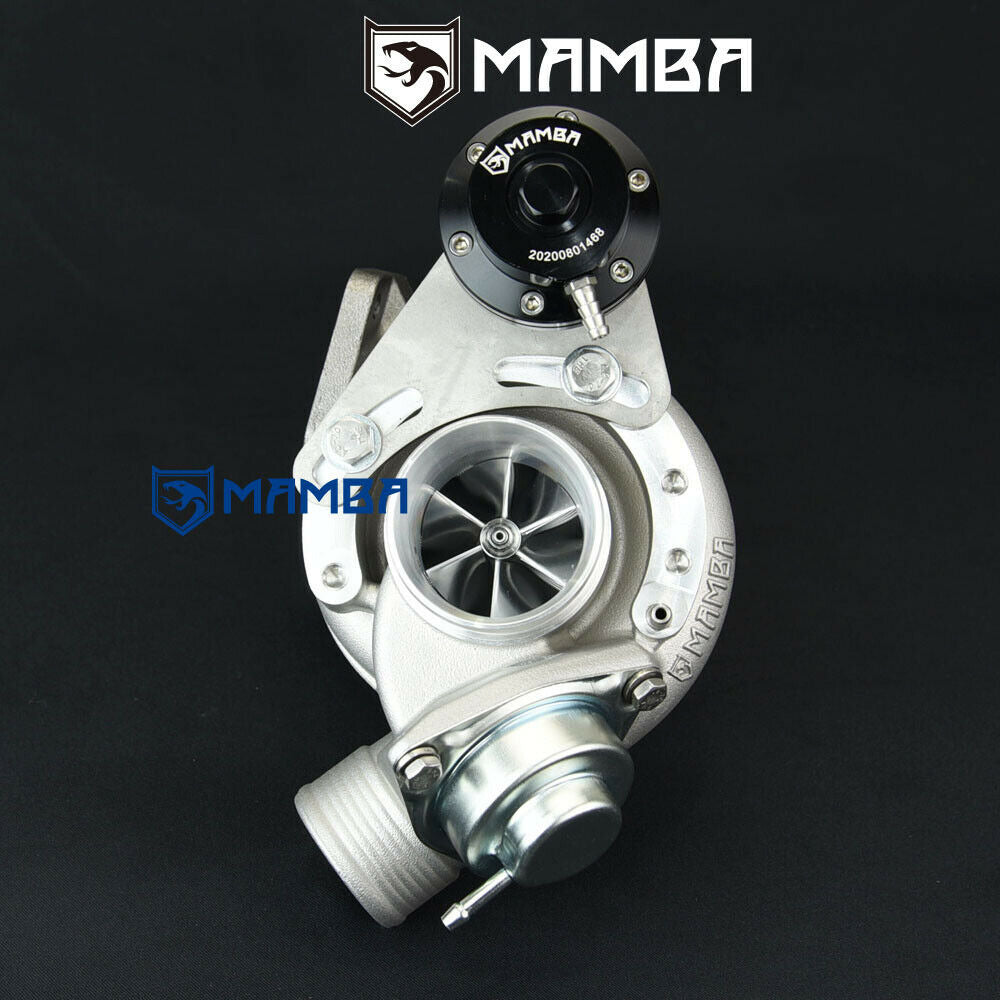

Compressor Wheel : 43.4/56 mm (Performance 6+6 16T Billet Wheel)
Turbine Wheel : 45.6/52mm (9 Blade TD04HL High Flow)

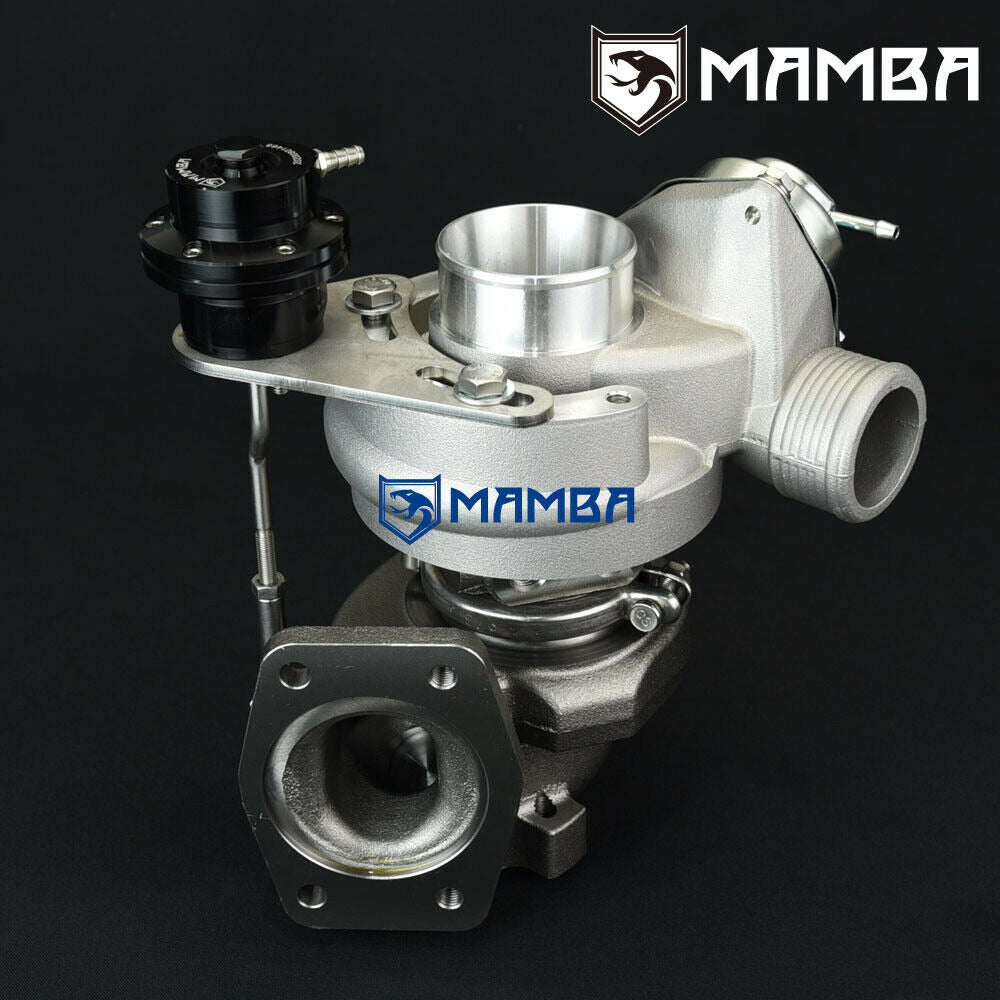

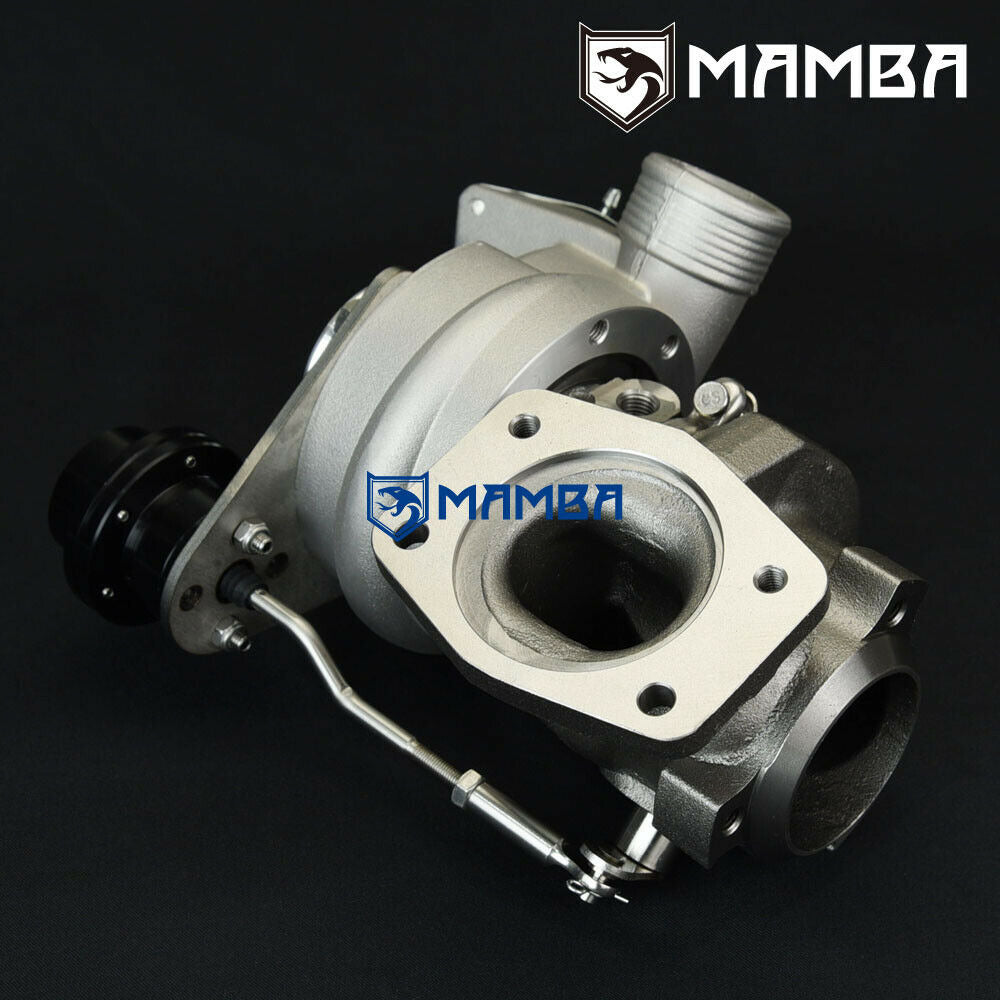

Turbine Housing
7cm (A/R .49) Conic Turbine Housing

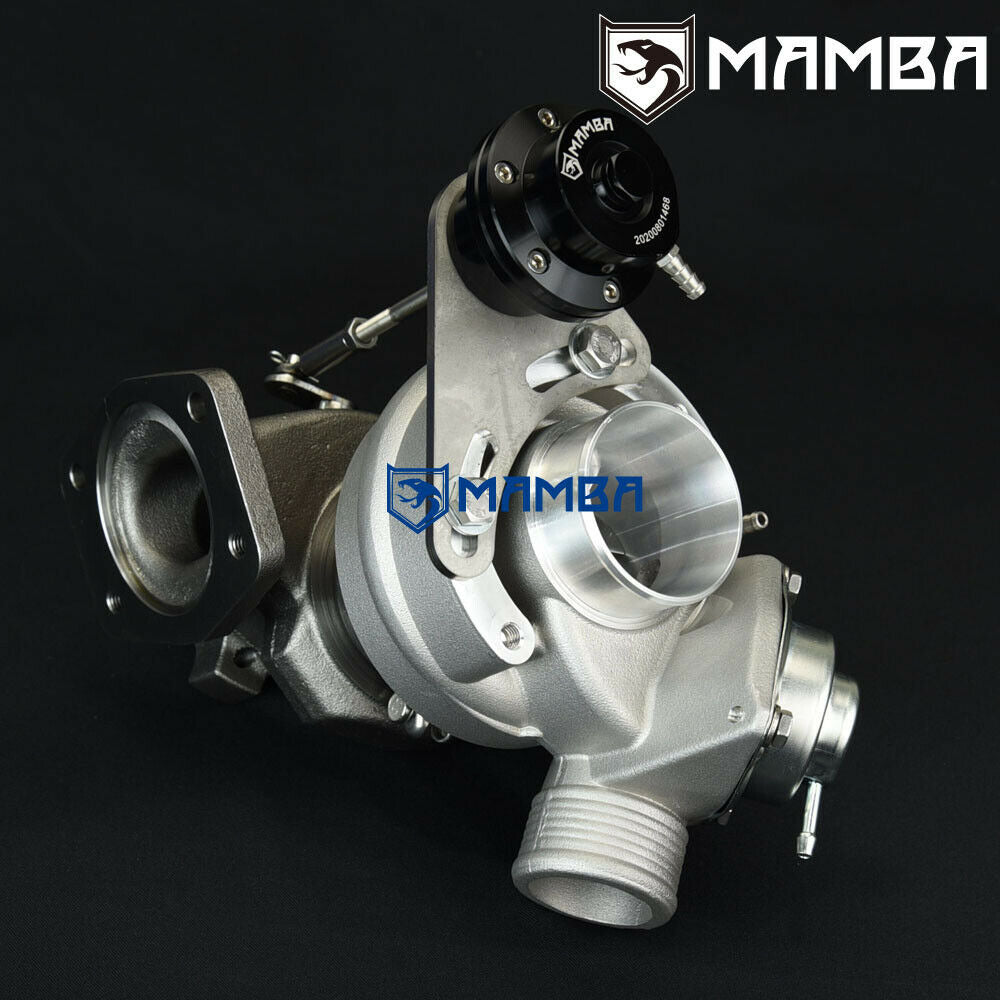

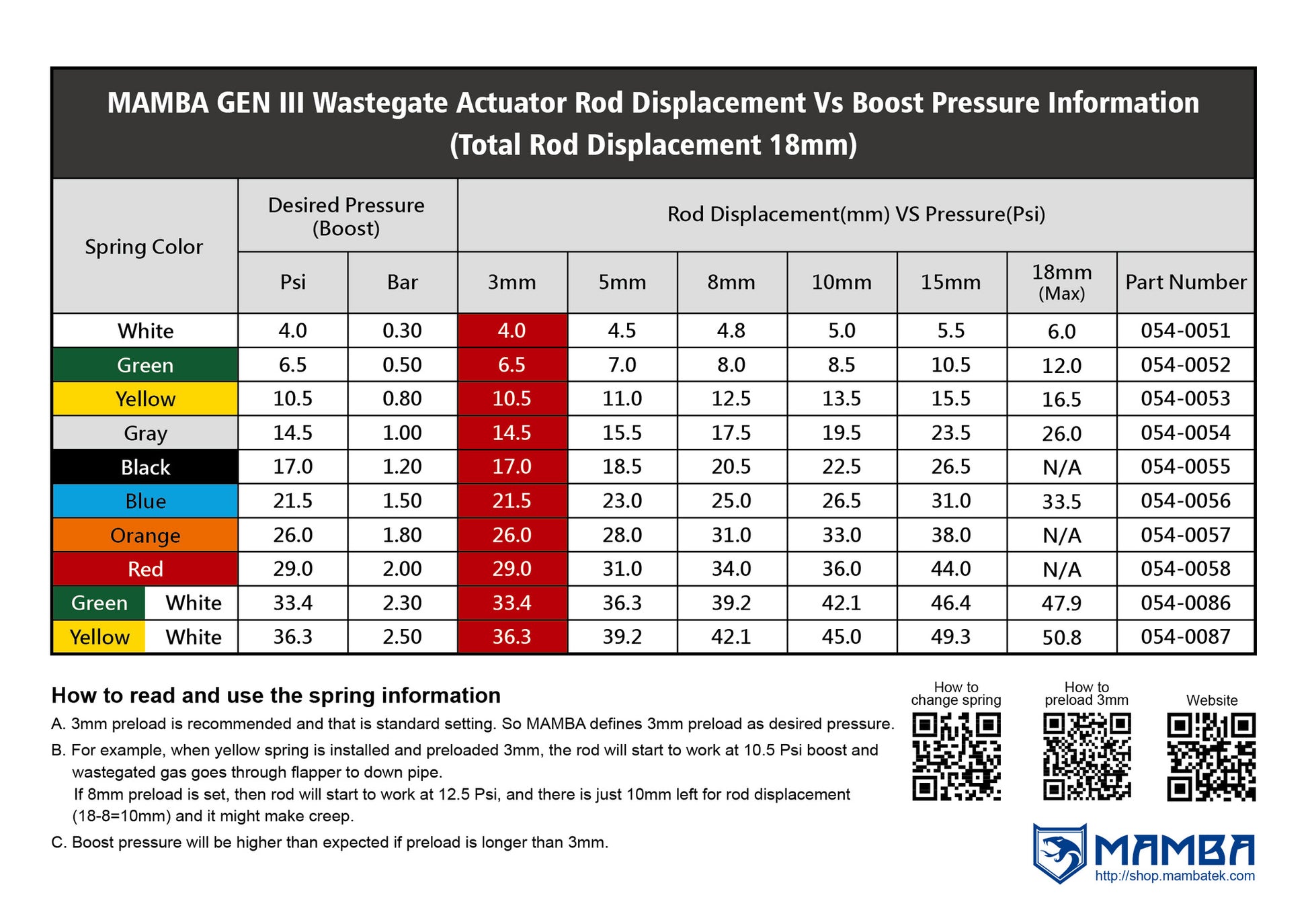

Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.

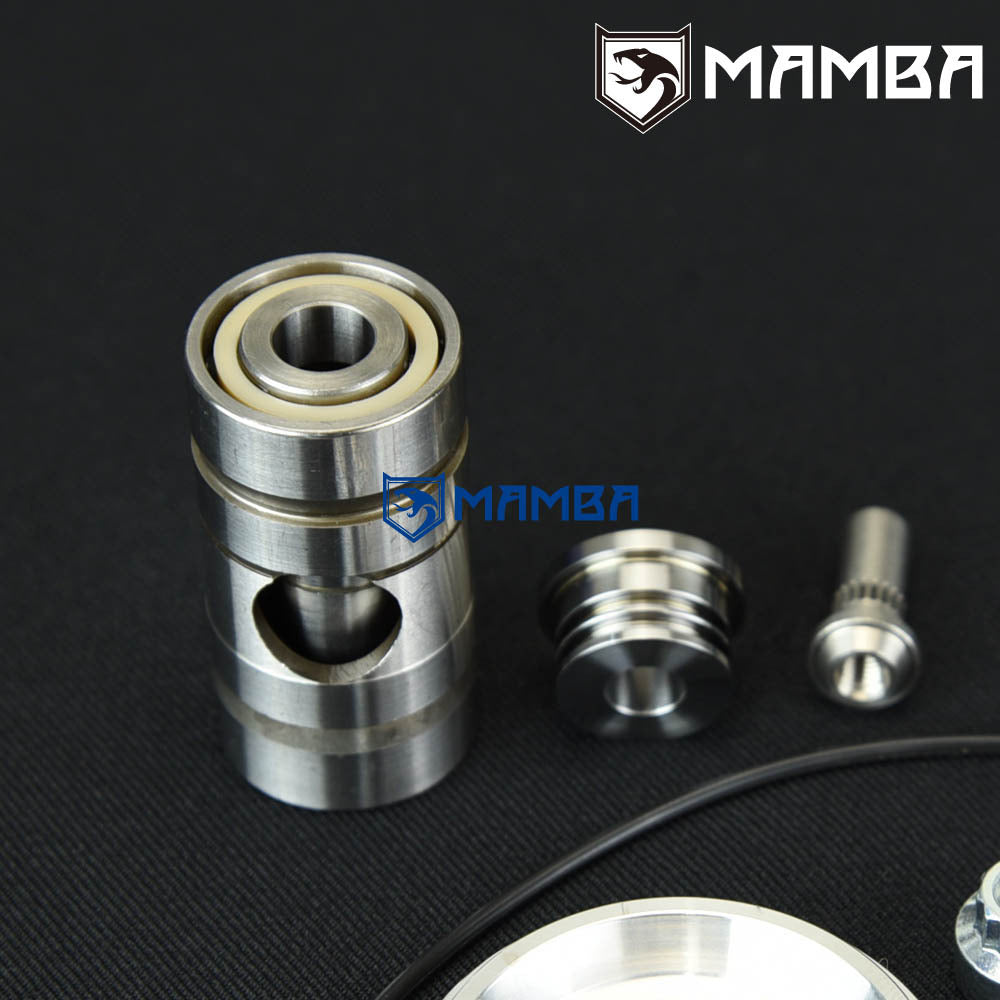

Bearing
G25 Ceramic Ball Bearing
Cooling
Oil and Water-cooled

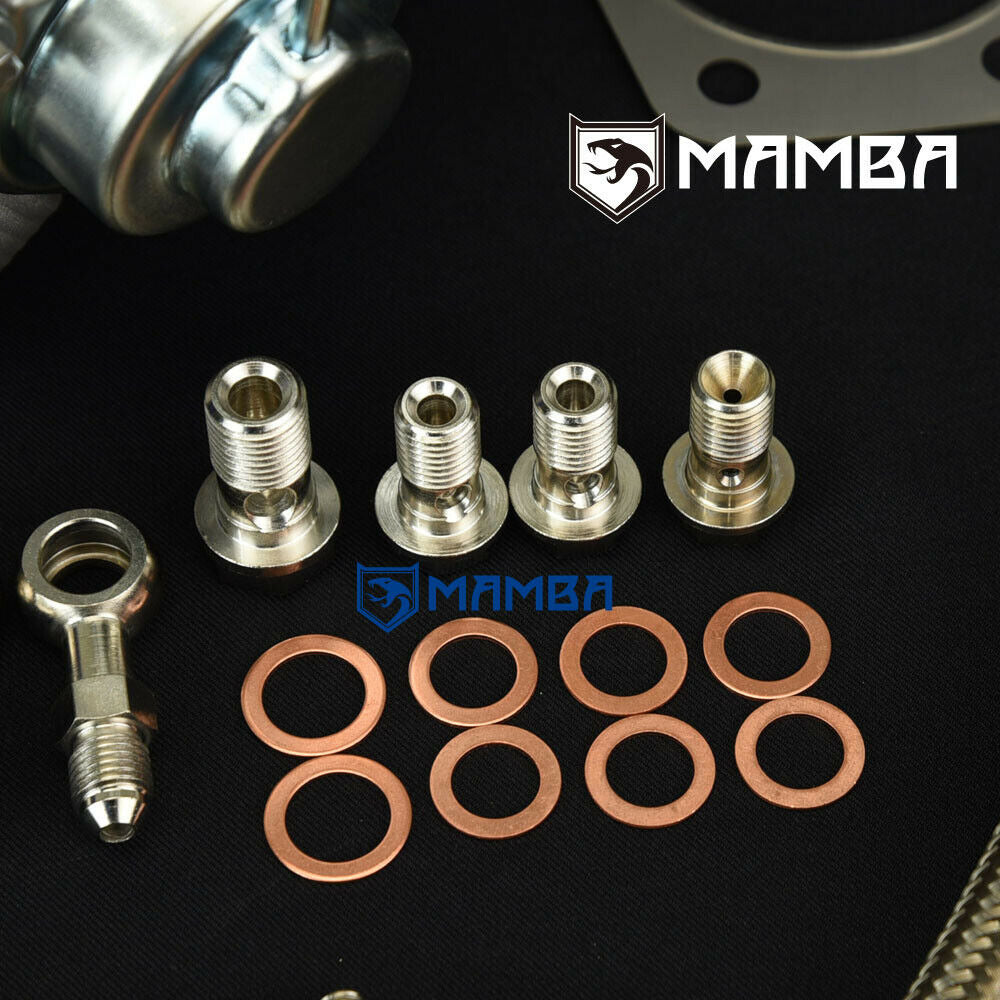

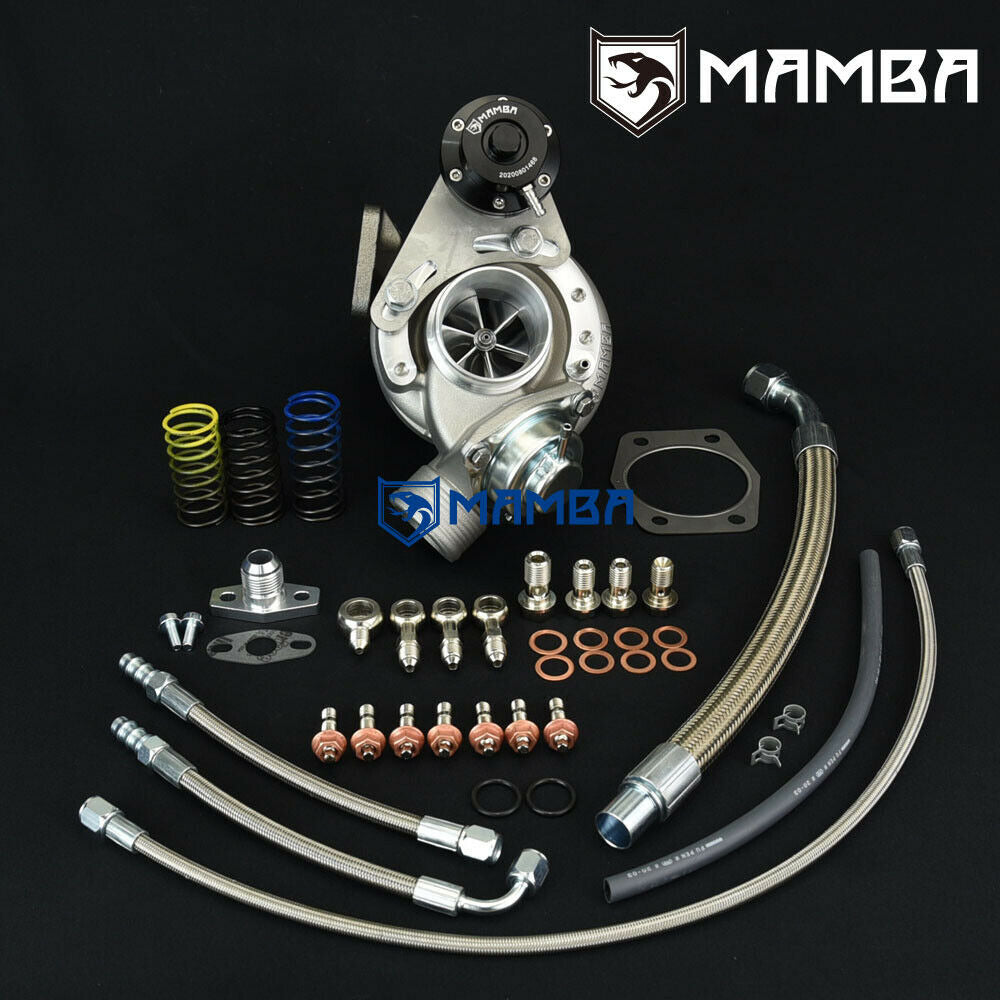

Kit Includes
1 x MAMBA MBB TD04HL-16T-7 Turbo
1 x 1/4” PTFE Oil Feed line with 2.5mm restrictor.
2 x 3/8” PTFE Water line
1 x 3/4” oil return flange
1 x SUS304 T3 Turbine Inlet Gasket
Everything shown on first picture is included.
