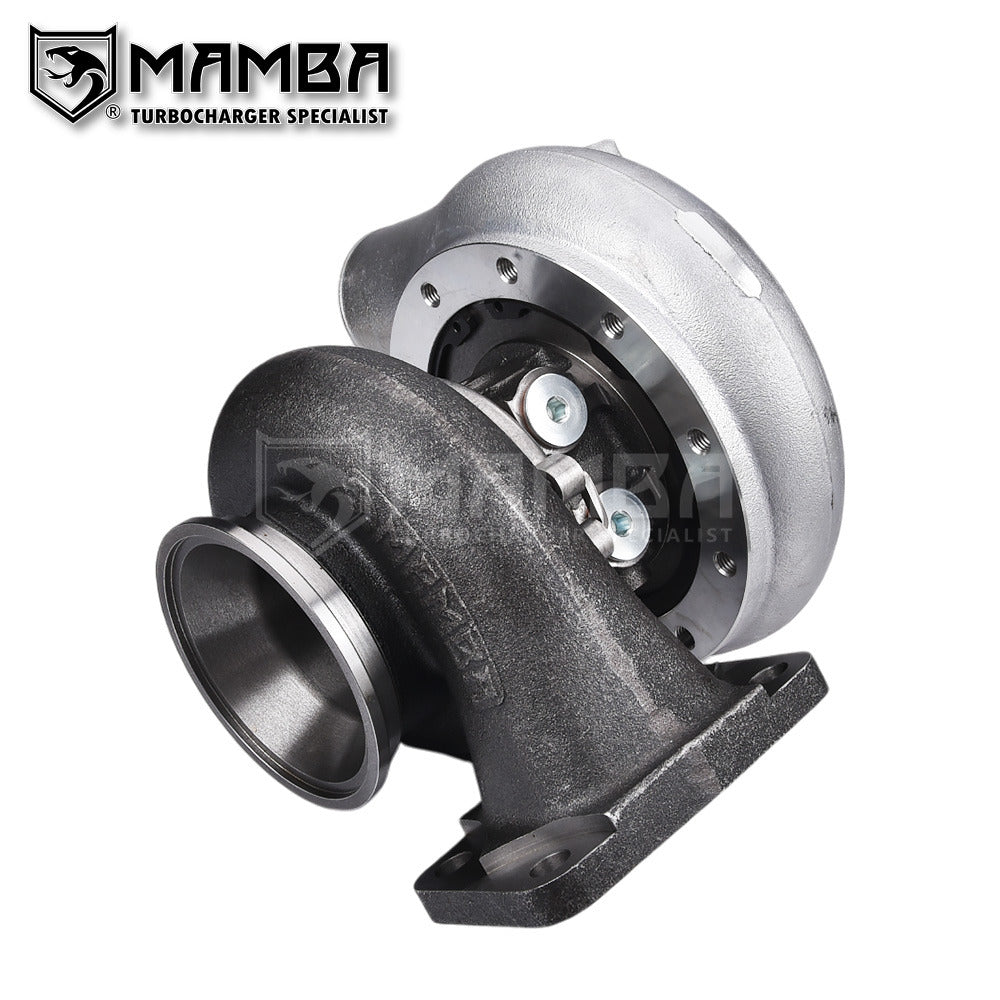

SR20DET TM 3" NA TD05H-20G 8cm T3 V-Band
Regular price
$965.00
Sale price
$965.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

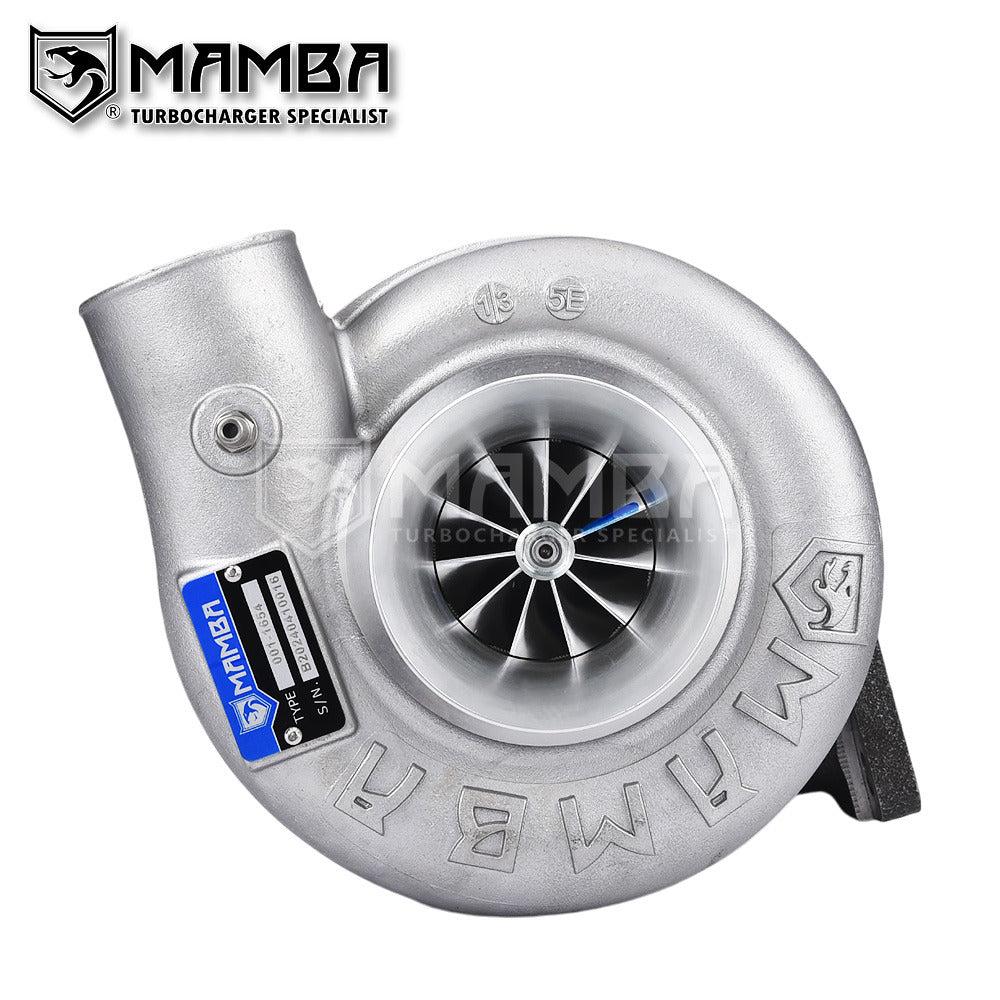

MAMBA 9-11 GTX Billet Turbocharger For Nissan S13 S14 S15 Top Mount 3" Non-Anti surge TD05H-20G w/ 8cm T3 V-Band Hsg
Brand New In Box

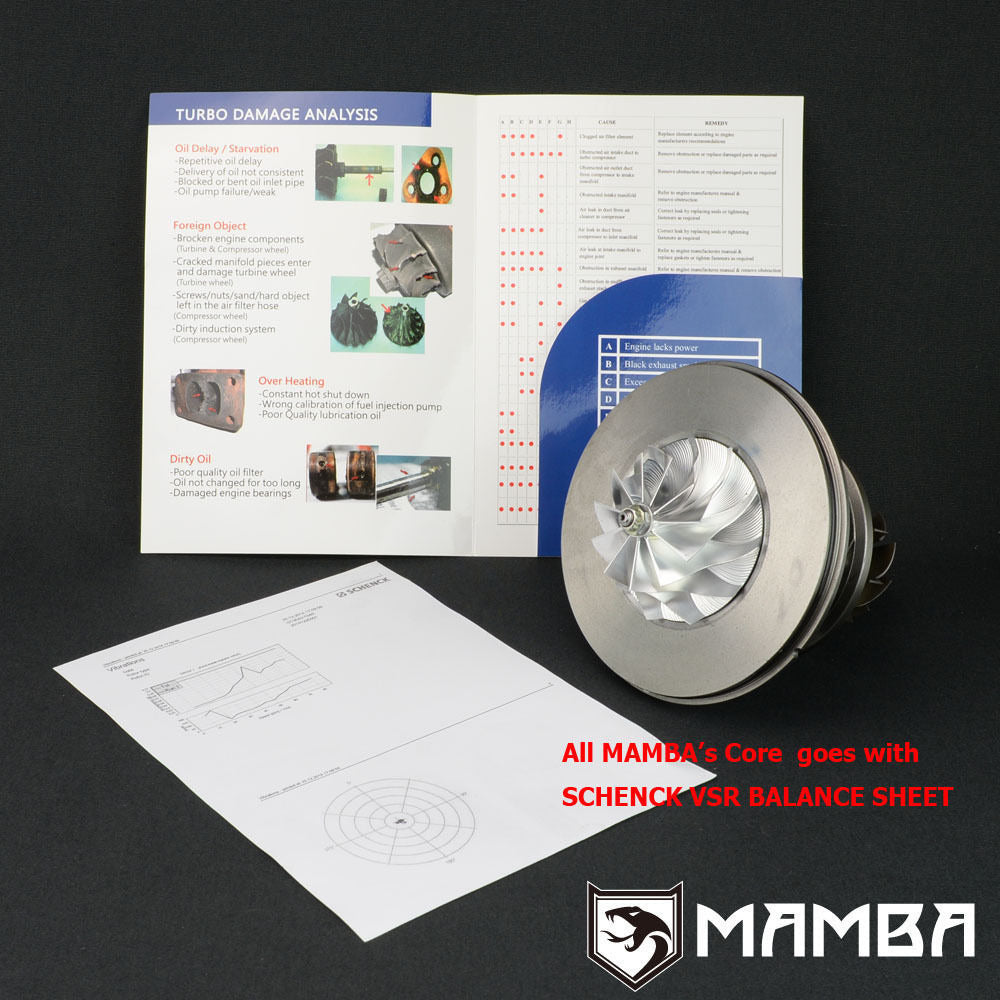

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
For NISSAN S13 S14 S15 SR20DET Top Mount
Turbo is assembled for top mount type, so original low mount dump pipe cannot be used. New dump pipe is necessary.
Compressor housing inlet and outlet pipe needs to be modified to fit the 3” Cover

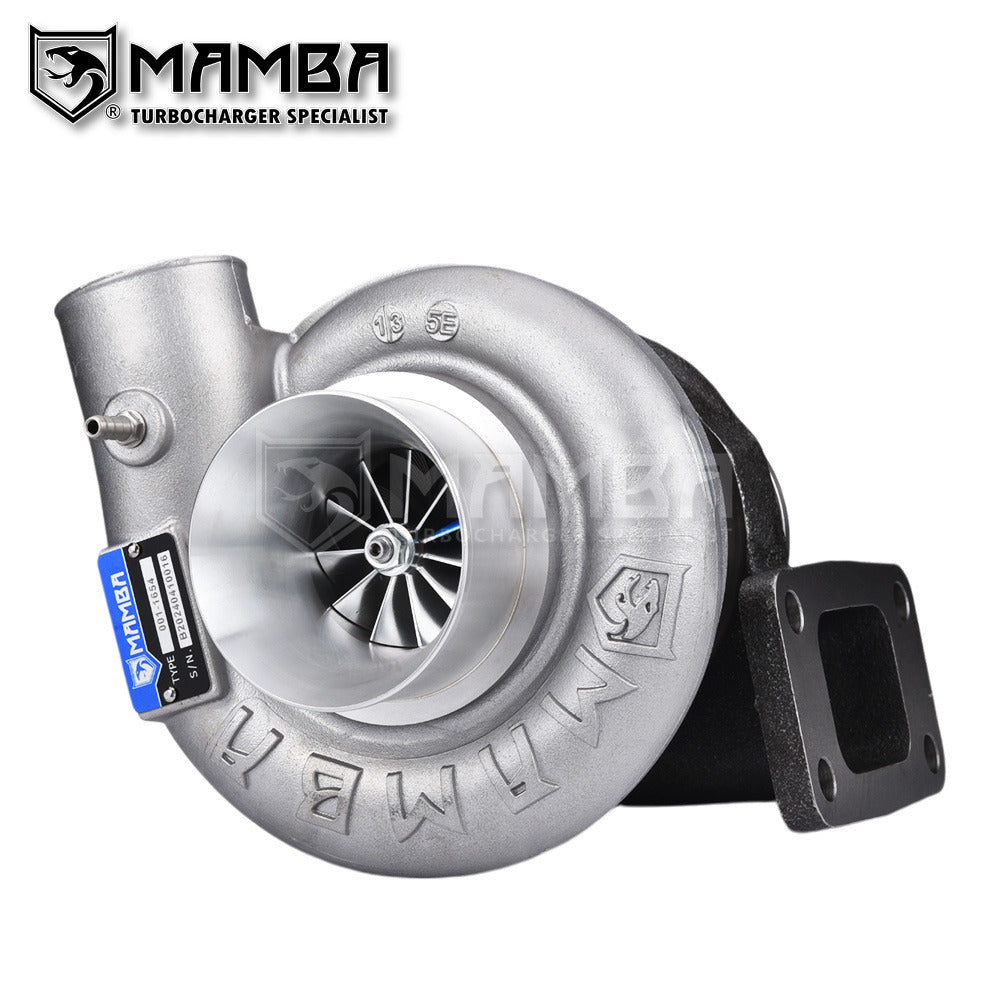

Wheel Specs
Compressor Wheel : 52.5 mm / 68 mm (11+0 GTX Billet Wheel w/ Extend Tip)
Turbine Wheel : 49.2 mm / 56 mm (TD05H 9 Blade Performance High Inconel Turbine Wheel)
Comp. Housing Spec
Compressor Housing Inlet OD: 3”
Compressor Housing Outlet OD: 2”
Compressor Housing A/R: .60 (5200 Non-Anti Surge Cover)

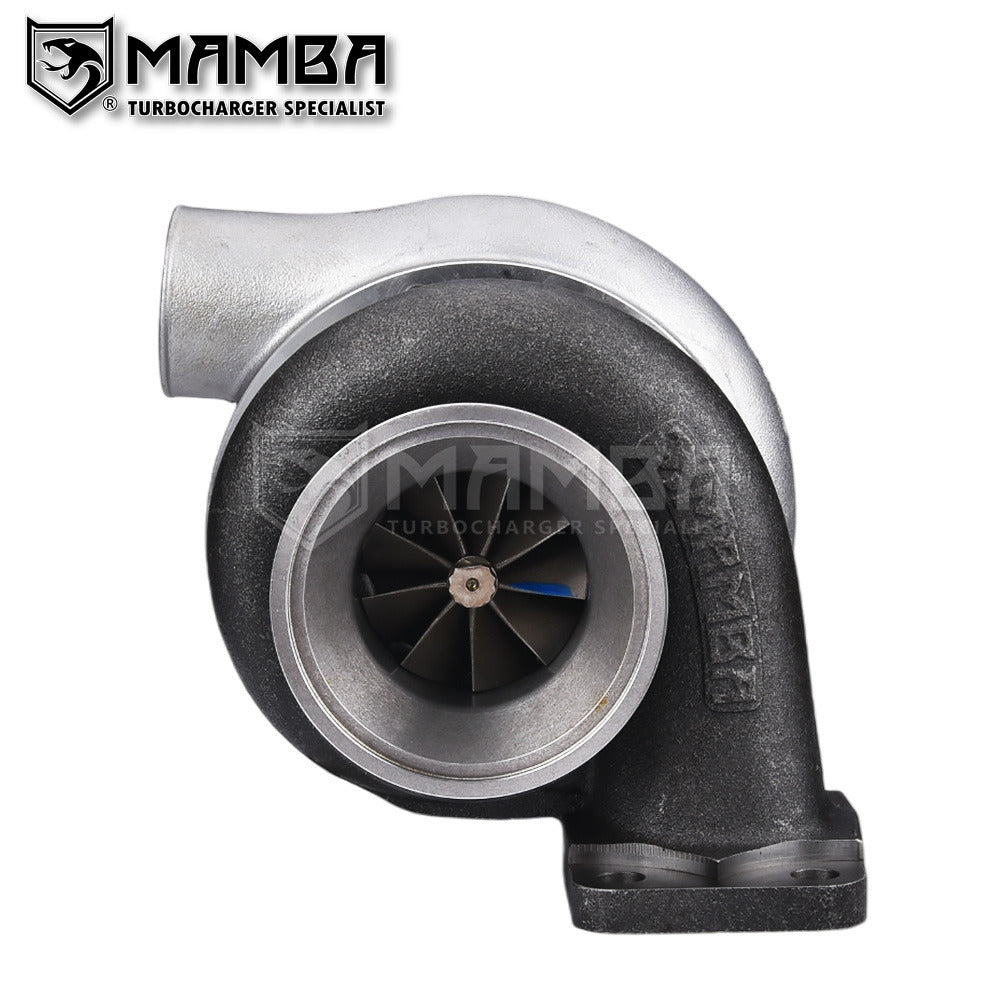

Turbine Housing Spec

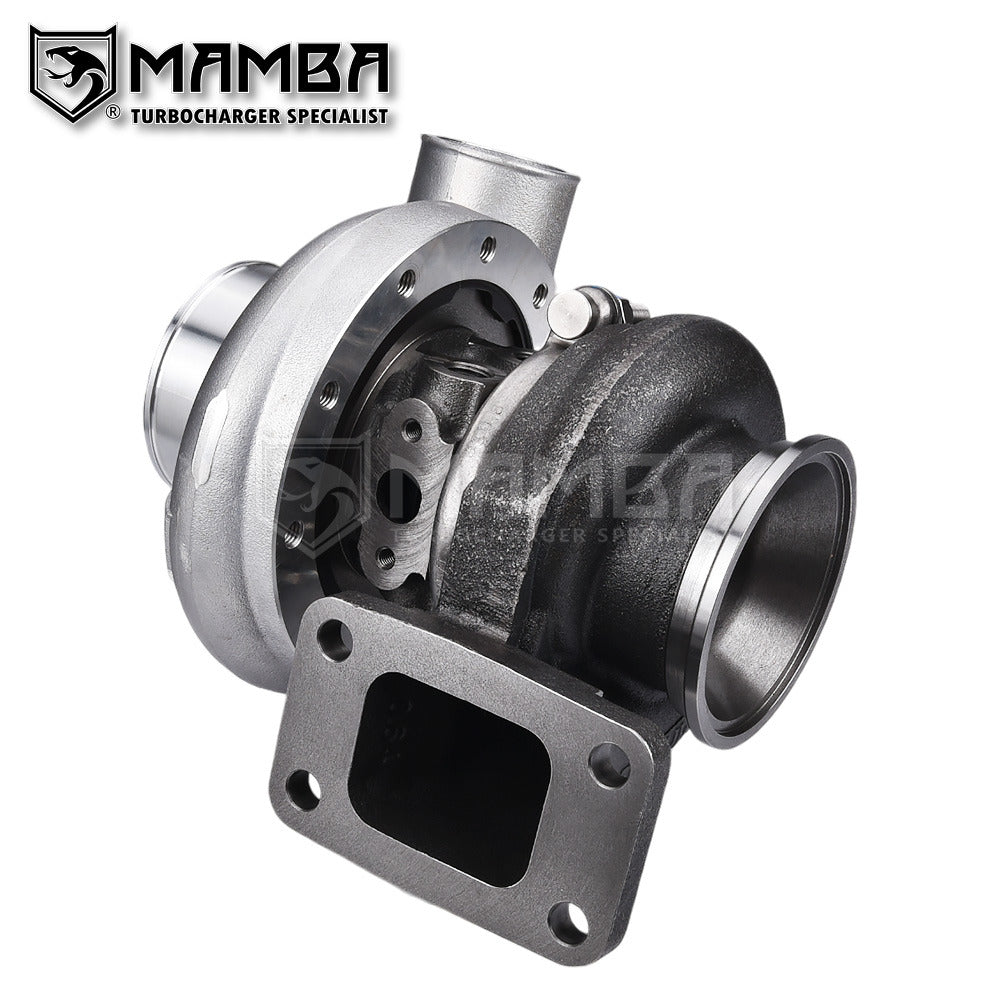

8cm T3 V-Band / External Gate Type
Bearing/ Cooling
Journal Bearing / Performance Thrust Bearing Kit Included
Oil and Water-Cooled

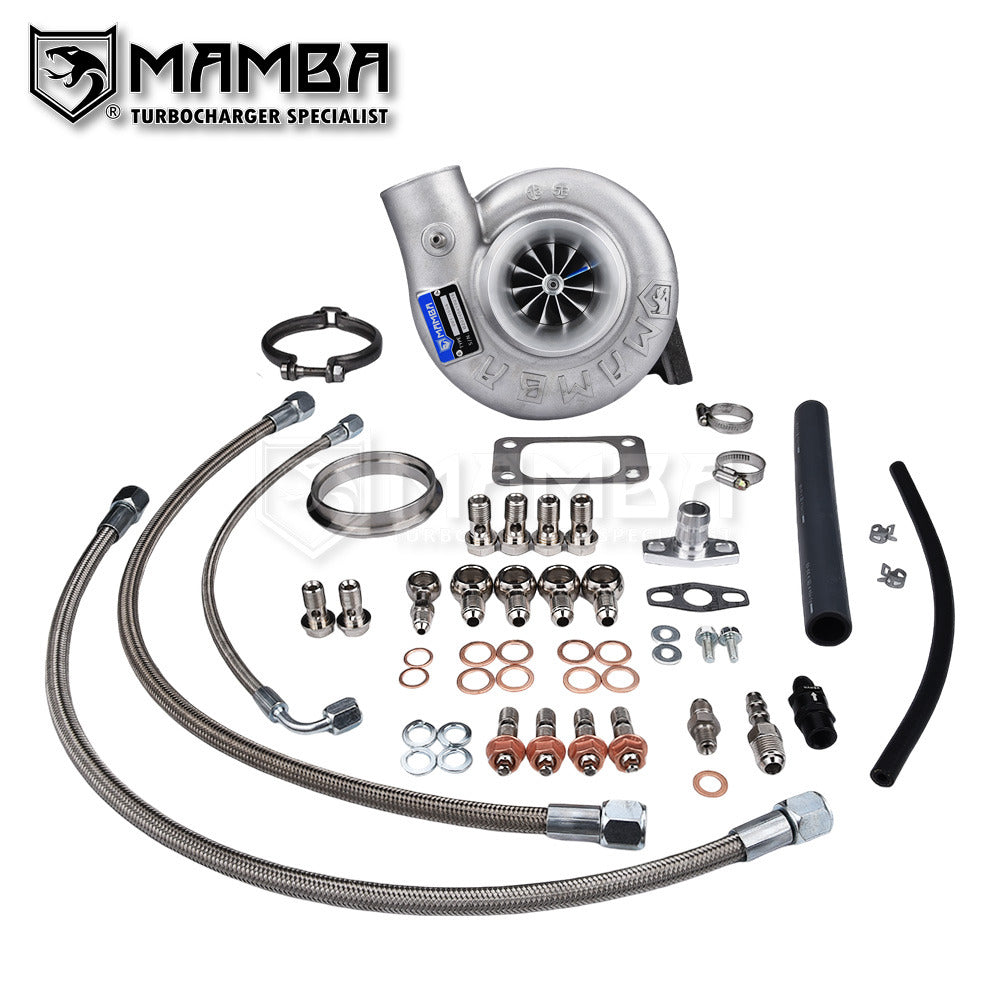

Kit Includes
1 x MAMBA Turbocharger
1 x Oil feed line kit with 2.5mm restrictor
2 x Coolant feed & return line kit
1 x Oil return hose kit with NBR hose
1 x Turbine Inlet Gasket
Everything shown on picture is included.
