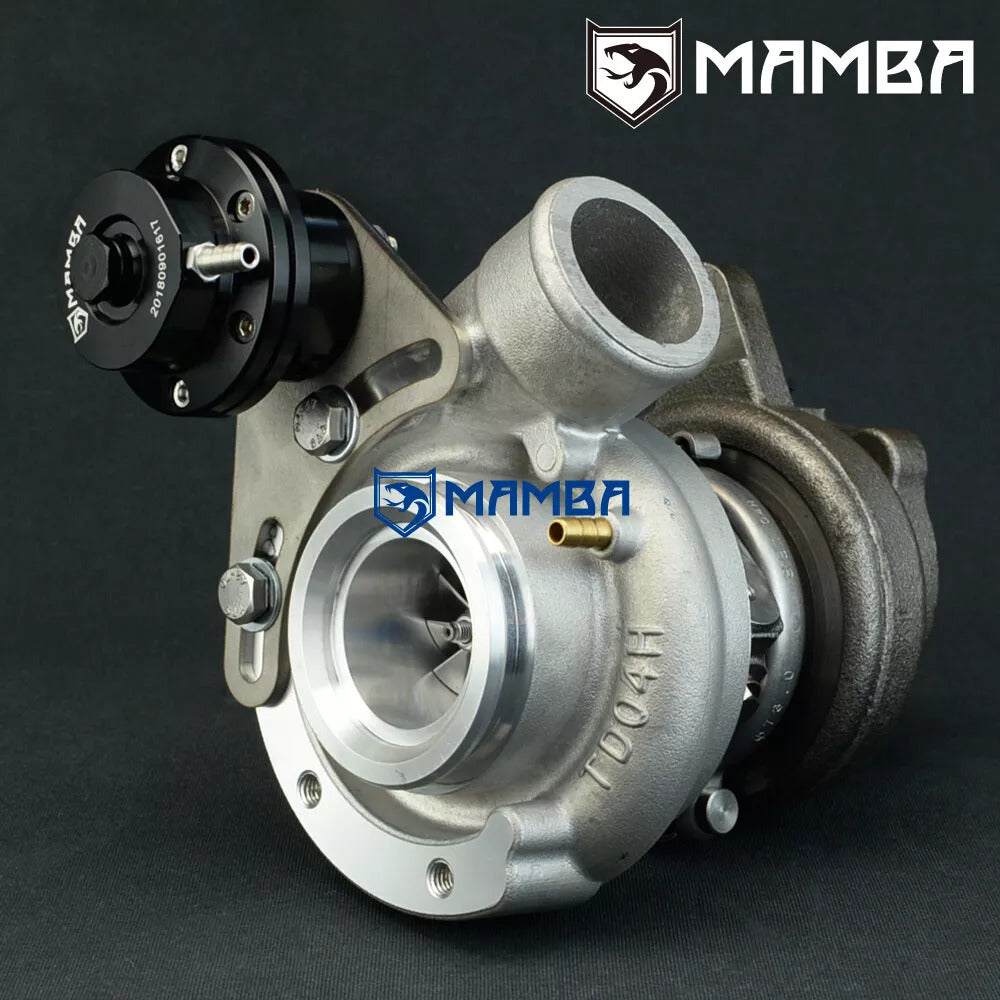

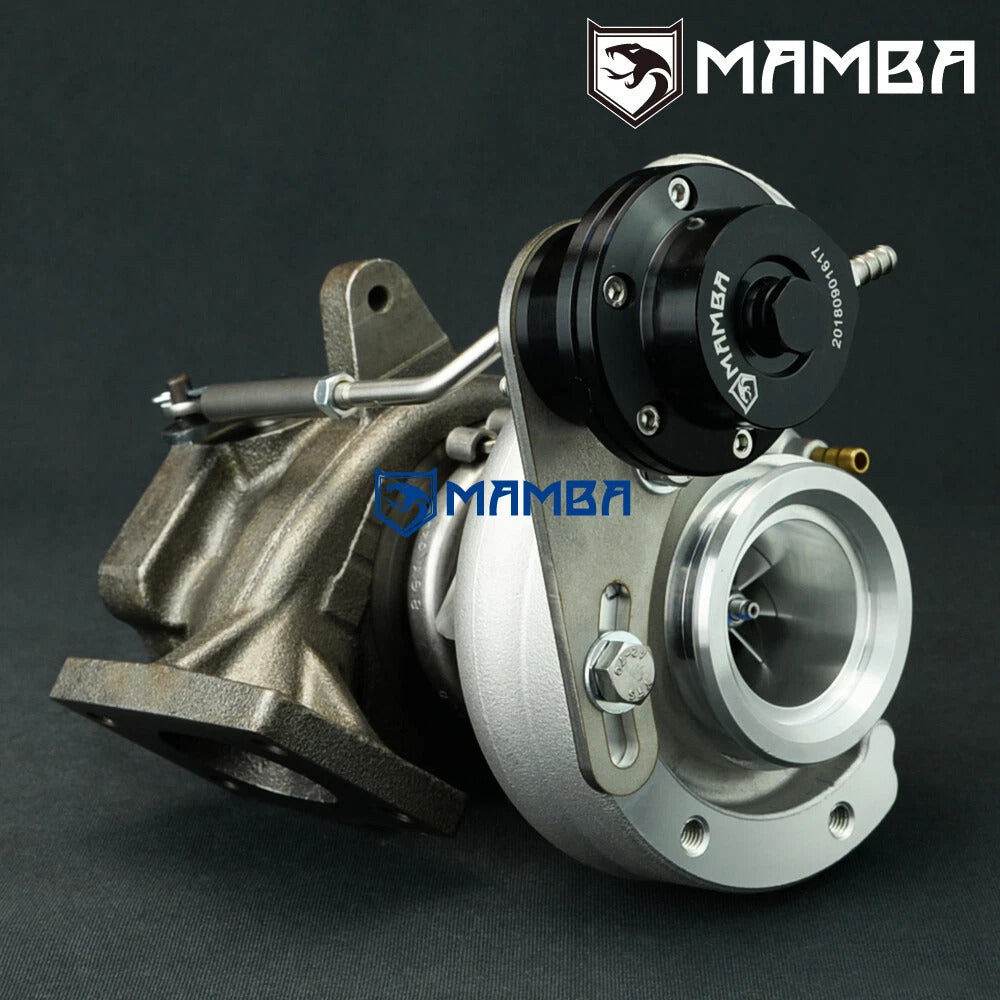

TD04HL-19T GTX w/ 7cm Hsg SAAB 9-3 B235R Long Neck

$779.00

Fully secure checkout
Trusted by thousands

ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL

Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

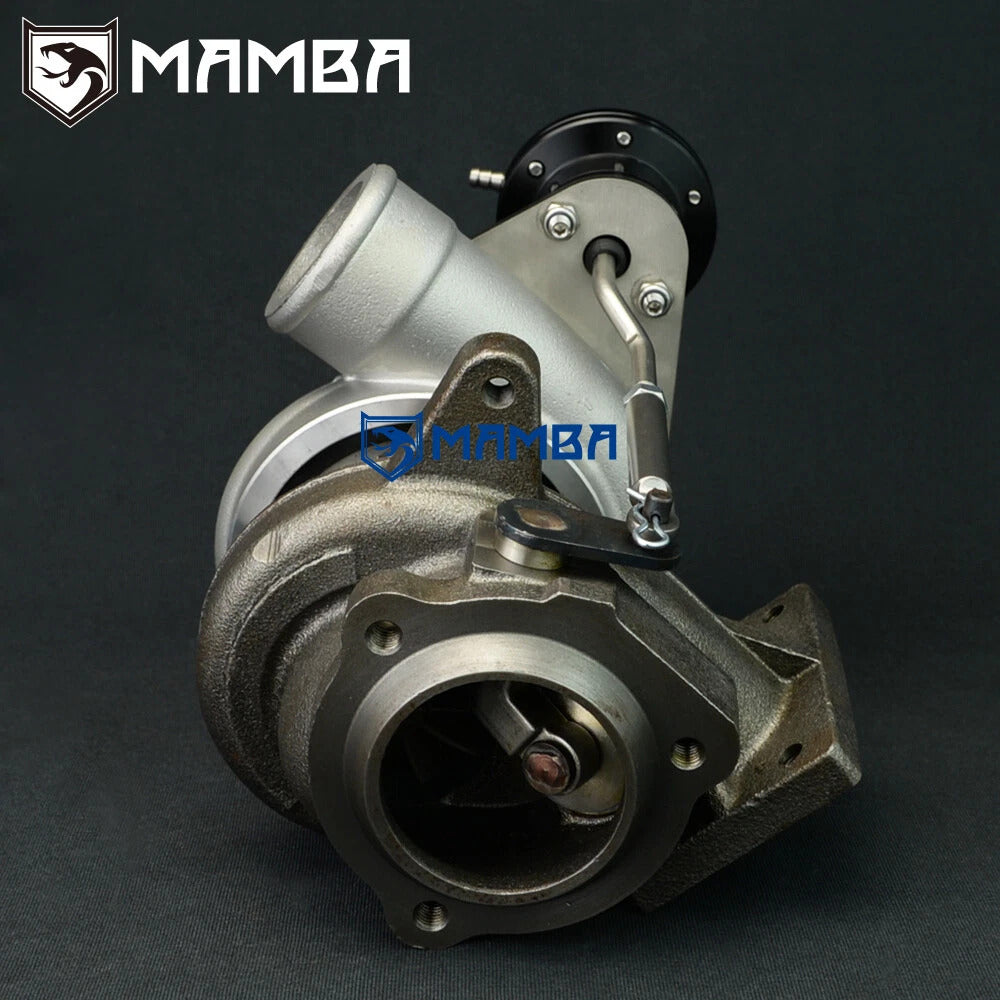

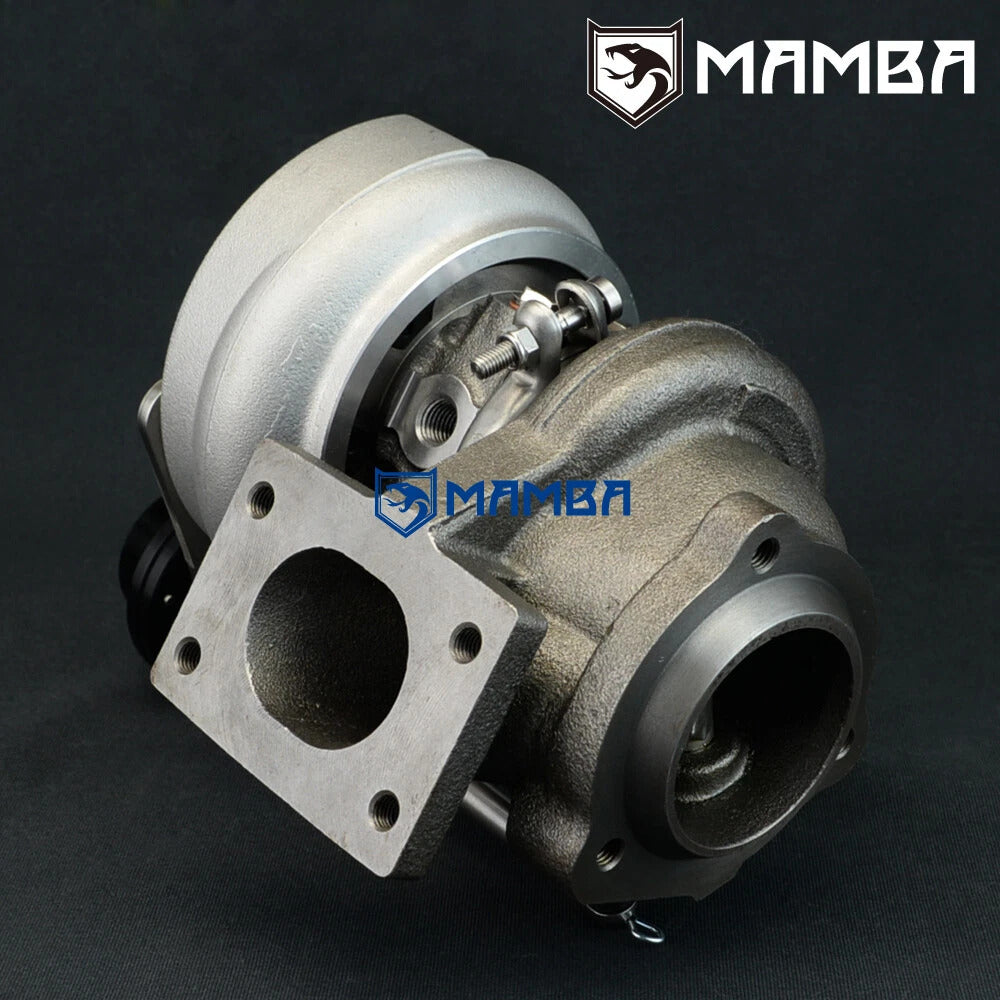

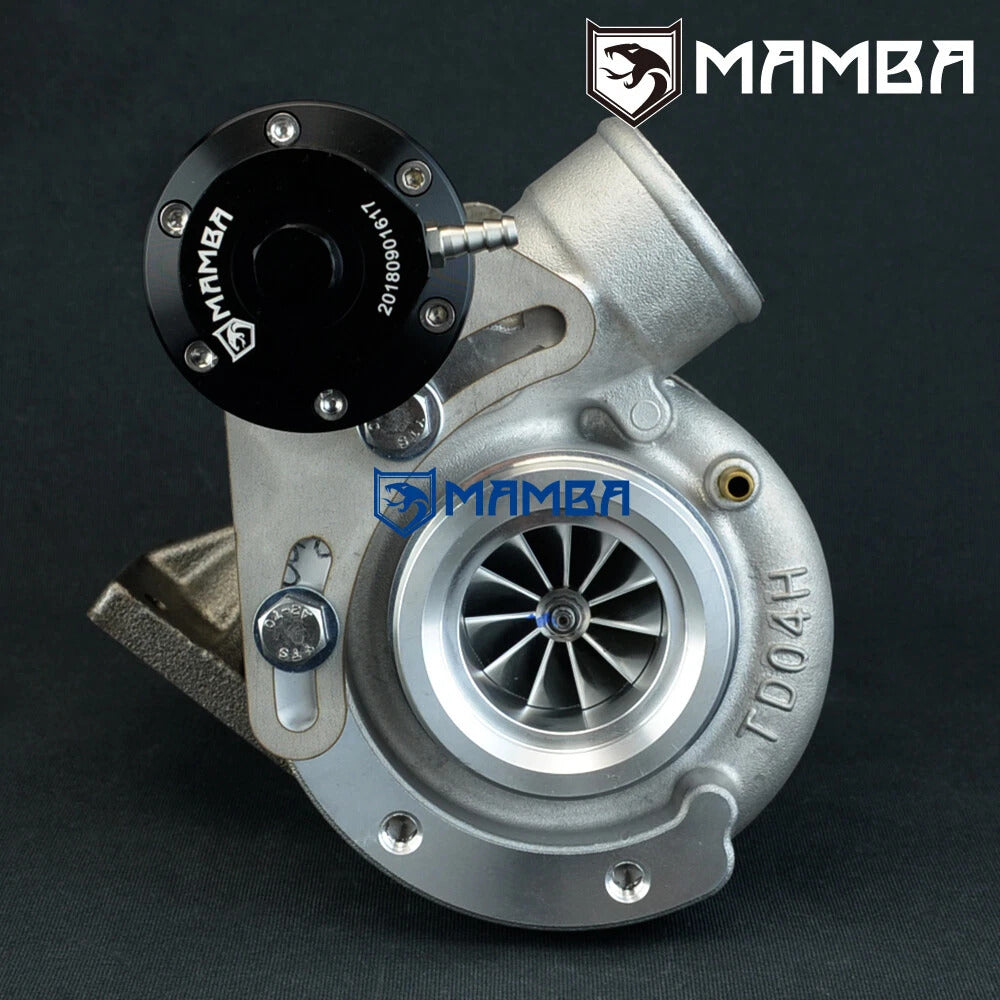

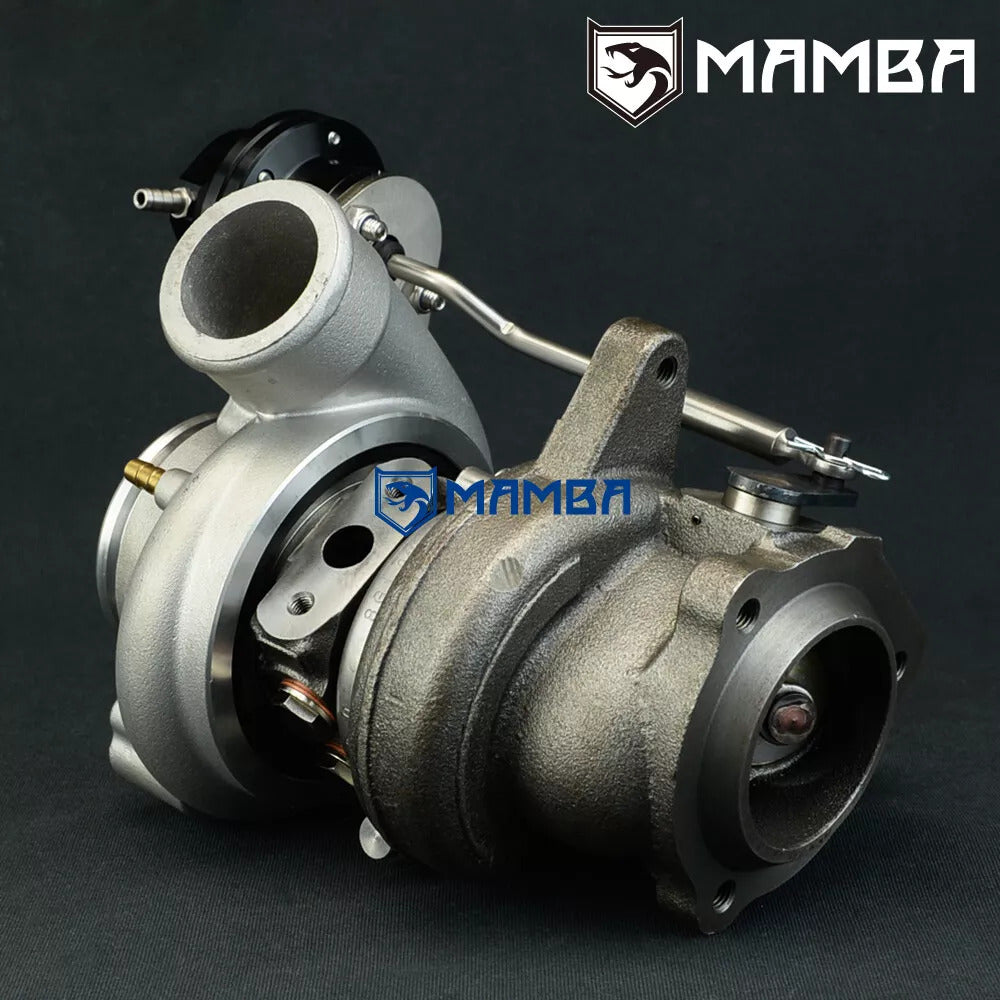

MAMBA GTX Billet for SAAB 9-3 / 9-5 B235R TD04HL-19T Turbocharger with 7cm Turbine Housing and 9 Blade Viper Turbine Wheel and Long Neck Cover inlet

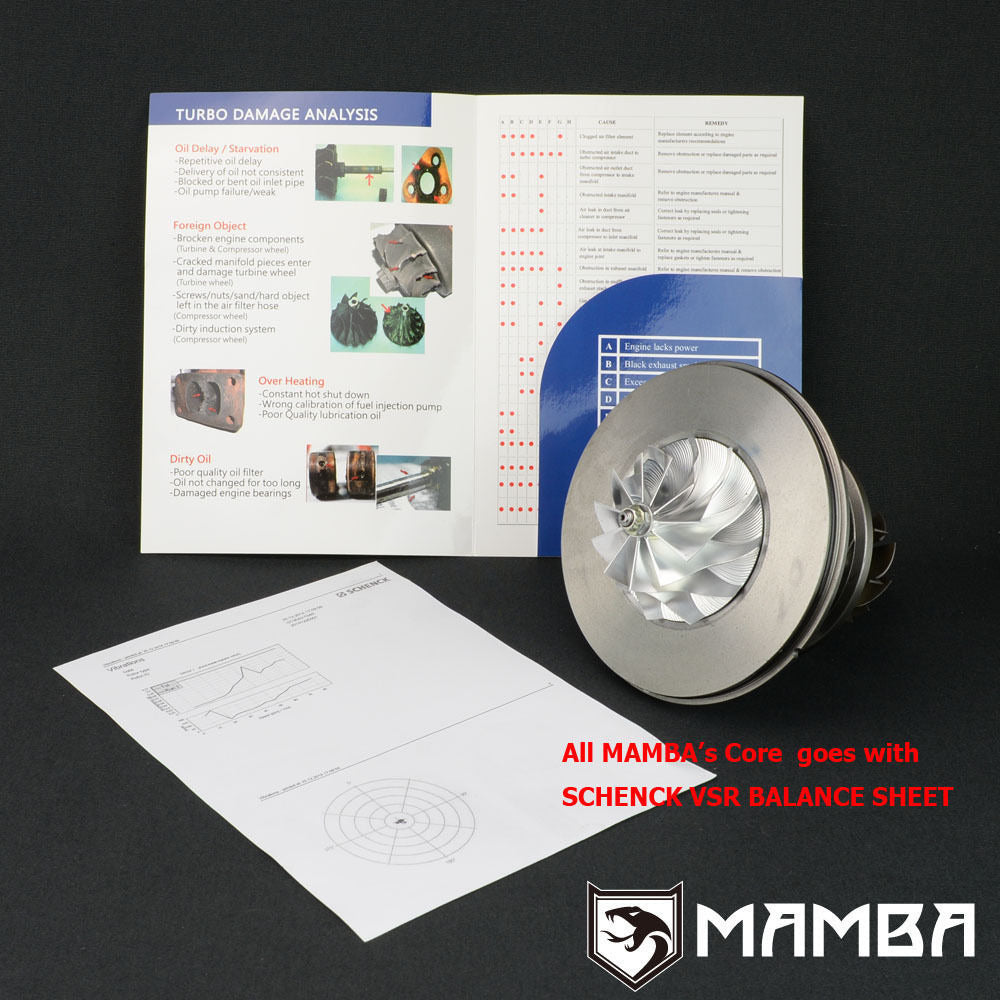

Complete CHRA balanced by SCHENCK MBRS110 Germany
Application
Replace and Upgrade 49189-01800 Factory Turbocharger directly (Long Neck)
Note: 49189-01830 & 49189-01850 are short neck type.
Wheel Specs
Compressor wheel : 46 / 58 mm (TD04-19T / 11 Blade GTX Billet Compressor Wheel)

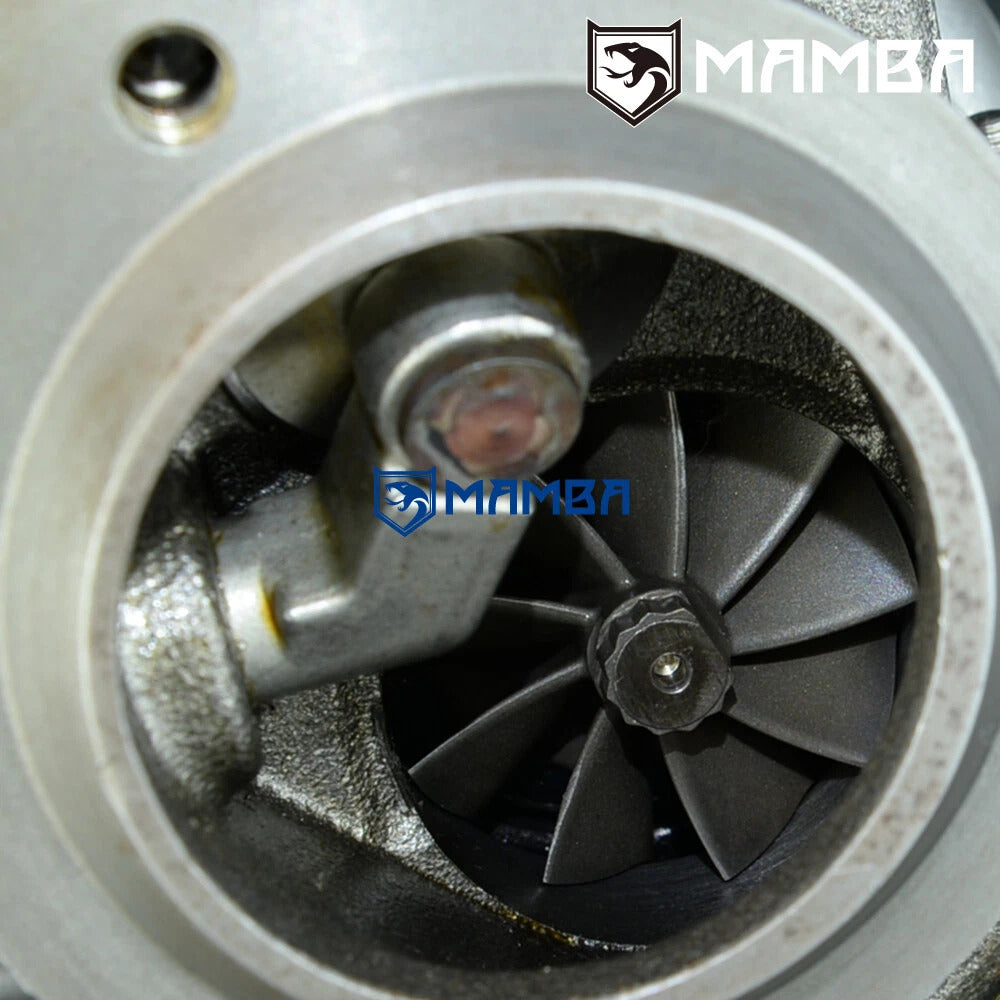

Turbine Wheel: 45.6 / 52 (TD04HL Viper 9 Blade Turbine Wheel)
Turbine Housing
Nozzle Area : 7 cm^2
Turbine Inlet : T25
Turbine Inlet and Outlet Ported / Polished to flow faster and reduce back Pressure.

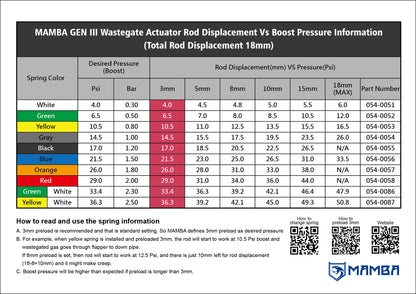

Actuator

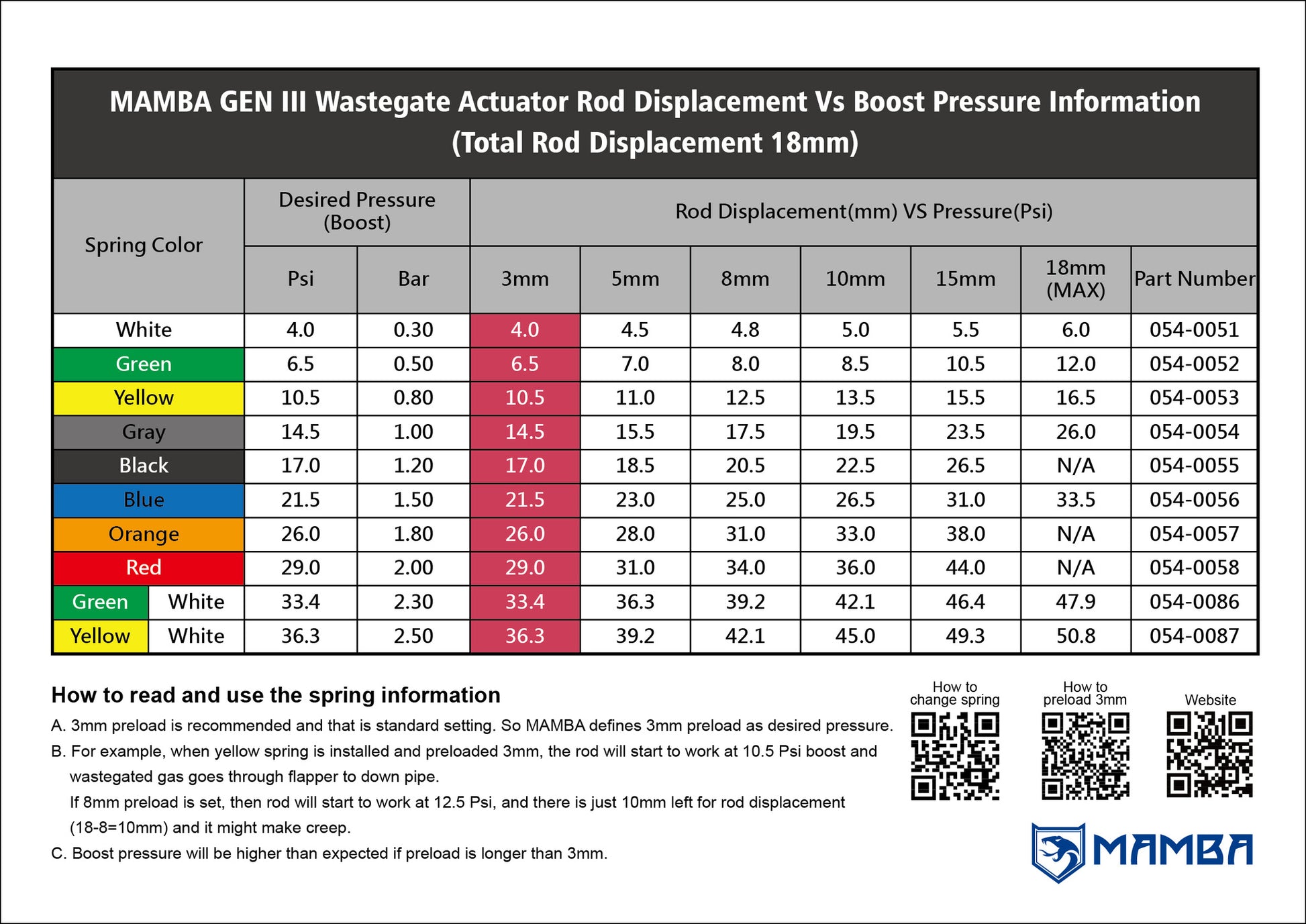

0.8bar spring pre-installed on the adjustable actuator
1.2bar and 1.5bar spring will go with box

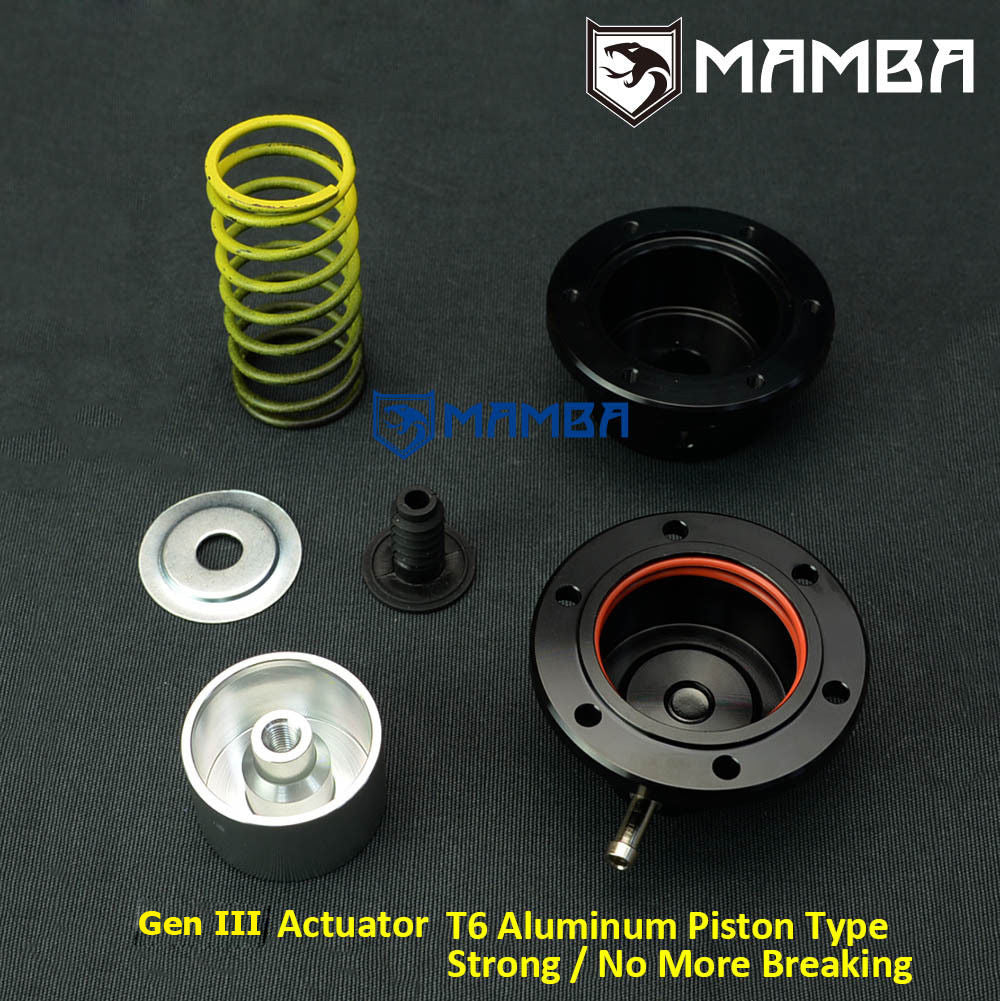

Stage 3 Aluminium Piston type of Adjustable actuator (Replace diaphragm type)
Bearing
Journal Bearing
Cooling
Oil and Water-cooled system
Kit Includes
1 x MAMBA CT26 GTX Turbocharger with GTX3071R Billet Wheel
1 x Turbo Oil Feed / Return Line Kit (with 12mm & 18mm adapter for oil supply)
1 x Turbo water feed / return line Kit
1 x Turbine inlet & outlet gasket
1 x Tee for actuator
6 x 10mm stud kit with copper coated nut
Everything shown on picture is included
