TD05H-152G6 MBB Mitsubishi 4B11T EVO X Lancer Ball Bearing
Regular price
$1,224.00
Sale price
$1,224.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

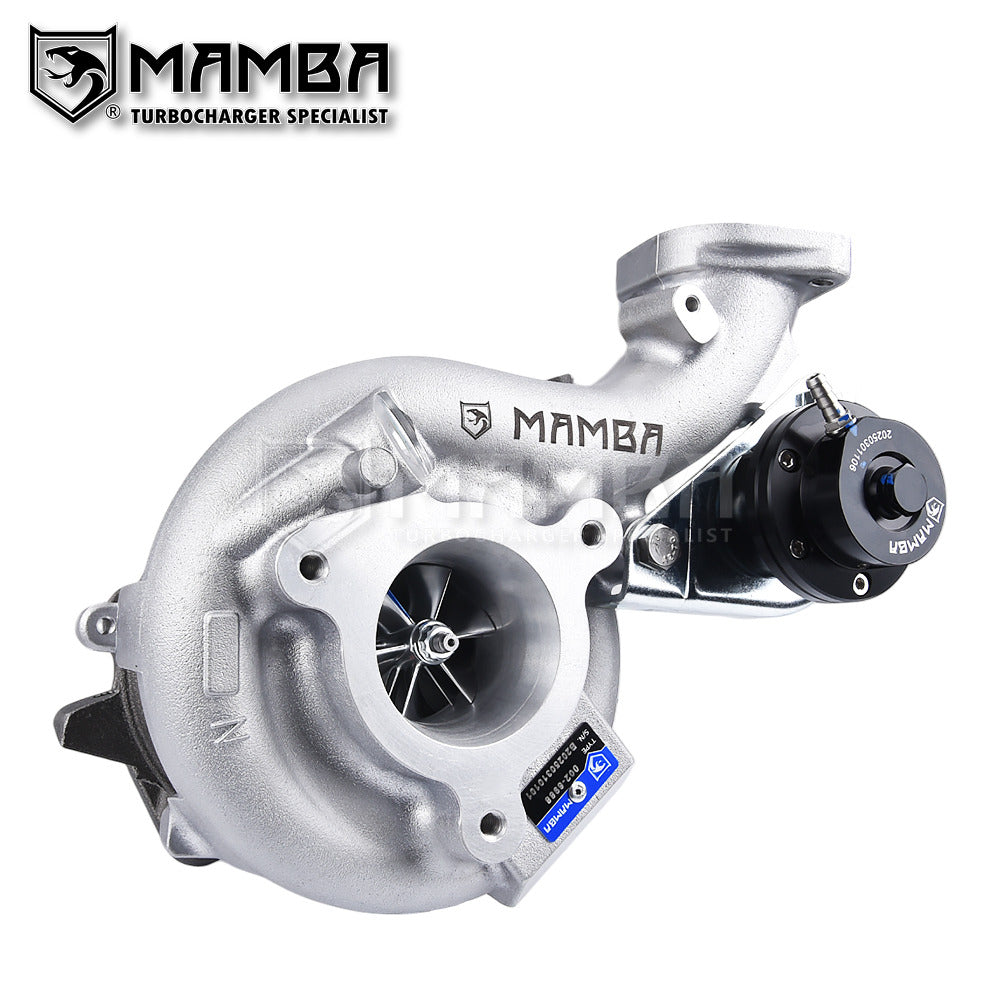

MAMBA D5-6 MBB TD05HB-152G6 Ball Bearing Turbocharger Fits Mitsubishi 4B11T Lancer EVO X (EVO10)

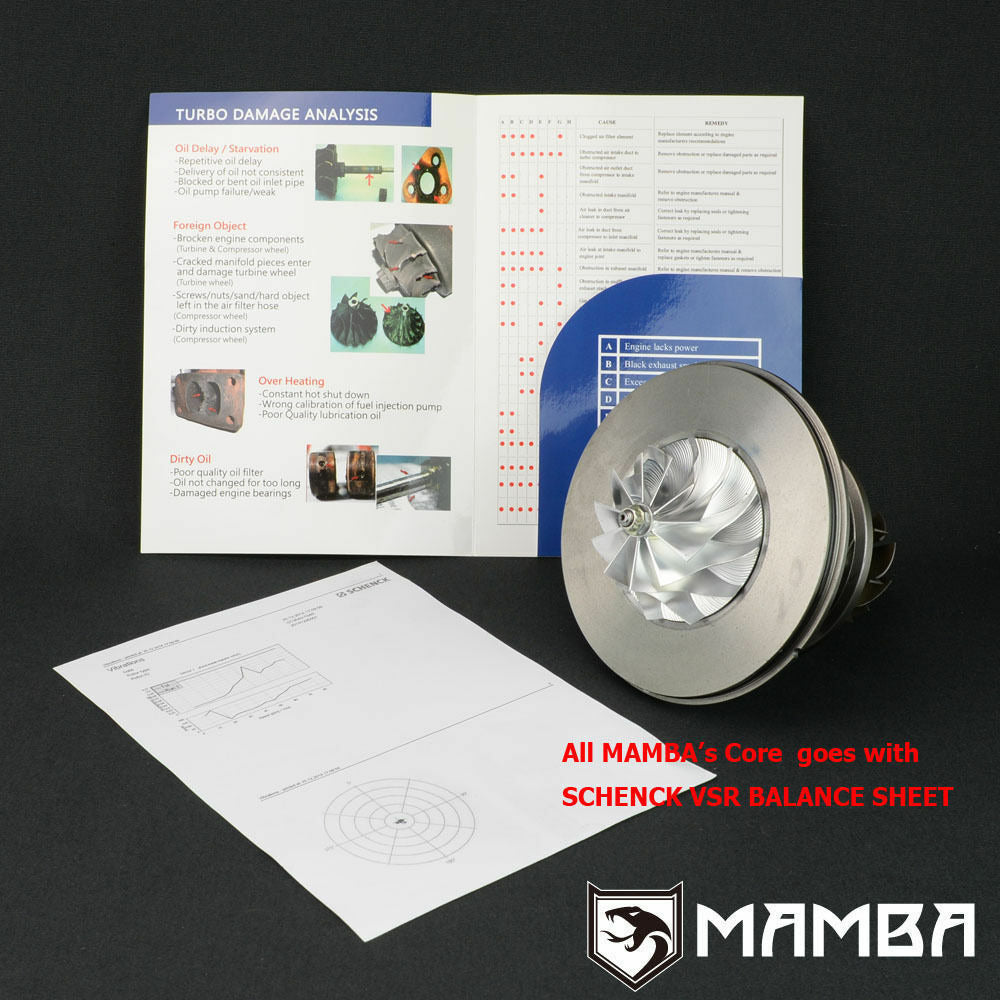

VSR balanced
Bolt-on upgrade
Application

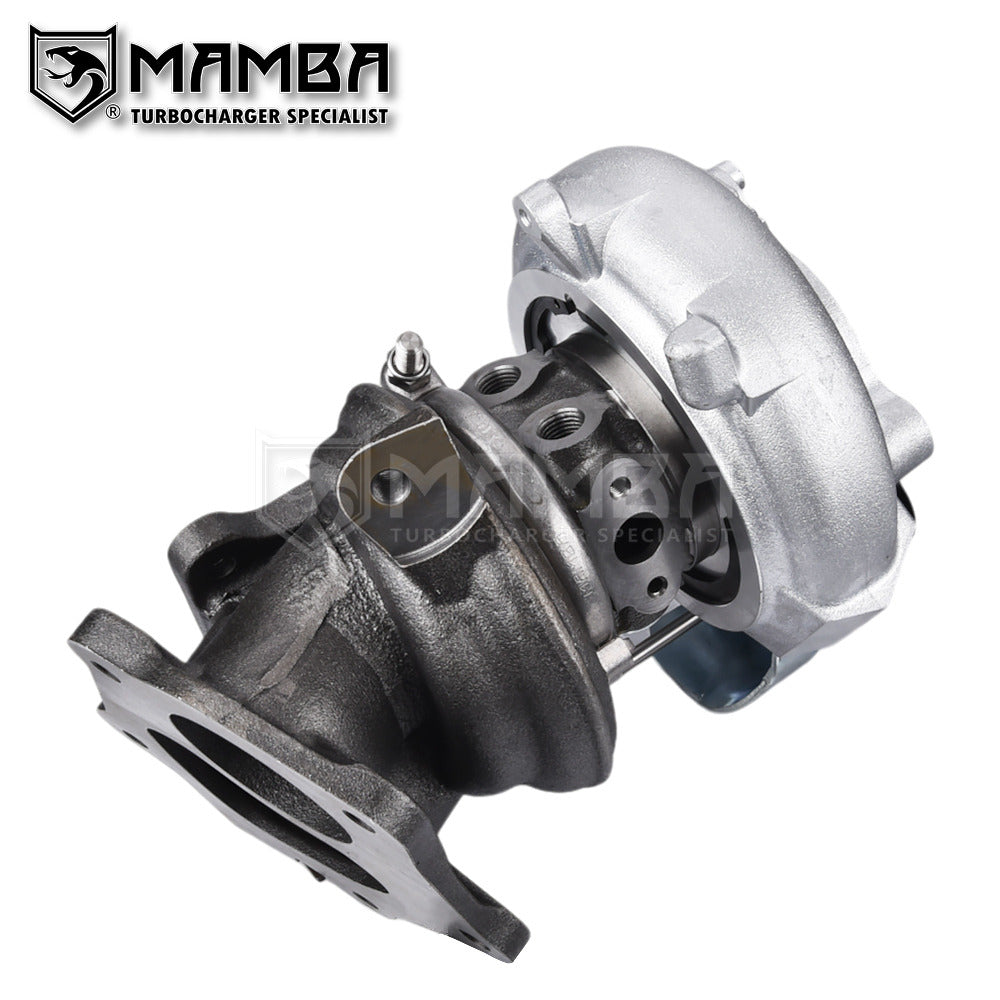

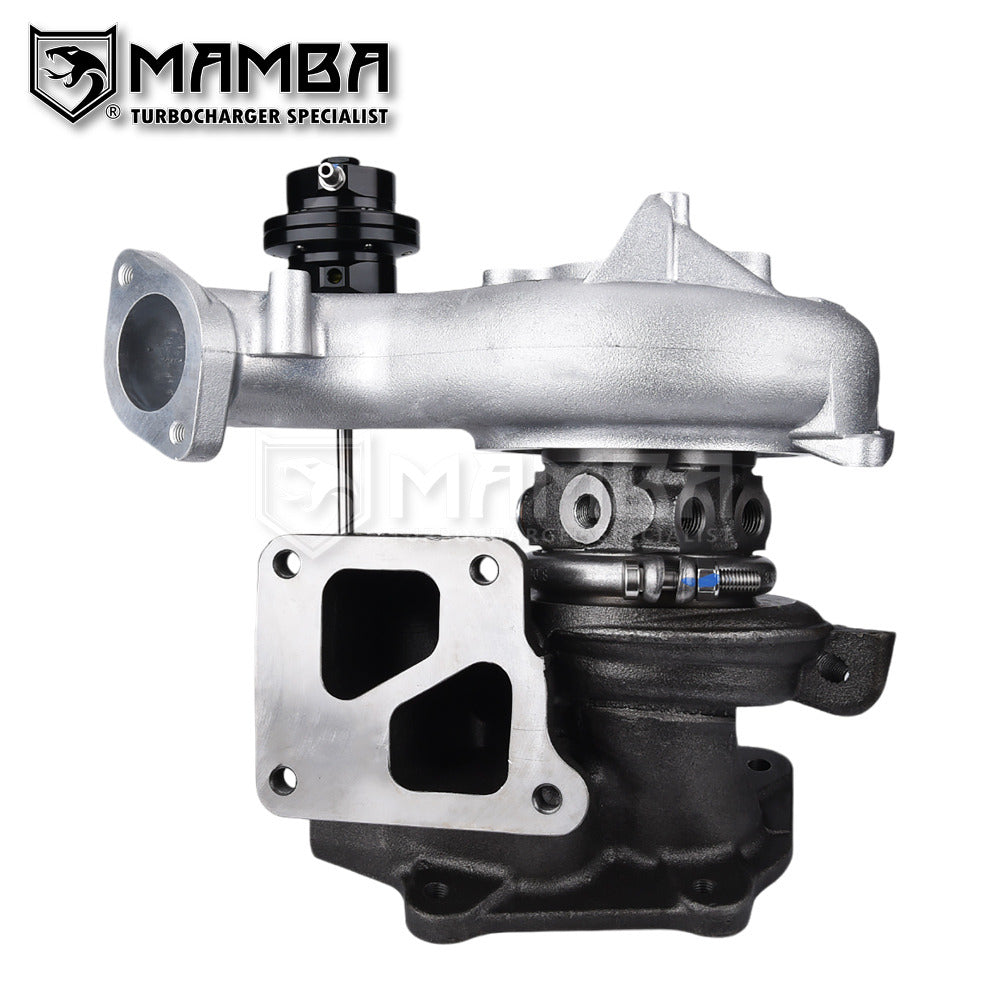

This is the bolt-on upgrade MBB TD05H-152G6 ball bearing turbocharger MAMBA designed for the Evolution X (EVO10) 4B11T, which comes with featured MAMBA D5-6 ball bearing system with great performance, quality, reliability and reputation.
MAMBA D5-6 MBB ball bearing system comes with heavy duty ceramic ball bearing with Inconel cage, 5+5 blade turbine wheel and 6+6 blade LEP design billet wheel, which will get this turbo spool faster and support higher top end.
TD05HB-152G6 turbo goes with same wheel size as factory Mitsubishi one but with GTX ball bearing system, which will replace factory turbo directly without modification.
Support 300~400HP
Max boost: 3.4Bar (50Psi)/Recommend 1.5~1.8bar for daily street car.
Fits
07~16 Mitsubishi Lancer EVO X (EVO10) 4B11T 2.0L.
08~15 Mitsubishi Galant Fortis Ralliart 4B11T 2.0L.
Specs
Compressor wheel: 47.1/68.0/48T/6+6 Blade)/152G6
Turbine wheel: 49.2/56.0/77T/D5 Design/5+5 Blade/TD05HB
Compressor housing A/R: .62 (Stock)

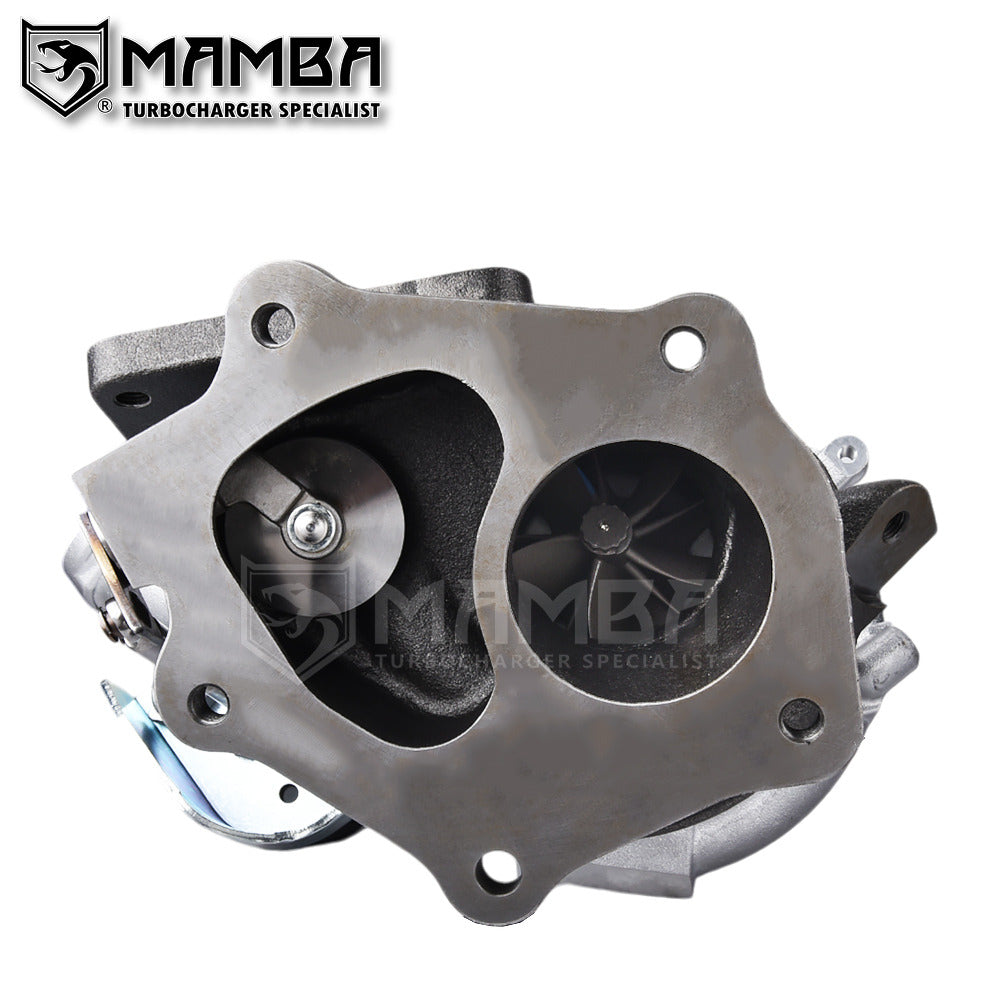

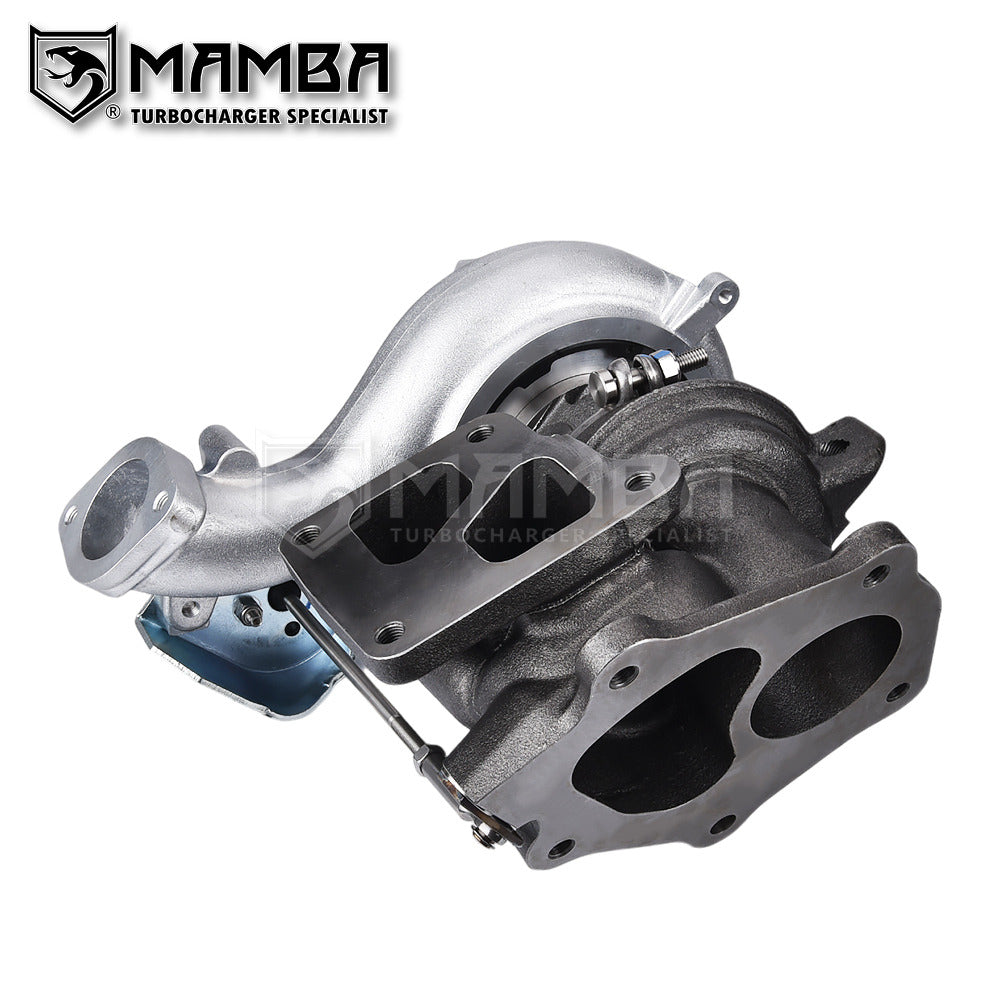

Turbine housing A/R: .89 (12cm, Twin Scroll)
Bearing
Ceramic dual ball bearing
Inconel cage
Cooling
Oil & water-cooled

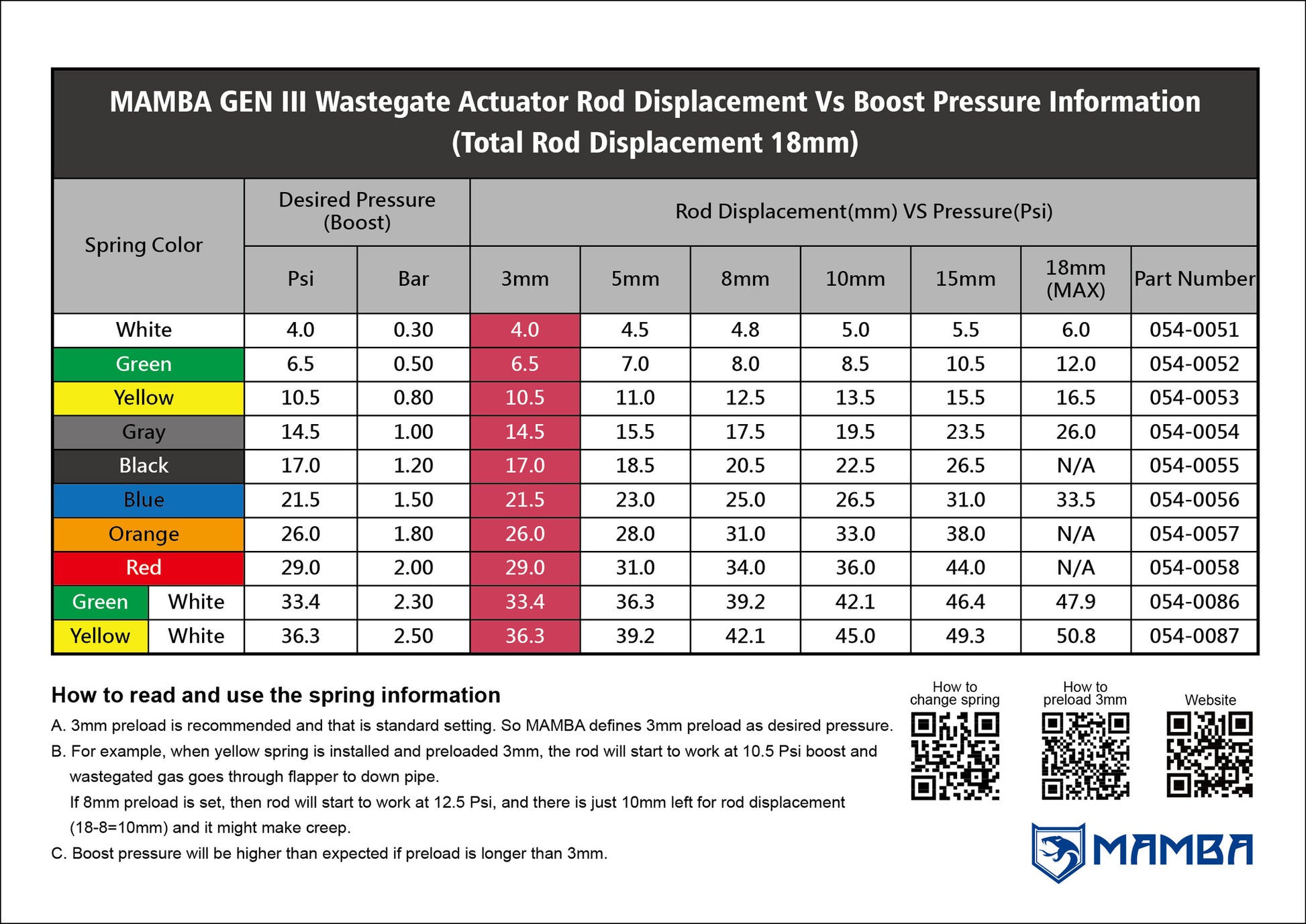

Actuator

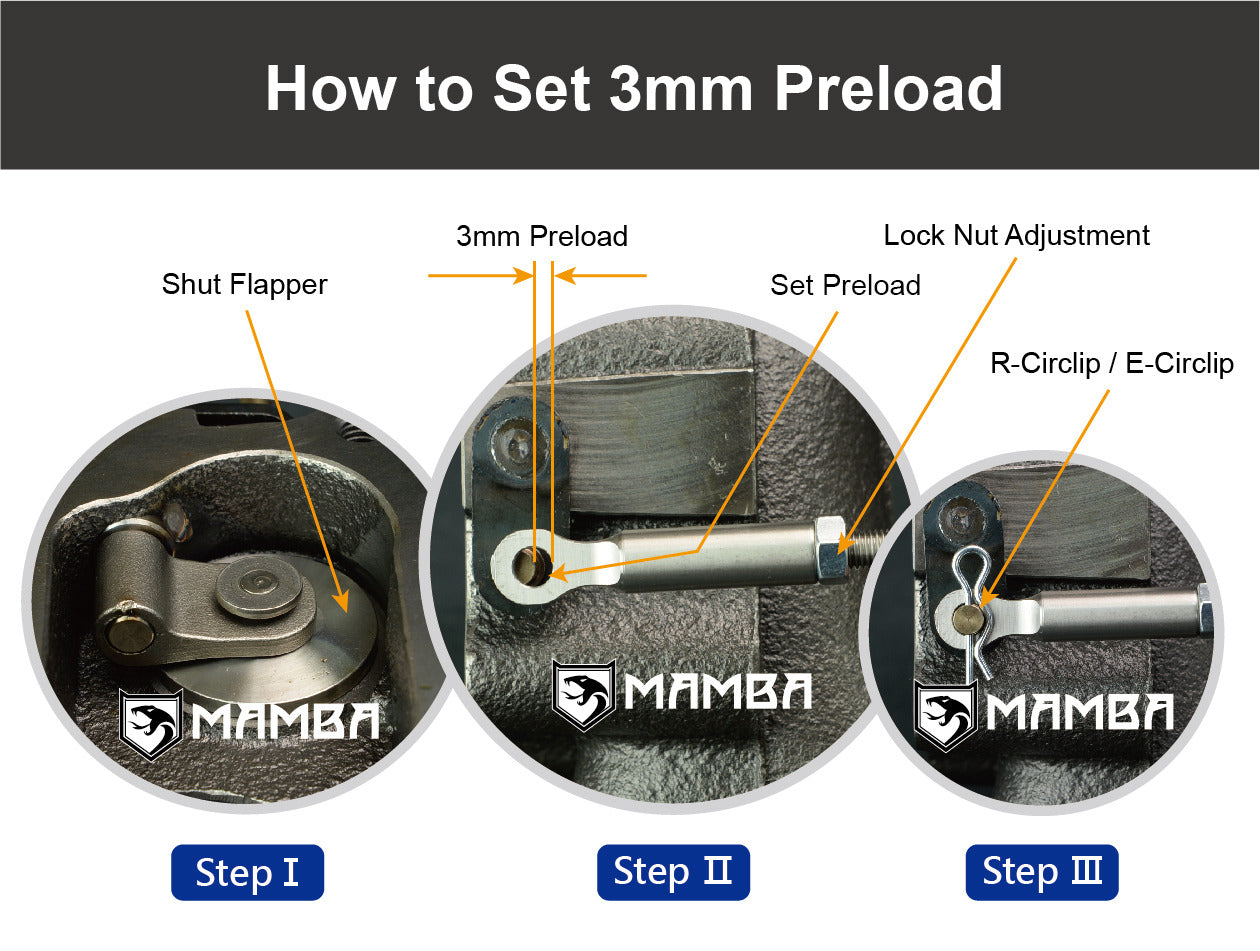

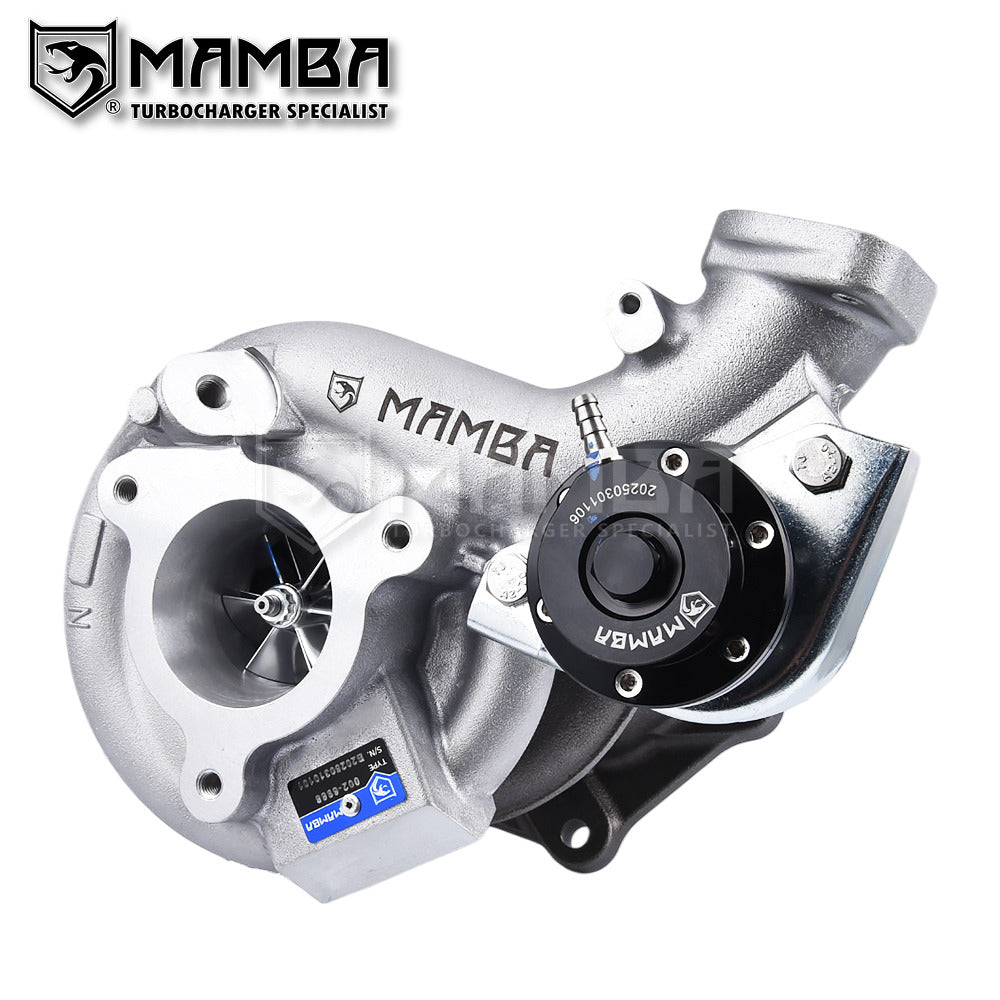

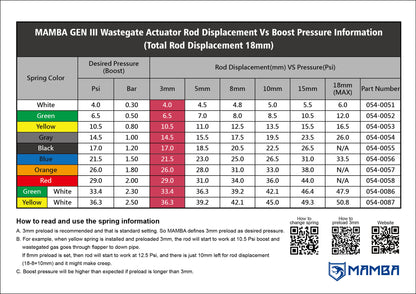

0.8bar spring is pre-installed on the MAMBA adjustable actuator.
Additional 1.2bar and 1.5bar spring go with box.
Kit Includes
1 x MAMBA TD05HB-152G6 ball bearing turbocharger
1 x PTFE Turbo oil feed line kit
2 x PTFE turbo water line kit
1 x Turbo oil return line Kit
1 x Turbine inlet gasket
1 x Turbine outlet gasket
9 x 10mm stud kit
Everything shown in first picture is included
