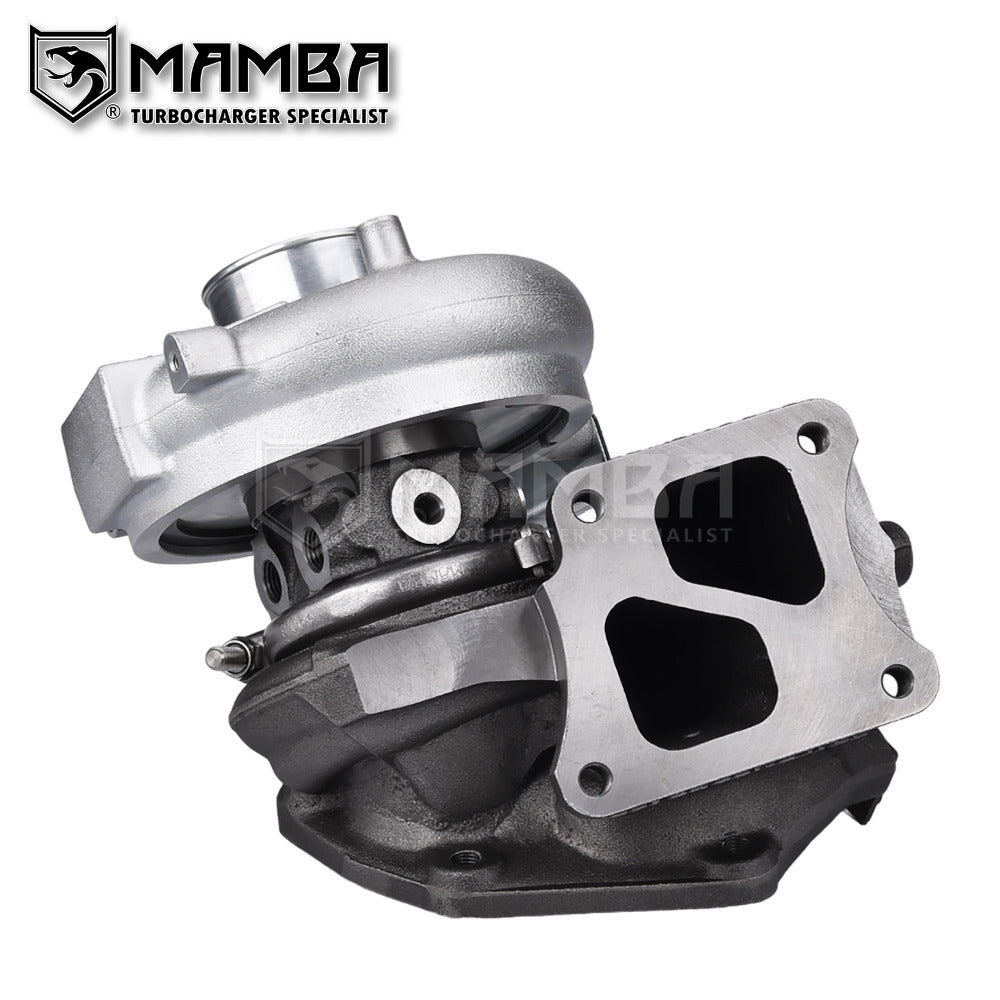

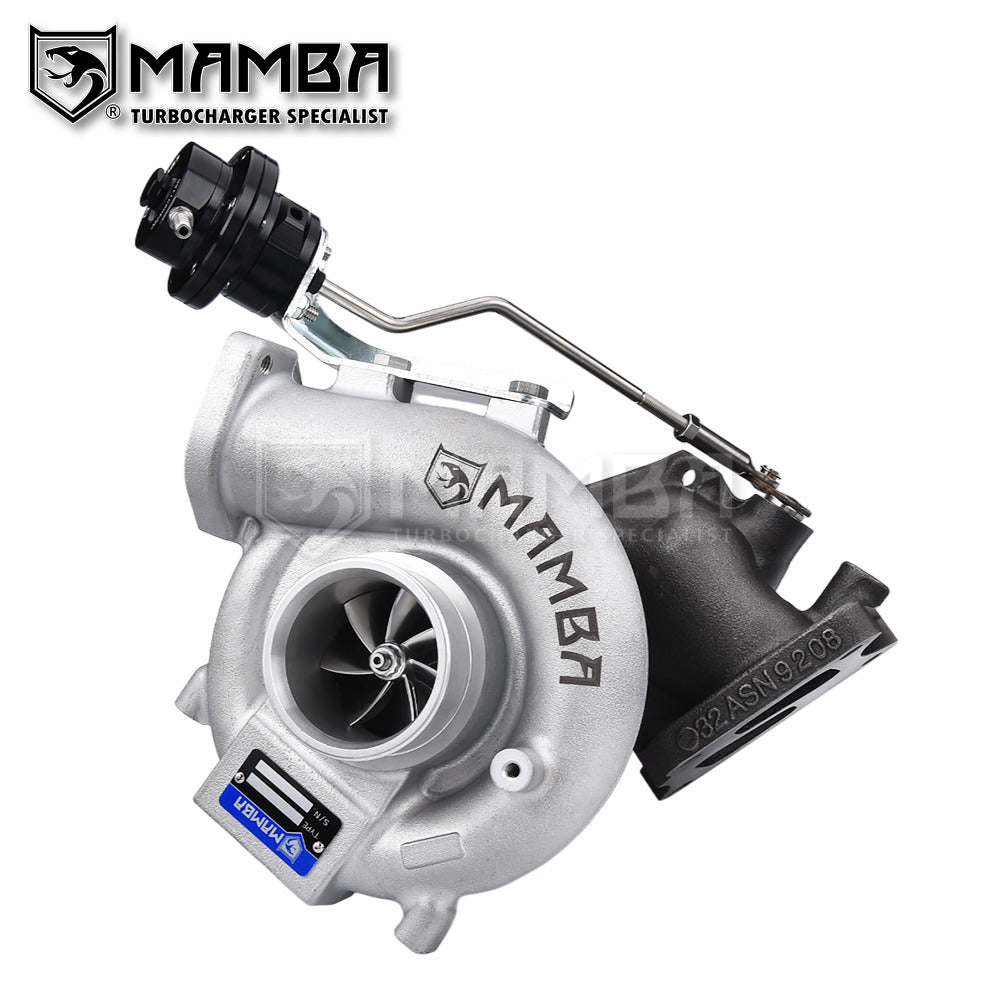

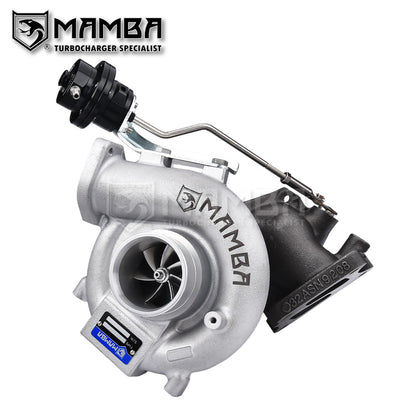

TD05HRB-16G6 Ball Bearing Turbocharger Mitsubishi 4G63T Lancer EVO 4-9
Regular price
$1,145.00
Sale price
$1,145.00
Regular price
Unit price
per
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
ALL ORDERS ARE SUBJECT TO TARIFF CHARGES VIA DHL
Most items are in stock, if not you will be contacted and offered an ETA on restocking or refund option.
Question about this product?
We're happy to help.

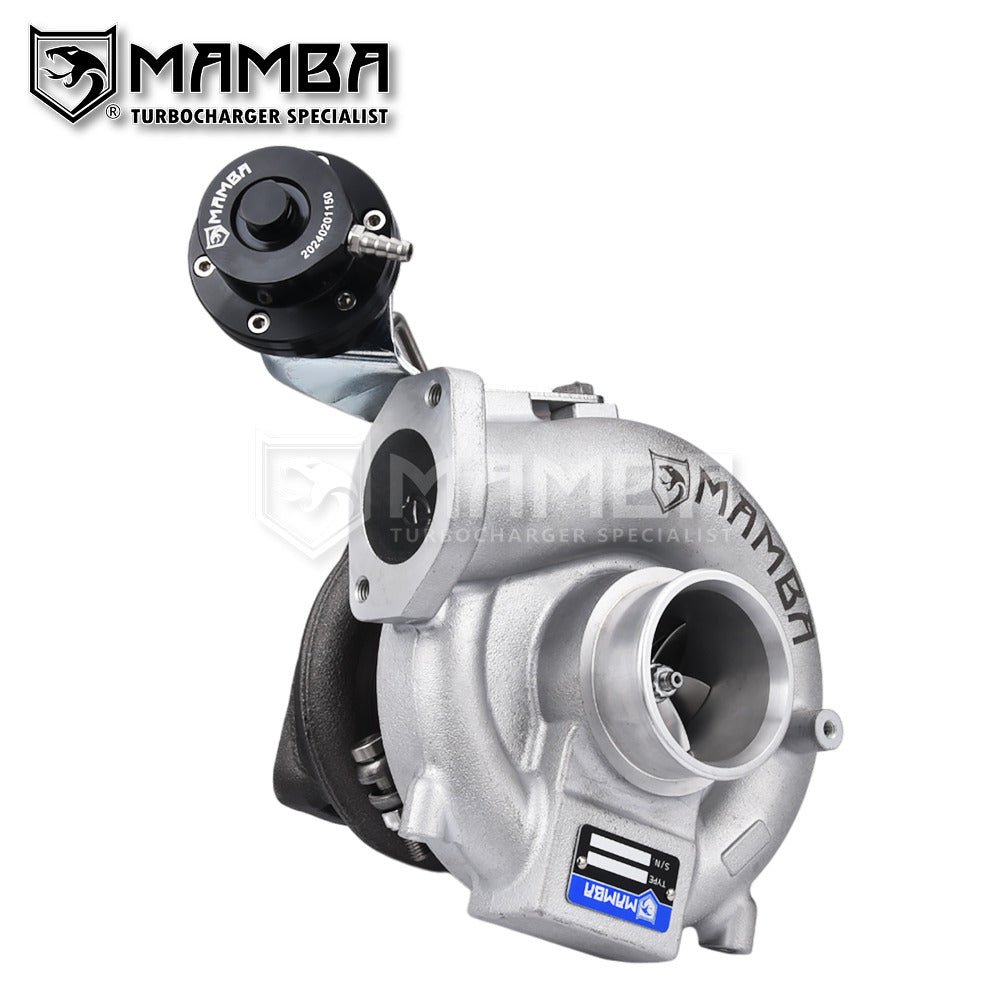

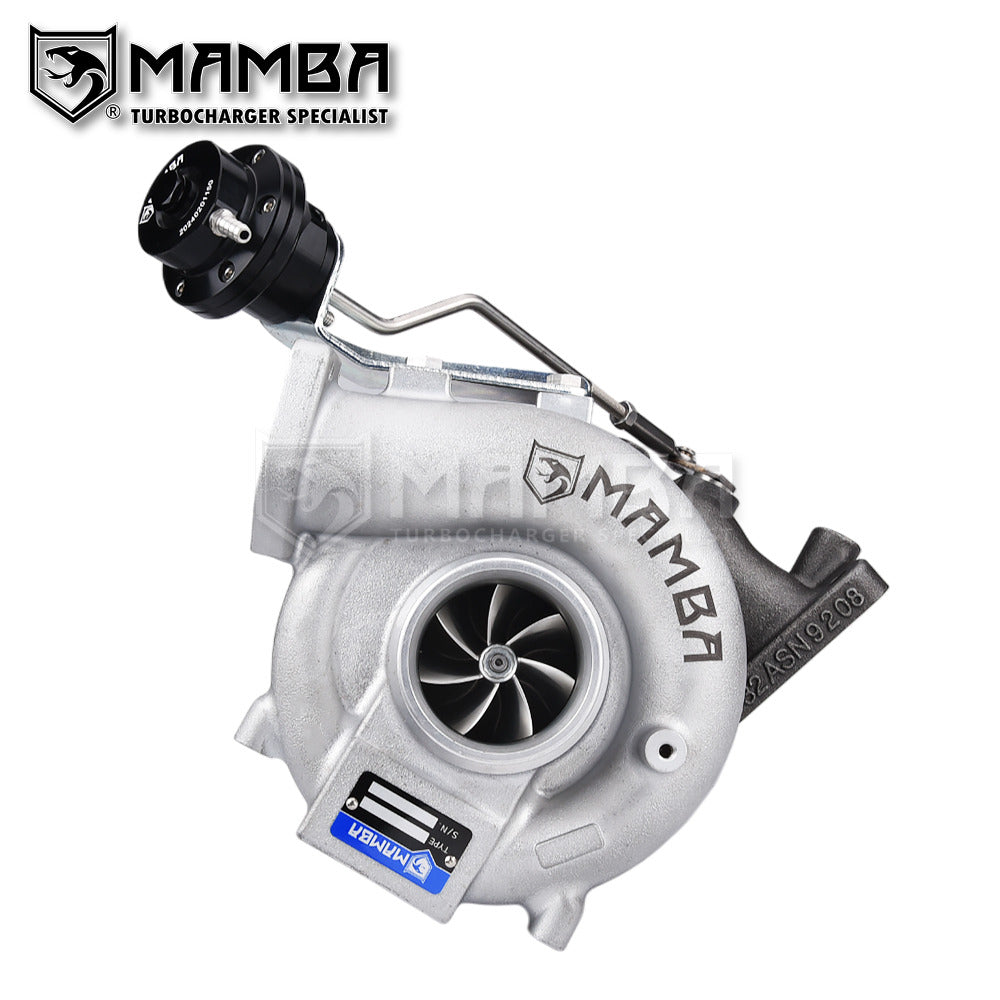

MAMBA D5-7 MBB Bolt-on Mitsubishi 4G63T Lancer EVO 9 TD05HRB-16G6 ball bearing Turbocharger

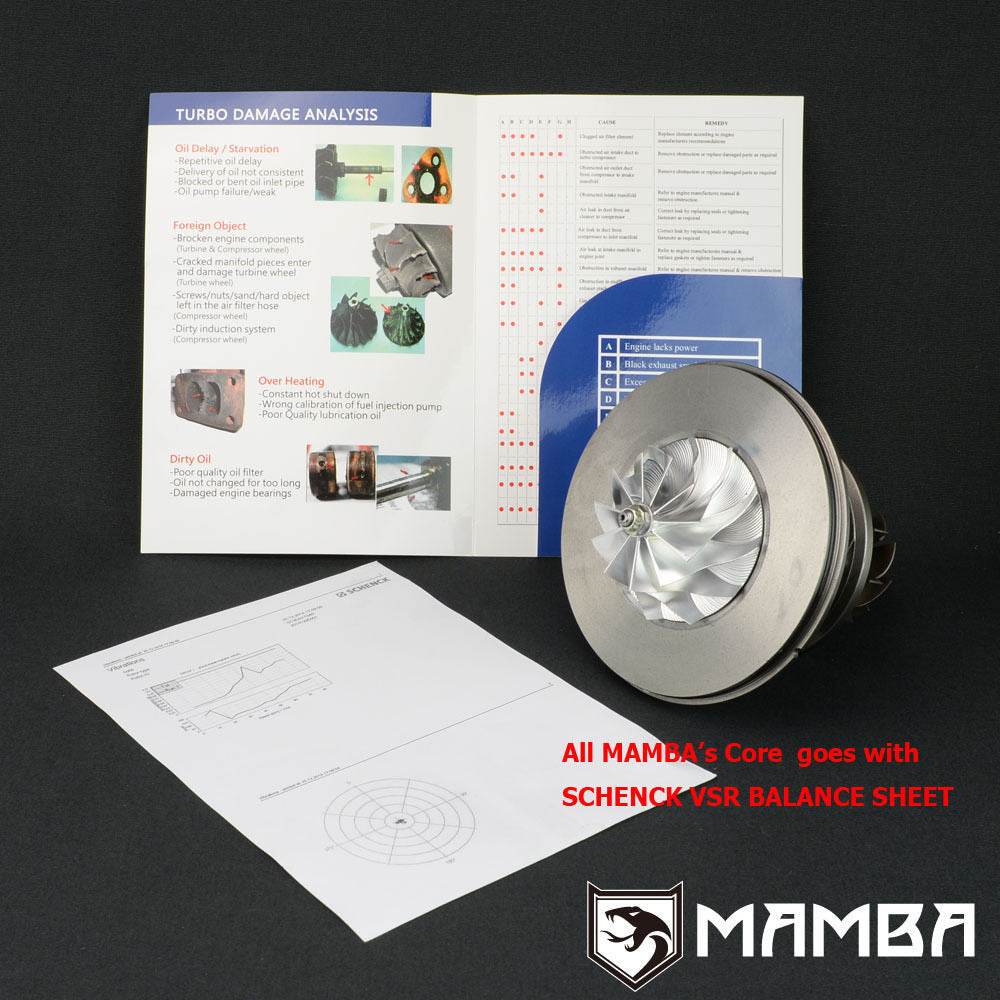

VSR balanced
Application
This MAMBA D5-7 bolt-on ball bearing turbo is designed to go with GTX ball bearing system to make turbo spool quicker than factory Mitsubishi journal bearing system, boost higher and support higher top end.
Support 280~400HP
Max boost: 3.4Bar /Recommend 1.5~1.8bar for daily street car.
Fits vehicles:
Mitsubishi 4G63T 2.0L Lancer Evolution EVO 4~9.
Specs
Compressor wheel: 48.3/68.0/50T/LEP Design/7+7 Blade/ Billet 2618/16G6

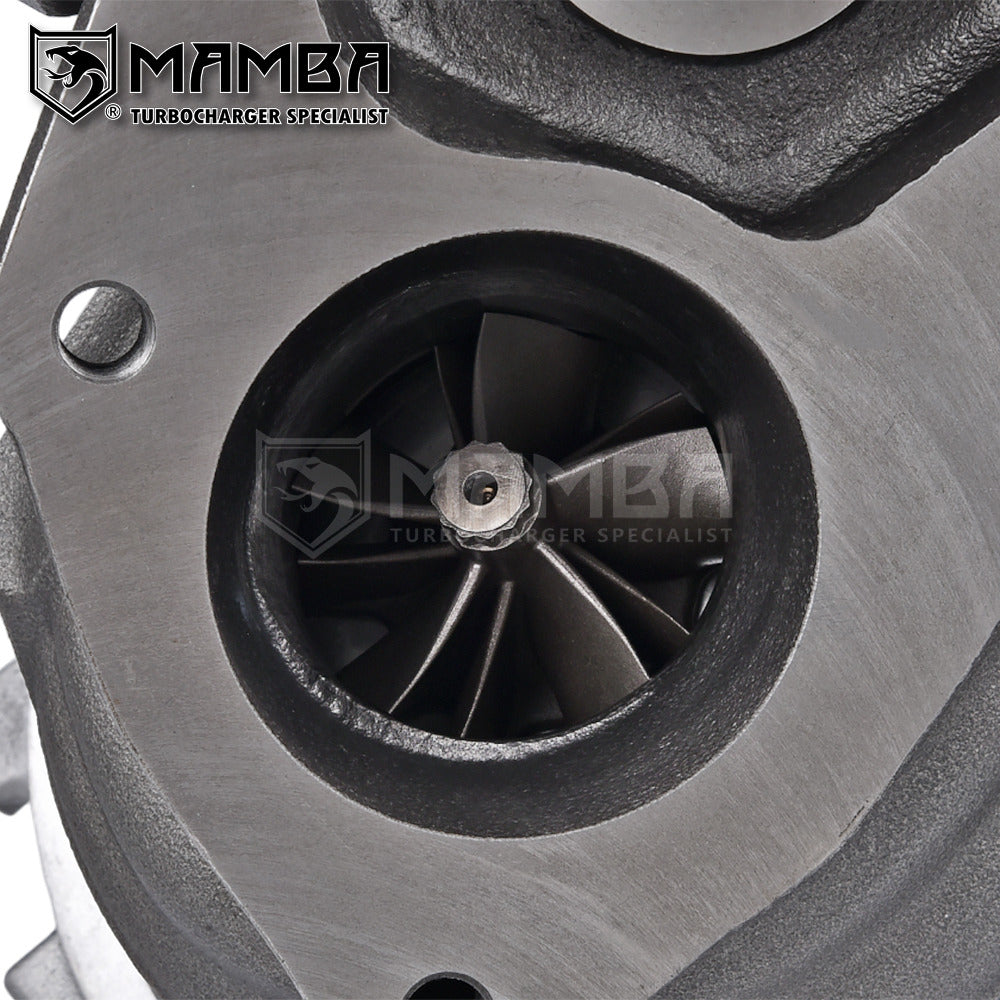

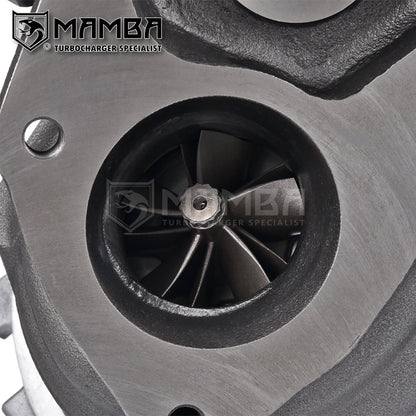

Turbine wheel: 49.1/55.8/77T/D5 Design/5+5 Blade/TD05HRB
Compressor housing inlet OD: 2.25” (57.2mm)
Compressor housing outlet OD: Flanged
Compressor housing A/R: .60
Turbine housing A/R: 77 (10.5cm^2)
Bearing
Ceramic dual ball bearing
Inconel cage
Cooling
Oil & water-cooled

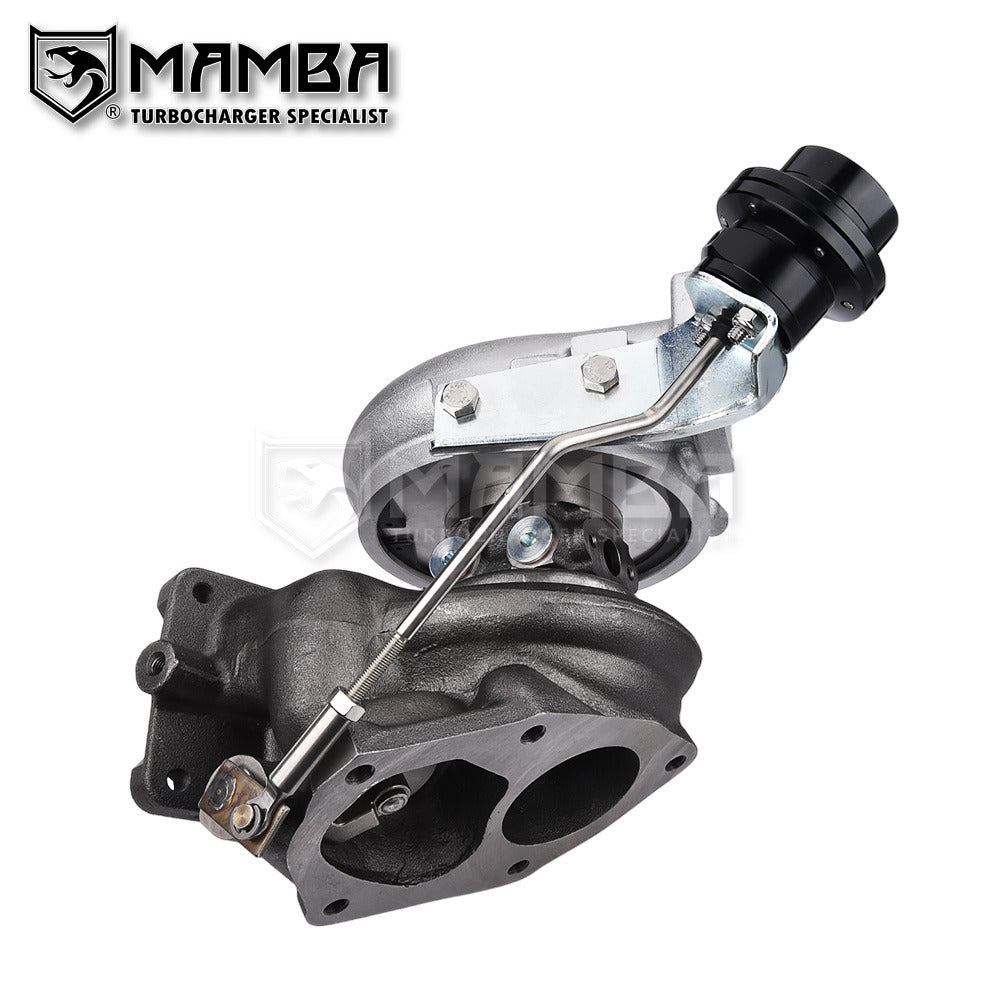

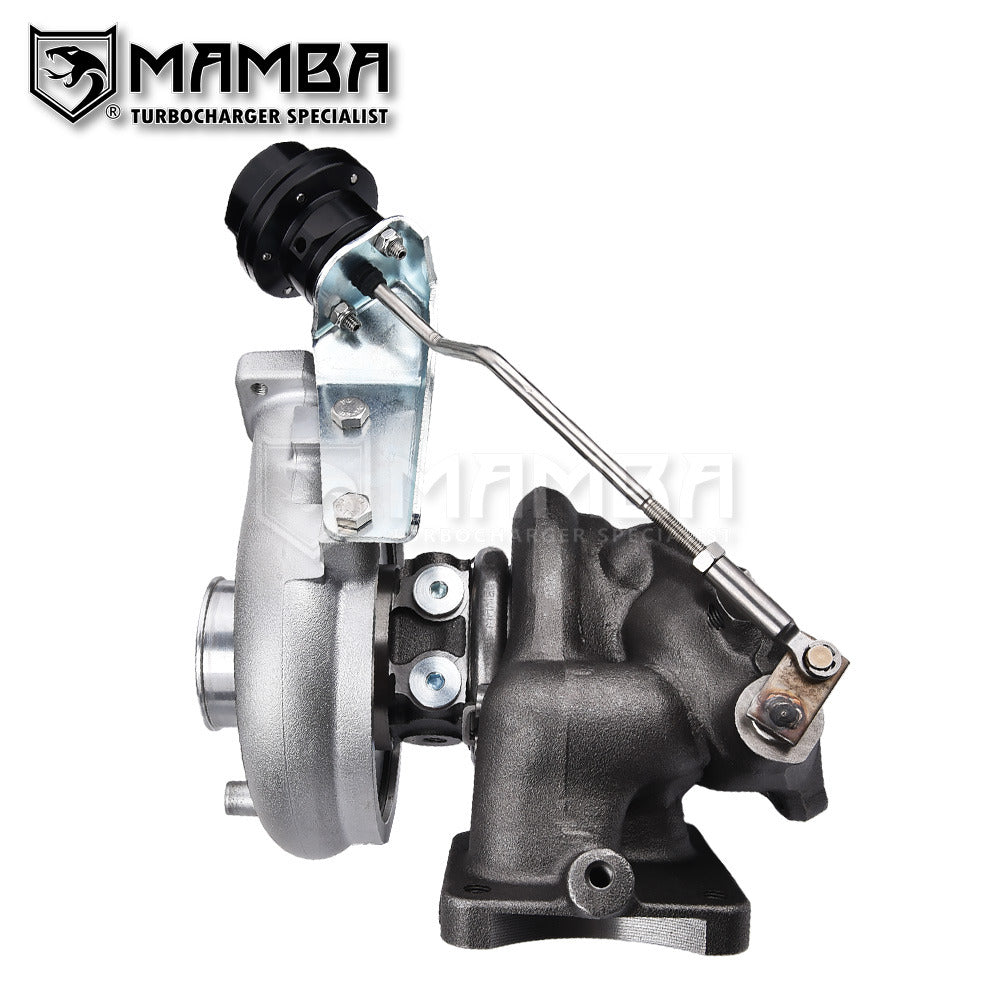

Actuator

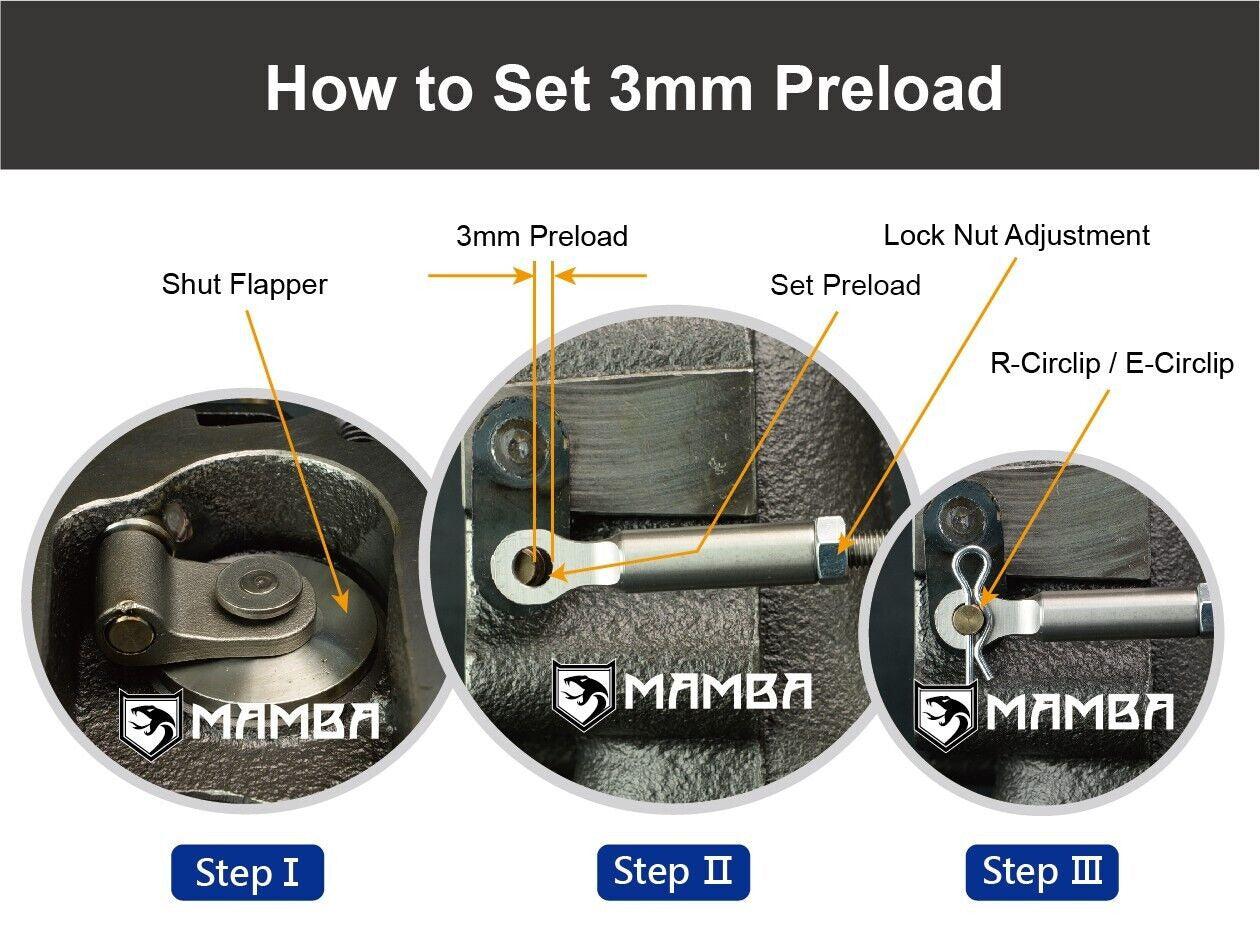

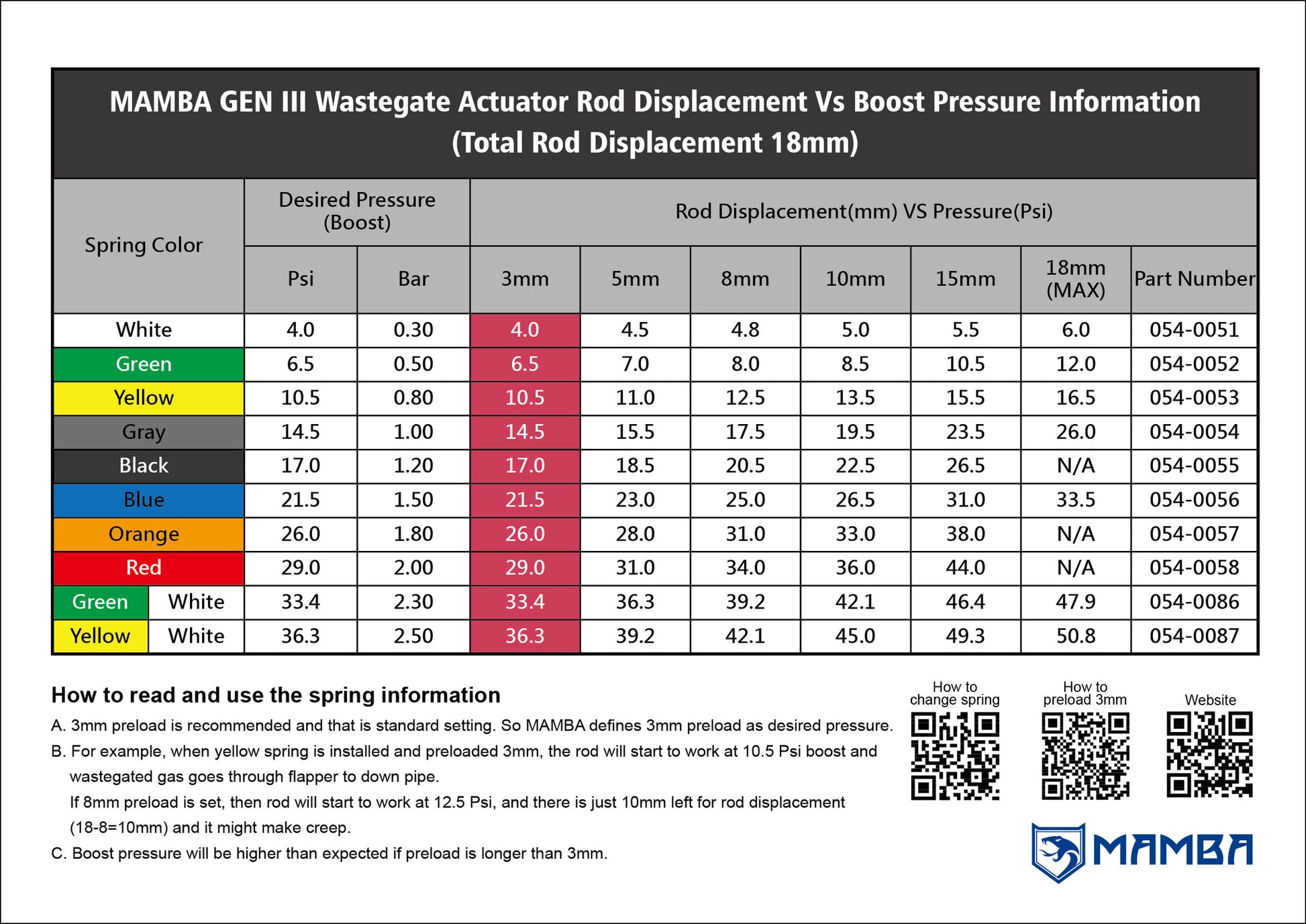

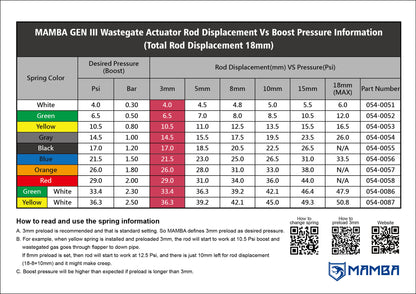

0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.
Kit Includes
1 x MAMBA 2.25” bolt-on EVO 9 ball bearing turbocharger.

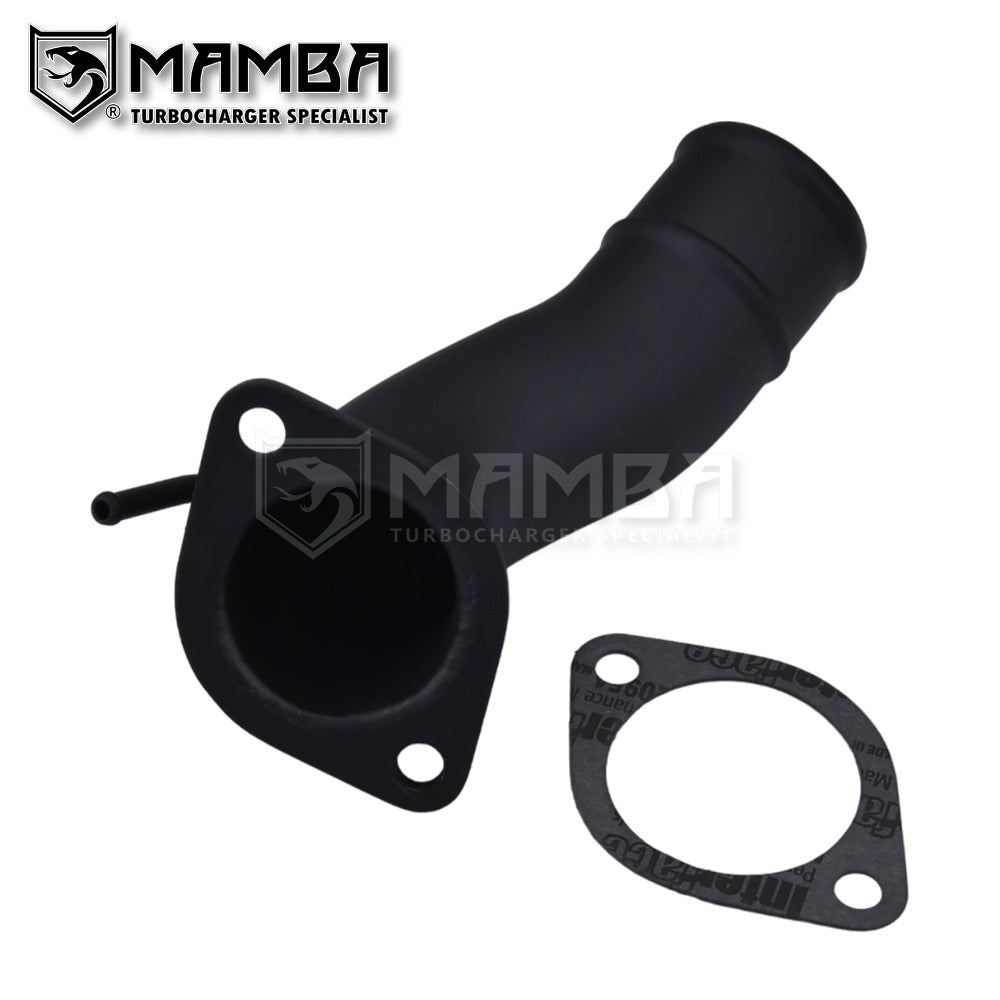

1 x Cover outlet pipe
1 x PTFE Turbo oil feed line kit

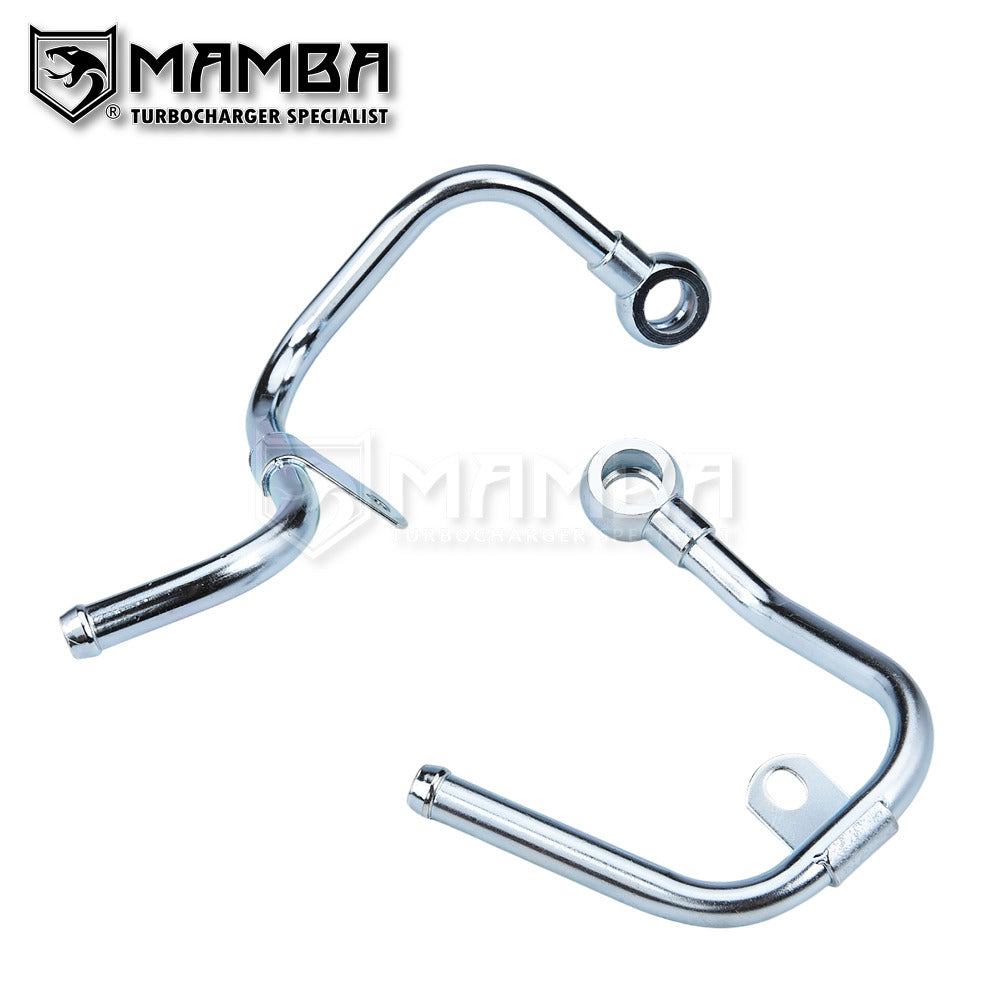

2 x Steel Turbo water line Kit
2 x Turbine inlet & outlet gasket
1 x Vacuum hose kit
9 x Turbine stud kit
Everything shown in the first picture is included.
